ACiQ 4 Ton Extreme+ Ducted Air Handler - R454B

ACiQ SKU: ACIQ-48-PAH
Price:
$1,655.00

Description

Maximize Comfort and Minimize Energy Waste with the ACiQ 4 Ton Extreme+ Ducted Air Handler

The ACiQ 4 Ton Extreme+ Ducted Air Handler ensures your home stays comfortable while significantly cutting energy consumption. With its variable-speed DC blower, this system dynamically adapts to the changing heating and cooling demands of your home, delivering consistent, high-quality comfort throughout the year. Whether it's keeping your space cool during summer or warm through winter, this air handler optimizes performance, ensuring maximum efficiency and cost savings.

Utilizing R454B refrigerant, it offers an eco-friendly and energy-efficient solution for climate control.



Best For:

  • Larger Homes (2,000–2,400 sq ft): Perfect for maintaining consistent comfort across large living spaces.
  • HVAC Installers: Multi-positional installation options (upflow, downflow, or horizontal) allow for flexible and easy setup.
  • Budget-Savvy Homeowners: Save on your utility bills and take advantage of potential rebates and tax credits with high-efficiency performance.
  • Eco-Conscious Consumers: The use of R454B refrigerant helps reduce your environmental impact while enhancing system efficiency.



Why the ACiQ 4 Ton Extreme+ Ducted Air Handler is the Right Choice?

  • Energy Efficiency at Its Best: The variable-speed DC blower automatically adjusts to your home’s needs, reducing energy waste and lowering your energy bills.
  • Reliable Comfort Control: Communicates with your thermostat and outdoor unit to self-adjust BTU output, ensuring your home stays at the ideal temperature all year long.

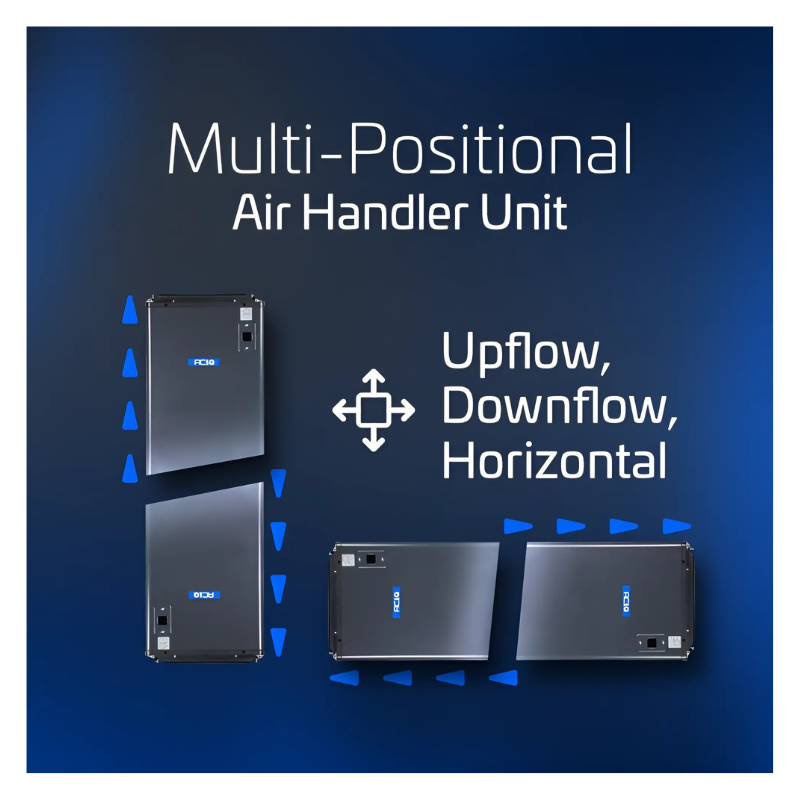

  • Versatile Installation: Can be installed in upflow, downflow, or horizontal positions, making it suitable for a wide range of home layouts.
  • Space-Saving Compact Design: The slim-fit cabinet (21.5" W x 21.5" D x 55.94" H) ensures easy installation in tight spaces, without compromising on performance.
  • Tax Incentive Eligibility: High-efficiency features may qualify you for rebates and tax credits, further enhancing the overall value of the system.
  • Simplified Maintenance: Built-in intelligent controls display fault codes, making it easier to troubleshoot and maintain the system for long-term reliability.
  • Long-Term Durability: Backed by a 7-year parts warranty, providing peace of mind with a reliable and long-lasting system.

ACiQ 4 Ton Extreme+ Ducted Air Handler Features

  • Cooling Capacity – 4 tons, ideal for spaces between 2,000–2,400 sq ft, ensuring reliable performance for larger homes.
  • Variable-Speed DC Blower – Adjusts airflow to match your heating and cooling needs, optimizing comfort and energy efficiency.
  • Flexible Installation Options – Multi-positional design (upflow, downflow, or horizontal) fits various home layouts and spaces.
  • Thermostat Compatibility – Works with any 24v thermostat, allowing for simple and intuitive control of your home’s climate.
  • Slim Design – Compact cabinet (21.5" W x 21.5" D x 55.94" H) fits into tighter spaces, providing more installation options.
  • R454B Refrigerant – Modern, eco-friendly refrigerant that enhances system efficiency while reducing environmental impact.
  • Tax Incentives – High-efficiency performance may qualify you for tax credits and rebates.
  • Warranty – 7-year parts warranty for long-lasting reliability and performance.

ACIQ-48-PAH Specs

Brand/Manufacturer ACiQ
Weight (in lbs) 186.51
Cooling BTU 48,000 BTU
Maximum CFM 1601
Decibel Level (dBA) Up to 53 Decibels
Electric Backup Heat Capabilities (Optional) 5 Kilowatts, 8 Kilowatts, 10 Kilowatts, 15 Kilowatts, 20 Kilowatts
Configuration Multi-Positional
Refrigerant R454B
Liquid Line 3/8"
Suction Line 3/4"
Electrical 208/230V 1 Phase 60 Hz
Max Breaker Size 15 Amps
Min. Breaker Size 14.5 / 10.0 Amps
Tonnage 4 Ton
BTU/Tonnage 48,000 BTU/4 Ton
Mini Split Type Multi-Positional
Zone Compatibility Single Zone
Connection Flared
Height 56"
Width 24.5"
Depth 21.5"
Warranty 12 Years Compressor and 7 Years Parts with Online Registration
