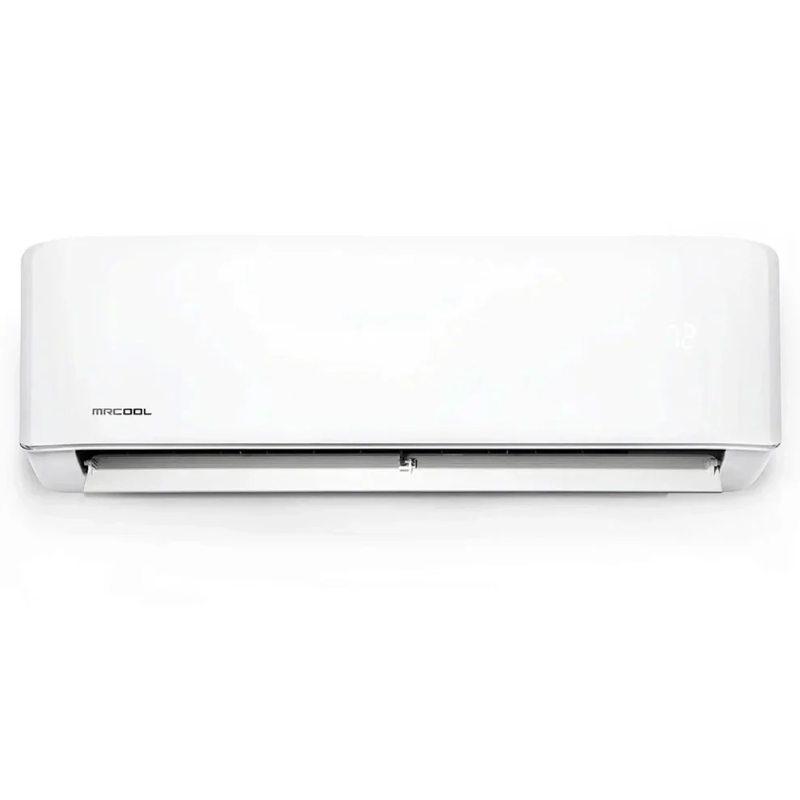

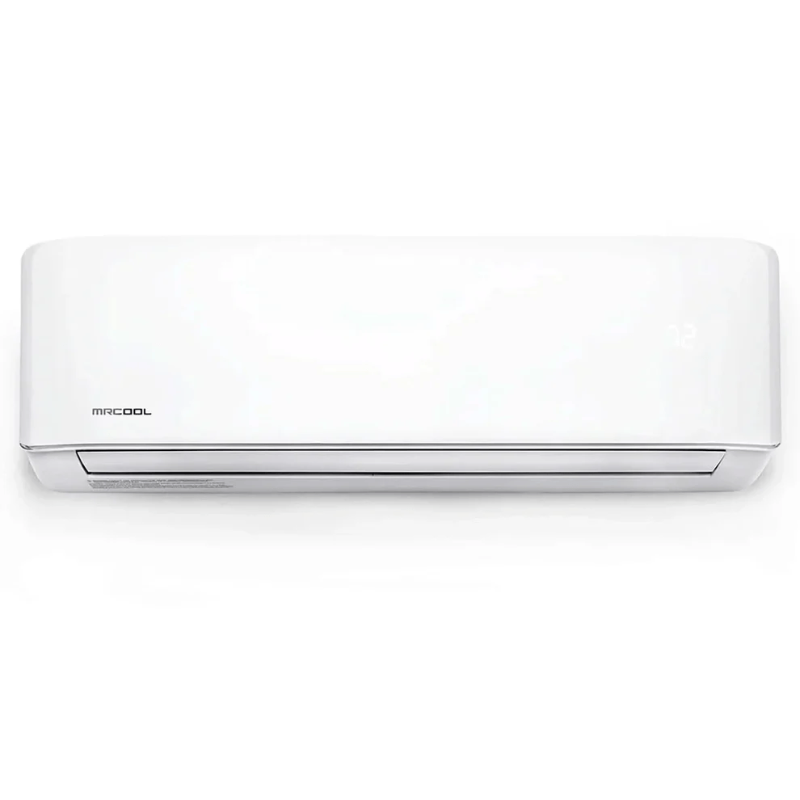

MRCOOL Advantage 36,000 BTU 5th Gen Ductless Mini Split Air Handler - 230V (A-36-HP-WMAH-230D-O)

MRCOOL SKU: A-36-HP-WMAH-230D-O

Choose your location

enter a zip or postal code

Price:
Sale price$641.00

Description

MRCOOL Advantage 5th Gen 36k BTU 230V Air Handler - 18 SEER2

Experience comfort without compromise with this 5th Generation MRCOOL 36k BTU Advantage Series Air Handler. This advanced mini-split unit now features the R454B refrigerant, a new eco-friendly choice that increases energy efficiency, reduces greenhouse gas emissions, and boasts a lower Global Warming Potential (GWP). With an 18 SEER2 rating, this indoor air handler delivers powerful, reliable cooling and heating for large residential spaces without requiring expensive ductwork modifications.

Tailored for larger spaces, this air handler offers a powerful, whisper-quiet heating and cooling solution, making it an ideal choice for homeowners who want both efficiency and affordability in one package. Plus, the ductless design ensures that installation is straightforward, with minimal impact on your home’s structure. The sleek Advantage indoor air handler ensures consistent comfort throughout the year. Integrated Wi-Fi connectivity allows you to adjust and control the system remotely via smartphone, Amazon Alexa, or Google Assistant, even setting it to automatically regulate temperature at night for optimal energy savings while you sleep. This feature not only provides convenience but also ensures that your home remains comfortable without driving up energy costs.

The unit operates on standard 230V electrical service for straightforward installation across most residential properties.

Backed by a comprehensive warranty, you’ll be able to register for the MRCOOL Advantage Series, which is 1 year on parts, 2 years on the compressor, and 1 year on the remote control, providing added peace of mind. You can even enroll in the MRCOOL Care Program and enjoy a Limited Lifetime warranty. Say goodbye to comfort concerns and hello to dependable, energy-efficient climate control with the MRCOOL Advantage - crafted for comfort, designed for durability, and built to keep you worry-free. Experience ultimate comfort without the worry with the MRCOOL Advantage Air Handler!

HVAC Technician Required for Installation.



Ideal For:

  • Licensed HVAC contractors and installation professionals - Premium 36K air handler for high-capacity whole-home system installations, complex upgrades, and large residential projects.
  • Smart home enthusiasts and tech-forward homeowners - Integrated Wi-Fi enables voice commands via Alexa and Google Assistant, plus mobile app control for complete home automation.
  • Homeowners with sprawling properties and multiple zones - 36,000 BTU capacity efficiently cools and heats expansive spaces and complex floor plans up to 1,550+ sq ft.
  • Property owners prioritizing reliability and luxury - Premium engineering delivers exceptional comfort, durability, and long-term performance assurance for high-end homes.



Why Discerning Homeowners Select MRCOOL Advantage 36K Air Handler 230V

  • Maximum Energy Efficiency at Scale - 18 SEER2 rating delivers strong energy savings and substantially reduces operational costs for large residential properties.
  • Exceptional Cooling & Heating Capacity - 36,000 BTU handles expansive rooms and demanding climate control requirements across entire large homes.
  • Smart Home Integration - SmartHVAC Wi-Fi module works with Alexa, Google Assistant, and mobile apps for convenient voice and remote control from anywhere.
  • Eco-Friendly Operation - Advanced R454B refrigerant reduces environmental impact while enhancing system efficiency and reliability.
  • Quiet, Premium Design - Wall-mounted unit operates whisper-quiet with sleek aesthetics that blend seamlessly into luxury residential interiors.



Certifications & Warranty

  • Energy Star Compliant - Meets EPA energy efficiency standards for residential cooling and heating applications
  • 18 SEER2 Energy Rating - Strong energy efficiency for significant utility savings and operational cost management
  • Eco-Friendly R454B Refrigerant - Low Global Warming Potential with reduced greenhouse gas emissions
  • SmartHVAC Wi-Fi Certified - Compatible with Amazon Alexa and Google Assistant voice control ecosystems
  • 1-Year Parts Limited Warranty - Full coverage on air handler components and internal systems
  • 1-Year Remote/Control Warranty - Protection for Wi-Fi module and smart control functionality
  • Limited Lifetime Warranty Option - Available through MRCOOL Care Program enrollment for extended coverage
  • Professional Installation Required - Must be installed by licensed HVAC technician for optimal performance and warranty compliance
  • AHRI certified
  • NEEP ccASHP Listed
  • CEE Tier1 - North

What's Included

Everything you need is included with your Air Handler.

  • Advantage 5th Gen 36k BTU 230V Air Handler
  • SmartHVAC Wi-Fi Control Module (integrated)
  • Communication Cables and Connectors
  • Mounting Hardware and Brackets
  • Installation hardware


MRCOOL Advantage 36K Air Handler 230V Features

  • 36,000 BTU with 18 SEER2 Rating - High-efficiency indoor unit for powerful cooling and heating performance across large residential spaces up to 1,550+ sq ft.
  • 5th Generation R454B Refrigerant - Advanced eco-friendly refrigerant reduces environmental impact while enhancing system efficiency and reliability.
  • Variable-Speed Compressor & Fan Motor - Automatically adjusts output based on demand, ensuring precise comfort while reducing energy consumption and noise.
  • Wall-Mounted Premium Indoor Unit - Sleek, elegant design blends seamlessly with luxury home décor while requiring minimal installation impact.
  • SmartHVAC Wi-Fi Control Module - Integrated connectivity for iOS/Android app access, Amazon Alexa, and Google Assistant voice commands.
  • Sleep Mode Function - Automated overnight temperature adjustments reduce energy consumption while maintaining comfort during sleep hours.
  • Louver Position Memory - System remembers airflow direction preferences for consistent, predictable comfort throughout the day.
  • Automatic Restart Capability - Built-in recovery system restores operation after power interruptions without manual intervention.
  • 230V Standard Electrical Connection - Operates on conventional residential electrical service for straightforward installation across most properties.
  • Professional-Grade Engineering - Designed for licensed HVAC technician installation with integrated refrigerant and electrical connections.

MRCOOL A-36-HP-WMAH-230D-O Air Handler Specs

BRAND NAME MRCOOL
SERIES Advantage 5th gen
MODEL A-36-HP-WMAH-230D-O
GTIN 840255586931
UPC 840255586931
UNIT TYPE Mini-Split
EQUIPMENT TYPE Air Handler
SHORT DESCRIPTION Advantage 5th Gen 36k BTU 230V Air Handler
CFM 882.9 / 732.8 / 518.0 / 400.2 / /
TONNAGE 3
VOLTAGE (V) 208-230
PHASE 1
CYCLE 60
MAX FUSE BREAKER (A) 15
MIN CIRCUIT AMPACITY (A) 3
MOUNT TYPE Wall
COLOR White
DECIBEL RATING (DBA) 44.5
DECIBEL RATING (DBA) 28 (Low)- 56.5(High)
NUMBER OF SPEEDS 5
MAX LINESET LENGTH (FT) 213.2
LIQUID LINE SIZE 3/8
SUCTION LINE SIZE 5/8
FILTER TYPE Reusable
OVERLOAD PROTECTION Yes
APP COMPATIBILITY Yes
WORKS WITH IOS Yes
WORKS WITH ANDROID Yes
UL LISTED Yes
CSA LISTED Yes
ETL LISTED Yes
ENERGY STAR CERTIFIED Yes
AHRI CERTIFIED Yes
REGISTERED WARRANTY Extended Limited Lifetime*
BASE PARTS WARRANTY 1 Year
BASE COMPRESSOR WARRANTY 2 Years
HAS BATTERIES Yes
CONTAINS CHEMICALS Yes
CONTAINS COMPRESSED GAS Yes
PROPOSITION 65 WARNING Yes
NET DEPTH (IN) 11.1
NET HEIGHT (IN) 14.25
NET WIDTH (IN) 49.57
NET WEIGHT (LBS) 40.34
GROSS DEPTH (IN) 17.72
GROSS HEIGHT (IN) 15.16
GROSS WIDTH (IN) 52.76
GROSS WEIGHT (LBS) 54.01

Understanding your MRCOOL warranty coverage ensures long-term system performance and protection. All warranties are non-transferable and valid only at the original installation address.

Warranty Coverage by Series

DIY Series 5th Generation Mini-Splits

Models: DIY-09-HP through DIY-36-HP, DIYCASSETTE, DIY-MULTI series

  • Parts: 5 years from proof of purchase
  • Compressor: 7 years from proof of purchase
  • Remote Control: Included in parts warranty
  • Extended Lifetime Warranty: Available with MRCOOL Care Kit Program enrollment (fee required)
  • Installation: Professional installer NOT required when using MRCOOL Quick Connect Pre-Charged Line Set

Advantage Series Mini-Splits

Models: A-09-HP through A-36-HP series

  • Parts: 1 year from proof of purchase
  • Compressor: 2 years from proof of purchase
  • Extended Lifetime Warranty: Available with MRCOOL Care Kit Program enrollment (fee required)

    Must register within 180 days of purchase
    Covers compressor failure only with one-time condenser replacement
    Requires ongoing Care Kit Program maintenance
Easy Pro Series Mini-Splits

Models: EZPRO-09-HP through EZPRO-24-HP series

  • Parts: 1 year from proof of purchase
  • Compressor: 2 years from proof of purchase
  • Extended Lifetime Warranty: Available with MRCOOL Care Kit Program enrollment (fee required)

Central Ducted Systems

Models: CENTRAL-18-HP through CENTRAL-60-HP, MVP Series

  • Parts: 10 years from installation date
  • Compressor: 10 years from installation date
  • Labor: 10 years (installer responsible for first 90 days)
  • Installation: Professional installer NOT required when using MRCOOL Quick Connect Pre-Charged Line Set

Universal Series Split Systems

Models: UHP series, UAH series Air Handlers

  • Parts: 10 years from proof of purchase
  • Compressor: 10 years from proof of purchase
  • Labor: 2 years limited (begins 91 days after purchase, covers diagnostic and repair costs)
  • Installation: Professional installer required

Inverter Package Series

Models: GCSHPM series, GCSCAM series

  • Parts: 10 years from installation date
  • Labor: 5 years limited (manufacturing defects only, begins 91 days after installation)
  • Installation: Professional installation required

Olympus Series Mini-Splits

Models: MDUO, MDUCO, MDUI series

Owner-Occupied Residences:

  • Parts: 5 years standard, 10 years with registration within 60 days
  • Compressor: 5 years standard, 10 years with registration within 60 days

Commercial Applications:

  • Parts & Compressor: 5 years with registration within 60 days
  • Installation: Professional installer required

Key Warranty Conditions

Product Registration:

  • Register at mrcool.com/warranty to activate extended coverage (where applicable)
  • Registration deadlines vary by series (30-180 days from purchase)

Installation Requirements:

  • Must comply with all federal, state, and local electrical codes
  • Must follow MRCOOL installation instructions
  • Must use new, compatible, MRCOOL-approved components
  • Warranty voids if installed with used or incompatible parts

Warranty Does NOT Cover:

  • Labor, diagnostic, shipping, or installation costs (except where labor warranty applies)
  • Normal maintenance (filter cleaning, lubrication, coil cleaning)
  • Refrigerant costs or energy consumption
  • Damage from improper installation, natural disasters, or electrical issues
  • Units moved from original installation address
  • Units installed outside USA and Canada

How to File a Warranty Claim

Contact MRCOOL:

For Labor Claims (Universal/Inverter Package Series within first 2 years):

  • Phone: (844) 518-2040

Required Documentation:

  • Proof of purchase
  • Product registration confirmation (if applicable)
  • Diagnostic testing results (professional HVAC technician may be required)
  • Defective parts must be returned when requested

For complete warranty terms and conditions, visit mrcool.com/warranty

Replacement parts are covered for the remainder of the original warranty period or 30 days, whichever is longer. Some states do not allow exclusion of incidental or consequential damages. This warranty gives you specific legal rights that may vary by state or province.
