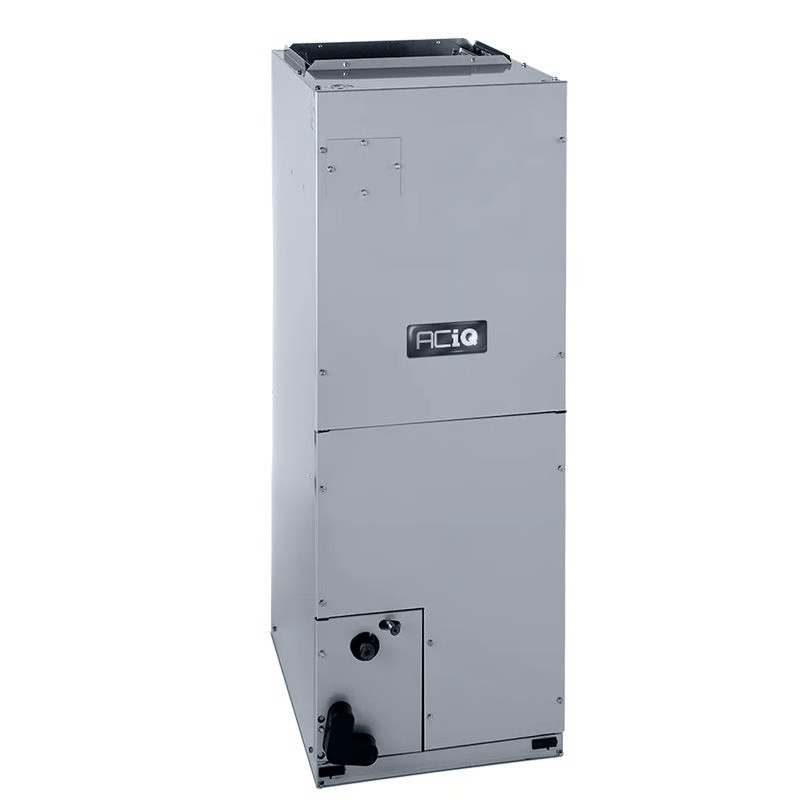

Front of ACiQ 2.5 Ton Central Ducted Air Handler

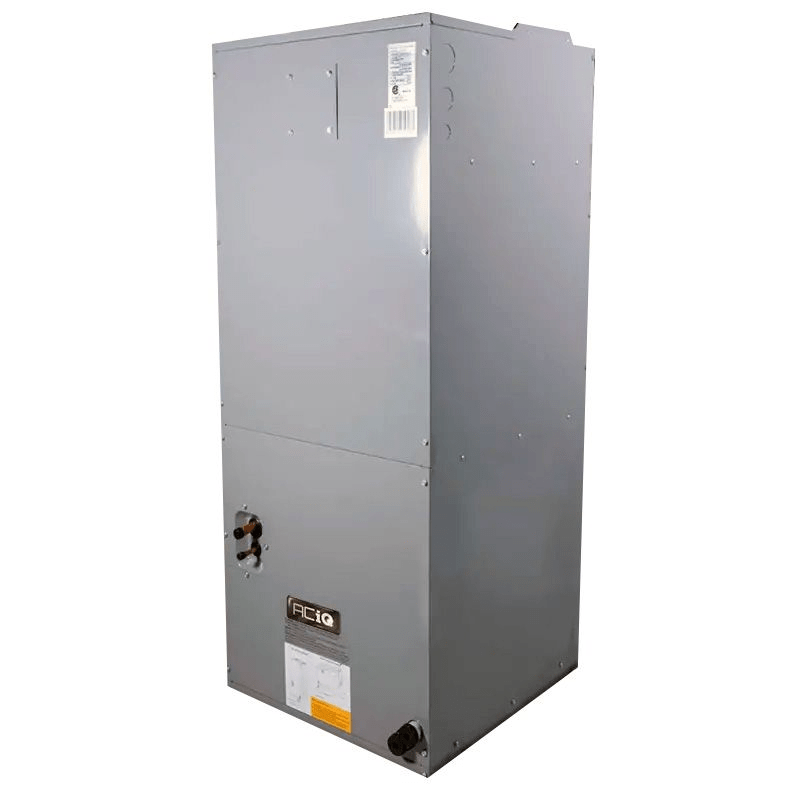

Side of ACiQ 2.5 Ton Central Ducted Air Handler

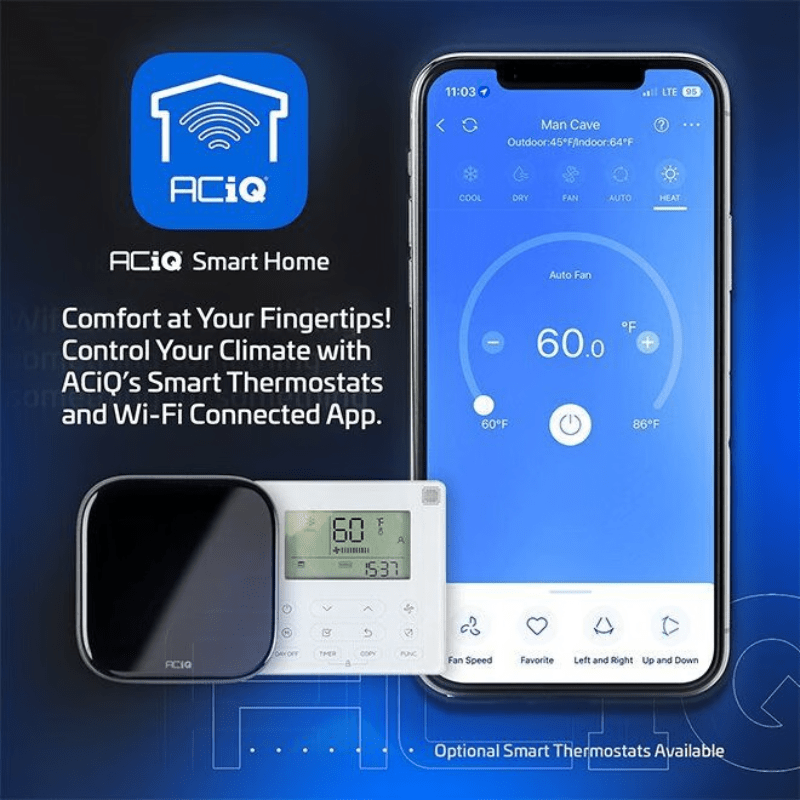

ACiQ 2.5 Ton Central Ducted Air Handler Smart Home App
ACiQ 2.5 Ton Central Ducted Air Handler Configuration Graphics
Roll over image to zoom in Click on image to zoom
Front of ACiQ 2.5 Ton Central Ducted Air Handler Side of ACiQ 2.5 Ton Central Ducted Air Handler ACiQ 2.5 Ton Central Ducted Air Handler Smart Home AppACiQ 2.5 Ton Central Ducted Air Handler Configuration Graphics

ACiQ 2.5 Ton Central Ducted Air Handler - R454B

ACiQ SKU: ACIQ-30-AHD
Price:
$1,207.00

Description

Seamless Comfort Control Starts with the ACiQ 2.5 Ton Central Ducted Air Handler

The ACiQ-30-AHD 2.5 Ton Air Handler combines intelligent airflow management and energy-efficient performance to deliver total home or light commercial comfort. Featuring a variable speed DC blower and advanced communicating technology, it works seamlessly with an inverter condenser to adjust output based on real-time demand. Fully R454B compatible and designed for multi-positional installation, this air handler is ideal for HVAC professionals seeking a future-proof, high-efficiency solution that integrates easily into existing ducted systems.



Ideal For:

✔ Home HVAC System Upgrades – Perfect for replacing traditional single-speed air handlers with a smarter, more efficient option.

✔ New Construction Homes – Offers flexible install options and energy-saving technology ideal for modern HVAC layouts.

✔ Light Commercial Spaces – Quiet and reliable airflow for small offices, retail shops, or hospitality applications.

✔ Manufactured or Modular Buildings – Compact, flexible installation design fits unique structural needs.



Certifications & Safety Features:

  • High Efficiency Support: Up to 18.8 SEER2, 11.0 EER2, and 9.7 HSPF2 when paired with the correct condenser

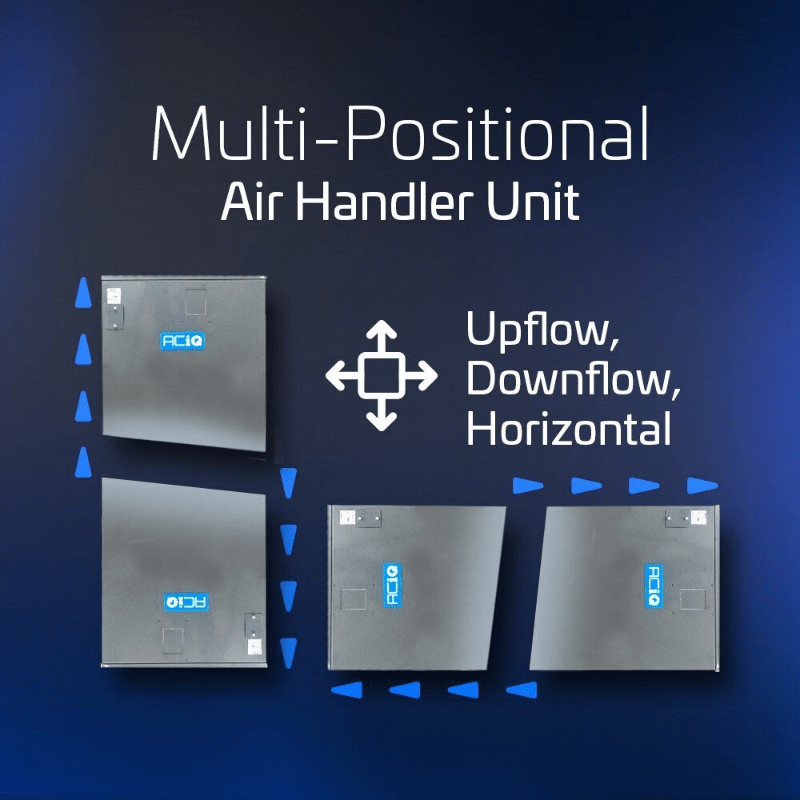

  • Flexible Install Positions: Supports upflow, downflow, horizontal left/right configurations
  • Refrigerant Compatibility: Fully designed for R454B, ensuring compliance with current and future environmental standards
  • Optional R4.2 Insulation: Fiberglass-free, condensation-reducing insulation available
  • Built-in Diagnostic Board: Displays fault codes for quick, accurate maintenance
  • Electric Heat Ready: Compatible with electric heat kits for backup heating during extreme cold

ACIQ-30-AHD Features

  • Variable Speed DC Blower – Maintains consistent airflow, reduces energy use, and improves humidity control
  • Communicating Technology – Automatically adjusts BTU output based on thermostat and condenser input for optimized performance
  • Quiet Operation – Designed for low-noise comfort, ideal for homes or professional spaces
  • Multi-Position Flexibility – Easily installs in a variety of vertical or horizontal configurations
  • Reliable Maintenance – Service-friendly design with built-in diagnostics reduces downtime and labor costs
  • Smart Control Options – Compatible with standard 24V thermostats and advanced controller kits
  • R454B Compatibility – Future-proofed refrigerant integration aligns with upcoming regulatory shifts
  • Powerful Performance – 30,000 BTU capacity distributes conditioned air efficiently throughout the ducted system

ACiQ 2.5 Ton Central Ducted Air Handler Specs

SKU ACiQ-30-AHD
Weight (in lbs) 129
Brand/Manufacturer ACiQ
Replaces ACiQ-30-AHD
Cooling BTU 30,000 BTU
Indoor Airflow (CFM) 989
Decibel Level (dBA) Up to 46 Decibels
Electric Backup Heat Capabilities (Optional) 5 Kilowatts, 10 Kilowatts, 15 Kilowatts
Configuration Multi-Positional
Refrigerant R454B
Liquid Valve Size 3/8"
Suction Valve Size 3/4"
Electrical 208/230V 1 Phase 60 Hz
Max Breaker Size 15 Amps
Min. Breaker Size 8.0 / 6.0 Amps
Tonnage 2.5 Ton
BTU/Tonnage 30,000 BTU/2.5 Ton
Mini Split Type Multi-Positional
Zone Compatibility Single Zone
Connection Flared
Height 52.6"
Width 21"
Depth 21"
Warranty 12 Years Compressor and 7 Years Parts with Online Registration

ACiQ Industry-Leading Warranties
ACiQ stands behind every product with exceptional warranty coverage, ensuring long-term reliability and peace of mind. Online registration is required to activate full warranty benefits.

Product Warranty Details

  • Mini Split and High-Efficiency Systems: 12-year compressor, 7-year parts
  • ACiQ Essentials: 6-year compressor, 4-year parts
  • A.C. and Heat Pump Condenser: 10-year compressor and coil
  • Furnace: Lifetime warranty for original owner
  • Air Handler and Coil: 10-year parts for original owner
  • Residential Packaged Units: Lifetime heat exchanger for original owner
  • PTAC: 7-year compressor, 1-year parts
  • Commercial Packaged Units: 10-year heat exchanger, 5-year compressor, 1-year parts
  • Pool Heat Pump: 5-year heat exchanger and compressor, 3-year parts
  • Hybrid Water Heater: 12-year tank, 10-year parts
  • Mobile Home Electric Furnace and Coil: 10-year parts

Warranty Claim Process

  1. System Diagnosis
  2. Method of Resolution
  3. Warranty Acceptance
  4. Faulty Parts Inspected
  5. Replacement Parts Shipped

Register Your System
Activate your warranty at ACiQ.com.

Need Assistance?
For warranty claims or inquiries, click here.
