Wiring a MrCool mini split correctly keeps your system running safely and efficiently. If you get the breaker size wrong or use wire that's too small, it'll cause tripped breakers, overheated wires, or a system that won't start. This guide walks you through exactly what you need to wire your MrCool mini split right the first time.
This guide walks you through exactly what you need to wire your MrCool mini split right the first time. We'll cover the electrical specs that matter, how to pick the right breaker and wire size, where the disconnect goes, and the wiring mistakes that cause problems.
Whether you're installing a DIY unit or working with an electrician, you'll know what's required to meet code and keep your mini-split working as it should.
How MrCool Mini Split Wiring Works
Mr Cool DIY Hyper Heat 12000 BTU 5th Gen Mini Split
MrCool mini-splits operate on a split electrical system, where the outdoor condenser acts as the powerhouse and does the heavy lifting, while the indoor air handler uses minimal power. The outdoor unit houses the compressor and supplies low-voltage control signals back to the indoor unit through pre-installed communication wiring. The communication cable between indoor and outdoor units comes pre-installed in MrCool's quick-connect line sets.
Also, power requirements depend entirely on unit size. Smaller 9,000- and 12,000-BTU units run on standard 115-volt household current. Once you jump to 18,000 BTU and larger, you need 230-volt power with dedicated wiring, a double-pole breaker, and a disconnect box near the outdoor unit.
Understanding this setup matters because it tells you where your electrical work focuses. You need proper wire sizing, breaker protection, and a disconnect for the outdoor unit.
Electrical Specs (Voltage, Amps, BTU)
Here's what you'll see across MrCool's lineup:
- 12,000 BTU units draw around 5-6 amps during normal operation, with a Maximum Overcurrent Protection (MOP) rating around 15 amps and a Minimum Circuit Ampacity (MCA) around 6-8 amps.
- 18,000 BTU units pull roughly 7-9 amps during operation, with MOP ratings around 20 amps and MCA values around 9-11 amps.
- 24,000 BTU units draw approximately 10-12 amps at full load, with MOP ratings around 25 amps and MCA values around 12-15 amps.
You'll find these numbers on the label attached to your specific unit. Technically, the label shows two numbers:
- MCA (Minimum Circuit Ampacity) - which tells you the minimum wire capacity you need
- MOP (Maximum Overcurrent Protection) – tells you the maximum breaker size allowed.
Tip:
Don't guess these numbers or use generic sizing charts; check your unit's label. MrCool's specifications can vary slightly between model years and specific configurations. A 24,000 BTU DIY unit has different electrical requirements than a 24,000 BTU Advantage or Olympus model.
Breaker Size for Mr Cool Mini Splits
Mr Cool DIY Hyper Heat 12,000 BTU 5th Gen Mini Split
Your breaker size comes directly from the MOP rating on your unit's label, and as mentioned above, this is the maximum breaker size the manufacturer allows.
For example, for a 12,000 BTU MrCool unit with a 15-amp MOP, you'll install a 15-amp double-pole breaker. Some electricians prefer a 20-amp breaker if the MOP allows it to give a bit more headroom, but never exceed what the label specifies.
Tip:
Always check your local electrical code requirements. Some jurisdictions require specific breaker types or have rules about GFCI protection for outdoor equipment. The National Electrical Code (NEC) sets the baseline, but local codes can be more restrictive.
How to Choose the Right Wire Size and Wire Gauge
Choosing the correct wire size for a MrCool mini split comes down to two things:
- The MCA (Minimum Circuit Ampacity) is listed on the unit's nameplate. It tells you the minimum current the wire must safely carry.
- The distance you'll run the wire from your electrical panel to the outdoor condenser. It tells you whether you need to go one size thicker to prevent voltage drop.
To choose the right wire size, start by looking at the data label on the outdoor unit. You'll see both MCA and MOCP listed. The MCA is what determines your minimum wire requirement. No matter how short the run is, don't use a wire gauge smaller than what the MCA calls for. That number is the current the unit can draw during normal operation, and the wire must be able to handle it without overheating. MOCP stands for Maximum Overcurrent Protection. This tells you the maximum size circuit breaker or fuse allowed to protect the circuit.
Distance is the second factor people often overlook. As the wire length increases, the resistance increases. That resistance causes a voltage drop, which makes the mini split work harder, reduces efficiency, and creates extra heat in the wire. This is why longer runs often require stepping up to a wire gauge one size larger than the minimum.
For most residential MrCool installations using copper wire and runs under 100 feet, these combinations work well:
- 12,000 BTU units (MCA around 6–8 amps): 14-gauge copper works for very short runs under 50 feet, but 12-gauge is a safer choice for longer runs and provides helpful headroom.
- 18,000 BTU units (MCA around 9–11 amps): 12-gauge copper is sufficient for most installations up to 100 feet.
- 24,000 BTU units (MCA around 12–15 amps): 12-gauge works up to about 75 feet. For longer runs, step up to 10-gauge.
- 36,000 BTU units (MCA around 18–22 amps): 10-gauge copper is standard. Very long runs may require 8-gauge.
These recommendations assume you are using copper conductors. Aluminum wire has different ampacity ratings and requires special connectors and anti-oxidation treatment. In most homes, copper is preferred because it's easier to work with and more widely accepted by inspectors.
Read more: MrCool Easy Pro vs DIY
Wiring the Outdoor Unit (Condenser)
The outdoor unit gets power from your electrical panel through a dedicated circuit. Here's the sequence most installations follow:
Step 1: Install the Circuit Breaker
Install the appropriate circuit breaker in your electrical panel, sized according to the unit's Maximum Overcurrent Protection (MOP) rating. Ensure you shut off the main breaker before beginning work.
Strip about ½ inch of insulation from each conductor, insert the wires fully into the breaker terminals, and tighten to the manufacturer's torque specification (commonly 15–20 in-lb). After tightening, gently pull on each conductor to confirm it is secure.
Step 2: Mount the Disconnect Box
Mount a weatherproof AC disconnect (pull-out or switch type) on an exterior wall near the condenser. Position it within sight of the unit, typically 4–6 feet above grade, so it remains accessible yet protected from snow accumulation or standing water. This disconnect provides the required local means of shutting off power for servicing or emergencies.
Step 3: Run the Line Wires
Run the supply conductors from the main panel to the LINE terminals of the disconnect. For 240-volt systems, this consists of two hot conductors and one equipment ground. Use wiring methods approved for the environment:
- THHN/THWN conductors in conduit for outdoor or exposed runs
- NM-B cable for interior runs where permitted by code
Secure the wiring properly and protect it from physical damage along its route.
Step 4: Install the Flexible Conduit (Whip)
Install a short length of liquid-tight flexible conduit between the disconnect and the condenser. This "whip" protects the conductors and allows the unit to move slightly without stressing the electrical connections. Use appropriate fittings on both ends to maintain a watertight seal.
Step 5: Connect the Load Wires
Pull the conductors through the whip and terminate them on the LOAD side of the disconnect and at the outdoor unit's terminal block. These terminals are labeled L1 and L2.
Torque all connections to specification, as loose connections can cause arcing and overheating, while over-tightening can damage terminals.
Step 6: Ground the System
Attach the bare or green grounding conductor to the grounding lugs in both the disconnect and the condenser chassis. A solid-ground connection protects against electric shock if a fault energizes the unit's metal cabinet. Ensure the connection is clean, tight, and free of corrosion.
Step 7: Secure and Dress the Wiring
Install strain-relief fittings wherever cables enter enclosures to prevent tension on terminals. Route conductors neatly using the provided clips or channels, and confirm no wires are pinched when reinstalling access covers. This is because a pinched conductor may initially function but later fail due to insulation damage.

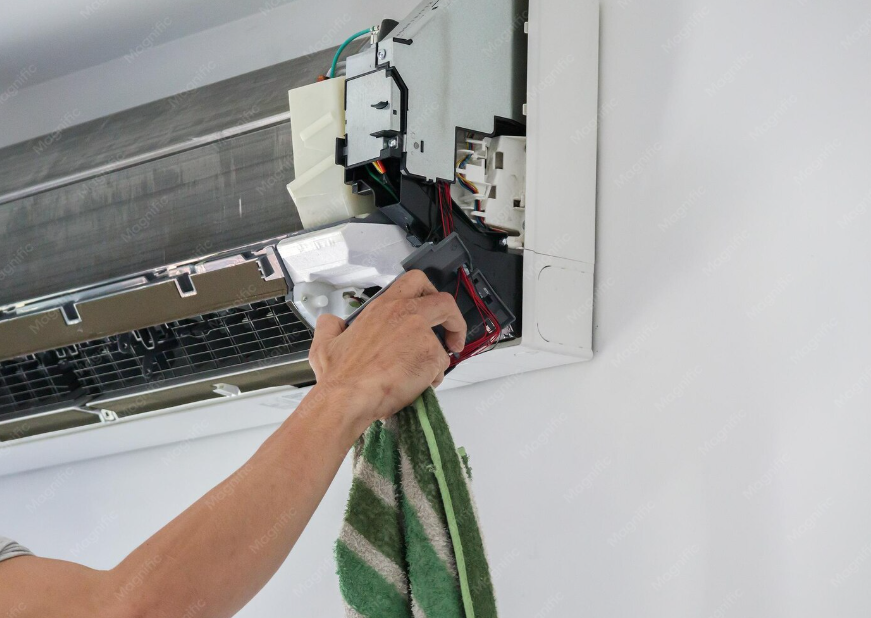

Wiring the Indoor Unit
MrCool's 4th generation systems include the DIYPRO™ cable, which simplifies the indoor-to-outdoor connection. Here's the correct sequence for indoor wiring:
Step 1: Feed the Cable
Pass the pre-attached DIYPRO™ cable from the back of the indoor unit through the wall sleeve along with the refrigerant lines. This cable combines high-voltage power and communication signals in a single weather-resistant assembly, eliminating the need for separate conduit runs.
Step 2: Outdoor Connection
On the outdoor unit, open the electrical access panel and locate the matching socket for the high-voltage/communication connector. Plug the DIYPRO™ cable connector into this socket. It's designed to fit only one way to prevent incorrect wiring.
Step 3: Mechanical Security
Screw the waterproof gland or nut on the cable connector into the outdoor unit's chassis. This provides strain relief and creates a weather-tight seal that protects the connection from moisture, insects, and physical damage.
Step 4: Avoid Splices
Never cut or splice the DIYPRO™ cable to extend it. This cable carries both line voltage and communication signals. Any field splice can cause signal interference, voltage drop, or safety issues. If you need additional length, use only official MrCool extension cables designed to maintain the integrity of both power and communication signals.
Note:
Wiring an outdoor condenser involves line-voltage circuits, grounding requirements, and code-mandated disconnects. Any small mistake can result in a fire, electric shock, equipment damage, or failed inspections. That said, ensure the wiring is handled by a licensed electrician familiar with local electrical codes and HVAC equipment requirements.
Common Wiring Mistakes
1. Wrong Breaker Size
Using a breaker that's too large for your wire or your unit's MOP rating is one of the most common mistakes. If your unit's label says "MOP 20A" and you install a 30-amp breaker, the breaker won't trip when it should. Your wire could even overheat before the breaker disconnects the circuit. Always match your breaker to the MOP rating, not to what breaker you happen to have available or what seems like it should work.
2. Incorrect Wire Gauge
Running wire that's too small causes a voltage drop and overheating. A 14-gauge wire on a 20-amp circuit violates code and creates a fire hazard. And when a wire heats up under normal load, the insulation can eventually fail. Even if the wire doesn't create an immediate problem, undersized wiring can make your mini-split work inefficiently. That said, check your wire gauge against both the MCA rating and the run length. And when in doubt, go one size larger on the wire gauge.
3. Missing or Improper Disconnect
Electrical code requires a disconnect switch to be installed within sight of the outdoor unit for safety and servicing. If the disconnect is missing or placed where the technician cannot see the unit from the switch, it violates code and creates a safety risk during maintenance.
The disconnect must be weatherproof and rated for the unit's amperage. Use a proper outdoor disconnect box with either a pull-out fuse block or a breaker-style switch that can handle the full current draw of the mini split.
4. Ignoring Unit Label Specs
Every MrCool unit includes a data label that lists its exact electrical requirements, such as voltage, MCA (Minimum Circuit Ampacity), MOP (Maximum Overcurrent Protection), and sometimes recommended wire and breaker sizes. These values can differ between models, even if the units have the same BTU rating.
Don't assume that one 24,000 BTU MrCool system has the same electrical needs as another. Always check the label on your specific unit and use those specifications to size your circuit, rather than relying on generic charts or assumptions.
Safety and Code Compliance
If you're not comfortable working in your electrical panel or running new circuits, hire a licensed electrician. Opening your panel and installing breakers isn't hard, but mistakes can be dangerous or expensive.
Overall, you need an electrician if:
- Your panel is full, and you need to upgrade or replace it
- You're not confident in identifying which wires are hot
- Local code requires licensed electricians for all electrical work
- Your installation involves complex wiring through walls or underground conduit
- You have an older home with aluminum wiring or other non-standard electrical systems
Many jurisdictions require permits and inspections for new electrical circuits. Even if you do the work yourself, you might need a licensed electrician to sign off on it or an inspector to verify it meets code. Always check your local requirements before you start.
HVAC Electrical Safety Best Practices
- Always turn off the power at the breaker before working on electrical connections. Don't trust switches or disconnects alone. Go to the main panel and flip the breaker off. Test with a voltmeter to confirm power is off before touching any wires.
- Use proper tools and materials. A twist-on wire connector rated for 20 amps won't safely handle 30 amps, no matter how well you tighten it.
- Follow NEC and local codes. The National Electrical Code sets minimum standards for safe electrical work, but your local jurisdiction might have additional requirements.
- Protect outdoor connections from weather. Use weatherproof boxes, covers, and wire rated for wet locations.
- Don't work alone on electrical projects. If something goes wrong, you want someone there who can shut off the power or call for help.
- Test your work before buttoning everything up. Once you've made all your connections, turn the power back on and verify the unit operates correctly. Also, listen for any unusual sounds. Watch the breaker to make sure it doesn't trip.
- If anything seems wrong, like voltage is low, the breaker trips, the unit won't start, turn off power, and troubleshoot before you close up walls or seal the electrical compartment. It's much easier to fix problems when everything is still accessible.
Conclusion
Wiring a MrCool mini split correctly comes down to using the right breaker size, wire gauge, and disconnect based on your specific unit's electrical requirements. Check the label on your outdoor unit for MCA and MOP ratings, use those numbers to size your circuit, and follow code requirements for disconnect location and wire type.
The outdoor unit handles the main electrical load and needs a dedicated circuit from your panel. The indoor unit connects via a low-voltage control cable provided by MrCool. Get the outdoor unit wiring right, make sure your connections are tight and weatherproof, and your system will run safely and efficiently for years.
If you're not confident working with 240V power or your local code requires licensed electricians for this work, hire a professional. The cost of proper installation is less than the cost of fixing a system that was wired incorrectly, and it's definitely less than the cost of dealing with a fire caused by undersized wire or an oversized breaker.
