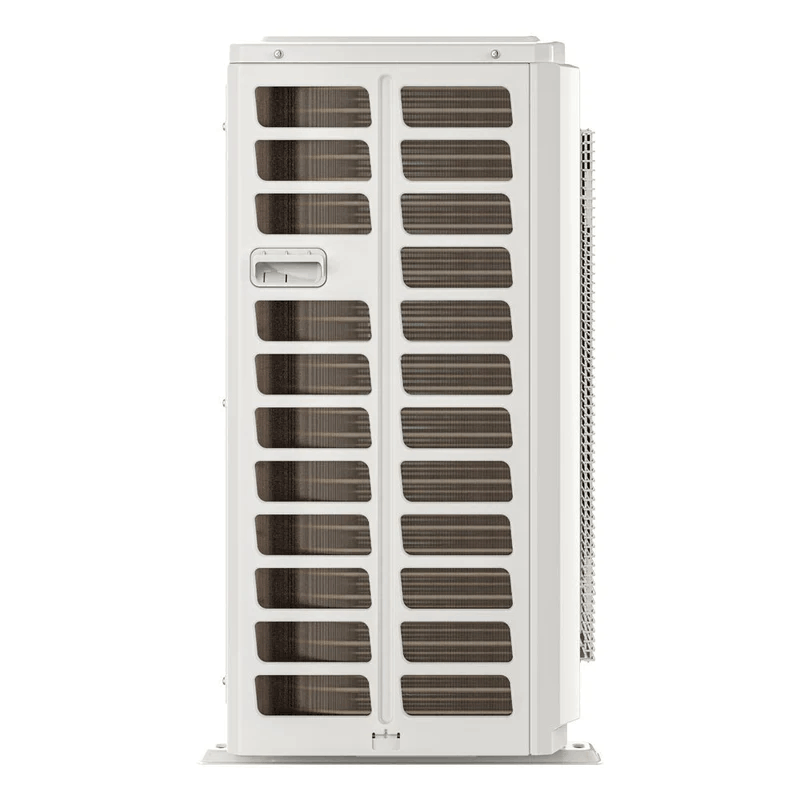

mrcool versapro 60000 btu 5 ton central ducted system condenser side

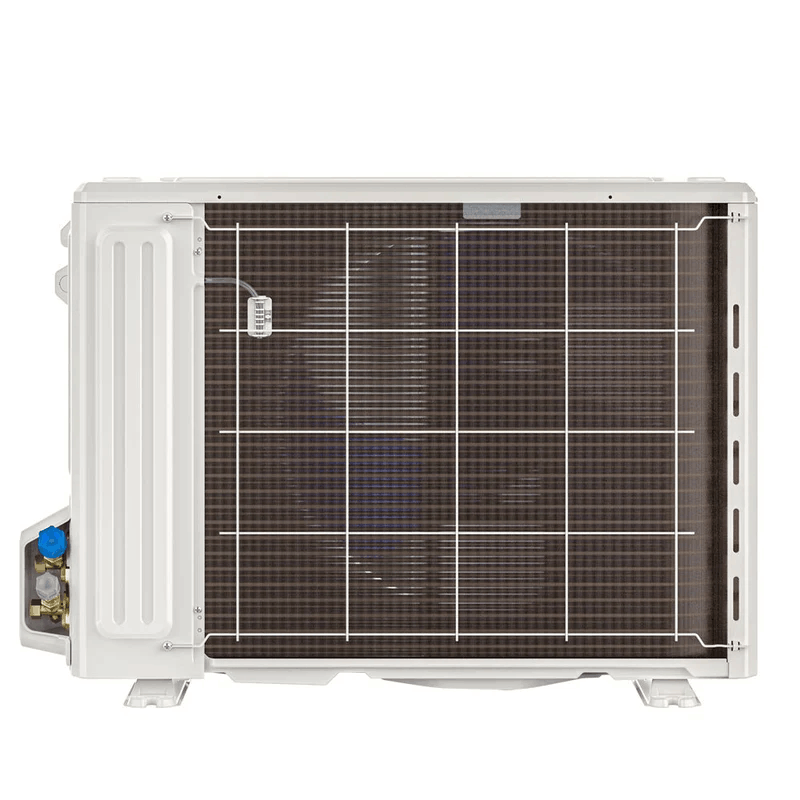

mrcool versapro 60000 btu 5 ton central ducted system condenser back
mrcool versapro 60000 btu 5 ton central ducted air handler

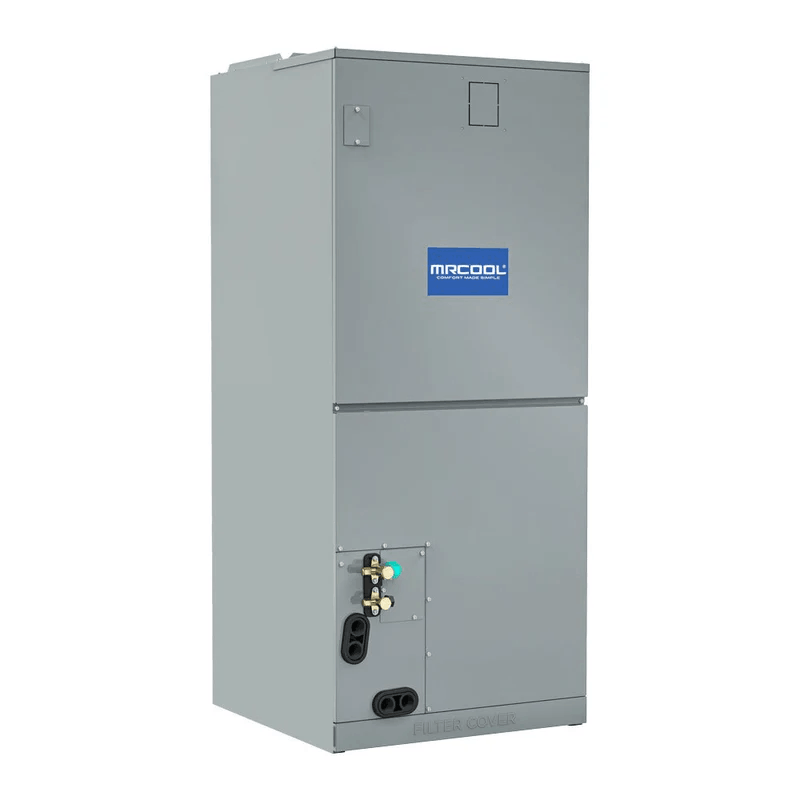

mrcool versapro 60000 btu 5 ton central ducted air handler front

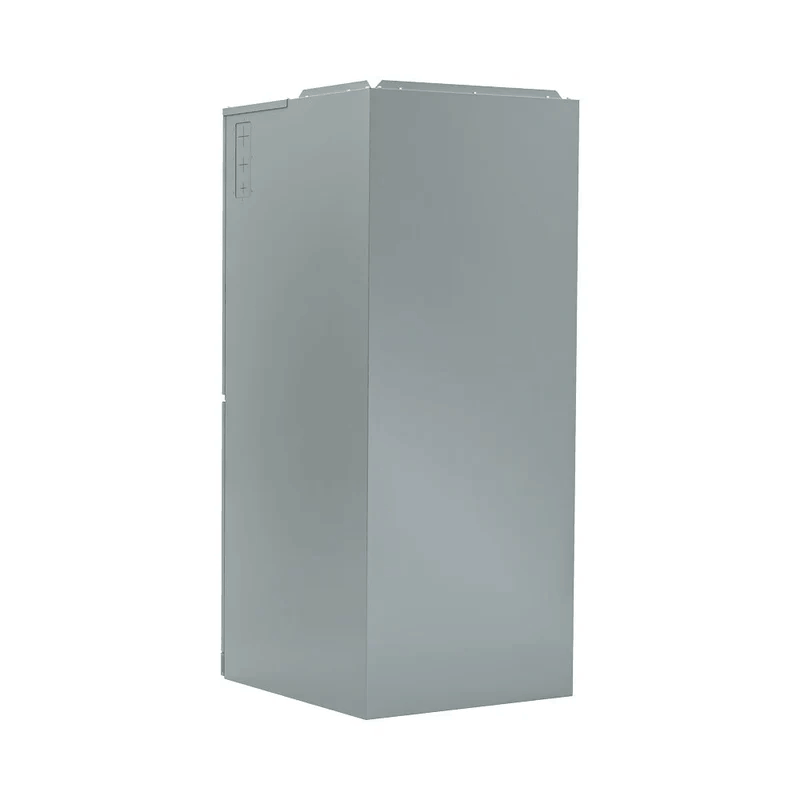

mrcool versapro 60000 btu 5 ton central ducted air handler side
mrcool versapro 60000 btu 5 ton central ducted air handler back
mrcool versapro 60000 btu 5 ton central ducted remote

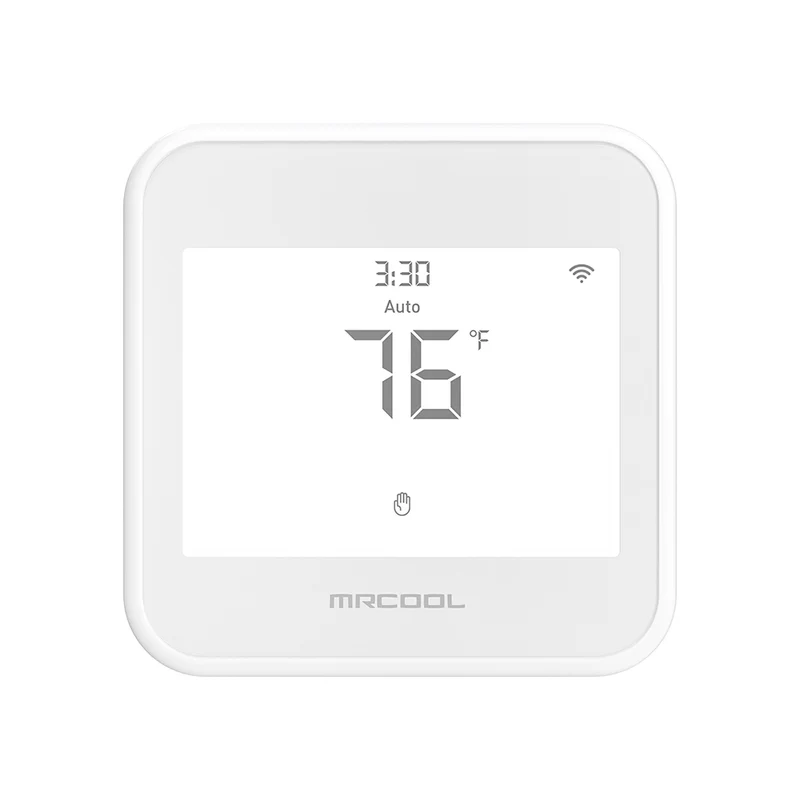

MRCOOL VersaPro 60000 btu 5 ton Smart Thermostat
mrcool versapro 60000 btu 5 ton central ducted heat pump condenser system precharged lineset
mrcool versapro 60000 btu 5 ton central ducted heat pump condenser system lineset fittings
mrcool versapro 60000 btu 5 ton central ducted heat pump condenser system no vac lineset
mrcool versapro 60k btu 2nd gen brochure
Roll over image to zoom in Click on image to zoom
mrcool versa pro 2nd gen 60k btu systemmrcool versapro 60000 btu central ducted heat pump systemmrcool versapro 60000 btu 5 ton central ducted system condensermrcool versapro 60000 btu 5 ton central ducted system condenser frontmrcool versapro 60000 btu 5 ton central ducted system condenser sidemrcool versapro 60000 btu 5 ton central ducted system condenser backmrcool versapro 60000 btu 5 ton central ducted air handlermrcool versapro 60000 btu 5 ton central ducted air handler frontmrcool versapro 60000 btu 5 ton central ducted air handler sidemrcool versapro 60000 btu 5 ton central ducted air handler backmrcool versapro 60000 btu 5 ton central ducted remoteMRCOOL VersaPro 60000 btu 5 ton Smart Thermostatmrcool versapro 60000 btu 5 ton central ducted heat pump condenser system precharged linesetmrcool versapro 60000 btu 5 ton central ducted heat pump condenser system lineset fittingsmrcool versapro 60000 btu 5 ton central ducted heat pump condenser system no vac linesetmrcool versapro 60k btu 2nd gen brochure

MRCOOL VersaPro 60,000 BTU (5 Ton) 2nd Gen Central Ducted Heat Pump System - 15.2 SEER2 (MVP-60-HP-230A00-O)

MRCOOL SKU: MVP-60-HP-230A00-O

Choose your location

enter a US zip code

Price:
$4,185.00

Description

MRCOOL VersaPro 60,000 BTU 5 Ton 15.2 SEER2 Central Ducted Heat Pump System - 2nd Gen

Introducing the new 2nd Gen MRCOOL VersaPro 60,000 BTU 5 Ton Central Ducted Heat Pump System, a variable speed 60K unit boasting an impressive SEER2 of 15.2 and HSPF4 of 8.4. With a DC inverter, this advanced yet affordable unit guarantees excellent operation and reduced utility costs, making it an exceptional upgrade option. Installation is simplified thanks to the unit’s compatibility with the No Vac Quick Connect Line Sets and coupler kits, fast and straightforward setup for professional HVAC technicians.

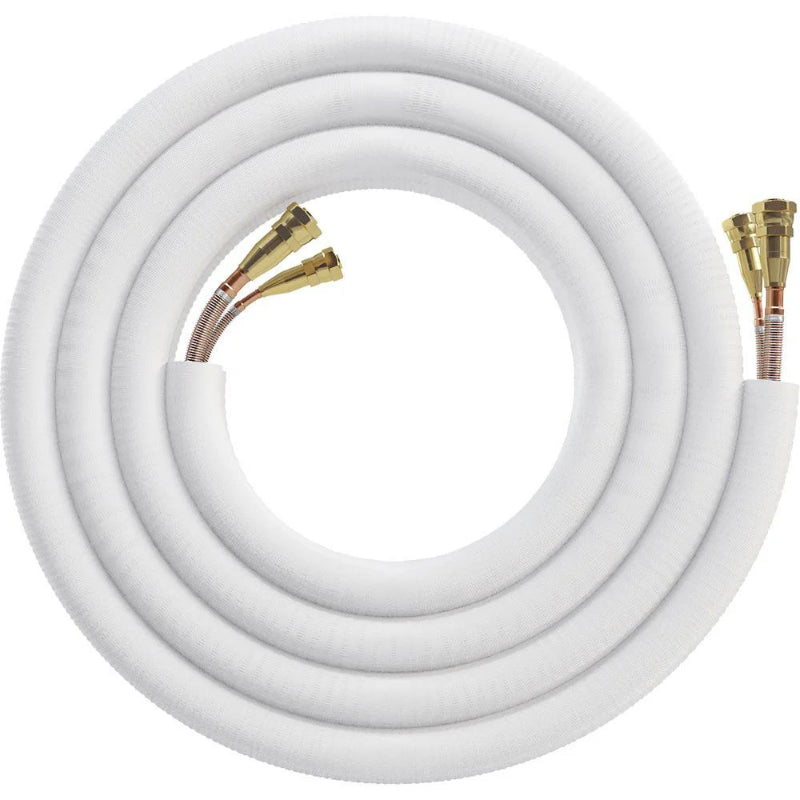

Precharged with eco-friendly R-454B refrigerant, this line set eliminates the need for vacuuming and ensures a seamless connection. This unit features a robust build and finish utilizing painted galvanized steel, ensuring longevity. Additionally, the condenser has a compact, side-discharge design and self-diagnostic capabilities simplify maintenance efforts. Moreover, the 10-year parts and compressor warranty offers added peace of mind and provides hassle-free coverage in the event of unexpected issues.

The MRCOOL VersaPro 60K presents an exceptional and cost-effective option for maintaining year-round comfort in your home efficiently, quietly, and effectively. With its ability to cover an average of 2,500 square feet of space and boasting a SEER2 rating of 15.2, this heating and cooling system serves as a dependable upgrade from older units. Constructed with durable painted galvanized steel, this air handler ensures long-term performance and reliability. Its easily accessible removable filter and self-diagnostics panel simplify maintenance tasks by facilitating quick identification of error codes.

Installation versatility is a key feature of the 5 Ton MRCOOL VersaPro Central Ducted System, allowing for positioning in various configurations such as upflow, downflow, and horizontal orientations. Additionally, an optional heat kit is available for enhanced functionality. Furthermore, the inclusion of a wired thermostat offers convenient and reliable temperature control in any space.

Investing in the 5 Ton MRCOOL VersaPro Central Ducted System comes with the added assurance of a 10-year parts and compressor warranty provided by MRCOOL, offering comprehensive coverage and enhancing ease of ownership.



Ideal For:

  • Homeowners with expansive properties requiring ultimate capacity - Dependable 15.2 SEER2 and 8.4 HSPF4 ratings provide solid efficiency for the largest homes requiring 5-ton coverage.
  • Largest homes and multi-zone estates - 5-ton capacity efficiently covers approximately 2,500 square feet with consistent temperature management throughout.
  • Professional contractors on maximum-scale residential projects - No-Vac Quick Connect compatibility and multi-position design streamline ultimate-capacity installations.
  • Experienced DIY installers on large-estate projects - User-friendly Quick Connect and self-diagnostics make professional installation achievable at maximum residential capacity.



Why Customers Choose The VersaPro 60K Heat Pump System

  • Ultimate 5-Ton Variable-Speed Performance - DC inverter technology delivers continuous adjustment for consistent comfort and efficiency at maximum residential capacity.
  • Dependable Energy Efficiency - 15.2 SEER2 cooling and 8.4 HSPF4 heating performance ensure reliable utility management and year-round operation.

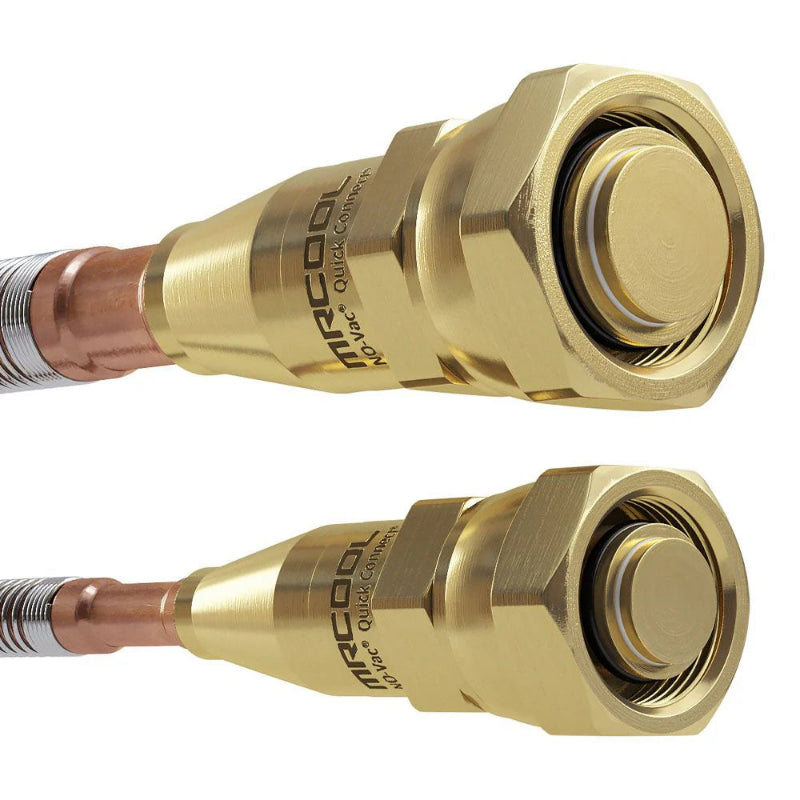

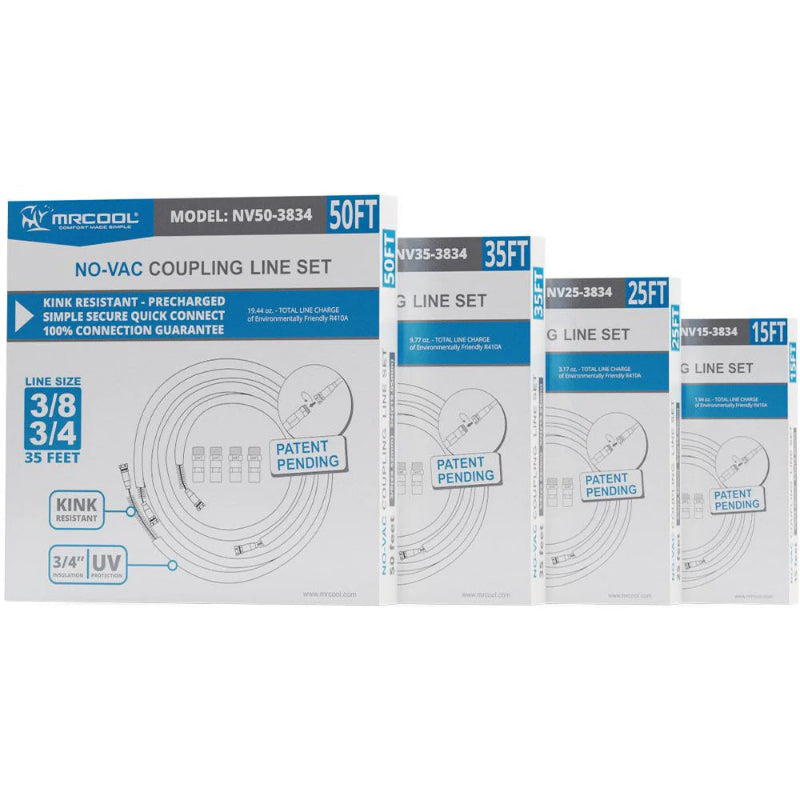

  • No-Vac Quick Connect Advantage - Compatible with MRCOOL pre-charged R-454B line sets and couplers (sold separately) that eliminate vacuuming.
  • Complete Installation Flexibility - Upflow, downflow, and horizontal configurations accommodate any mechanical space across the largest properties.
  • Full 10-Year Warranty Protection - Comprehensive parts and compressor warranty from MRCOOL delivers confidence for your maximum-capacity investment.

What's Included

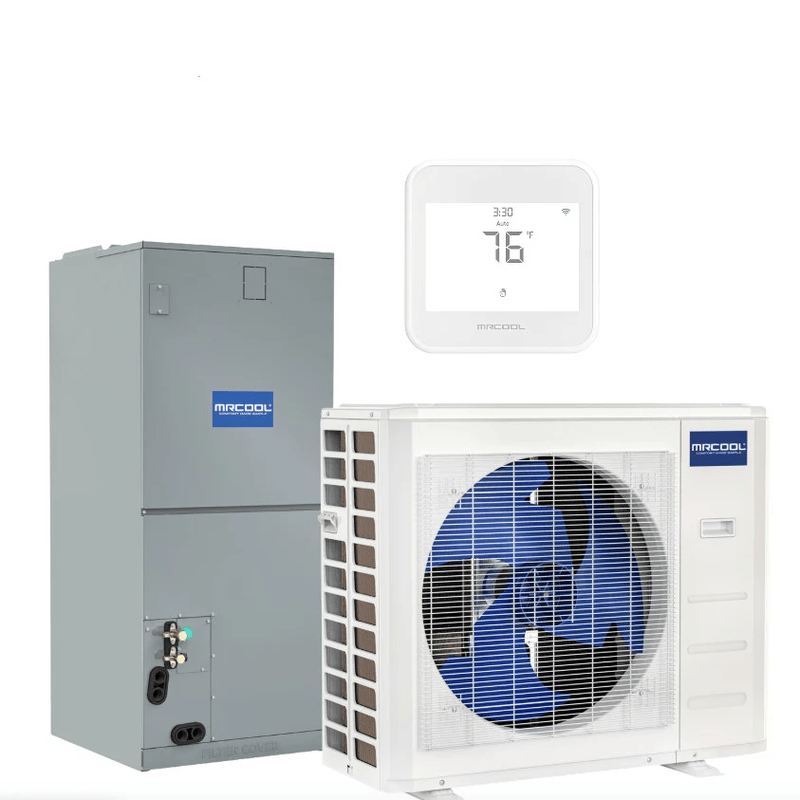

Everything you need is included with your MRCOOL VersaPro 60K 2nd Gen Central Ducted Heat Pump System.

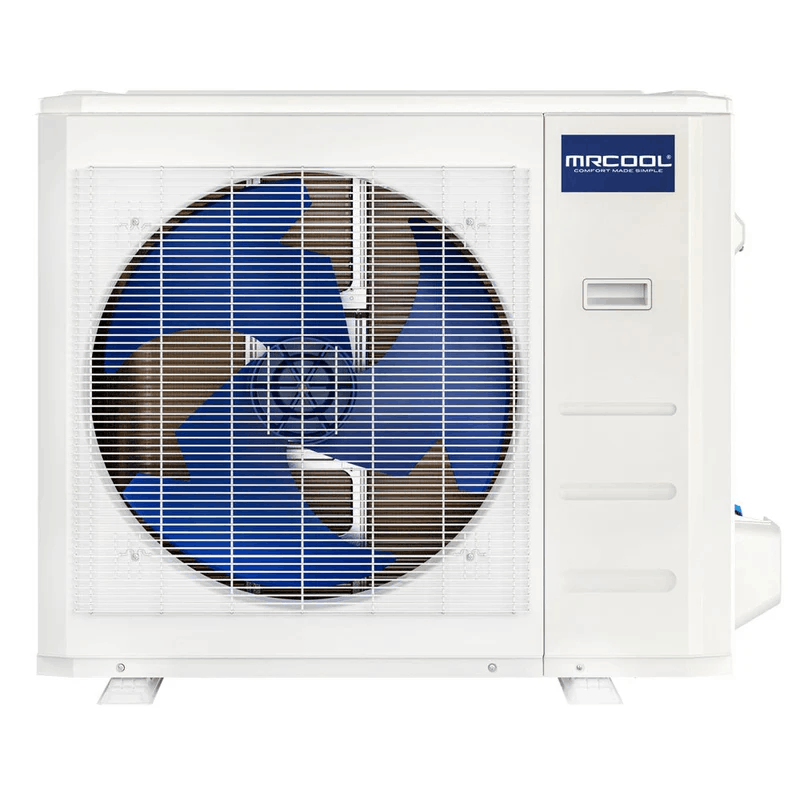

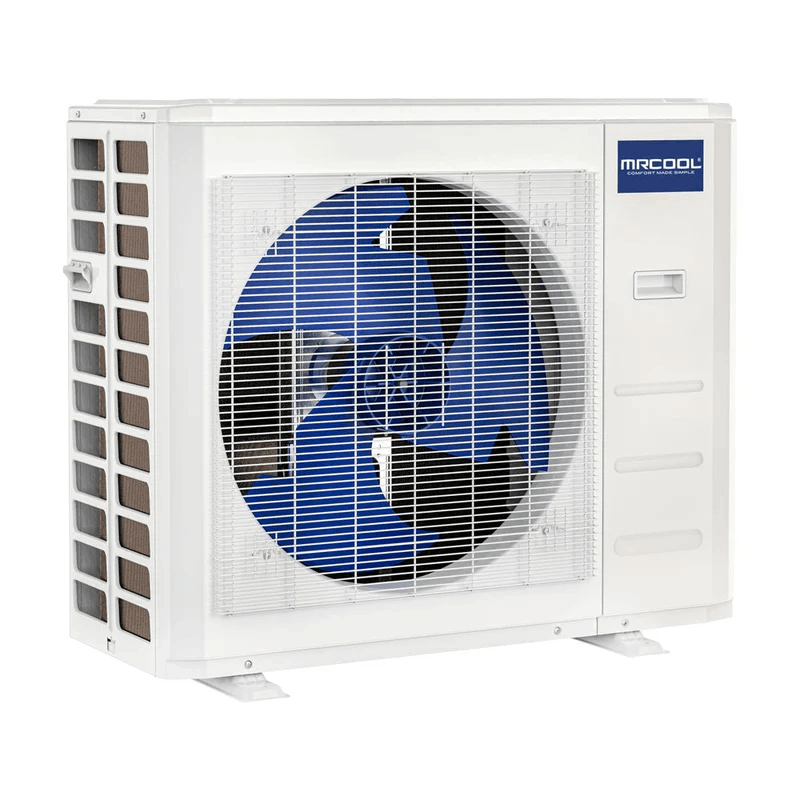

  • 1 x 5 Ton MRCOOL VersaPro Central Ducted Heat Pump Condenser

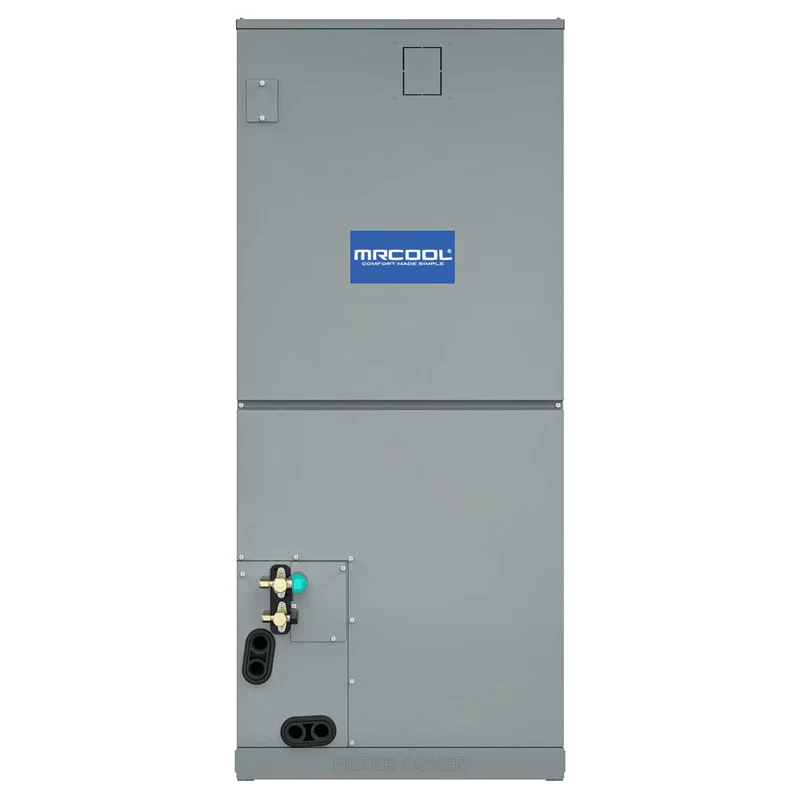

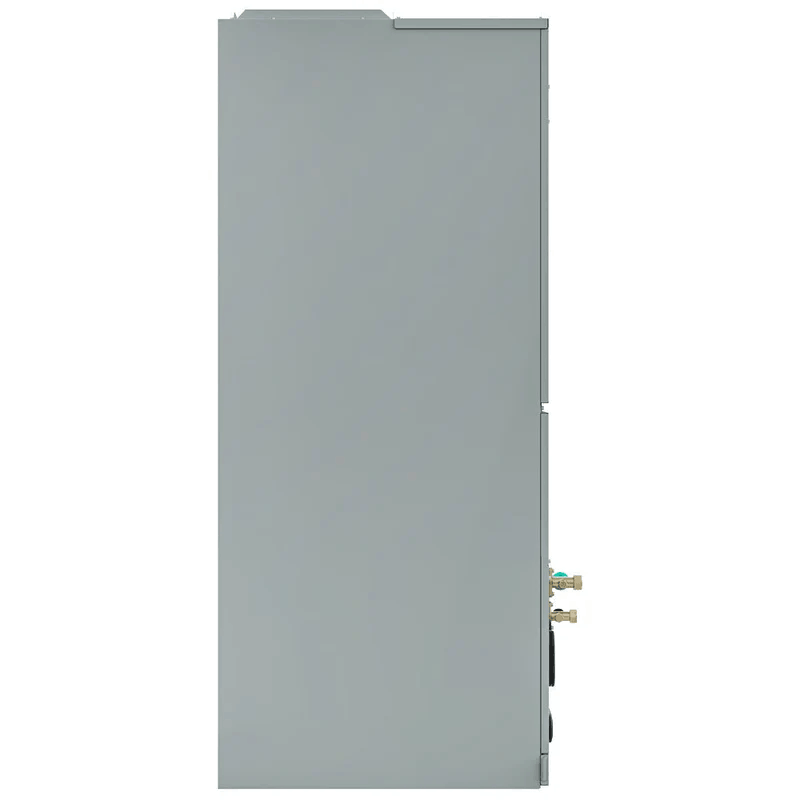

  • 1 x 5 Ton MRCOOL VersaPro Central Ducted Air Handler
  • 1 x MRCOOL Smart Thermostat - MST04

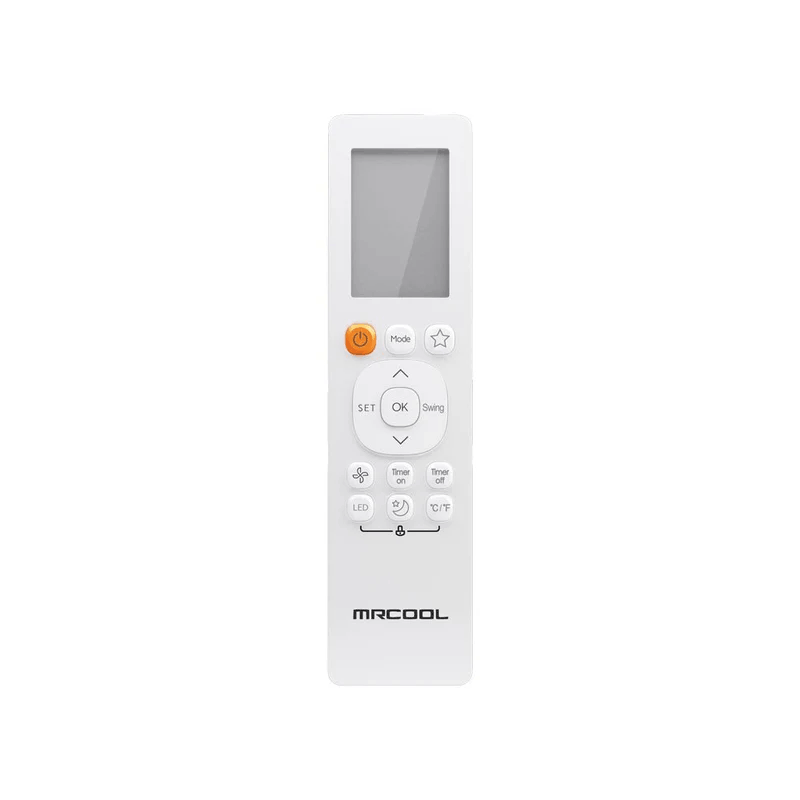

  • 1 x Remote Control


MRCOOL VersaPro 60,000 BTU 2nd Gen Central Ducted Heat Pump System Features

  • 60,000 BTU (5 Ton) Variable-Speed System - Advanced DC inverter technology provides precise maximum-capacity climate control with continuous adjustment.
  • 15.2 SEER2 / 8.4 HSPF4 Ratings - Solid cooling and heating efficiency ensures dependable energy management and consistent utility performance.
  • No-Vac Quick Connect Compatible - Works with MRCOOL pre-charged line sets and couplers featuring eco-friendly R-454B refrigerant.
  • Multi-Position Air Handler Design - Install in upflow, downflow, or horizontal configurations to fit any mechanical space.
  • Painted Galvanized Steel Construction - Durable materials on condenser and air handler ensure long-term reliability and weather resistance.
  • Compact Side-Discharge Condenser - Space-efficient design fits tight outdoor areas while maintaining excellent heat exchange.
  • Self-Diagnostic Capabilities - Built-in diagnostics panel displays error codes for quick troubleshooting and maintenance.
  • Easily Accessible Removable Filter - Simple filter access facilitates regular maintenance for optimal airflow and air quality.
  • Optional Heat Kit Compatible - Supports supplemental heat kit installation for enhanced capacity during extreme cold.
  • Wired Thermostat Included - Complete temperature control solution provided with no additional equipment needed.
  • Covers Approximately 2,500 Square Feet - Ideal capacity for the largest homes, expansive estates, or multi-zone properties.
  • 10-Year Parts and Compressor Warranty - Comprehensive manufacturer coverage provides lasting peace of mind and protection.

MRCOOL MVP-60-HP-C-230A00-O Condenser Specs

BRAND NAME MRCOOL
SERIES VersaPro Central Ducted Condenser
MODEL MVP-60-HP-C-230A00-O
GTIN 840255586436
UPC 840255586436
UNIT TYPE Split System Heat Pump
EQUIPMENT TYPE Condenser
SHORT DESCRIPTION 5 Ton MRCOOL VersaPro Central Ducted Heat Pump Condenser
SEER2 15.2
EER2 8.6
HSPF2-4 8.4
HSPF2-5 6.8
TONNAGE 5
COOLING CAPACITY (BTU) 54000
HEATING CAPACITY (BTU) 54000
VOLTAGE (V) 208-230
PHASE 1
CYCLE 60
MAX FUSE BREAKER (A) 40
MIN CIRCUIT AMPACITY (A) 39
COLOR gray
REFRIGERANT TYPE R-454B
REFRIGERANT VOLUME (OZ) 134.04
DECIBEL RATING (DBA) 65
CFM 3037.1
LIQUID LINE SIZE 3/8
SUCTION LINE SIZE 3/4
WIFI COMPATIBILITY Yes
APP COMPATIBILITY Yes
ETL CERTIFIED Yes
ENERGY STAR CERTIFIED Yes
AHRI CERTIFIED Yes
ETL LISTED Yes
BASE PARTS WARRANTY 10 Years
BASE COMPRESSOR WARRANTY 10 Years
CONTAINS ELECTRONICS Yes
CONTAINS CHEMICALS Yes
CONTAINS COMPRESSED GAS Yes
NET DEPTH (IN) 16.14
NET HEIGHT (IN) 38.39
NET WIDTH (IN) 38.58
NET WEIGHT (LBS) 192.9
GROSS DEPTH (IN) 19.68
GROSS HEIGHT (IN) 42.52
GROSS WIDTH (IN) 45.08
GROSS WEIGHT (LBS) 224.21

MRCOOL MVP-60-HP-MUAH-230A00-O Air Handler Specs

BRAND NAME MRCOOL
SERIES VersaPro Central Ducted Air Handler
MODEL MVP-60-HP-MUAH-230A00-O
GTIN 840255586498
UPC 840255586498
UNIT TYPE Split System Heat Pump
EQUIPMENT TYPE Air Handler
SHORT DESCRIPTION 5 Ton MRCOOL VersaPro Central Ducted Air Handler
CFM 1807.00/1583.33/1359.67/1136.00
TONNAGE 4
COOLING CAPACITY (BTU) 54000
HEATING CAPACITY (BTU) 54000
VOLTAGE (V) 115/208-230
PHASE 1
CYCLE 60
MAX FUSE BREAKER (A) 15
MIN CIRCUIT AMPACITY (A) 14.5/11.0
COLOR gray
DECIBEL RATING LOW (DBA) 34.5
DECIBEL RATING HIGH (DBA) 56
NUMBER OF SPEEDS 4
MAX LINESET LENGTH (FT) 246 ft
LIQUID LINE SIZE 3/8
SUCTION LINE SIZE 3/4
FILTER TYPE Replaceable
FILTER SIZE 23x20x1
AUXILIARY HEATER INCLUDED No
AUXILIARY HEATER AVAILABLE Yes
AUXILIARY HEATER SIZES 10kW/15kW/20kW
ADJUSTABLE THERMOSTAT Yes
WIFI COMPATIBILITY Yes
APP COMPATIBILITY Yes
ETL CERTIFIED Yes
ENERGY STAR CERTIFIED Yes
AHRI CERTIFIED Yes
BASE PARTS WARRANTY 10 Years
BASE COMPRESSOR WARRANTY 10 Years
CONTAINS ELECTRONICS Yes
CONTAINS CHEMICALS Yes
CONTAINS COMPRESSED GAS Yes
NET DEPTH (IN) 24.49
NET HEIGHT (IN) 52.99
NET WIDTH (IN) 21.02
NET WEIGHT (LBS) 162.92
GROSS DEPTH (IN) 26.77
GROSS HEIGHT (IN) 56.5
GROSS WIDTH (IN) 27.95
GROSS WEIGHT (LBS) 190.92

Understanding your MRCOOL warranty coverage ensures long-term system performance and protection. All warranties are non-transferable and valid only at the original installation address.

Warranty Coverage by Series

DIY Series 5th Generation Mini-Splits

Models: DIY-09-HP through DIY-36-HP, DIYCASSETTE, DIY-MULTI series

  • Parts: 5 years from proof of purchase
  • Compressor: 7 years from proof of purchase
  • Remote Control: Included in parts warranty
  • Extended Lifetime Warranty: Available with MRCOOL Care Kit Program enrollment (fee required)
  • Installation: Professional installer NOT required when using MRCOOL Quick Connect Pre-Charged Line Set

Advantage Series Mini-Splits

Models: A-09-HP through A-36-HP series

  • Parts: 1 year from proof of purchase
  • Compressor: 2 years from proof of purchase
  • Extended Lifetime Warranty: Available with MRCOOL Care Kit Program enrollment (fee required)

    Must register within 180 days of purchase
    Covers compressor failure only with one-time condenser replacement
    Requires ongoing Care Kit Program maintenance
Easy Pro Series Mini-Splits

Models: EZPRO-09-HP through EZPRO-24-HP series

  • Parts: 1 year from proof of purchase
  • Compressor: 2 years from proof of purchase
  • Extended Lifetime Warranty: Available with MRCOOL Care Kit Program enrollment (fee required)

Central Ducted Systems

Models: CENTRAL-18-HP through CENTRAL-60-HP, MVP Series

  • Parts: 10 years from installation date
  • Compressor: 10 years from installation date
  • Labor: 10 years (installer responsible for first 90 days)
  • Installation: Professional installer NOT required when using MRCOOL Quick Connect Pre-Charged Line Set

Universal Series Split Systems

Models: UHP series, UAH series Air Handlers

  • Parts: 10 years from proof of purchase
  • Compressor: 10 years from proof of purchase
  • Labor: 2 years limited (begins 91 days after purchase, covers diagnostic and repair costs)
  • Installation: Professional installer required

Inverter Package Series

Models: GCSHPM series, GCSCAM series

  • Parts: 10 years from installation date
  • Labor: 5 years limited (manufacturing defects only, begins 91 days after installation)
  • Installation: Professional installation required

Olympus Series Mini-Splits

Models: MDUO, MDUCO, MDUI series

Owner-Occupied Residences:

  • Parts: 5 years standard, 10 years with registration within 60 days
  • Compressor: 5 years standard, 10 years with registration within 60 days

Commercial Applications:

  • Parts & Compressor: 5 years with registration within 60 days
  • Installation: Professional installer required

Key Warranty Conditions

Product Registration:

  • Register at mrcool.com/warranty to activate extended coverage (where applicable)
  • Registration deadlines vary by series (30-180 days from purchase)

Installation Requirements:

  • Must comply with all federal, state, and local electrical codes
  • Must follow MRCOOL installation instructions
  • Must use new, compatible, MRCOOL-approved components
  • Warranty voids if installed with used or incompatible parts

Warranty Does NOT Cover:

  • Labor, diagnostic, shipping, or installation costs (except where labor warranty applies)
  • Normal maintenance (filter cleaning, lubrication, coil cleaning)
  • Refrigerant costs or energy consumption
  • Damage from improper installation, natural disasters, or electrical issues
  • Units moved from original installation address
  • Units installed outside USA and Canada

How to File a Warranty Claim

Contact MRCOOL:

For Labor Claims (Universal/Inverter Package Series within first 2 years):

  • Phone: (844) 518-2040

Required Documentation:

  • Proof of purchase
  • Product registration confirmation (if applicable)
  • Diagnostic testing results (professional HVAC technician may be required)
  • Defective parts must be returned when requested

For complete warranty terms and conditions, visit mrcool.com/warranty

Replacement parts are covered for the remainder of the original warranty period or 30 days, whichever is longer. Some states do not allow exclusion of incidental or consequential damages. This warranty gives you specific legal rights that may vary by state or province.
