MRCOOL VersaPro 48,000 BTU (4 Ton) 2nd Gen Central Ducted Heat Pump System - 16 SEER2 (MVP-48-HP-230A00-O)

MRCOOL SKU: MVP-48-HP-230A00-O

Choose your location

enter a US zip code

Price:
Sale price$3,856.00

Description

MRCOOL VersaPro 48,000 BTU 4 Ton 16 SEER2 Central Ducted Heat Pump System - 2nd Gen

When large spaces demand serious power, the 2nd Gen MRCOOL VersaPro 48K delivers maximum 4-ton capacity with advanced variable-speed technology at an accessible price. With a solid 16 SEER2 rating and strong 8.7 HSPF4 heating performance, you're getting dependable efficiency that manages utility costs while maintaining reliable comfort year-round.

The intelligent DC inverter continuously optimizes operation to your home's demands, ensuring consistent performance through intense summer heat and harsh winter cold. Covering approximately 2,000 square feet, your VersaPro 48K handles large homes, expansive multi-story properties, and open-concept layouts requiring maximum climate control capacity.

Installation remains straightforward despite maximum capacity, with MRCOOL No-Vac Quick Connect Line Sets eliminating vacuuming for fast, efficient setup. Your air handler adapts to upflow, downflow, and horizontal configurations—providing flexibility for attics, closets, crawlspaces, or basements across larger properties.

Durable painted galvanized steel construction ensures long-term reliability on both condenser and air handler. The compact side-discharge condenser fits tight outdoor areas, while the removable filter and self-diagnostics panel simplify maintenance and keep your system running at peak performance.

Your maximum-capacity investment receives solid protection with MRCOOL's 10-year parts and compressor warranty, plus an included wired thermostat. Optional heat kit compatibility ensures enhanced functionality when extreme winter conditions demand supplemental heating.



Ideal For:

  • Homeowners with large properties requiring maximum capacity - Solid 16 SEER2 and 8.7 HSPF4 ratings provide dependable efficiency for expansive homes requiring 4-ton coverage.
  • Large homes and expansive multi-story properties - 4-ton capacity efficiently covers approximately 2,000 square feet with consistent temperature management throughout.
  • Professional contractors on large-scale residential installations - No-Vac Quick Connect compatibility and multi-position design streamline maximum-capacity system deployments.
  • Experienced DIY installers tackling large-home projects - User-friendly Quick Connect and self-diagnostics make professional installation achievable at maximum capacity.



Why Customers Choose The VersaPro 48K Heat Pump System

  • Maximum 4-Ton Variable-Speed Performance - DC inverter technology delivers continuous adjustment for consistent comfort and efficiency at large-home capacity.
  • Solid Energy Efficiency - 16 SEER2 cooling and 8.7 HSPF4 heating performance ensure dependable utility savings and reliable year-round operation.

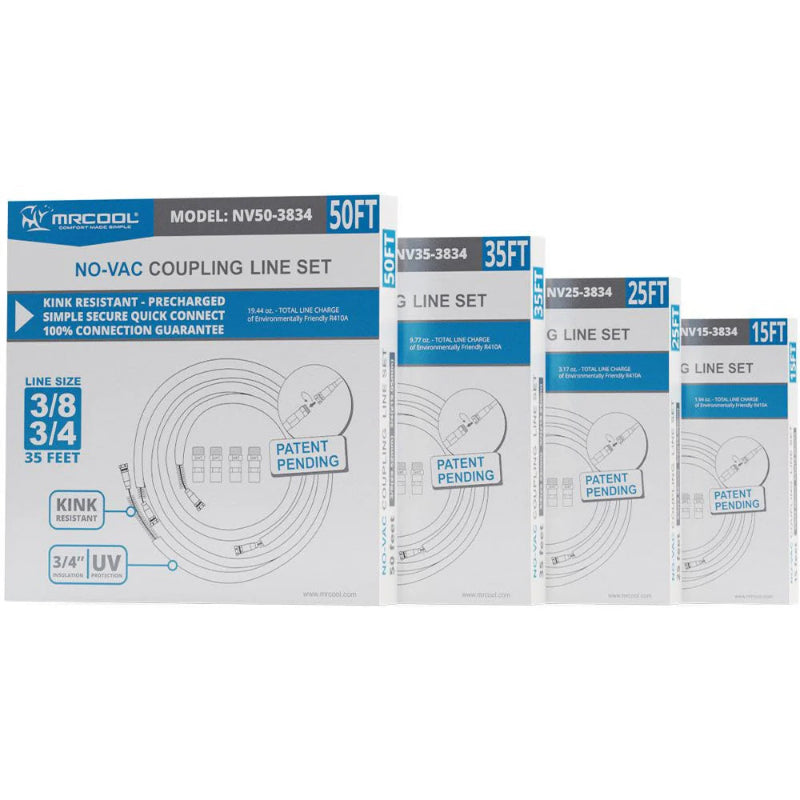

  • No-Vac Quick Connect Efficiency - Compatible with MRCOOL pre-charged R-454B line sets and couplers (sold separately) that eliminate vacuuming.
  • Total Installation Versatility - Upflow, downflow, and horizontal configurations accommodate any mechanical space across large-home installations.
  • Comprehensive 10-Year Protection - Extended parts and compressor warranty from MRCOOL delivers confidence for your large-capacity investment.

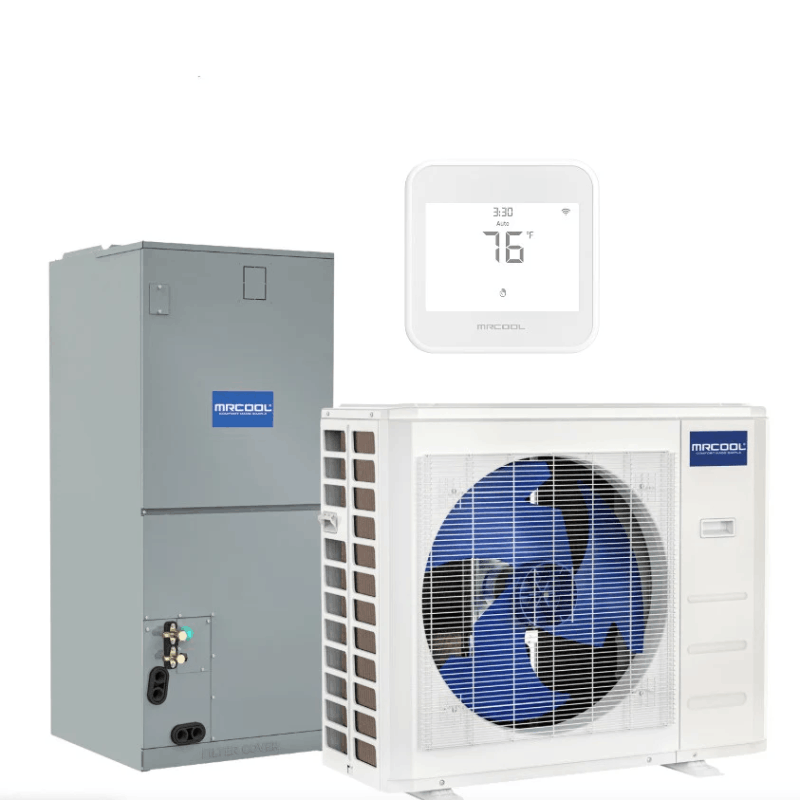

What's Included

Everything you need is included with your MRCOOL VersaPro 48K 2nd Gen Central Ducted Heat Pump System.

  • 1 x 4 Ton MRCOOL VersaPro Central Ducted Heat Pump Condenser
  • 1 x 4 Ton MRCOOL VersaPro Central Ducted Air Handler

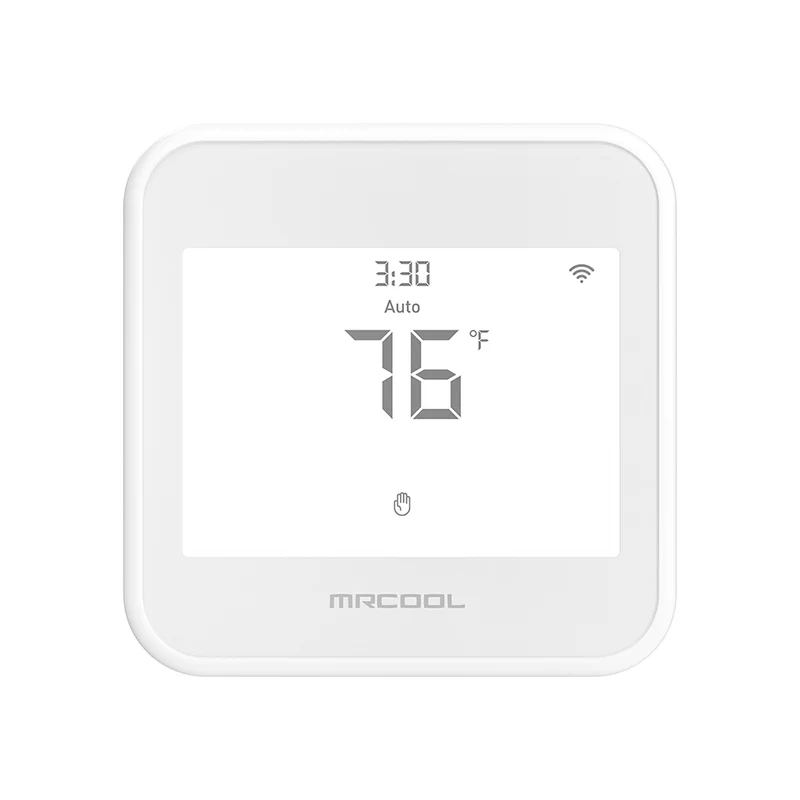

  • 1 x MRCOOL Smart Thermostat - MST04

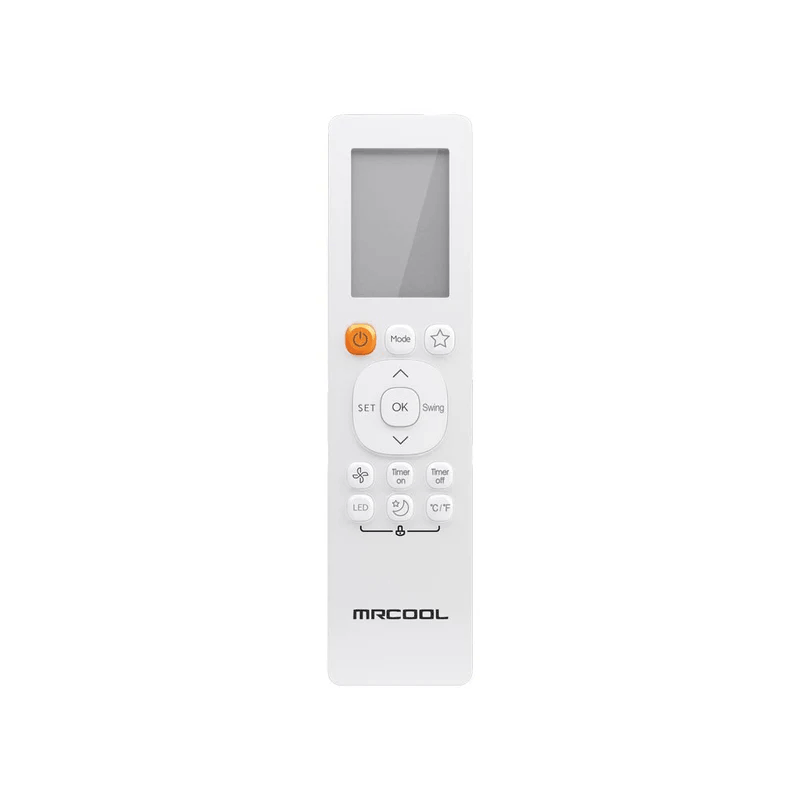

  • 1 x Remote Control


MRCOOL VersaPro 48,000 BTU 2nd Gen Central Ducted Heat Pump System Features

  • 48,000 BTU (4 Ton) Variable-Speed System - Advanced DC inverter technology provides precise large-home climate control with continuous adjustment.
  • 16 SEER2 / 8.7 HSPF4 Ratings - Solid cooling and heating efficiency ensures dependable energy savings and consistent utility reductions.
  • No-Vac Quick Connect Compatible - Works with MRCOOL pre-charged line sets and couplers featuring eco-friendly R-454B refrigerant.
  • Multi-Position Air Handler Design - Install in upflow, downflow, or horizontal configurations to fit any mechanical space.
  • Painted Galvanized Steel Construction - Durable materials on condenser and air handler ensure long-term reliability and weather resistance.
  • Compact Side-Discharge Condenser - Space-efficient design fits tight outdoor areas while maintaining excellent heat exchange.
  • Self-Diagnostic Capabilities - Built-in diagnostics panel displays error codes for quick troubleshooting and maintenance.
  • Easily Accessible Removable Filter - Simple filter access facilitates regular maintenance for optimal airflow and air quality.
  • Optional Heat Kit Compatible - Supports supplemental heat kit installation for enhanced capacity during extreme cold.
  • Wired Thermostat Included - Complete temperature control solution provided with no additional equipment needed.
  • Covers Approximately 2,000 Square Feet - Ideal capacity for large homes, expansive properties, or open-concept layouts.
  • 10-Year Parts and Compressor Warranty - Comprehensive manufacturer coverage provides lasting peace of mind and protection.

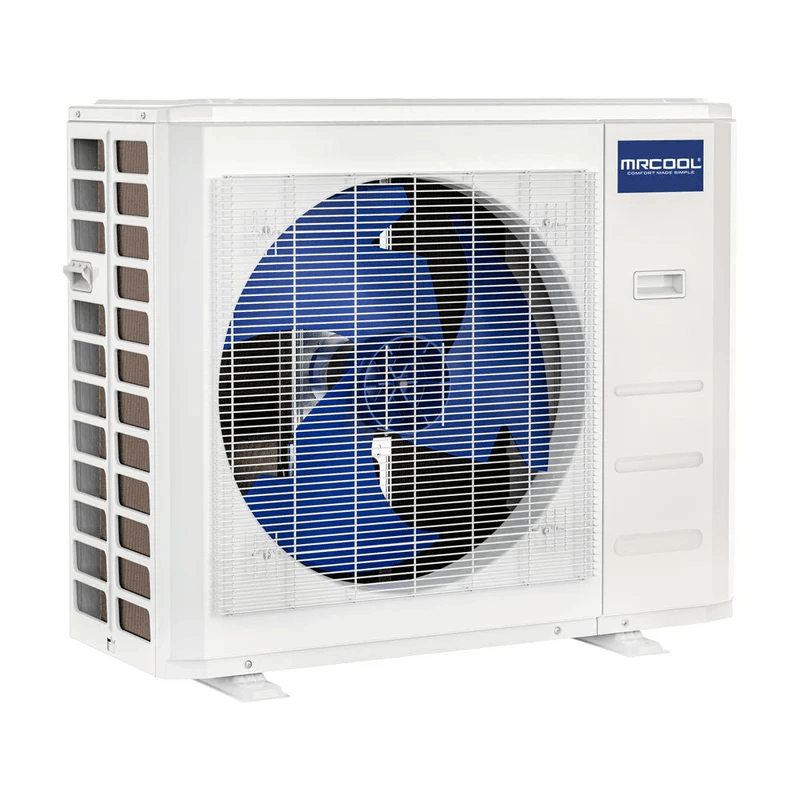

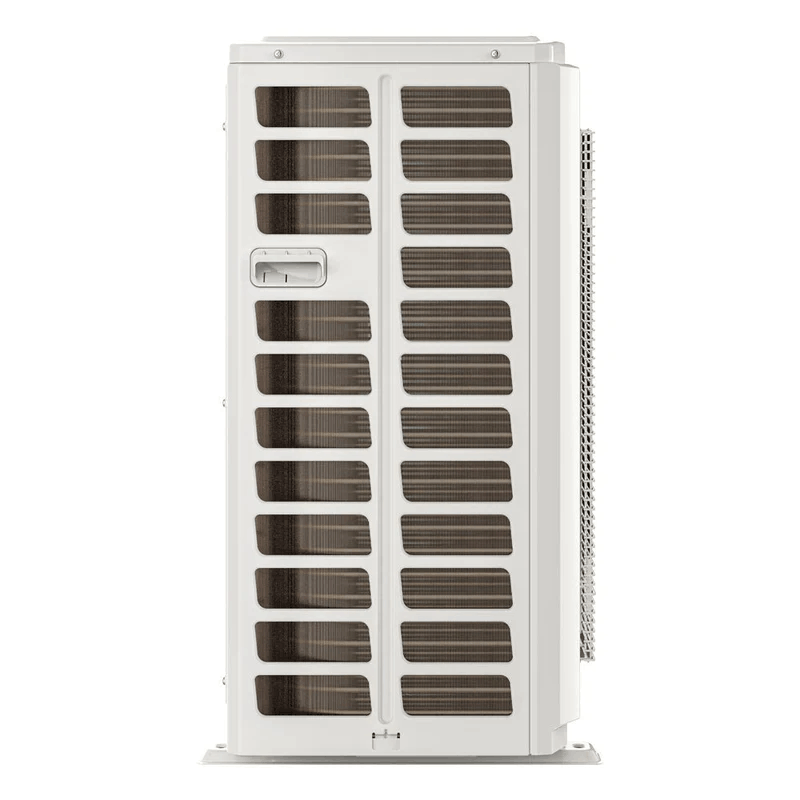

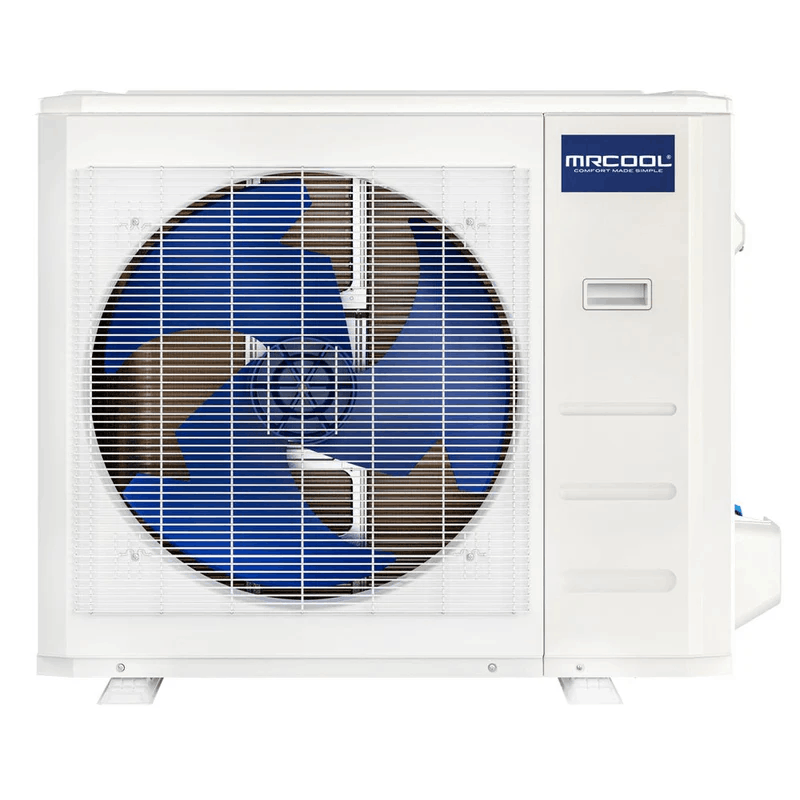

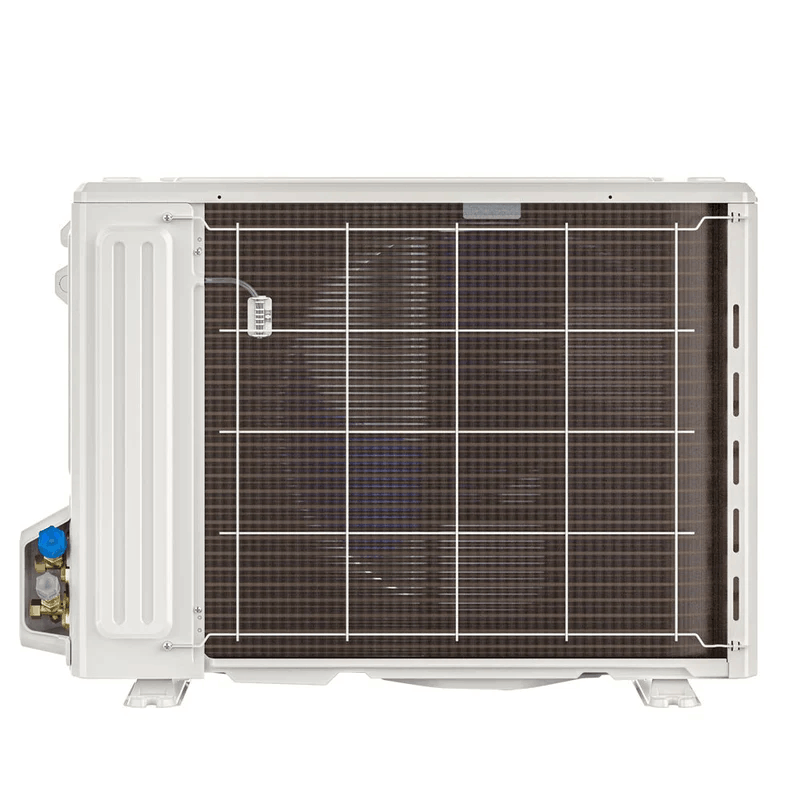

MRCOOL MVP-48-HP-C-230A00-O Condenser Specs

BRAND NAME MRCOOL
SERIES VersaPro Central Ducted Condenser
MODEL MVP-48-HP-C-230A00-O
GTIN 840255586429
UPC 840255586429
UNIT TYPE Split System Heat Pump
EQUIPMENT TYPE Condenser
SHORT DESCRIPTION 4 Ton MRCOOL VersaPro Central Ducted Heat Pump Condenser
SEER2 16
EER2 10
HSPF2-4 8.5
HSPF2-5 7.2
TONNAGE 3
COOLING CAPACITY (BTU) 48000
HEATING CAPACITY (BTU) 48000
VOLTAGE (V) 208/230
PHASE 1
CYCLE 60
MAX FUSE BREAKER (A) 40
MIN CIRCUIT AMPACITY (A) 36
COLOR gray
REFRIGERANT TYPE R-454B
REFRIGERANT VOLUME (OZ) 116.4
DECIBEL RATING (DBA) 65
CFM 3037.1
LIQUID LINE SIZE 3/8
SUCTION LINE SIZE 3/4
WIFI COMPATIBILITY Yes
APP COMPATIBILITY Yes
ETL CERTIFIED Yes
ENERGY STAR CERTIFIED Yes
AHRI CERTIFIED Yes
ETL LISTED Yes
BASE PARTS WARRANTY 10 Years
BASE COMPRESSOR WARRANTY 10 Years
CONTAINS ELECTRONICS Yes
CONTAINS CHEMICALS Yes
CONTAINS COMPRESSED GAS Yes
NET DEPTH (IN) 16.14
NET HEIGHT (IN) 38.39
NET WIDTH (IN) 38.58
NET WEIGHT (LBS) 192.9
GROSS DEPTH (IN) 19.68
GROSS HEIGHT (IN) 42.52
GROSS WIDTH (IN) 45.08
GROSS WEIGHT (LBS) 224.21

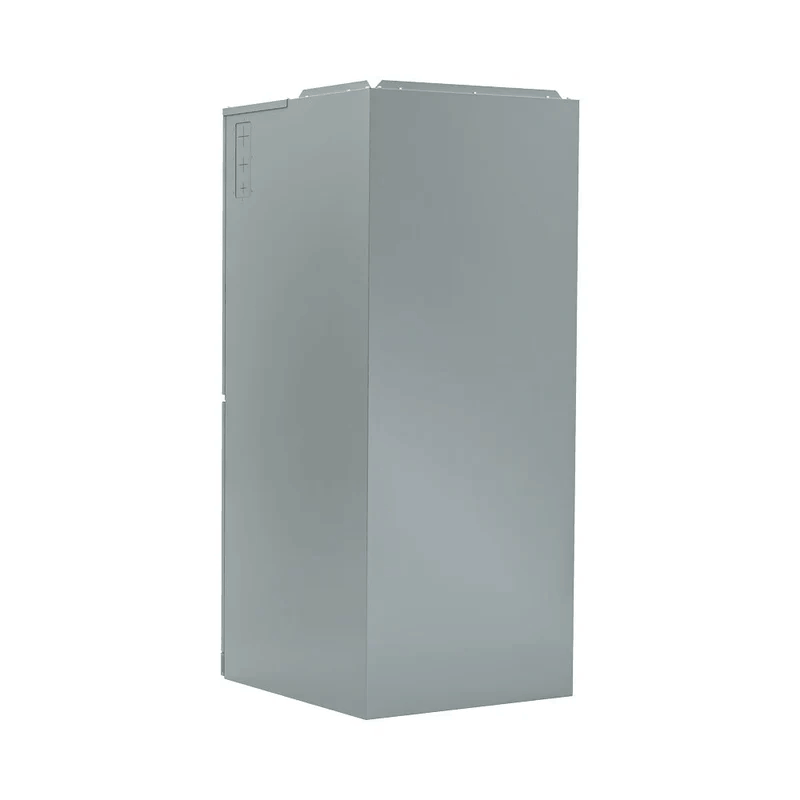

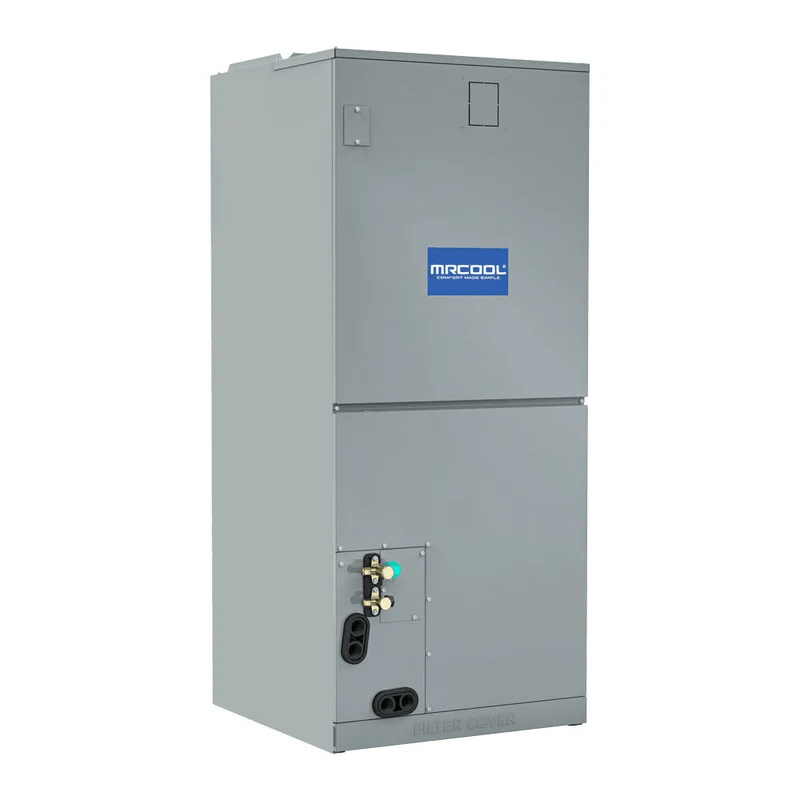

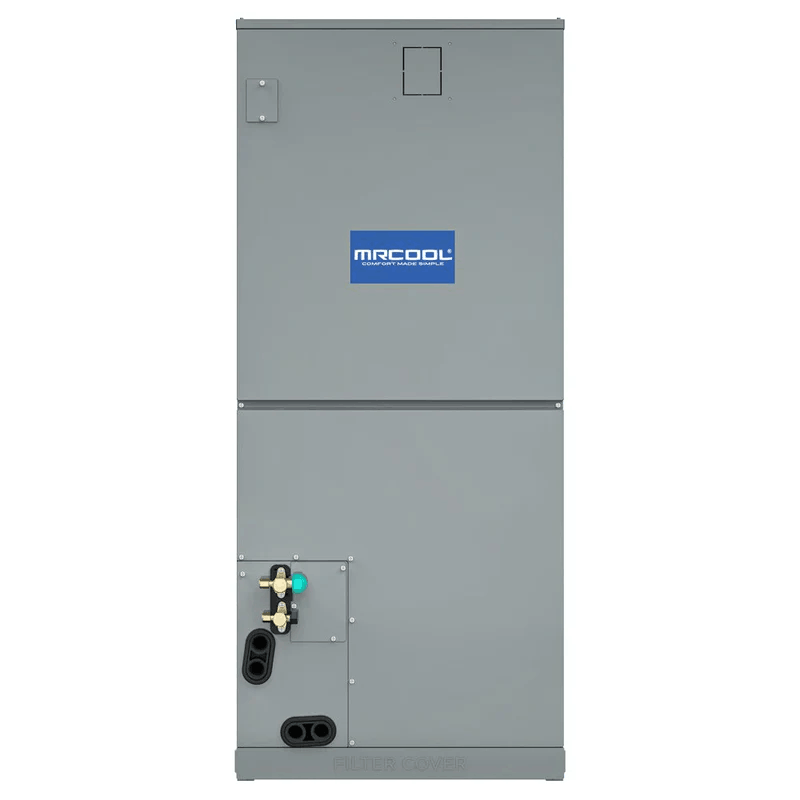

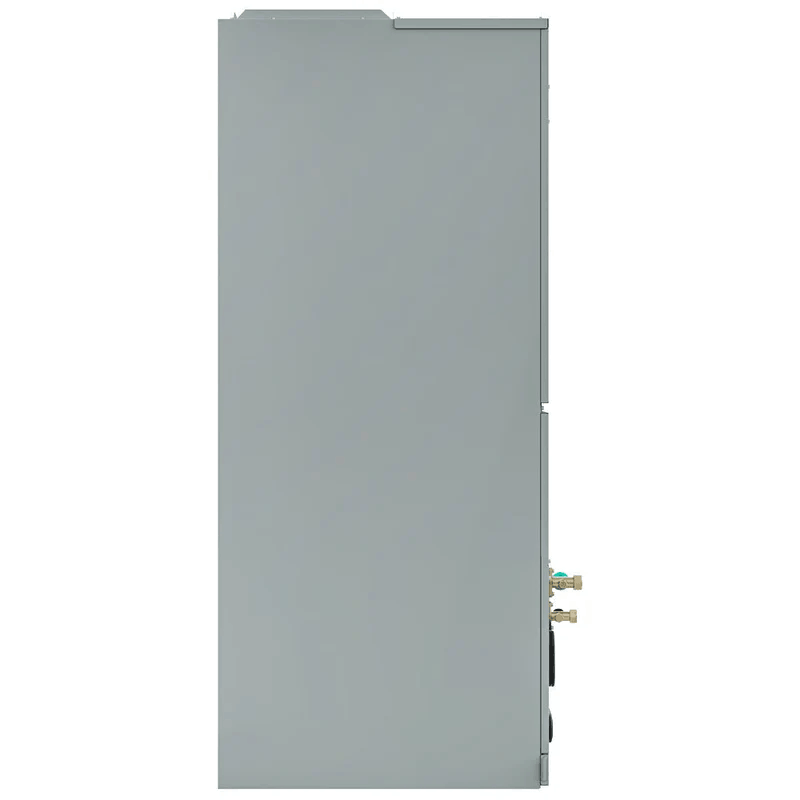

MRCOOL MVP-48-HP-MUAH-230A00-O Air Handler Specs

BRAND NAME MRCOOL
SERIES VersaPro Central Ducted Air Handler
MODEL MVP-48-HP-MUAH-230A00-O
GTIN 840255586481
UPC 840255586481
UNIT TYPE Split System Heat Pump
EQUIPMENT TYPE Air Handler
SHORT DESCRIPTION 4 Ton MRCOOL VersaPro Central Ducted Air Handler
CFM 1600.99/1471.50/1283.15/1094.80
TONNAGE 4
COOLING CAPACITY (BTU) 48000
HEATING CAPACITY (BTU) 48000
VOLTAGE (V) 115/208-230
PHASE 1
CYCLE 60
MAX FUSE BREAKER (A) 15
MIN CIRCUIT AMPACITY (A) 14.5/11.0
COLOR gray
DECIBEL RATING LOW (DBA) 44
DECIBEL RATING HIGH (DBA) 53
NUMBER OF SPEEDS 3
MAX LINESET LENGTH (FT) 246 ft
LIQUID LINE SIZE 3/8
SUCTION LINE SIZE 3/4
FILTER TYPE Replaceable
FILTER SIZE 23x20x1
AUXILIARY HEATER INCLUDED No
AUXILIARY HEATER AVAILABLE Yes
AUXILIARY HEATER SIZES 8kW/10kW/15kW/20kW
ADJUSTABLE THERMOSTAT Yes
WIFI COMPATIBILITY Yes
APP COMPATIBILITY Yes
ETL CERTIFIED Yes
ENERGY STAR CERTIFIED Yes
AHRI CERTIFIED Yes
BASE PARTS WARRANTY 10 Years
BASE COMPRESSOR WARRANTY 10 Years
CONTAINS ELECTRONICS Yes
CONTAINS CHEMICALS Yes
CONTAINS COMPRESSED GAS Yes
NET DEPTH (IN) 24.49
NET HEIGHT (IN) 52.99
NET WIDTH (IN) 21.02
NET WEIGHT (LBS) 162.92
GROSS DEPTH (IN) 26.77
GROSS HEIGHT (IN) 56.5
GROSS WIDTH (IN) 27.95
GROSS WEIGHT (LBS) 190.92

Understanding your MRCOOL warranty coverage ensures long-term system performance and protection. All warranties are non-transferable and valid only at the original installation address.

Warranty Coverage by Series

DIY Series 5th Generation Mini-Splits

Models: DIY-09-HP through DIY-36-HP, DIYCASSETTE, DIY-MULTI series

  • Parts: 5 years from proof of purchase
  • Compressor: 7 years from proof of purchase
  • Remote Control: Included in parts warranty
  • Extended Lifetime Warranty: Available with MRCOOL Care Kit Program enrollment (fee required)
  • Installation: Professional installer NOT required when using MRCOOL Quick Connect Pre-Charged Line Set

Advantage Series Mini-Splits

Models: A-09-HP through A-36-HP series

  • Parts: 1 year from proof of purchase
  • Compressor: 2 years from proof of purchase
  • Extended Lifetime Warranty: Available with MRCOOL Care Kit Program enrollment (fee required)

    Must register within 180 days of purchase
    Covers compressor failure only with one-time condenser replacement
    Requires ongoing Care Kit Program maintenance
Easy Pro Series Mini-Splits

Models: EZPRO-09-HP through EZPRO-24-HP series

  • Parts: 1 year from proof of purchase
  • Compressor: 2 years from proof of purchase
  • Extended Lifetime Warranty: Available with MRCOOL Care Kit Program enrollment (fee required)

Central Ducted Systems

Models: CENTRAL-18-HP through CENTRAL-60-HP, MVP Series

  • Parts: 10 years from installation date
  • Compressor: 10 years from installation date
  • Labor: 10 years (installer responsible for first 90 days)
  • Installation: Professional installer NOT required when using MRCOOL Quick Connect Pre-Charged Line Set

Universal Series Split Systems

Models: UHP series, UAH series Air Handlers

  • Parts: 10 years from proof of purchase
  • Compressor: 10 years from proof of purchase
  • Labor: 2 years limited (begins 91 days after purchase, covers diagnostic and repair costs)
  • Installation: Professional installer required

Inverter Package Series

Models: GCSHPM series, GCSCAM series

  • Parts: 10 years from installation date
  • Labor: 5 years limited (manufacturing defects only, begins 91 days after installation)
  • Installation: Professional installation required

Olympus Series Mini-Splits

Models: MDUO, MDUCO, MDUI series

Owner-Occupied Residences:

  • Parts: 5 years standard, 10 years with registration within 60 days
  • Compressor: 5 years standard, 10 years with registration within 60 days

Commercial Applications:

  • Parts & Compressor: 5 years with registration within 60 days
  • Installation: Professional installer required

Key Warranty Conditions

Product Registration:

  • Register at mrcool.com/warranty to activate extended coverage (where applicable)
  • Registration deadlines vary by series (30-180 days from purchase)

Installation Requirements:

  • Must comply with all federal, state, and local electrical codes
  • Must follow MRCOOL installation instructions
  • Must use new, compatible, MRCOOL-approved components
  • Warranty voids if installed with used or incompatible parts

Warranty Does NOT Cover:

  • Labor, diagnostic, shipping, or installation costs (except where labor warranty applies)
  • Normal maintenance (filter cleaning, lubrication, coil cleaning)
  • Refrigerant costs or energy consumption
  • Damage from improper installation, natural disasters, or electrical issues
  • Units moved from original installation address
  • Units installed outside USA and Canada

How to File a Warranty Claim

Contact MRCOOL:

For Labor Claims (Universal/Inverter Package Series within first 2 years):

  • Phone: (844) 518-2040

Required Documentation:

  • Proof of purchase
  • Product registration confirmation (if applicable)
  • Diagnostic testing results (professional HVAC technician may be required)
  • Defective parts must be returned when requested

For complete warranty terms and conditions, visit mrcool.com/warranty

Replacement parts are covered for the remainder of the original warranty period or 30 days, whichever is longer. Some states do not allow exclusion of incidental or consequential damages. This warranty gives you specific legal rights that may vary by state or province.
