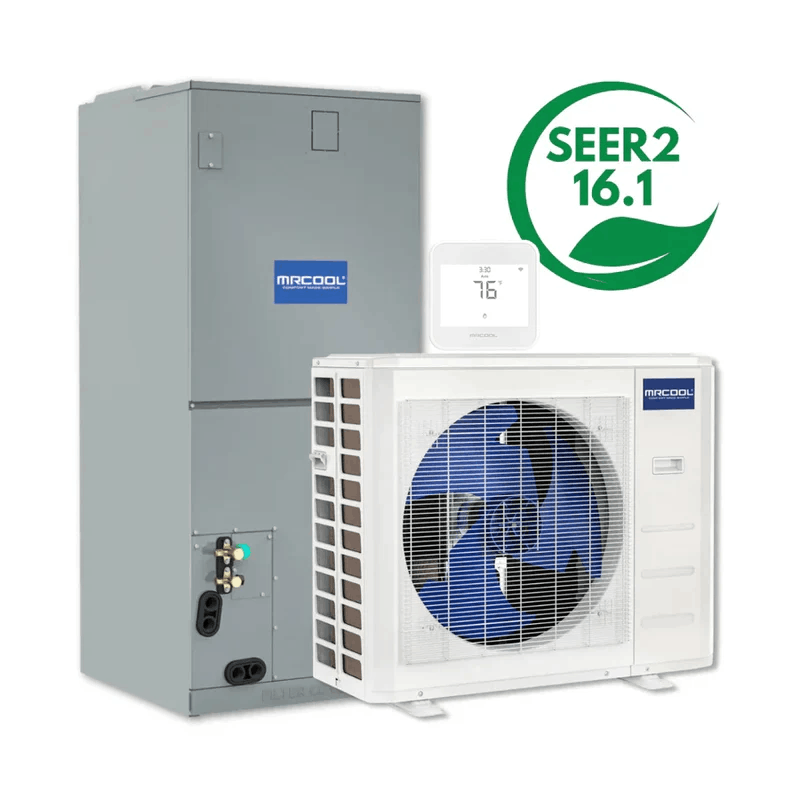

MRCOOL VersaPro 36,000 BTU (3 Ton) 2nd Gen Central Ducted Heat Pump System - 16.1 SEER2 (MVP-36-HP-230A00-O)

MRCOOL SKU: MVP-36-HP-230A00-O

Choose your location

enter a US zip code

Price:
$3,251.00

Description

MRCOOL VersaPro 36,000 BTU 3 Ton 16.1 SEER2 Central Ducted Heat Pump System - 2nd Gen

When your larger home needs dependable climate control, the 2nd Gen MRCOOL VersaPro 36K delivers the capacity and efficiency you're looking for. This variable-speed 3-ton system combines advanced DC inverter technology with a solid 16.1 SEER2 cooling rating and 8.7 HSPF4 heating performance—giving you reliable comfort and steady utility savings year after year.

Covering approximately 1,500 square feet, this system handles larger single-family homes and multi-level properties with consistent temperature management across all rooms.

Setup is straightforward with MRCOOL Quick Connect pre-charged line sets (sold separately), featuring eco-friendly R-454B refrigerant. The pre-charged design eliminates vacuuming, saving time for professional technicians and making DIY installation accessible for experienced homeowners.

The air handler adapts to your space with upflow, downflow, and horizontal configurations—whether your mechanical space is an attic, basement, crawlspace, or closet. Durable painted galvanized steel construction on both the condenser and air handler ensures years of reliable performance, while the compact side-discharge condenser fits efficiently in tight outdoor areas.

Your investment is backed by MRCOOL's 10-year parts and compressor warranty, delivering comprehensive protection and hassle-free coverage. This is your cost-effective solution for powerful, quiet, and efficient climate control across larger living spaces.



Perfect Applications

  • Larger single-family homes — The 16.1 SEER2 and 8.7 HSPF4 ratings provide efficient year-round operation for homes requiring 3-ton capacity climate control with the MRCOOL VersaPro 36K.
  • Multi-level properties — With 1,500 square feet of coverage, this MRCOOL VersaPro 36K maintains consistent comfort across multiple floors and diverse room layouts.
  • Contractors serving medium to large residential projects — Quick Connect compatibility and flexible ductwork configurations streamline MRCOOL VersaPro 36K installation on bigger capacity systems.
  • Experienced DIY installers — User-friendly Quick Connect setup and self-diagnostics make MRCOOL VersaPro 36K professional-grade installation accessible for homeowners upgrading to larger systems.



What Makes MRCOOL VersaPro 36K Heat Pump System the Right Choice

  • Variable-Speed Performance at 3-Ton Capacity — DC inverter technology in the MRCOOL VersaPro 36K continuously adjusts output for superior comfort and efficiency without premium pricing.
  • Dependable Energy Efficiency — 16.1 SEER2 cooling and 8.7 HSPF4 heating ratings ensure the MRCOOL VersaPro 36K delivers consistent utility savings and reliable year-round operation.
  • Quick Connect Installation Advantage — MRCOOL VersaPro 36K compatible with pre-charged R-454B line sets that eliminate vacuuming, reducing setup time and complexity.
  • Total Installation Versatility — Upflow, downflow, and horizontal configurations in the MRCOOL VersaPro 36K accommodate any mechanical space across larger properties and varying layouts.
  • Comprehensive 10-Year Protection — Extended parts and compressor warranty on the MRCOOL VersaPro 36K provides confidence and hassle-free coverage for your larger capacity investment.

What's Included

Everything you need is included with your MRCOOL VersaPro 36K 2nd Gen Central Ducted Heat Pump System.

  • 1 x 3 Ton MRCOOL VersaPro Central Ducted Heat Pump Condenser
  • 1 x 3 Ton MRCOOL VersaPro Central Ducted Air Handler

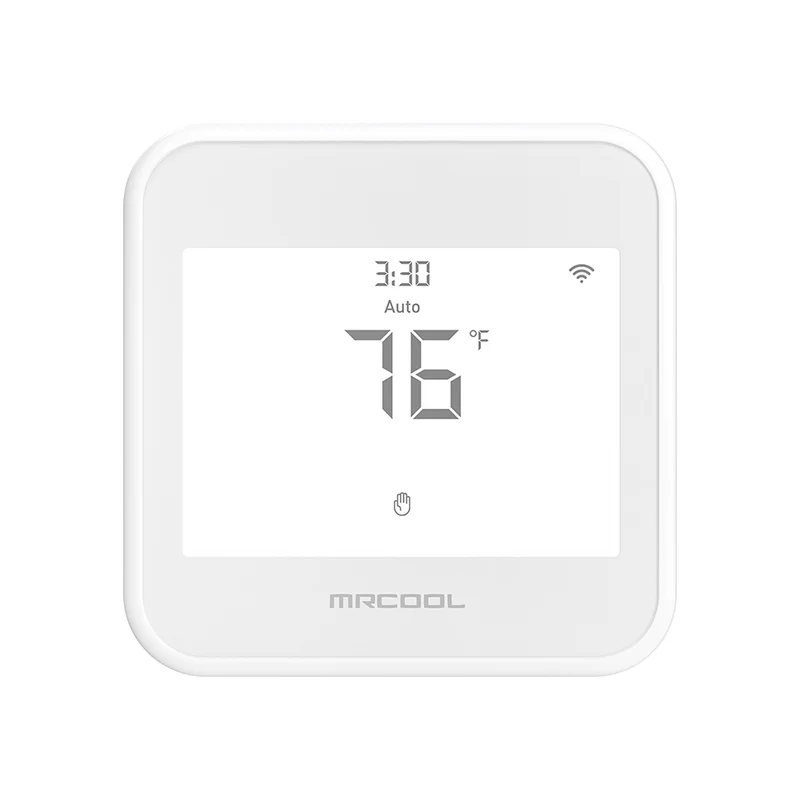

  • 1 x MRCOOL Smart Thermostat — MST04

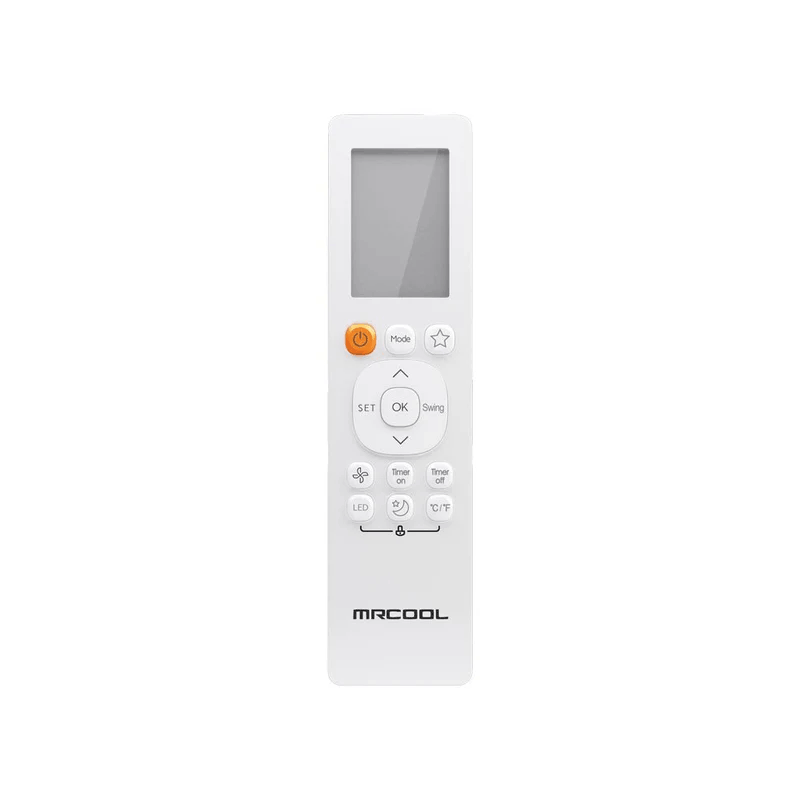

  • 1 x Remote Control


MRCOOL VersaPro 36,000 BTU 2nd Gen Central Ducted Heat Pump System Features

  • 36,000 BTU (3 Ton) Variable-Speed System — Advanced DC inverter technology in the MRCOOL VersaPro 36K delivers precise climate control with continuous adjustment at 3-ton capacity levels.
  • 16.1 SEER2 / 8.7 HSPF4 Ratings — Solid cooling and heating efficiency ratings ensure the MRCOOL VersaPro 36K provides dependable energy savings and consistent utility cost reductions.
  • Quick Connect Compatible — MRCOOL VersaPro 36K works with pre-charged line sets featuring eco-friendly R-454B refrigerant for simplified installation without vacuuming.
  • Multi-Position Air Handler Design — Install the MRCOOL VersaPro 36K in upflow, downflow, or horizontal configurations to fit your mechanical space across larger properties.
  • Painted Galvanized Steel Construction — Durable materials on the MRCOOL VersaPro 36K condenser and air handler ensure long-term reliability and weather resistance.
  • Compact Side-Discharge Condenser — Space-efficient MRCOOL VersaPro 36K design fits tight outdoor locations while maintaining excellent heat exchange performance.
  • Self-Diagnostic Capabilities — Built-in diagnostics panel on the MRCOOL VersaPro 36K displays error codes for quick troubleshooting and simplified maintenance.
  • Easily Accessible Removable Filter — Simple filter access on the MRCOOL VersaPro 36K facilitates regular maintenance for optimal airflow and indoor air quality.
  • Optional Heat Kit Compatible — MRCOOL VersaPro 36K supports supplemental heat kit installation for enhanced capacity during extreme cold-weather conditions.
  • Wired Thermostat Included — Complete temperature control solution provided with the MRCOOL VersaPro 36K with no additional equipment needed.
  • Covers Approximately 1,500 Square Feet — Ideal capacity for the MRCOOL VersaPro 36K in larger homes, multi-level properties, or expanding living spaces.
  • 10-Year Parts and Compressor Warranty — Comprehensive manufacturer coverage on the MRCOOL VersaPro 36K provides lasting peace of mind and repair protection.

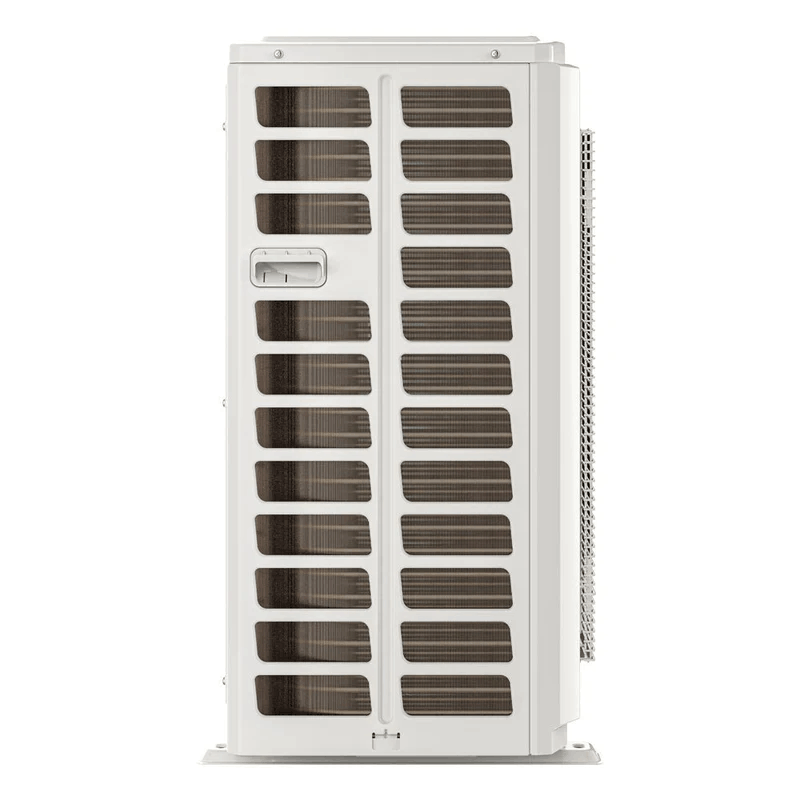

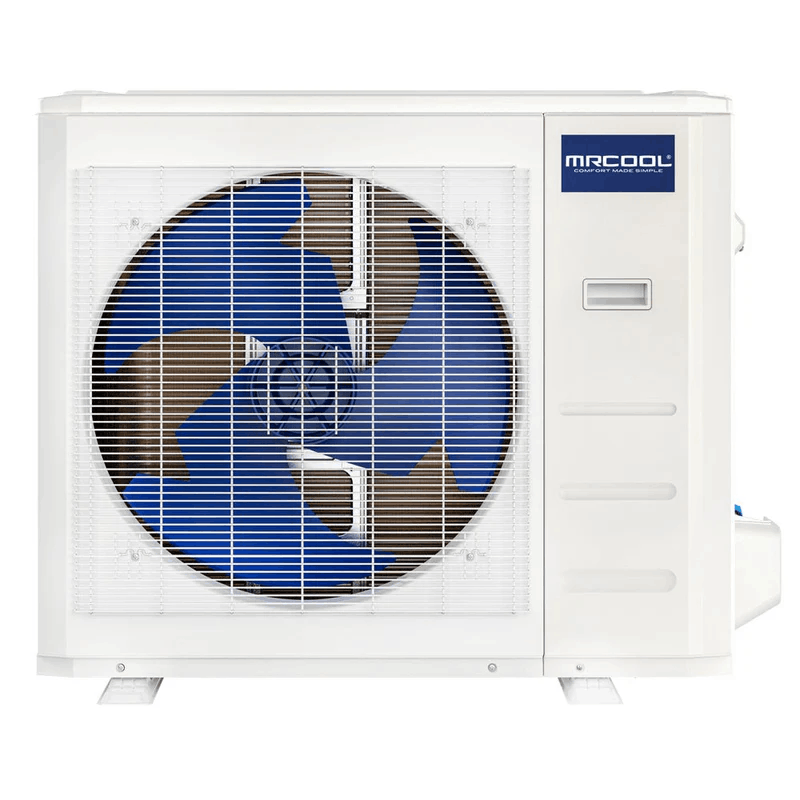

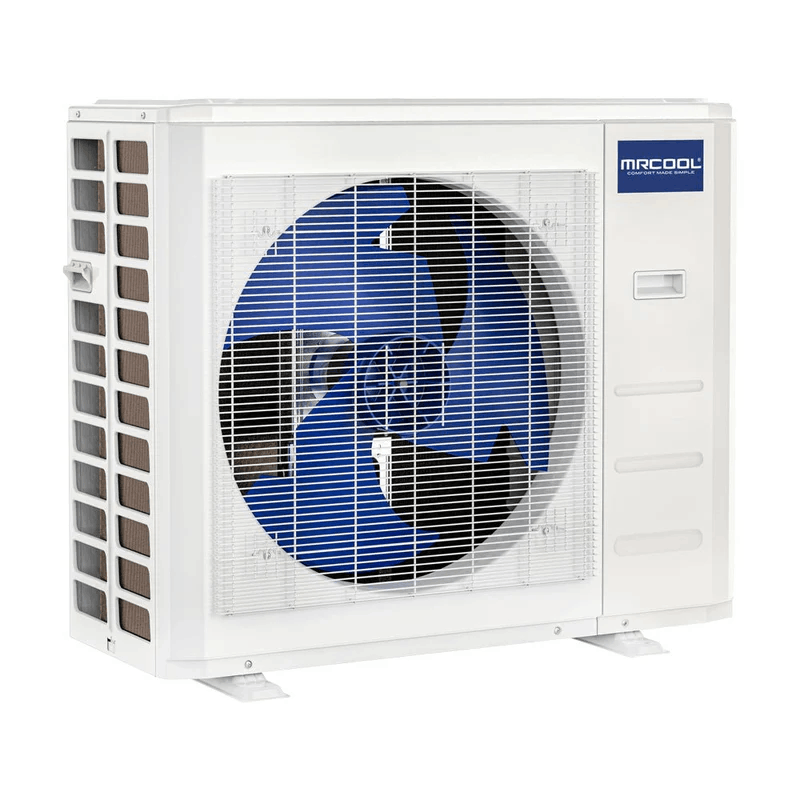

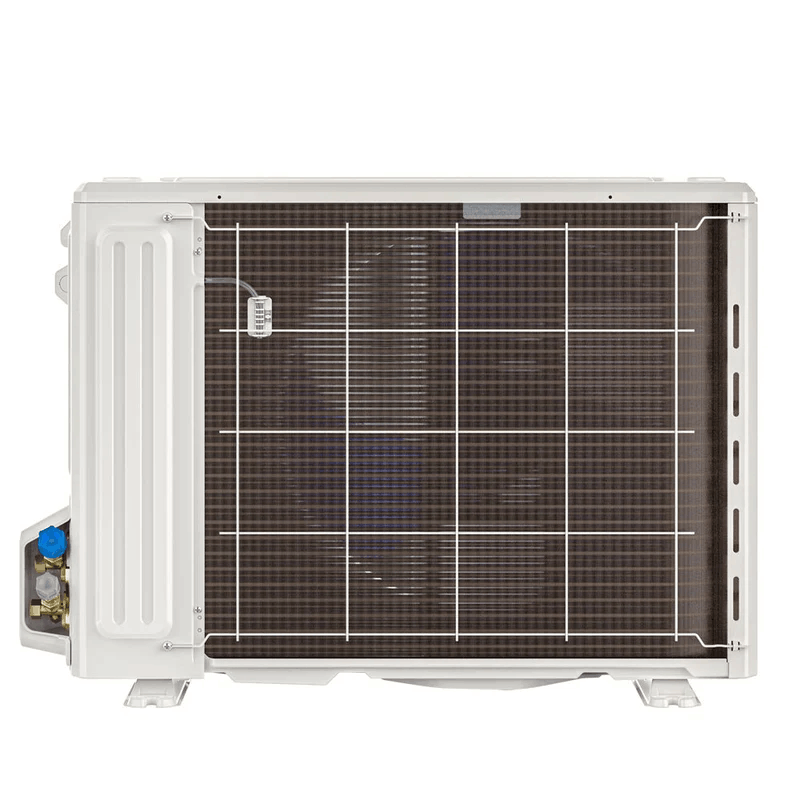

MRCOOL MVP-36-HP-C-230A00-O Condenser Specs

BRAND NAME MRCOOL
SERIES VersaPro Central Ducted Condenser
MODEL MVP-36-HP-C-230A00-O
GTIN 840255582711
UPC 840255582711
UNIT TYPE Split System Heat Pump
EQUIPMENT TYPE Condenser
SHORT DESCRIPTION 3 Ton MRCOOL VersaPro Central Ducted Heat Pump Condenser
SEER2 16.1
EER2 10
HSPF2-4 8.7
HSPF2-5 7
TONNAGE 3
COOLING CAPACITY (BTU) 36000
HEATING CAPACITY (BTU) 36000
VOLTAGE (V) 208/230
PHASE 1
CYCLE 60
MAX FUSE BREAKER (A) 30
MIN CIRCUIT AMPACITY (A) 24
COLOR gray
REFRIGERANT TYPE R-454B
REFRIGERANT VOLUME (OZ) 116.4
DECIBEL RATING (DBA) 63
CFM 2413.2
LIQUID LINE SIZE 3/8
SUCTION LINE SIZE 3/4
WIFI COMPATIBILITY Yes
APP COMPATIBILITY Yes
ETL CERTIFIED Yes
ENERGY STAR CERTIFIED Yes
AHRI CERTIFIED Yes
ETL LISTED Yes
BASE PARTS WARRANTY 10 Years
BASE COMPRESSOR WARRANTY 10 Years
CONTAINS ELECTRONICS Yes
CONTAINS CHEMICALS Yes
CONTAINS COMPRESSED GAS Yes
NET DEPTH (IN) 16.14
NET HEIGHT (IN) 31.89
NET WIDTH (IN) 37.24
NET WEIGHT (LBS) 153.22
GROSS DEPTH (IN) 19.68
GROSS HEIGHT (IN) 34.84
GROSS WIDTH (IN) 42.91
GROSS WEIGHT (LBS) 163.58

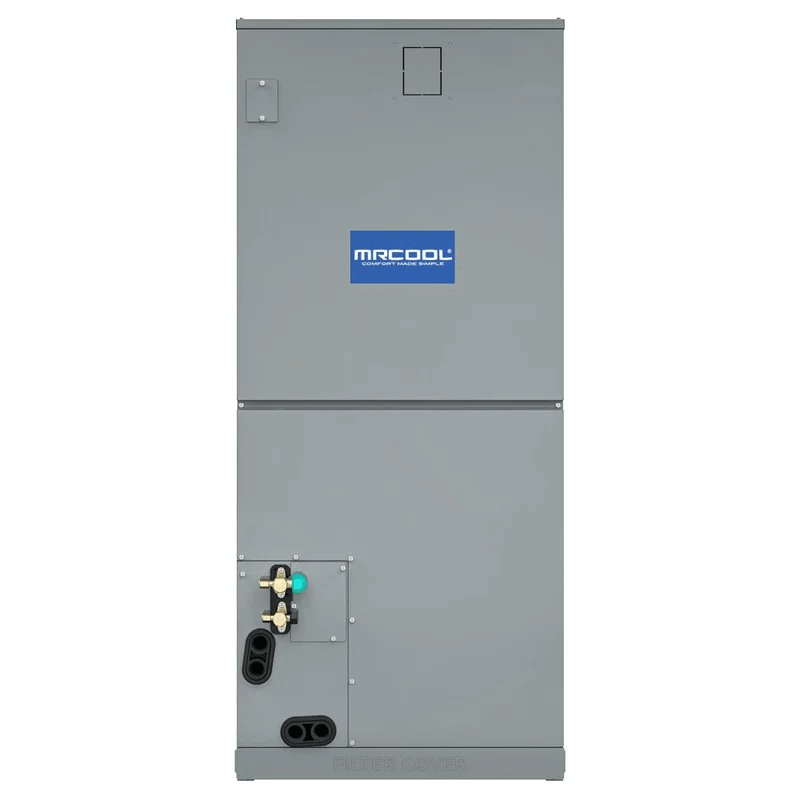

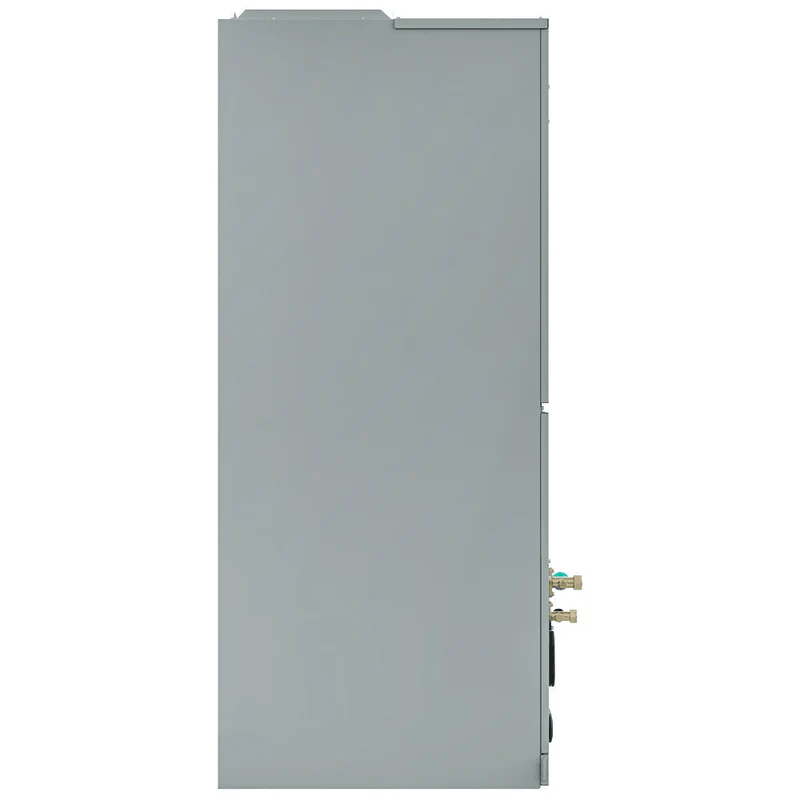

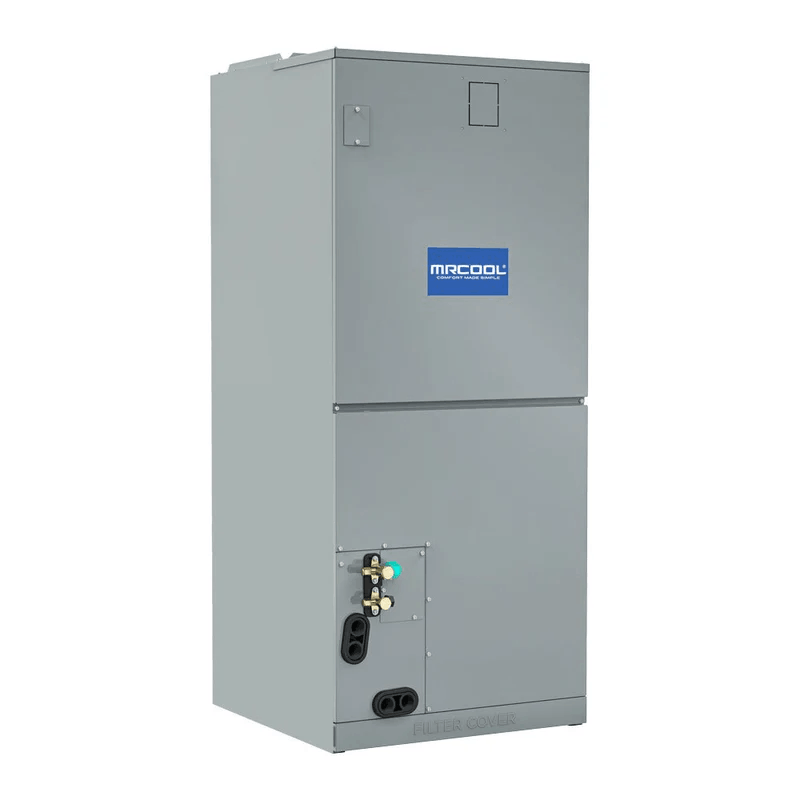

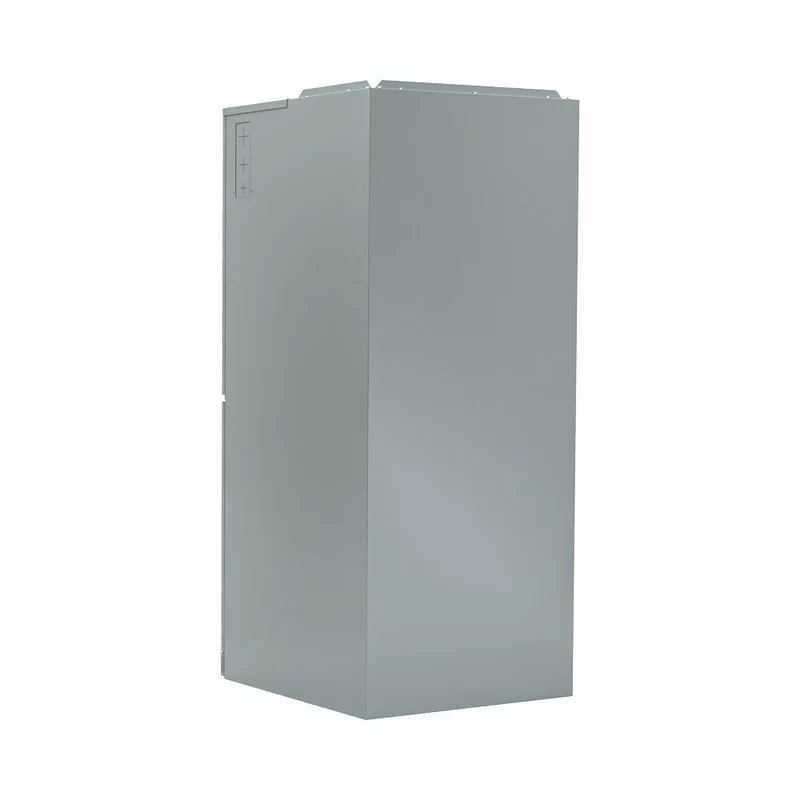

MRCOOL MVP-36-HP-MUAH-230A00-O Air Handler Specs

BRAND NAME MRCOOL
SERIES VersaPro Central Ducted Air Handler
MODEL MVP-36-HP-MUAH-230A00-O
GTIN 840255586474
UPC 840255586474
UNIT TYPE Split System Heat Pump
EQUIPMENT TYPE Air Handler
SHORT DESCRIPTION 3 Ton MRCOOL VersaPro Central Ducted Air Handler
CFM 1188.97/1083.02/971.19/865.24
TONNAGE 3
COOLING CAPACITY (BTU) 36000
HEATING CAPACITY (BTU) 36000
VOLTAGE (V) 115/208-230
PHASE 1
CYCLE 60
MAX FUSE BREAKER (A) 15
MIN CIRCUIT AMPACITY (A) 8.0/6.0
COLOR gray
DECIBEL RATING LOW (DBA) 28
DECIBEL RATING HIGH (DBA) 48
NUMBER OF SPEEDS 3
MAX LINESET LENGTH (FT) 246 ft
LIQUID LINE SIZE 3/8
SUCTION LINE SIZE 3/4
FILTER TYPE Replaceable
FILTER SIZE 19x20x1
AUXILIARY HEATER INCLUDED No
AUXILIARY HEATER AVAILABLE Yes
AUXILIARY HEATER SIZES 5kW/8kW/10kW/15kW/20kW
ADJUSTABLE THERMOSTAT Yes
WIFI COMPATIBILITY Yes
APP COMPATIBILITY Yes
ETL CERTIFIED Yes
ENERGY STAR CERTIFIED Yes
AHRI CERTIFIED Yes
BASE PARTS WARRANTY 10 Years
BASE COMPRESSOR WARRANTY 10 Years
CONTAINS ELECTRONICS Yes
CONTAINS CHEMICALS Yes
CONTAINS COMPRESSED GAS Yes
NET DEPTH (IN) 21.02
NET HEIGHT (IN) 49.02
NET WIDTH (IN) 21.02
NET WEIGHT (LBS) 129.41
GROSS DEPTH (IN) 24.41
GROSS HEIGHT (IN) 52.56
GROSS WIDTH (IN) 26.57
GROSS WEIGHT (LBS) 153.88

Understanding your MRCOOL warranty coverage ensures long-term system performance and protection. All warranties are non-transferable and valid only at the original installation address.

Warranty Coverage by Series

DIY Series 5th Generation Mini-Splits

Models: DIY-09-HP through DIY-36-HP, DIYCASSETTE, DIY-MULTI series

  • Parts: 5 years from proof of purchase
  • Compressor: 7 years from proof of purchase
  • Remote Control: Included in parts warranty
  • Extended Lifetime Warranty: Available with MRCOOL Care Kit Program enrollment (fee required)
  • Installation: Professional installer NOT required when using MRCOOL Quick Connect Pre-Charged Line Set

Advantage Series Mini-Splits

Models: A-09-HP through A-36-HP series

  • Parts: 1 year from proof of purchase
  • Compressor: 2 years from proof of purchase
  • Extended Lifetime Warranty: Available with MRCOOL Care Kit Program enrollment (fee required)

    Must register within 180 days of purchase
    Covers compressor failure only with one-time condenser replacement
    Requires ongoing Care Kit Program maintenance
Easy Pro Series Mini-Splits

Models: EZPRO-09-HP through EZPRO-24-HP series

  • Parts: 1 year from proof of purchase
  • Compressor: 2 years from proof of purchase
  • Extended Lifetime Warranty: Available with MRCOOL Care Kit Program enrollment (fee required)

Central Ducted Systems

Models: CENTRAL-18-HP through CENTRAL-60-HP, MVP Series

  • Parts: 10 years from installation date
  • Compressor: 10 years from installation date
  • Labor: 10 years (installer responsible for first 90 days)
  • Installation: Professional installer NOT required when using MRCOOL Quick Connect Pre-Charged Line Set

Universal Series Split Systems

Models: UHP series, UAH series Air Handlers

  • Parts: 10 years from proof of purchase
  • Compressor: 10 years from proof of purchase
  • Labor: 2 years limited (begins 91 days after purchase, covers diagnostic and repair costs)
  • Installation: Professional installer required

Inverter Package Series

Models: GCSHPM series, GCSCAM series

  • Parts: 10 years from installation date
  • Labor: 5 years limited (manufacturing defects only, begins 91 days after installation)
  • Installation: Professional installation required

Olympus Series Mini-Splits

Models: MDUO, MDUCO, MDUI series

Owner-Occupied Residences:

  • Parts: 5 years standard, 10 years with registration within 60 days
  • Compressor: 5 years standard, 10 years with registration within 60 days

Commercial Applications:

  • Parts & Compressor: 5 years with registration within 60 days
  • Installation: Professional installer required

Key Warranty Conditions

Product Registration:

  • Register at mrcool.com/warranty to activate extended coverage (where applicable)
  • Registration deadlines vary by series (30-180 days from purchase)

Installation Requirements:

  • Must comply with all federal, state, and local electrical codes
  • Must follow MRCOOL installation instructions
  • Must use new, compatible, MRCOOL-approved components
  • Warranty voids if installed with used or incompatible parts

Warranty Does NOT Cover:

  • Labor, diagnostic, shipping, or installation costs (except where labor warranty applies)
  • Normal maintenance (filter cleaning, lubrication, coil cleaning)
  • Refrigerant costs or energy consumption
  • Damage from improper installation, natural disasters, or electrical issues
  • Units moved from original installation address
  • Units installed outside USA and Canada

How to File a Warranty Claim

Contact MRCOOL:

For Labor Claims (Universal/Inverter Package Series within first 2 years):

  • Phone: (844) 518-2040

Required Documentation:

  • Proof of purchase
  • Product registration confirmation (if applicable)
  • Diagnostic testing results (professional HVAC technician may be required)
  • Defective parts must be returned when requested

For complete warranty terms and conditions, visit mrcool.com/warranty

Replacement parts are covered for the remainder of the original warranty period or 30 days, whichever is longer. Some states do not allow exclusion of incidental or consequential damages. This warranty gives you specific legal rights that may vary by state or province.
