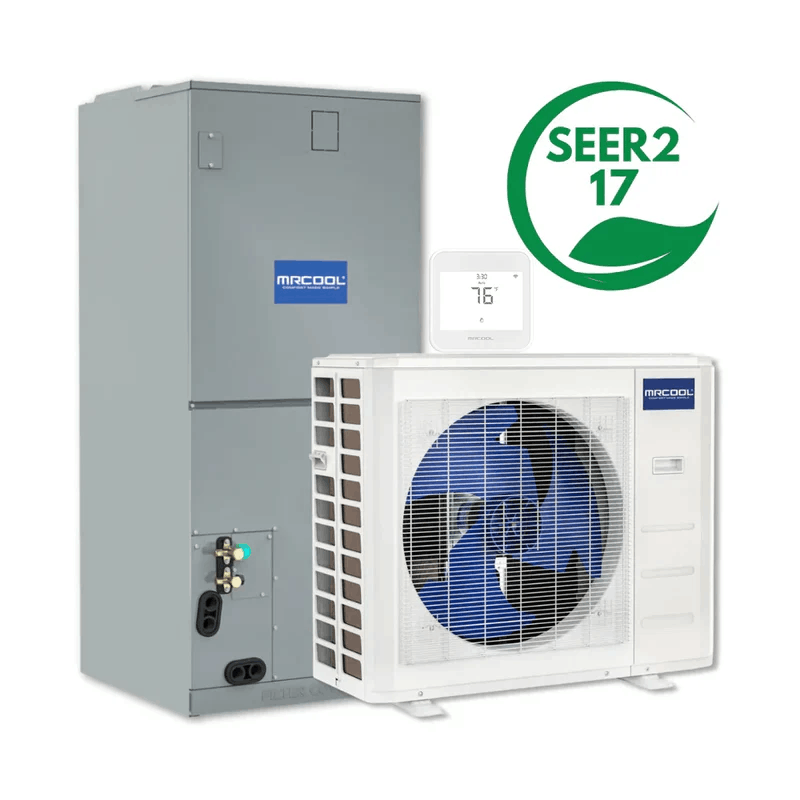

mrcool versapro 30000 btu 2.5 ton central ducted heat pump system 2nd gen
mrcool versapro 30000 btu central ducted heat pump system

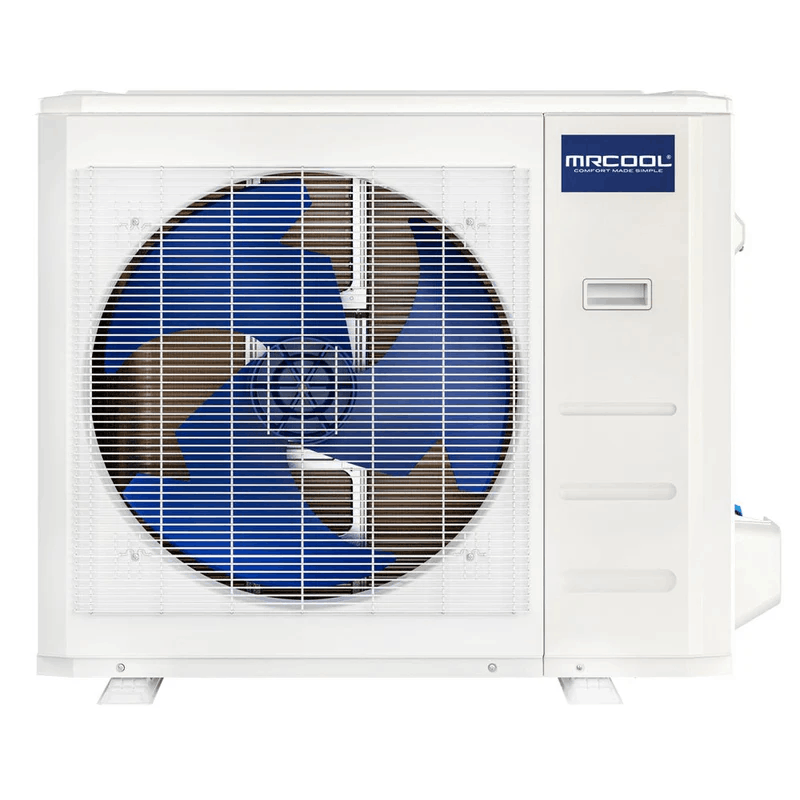

mrcool versapro 30000 btu 2.5 ton central ducted system condenser

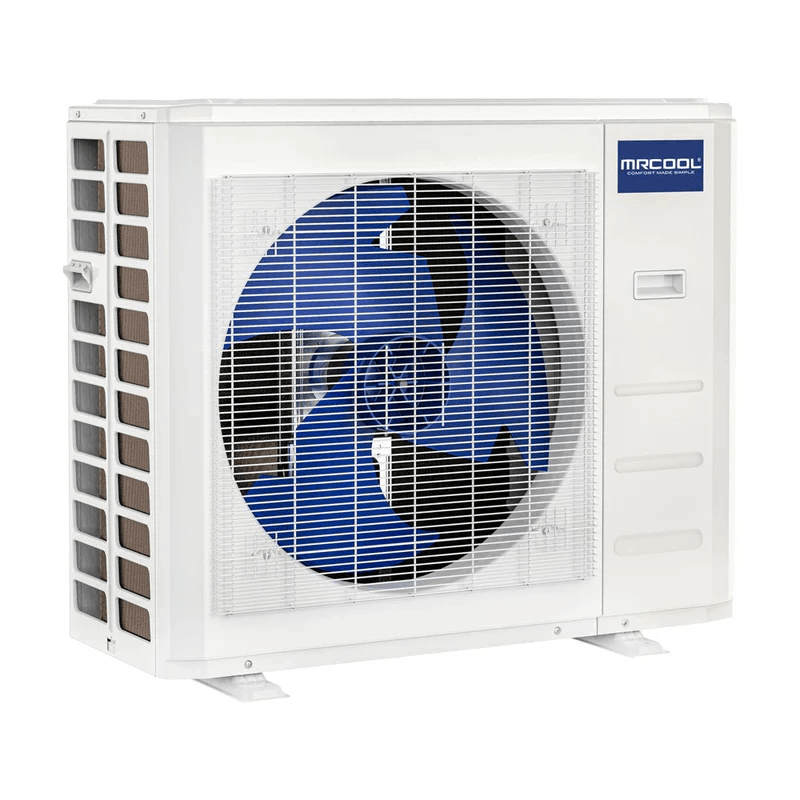

mrcool versapro 30000 btu 2.5 ton central ducted system condenser front

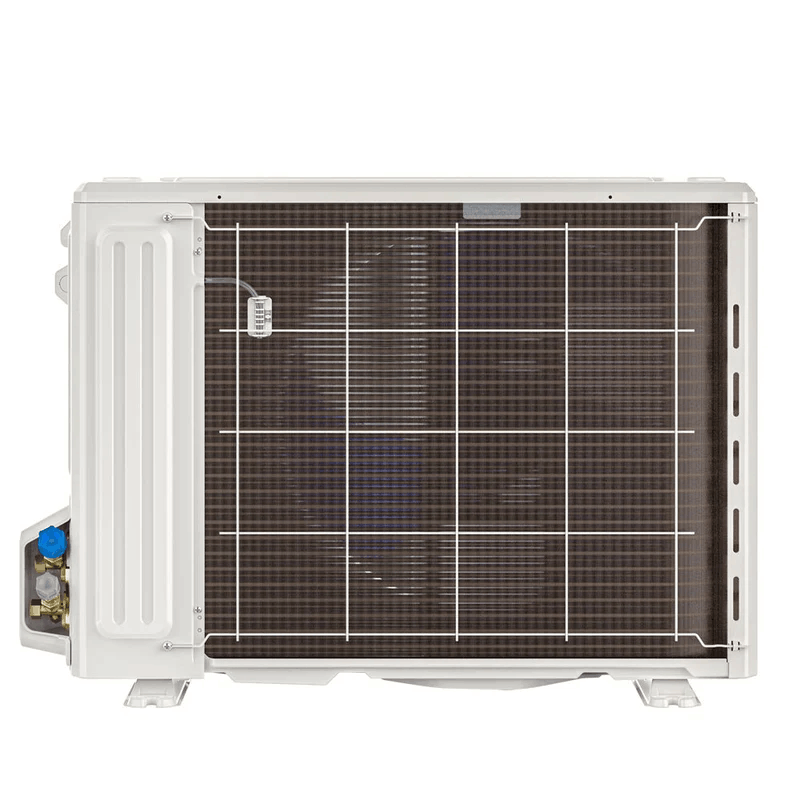

mrcool versapro 30000 btu 2.5 ton central ducted system condenser back

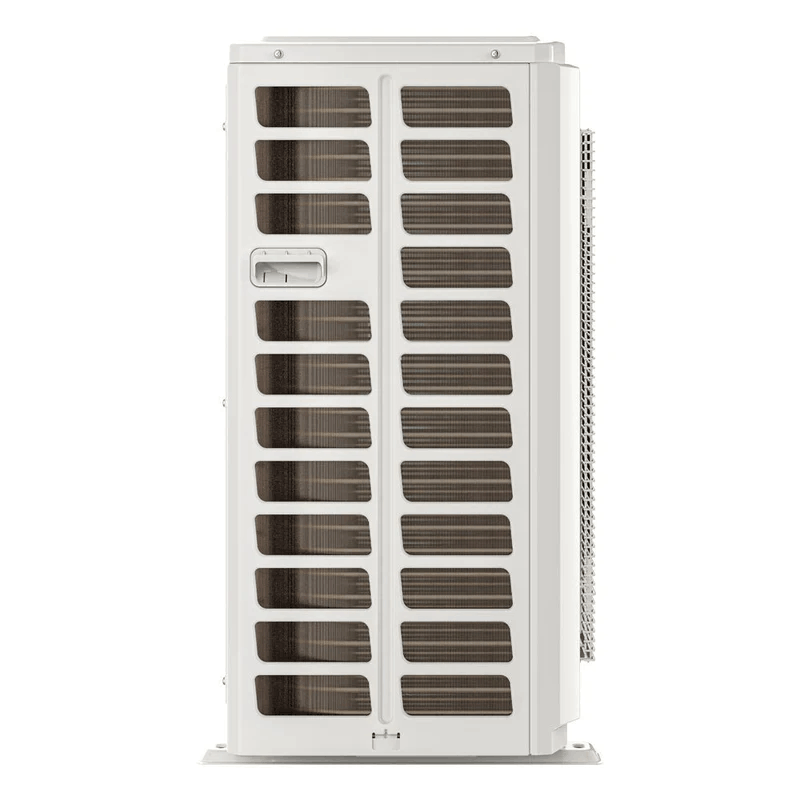

mrcool versapro 30000 btu 2.5 ton central ducted system condenser side

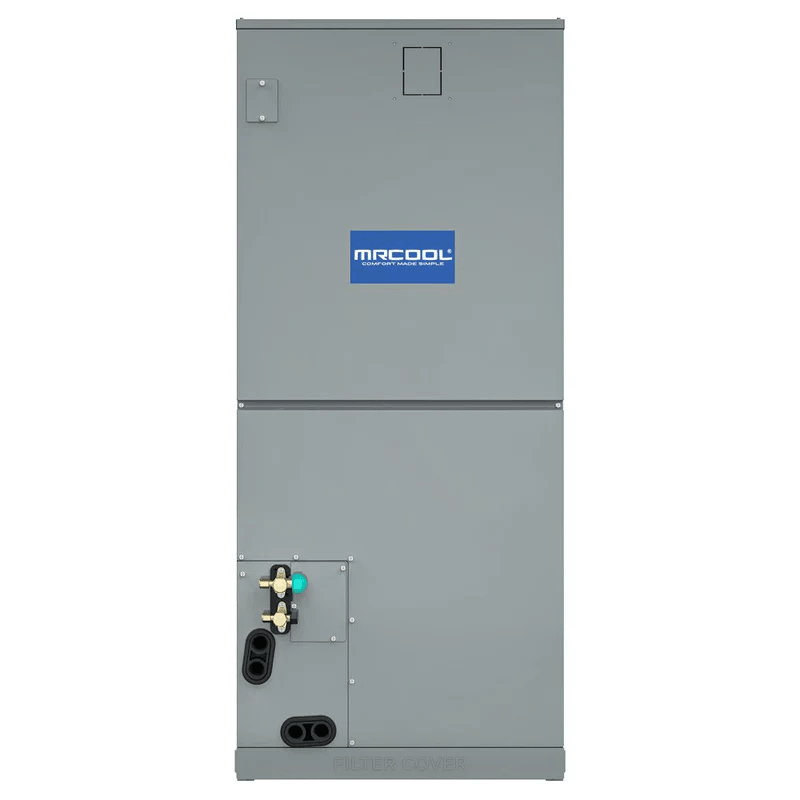

mrcool versapro 30000 btu 2.5 ton central ducted air handler

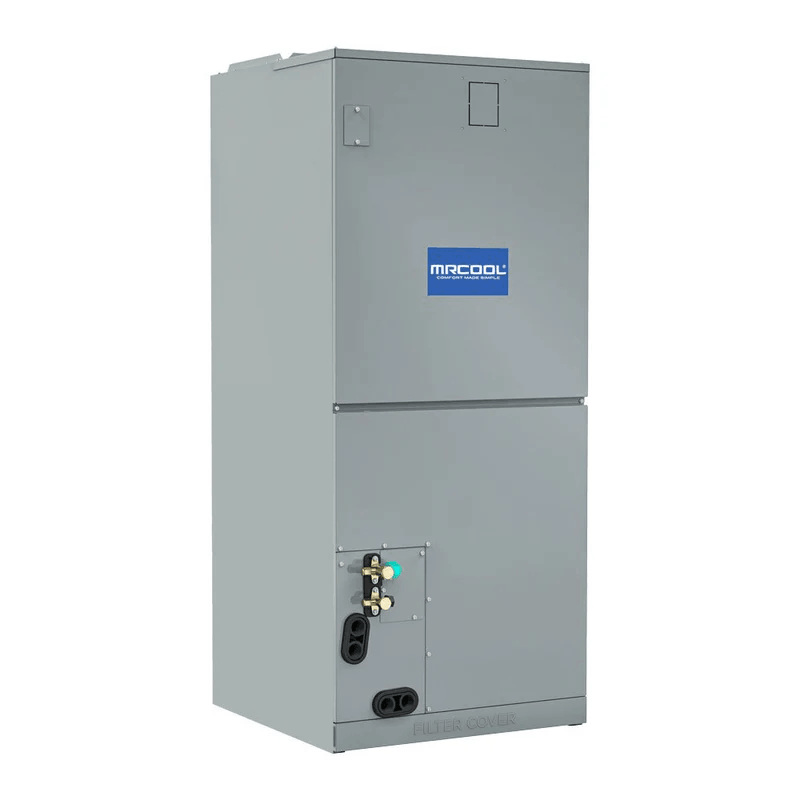

mrcool versapro 30000 btu 2.5 ton central ducted air handler front

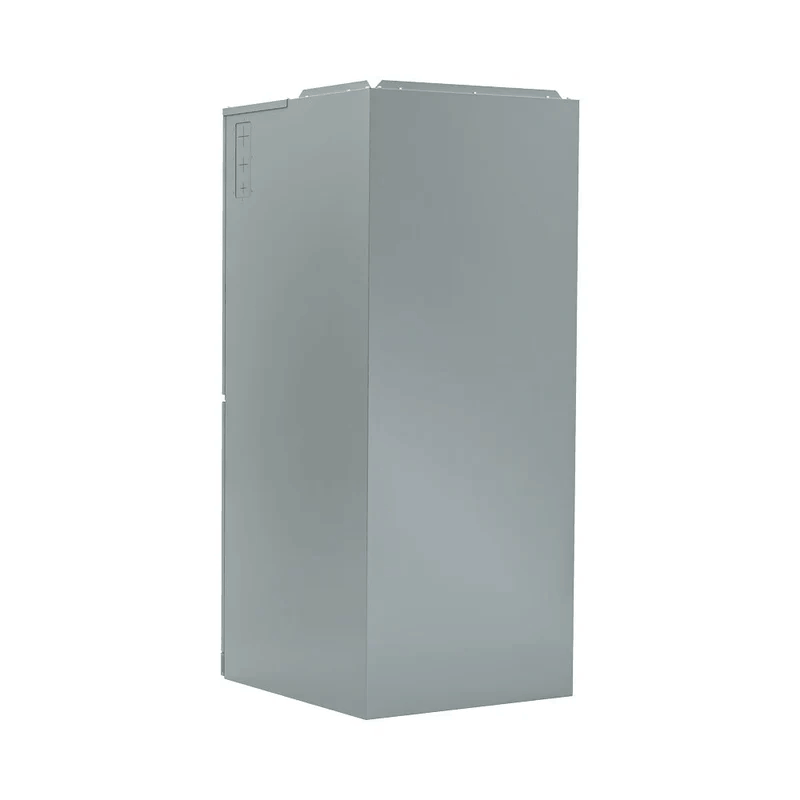

mrcool versapro 30000 btu 2.5 ton central ducted air handler side

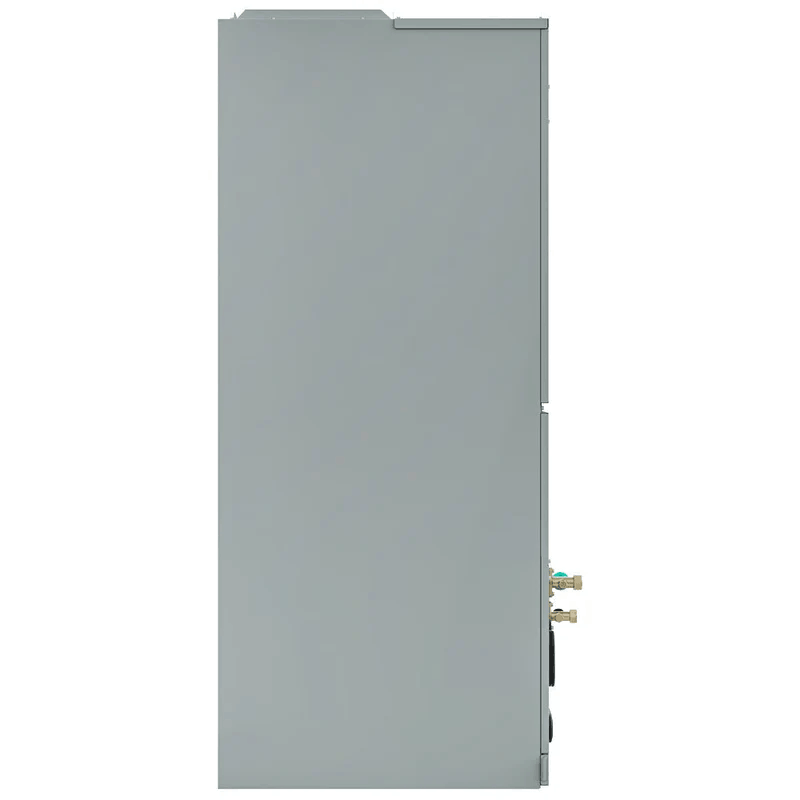

mrcool versapro 30000 btu 2.5 ton central ducted air handler back

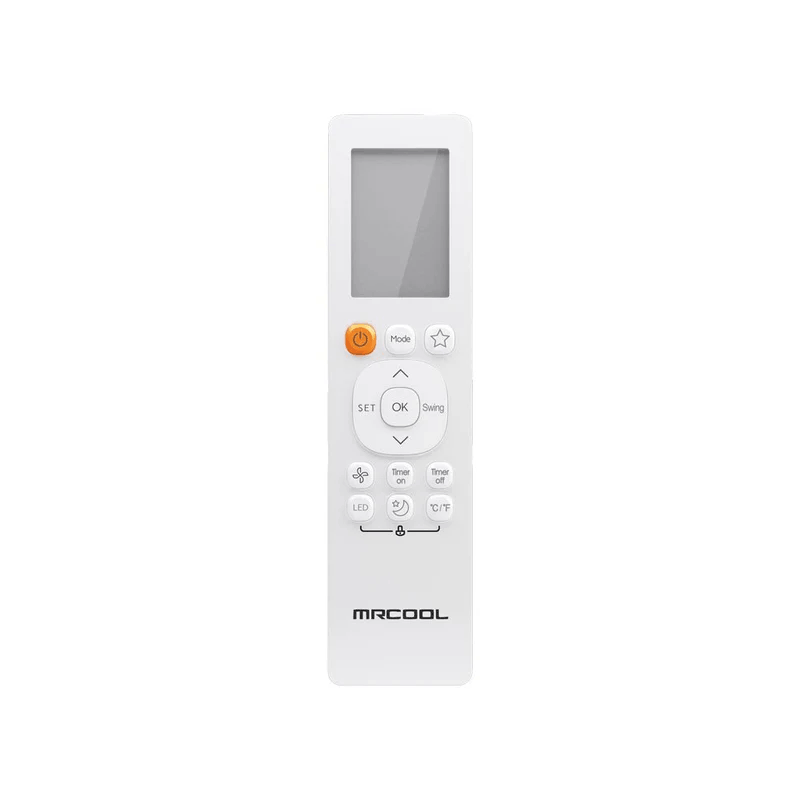

mrcool versapro 30000 btu 2.5 ton central ducted remote

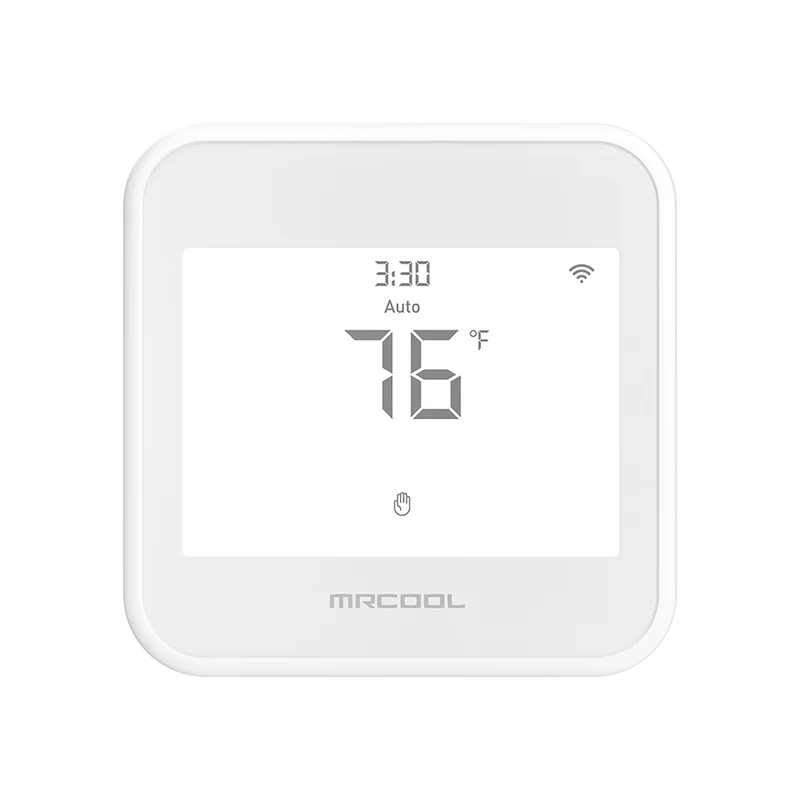

MRCOOL VersaPro 30000 btu 2.5 ton Smart Thermostat
Roll over image to zoom in Click on image to zoom
mrcool versapro 30000 btu 2.5 ton central ducted heat pump system 2nd genmrcool versapro 30000 btu central ducted heat pump systemmrcool versapro 30000 btu 2.5 ton central ducted system condensermrcool versapro 30000 btu 2.5 ton central ducted system condenser frontmrcool versapro 30000 btu 2.5 ton central ducted system condenser backmrcool versapro 30000 btu 2.5 ton central ducted system condenser sidemrcool versapro 30000 btu 2.5 ton central ducted air handlermrcool versapro 30000 btu 2.5 ton central ducted air handler frontmrcool versapro 30000 btu 2.5 ton central ducted air handler sidemrcool versapro 30000 btu 2.5 ton central ducted air handler backmrcool versapro 30000 btu 2.5 ton central ducted remoteMRCOOL VersaPro 30000 btu 2.5 ton Smart Thermostat

MRCOOL VersaPro 30,000 BTU (2.5 Ton) 2nd Gen Central Ducted Heat Pump System - 17 SEER2 (MVP-30-HP-230A00-O)

MRCOOL SKU: MVP-30-HP-230A00-O

Choose your location

enter a US zip code

Price:
$2,890.00

Description

MRCOOL VersaPro 30K BTU 2.5 Ton 17 SEER2 Central Ducted Heat Pump System - 2nd Gen

When your home demands more capacity, the 2nd Gen MRCOOL VersaPro 30K delivers the power you need without breaking your budget. This variable-speed system brings advanced DC inverter technology to larger spaces at an accessible price point. With a solid 17 SEER2 rating and strong 8.5 HSPF4 heating performance, you're getting reliable efficiency that keeps utility costs in check while maintaining exceptional comfort year-round.

The intelligent DC inverter continuously adjusts to match your home's changing demands, ensuring optimal performance through summer heat and winter cold. Covering approximately 1,250 square feet, this 2.5-ton system handles larger homes, multi-level properties, or expanding living spaces that need dependable whole-home climate control.

Installation remains straightforward despite the increased capacity. Your VersaPro 30K works seamlessly with MRCOOL Quick Connect pre-charged line sets (sold separately with eco-friendly R-454B refrigerant), eliminating vacuuming for swift, trouble-free setup. Professional technicians value the time savings, while experienced DIYers appreciate the accessible installation process. The air handler supports upflow, downflow, and horizontal configurations—giving you flexibility for attics, closets, crawlspaces, or basements.

Durable painted galvanized steel construction ensures long-term reliability. The compact side-discharge condenser fits tight outdoor areas, while the removable filter and self-diagnostics panel simplify maintenance—you can quickly identify error codes and maintain peak performance.

Your larger investment comes with serious protection. The 10-year parts and compressor warranty from MRCOOL delivers hassle-free coverage and lasting confidence. The included wired thermostat provides reliable temperature control from day one. When extreme cold demands extra heating power, optional heat kit compatibility ensures enhanced performance. This is your cost-effective solution for powerful, quiet, and efficient climate control across larger living spaces.



Perfect Applications:

  • Homeowners with growing space requirements - Solid 17 SEER2 and 8.5 HSPF4 ratings provide dependable efficiency for larger homes requiring 2.5-ton capacity climate control.
  • Larger single-family homes and multi-level properties - 2.5-ton capacity efficiently covers approximately 1,250 square feet with consistent temperature management across multiple rooms.
  • Contractors serving medium to large residential projects - Quick Connect compatibility and multi-position design streamline installation on bigger capacity systems.
  • Experienced DIY installers upgrading to larger systems - User-friendly Quick Connect and self-diagnostics make professional installation accessible despite increased capacity demands.



What Makes VersaPro 30K Heat Pump System the Right Choice

  • Variable-Speed Performance at Larger Capacity - DC inverter technology delivers continuous output adjustment for superior comfort and efficiency at 2.5-ton scale without premium pricing.
  • Reliable Energy Efficiency Ratings - 17 SEER2 cooling and 8.5 HSPF4 heating performance ensure dependable utility savings and consistent year-round operation.
  • Quick Connect Installation Advantage - Compatible with MRCOOL pre-charged R-454B line sets (sold separately) that eliminate vacuuming despite larger system capacity.
  • Total Installation Versatility - Upflow, downflow, and horizontal configurations accommodate any mechanical space across larger properties and diverse layouts.
  • Comprehensive 10-Year Protection - Extended parts and compressor warranty from MRCOOL provides confidence and hassle-free coverage for your larger capacity investment.

What's Included

Everything you need is included with your MRCOOL VersaPro 30K 2nd Gen Central Ducted Heat Pump System.

  • 1 x 2.5 Ton MRCOOL VersaPro Central Ducted Heat Pump Condenser
  • 1 x 2.5 Ton MRCOOL VersaPro Central Ducted Air Handler
  • 1 x MRCOOL Smart Thermostat - MST04
  • 1 x Remote Control


MRCOOL VersaPro 30,000 BTU 2nd Gen Central Ducted Heat Pump System Features

  • 30,000 BTU (2.5 Ton) Variable-Speed System - Advanced DC inverter technology delivers precise climate control with continuous adjustment at larger capacity levels.
  • 17 SEER2 / 8.5 HSPF4 Ratings - Solid cooling and heating efficiency ratings ensure dependable energy savings and consistent utility cost reductions.
  • Quick Connect Compatible - Works with MRCOOL pre-charged line sets featuring eco-friendly R-454B refrigerant for simplified installation without vacuuming.
  • Multi-Position Air Handler Design - Install in upflow, downflow, or horizontal configurations to fit your mechanical space across larger properties.
  • Painted Galvanized Steel Construction - Durable materials on condenser and air handler ensure long-term reliability and weather resistance.
  • Compact Side-Discharge Condenser - Space-efficient design fits tight outdoor locations while maintaining excellent heat exchange performance.
  • Self-Diagnostic Capabilities - Built-in diagnostics panel displays error codes for quick troubleshooting and simplified maintenance.
  • Easily Accessible Removable Filter - Simple filter access facilitates regular maintenance for optimal airflow and indoor air quality.
  • Optional Heat Kit Compatible - Supports supplemental heat kit installation for enhanced capacity during extreme cold-weather conditions.
  • Wired Thermostat Included - Complete temperature control solution provided with no additional equipment needed.
  • Covers Approximately 1,250 Square Feet - Ideal capacity for larger homes, multi-level properties, or expanding living spaces.
  • 10-Year Parts and Compressor Warranty - Comprehensive manufacturer coverage provides lasting peace of mind and repair protection.

MRCOOL MVP-30-HP-C-230A00-O Condenser Specs

BRAND NAME MRCOOL
SERIES VersaPro Central Ducted Condenser
MODEL MVP-30-HP-C-230A00-O
GTIN 840255582704
UPC 840255582704
UNIT TYPE Split System Heat Pump
EQUIPMENT TYPE Condenser
SHORT DESCRIPTION 2.5 Ton MRCOOL VersaPro Central Ducted Heat Pump Condenser
SEER2 17
EER2 10.7
HSPF2-4 8.5
HSPF2-5 6.6
TONNAGE 2.5
COOLING CAPACITY (BTU) 30000
HEATING CAPACITY (BTU) 31000
VOLTAGE (V) 208/230
PHASE 1
CYCLE 60
MAX FUSE BREAKER (A) 25
MIN CIRCUIT AMPACITY (A) 22.5
COLOR gray
REFRIGERANT TYPE R-454B
REFRIGERANT VOLUME (OZ) 91.71
DECIBEL RATING (DBA) 60
CFM 3001.8
LIQUID LINE SIZE 3/8
SUCTION LINE SIZE 3/4
WIFI COMPATIBILITY Yes
APP COMPATIBILITY Yes
ETL CERTIFIED Yes
ENERGY STAR CERTIFIED No
AHRI CERTIFIED Yes
ETL LISTED Yes
BASE PARTS WARRANTY 10 Years
BASE COMPRESSOR WARRANTY 10 Years
CONTAINS ELECTRONICS Yes
CONTAINS CHEMICALS Yes
CONTAINS COMPRESSED GAS Yes
NET DEPTH (IN) 16.14
NET HEIGHT (IN) 31.89
NET WIDTH (IN) 37.24
NET WEIGHT (LBS) 141.76
GROSS DEPTH (IN) 19.68
GROSS HEIGHT (IN) 34.84
GROSS WIDTH (IN) 42.91
GROSS WEIGHT (LBS) 152.34

MRCOOL MVP-30-HP-MUAH-230A00-O Air Handler Specs

BRAND NAME MRCOOL
SERIES VersaPro Central Ducted Air Handler
MODEL MVP-30-HP-MUAH-230A00-O
GTIN 840255586467
UPC 840255586467
UNIT TYPE Split System Heat Pump
EQUIPMENT TYPE Air Handler
SHORT DESCRIPTION 2.5 Ton MRCOOL VersaPro Central Ducted Air Handler
CFM 618.03/576.83/529.74/488.54
TONNAGE 2.5
COOLING CAPACITY (BTU) 30000
HEATING CAPACITY (BTU) 31000
VOLTAGE (V) 115/208-230
PHASE 1
CYCLE 60
MAX FUSE BREAKER (A) 15
MIN CIRCUIT AMPACITY (A) 8.0/6.0
COLOR gray
DECIBEL RATING LOW (DBA) 29
DECIBEL RATING HIGH (DBA) 46
NUMBER OF SPEEDS 3
MAX LINESET LENGTH (FT) 164 ft
LIQUID LINE SIZE 3/8
SUCTION LINE SIZE 3/4
FILTER TYPE Replaceable
FILTER SIZE 16x20x1
AUXILIARY HEATER INCLUDED No
AUXILIARY HEATER AVAILABLE Yes
AUXILIARY HEATER SIZES 5kW/8kW/10kW
ADJUSTABLE THERMOSTAT Yes
WIFI COMPATIBILITY Yes
APP COMPATIBILITY Yes
ETL CERTIFIED Yes
ENERGY STAR CERTIFIED No
AHRI CERTIFIED Yes
BASE PARTS WARRANTY 10 Years
BASE COMPRESSOR WARRANTY 10 Years
CONTAINS ELECTRONICS Yes
CONTAINS CHEMICALS Yes
CONTAINS COMPRESSED GAS Yes
NET DEPTH (IN) 21.02
NET HEIGHT (IN) 49.02
NET WIDTH (IN) 21.02
NET WEIGHT (LBS) 128.97
GROSS DEPTH (IN) 24.41
GROSS HEIGHT (IN) 52.56
GROSS WIDTH (IN) 26.57
GROSS WEIGHT (LBS) 153.44

Understanding your MRCOOL warranty coverage ensures long-term system performance and protection. All warranties are non-transferable and valid only at the original installation address.

Warranty Coverage by Series

DIY Series 5th Generation Mini-Splits

Models: DIY-09-HP through DIY-36-HP, DIYCASSETTE, DIY-MULTI series

  • Parts: 5 years from proof of purchase
  • Compressor: 7 years from proof of purchase
  • Remote Control: Included in parts warranty
  • Extended Lifetime Warranty: Available with MRCOOL Care Kit Program enrollment (fee required)
  • Installation: Professional installer NOT required when using MRCOOL Quick Connect Pre-Charged Line Set

Advantage Series Mini-Splits

Models: A-09-HP through A-36-HP series

  • Parts: 1 year from proof of purchase
  • Compressor: 2 years from proof of purchase
  • Extended Lifetime Warranty: Available with MRCOOL Care Kit Program enrollment (fee required)

    Must register within 180 days of purchase
    Covers compressor failure only with one-time condenser replacement
    Requires ongoing Care Kit Program maintenance
Easy Pro Series Mini-Splits

Models: EZPRO-09-HP through EZPRO-24-HP series

  • Parts: 1 year from proof of purchase
  • Compressor: 2 years from proof of purchase
  • Extended Lifetime Warranty: Available with MRCOOL Care Kit Program enrollment (fee required)

Central Ducted Systems

Models: CENTRAL-18-HP through CENTRAL-60-HP, MVP Series

  • Parts: 10 years from installation date
  • Compressor: 10 years from installation date
  • Labor: 10 years (installer responsible for first 90 days)
  • Installation: Professional installer NOT required when using MRCOOL Quick Connect Pre-Charged Line Set

Universal Series Split Systems

Models: UHP series, UAH series Air Handlers

  • Parts: 10 years from proof of purchase
  • Compressor: 10 years from proof of purchase
  • Labor: 2 years limited (begins 91 days after purchase, covers diagnostic and repair costs)
  • Installation: Professional installer required

Inverter Package Series

Models: GCSHPM series, GCSCAM series

  • Parts: 10 years from installation date
  • Labor: 5 years limited (manufacturing defects only, begins 91 days after installation)
  • Installation: Professional installation required

Olympus Series Mini-Splits

Models: MDUO, MDUCO, MDUI series

Owner-Occupied Residences:

  • Parts: 5 years standard, 10 years with registration within 60 days
  • Compressor: 5 years standard, 10 years with registration within 60 days

Commercial Applications:

  • Parts & Compressor: 5 years with registration within 60 days
  • Installation: Professional installer required

Key Warranty Conditions

Product Registration:

  • Register at mrcool.com/warranty to activate extended coverage (where applicable)
  • Registration deadlines vary by series (30-180 days from purchase)

Installation Requirements:

  • Must comply with all federal, state, and local electrical codes
  • Must follow MRCOOL installation instructions
  • Must use new, compatible, MRCOOL-approved components
  • Warranty voids if installed with used or incompatible parts

Warranty Does NOT Cover:

  • Labor, diagnostic, shipping, or installation costs (except where labor warranty applies)
  • Normal maintenance (filter cleaning, lubrication, coil cleaning)
  • Refrigerant costs or energy consumption
  • Damage from improper installation, natural disasters, or electrical issues
  • Units moved from original installation address
  • Units installed outside USA and Canada

How to File a Warranty Claim

Contact MRCOOL:

For Labor Claims (Universal/Inverter Package Series within first 2 years):

  • Phone: (844) 518-2040

Required Documentation:

  • Proof of purchase
  • Product registration confirmation (if applicable)
  • Diagnostic testing results (professional HVAC technician may be required)
  • Defective parts must be returned when requested

For complete warranty terms and conditions, visit mrcool.com/warranty

Replacement parts are covered for the remainder of the original warranty period or 30 days, whichever is longer. Some states do not allow exclusion of incidental or consequential damages. This warranty gives you specific legal rights that may vary by state or province.
