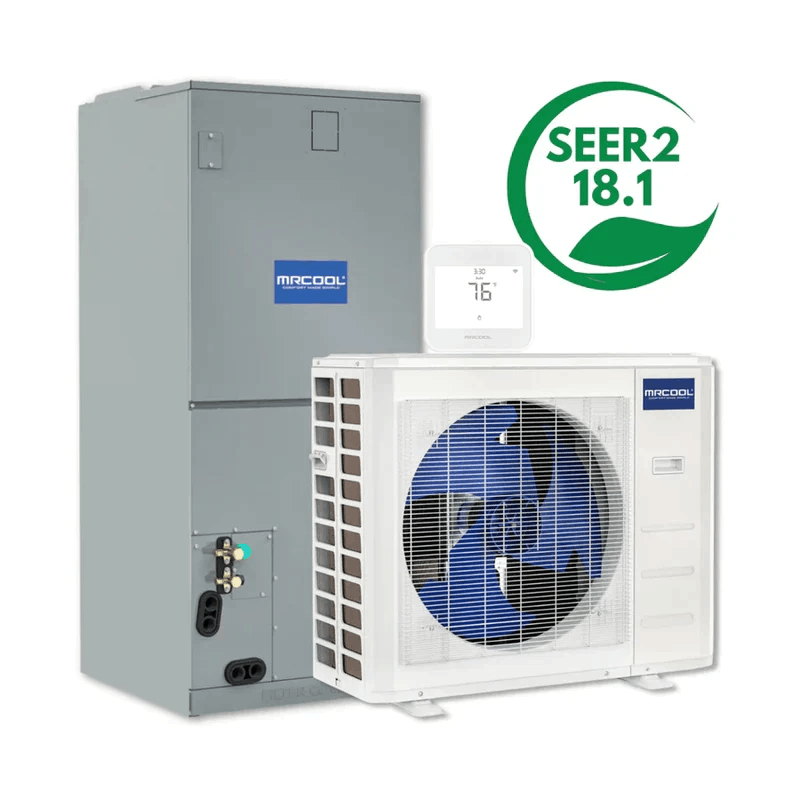

mrcool versapro 2 ton central ducted heat pump system 2nd gen
mrcool versapro 24000 btu central ducted heat pump system
mrcool versapro 24000 btu 2 ton ton central ducted system condenser

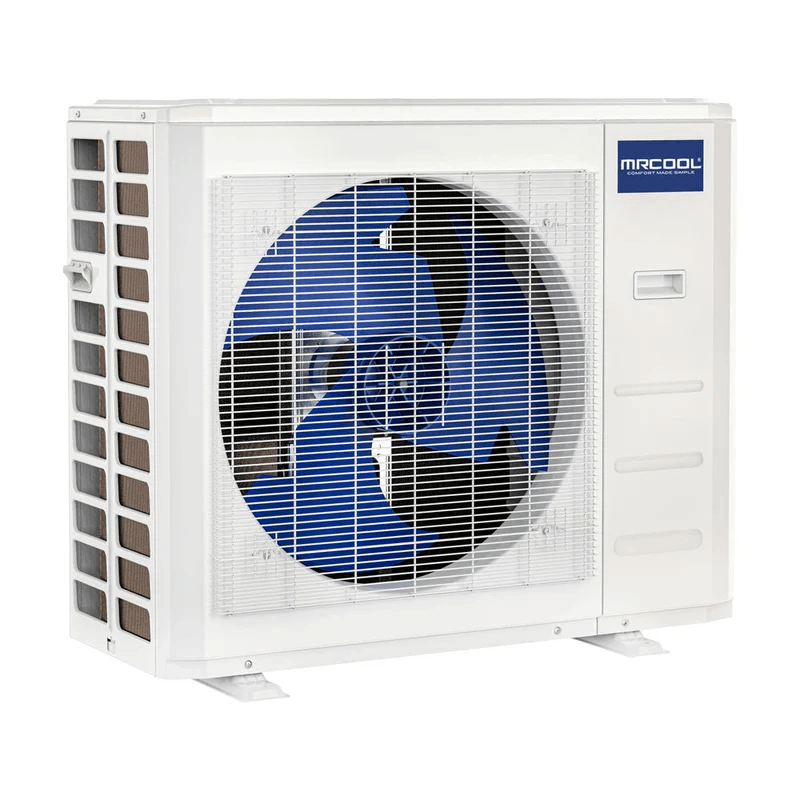

mrcool versapro 24000 btu 2 ton central ducted system condenser front

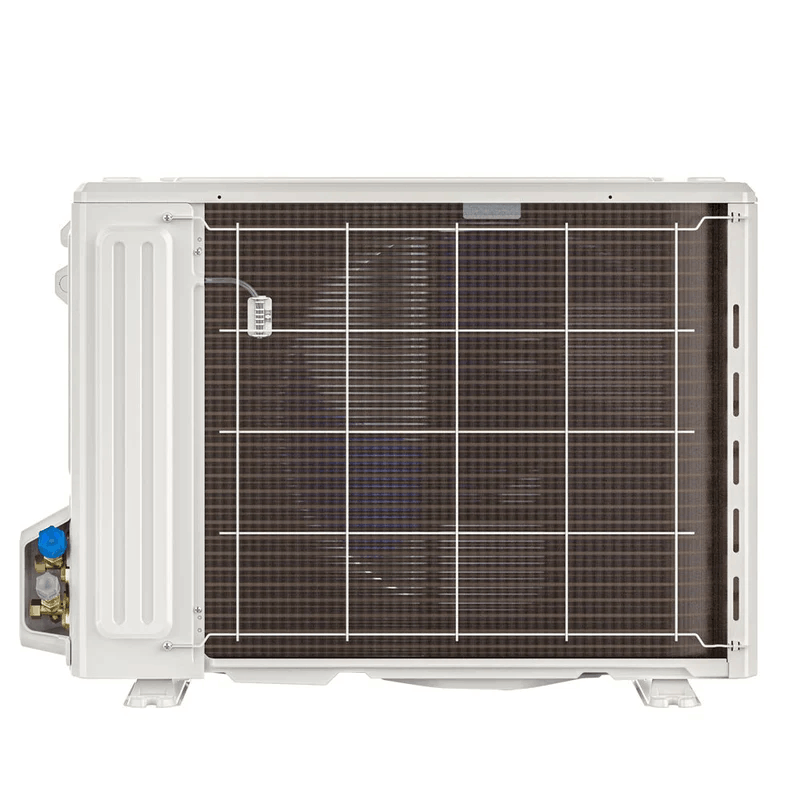

mrcool versapro 24000 btu 2 ton ton central ducted system condenser back

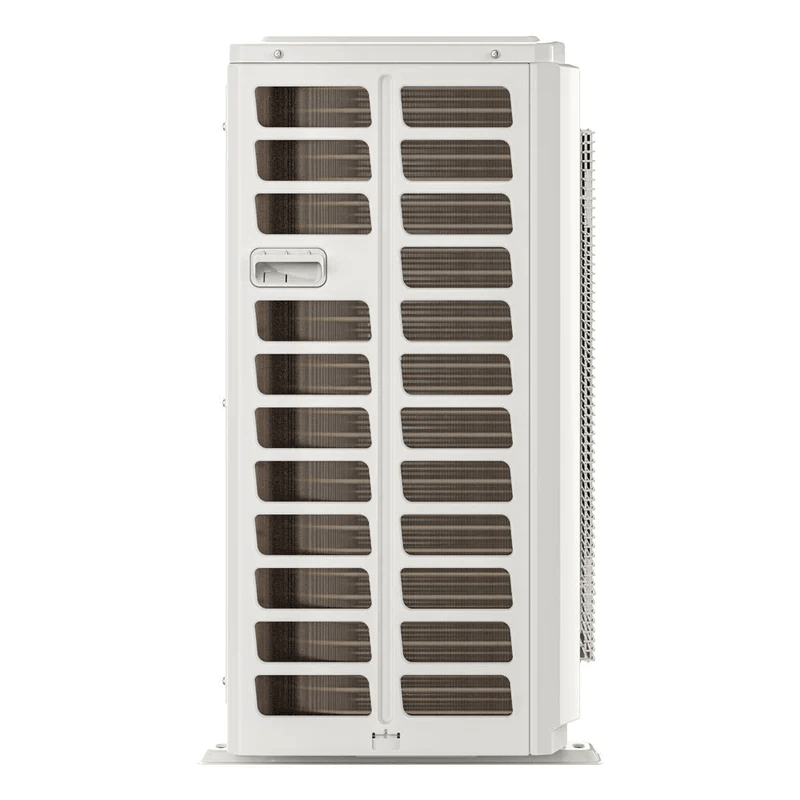

mrcool versapro 24000 btu 2ton central ducted system condenser side
mrcool versapro 24000 btu 2 ton central ducted air handler

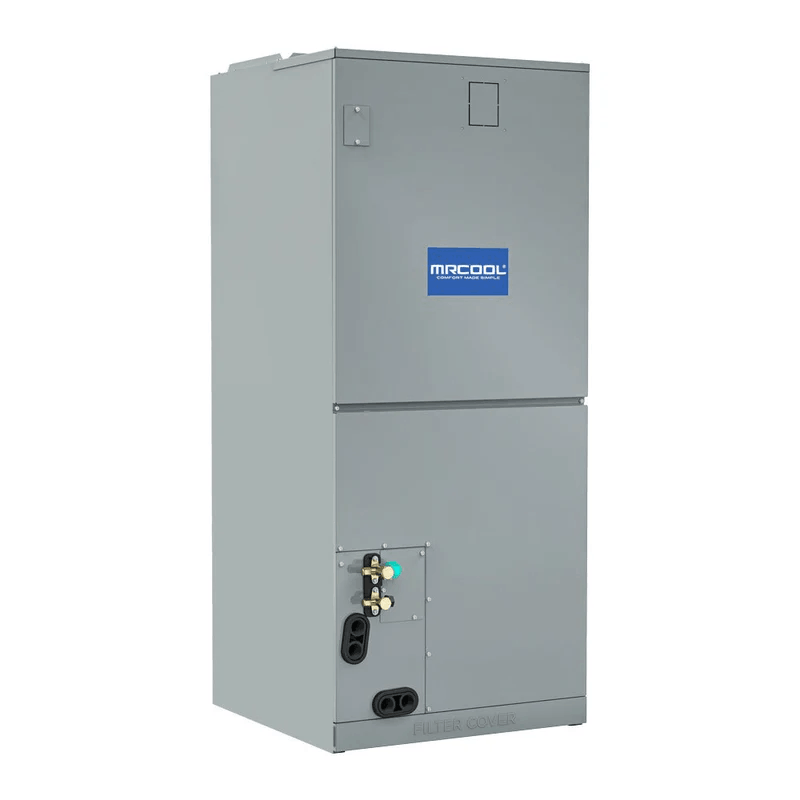

mrcool versapro 24000 btu 2 ton ton central ducted air handler front

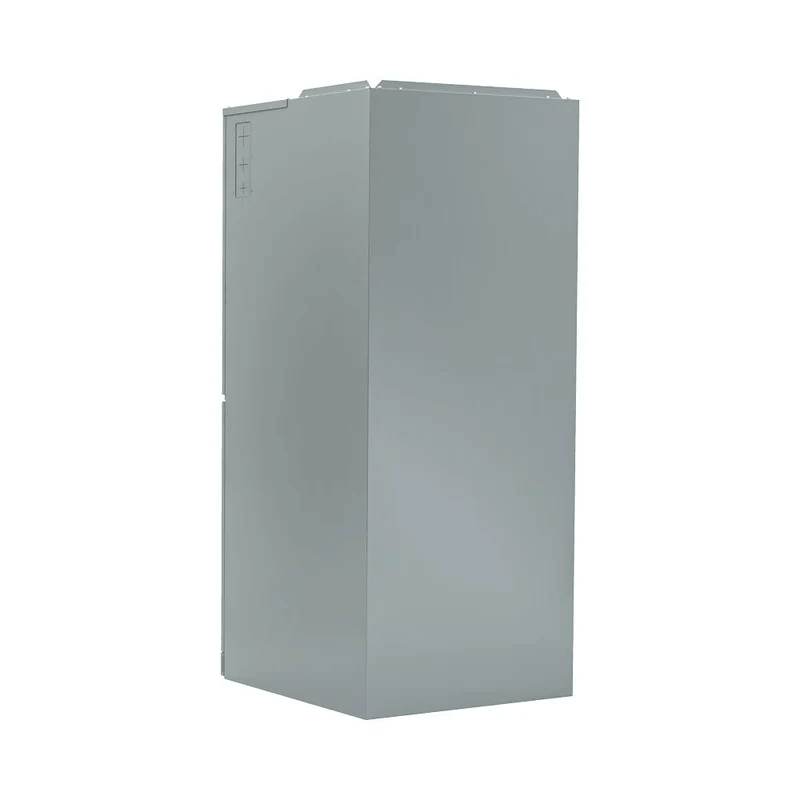

mrcool versapro 24000 btu 2 ton ton central ducted air handler side

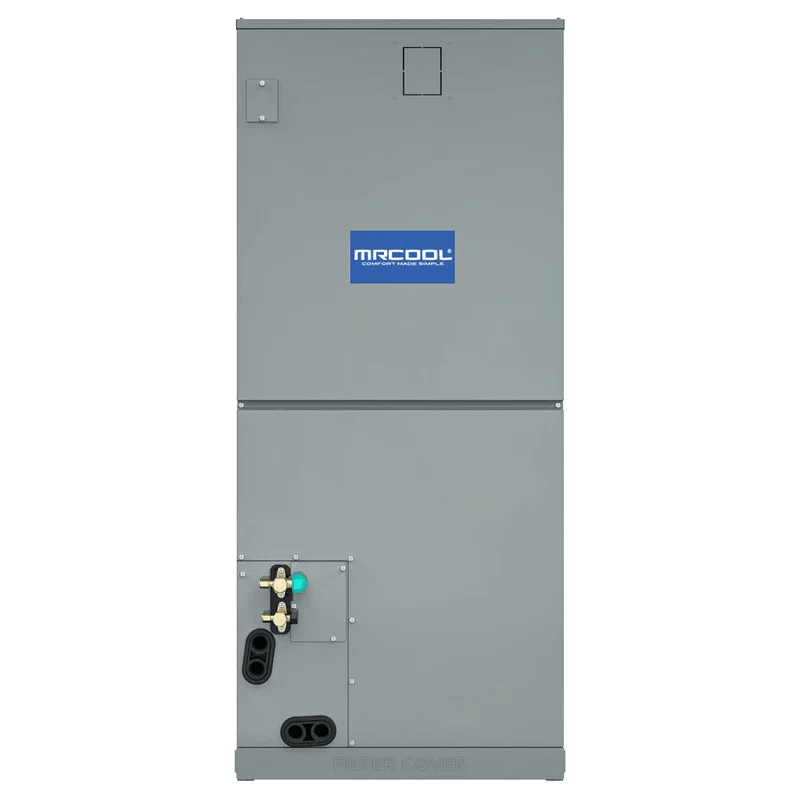

mrcool versapro 24000 btu 2 ton central ducted air handler back
mrcool versapro 24000 btu 2 ton ton central ducted remote
MRCOOL VersaPro 24000 btu 2 ton Smart Thermostat
Roll over image to zoom in Click on image to zoom
mrcool versapro 2 ton central ducted heat pump system 2nd genmrcool versapro 24000 btu central ducted heat pump systemmrcool versapro 24000 btu 2 ton ton central ducted system condensermrcool versapro 24000 btu 2 ton central ducted system condenser frontmrcool versapro 24000 btu 2 ton ton central ducted system condenser backmrcool versapro 24000 btu 2ton central ducted system condenser sidemrcool versapro 24000 btu 2 ton central ducted air handlermrcool versapro 24000 btu 2 ton ton central ducted air handler frontmrcool versapro 24000 btu 2 ton ton central ducted air handler sidemrcool versapro 24000 btu 2 ton central ducted air handler backmrcool versapro 24000 btu 2 ton ton central ducted remoteMRCOOL VersaPro 24000 btu 2 ton Smart Thermostat

MRCOOL VersaPro 24,000 BTU (2 Ton) 2nd Gen Central Ducted Heat Pump System - 18.1 SEER2 (MVP-24-HP-230A00-O)

MRCOOL SKU: MVP-24-HP-230A00-O

Choose your location

enter a US zip code

Price:
$2,686.00

Description

MRCOOL VersaPro 24K BTU 2 Ton 18.1 SEER2 Central Ducted Heat Pump System - 2nd Gen

You deserve whole-home comfort without compromising performance or budget. The 2nd Gen MRCOOL VersaPro 24K delivers advanced variable-speed technology at a price that makes upgrading smart and accessible. With an impressive 18.1 SEER2 rating and outstanding 9.7 HSPF4 heating performance, you're investing in consistently lower utility costs and exceptional year-round comfort.

The DC inverter technology continuously adjusts to match your home's demands, ensuring optimal efficiency through summer heat and winter cold. Covering approximately 1,000 square feet, this 2-ton system provides dependable climate control for average-sized homes, apartments, condos, or dedicated living spaces.

Installation couldn't be simpler. Your VersaPro 24K integrates seamlessly with MRCOOL Quick Connect pre-charged line sets (sold separately with eco-friendly R-454B refrigerant), completely eliminating vacuuming for swift, trouble-free setup. Professional technicians appreciate the accelerated installation, while skilled DIYers find the process remarkably accessible. The air handler supports upflow, downflow, and horizontal positioning—giving you complete flexibility for attics, closets, crawlspaces, or basements.

Built with durable painted galvanized steel, you're getting long-term reliability that withstands the elements. The compact side-discharge condenser fits tight outdoor spaces, while the removable filter and self-diagnostics panel make maintenance simple—you can quickly identify error codes and keep your system performing optimally.

Your investment comes protected with comprehensive backing. The 10-year parts and compressor warranty from MRCOOL provides hassle-free coverage and lasting peace of mind. The included wired thermostat gives you reliable temperature control right out of the box. When extreme winter conditions demand supplemental heating, optional heat kit compatibility ensures enhanced functionality for severe cold-weather performance. This is your cost-effective solution for exceptional, quiet, and efficient whole-home climate control.



Perfect Applications:

  • Homeowners seeking affordable upgrades from aging systems - Impressive 18.1 SEER2 and 9.7 HSPF4 ratings deliver substantial energy savings compared to outdated units while ensuring reliable year-round performance.
  • Average-sized homes and condos requiring whole-home climate control - 2-ton capacity efficiently covers approximately 1,000 square feet with precise temperature management and consistent comfort.
  • Professional contractors prioritizing installation efficiency - Quick Connect compatibility and multi-position air handler design reduce installation time and labor costs on residential projects.
  • Experienced DIY installers tackling their own HVAC projects - User-friendly Quick Connect system and integrated self-diagnostics make professional-quality installation achievable for skilled homeowners.



What Makes The VersaPro 24K Heat Pump System the Smart Choice

  • Advanced Variable-Speed Technology at Accessible Pricing - DC inverter compressor delivers premium performance with continuous output adjustment for superior comfort and efficiency without premium pricing.
  • Outstanding Energy Performance Ratings - 18.1 SEER2 cooling efficiency and exceptional 9.7 HSPF4 heating performance ensure year-round utility savings and potential rebate qualification.
  • Quick Connect Installation Simplicity - Compatible with MRCOOL pre-charged R-454B line sets (sold separately) that eliminate vacuuming for faster, easier professional or DIY installation.
  • Complete Installation Flexibility - Upflow, downflow, and horizontal air handler configurations accommodate any mechanical space including attics, closets, basements, and crawlspaces.
  • Extended 10-Year Warranty Protection - Comprehensive parts and compressor coverage from MRCOOL delivers lasting confidence and hassle-free protection against unexpected repair costs.



System Integration & Installation Requirements

  • Multi-Position Capability: This air handler supports upflow, downflow, and horizontal installations for complete flexibility across residential mechanical spaces and diverse configurations.
  • Quick Connect Installation: Compatible with MRCOOL Quick Connect pre-charged line sets (sold separately) featuring R-454B refrigerant that eliminate vacuuming for faster, easier setup.
  • Heat Kit Expandability: Optional heat kits available to provide supplementary heating capacity and emergency backup during extreme cold-weather conditions.
  • Professional/DIY: Suitable for both licensed contractor installation and experienced homeowner installation with proper training, tools, and understanding of ducted system requirements.
  • Coverage Area: 2-ton capacity appropriate for approximately 1,000 square feet—ideal for average-sized homes, condos, apartments, or dedicated living areas.

What's Included

Everything you need is included with your MRCOOL VersaPro 24K 2nd Gen Central Ducted Heat Pump System.

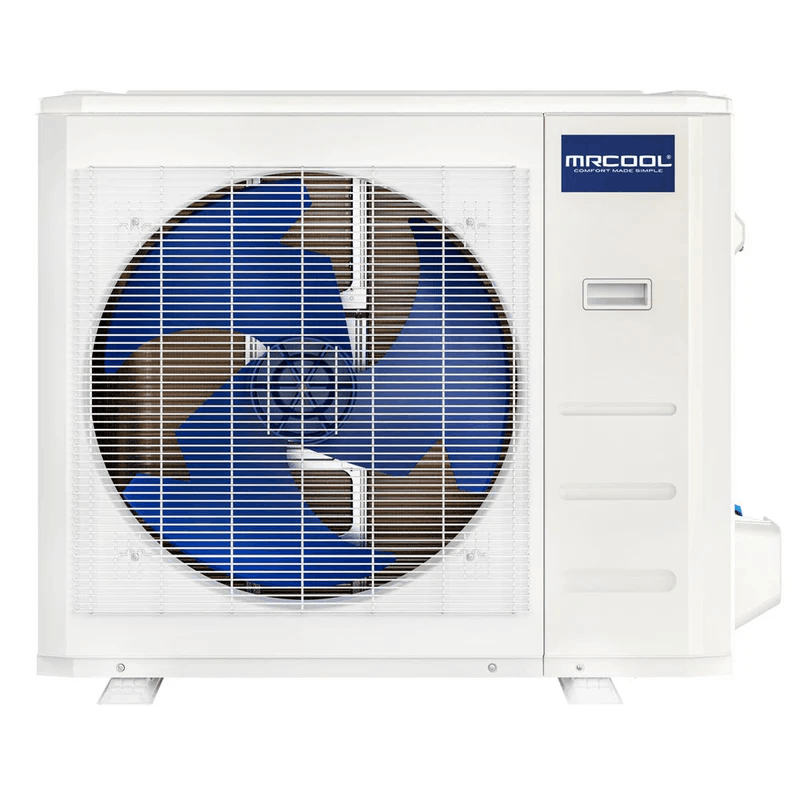

  • 1 x 2 Ton MRCOOL VersaPro Central Ducted Heat Pump Condenser

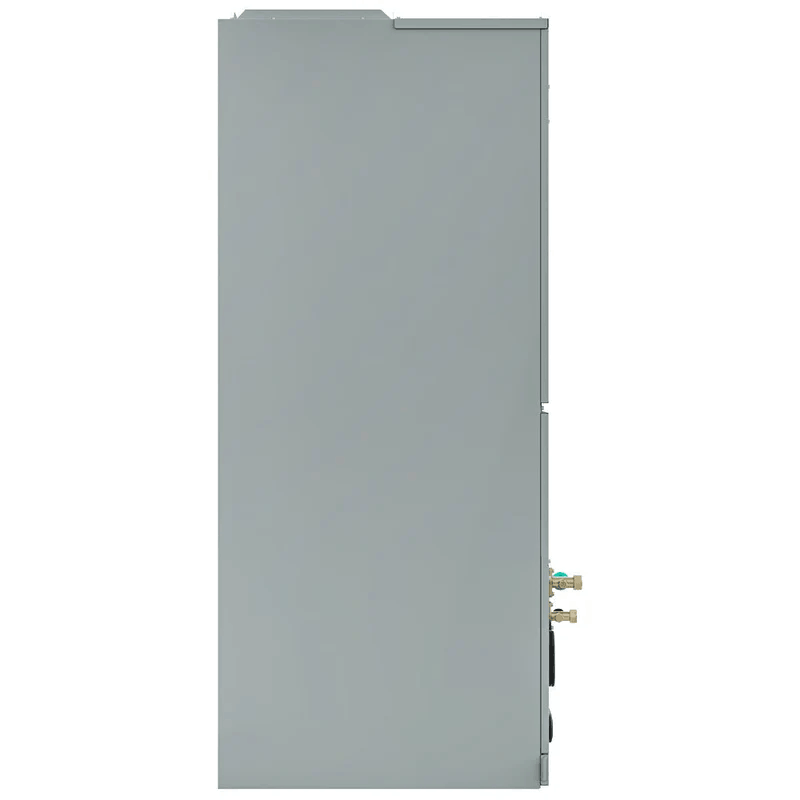

  • 1 x 2 Ton MRCOOL VersaPro Central Ducted Air Handler

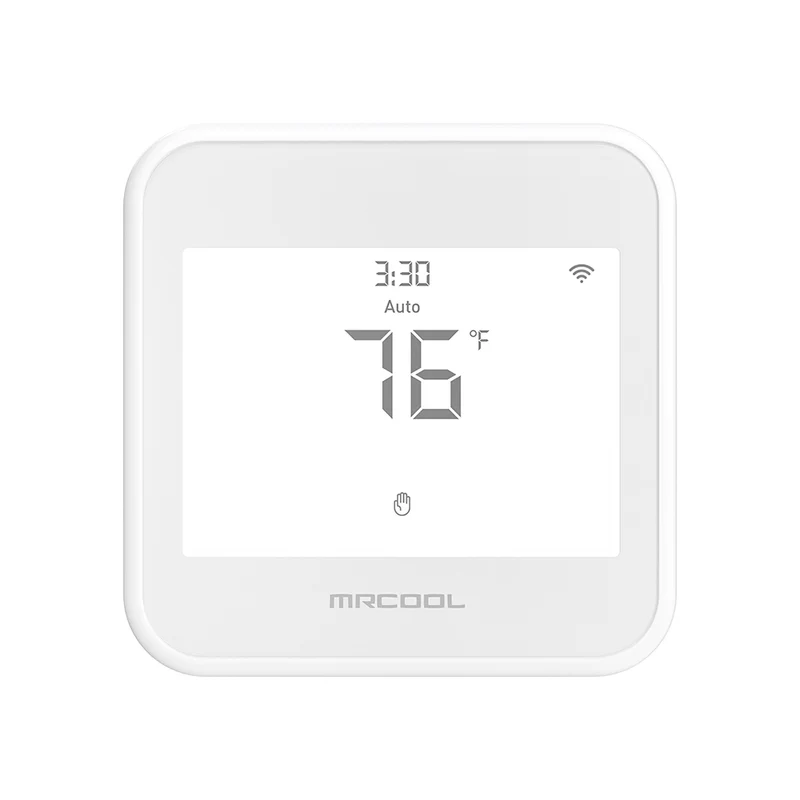

  • 1 x MRCOOL Smart Thermostat - MST04

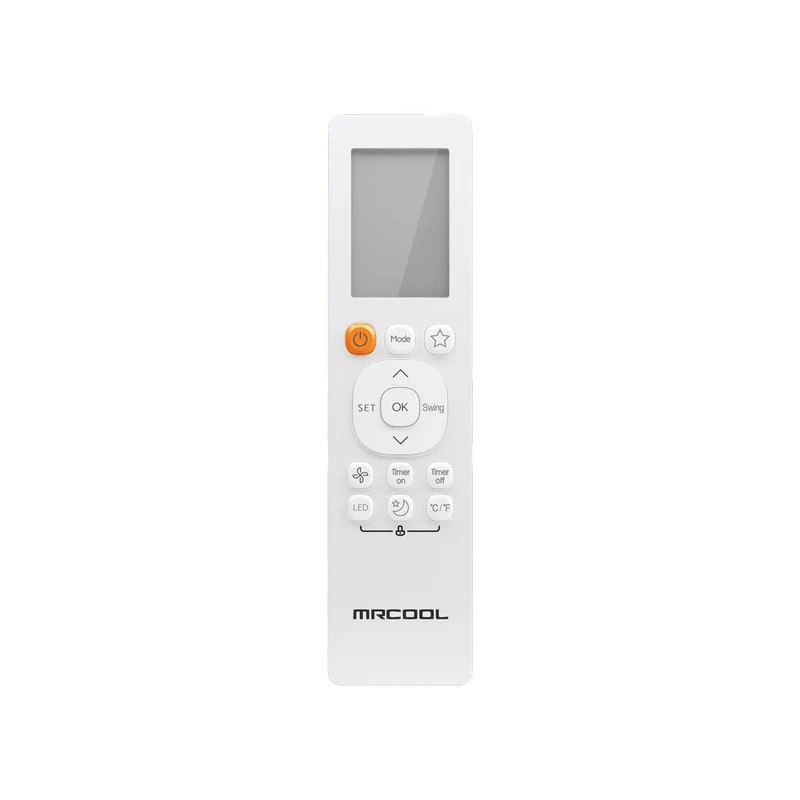

  • 1 x Remote Control


MRCOOL VersaPro 24,000 BTU 2nd Gen Central Ducted Heat Pump System Features

  • 24,000 BTU (2 Ton) Variable-Speed System - Advanced DC inverter technology provides precise climate control with continuous compressor modulation for optimal comfort and efficiency.
  • 18.1 SEER2 / 9.7 HSPF4 Ratings - Outstanding cooling and heating efficiency ratings ensure substantial energy savings and lower utility costs throughout every season.
  • Quick Connect Compatible - Works seamlessly with MRCOOL pre-charged line sets featuring eco-friendly R-454B refrigerant for simplified installation without vacuuming.
  • Multi-Position Air Handler Design - Install in upflow, downflow, or horizontal configurations to perfectly fit your specific mechanical space and property requirements.
  • Painted Galvanized Steel Construction - Durable materials on both condenser and air handler guarantee long-term reliability and superior resistance to weather and corrosion.
  • Compact Side-Discharge Condenser - Space-efficient design fits tight outdoor locations while maintaining excellent heat exchange and optimal airflow performance.
  • Self-Diagnostic Capabilities - Built-in diagnostics panel simplifies troubleshooting by clearly displaying error codes for quick maintenance and service identification.
  • Easily Accessible Removable Filter - Simple filter access facilitates regular maintenance, ensuring optimal airflow performance and superior indoor air quality.
  • Optional Heat Kit Compatible - Supports supplemental heat kit installation for enhanced heating capacity during extreme cold-weather conditions and emergencies.
  • Wired Thermostat Included - Complete temperature control solution provided for convenient, reliable climate management with no additional equipment needed.
  • Covers Approximately 1,000 Square Feet - Ideal capacity for average-sized homes, condos, apartments, or dedicated living areas requiring efficient climate control.
  • 10-Year Parts and Compressor Warranty - Comprehensive manufacturer coverage provides lasting peace of mind and protection against unexpected repair expenses.

MRCOOL MVP-24-HP-C-230A00-O Condenser Specs

BRAND NAME MRCOOL
SERIES VersaPro Central Ducted Condenser
MODEL MVP-24-HP-C-230A00-O
GTIN 840255582698
UPC 840255582698
UNIT TYPE Split System Heat Pump
EQUIPMENT TYPE Condenser
SHORT DESCRIPTION 2 Ton MRCOOL VersaPro Central Ducted Heat Pump Condenser
SEER2 18.1
EER2 11
HSPF2-4 9.7
HSPF2-5 7.7
TONNAGE 2
COOLING CAPACITY (BTU) 24000
HEATING CAPACITY (BTU) 26000
VOLTAGE (V) 208-230
PHASE 1
CYCLE 60
MAX FUSE BREAKER (A) 20
MIN CIRCUIT AMPACITY (A) 19
COLOR gray
REFRIGERANT TYPE R-454B
REFRIGERANT VOLUME (OZ) 74.08
DECIBEL RATING (DBA) 60
CFM 1765.7
LIQUID LINE SIZE 3/8
SUCTION LINE SIZE 3/4
WIFI COMPATIBILITY Yes
APP COMPATIBILITY Yes
ETL CERTIFIED Yes
ENERGY STAR CERTIFIED Yes
AHRI CERTIFIED Yes
ETL LISTED Yes
BASE PARTS WARRANTY 10 Years
BASE COMPRESSOR WARRANTY 10 Years
CONTAINS ELECTRONICS Yes
CONTAINS CHEMICALS Yes
CONTAINS COMPRESSED GAS Yes
PROPOSITION 65 WARNING Yes
NET DEPTH (IN) 13.46
NET HEIGHT (IN) 26.5
NET WIDTH (IN) 35.04
NET WEIGHT (LBS) 102
GROSS DEPTH (IN) 15.67
GROSS HEIGHT (IN) 29.13
GROSS WIDTH (IN) 39.17
GROSS WEIGHT (LBS) 109

MRCOOL MVP-24-HP-MUAH-230A00-O Air Handler Specs

BRAND NAME MRCOOL
SERIES VersaPro Central Ducted Air Handler
MODEL MVP-24-HP-MUAH-230A00-O
GTIN 840255586450
UPC 840255586450
UNIT TYPE Split System Heat Pump
EQUIPMENT TYPE Air Handler
SHORT DESCRIPTION 2 Ton MRCOOL VersaPro Central Ducted Air Handler
CFM 824.04/759.29/694.55/629.80
TONNAGE 2
COOLING CAPACITY (BTU) 24000
HEATING CAPACITY (BTU) 26000
VOLTAGE (V) 115/208-230
PHASE 1
CYCLE 60
MAX FUSE BREAKER (A) 15
MIN CIRCUIT AMPACITY (A) 5.5/4.0
COLOR gray
DECIBEL RATING LOW (DBA) 28
DECIBEL RATING HIGH (DBA) 44
NUMBER OF SPEEDS 4
MAX LINESET LENGTH (FT) 164 ft
LIQUID LINE SIZE 3/8
SUCTION LINE SIZE 3/4
FILTER TYPE Replaceable
FILTER SIZE 16x20x1
AUXILIARY HEATER INCLUDED No
AUXILIARY HEATER AVAILABLE Yes
AUXILIARY HEATER SIZES 5kW/8kW/10kW
ADJUSTABLE THERMOSTAT Yes
WIFI COMPATIBILITY Yes
APP COMPATIBILITY Yes
ETL CERTIFIED Yes
ENERGY STAR CERTIFIED No
AHRI CERTIFIED Yes
BASE PARTS WARRANTY 10 Years
BASE COMPRESSOR WARRANTY 10 Years
CONTAINS ELECTRONICS Yes
CONTAINS CHEMICALS Yes
CONTAINS COMPRESSED GAS Yes
NET DEPTH (IN) 17.52
NET HEIGHT (IN) 45
NET WIDTH (IN) 21.02
NET WEIGHT (LBS) 105.82
GROSS DEPTH (IN) 20.87
GROSS HEIGHT (IN) 48.62
GROSS WIDTH (IN) 26.57
GROSS WEIGHT (LBS) 127.43

Understanding your MRCOOL warranty coverage ensures long-term system performance and protection. All warranties are non-transferable and valid only at the original installation address.

Warranty Coverage by Series

DIY Series 5th Generation Mini-Splits

Models: DIY-09-HP through DIY-36-HP, DIYCASSETTE, DIY-MULTI series

  • Parts: 5 years from proof of purchase
  • Compressor: 7 years from proof of purchase
  • Remote Control: Included in parts warranty
  • Extended Lifetime Warranty: Available with MRCOOL Care Kit Program enrollment (fee required)
  • Installation: Professional installer NOT required when using MRCOOL Quick Connect Pre-Charged Line Set

Advantage Series Mini-Splits

Models: A-09-HP through A-36-HP series

  • Parts: 1 year from proof of purchase
  • Compressor: 2 years from proof of purchase
  • Extended Lifetime Warranty: Available with MRCOOL Care Kit Program enrollment (fee required)

    Must register within 180 days of purchase
    Covers compressor failure only with one-time condenser replacement
    Requires ongoing Care Kit Program maintenance
Easy Pro Series Mini-Splits

Models: EZPRO-09-HP through EZPRO-24-HP series

  • Parts: 1 year from proof of purchase
  • Compressor: 2 years from proof of purchase
  • Extended Lifetime Warranty: Available with MRCOOL Care Kit Program enrollment (fee required)

Central Ducted Systems

Models: CENTRAL-18-HP through CENTRAL-60-HP, MVP Series

  • Parts: 10 years from installation date
  • Compressor: 10 years from installation date
  • Labor: 10 years (installer responsible for first 90 days)
  • Installation: Professional installer NOT required when using MRCOOL Quick Connect Pre-Charged Line Set

Universal Series Split Systems

Models: UHP series, UAH series Air Handlers

  • Parts: 10 years from proof of purchase
  • Compressor: 10 years from proof of purchase
  • Labor: 2 years limited (begins 91 days after purchase, covers diagnostic and repair costs)
  • Installation: Professional installer required

Inverter Package Series

Models: GCSHPM series, GCSCAM series

  • Parts: 10 years from installation date
  • Labor: 5 years limited (manufacturing defects only, begins 91 days after installation)
  • Installation: Professional installation required

Olympus Series Mini-Splits

Models: MDUO, MDUCO, MDUI series

Owner-Occupied Residences:

  • Parts: 5 years standard, 10 years with registration within 60 days
  • Compressor: 5 years standard, 10 years with registration within 60 days

Commercial Applications:

  • Parts & Compressor: 5 years with registration within 60 days
  • Installation: Professional installer required

Key Warranty Conditions

Product Registration:

  • Register at mrcool.com/warranty to activate extended coverage (where applicable)
  • Registration deadlines vary by series (30-180 days from purchase)

Installation Requirements:

  • Must comply with all federal, state, and local electrical codes
  • Must follow MRCOOL installation instructions
  • Must use new, compatible, MRCOOL-approved components
  • Warranty voids if installed with used or incompatible parts

Warranty Does NOT Cover:

  • Labor, diagnostic, shipping, or installation costs (except where labor warranty applies)
  • Normal maintenance (filter cleaning, lubrication, coil cleaning)
  • Refrigerant costs or energy consumption
  • Damage from improper installation, natural disasters, or electrical issues
  • Units moved from original installation address
  • Units installed outside USA and Canada

How to File a Warranty Claim

Contact MRCOOL:

For Labor Claims (Universal/Inverter Package Series within first 2 years):

  • Phone: (844) 518-2040

Required Documentation:

  • Proof of purchase
  • Product registration confirmation (if applicable)
  • Diagnostic testing results (professional HVAC technician may be required)
  • Defective parts must be returned when requested

For complete warranty terms and conditions, visit mrcool.com/warranty

Replacement parts are covered for the remainder of the original warranty period or 30 days, whichever is longer. Some states do not allow exclusion of incidental or consequential damages. This warranty gives you specific legal rights that may vary by state or province.
