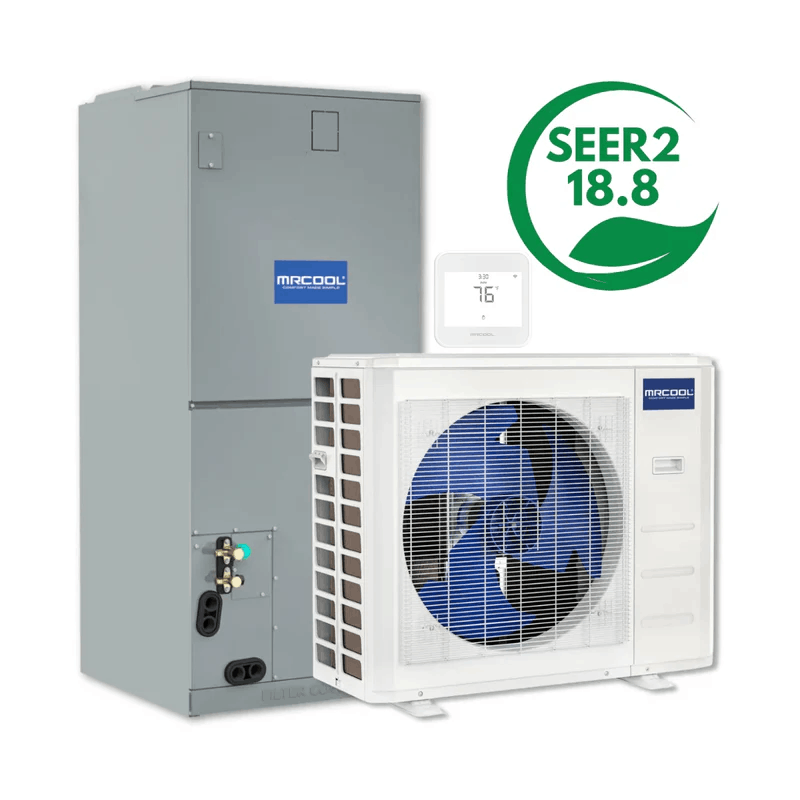

MRCOOL VersaPro 18K BTU
mrcool versapro 18000 btu central ducted heat pump system

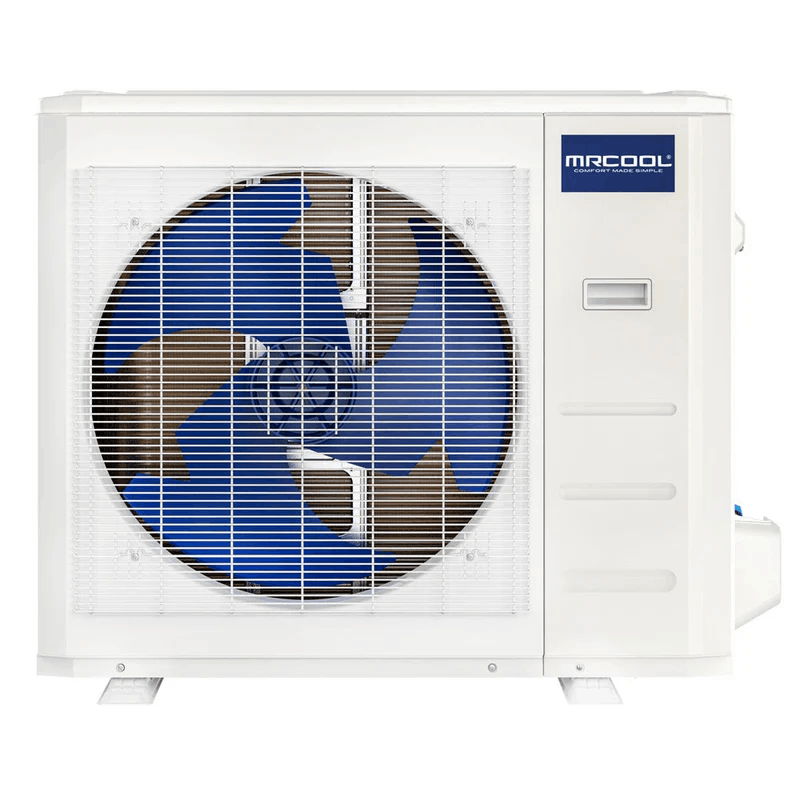

mrcool versapro 18000 btu 1 5 ton central ducted system condenser

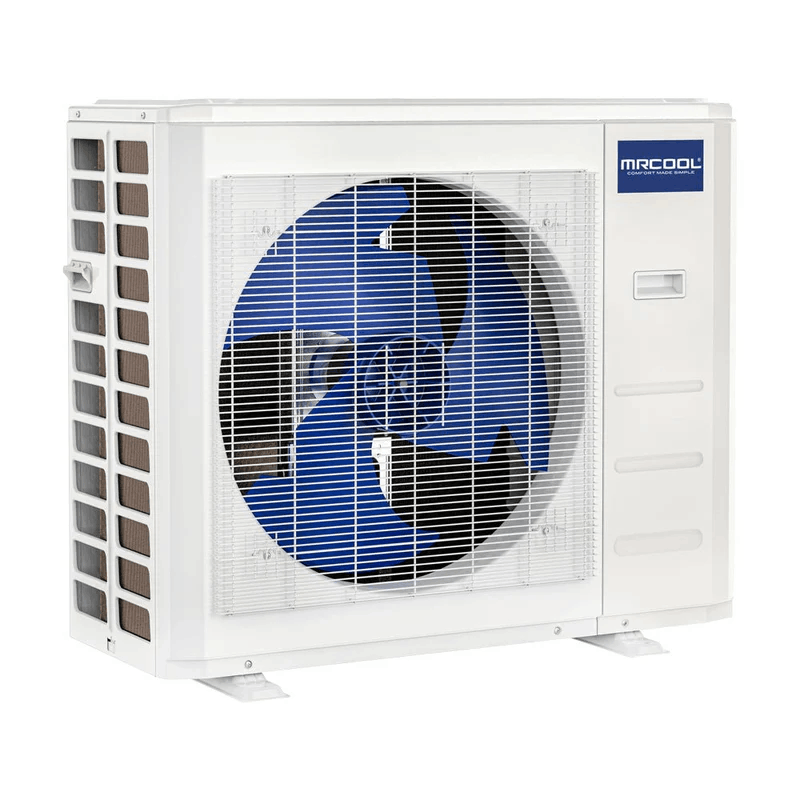

mrcool versapro 18000 btu 1.5 ton central ducted system condenser front

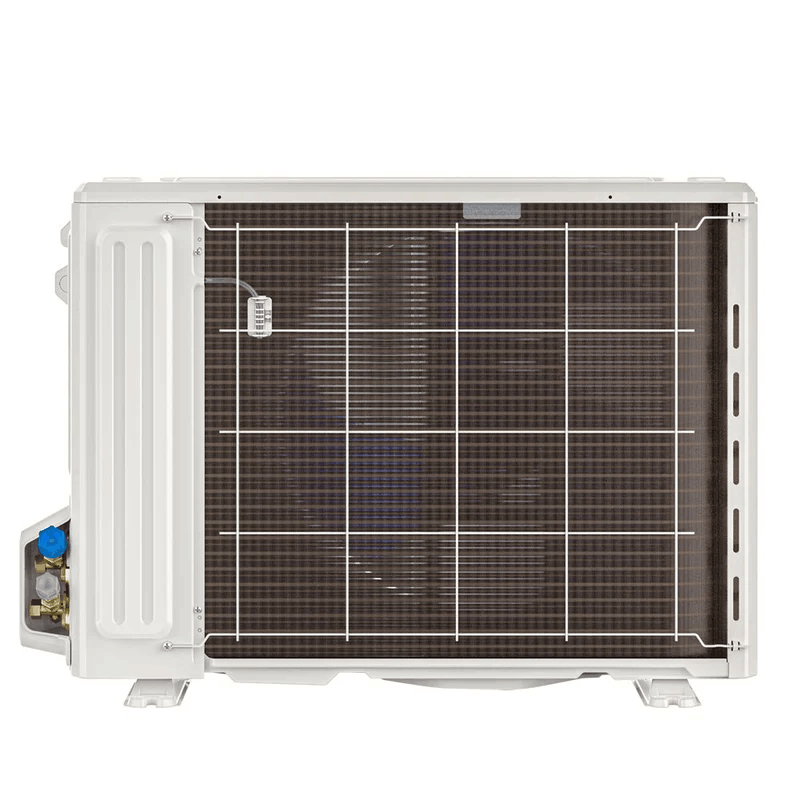

mrcool versapro 18000 btu 1.5 ton central ducted system condenser back

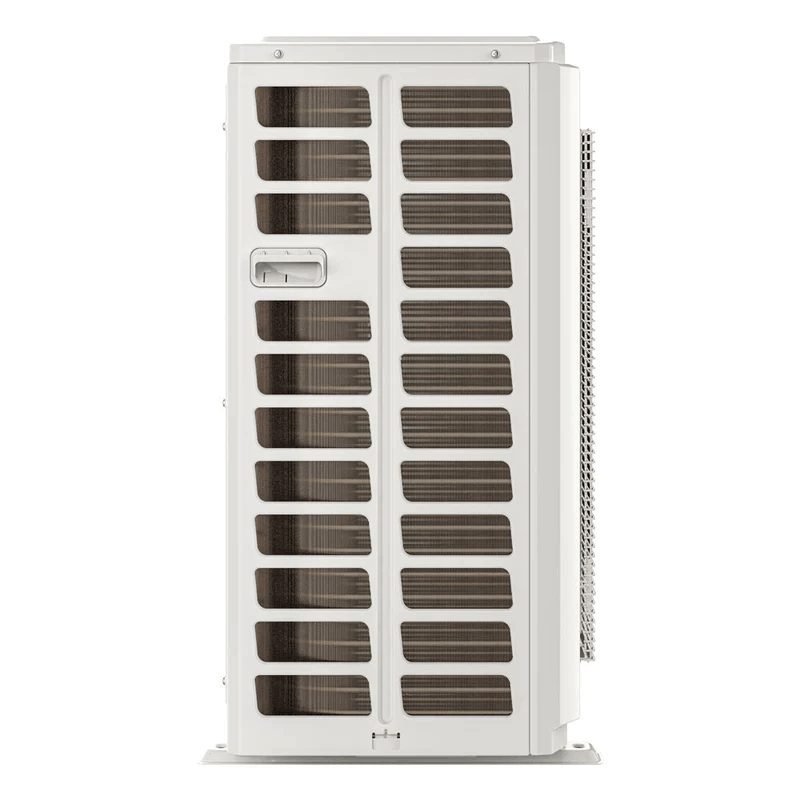

mrcool versapro 18000 btu 1.5 ton central ducted system condenser side

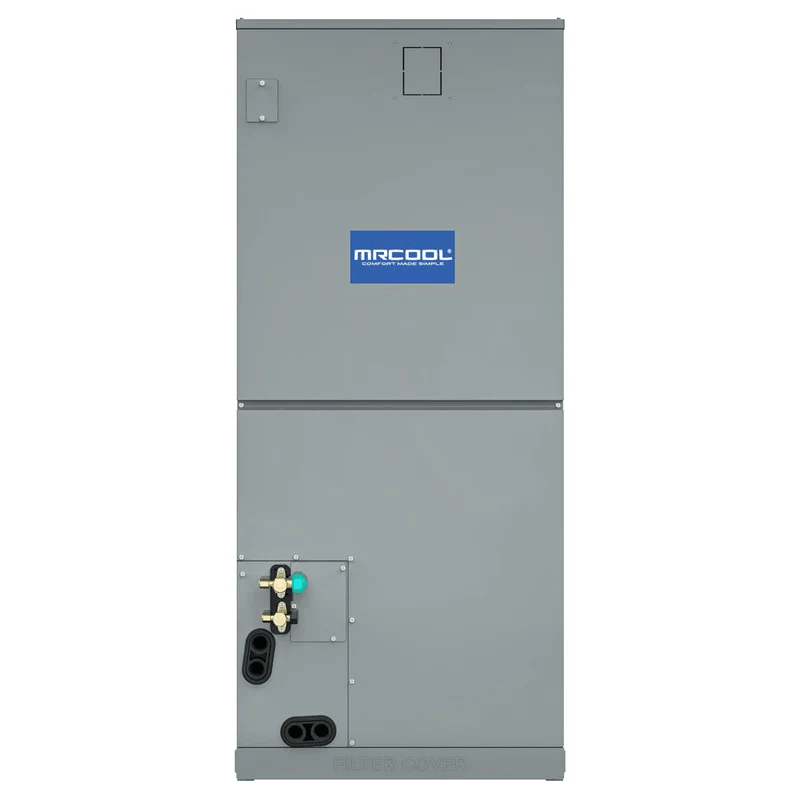

mrcool versapro 18000 btu 1.5 ton central ducted air handler

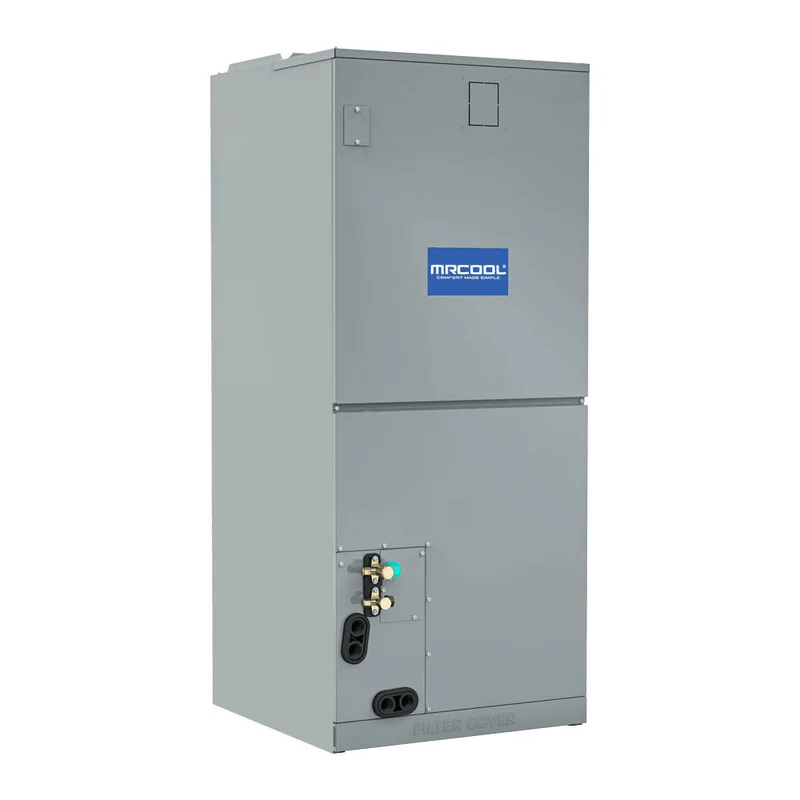

mrcool versapro 18000 btu 1.5 ton central ducted air handler front

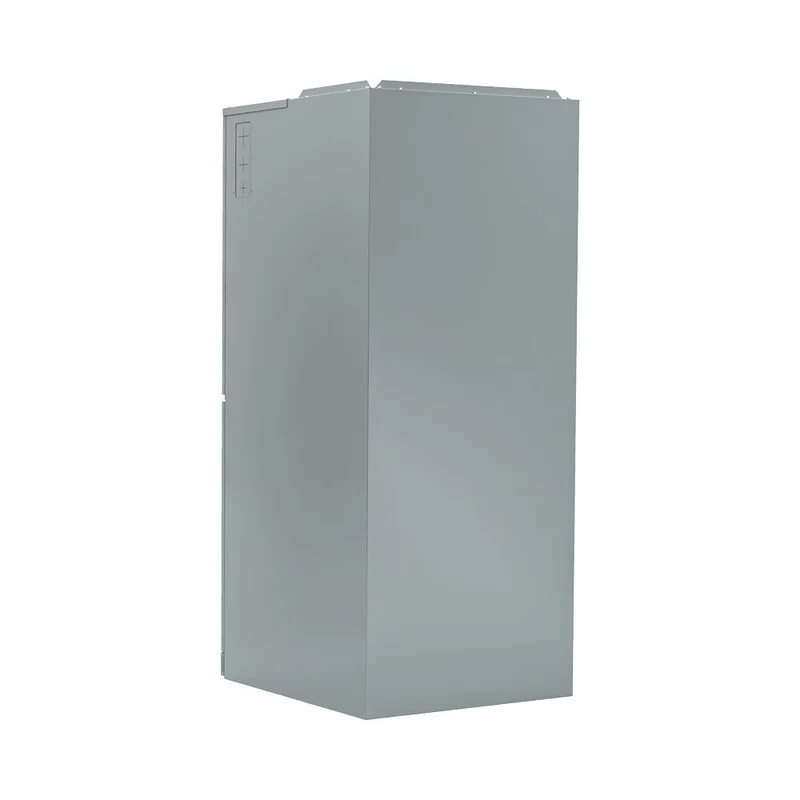

mrcool versapro 18000 btu 1.5 ton central ducted air handler side

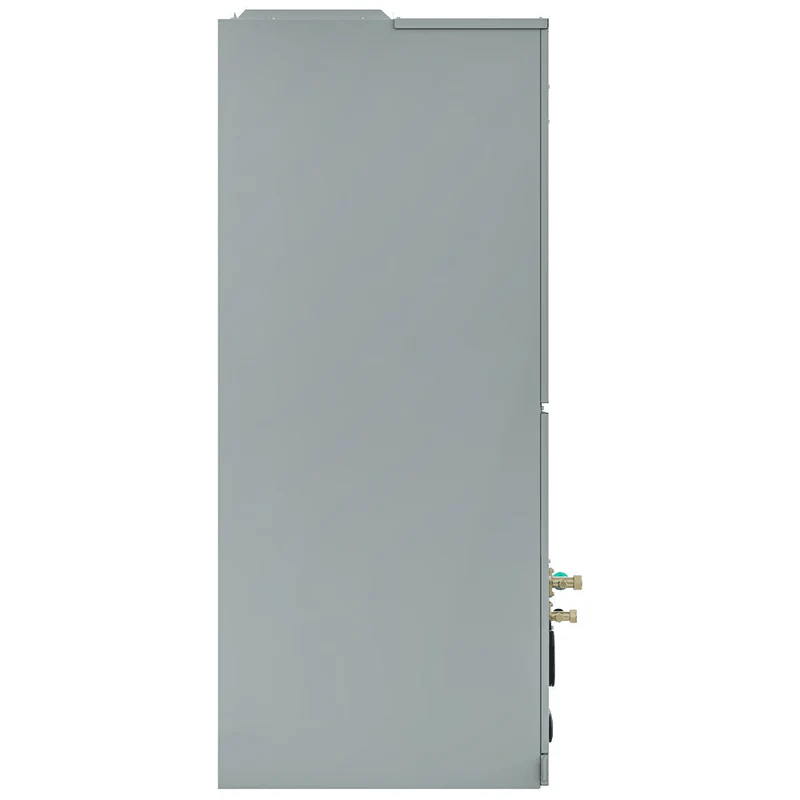

mrcool versapro 18,000 btu 1.5 ton central ducted air handler back

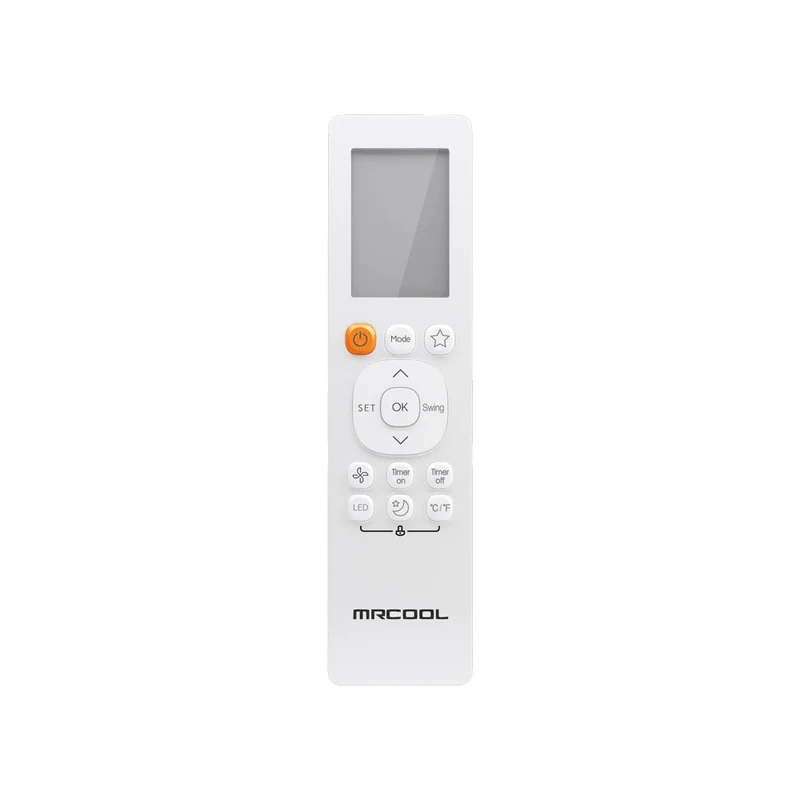

mrcool versapro 18000 btu 1.5 ton central ducted remote

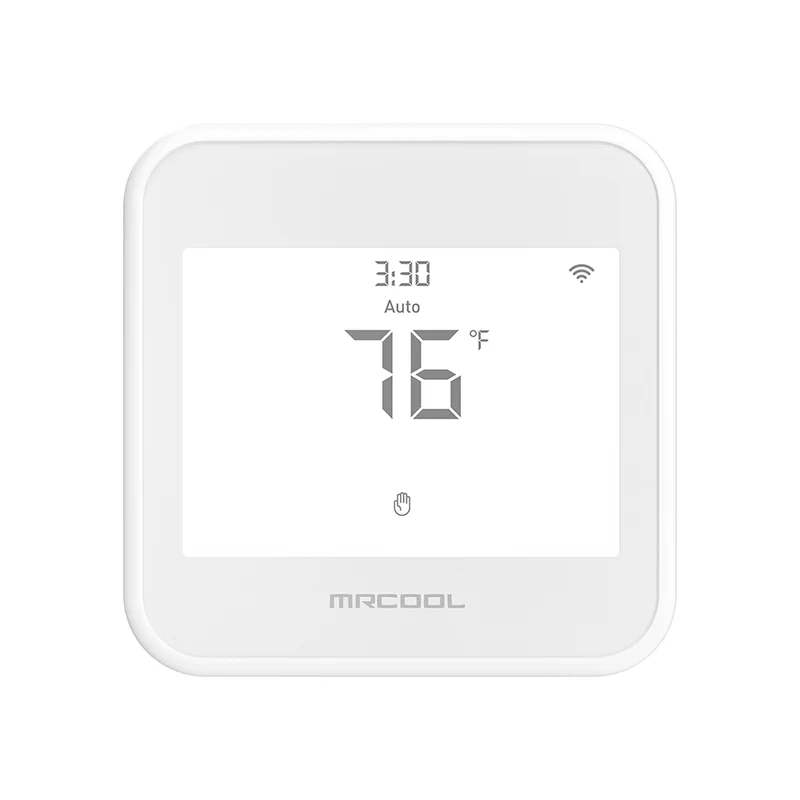

MRCOOL VersaPro Smart Thermostat
Roll over image to zoom in Click on image to zoom
MRCOOL VersaPro 18K BTUmrcool versapro 18000 btu central ducted heat pump systemmrcool versapro 18000 btu 1 5 ton central ducted system condensermrcool versapro 18000 btu 1.5 ton central ducted system condenser frontmrcool versapro 18000 btu 1.5 ton central ducted system condenser backmrcool versapro 18000 btu 1.5 ton central ducted system condenser sidemrcool versapro 18000 btu 1.5 ton central ducted air handlermrcool versapro 18000 btu 1.5 ton central ducted air handler frontmrcool versapro 18000 btu 1.5 ton central ducted air handler sidemrcool versapro 18,000 btu 1.5 ton central ducted air handler backmrcool versapro 18000 btu 1.5 ton central ducted remoteMRCOOL VersaPro Smart Thermostat

MRCOOL VersaPro 18,000 BTU (1.5 Ton) 2nd Gen Central Ducted Heat Pump System - 18.8 SEER2 (MVP-18-HP-230A00-O)

MRCOOL SKU: MVP-18-HP-230A00-O

Choose your location

enter a US zip code

Price:
$2,567.00

Description

MRCOOL VersaPro 18K BTU 1.5 Ton 18.8 SEER2 Central Ducted Heat Pump System - 2nd Gen

Welcome to the future of affordable, high-efficiency home comfort. The 2nd Gen MRCOOL VersaPro 18K Central Ducted Heat Pump System brings you variable-speed technology that was once reserved for premium systems, now accessible at a price point that makes sense for your budget.

With an exceptional 18.8 SEER2 rating and 9.1 HSPF4 performance, you're getting impressive energy efficiency that translates directly into lower utility bills month after month. The advanced DC inverter technology constantly adjusts compressor speed to match your home's exact needs, ensuring optimal operation whether you're cooling during summer heat or heating through winter cold. Covering approximately 750 square feet, this 1.5-ton system delivers dependable year-round comfort for smaller homes, apartments, additions, or specific zones requiring dedicated climate control.

Installation convenience meets professional-grade construction. Your VersaPro 18K works seamlessly with MRCOOL Quick Connect pre-charged line sets (sold separately with eco-friendly R-454B refrigerant), completely eliminating vacuuming requirements for swift, trouble-free setup. Whether you're a professional HVAC technician or a skilled DIY homeowner, you'll appreciate how this system streamlines the installation process. The air handler offers remarkable versatility with upflow, downflow, and horizontal positioning options—perfect for attics, closets, crawlspaces, or wherever your mechanical space demands flexibility.

Built with durable painted galvanized steel construction, both the condenser and air handler are engineered for long-term reliability. The compact side-discharge condenser design fits where space is tight, while the easily accessible removable filter and self-diagnostics panel make maintenance straightforward—you can quickly identify error codes and keep your system running smoothly.

You're investing in proven reliability backed by real protection. The comprehensive 10-year parts and compressor warranty from MRCOOL gives you manufacturer-backed assurance and hassle-free coverage against unexpected issues. The included wired thermostat provides convenient, reliable temperature control right out of the box. When winter demands extra heating power, optional heat kit compatibility ensures you can enhance functionality for extreme cold conditions. This is the cost-effective upgrade that delivers exceptional, quiet, and efficient year-round comfort for your home.



Perfect Applications:

  • Homeowners upgrading from older, inefficient systems - Exceptional 18.8 SEER2 rating delivers significant energy savings compared to outdated units while maintaining reliable year-round comfort.
  • Smaller homes, apartments, and additions requiring dedicated climate control - 1.5-ton capacity efficiently covers approximately 750 square feet with precise temperature management.
  • Professional HVAC technicians seeking efficient installation solutions - Quick Connect compatibility and multi-position air handler design streamline installation processes and reduce labor time.
  • DIY homeowners with HVAC installation experience - User-friendly Quick Connect system and self-diagnostic features make professional-quality installation accessible to skilled individuals.



What Makes VersaPro 18K Heat Pump System Stand Out

  • Variable-Speed DC Inverter Efficiency - Advanced compressor technology adjusts output continuously for optimal performance, superior comfort, and reduced utility costs compared to single-speed systems.
  • Exceptional Energy Performance Ratings - 18.8 SEER2 cooling efficiency and 9.1 HSPF4 heating performance deliver year-round energy savings and potential rebate eligibility.
  • Quick Connect Installation Convenience - Compatible with MRCOOL pre-charged R-454B line sets (sold separately) that eliminate vacuuming for faster, easier professional or DIY setup.
  • Multi-Position Installation Flexibility - Upflow, downflow, and horizontal air handler configurations adapt to any mechanical space including attics, closets, and crawlspaces.
  • Comprehensive 10-Year Warranty Protection - Extended parts and compressor coverage from MRCOOL provides lasting confidence and hassle-free protection against unexpected issues.



System Integration & Installation Requirements

  • Multi-Position Capability: This air handler supports upflow, downflow, and horizontal installations for complete flexibility across residential mechanical spaces and configurations.
  • Quick Connect Installation: Compatible with MRCOOL Quick Connect pre-charged line sets (sold separately) featuring R-454B refrigerant that eliminate vacuuming for faster setup.
  • Heat Kit Expandability: Optional heat kits available to provide supplementary heating capacity and emergency backup during extreme cold-weather conditions.
  • Professional/DIY: Suitable for both licensed contractor installation and experienced homeowner installation with proper training, tools, and understanding of ducted system requirements.
  • Coverage Area: 1.5-ton capacity appropriate for approximately 750 square feet—ideal for smaller homes, apartments, additions, or dedicated climate zones.

What's Included

Everything you need is included with your MRCOOL VersaPro 2nd Gen Central Ducted Heat Pump System

  • 1 x 1.5 Ton MRCOOL VersaPro Central Ducted Heat Pump Condenser
  • 1 x 1.5 Ton MRCOOL VersaPro Central Ducted Air Handler
  • 1 x MRCOOL Smart Thermostat - MST04
  • 1 x Remote Control


MRCOOL VersaPro 18,000 BTU 2nd Gen Central Ducted Heat Pump System Features

  • 18,000 BTU (1.5 Ton) Variable-Speed System - Advanced DC inverter technology delivers precise climate control with continuous compressor adjustment for optimal comfort and efficiency.
  • 18.8 SEER2 / 9.1 HSPF4 Ratings - Exceptional cooling and heating efficiency ratings ensure substantial energy savings and lower utility costs throughout the year.
  • Quick Connect Compatible - Works with MRCOOL pre-charged line sets featuring eco-friendly R-454B refrigerant for simplified installation without vacuuming requirements.
  • Multi-Position Air Handler Design - Install in upflow, downflow, or horizontal configurations to fit your specific mechanical space and property layout needs.
  • Painted Galvanized Steel Construction - Durable materials on both condenser and air handler ensure long-term reliability and resistance to weather and corrosion.
  • Compact Side-Discharge Condenser - Space-saving design fits in tight outdoor locations while maintaining efficient heat exchange and airflow performance.
  • Self-Diagnostic Capabilities - Built-in diagnostics panel simplifies troubleshooting by displaying clear error codes for quick maintenance and service identification.
  • Easily Accessible Removable Filter - Simple filter access facilitates regular maintenance, ensuring optimal airflow and indoor air quality with minimal effort.
  • Optional Heat Kit Compatible - Supports supplemental heat kit installation for enhanced heating capacity during extreme cold-weather conditions.
  • Wired Thermostat Included - Complete temperature control solution provided for convenient, reliable climate management right out of the box.
  • Covers Approximately 750 Square Feet - Ideal capacity for smaller homes, apartments, additions, or dedicated zones requiring efficient climate control.
  • 10-Year Parts and Compressor Warranty - Comprehensive manufacturer coverage provides lasting peace of mind and protection against unexpected repair costs.

MRCOOL MVP-18-HP-C-230A00-O Condenser Specs

BRAND NAME MRCOOL
SERIES VersaPro Central Ducted Condenser
MODEL MVP-18-HP-C-230A00-O
GTIN 840255582681
UPC 840255582681
UNIT TYPE Split System Heat Pump
EQUIPMENT TYPE Condenser
SHORT DESCRIPTION 1.5 Ton MRCOOL VersaPro Central Ducted Heat Pump Condenser
SEER2 18.8
EER2 11
HSPF2-4 9.1
HSPF2-5 7
TONNAGE 1.5
COOLING CAPACITY (BTU) 18000
HEATING CAPACITY (BTU) 18000
VOLTAGE (V) 208/230
PHASE 1
CYCLE 60
MAX FUSE BREAKER (A) 20
MIN CIRCUIT AMPACITY (A) 16
COLOR gray
REFRIGERANT TYPE R-454B
REFRIGERANT VOLUME (OZ) 51.15
DECIBEL RATING (DBA) 55
CFM 1450.9
LIQUID LINE SIZE 3/8
SUCTION LINE SIZE 3/4
WIFI COMPATIBILITY Yes
APP COMPATIBILITY Yes
ETL CERTIFIED Yes
ENERGY STAR CERTIFIED No
AHRI CERTIFIED Yes
ETL LISTED Yes
BASE PARTS WARRANTY 10 Years
BASE COMPRESSOR WARRANTY 10 Years
CONTAINS ELECTRONICS Yes
CONTAINS CHEMICALS Yes
CONTAINS COMPRESSED GAS Yes
PROPOSITION 65 WARNING Yes
NET DEPTH (IN) 12.99
NET HEIGHT (IN) 21.81
NET WIDTH (IN) 31.69
NET WEIGHT (LBS) 77
GROSS DEPTH (IN) 14.57
GROSS HEIGHT (IN) 24.21
GROSS WIDTH (IN) 36.02
GROSS WEIGHT (LBS) 84

MRCOOL MVP-18-HP-MUAH-230A00-O Air Handler Specs

BRAND NAME MRCOOL
SERIES VersaPro Central Ducted Air Handler
MODEL MVP-18-HP-MUAH-230A00-O
GTIN 840255586443
UPC 840255586443
UNIT TYPE Split System Heat Pump
EQUIPMENT TYPE Air Handler
SHORT DESCRIPTION 1.5 Ton MRCOOL VersaPro Central Ducted Air Handler
CFM 618.03/576.83/529.74/488.54
TONNAGE 1.5
COOLING CAPACITY (BTU) 18000
HEATING CAPACITY (BTU) 18000
VOLTAGE (V) 115/208-230
PHASE 1
CYCLE 60
MAX FUSE BREAKER (A) 15
MIN CIRCUIT AMPACITY (A) 5.5/4.0
COLOR gray
DECIBEL RATING LOW (DBA) 33
DECIBEL RATING HIGH (DBA) 44
NUMBER OF SPEEDS 4
MAX LINESET LENGTH (FT) 98.4 ft
LIQUID LINE SIZE 3/8
SUCTION LINE SIZE 3/4
FILTER TYPE Replaceable
FILTER SIZE 16x20x1
AUXILIARY HEATER INCLUDED No
AUXILIARY HEATER AVAILABLE Yes
AUXILIARY HEATER SIZES 5kW/8kW/10kW
ADJUSTABLE THERMOSTAT Yes
WIFI COMPATIBILITY Yes
APP COMPATIBILITY Yes
ETL CERTIFIED Yes
ENERGY STAR CERTIFIED No
AHRI CERTIFIED Yes
BASE PARTS WARRANTY 10 Years
BASE COMPRESSOR WARRANTY 10 Years
CONTAINS ELECTRONICS Yes
CONTAINS CHEMICALS Yes
CONTAINS COMPRESSED GAS Yes
NET DEPTH (IN) 17.52
NET HEIGHT (IN) 45
NET WIDTH (IN) 21.02
NET WEIGHT (LBS) 105.82
GROSS DEPTH (IN) 20.87
GROSS HEIGHT (IN) 48.62
GROSS WIDTH (IN) 26.57
GROSS WEIGHT (LBS) 126.76

Understanding your MRCOOL warranty coverage ensures long-term system performance and protection. All warranties are non-transferable and valid only at the original installation address.

Warranty Coverage by Series

DIY Series 5th Generation Mini-Splits

Models: DIY-09-HP through DIY-36-HP, DIYCASSETTE, DIY-MULTI series

  • Parts: 5 years from proof of purchase
  • Compressor: 7 years from proof of purchase
  • Remote Control: Included in parts warranty
  • Extended Lifetime Warranty: Available with MRCOOL Care Kit Program enrollment (fee required)
  • Installation: Professional installer NOT required when using MRCOOL Quick Connect Pre-Charged Line Set

Advantage Series Mini-Splits

Models: A-09-HP through A-36-HP series

  • Parts: 1 year from proof of purchase
  • Compressor: 2 years from proof of purchase
  • Extended Lifetime Warranty: Available with MRCOOL Care Kit Program enrollment (fee required)

    Must register within 180 days of purchase
    Covers compressor failure only with one-time condenser replacement
    Requires ongoing Care Kit Program maintenance
Easy Pro Series Mini-Splits

Models: EZPRO-09-HP through EZPRO-24-HP series

  • Parts: 1 year from proof of purchase
  • Compressor: 2 years from proof of purchase
  • Extended Lifetime Warranty: Available with MRCOOL Care Kit Program enrollment (fee required)

Central Ducted Systems

Models: CENTRAL-18-HP through CENTRAL-60-HP, MVP Series

  • Parts: 10 years from installation date
  • Compressor: 10 years from installation date
  • Labor: 10 years (installer responsible for first 90 days)
  • Installation: Professional installer NOT required when using MRCOOL Quick Connect Pre-Charged Line Set

Universal Series Split Systems

Models: UHP series, UAH series Air Handlers

  • Parts: 10 years from proof of purchase
  • Compressor: 10 years from proof of purchase
  • Labor: 2 years limited (begins 91 days after purchase, covers diagnostic and repair costs)
  • Installation: Professional installer required

Inverter Package Series

Models: GCSHPM series, GCSCAM series

  • Parts: 10 years from installation date
  • Labor: 5 years limited (manufacturing defects only, begins 91 days after installation)
  • Installation: Professional installation required

Olympus Series Mini-Splits

Models: MDUO, MDUCO, MDUI series

Owner-Occupied Residences:

  • Parts: 5 years standard, 10 years with registration within 60 days
  • Compressor: 5 years standard, 10 years with registration within 60 days

Commercial Applications:

  • Parts & Compressor: 5 years with registration within 60 days
  • Installation: Professional installer required

Key Warranty Conditions

Product Registration:

  • Register at mrcool.com/warranty to activate extended coverage (where applicable)
  • Registration deadlines vary by series (30-180 days from purchase)

Installation Requirements:

  • Must comply with all federal, state, and local electrical codes
  • Must follow MRCOOL installation instructions
  • Must use new, compatible, MRCOOL-approved components
  • Warranty voids if installed with used or incompatible parts

Warranty Does NOT Cover:

  • Labor, diagnostic, shipping, or installation costs (except where labor warranty applies)
  • Normal maintenance (filter cleaning, lubrication, coil cleaning)
  • Refrigerant costs or energy consumption
  • Damage from improper installation, natural disasters, or electrical issues
  • Units moved from original installation address
  • Units installed outside USA and Canada

How to File a Warranty Claim

Contact MRCOOL:

For Labor Claims (Universal/Inverter Package Series within first 2 years):

  • Phone: (844) 518-2040

Required Documentation:

  • Proof of purchase
  • Product registration confirmation (if applicable)
  • Diagnostic testing results (professional HVAC technician may be required)
  • Defective parts must be returned when requested

For complete warranty terms and conditions, visit mrcool.com/warranty

Replacement parts are covered for the remainder of the original warranty period or 30 days, whichever is longer. Some states do not allow exclusion of incidental or consequential damages. This warranty gives you specific legal rights that may vary by state or province.
