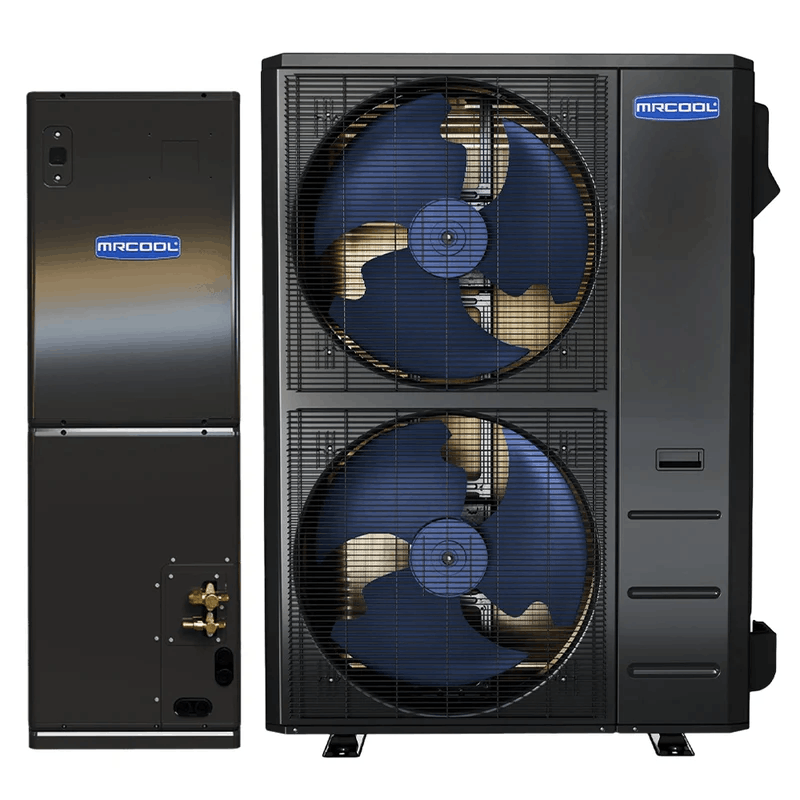

MRCOOL Universal 60000 BTU 5 Ton 18 SEER2 Central Heat Pump Air Conditioner System

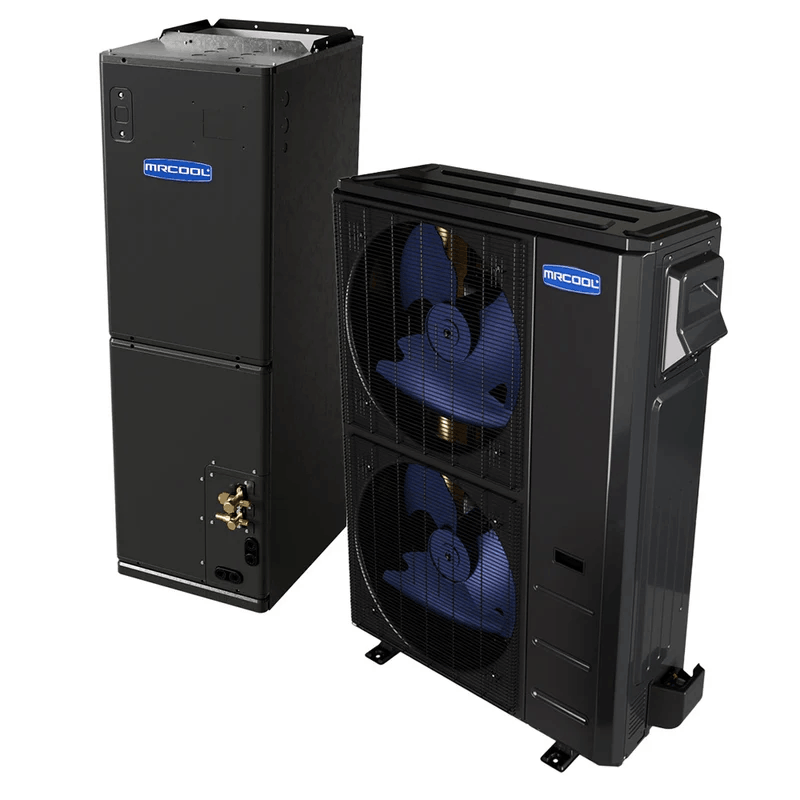

MRCOOL Universal 60000 BTU 5 Ton 18 SEER2 Central Heat Pump System

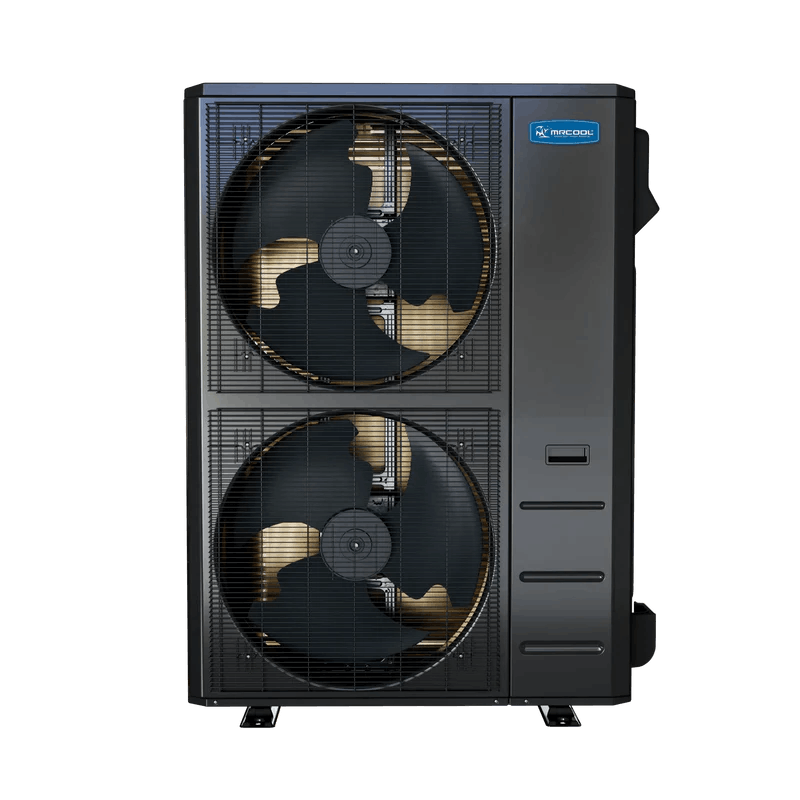

MRCOOL Universal 60K Condenser

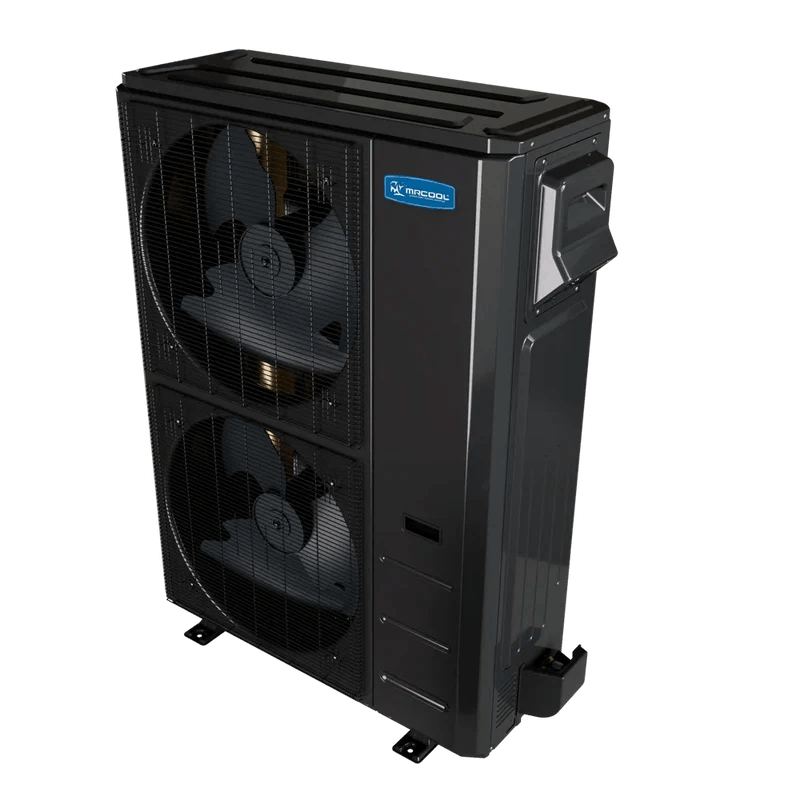

mrcool 60k condender side

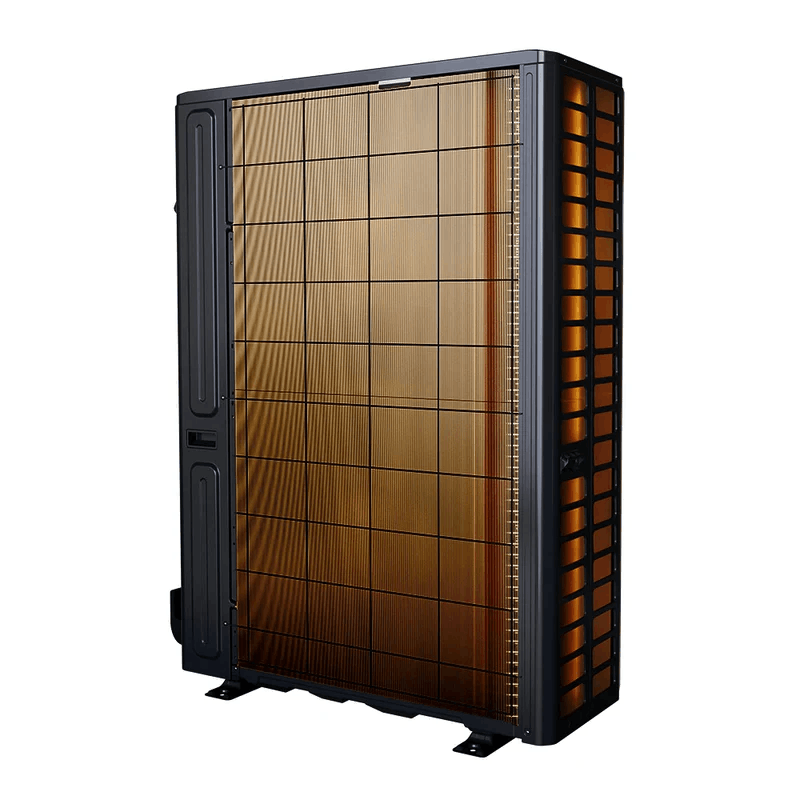

MRCOOL Universal 60000 BTU 5 Ton 18 SEER2 Central Heat Pump Condenser Back

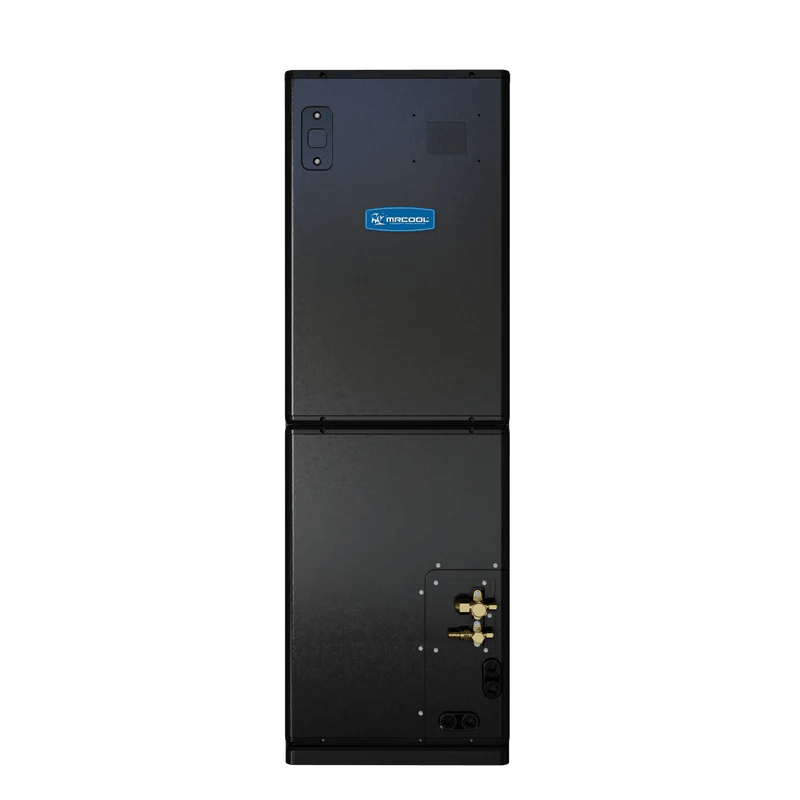

MRCOOL Universal 60K Air Handler

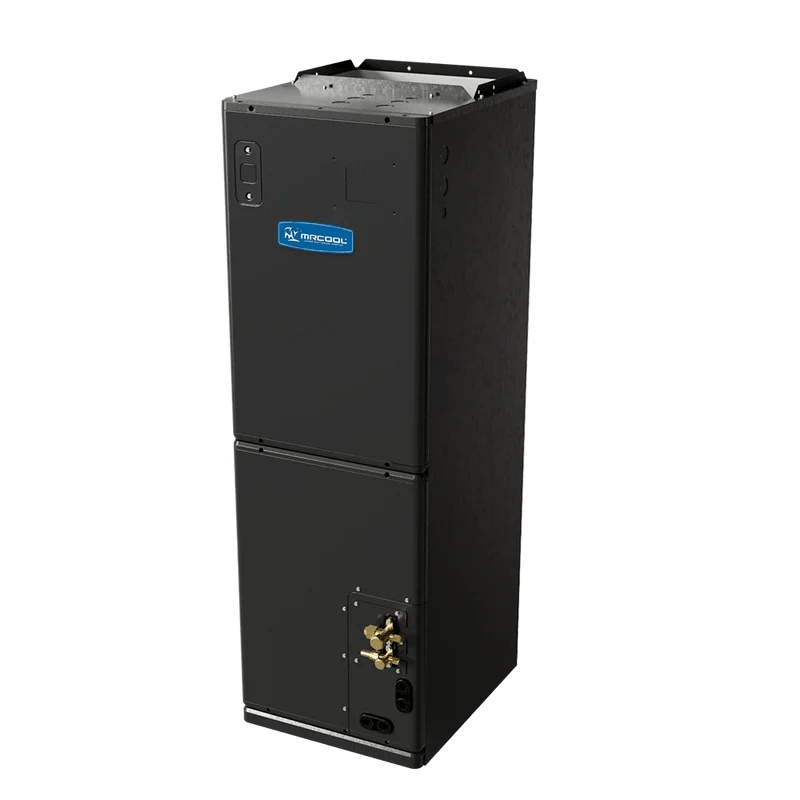

MRCOOL Universal Air Handler Side 60K

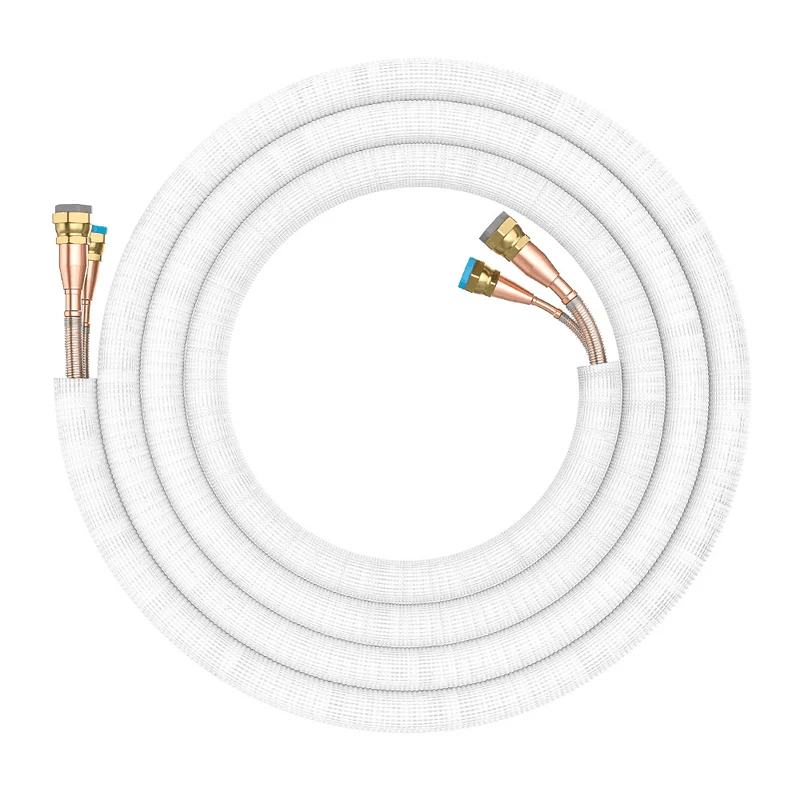

MRCOOL R454B Precharged Lineset

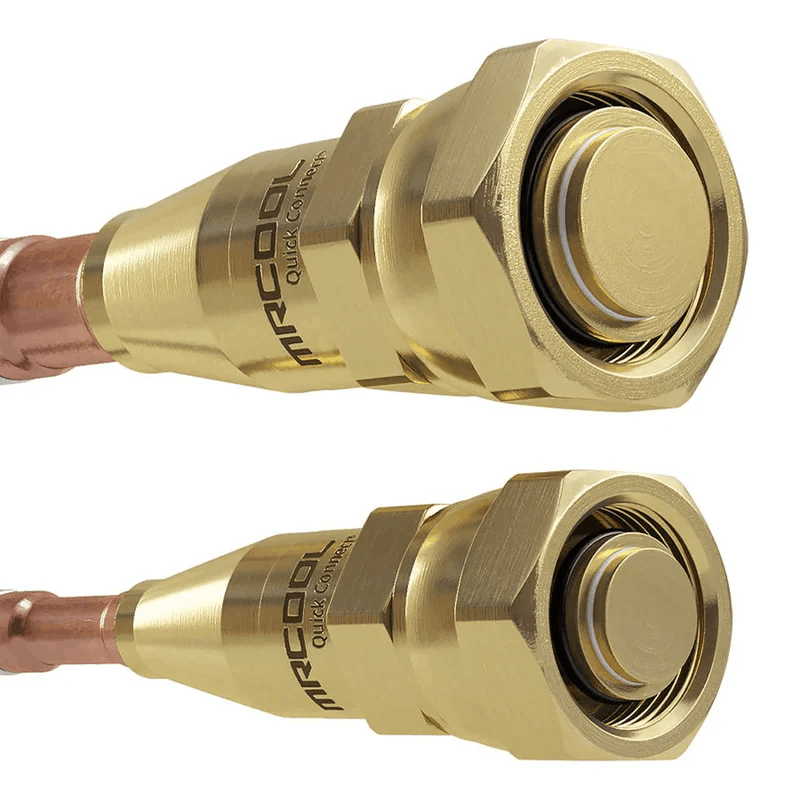

Fittings MRCOOL R454B Precharged Lineset
Roll over image to zoom in Click on image to zoom
MRCOOL Universal 60000 BTU 5 Ton 18 SEER2 Central Heat Pump Air Conditioner SystemMRCOOL Universal 60000 BTU 5 Ton 18 SEER2 Central Heat Pump SystemMRCOOL Universal 60K Condensermrcool 60k condender sideMRCOOL Universal 60000 BTU 5 Ton 18 SEER2 Central Heat Pump Condenser BackMRCOOL Universal 60K Air HandlerMRCOOL Universal Air Handler Side 60KMRCOOL R454B Precharged LinesetFittings MRCOOL R454B Precharged Lineset

MRCOOL Universal 60,000 BTU (5 Ton) Central Heat Pump System - 18 SEER2 (UHP1860AH1860-O)

MRCOOL SKU: UHP1860AH1860-O

Choose your location

enter a US zip code

Price:
$5,281.00

Description

MRCOOL Universal 60K BTU 5 Ton 18 SEER2 Central Heat Pump Air Conditioner System

When nothing less than maximum capacity will do, the MRCOOL Universal Series 60K Heat Pump System steps up with commanding 5-ton heating and cooling power designed for your most demanding climate control needs. This is the top-tier solution you've been looking for—engineered to dominate even the most extreme conditions nature throws your way. Whether you're battling frigid winter cold or enduring intense summer heat, you'll experience unwavering indoor comfort throughout every season.

The impressive 17.5 SEER2 efficiency rating means you're not sacrificing energy savings for power—you're getting substantial reductions in your utility costs while maintaining the robust climate control your large home demands. The sophisticated DC Inverter technology continuously fine-tunes compressor output to precisely match your home's needs, delivering optimal performance whether you're weathering polar vortex conditions or record-breaking heat waves.

Your installation deserves maximum flexibility to match this system's maximum power. The 60K air handler adapts effortlessly to upflow, downflow, and horizontal configurations—ideal for your attic, mechanical room, crawlspace, or basement installation, regardless of space constraints. The slim profile design won't compromise your valuable square footage, while the advanced M-shaped evaporator coil delivers exceptional heat exchange across its expansive surface area. Your contractor will appreciate the NO-VAC Quick Connect line set compatibility that eliminates time-consuming vacuuming and flaring procedures—dramatically reducing installation labor on this high-capacity system. When extreme winter conditions demand extra heating power, you can rely on optional Universal Series Heat Kits to provide that critical auxiliary capacity and emergency backup exactly when you need it most.

You're investing in the pinnacle of residential climate control, and we protect that investment accordingly. The comprehensive 10-year parts warranty and 2-year limited labor warranty provide you with manufacturer-backed confidence and enduring peace of mind. This is the ultimate solution for contractors and homeowners who refuse to compromise on whole-home comfort. Ready to dominate your property's climate with 5-ton precision? MRCOOL Universal Series engineering delivers maximum performance.



Ideal For:

  • Professional contractors specializing in premium large-home projects - Commercial-grade 5-ton system designed for maximum whole-home installations with comprehensive warranty protection.
  • Owners of expansive properties requiring ultimate capacity - Top-tier ducted system handles complete home heating and cooling demands with uncompromising efficiency and reliability.
  • Large custom homes with complex layouts and high ceilings - 5-ton capacity provides superior climate control for challenging floor plans, great rooms, and maximum square footage demands.
  • Harsh climate regions demanding maximum performance - Optional heat kit compatibility ensures critical emergency backup and enhanced heating power during the most severe winter events.



What Sets MRCOOL Universal 60K Heat Pump System Apart

  • Maximum Capacity Without Complexity - 17.5 SEER2 rating at full 5-ton output combined with NO-VAC technology maintains efficient installation despite ultimate power levels.
  • Unmatched Installation Versatility - Upflow, downflow, and horizontal compatibility eliminates mechanical space constraints across even the most challenging property configurations.
  • Extreme Climate Dominance - DC Inverter technology ensures unwavering operation through the harshest winter storms and most intense summer heat at maximum capacity.
  • Superior Cold-Weather Capability - Optional auxiliary heat kit integration provides enhanced heating output when outdoor temperatures reach their most extreme levels.
  • Comprehensive Protection Coverage - 10-year parts warranty and 2-year labor coverage demonstrate manufacturer confidence in 5-ton system longevity and reliability.



Certifications & Comprehensive Coverage

  • Energy Star Qualified - Exceeds EPA efficiency requirements for residential central heating and cooling at ultimate 5-ton capacity
  • 17.5 SEER2 Efficiency Rating - Exceptional energy performance for maximum utility savings and rebate qualification in large residential installations
  • DC Inverter Technology Certified - Advanced variable-capacity technology ensures reliable operation across all climate extremes at peak output
  • NO-VAC Quick Connect Certified - Eliminates vacuuming and flaring procedures for streamlined, efficient professional installation processes
  • Multi-Position Installation Approved - Verified for upflow, downflow, and horizontal mounting across all mechanical space configurations
  • Heat Kit Compatible - Supports optional Universal Series Heat Kits for enhanced cold-weather performance and emergency heating capability
  • 10-Year Parts Limited Warranty - Complete protection on 5-ton system components ensuring maximum operational reliability
  • 2-Year Labor Limited Warranty - Professional installation cost coverage providing ultimate confidence and support
  • Professional/DIY Installation Supported - Appropriate for both licensed contractor and experienced homeowner installation with proper expertise
  • Online Registration Required - Simple registration process activates complete warranty coverage and full protection benefits



Installation Requirements & System Compatibility

  • Multi-Position Capability: This air handler accommodates upflow, downflow, and horizontal installations for complete flexibility across large residential mechanical spaces and configurations.
  • NO-VAC Installation: Compatible with MRCOOL NO-VAC Quick Connect line sets to eliminate vacuuming and flaring procedures, accelerating installation on maximum-capacity deployments.
  • Heat Kit Expansion: Optional Universal Series Heat Kits available to deliver enhanced heating capacity and emergency backup during severe cold-weather conditions.
  • Professional/DIY: Suitable for both licensed contractor installation and experienced homeowner installation with proper training, equipment, and understanding of 5-ton system requirements.
  • Maximum Property Sizing: 5-ton capacity designed for the largest residential properties, multi-level estates, and homes requiring ultimate cooling and heating output.

What's Included

Everything you need is included with your MRCOOL 60K Central Heat Pump System.

  • 1 x MRCOOL 60K Universal Heat Pump (UHP18060-O)
  • 1 x MRCOOL 60K Universal Air Handler (UAH18024-O)
  • Communication and Control Wiring
  • Mounting Hardware and Brackets
  • Installation Guide and Technical Documentation


MRCOOL Universal 60K Heat Pump System Features

  • 60,000 BTU (5 Ton) with 17.5 SEER2 Rating - Ultimate-capacity central heat pump delivering maximum home coverage with exceptional energy efficiency and peak climate power.
  • DC Inverter Technology - Advanced variable-capacity compressor system responds to changing demands, ensuring consistent performance through all weather extremes at 5-ton scale.
  • Multi-Positional Air Handler Design - Upflow, downflow, and horizontal installation capability adapts to any mechanical space configuration across large residential properties.
  • Slim Profile Construction - Space-efficient engineering installs in confined areas including attics, mechanical rooms, and crawlspaces without requiring structural modifications.
  • M-Shaped Evaporator Coil - Maximum surface area enhances airflow efficiency and optimizes heat exchange performance at ultimate capacity output.
  • NO-VAC Quick Connect Compatible - Integrates with MRCOOL NO-VAC line sets to eliminate vacuuming and flaring for streamlined professional installation.
  • Optional Heat Kit Integration - Supports Universal Series Heat Kits for supplementary heating capacity during extreme cold-weather periods.
  • Ultimate Home Climate Coverage - 5-ton capacity delivers powerful heating and cooling for the largest residential properties and most complex layouts.
  • Extreme Weather Engineering - Built for the most demanding climates with brutal winters and intense summer heat, maintaining comfort reliability year-round.
  • Professional-Grade Construction - Engineered with contractor-quality standards and maximum durability for large-scale residential HVAC applications.

MRCOOL UHP18060-O Condenser Specs

BRAND NAME MRCOOL
SERIES Universal R-454B
MODEL UHP18060-O
GTIN 840255587914
UPC 840255587914
UNIT TYPE Universal Series Heat Pump
EQUIPMENT TYPE Condenser
SHORT DESCRIPTION Universal Series Heat Pump Inverter Condenser
SEER2 Up to 17.5
EER2 Up to 12
HSPF2-4 9.5
HSPF2-5 7.7
TONNAGE 5
COOLING CAPACITY (BTU) 54000
HEATING CAPACITY (BTU) 55000
VOLTAGE (V) 208/230
PHASE 1
CYCLE 60
MAX FUSE BREAKER (A) 40
MIN CIRCUIT AMPACITY (A) 40
COLOR Dark Grey
REFRIGERANT TYPE R-454B
REFRIGERANT VOLUME (OZ) 183.42
DECIBEL RATING (DBA) 64.5
INVERTER DC
MAX LINESET LENGTH (FT) 246
LIQUID LINE SIZE 3/8
SUCTION LINE SIZE 3/4
COMPRESSOR MOTOR TYPE Twin-Rotary
CONDENSER FAN MOTOR RPM 1000/900/750/650
METERING DEVICE EXV
UL LISTED Yes
CSA LISTED Yes
ETL LISTED Yes
BASE WARRANTY 10 Years
BASE PARTS WARRANTY 10 Years
BASE COMPRESSOR WARRANTY 2 Years
CONTAINS ELECTRONICS Yes
CONTAINS CHEMICALS Yes
CONTAINS COMPRESSED GAS Yes
PROPOSITION 65 WARNING Yes
NET DEPTH (IN) 16.34
NET HEIGHT (IN) 52.48
NET WIDTH (IN) 37.48
NET WEIGHT (LBS) 242.95
GROSS DEPTH (IN) 19.49
GROSS HEIGHT (IN) 58.27
GROSS WIDTH (IN) 43.11
GROSS WEIGHT (LBS) 275.13

MRCOOL UAH18060-O Air Handler Specs

BRAND NAME MRCOOL
SERIES Universal R-454B
MODEL UAH18060-O
GTIN 840255587860
UPC 840255587860
UNIT TYPE Universal Series Air Handler
EQUIPMENT TYPE Air Handler
SHORT DESCRIPTION Universal Series 60,000 BTU Air Handler
CFM 1801.1/1648.1/1500.9/1236.1/N\A
TONNAGE 5
VOLTAGE (V) 115/208/230
PHASE 1
CYCLE 60
MAX FUSE BREAKER (A) 15
MIN CIRCUIT AMPACITY (A) 14.5/10
MOUNT TYPE Multi-Position
COLOR Dark Grey
DECIBEL RATING (DBA) 60/57/54.5/37/N\A
DECIBEL RATING (DBA) 37 (Low)- 60(High)
NUMBER OF SPEEDS 4
MAX LINESET LENGTH (FT) 246
LIQUID LINE SIZE 3/8
SUCTION LINE SIZE 3/4
FILTER TYPE Replaceable
FILTER SIZE 20 x 20 x 1
REFRIGERANT TYPE R-454B
METERING DEVICE EXV
AUXILIARY HEATER INCLUDED No
AUXILIARY HEATER AVAILABLE Yes
AUXILIARY HEATER SIZES 10 KW / 15 KW / 20 KW
UL LISTED Yes
CSA LISTED Yes
ETL LISTED Yes
BASE WARRANTY 10 Year Parts
BASE PARTS WARRANTY 10 Years
BASE COMPRESSOR WARRANTY 2 Years
CONTAINS ELECTRONICS Yes
CONTAINS CHEMICALS Yes
CONTAINS COMPRESSED GAS Yes
PROPOSITION 65 WARNING Yes
NET DEPTH (IN) 21.5
NET HEIGHT (IN) 55.94
NET WIDTH (IN) 21.5
NET WEIGHT (LBS) 188.05
GROSS DEPTH (IN) 31.1
GROSS HEIGHT (IN) 25
GROSS WIDTH (IN) 59.84
GROSS WEIGHT (LBS) 238.32

Understanding your MRCOOL warranty coverage ensures long-term system performance and protection. All warranties are non-transferable and valid only at the original installation address.

Warranty Coverage by Series

DIY Series 5th Generation Mini-Splits

Models: DIY-09-HP through DIY-36-HP, DIYCASSETTE, DIY-MULTI series

  • Parts: 5 years from proof of purchase
  • Compressor: 7 years from proof of purchase
  • Remote Control: Included in parts warranty
  • Extended Lifetime Warranty: Available with MRCOOL Care Kit Program enrollment (fee required)
  • Installation: Professional installer NOT required when using MRCOOL Quick Connect Pre-Charged Line Set

Advantage Series Mini-Splits

Models: A-09-HP through A-36-HP series

  • Parts: 1 year from proof of purchase
  • Compressor: 2 years from proof of purchase
  • Extended Lifetime Warranty: Available with MRCOOL Care Kit Program enrollment (fee required)

    Must register within 180 days of purchase
    Covers compressor failure only with one-time condenser replacement
    Requires ongoing Care Kit Program maintenance
Easy Pro Series Mini-Splits

Models: EZPRO-09-HP through EZPRO-24-HP series

  • Parts: 1 year from proof of purchase
  • Compressor: 2 years from proof of purchase
  • Extended Lifetime Warranty: Available with MRCOOL Care Kit Program enrollment (fee required)

Central Ducted Systems

Models: CENTRAL-18-HP through CENTRAL-60-HP, MVP Series

  • Parts: 10 years from installation date
  • Compressor: 10 years from installation date
  • Labor: 10 years (installer responsible for first 90 days)
  • Installation: Professional installer NOT required when using MRCOOL Quick Connect Pre-Charged Line Set

Universal Series Split Systems

Models: UHP series, UAH series Air Handlers

  • Parts: 10 years from proof of purchase
  • Compressor: 10 years from proof of purchase
  • Labor: 2 years limited (begins 91 days after purchase, covers diagnostic and repair costs)
  • Installation: Professional installer required

Inverter Package Series

Models: GCSHPM series, GCSCAM series

  • Parts: 10 years from installation date
  • Labor: 5 years limited (manufacturing defects only, begins 91 days after installation)
  • Installation: Professional installation required

Olympus Series Mini-Splits

Models: MDUO, MDUCO, MDUI series

Owner-Occupied Residences:

  • Parts: 5 years standard, 10 years with registration within 60 days
  • Compressor: 5 years standard, 10 years with registration within 60 days

Commercial Applications:

  • Parts & Compressor: 5 years with registration within 60 days
  • Installation: Professional installer required

Key Warranty Conditions

Product Registration:

  • Register at mrcool.com/warranty to activate extended coverage (where applicable)
  • Registration deadlines vary by series (30-180 days from purchase)

Installation Requirements:

  • Must comply with all federal, state, and local electrical codes
  • Must follow MRCOOL installation instructions
  • Must use new, compatible, MRCOOL-approved components
  • Warranty voids if installed with used or incompatible parts

Warranty Does NOT Cover:

  • Labor, diagnostic, shipping, or installation costs (except where labor warranty applies)
  • Normal maintenance (filter cleaning, lubrication, coil cleaning)
  • Refrigerant costs or energy consumption
  • Damage from improper installation, natural disasters, or electrical issues
  • Units moved from original installation address
  • Units installed outside USA and Canada

How to File a Warranty Claim

Contact MRCOOL:

For Labor Claims (Universal/Inverter Package Series within first 2 years):

  • Phone: (844) 518-2040

Required Documentation:

  • Proof of purchase
  • Product registration confirmation (if applicable)
  • Diagnostic testing results (professional HVAC technician may be required)
  • Defective parts must be returned when requested

For complete warranty terms and conditions, visit mrcool.com/warranty

Replacement parts are covered for the remainder of the original warranty period or 30 days, whichever is longer. Some states do not allow exclusion of incidental or consequential damages. This warranty gives you specific legal rights that may vary by state or province.
