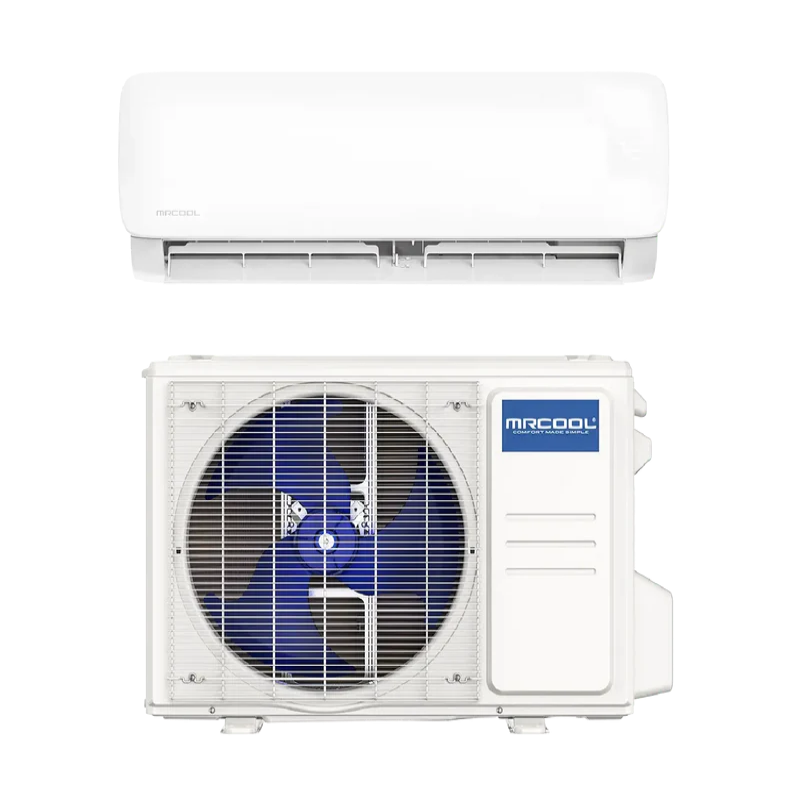

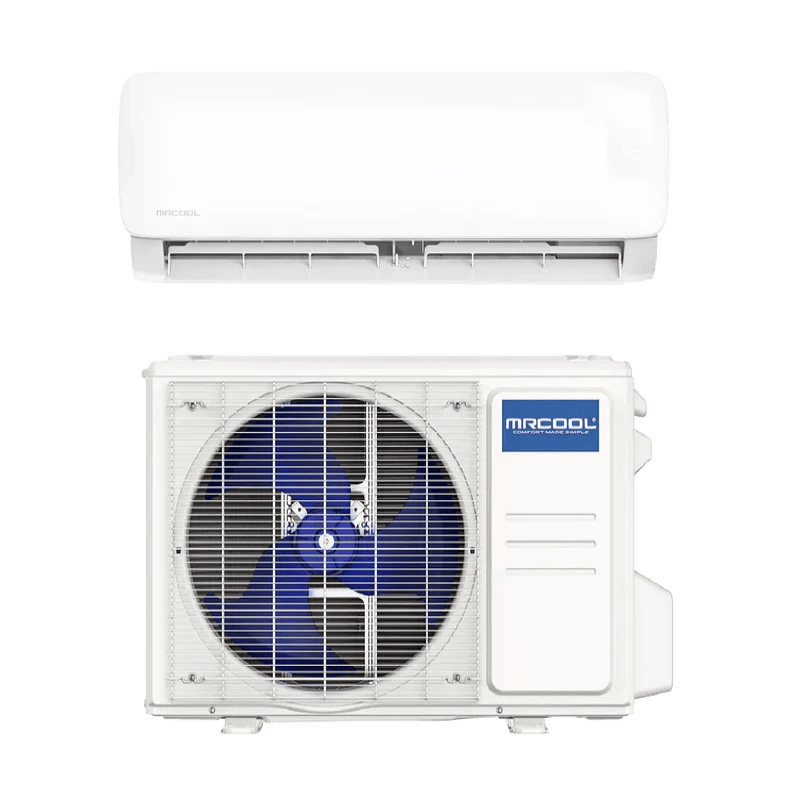

MRCOOL DIY Easy Pro 9,000 BTU 5th Gen Ductless Mini Split Heat Pump System - 20.2 SEER2, 115V (EZPRO-09-HP-11516D-O)

MRCOOL SKU: EZPRO-09-HP-11516D-O

Choose your location

enter a US zip code

Price:
Sale price$1,569.00

Description

MRCOOL DIY 5th Gen Easy Pro 9K 9,000 BTU 20.2 SEER2 Ductless Mini Split Air Conditioner and Heat Pump - 115V

Simplify your climate control with the 5th Generation MRCOOL DIY Easy Pro 9K Heat Pump System, now enhanced with R454B refrigerant. This eco-friendly innovation boosts energy efficiency, reduces greenhouse gas emissions, and offers a lower Global Warming Potential (GWP), making it a smart choice for homeowners seeking an environmentally conscious climate solution.

Engineered for absolute ease, this system delivers powerful heating and cooling for spaces up to 400 sq ft with the simplest DIY installation available - no special tools, no complex procedures, just straightforward setup.

The DIY Easy Pro 9K arrives with a convenient 16-foot pre-charged line set equipped with innovative Fast Connection fittings for lightning-quick hookup - no vacuuming required, no complicated connections. Installation is genuinely effortless, and maintenance is just as simple: air filters only require rinsing and replacing. The LED display provides helpful troubleshooting codes so you can solve any issue on your own.

Control your system with complete flexibility using the wireless remote, SmartHVAC app on Apple and Android devices, or hands-free voice commands through Amazon Alexa and Google Assistant. The Follow Me function ensures your desired temperature follows you throughout your space. The anti-mildew feature provides the cleanest air for you and your family to breathe. Backed by a solid warranty including 1-year compressor protection and 2-year parts coverage, this system delivers reliable, hassle-free comfort.

Stop worrying about installation complexity with MRCOOL DIY Easy Pro 9K, designed to deliver exceptional heating and cooling while keeping everything simple and affordable. Experience the easiest DIY installation available with confidence using MRCOOL DIY Easy Pro 5th Generation!



Ideal For:

  • First-time DIY homeowners avoiding professional installation costs - Entry-level system eliminates service call fees while delivering powerful 20.2 SEER2 cooling and heating for smaller spaces.
  • Tech-savvy homeowners seeking simplicity - No special tools, no vacuuming, no complex procedures required—fastest setup available designed for anyone managing 400 sq ft comfort zones.
  • Budget-conscious homeowners and renters - Perfect for bedrooms, home offices, dorm rooms, and smaller apartments where space and cost are primary concerns.
  • Smart home automation seekers - Wi-Fi connectivity enables voice control via Alexa and Google Assistant, plus Follow Me function for convenient personalized comfort.



Why Customers Choose The MRCOOL DIY Easy Pro 9K Heat Pump System

  • Exceptional Energy Efficiency - 20.2 SEER2 rating delivers powerful cooling and heating while significantly reducing monthly utility bills and qualifying for energy rebates.
  • Easiest Installation Available - Fast Connection fittings eliminate complexity—no vacuuming, no special tools, no experience needed—just straightforward setup anyone can handle.
  • Simplest Maintenance - Air filters only require rinsing and replacing; LED display provides troubleshooting codes so you solve issues independently without service calls.
  • Eco-Friendly Smart Technology - R454B refrigerant reduces environmental impact while SmartHVAC app and voice control provide convenient remote management and Follow Me comfort.
  • Solid Reliability Assurance - 1-year compressor and 2-year parts warranties deliver confidence without expensive professional service dependencies.



Certifications & Warranty

  • Energy Star Eligible - Designed for residential cooling and heating applications with efficient operation
  • 20.2 SEER2 Energy Rating - Superior energy efficiency for utility savings and potential rebate eligibility
  • Eco-Friendly R454B Refrigerant - Low Global Warming Potential with reduced greenhouse gas emissions
  • Fast Connection Certified - Innovative fitting system enables fastest, simplest hookup available
  • SmartHVAC Wi-Fi Certified - Compatible with Amazon Alexa and Google Assistant voice control ecosystems
  • 1-Year Compressor Limited Warranty - Protection on the core heating and cooling component
  • 2-Year Parts Limited Warranty - Coverage on system components and internal systems
  • DIY Installation Supported - No professional installation required—warranty valid with proper registration
  • Online Registration Required - Simple registration activates full warranty coverage and protection benefits
  • Entry-Level DIY Certified - Easiest system in the MRCOOL DIY lineup for first-time installers
  • AHRI certified
  • NEEP ccASHP Listed
  • CEE Tier1 - North

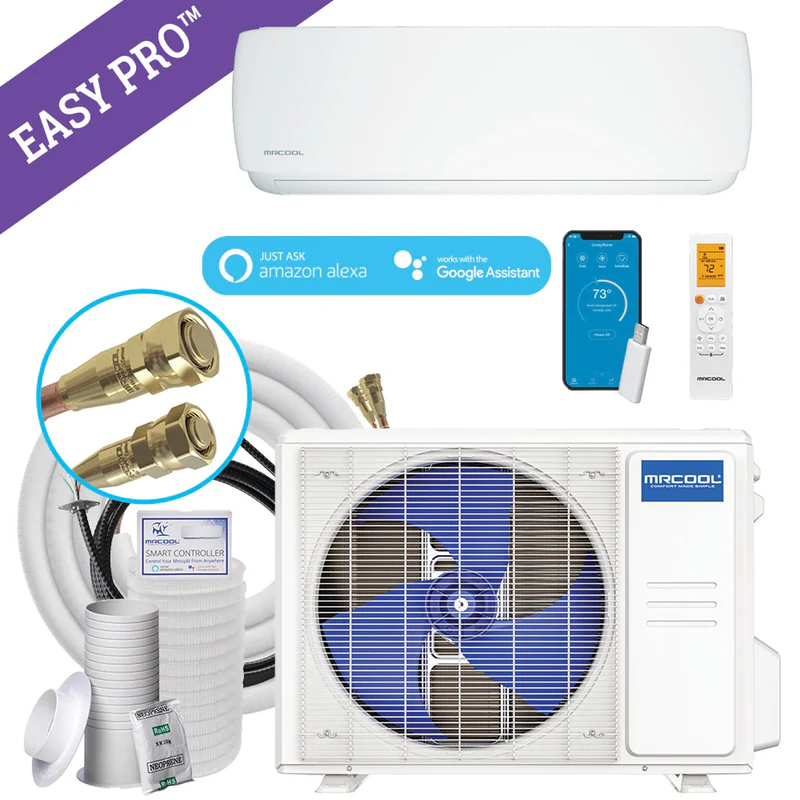

What's Included

Everything you need is included with your MRCOOL DIY Easy Pro Mini Split.

  • EasyPro 5th Generation 9k BTU 115V Condenser
  • EasyPro 5th Generation 9k BTU 115V Air Handler
  • SmartHVAC Wi-Fi Control Module (integrated)
  • Wireless Remote Control with Follow Me Function
  • Pre-Charged 16-Foot Line Set with Fast Connection Fittings
  • Mounting Brackets and Hardware
  • Installation Guide and Support Resources
  • Cable Connectors and Protective Materials


MRCOOL DIY Easy Pro 9K Heat Pump System 115V Features

  • 9,000 BTU with 20.2 SEER2 Rating - Efficient cooling and heating for spaces up to 400 sq ft with excellent energy performance and simplicity.
  • 5th Generation R454B Refrigerant - Advanced eco-friendly refrigerant reduces environmental impact while enhancing system efficiency and reliability.
  • Fast Connection Pre-Charged Line Set - Includes 16-foot pre-charged line set with innovative Fast Connection fittings—no vacuuming, no special tools required.
  • No Professional Installation Required - True DIY design eliminates expensive service calls while maintaining professional-grade performance for smaller spaces.
  • SmartHVAC Wi-Fi Control Module - Integrated connectivity for iOS/Android app access, Amazon Alexa, and Google Assistant voice commands from anywhere.
  • Follow Me Function - Wireless remote ensures your desired temperature follows you throughout your space for consistent, personalized comfort.
  • Anti-Mildew Feature - Provides the cleanest air for you and your family to breathe by preventing excess moisture and mold buildup.
  • Simple Maintenance & Troubleshooting - Air filters only require rinsing and replacing; LED display provides helpful troubleshooting codes for independent issue resolution.
  • 115V Standard Electrical Connection - Operates on conventional household electrical service for straightforward installation across most residential properties.
  • Multiple Operating Modes - COOL, HEAT, AUTO, DRY, and SLEEP modes provide flexibility for year-round comfort and energy optimization.

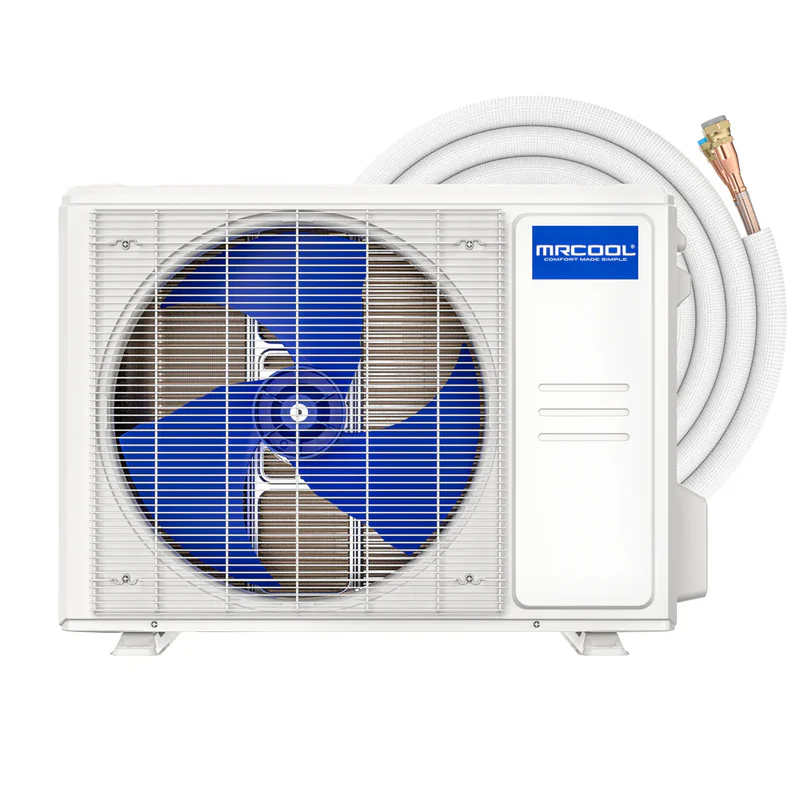

MRCOOL EZPRO-09-HP-C-11516D-O Condenser Specs

BRAND NAME MRCOOL
SERIES EasyPro 5th Gen
MODEL EZPRO-09-HP-C-11516D-O
GTIN 840255586726
UPC 840255586726
UNIT TYPE Mini-Split
EQUIPMENT TYPE Condenser
SHORT DESCRIPTION EasyPro 5th Generation 9k BTU 115V Condenser
SEER2 20.2
EER2 11.3
HSPF2-4 9.2
HSPF2-5 7.1
TONNAGE 0.75
COOLING CAPACITY (BTU) 9000
HEATING CAPACITY (BTU) 10000
VOLTAGE (V) 115
PHASE 1
CYCLE 60
MAX FUSE BREAKER (A) 20
MIN CIRCUIT AMPACITY (A) 17
ZONE CAPACITY 1
REFRIGERANT TYPE R-454B
REFRIGERANT VOLUME (OZ) 17.28
DECIBEL RATING (DBA) 54
INVERTER DC
LINE SET LENGTH 16ft
MAX LINESET LENGTH (FT) 82 ft
LIQUID LINE SIZE 1/4
SUCTION LINE SIZE 3/8
COMPRESSOR MOTOR TYPE Rotary
WORKS WITH IOS Yes
WORKS WITH ANDROID Yes
UL LISTED Yes
ETL LISTED Yes
ENERGY STAR CERTIFIED Yes
AHRI CERTIFIED Yes
REGISTERED WARRANTY Extended Limited Lifetime*
BASE PARTS WARRANTY 1 Year
BASE COMPRESSOR WARRANTY 2 Years
CONTAINS CHEMICALS Yes
CONTAINS COMPRESSED GAS Yes
PROPOSITION 65 WARNING Yes
NET DEPTH (IN) 10.63
NET HEIGHT (IN) 19.49
NET WIDTH (IN) 28.35
NET WEIGHT (LBS) 54.67
GROSS DEPTH (IN) 10.63
GROSS HEIGHT (IN) 21.26
GROSS WIDTH (IN) 32.87
GROSS WEIGHT (LBS) 66.58

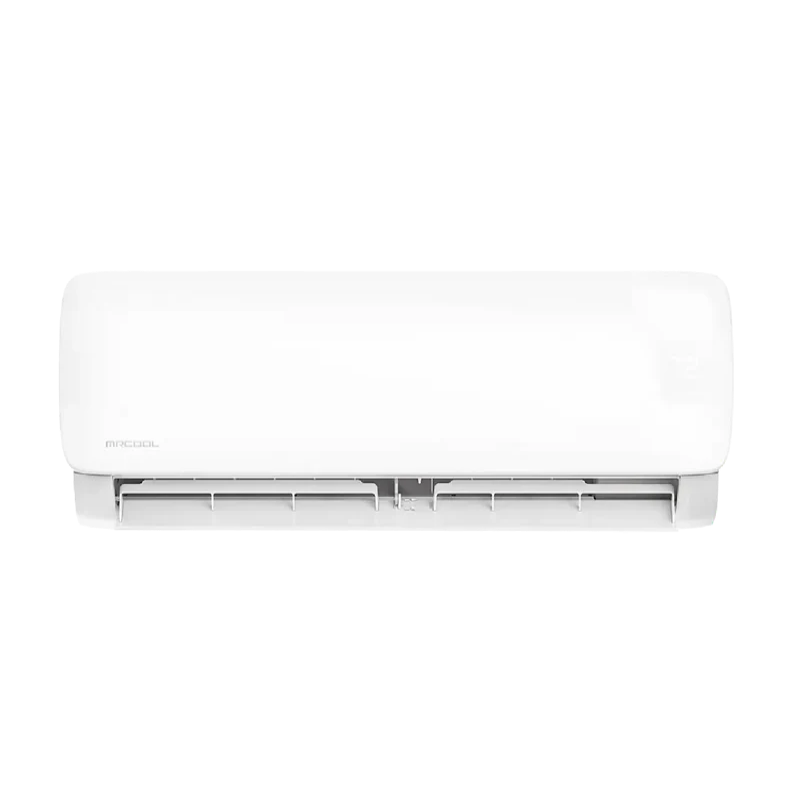

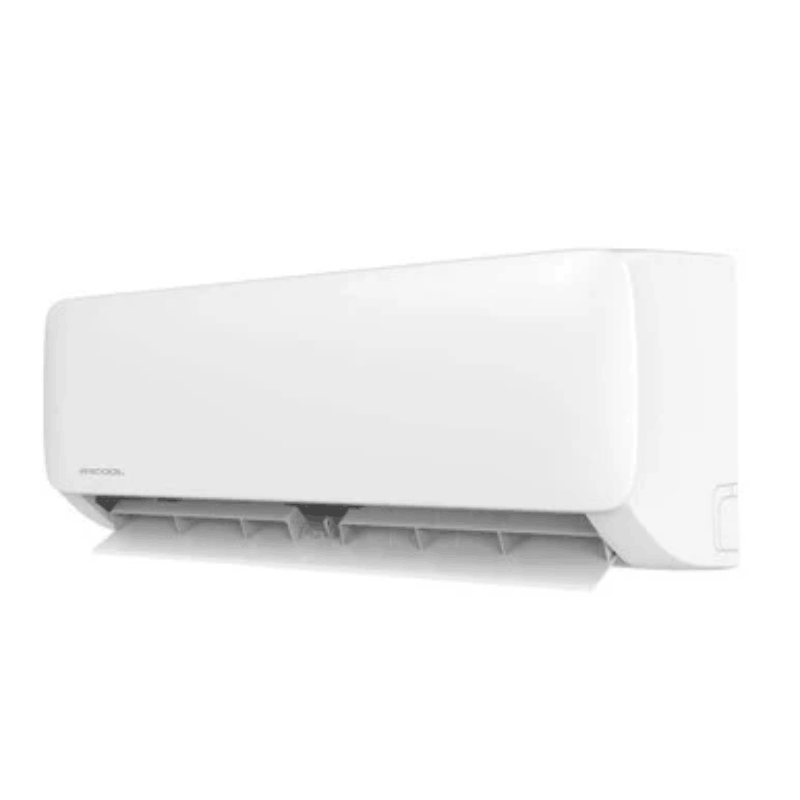

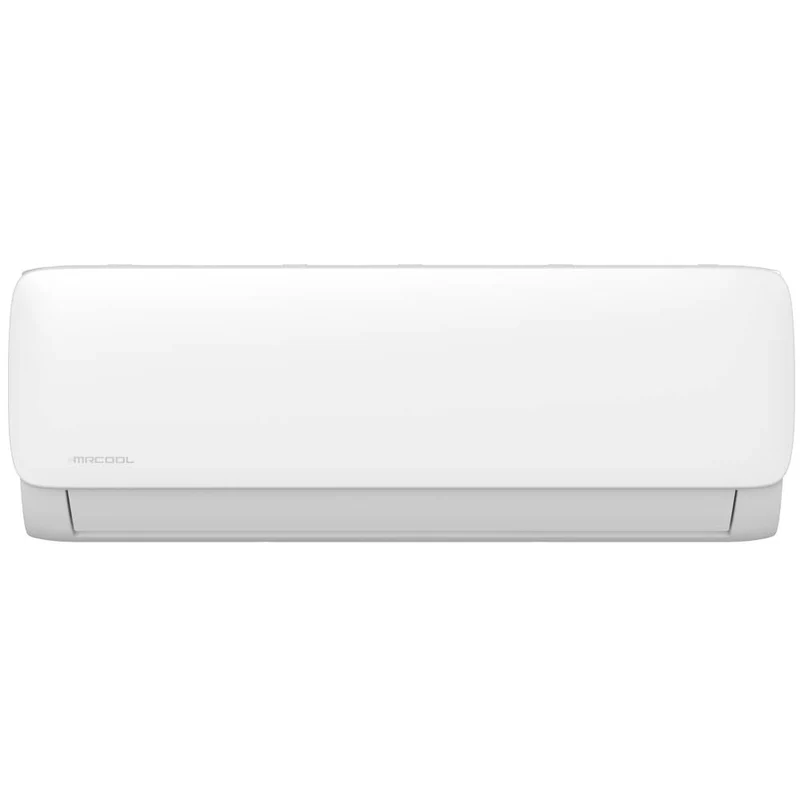

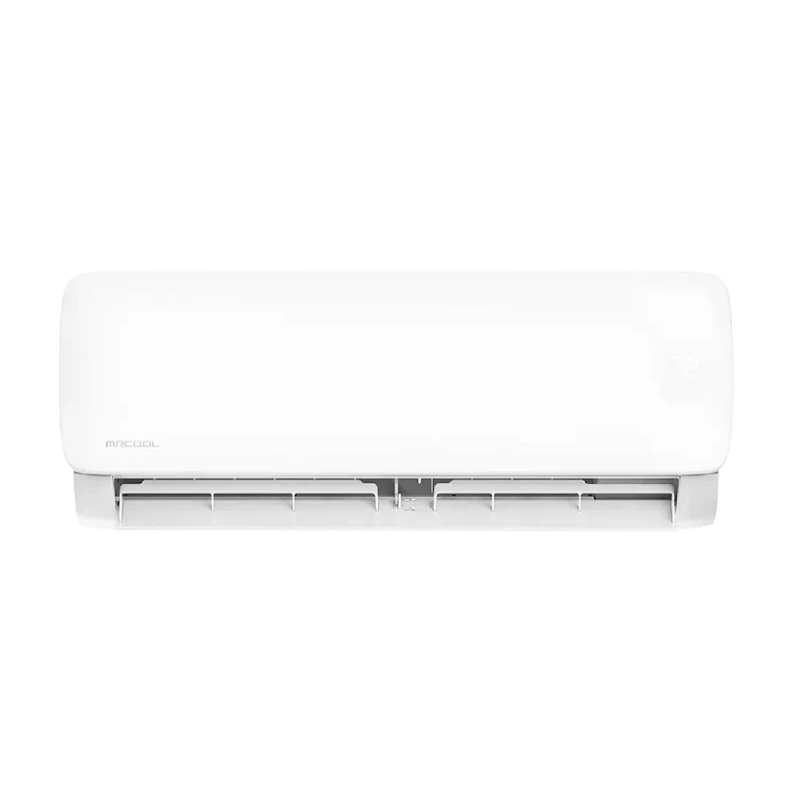

MRCOOL EZPRO-09-HP-WMAH-115D-O Air Handler Specs

BRAND NAME MRCOOL
SERIES EasyPro 5th Gen
MODEL EZPRO-09-HP-WMAH-115D-O
GTIN 840255586764
UPC 840255586764
UNIT TYPE Mini-Split
EQUIPMENT TYPE Air Handler
SHORT DESCRIPTION EasyPro 5th Generation 9k BTU 115V Air Handler
CFM 312.0 / 235.4 / 170.7 / 135.4 / /
TONNAGE 0.75
COOLING CAPACITY (BTU) 9000
HEATING CAPACITY (BTU) 10000
VOLTAGE (V) 115
PHASE 1
CYCLE 60
MAX FUSE BREAKER (A) 15
MIN CIRCUIT AMPACITY (A) 3
MOUNT TYPE Wall
COLOR White
MAX COVERAGE AREA Yes
DECIBEL RATING (DBA) 31
DECIBEL RATING LOW (DBA) 18
DECIBEL RATING HIGH (DBA) 43
NUMBER OF SPEEDS 5
LIQUID LINE SIZE 1/4
SUCTION LINE SIZE 3/8
BLOWER MOTOR SPEEDS 3
BLOWER MOTOR RPM 1050/810/690
FILTER TYPE Reusable
FAN ONLY OPTION Yes
SLEEP MODE Yes
AUTO COOL Yes
WIFI COMPATIBILITY Yes
APP COMPATIBILITY Yes
WORKS WITH IOS Yes
WORKS WITH ANDROID Yes
REMOTE CONTROL INCLUDED Yes
UL LISTED Yes
CSA LISTED Yes
ETL LISTED Yes
AHRI CERTIFIED Yes
REGISTERED WARRANTY Extended Limited Lifetime*
BASE PARTS WARRANTY 1 Year
BASE COMPRESSOR WARRANTY 2 Years
HAS BATTERIES Yes
CONTAINS ELECTRONICS Yes
CONTAINS CHEMICALS Yes
CONTAINS COMPRESSED GAS Yes
PROPOSITION 65 WARNING Yes
NET DEPTH (IN) 7.87
NET HEIGHT (IN) 11.5
NET WIDTH (IN) 28.7
NET WEIGHT (LBS) 23.81
GROSS DEPTH (IN) 16.14
GROSS HEIGHT (IN) 13.58
GROSS WIDTH (IN) 32.68
GROSS WEIGHT (LBS) 33.95

Understanding your MRCOOL warranty coverage ensures long-term system performance and protection. All warranties are non-transferable and valid only at the original installation address.

Warranty Coverage by Series

DIY Series 5th Generation Mini-Splits

Models: DIY-09-HP through DIY-36-HP, DIYCASSETTE, DIY-MULTI series

  • Parts: 5 years from proof of purchase
  • Compressor: 7 years from proof of purchase
  • Remote Control: Included in parts warranty
  • Extended Lifetime Warranty: Available with MRCOOL Care Kit Program enrollment (fee required)
  • Installation: Professional installer NOT required when using MRCOOL Quick Connect Pre-Charged Line Set

Advantage Series Mini-Splits

Models: A-09-HP through A-36-HP series

  • Parts: 1 year from proof of purchase
  • Compressor: 2 years from proof of purchase
  • Extended Lifetime Warranty: Available with MRCOOL Care Kit Program enrollment (fee required)

    Must register within 180 days of purchase
    Covers compressor failure only with one-time condenser replacement
    Requires ongoing Care Kit Program maintenance
Easy Pro Series Mini-Splits

Models: EZPRO-09-HP through EZPRO-24-HP series

  • Parts: 1 year from proof of purchase
  • Compressor: 2 years from proof of purchase
  • Extended Lifetime Warranty: Available with MRCOOL Care Kit Program enrollment (fee required)

Central Ducted Systems

Models: CENTRAL-18-HP through CENTRAL-60-HP, MVP Series

  • Parts: 10 years from installation date
  • Compressor: 10 years from installation date
  • Labor: 10 years (installer responsible for first 90 days)
  • Installation: Professional installer NOT required when using MRCOOL Quick Connect Pre-Charged Line Set

Universal Series Split Systems

Models: UHP series, UAH series Air Handlers

  • Parts: 10 years from proof of purchase
  • Compressor: 10 years from proof of purchase
  • Labor: 2 years limited (begins 91 days after purchase, covers diagnostic and repair costs)
  • Installation: Professional installer required

Inverter Package Series

Models: GCSHPM series, GCSCAM series

  • Parts: 10 years from installation date
  • Labor: 5 years limited (manufacturing defects only, begins 91 days after installation)
  • Installation: Professional installation required

Olympus Series Mini-Splits

Models: MDUO, MDUCO, MDUI series

Owner-Occupied Residences:

  • Parts: 5 years standard, 10 years with registration within 60 days
  • Compressor: 5 years standard, 10 years with registration within 60 days

Commercial Applications:

  • Parts & Compressor: 5 years with registration within 60 days
  • Installation: Professional installer required

Key Warranty Conditions

Product Registration:

  • Register at mrcool.com/warranty to activate extended coverage (where applicable)
  • Registration deadlines vary by series (30-180 days from purchase)

Installation Requirements:

  • Must comply with all federal, state, and local electrical codes
  • Must follow MRCOOL installation instructions
  • Must use new, compatible, MRCOOL-approved components
  • Warranty voids if installed with used or incompatible parts

Warranty Does NOT Cover:

  • Labor, diagnostic, shipping, or installation costs (except where labor warranty applies)
  • Normal maintenance (filter cleaning, lubrication, coil cleaning)
  • Refrigerant costs or energy consumption
  • Damage from improper installation, natural disasters, or electrical issues
  • Units moved from original installation address
  • Units installed outside USA and Canada

How to File a Warranty Claim

Contact MRCOOL:

For Labor Claims (Universal/Inverter Package Series within first 2 years):

  • Phone: (844) 518-2040

Required Documentation:

  • Proof of purchase
  • Product registration confirmation (if applicable)
  • Diagnostic testing results (professional HVAC technician may be required)
  • Defective parts must be returned when requested

For complete warranty terms and conditions, visit mrcool.com/warranty

Replacement parts are covered for the remainder of the original warranty period or 30 days, whichever is longer. Some states do not allow exclusion of incidental or consequential damages. This warranty gives you specific legal rights that may vary by state or province.
