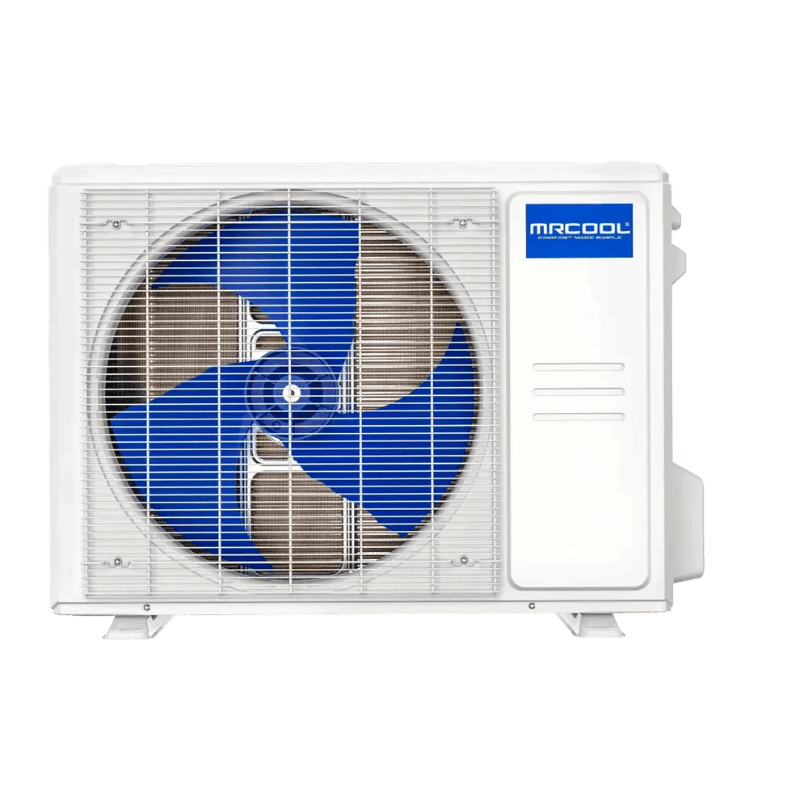

MRCOOL DIY Easy Pro 9,000 BTU 5th Gen Ductless Mini Split Heat Pump Condenser - 115V (EZPRO-09-HP-C-11516D-O)

MRCOOL SKU: EZPRO-09-HP-C-11516D-O

Choose your location

enter a zip or postal code

Price:
Sale price$1,020.00

Description

MRCOOL EasyPro 5th Generation 9k BTU 115V Condenser (Easiest DIY Installation)

Cut through the complexity of outdoor HVAC installation with the 5th Generation MRCOOL Easy Pro 9K Condenser—no vacuum pump, no licensed technician required. AHRI certified and NEEP listed, this compact powerhouse delivers 20.2 SEER2 efficiency and 9.2 HSPF2-4 heating performance for spaces up to 400 sq ft, engineered for the simplest DIY setup available. Featuring eco-friendly R454B refrigerant with lower Global Warming Potential, this system combines environmental responsibility with professional-grade performance.

Your outdoor installation just became ridiculously easy. The 16-foot pre-charged line set arrives equipped with Fast Connection fittings—connect it with confidence, flip the switch, and enjoy instant comfort. Low-Ambient Cooling extends operation down to 5°F, making this unit perfect for demanding applications like server rooms, garages, and year-round greenhouse climates.

Auto Restart preserves your settings after power loss, while the whisper-quiet 54 dB(A) operation creates peaceful indoor and outdoor environments. Wi-Fi integration with SmartHVAC app and voice command compatibility with Alexa and Google Assistant puts climate control at your fingertips. Gold Fin corrosion resistance protects against coastal salt air and humidity for years of reliable performance.

Built for confidence and backed by solid warranties - 1-year compressor and 2-year parts and Extended Limited Lifetime coverage upon registration, the MRCOOL DIY Easy Pro 9K Condenser removes the intimidation from outdoor unit installation. You get professional reliability without professional complexity. Start cooling and heating your space today with the easiest outdoor DIY system available.

⚠️ Important Compatibility Notice

This listing includes ONLY the outdoor condenser unit and one 16-foot pre-charged line set. To complete your HVAC system and function properly, this condenser must be paired with the matching MRCOOL Easy Pro Air Handler (sold separately). View complete Easy Pro systems to purchase the full package together.



Ideal For:

  • First-time DIY homeowners avoiding professional installation costs - Entry-level outdoor unit eliminates service call fees while delivering 20.2 SEER2 cooling and heating for smaller spaces.
  • Tech-savvy homeowners seeking simplicity - No vacuum pump, no special tools, no complex procedures required—fastest outdoor setup available designed for anyone managing 400 sq ft comfort zones.
  • Budget-conscious property owners - Perfect for retrofits, additions, home offices, garages, server rooms, and greenhouses where space and cost are primary concerns.
  • Smart home automation seekers - Wi-Fi connectivity enables voice control via Alexa and Google Assistant plus app-based Auto Restart and Low-Ambient Cooling management.



Why Customers Choose The MRCOOL DIY Easy Pro 9K Condenser 115V

  • Exceptional Energy Efficiency - 20.2 SEER2 and 9.2 HSPF2-4 ratings deliver powerful heating and cooling while significantly reducing monthly utility bills and qualifying for energy rebates.
  • Easiest Outdoor Installation Available - Fast Connection fittings eliminate complexity—no vacuum pump, no special tools, no experience needed—just straightforward setup anyone can handle.
  • Versatile Performance - Low-Ambient Cooling to 5°F makes it ideal for demanding applications like server rooms, garages, and greenhouses while Auto Restart preserves settings after power loss.
  • Eco-Friendly Smart Technology - R454B refrigerant reduces environmental impact while SmartHVAC app and voice control provide convenient remote management and automation.
  • Solid Reliability Assurance - 1-year compressor and 2-year parts warranties deliver confidence without expensive professional service dependencies.



Certifications & Warranty

  • CEE Tier1 - North
  • AHRI Certified - Third-party validation of performance and reliability standards
  • NEEP Listed (ccASHP) - Meets Northeast Energy Efficiency Partnership standards for eco-friendly operation
  • 20.2 SEER2 Energy Rating - Superior cooling efficiency for significant utility savings
  • 9.2 HSPF2-4 Heating Rating - Excellent heating performance for year-round comfort
  • Eco-Friendly R454B Refrigerant - Low Global Warming Potential with reduced greenhouse gas emissions
  • Gold Fin Corrosion Resistance - Protection against coastal salt air and high-humidity environments
  • SmartHVAC Wi-Fi Certified - Compatible with Amazon Alexa and Google Assistant voice control ecosystems
  • 1-Year Compressor Limited Warranty - Protection on the core heating and cooling component
  • 2-Year Parts Limited Warranty - Coverage on condenser components and internal systems
  • DIY Installation Supported - No professional installation required—warranty valid with proper registration
  • Online Registration Required - Simple registration activates full warranty coverage and protection benefits

What's Included

Everything you need is included with your MRCOOL 9k EZPRO Condenser.

  • EasyPro 5th Generation 9k BTU 115V Condenser
  • SmartHVAC Wi-Fi Control Module (integrated)

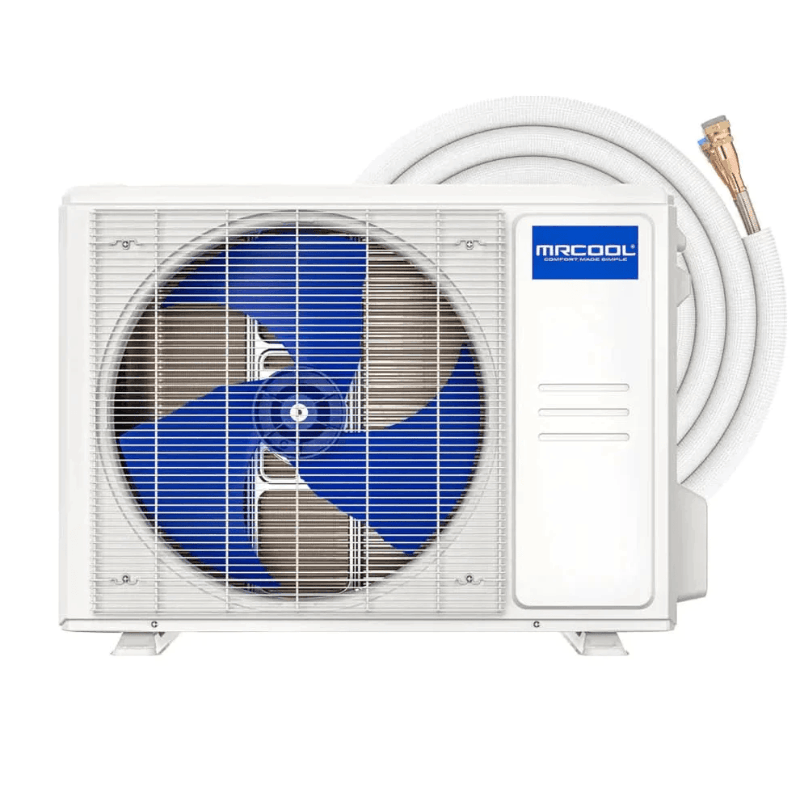

  • Pre-Charged 16-Foot Line Set with Fast Connection Fittings
  • Mounting Brackets and Hardware
  • Installation Guide and Support Resources
  • Cable Connectors and Protective Materials


MRCOOL DIY Easy Pro 9K Condenser 115V Features

  • 9,000 BTU (0.75 Ton) with 20.2 SEER2 / 9.2 HSPF2-4 - High-efficiency outdoor condenser for 400 sq ft spaces with excellent cooling and heating performance.
  • 5th Generation R454B Refrigerant - Advanced eco-friendly refrigerant reduces environmental impact while enhancing system efficiency and reliability.
  • Fast Connection Pre-Charged Line Set - Includes 16-foot pre-charged line set with innovative Fast Connection fittings—no vacuum pump, no special tools required.
  • No Professional Installation Required - True DIY design eliminates expensive service calls while maintaining professional-grade outdoor performance for smaller spaces.
  • SmartHVAC™ Wi-Fi Control Module - Fully integrated connectivity for iOS/Android app access, Amazon Alexa, and Google Assistant voice commands from anywhere.
  • Auto Restart Function - Automatically saves your system settings and restores operation after power loss for seamless, worry-free performance.
  • Low-Ambient Cooling to 5°F - Extends operational range ideal for demanding applications like server rooms, garages, and greenhouses.
  • Gold Fin Condenser Coating - Durable corrosion-resistant protection ideal for coastal, humid, and challenging environmental conditions.
  • Whisper-Quiet 54 dB(A) Operation - Peaceful performance suitable for residential and commercial environments without noise disruption.
  • Compact Outdoor Unit Design - Space-efficient condenser suitable for tight installations, balconies, and ground-level placement.

MRCOOL EZPRO-09-HP-C-11516D-O Condenser Specs

BRAND NAME MRCOOL
SERIES EasyPro 5th Gen
MODEL EZPRO-09-HP-C-11516D-O
GTIN 840255586726
UPC 840255586726
UNIT TYPE Mini-Split
EQUIPMENT TYPE Condenser
SHORT DESCRIPTION EasyPro 5th Generation 9k BTU 115V Condenser
SEER2 20.2
EER2 11.3
HSPF2-4 9.2
HSPF2-5 7.1
TONNAGE 0.75
COOLING CAPACITY (BTU) 9000
HEATING CAPACITY (BTU) 10000
VOLTAGE (V) 115
PHASE 1
CYCLE 60
MAX FUSE BREAKER (A) 20
MIN CIRCUIT AMPACITY (A) 17
ZONE CAPACITY 1
REFRIGERANT TYPE R-454B
REFRIGERANT VOLUME (OZ) 17.28
DECIBEL RATING (DBA) 54
INVERTER DC
LINE SET LENGTH 16ft
MAX LINESET LENGTH (FT) 82 ft
LIQUID LINE SIZE 1/4
SUCTION LINE SIZE 3/8
COMPRESSOR MOTOR TYPE Rotary
WORKS WITH IOS Yes
WORKS WITH ANDROID Yes
UL LISTED Yes
ETL LISTED Yes
ENERGY STAR CERTIFIED Yes
AHRI CERTIFIED Yes
REGISTERED WARRANTY Extended Limited Lifetime*
BASE PARTS WARRANTY 1 Year
BASE COMPRESSOR WARRANTY 2 Years
CONTAINS CHEMICALS Yes
CONTAINS COMPRESSED GAS Yes
PROPOSITION 65 WARNING Yes
NET DEPTH (IN) 10.63
NET HEIGHT (IN) 19.49
NET WIDTH (IN) 28.35
NET WEIGHT (LBS) 54.67
GROSS DEPTH (IN) 10.63
GROSS HEIGHT (IN) 21.26
GROSS WIDTH (IN) 32.87
GROSS WEIGHT (LBS) 66.58

MRCOOL DIY Easy Pro 9k BTU 5th Gen Ductless Mini Split Heat Pump Condenser - 115V Resources

Understanding your MRCOOL warranty coverage ensures long-term system performance and protection. All warranties are non-transferable and valid only at the original installation address.

Warranty Coverage by Series

DIY Series 5th Generation Mini-Splits

Models: DIY-09-HP through DIY-36-HP, DIYCASSETTE, DIY-MULTI series

  • Parts: 5 years from proof of purchase
  • Compressor: 7 years from proof of purchase
  • Remote Control: Included in parts warranty
  • Extended Lifetime Warranty: Available with MRCOOL Care Kit Program enrollment (fee required)
  • Installation: Professional installer NOT required when using MRCOOL Quick Connect Pre-Charged Line Set

Advantage Series Mini-Splits

Models: A-09-HP through A-36-HP series

  • Parts: 1 year from proof of purchase
  • Compressor: 2 years from proof of purchase
  • Extended Lifetime Warranty: Available with MRCOOL Care Kit Program enrollment (fee required)

    Must register within 180 days of purchase
    Covers compressor failure only with one-time condenser replacement
    Requires ongoing Care Kit Program maintenance
Easy Pro Series Mini-Splits

Models: EZPRO-09-HP through EZPRO-24-HP series

  • Parts: 1 year from proof of purchase
  • Compressor: 2 years from proof of purchase
  • Extended Lifetime Warranty: Available with MRCOOL Care Kit Program enrollment (fee required)

Central Ducted Systems

Models: CENTRAL-18-HP through CENTRAL-60-HP, MVP Series

  • Parts: 10 years from installation date
  • Compressor: 10 years from installation date
  • Labor: 10 years (installer responsible for first 90 days)
  • Installation: Professional installer NOT required when using MRCOOL Quick Connect Pre-Charged Line Set

Universal Series Split Systems

Models: UHP series, UAH series Air Handlers

  • Parts: 10 years from proof of purchase
  • Compressor: 10 years from proof of purchase
  • Labor: 2 years limited (begins 91 days after purchase, covers diagnostic and repair costs)
  • Installation: Professional installer required

Inverter Package Series

Models: GCSHPM series, GCSCAM series

  • Parts: 10 years from installation date
  • Labor: 5 years limited (manufacturing defects only, begins 91 days after installation)
  • Installation: Professional installation required

Olympus Series Mini-Splits

Models: MDUO, MDUCO, MDUI series

Owner-Occupied Residences:

  • Parts: 5 years standard, 10 years with registration within 60 days
  • Compressor: 5 years standard, 10 years with registration within 60 days

Commercial Applications:

  • Parts & Compressor: 5 years with registration within 60 days
  • Installation: Professional installer required

Key Warranty Conditions

Product Registration:

  • Register at mrcool.com/warranty to activate extended coverage (where applicable)
  • Registration deadlines vary by series (30-180 days from purchase)

Installation Requirements:

  • Must comply with all federal, state, and local electrical codes
  • Must follow MRCOOL installation instructions
  • Must use new, compatible, MRCOOL-approved components
  • Warranty voids if installed with used or incompatible parts

Warranty Does NOT Cover:

  • Labor, diagnostic, shipping, or installation costs (except where labor warranty applies)
  • Normal maintenance (filter cleaning, lubrication, coil cleaning)
  • Refrigerant costs or energy consumption
  • Damage from improper installation, natural disasters, or electrical issues
  • Units moved from original installation address
  • Units installed outside USA and Canada

How to File a Warranty Claim

Contact MRCOOL:

For Labor Claims (Universal/Inverter Package Series within first 2 years):

  • Phone: (844) 518-2040

Required Documentation:

  • Proof of purchase
  • Product registration confirmation (if applicable)
  • Diagnostic testing results (professional HVAC technician may be required)
  • Defective parts must be returned when requested

For complete warranty terms and conditions, visit mrcool.com/warranty

Replacement parts are covered for the remainder of the original warranty period or 30 days, whichever is longer. Some states do not allow exclusion of incidental or consequential damages. This warranty gives you specific legal rights that may vary by state or province.
