MRCOOL DIY Easy Pro 24,000 BTU 5th Gen Ductless Mini Split Heat Pump System - 18.9 SEER2, 230V (EZPRO-24-HP-23016D-O)

MRCOOL SKU: EZPRO-24-HP-23016D-O

Choose your location

enter a US zip code

Price:
Sale price$2,149.00

Description

MRCOOL DIY 5th Gen Easy Pro 24K BTU 18.9 SEER2 Ductless Mini Split Air Conditioner and Heat Pump - 230V (Easiest DIY Installation)

The newly released 5th Generation of the MRCOOL Easy Pro DIY 24K BTU Ductless Mini-Split Heat Pump System is easy to install and is capable of effectively heating and cooling a space of 1,050 square feet, this easy-to-install unit also includes the convenient 16 foot pre-charged line set, with Fast Connection fittings.

The features are numerous with this system such as the Follow Me feature can make sure that the temperature you want is designated to wherever you are in the space, as well as the anti-mildew feature that provides the cleanest air for you and your family to breathe. Maintaining the system is as easy as the installation, as the air filters only require rinsing and replacing, and the LED display provides useful troubleshooting codes for you to solve any issue that arises on your own.

This system can be operated with your Apple or Android device via the SmartHVAC app, the included remote control, or your Amazon Alexa or Google Assistant. Feel confident in your purchase with the 2-year compressor warranty, 1-year parts warranty, and Extended Limited Lifetime warranty once you register this unit. This is an easy-to-install system that can provide exceptional heating and cooling for your home or office.



Ideal For:

  • Homeowners requiring true whole-home climate control - 1,050 sq ft complete system handles your entire property without central HVAC installation or professional dependencies.
  • DIY completionists claiming absolute independence - Full indoor-outdoor package with everything included means you control installation, maintenance, and operation from start to finish.
  • Properties with large open floor plans - 230V power and 24,000 BTU capacity deliver comprehensive coverage for expansive layouts, multiple zones, and demanding heating/cooling requirements.
  • Smart home ecosystems reaching full integration - WiFi and voice command across your entire maximum-capacity space means seamless automation from every corner of your home.



Why Customers Choose The MRCOOL DIY Easy Pro 24K Heat Pump System 230V

  • Complete Package Eliminates Guesswork - Both indoor and outdoor units arrive together, pre-charged and ready—you never question compatibility, sizing, or component matching.
  • Maximum Capacity Preserves Installation Simplicity - 24,000 BTU with 18.9 SEER2 proves Easy Pro's final promise: the biggest system still means the easiest installation.
  • Total Home Climate Sovereignty - From Follow Me positioning to anti-mildew protection to LED diagnostics, every feature supports your absolute independence in ownership.
  • All-in-One Performance Integration - 230V power combined with complete system design delivers unified climate management across your entire maximum-coverage space without compromise.
  • Investment-Grade Peace of Mind - 1-year compressor and 2-year parts warranty coverage upon registration protects your commitment to ultimate-capacity, completely independent climate control.



Certifications & Warranty

  • Energy Star Eligible - Designed for efficient residential and commercial cooling and heating applications at ultimate whole-home scale
  • 18.9 SEER2 Energy Rating - Excellent energy efficiency for maximum-capacity whole-home performance with significant utility savings
  • Eco-Friendly R454B Refrigerant - Low Global Warming Potential with reduced greenhouse gas emissions across complete system
  • Fast Connection Certified - Innovative fitting system enables fastest, simplest hookup for maximum-capacity complete systems
  • SmartHVAC Wi-Fi Certified - Compatible with Amazon Alexa and Google Assistant voice control ecosystems for entire home
  • Follow Me Function Enabled - Advanced comfort positioning technology ensures temperature management throughout complete home coverage
  • 230V Power Certified - Maximum electrical capability for ultimate whole-home performance and reliability
  • Complete System Verified - Both indoor and outdoor units verified for perfect compatibility and optimal performance
  • 1-Year Compressor Limited Warranty - Protection on the core heating and cooling component at ultimate capacity
  • 2-Year Parts Limited Warranty - Coverage on all system components across both indoor and outdoor units
  • DIY Installation Supported - No professional installation required—warranty valid with proper registration
  • Online Registration Required - Simple registration activates full warranty coverage and complete protection benefits
  • AHRI certified
  • NEEP ccASHP Listed
  • CEE Tier1 - North

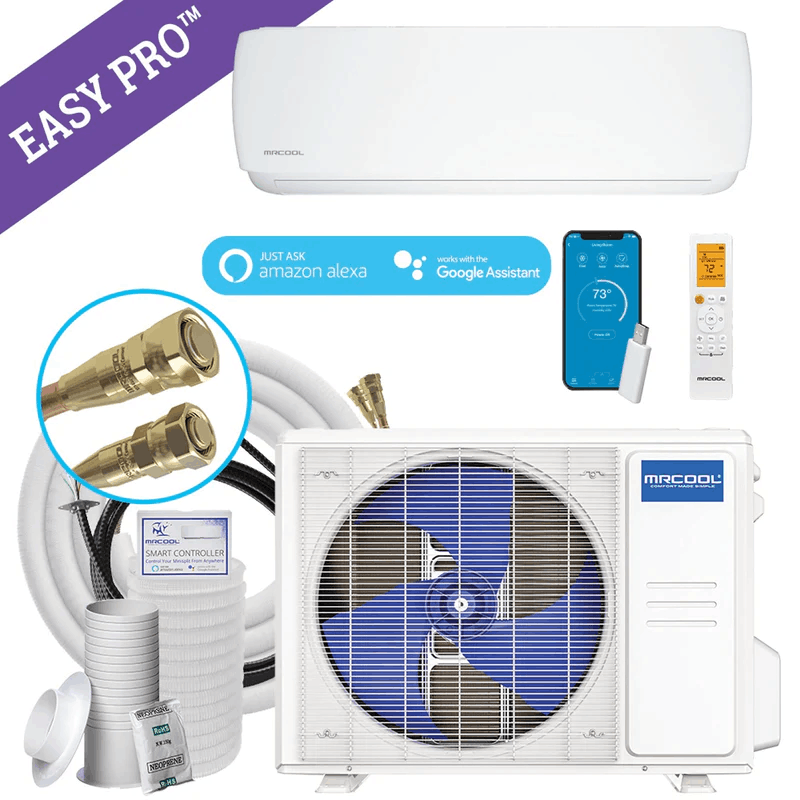

What's Included

Everything you need is included with your MRCOOL EZPRO 24k Mini Split.

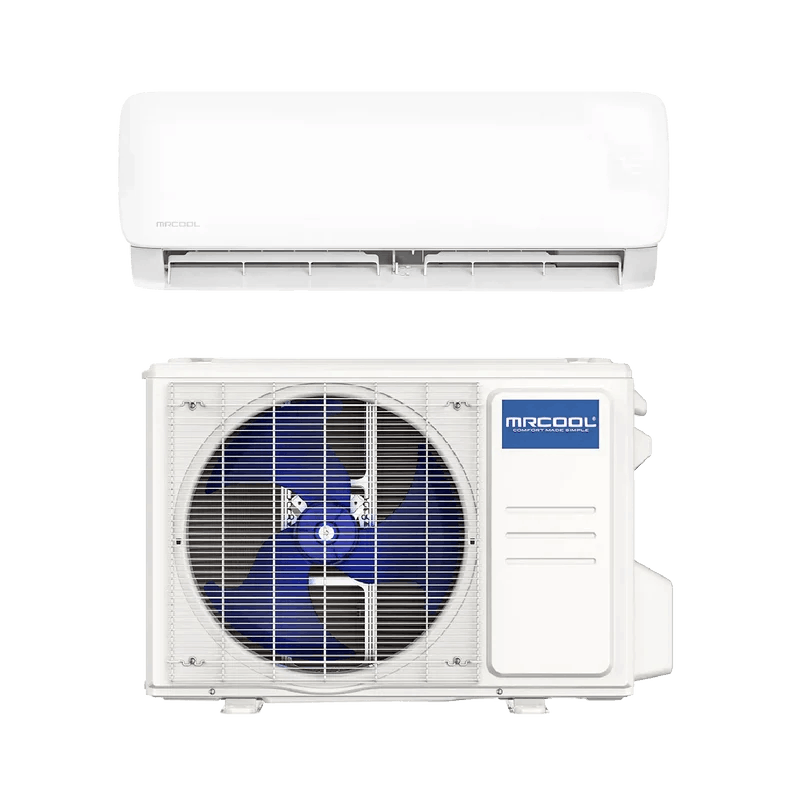

  • EasyPro 5th Generation 24k BTU 230V Air Handler
  • EasyPro 5th Generation 24k BTU 230V Condenser
  • SmartHVAC Wi-Fi Control Module (integrated)
  • Wireless Remote Control with Follow Me Function
  • Pre-Charged 16-Foot Line Set with Fast Connection Fittings
  • Mounting Brackets and Hardware
  • Installation Guide and Support Resources
  • Cable Connectors and Protective Materials


MRCOOL DIY Easy Pro 24K Heat Pump System 230V Features

  • 24,000 BTU with 18.9 SEER2 Rating - Ultimate-capacity complete system for spaces up to 1,050 sq ft with excellent energy efficiency and whole-home performance.
  • 5th Generation R454B Refrigerant - Eco-friendly refrigerant reduces environmental impact while supporting powerful climate control across your entire maximum-capacity space.
  • 230V Power Supply - Maximum electrical capability delivers peak performance muscle needed for comprehensive whole-home temperature management and demanding requirements.
  • Complete Indoor-Outdoor Package - Full system arrives with both air handler and condenser pre-configured, pre-charged, and ready for your installation.
  • Fast Connection Pre-Charged Line Set - Includes 16-foot pre-charged line set with Fast Connection fittings - no vacuum pump, no special tools required for complete setup.
  • No Professional Installation Required - True DIY design eliminates expensive service calls while maintaining professional-grade performance across entire home coverage.
  • SmartHVAC Wi-Fi Control Module - Native WiFi connectivity enables iOS/Android app access, Amazon Alexa, and Google Assistant voice commands throughout your entire space.
  • Follow Me Function - Remote-based temperature positioning ensures your desired comfort follows throughout your entire 1,050 sq ft maximum-capacity home environment.
  • Anti-Mildew Protection - Advanced moisture management keeps indoor air pristine across your complete home while reducing mold and condensation buildup.
  • LED Display with Troubleshooting Codes - Intuitive diagnostics help you independently solve any issues without costly professional service interventions or dependencies.

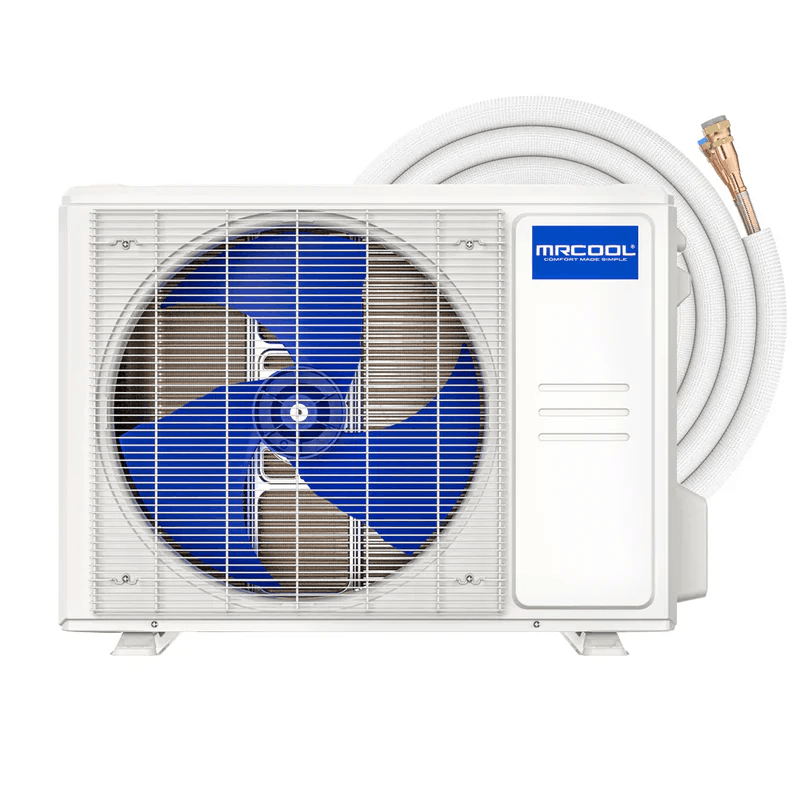

MRCOOL EZPRO-24-HP-C-23016D-O Condenser Specs

BRAND NAME MRCOOL
SERIES EasyPro 5th Gen
MODEL EZPRO-24-HP-C-23016D-O
GTIN 840255586757
UPC 840255586757
UNIT TYPE Mini-Split
EQUIPMENT TYPE Condenser
SHORT DESCRIPTION EasyPro 5th Generation 24k BTU 230V Condenser
SEER2 18.9
EER2 9.7
HSPF2-4 8.7
HSPF2-5 6.9
TONNAGE 2
COOLING CAPACITY (BTU) 24000
HEATING CAPACITY (BTU) 25000
VOLTAGE (V) 208/230
PHASE 1
CYCLE 60
MAX FUSE BREAKER (A) 20
MIN CIRCUIT AMPACITY (A) 19
ZONE CAPACITY 1
REFRIGERANT TYPE R-454B
REFRIGERANT VOLUME (OZ) 50.44
DECIBEL RATING (DBA) 61
INVERTER DC
LINE SET LENGTH 16ft
MAX LINESET LENGTH (FT) 164
LIQUID LINE SIZE 3/8
SUCTION LINE SIZE 5/8
COMPRESSOR MOTOR TYPE Rotary
WORKS WITH IOS Yes
WORKS WITH ANDROID Yes
UL LISTED Yes
ETL LISTED Yes
ENERGY STAR CERTIFIED Yes
AHRI CERTIFIED Yes
REGISTERED WARRANTY Extended Limited Lifetime*
BASE PARTS WARRANTY 1 Year
BASE COMPRESSOR WARRANTY 2 Years
CONTAINS CHEMICALS Yes
CONTAINS COMPRESSED GAS Yes
PROPOSITION 65 WARNING Yes
NET DEPTH (IN) 13.46
NET HEIGHT (IN) 26.5
NET WIDTH (IN) 35.04
NET WEIGHT (LBS) 95.9
GROSS DEPTH (IN) 15.67
GROSS HEIGHT (IN) 29.13
GROSS WIDTH (IN) 39.17
GROSS WEIGHT (LBS) 117.73

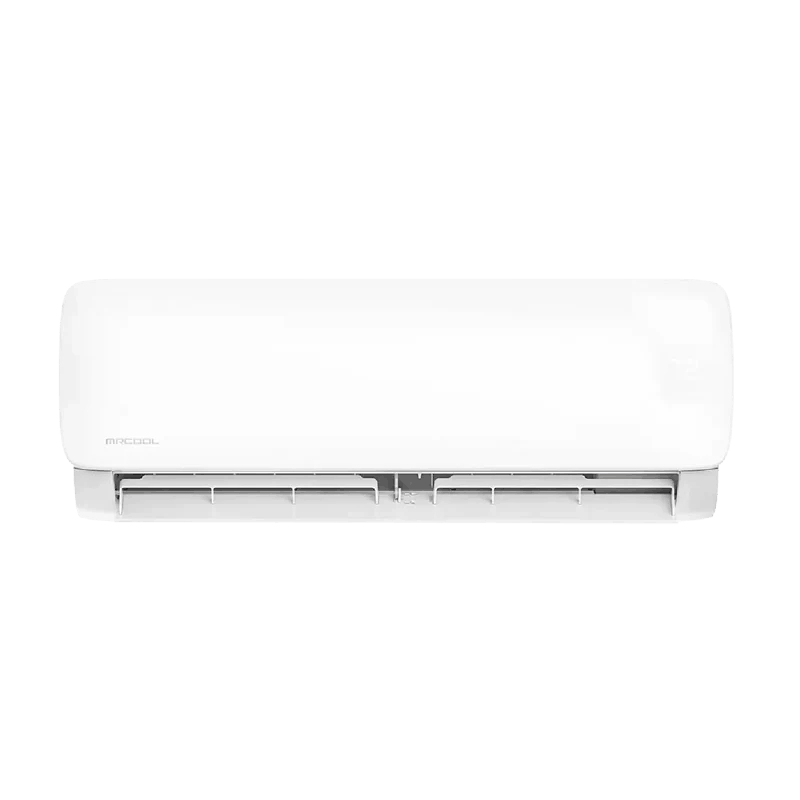

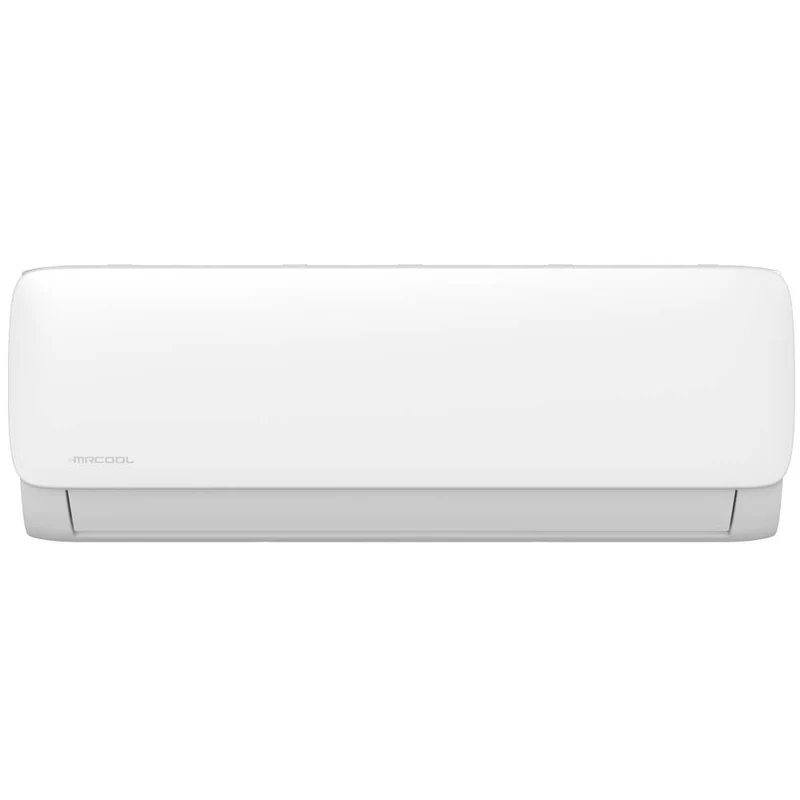

MRCOOL EZPRO-24-HP-WMAH-230D-O Air Handler Specs

BRAND NAME MRCOOL
SERIES EasyPro 5th Gen
MODEL EZPRO-24-HP-WMAH-230D-O
GTIN 840255586795
UPC 840255586795
UNIT TYPE Mini-Split
EQUIPMENT TYPE Air Handler
SHORT DESCRIPTION EasyPro 5th Generation 24k BTU 230V Air Handler
CFM 729.9 / 547.4 / 400.2 / 329.6 / /
TONNAGE 2
COOLING CAPACITY (BTU) 24000
HEATING CAPACITY (BTU) 25000
VOLTAGE (V) 208/230
PHASE 1
CYCLE 60
MAX FUSE BREAKER (A) 15
MIN CIRCUIT AMPACITY (A) 3
MOUNT TYPE Wall
COLOR White
MAX COVERAGE AREA 1050 sqft
DECIBEL RATING (DBA) 40
DECIBEL RATING LOW (DBA) 21.5
DECIBEL RATING HIGH (DBA) 51.5
NUMBER OF SPEEDS 5
LIQUID LINE SIZE 3/8
SUCTION LINE SIZE 5/8
BLOWER MOTOR SPEEDS 3
BLOWER MOTOR RPM 1100/940/780
FILTER TYPE Reusable
FAN ONLY OPTION Yes
SLEEP MODE Yes
AUTO COOL Yes
WIFI COMPATIBILITY Yes
APP COMPATIBILITY Yes
WORKS WITH IOS Yes
WORKS WITH ANDROID Yes
REMOTE CONTROL INCLUDED Yes
UL LISTED Yes
CSA LISTED Yes
ETL LISTED Yes
AHRI CERTIFIED Yes
REGISTERED WARRANTY Extended Limited Lifetime*
BASE PARTS WARRANTY 1 Year
BASE COMPRESSOR WARRANTY 2 Years
HAS BATTERIES Yes
CONTAINS ELECTRONICS Yes
CONTAINS CHEMICALS Yes
CONTAINS COMPRESSED GAS Yes
PROPOSITION 65 WARNING Yes
NET DEPTH (IN) 9.21
NET HEIGHT (IN) 13.27
NET WIDTH (IN) 42.6
NET WEIGHT (LBS) 35.49
GROSS DEPTH (IN) 16.34
GROSS HEIGHT (IN) 12.4
GROSS WIDTH (IN) 45.47
GROSS WEIGHT (LBS) 49.6

Understanding your MRCOOL warranty coverage ensures long-term system performance and protection. All warranties are non-transferable and valid only at the original installation address.

Warranty Coverage by Series

DIY Series 5th Generation Mini-Splits

Models: DIY-09-HP through DIY-36-HP, DIYCASSETTE, DIY-MULTI series

  • Parts: 5 years from proof of purchase
  • Compressor: 7 years from proof of purchase
  • Remote Control: Included in parts warranty
  • Extended Lifetime Warranty: Available with MRCOOL Care Kit Program enrollment (fee required)
  • Installation: Professional installer NOT required when using MRCOOL Quick Connect Pre-Charged Line Set

Advantage Series Mini-Splits

Models: A-09-HP through A-36-HP series

  • Parts: 1 year from proof of purchase
  • Compressor: 2 years from proof of purchase
  • Extended Lifetime Warranty: Available with MRCOOL Care Kit Program enrollment (fee required)

    Must register within 180 days of purchase
    Covers compressor failure only with one-time condenser replacement
    Requires ongoing Care Kit Program maintenance
Easy Pro Series Mini-Splits

Models: EZPRO-09-HP through EZPRO-24-HP series

  • Parts: 1 year from proof of purchase
  • Compressor: 2 years from proof of purchase
  • Extended Lifetime Warranty: Available with MRCOOL Care Kit Program enrollment (fee required)

Central Ducted Systems

Models: CENTRAL-18-HP through CENTRAL-60-HP, MVP Series

  • Parts: 10 years from installation date
  • Compressor: 10 years from installation date
  • Labor: 10 years (installer responsible for first 90 days)
  • Installation: Professional installer NOT required when using MRCOOL Quick Connect Pre-Charged Line Set

Universal Series Split Systems

Models: UHP series, UAH series Air Handlers

  • Parts: 10 years from proof of purchase
  • Compressor: 10 years from proof of purchase
  • Labor: 2 years limited (begins 91 days after purchase, covers diagnostic and repair costs)
  • Installation: Professional installer required

Inverter Package Series

Models: GCSHPM series, GCSCAM series

  • Parts: 10 years from installation date
  • Labor: 5 years limited (manufacturing defects only, begins 91 days after installation)
  • Installation: Professional installation required

Olympus Series Mini-Splits

Models: MDUO, MDUCO, MDUI series

Owner-Occupied Residences:

  • Parts: 5 years standard, 10 years with registration within 60 days
  • Compressor: 5 years standard, 10 years with registration within 60 days

Commercial Applications:

  • Parts & Compressor: 5 years with registration within 60 days
  • Installation: Professional installer required

Key Warranty Conditions

Product Registration:

  • Register at mrcool.com/warranty to activate extended coverage (where applicable)
  • Registration deadlines vary by series (30-180 days from purchase)

Installation Requirements:

  • Must comply with all federal, state, and local electrical codes
  • Must follow MRCOOL installation instructions
  • Must use new, compatible, MRCOOL-approved components
  • Warranty voids if installed with used or incompatible parts

Warranty Does NOT Cover:

  • Labor, diagnostic, shipping, or installation costs (except where labor warranty applies)
  • Normal maintenance (filter cleaning, lubrication, coil cleaning)
  • Refrigerant costs or energy consumption
  • Damage from improper installation, natural disasters, or electrical issues
  • Units moved from original installation address
  • Units installed outside USA and Canada

How to File a Warranty Claim

Contact MRCOOL:

For Labor Claims (Universal/Inverter Package Series within first 2 years):

  • Phone: (844) 518-2040

Required Documentation:

  • Proof of purchase
  • Product registration confirmation (if applicable)
  • Diagnostic testing results (professional HVAC technician may be required)
  • Defective parts must be returned when requested

For complete warranty terms and conditions, visit mrcool.com/warranty

Replacement parts are covered for the remainder of the original warranty period or 30 days, whichever is longer. Some states do not allow exclusion of incidental or consequential damages. This warranty gives you specific legal rights that may vary by state or province.
