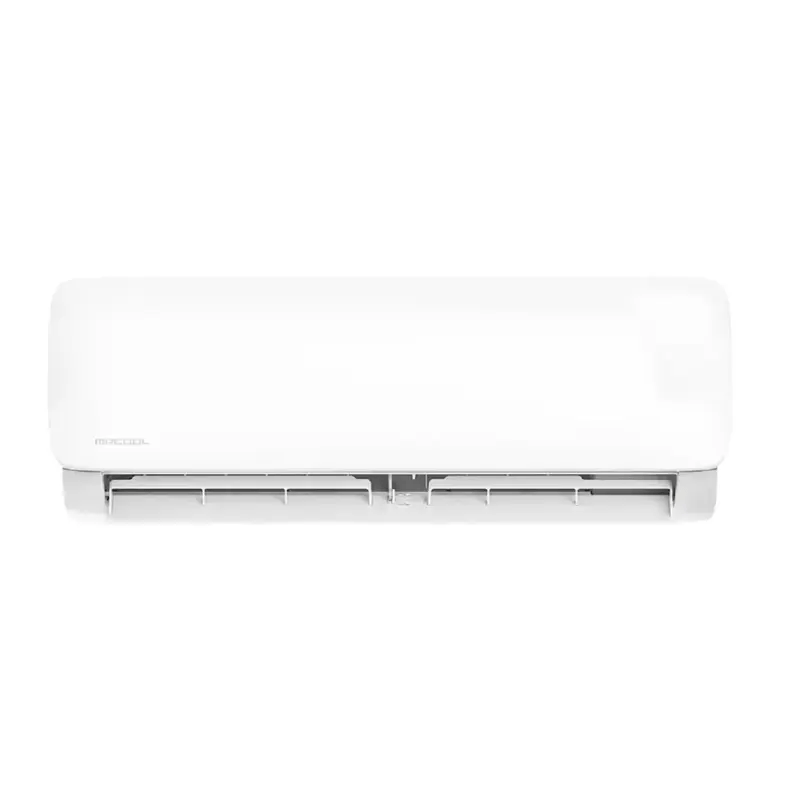

MRCOOL DIY Easy Pro 24,000 BTU 5th Gen Ductless Mini Split Air Handler - 230V (EZPRO-24-HP-WMAH-230D-O)

MRCOOL SKU: EZPRO-24-HP-WMAH-230D-O

Choose your location

enter a zip or postal code

Price:
Sale price$774.00

Description

MRCOOL EasyPro 5th Generation 24k BTU 230V Air Handler (Easiest DIY Installation)

The MRCOOL EASY PRO Mini-Split Air Handler is an affordable and user-friendly solution for heating and cooling spaces up to 1,050 square feet, making it perfect for larger rooms, open office areas, or versatile home applications.

As MRCOOL’s most budget-friendly unit, the EASY PRO air handler is designed for easy, DIY installation without the need for professional assistance. The EASY PRO air handler, which is a very efficient and convenient option, provides seamless and dependable operation. With WiFi connectivity, you can adjust and monitor temperature settings from your smartphone, while Active Clean Technology and simple-to-maintain filters help keep indoor air fresh. In the event of a power outage, the Auto Restart function restores operation automatically, and the Sleep Function adjusts temperature settings overnight to save energy while enhancing comfort.

Operating at a Whisper Quiet level, the EASY PRO is perfect for maintaining a tranquil environment, ideal for both home and work settings. Built to handle extreme conditions, it offers Low Ambient Cooling down to 5°F, making it suitable for spaces requiring year-round cooling, such as server rooms or greenhouses.

Backed by a 2-year compressor warranty, 1-year parts warranty, and Extended Limited Lifetime warranty once you register this unit, the MRCOOL EASY PRO air handler combines affordability, convenience, and reliability in an easy-to-install package. Experience comfort made easy, anytime and anywhere!



Ideal For:

  • DIY installers claiming ultimate indoor climate control - 1,050 sq ft with 230V power delivers complete home comfort without professional installation or expertise barriers.
  • Homeowners completing maximum-capacity system builds - This indoor piece pairs perfectly with the matching Easy Pro 24K condenser for comprehensive whole-home authority.
  • Properties requiring absolute peak indoor performance - 24,000 BTU represents the pinnacle of Easy Pro's indoor capability—reaching maximum while maintaining installation simplicity.
  • Smart home masters achieving ecosystem dominance - WiFi, voice command, and app control across ultimate-capacity indoor equipment completes your total climate automation vision.



Why Customers Choose The MRCOOL DIY Easy Pro 24K Air Handler 230V

  • Ultimate Capacity Installation Remains Accessible - 24,000 BTU with 18.9 SEER2 at maximum scale proves Easy Pro's enduring promise: biggest doesn't mean hardest.
  • Air Quality at Unprecedented Scale - Active Clean Technology combined with reusable filters delivers premium indoor air across your entire maximum 1,050 sq ft space.
  • Extreme Condition Reliability - Low-Ambient Cooling to 5°F ensures uninterrupted operation in server rooms, greenhouses, and temperature-sensitive applications at peak capacity.
  • Voice-Commanded Indoor Authority - Alexa and Google Assistant integration across maximum square footage means your entire home responds to spoken commands without limitations.
  • Protection Matching Your Investment - 2-year parts and 1-year compressor warranty coverage upon registration provides serious assurance in ultimate-capacity performance.



Certifications & Warranty

  • Energy Star Eligible - Designed for efficient residential and commercial cooling and heating applications at ultimate indoor capacity scale
  • 18.9 SEER2 Energy Rating - Excellent energy efficiency for maximum-capacity indoor performance with substantial utility savings
  • Eco-Friendly R454B Refrigerant - Low Global Warming Potential with reduced greenhouse gas emissions across ultimate-capacity indoor space
  • Active Clean Technology Certified - Advanced air filtration and cleaning system for premium indoor air quality at maximum capacity
  • SmartHVAC Wi-Fi Certified - Compatible with Amazon Alexa and Google Assistant voice control ecosystems at ultimate scale
  • Follow Me Function Enabled - Advanced comfort positioning technology throughout your entire 1,050 sq ft maximum-capacity space
  • Low-Ambient Cooling Capable - Operates reliably down to 5°F for extreme weather and specialized environments at peak capacity
  • 230V Power Certified - Maximum electrical capability for ultimate indoor performance and full-capacity reliability
  • 2-Year Parts Limited Warranty - Coverage on air handler components and all internal systems at maximum capacity
  • 1-Year Compressor Limited Warranty - Protection on the core heating and cooling component at peak performance
  • DIY Installation Supported - No professional installation required—warranty valid with proper registration
  • Online Registration Required - Simple registration activates full warranty coverage and complete protection benefits
  • AHRI certified
  • NEEP ccASHP Listed
  • CEE Tier1 - North

What's Included

Everything you need is included with your MRCOOL EZPRO 24k Air Handler.

  • EasyPro 5th Generation 24k BTU 230V Air Handler
  • SmartHVAC Wi-Fi Control Module (integrated)
  • Wireless Remote Control with Follow Me Function
  • Mounting Brackets and Hardware
  • Installation Guide and Support Resources
  • Cable Connectors and Protective Materials


MRCOOL DIY Easy Pro 24K Air Handler 230V Features

  • 24,000 BTU with 18.9 SEER2 Rating - Ultimate-capacity indoor unit for 1,050 sq ft spaces with excellent energy efficiency and complete climate dominance.
  • 5th Generation R454B Refrigerant - Eco-friendly refrigerant reduces environmental impact while supporting ultimate climate control across maximum indoor square footage.
  • 230V Power Supply - Maximum electrical capability delivers peak indoor performance muscle needed for complete home temperature management and demanding requirements.
  • Active Clean Technology - Advanced air filtration system maintains premium indoor air quality and healthier breathing environments across entire maximum-capacity space.
  • Reusable Air Filters - Eco-conscious design reduces ongoing waste while maintaining optimal airflow and system efficiency throughout maximum-capacity operation.
  • No Professional Installation Required - True DIY design eliminates expensive service calls while maintaining professional-grade indoor performance at ultimate capacity.
  • SmartHVAC Wi-Fi Control Module - Native WiFi connectivity enables iOS/Android app access, Amazon Alexa, and Google Assistant voice commands throughout entire space.
  • Follow Me Function - Remote-based temperature positioning ensures comfort management follows your movement across entire 1,050 sq ft maximum-capacity environment.
  • LED Display with Troubleshooting Codes - Intuitive diagnostics empower independent problem-solving across your ultimate-capacity space without professional service dependencies.

MRCOOL EZPRO-24-HP-WMAH-230D-O Air Handler Specs

BRAND NAME MRCOOL
SERIES EasyPro 5th Gen
MODEL EZPRO-24-HP-WMAH-230D-O
GTIN 840255586795
UPC 840255586795
UNIT TYPE Mini-Split
EQUIPMENT TYPE Air Handler
SHORT DESCRIPTION EasyPro 5th Generation 24k BTU 230V Air Handler
CFM 729.9 / 547.4 / 400.2 / 329.6 / /
TONNAGE 2
COOLING CAPACITY (BTU) 24000
HEATING CAPACITY (BTU) 25000
VOLTAGE (V) 208/230
PHASE 1
CYCLE 60
MAX FUSE BREAKER (A) 15
MIN CIRCUIT AMPACITY (A) 3
MOUNT TYPE Wall
COLOR White
MAX COVERAGE AREA 1050 sqft
DECIBEL RATING (DBA) 40
DECIBEL RATING LOW (DBA) 21.5
DECIBEL RATING HIGH (DBA) 51.5
NUMBER OF SPEEDS 5
LIQUID LINE SIZE 3/8
SUCTION LINE SIZE 5/8
BLOWER MOTOR SPEEDS 3
BLOWER MOTOR RPM 1100/940/780
FILTER TYPE Reusable
FAN ONLY OPTION Yes
SLEEP MODE Yes
AUTO COOL Yes
WIFI COMPATIBILITY Yes
APP COMPATIBILITY Yes
WORKS WITH IOS Yes
WORKS WITH ANDROID Yes
REMOTE CONTROL INCLUDED Yes
UL LISTED Yes
CSA LISTED Yes
ETL LISTED Yes
AHRI CERTIFIED Yes
REGISTERED WARRANTY Extended Limited Lifetime*
BASE PARTS WARRANTY 1 Year
BASE COMPRESSOR WARRANTY 2 Years
HAS BATTERIES Yes
CONTAINS ELECTRONICS Yes
CONTAINS CHEMICALS Yes
CONTAINS COMPRESSED GAS Yes
PROPOSITION 65 WARNING Yes
NET DEPTH (IN) 9.21
NET HEIGHT (IN) 13.27
NET WIDTH (IN) 42.6
NET WEIGHT (LBS) 35.49
GROSS DEPTH (IN) 16.34
GROSS HEIGHT (IN) 12.4
GROSS WIDTH (IN) 45.47
GROSS WEIGHT (LBS) 49.6

MRCOOL DIY Easy Pro 24,000 BTU 5th Gen Ductless Mini Split Air Handler - 230V Resources

Understanding your MRCOOL warranty coverage ensures long-term system performance and protection. All warranties are non-transferable and valid only at the original installation address.

Warranty Coverage by Series

DIY Series 5th Generation Mini-Splits

Models: DIY-09-HP through DIY-36-HP, DIYCASSETTE, DIY-MULTI series

  • Parts: 5 years from proof of purchase
  • Compressor: 7 years from proof of purchase
  • Remote Control: Included in parts warranty
  • Extended Lifetime Warranty: Available with MRCOOL Care Kit Program enrollment (fee required)
  • Installation: Professional installer NOT required when using MRCOOL Quick Connect Pre-Charged Line Set

Advantage Series Mini-Splits

Models: A-09-HP through A-36-HP series

  • Parts: 1 year from proof of purchase
  • Compressor: 2 years from proof of purchase
  • Extended Lifetime Warranty: Available with MRCOOL Care Kit Program enrollment (fee required)

    Must register within 180 days of purchase
    Covers compressor failure only with one-time condenser replacement
    Requires ongoing Care Kit Program maintenance
Easy Pro Series Mini-Splits

Models: EZPRO-09-HP through EZPRO-24-HP series

  • Parts: 1 year from proof of purchase
  • Compressor: 2 years from proof of purchase
  • Extended Lifetime Warranty: Available with MRCOOL Care Kit Program enrollment (fee required)

Central Ducted Systems

Models: CENTRAL-18-HP through CENTRAL-60-HP, MVP Series

  • Parts: 10 years from installation date
  • Compressor: 10 years from installation date
  • Labor: 10 years (installer responsible for first 90 days)
  • Installation: Professional installer NOT required when using MRCOOL Quick Connect Pre-Charged Line Set

Universal Series Split Systems

Models: UHP series, UAH series Air Handlers

  • Parts: 10 years from proof of purchase
  • Compressor: 10 years from proof of purchase
  • Labor: 2 years limited (begins 91 days after purchase, covers diagnostic and repair costs)
  • Installation: Professional installer required

Inverter Package Series

Models: GCSHPM series, GCSCAM series

  • Parts: 10 years from installation date
  • Labor: 5 years limited (manufacturing defects only, begins 91 days after installation)
  • Installation: Professional installation required

Olympus Series Mini-Splits

Models: MDUO, MDUCO, MDUI series

Owner-Occupied Residences:

  • Parts: 5 years standard, 10 years with registration within 60 days
  • Compressor: 5 years standard, 10 years with registration within 60 days

Commercial Applications:

  • Parts & Compressor: 5 years with registration within 60 days
  • Installation: Professional installer required

Key Warranty Conditions

Product Registration:

  • Register at mrcool.com/warranty to activate extended coverage (where applicable)
  • Registration deadlines vary by series (30-180 days from purchase)

Installation Requirements:

  • Must comply with all federal, state, and local electrical codes
  • Must follow MRCOOL installation instructions
  • Must use new, compatible, MRCOOL-approved components
  • Warranty voids if installed with used or incompatible parts

Warranty Does NOT Cover:

  • Labor, diagnostic, shipping, or installation costs (except where labor warranty applies)
  • Normal maintenance (filter cleaning, lubrication, coil cleaning)
  • Refrigerant costs or energy consumption
  • Damage from improper installation, natural disasters, or electrical issues
  • Units moved from original installation address
  • Units installed outside USA and Canada

How to File a Warranty Claim

Contact MRCOOL:

For Labor Claims (Universal/Inverter Package Series within first 2 years):

  • Phone: (844) 518-2040

Required Documentation:

  • Proof of purchase
  • Product registration confirmation (if applicable)
  • Diagnostic testing results (professional HVAC technician may be required)
  • Defective parts must be returned when requested

For complete warranty terms and conditions, visit mrcool.com/warranty

Replacement parts are covered for the remainder of the original warranty period or 30 days, whichever is longer. Some states do not allow exclusion of incidental or consequential damages. This warranty gives you specific legal rights that may vary by state or province.
