MRCOOL DIY Easy Pro 18,000 BTU 5th Gen Ductless Mini Split Heat Pump System - 20 SEER2, 230V (EZPRO-18-HP-23016D-O)

MRCOOL SKU: EZPRO-18-HP-23016D-O

Choose your location

enter a US zip code

Price:
Sale price$1,827.00

Description

MRCOOL DIY 5th Gen Easy Pro 18K BTU 20 SEER2 Ductless Mini Split Air Conditioner and Heat Pump - 230V (Easiest DIY Installation)

The power is finally here. The 5th Generation MRCOOL Easy Pro 18K Heat Pump System delivers what larger spaces have been waiting for - genuine climate control that doesn't demand professional installation or technical expertise.

Capable of heating and cooling spaces up to 800 square feet, this unit represents a significant leap in capacity while maintaining the simplicity that defines the Easy Pro line. The 230V power upgrade provides the muscle you need, while the 20 SEER2 efficiency rating ensures you're not paying a premium for that extra capacity. The 16-foot pre-charged line set with Fast Connection fittings arrives completely ready to connect - no vacuum pump, no complexity, no surprises.

Take command of your entire space like never before. Follow Me positioning ensures comfort travels with you through every room. Anti-mildew protection keeps indoor air pristine while LED troubleshooting codes mean you own the maintenance process. Filter maintenance remains pleasantly simple: rinse, replace, and forget the hassle of service calls.

The SmartHVAC app integration lets you monitor and control from your phone, while voice commands through Amazon Alexa and Google Assistant put your comfort on autopilot. This 18K system proves that reaching for more capacity doesn't require reaching for professional help.

You're investing in a solution that handles your entire space with confidence. Backed by a 2-year compressor warranty, 1-year parts warranty, and Extended Limited Lifetime warranty you’ll receive once you register this unit, this easy-to-install system bridges the gap between entry-level comfort and professional-grade performance.

Claim the climate control power your space deserves using MRCOOL DIY Easy Pro 5th Generation!



Ideal For:

  • Homeowners with large rooms and open layouts - 800 sq ft coverage handles master suites, finished basements, expansive living areas, and open-concept spaces without professional installation.
  • DIY upgraders reaching for maximum Easy Pro capacity - 18K represents the powerful endpoint of the Easy Pro line—same simplicity you expect with the capacity you've been missing.
  • Properties requiring 230V power upgrade - Step beyond 115V limitations into genuine large-space performance for homes with proper electrical infrastructure.
  • Smart home power users managing entire zones - WiFi connectivity and voice control across larger square footage lets you command maximum comfort with complete automation.



Why Customers Choose The MRCOOL DIY Easy Pro 18K Heat Pump System 230V

  • Powerful Efficiency at Scale - 20 SEER2 rating proves that larger capacity delivers genuine energy savings—reducing bills while handling demanding climate control requirements.
  • Capacity Without Complexity - 18,000 BTU with 230V power stays true to the Easy Pro philosophy—straightforward installation and maintenance for spaces up to 800 sq ft.
  • Complete Space Control - Follow Me positioning and anti-mildew protection work together to deliver comfort and air quality across your entire maximum-capacity zone.
  • Independence in Maintenance - LED diagnostics and reusable filter design put you in complete control without expensive service calls or professional dependencies.
  • Confident Investment - 1-year compressor and 2-year parts warranties back your commitment to maximum Easy Pro performance without hidden protection gaps.



Certifications & Warranty

  • Energy Star Eligible - Designed for efficient residential and commercial cooling and heating applications
  • 20 SEER2 Energy Rating - Excellent energy efficiency for maximum-capacity performance with utility savings
  • Eco-Friendly R454B Refrigerant - Low Global Warming Potential with reduced greenhouse gas emissions
  • Fast Connection Certified - Innovative fitting system enables fastest, simplest hookup for large systems
  • SmartHVAC Wi-Fi Certified - Compatible with Amazon Alexa and Google Assistant voice control ecosystems
  • Follow Me Function Enabled - Advanced comfort positioning technology included as standard feature
  • 230V Power Certified - Upgraded electrical capability for maximum-capacity performance
  • 1-Year Compressor Limited Warranty - Protection on the core heating and cooling component
  • 2-Year Parts Limited Warranty - Coverage on system components and internal systems
  • DIY Installation Supported - No professional installation required—warranty valid with proper registration
  • Online Registration Required - Simple registration activates full warranty coverage and protection benefits
  • AHRI certified
  • NEEP ccASHP Listed
  • CEE Tier1 - North

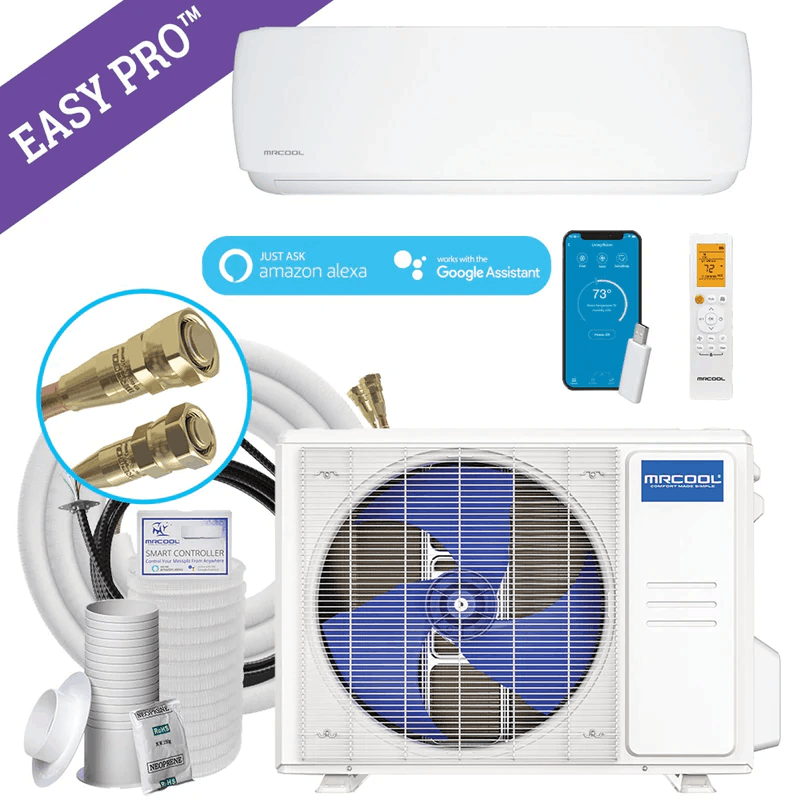

What's Included

Everything you need is included with your MRCOOL EZPRO 18k Mini Split.

  • EasyPro 5th Generation 18k BTU 230V Air Handler
  • EasyPro 5th Generation 18k BTU 230V Condenser
  • SmartHVAC Wi-Fi Control Module (integrated)
  • Wireless Remote Control with Follow Me Function
  • Pre-Charged 16-Foot Line Set with Fast Connection Fittings
  • Mounting Brackets and Hardware
  • Installation Guide and Support Resources
  • Cable Connectors and Protective Materials


MRCOOL DIY Easy Pro 18K Heat Pump System 230V Features

  • 18,000 BTU with 20 SEER2 Rating - Maximum-capacity system for spaces up to 800 sq ft with excellent energy efficiency and powerful performance.
  • 5th Generation R454B Refrigerant - Eco-friendly refrigerant reduces environmental impact while supporting powerful climate control and cleaner air quality.
  • 230V Power Supply - Upgraded electrical capability provides the muscle needed for large-space applications and demanding climate control requirements.
  • Fast Connection Pre-Charged Line Set - Includes 16-foot pre-charged line set with Fast Connection fittings - no vacuum pump, no special tools required.
  • No Professional Installation Required - True DIY design eliminates expensive service calls while maintaining professional-grade performance for maximum-capacity spaces.
  • SmartHVAC Wi-Fi Control Module - Native WiFi connectivity enables iOS/Android app access, Amazon Alexa, and Google Assistant voice commands from anywhere.
  • Follow Me Function - Remote-based temperature positioning ensures your desired comfort follows you throughout your entire maximum-capacity space.
  • Anti-Mildew Feature - Prevents excess moisture and mold buildup for the cleanest air for you and your family to breathe year-round.
  • LED Display with Troubleshooting Codes - Intuitive diagnostics help you solve any issues independently without costly professional service calls.
  • Simple Filter Maintenance - Air filters only require rinsing and replacing—genuine ease-of-maintenance design at maximum-capacity scale.

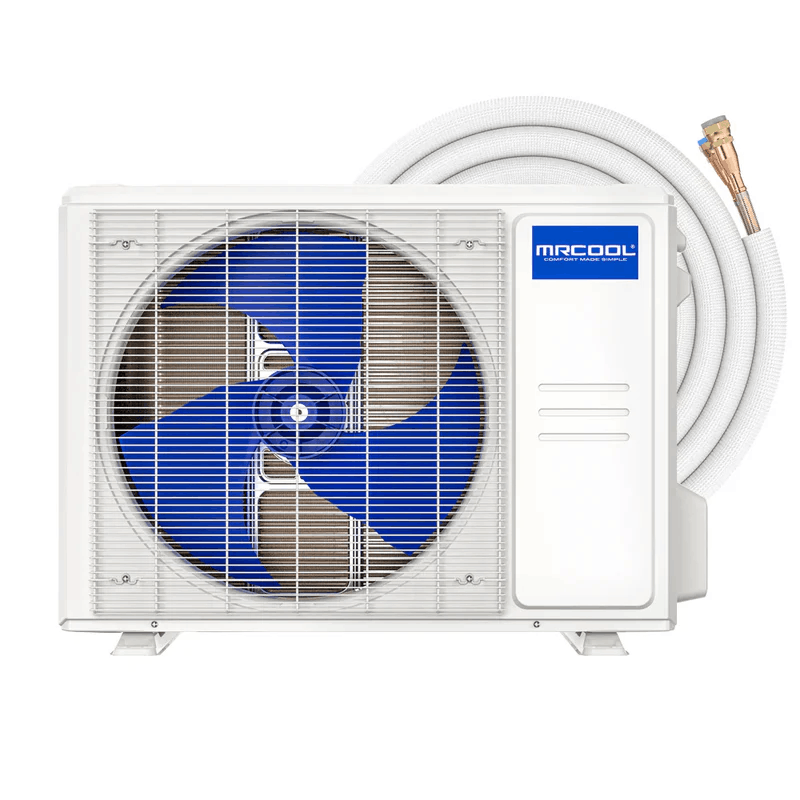

MRCOOL EZPRO-18-HP-C-23016D-O Condenser Specs

BRAND NAME MRCOOL
SERIES EasyPro 5th Gen
MODEL EZPRO-18-HP-C-23016D-O
GTIN 840255586740
UPC 840255586740
UNIT TYPE Mini-Split
EQUIPMENT TYPE Condenser
SHORT DESCRIPTION EasyPro 5th Generation 18k BTU 230V Condenser
SEER2 20
EER2 9.8
HSPF2-4 8.5
HSPF2-5 6.6
TONNAGE 1.5
COOLING CAPACITY (BTU) 17000
HEATING CAPACITY (BTU) 18000
VOLTAGE (V) 208/230
PHASE 1
CYCLE 60
MAX FUSE BREAKER (A) 20
MIN CIRCUIT AMPACITY (A) 15
ZONE CAPACITY 1
REFRIGERANT TYPE R-454B
REFRIGERANT VOLUME (OZ) 34.92
DECIBEL RATING (DBA) 55
INVERTER DC
LINE SET LENGTH 16ft
MAX LINESET LENGTH (FT) 98.4
LIQUID LINE SIZE 1/4
SUCTION LINE SIZE 1/2
COMPRESSOR MOTOR TYPE Rotary
WORKS WITH IOS Yes
WORKS WITH ANDROID Yes
UL LISTED Yes
ETL LISTED Yes
ENERGY STAR CERTIFIED Yes
AHRI CERTIFIED Yes
REGISTERED WARRANTY Extended Limited Lifetime*
BASE PARTS WARRANTY 1 Year
BASE COMPRESSOR WARRANTY 2 Years
CONTAINS CHEMICALS Yes
CONTAINS COMPRESSED GAS Yes
PROPOSITION 65 WARNING Yes
NET DEPTH (IN) 11.93
NET HEIGHT (IN) 21.85
NET WIDTH (IN) 30.12
NET WEIGHT (LBS) 62.61
GROSS DEPTH (IN) 13.27
GROSS HEIGHT (IN) 24.02
GROSS WIDTH (IN) 34.92
GROSS WEIGHT (LBS) 82.23

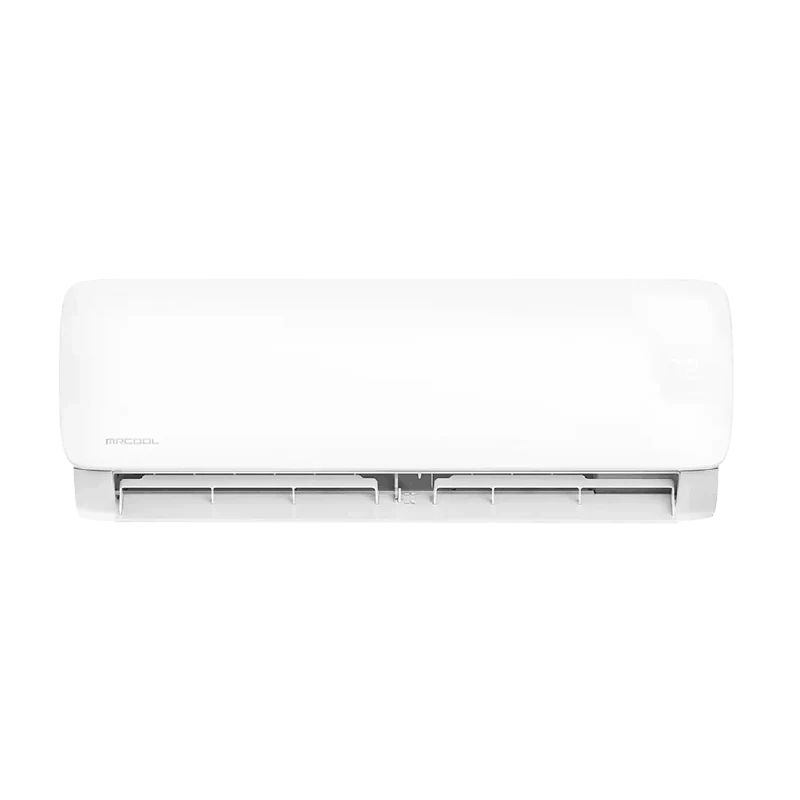

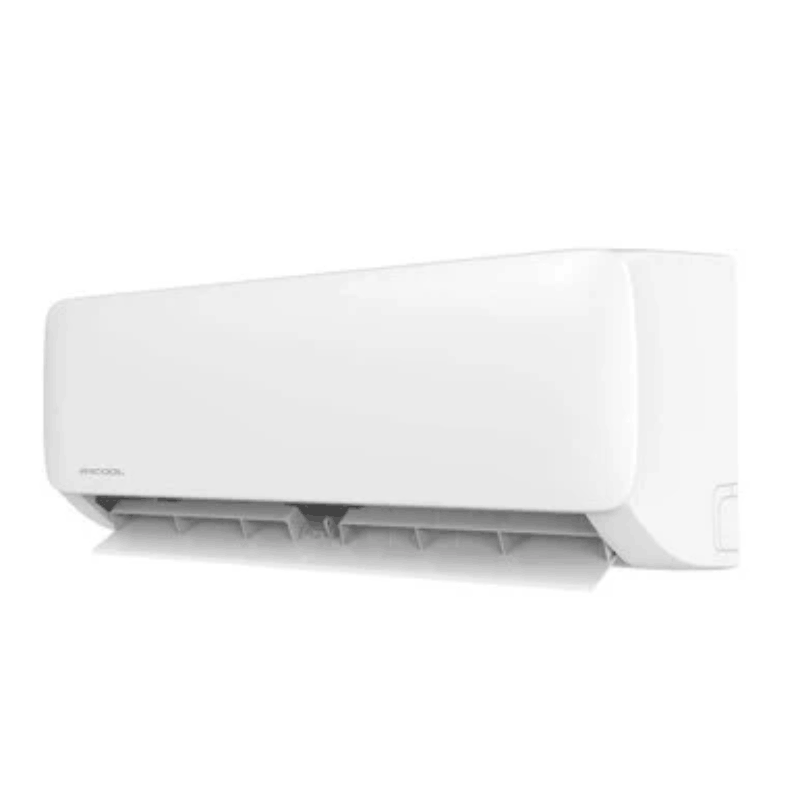

MRCOOL EZPRO-18-HP-WMAH-230D-O Air Handler Specs

BRAND NAME MRCOOL
SERIES EasyPro 5th Gen
MODEL EZPRO-18-HP-WMAH-230D-O
GTIN 840255586788
UPC 840255586788
UNIT TYPE Mini-Split
EQUIPMENT TYPE Air Handler
SHORT DESCRIPTION EasyPro 5th Generation 18k BTU 230V Air Handler
CFM 470.9 / 400.2 / 329.6 / 270.8 / /
TONNAGE 1.5
COOLING CAPACITY (BTU) 17000
HEATING CAPACITY (BTU) 18000
VOLTAGE (V) 208/230
PHASE 1
CYCLE 60
MAX FUSE BREAKER (A) 15
MIN CIRCUIT AMPACITY (A) 3
MOUNT TYPE Wall
COLOR White
MAX COVERAGE AREA 800 sqft
DECIBEL RATING (DBA) 36
DECIBEL RATING LOW (DBA) 18.5
DECIBEL RATING HIGH (DBA) 46.5
NUMBER OF SPEEDS 5
LIQUID LINE SIZE 1/4
SUCTION LINE SIZE 1/2
BLOWER MOTOR SPEEDS 3
BLOWER MOTOR RPM 1200/1000/900
FILTER TYPE Reusable
FAN ONLY OPTION Yes
SLEEP MODE Yes
AUTO COOL Yes
WIFI COMPATIBILITY Yes
APP COMPATIBILITY Yes
WORKS WITH IOS Yes
WORKS WITH ANDROID Yes
REMOTE CONTROL INCLUDED Yes
UL LISTED Yes
CSA LISTED Yes
ETL LISTED Yes
AHRI CERTIFIED Yes
REGISTERED WARRANTY Extended Limited Lifetime*
BASE PARTS WARRANTY 1 Year
BASE COMPRESSOR WARRANTY 2 Years
HAS BATTERIES Yes
CONTAINS ELECTRONICS Yes
CONTAINS CHEMICALS Yes
CONTAINS COMPRESSED GAS Yes
PROPOSITION 65 WARNING Yes
NET DEPTH (IN) 8.98
NET HEIGHT (IN) 12.64
NET WIDTH (IN) 38.23
NET WEIGHT (LBS) 30.64
GROSS DEPTH (IN) 12.01
GROSS HEIGHT (IN) 15.94
GROSS WIDTH (IN) 41.14
GROSS WEIGHT (LBS) 44.97

Understanding your MRCOOL warranty coverage ensures long-term system performance and protection. All warranties are non-transferable and valid only at the original installation address.

Warranty Coverage by Series

DIY Series 5th Generation Mini-Splits

Models: DIY-09-HP through DIY-36-HP, DIYCASSETTE, DIY-MULTI series

  • Parts: 5 years from proof of purchase
  • Compressor: 7 years from proof of purchase
  • Remote Control: Included in parts warranty
  • Extended Lifetime Warranty: Available with MRCOOL Care Kit Program enrollment (fee required)
  • Installation: Professional installer NOT required when using MRCOOL Quick Connect Pre-Charged Line Set

Advantage Series Mini-Splits

Models: A-09-HP through A-36-HP series

  • Parts: 1 year from proof of purchase
  • Compressor: 2 years from proof of purchase
  • Extended Lifetime Warranty: Available with MRCOOL Care Kit Program enrollment (fee required)

    Must register within 180 days of purchase
    Covers compressor failure only with one-time condenser replacement
    Requires ongoing Care Kit Program maintenance
Easy Pro Series Mini-Splits

Models: EZPRO-09-HP through EZPRO-24-HP series

  • Parts: 1 year from proof of purchase
  • Compressor: 2 years from proof of purchase
  • Extended Lifetime Warranty: Available with MRCOOL Care Kit Program enrollment (fee required)

Central Ducted Systems

Models: CENTRAL-18-HP through CENTRAL-60-HP, MVP Series

  • Parts: 10 years from installation date
  • Compressor: 10 years from installation date
  • Labor: 10 years (installer responsible for first 90 days)
  • Installation: Professional installer NOT required when using MRCOOL Quick Connect Pre-Charged Line Set

Universal Series Split Systems

Models: UHP series, UAH series Air Handlers

  • Parts: 10 years from proof of purchase
  • Compressor: 10 years from proof of purchase
  • Labor: 2 years limited (begins 91 days after purchase, covers diagnostic and repair costs)
  • Installation: Professional installer required

Inverter Package Series

Models: GCSHPM series, GCSCAM series

  • Parts: 10 years from installation date
  • Labor: 5 years limited (manufacturing defects only, begins 91 days after installation)
  • Installation: Professional installation required

Olympus Series Mini-Splits

Models: MDUO, MDUCO, MDUI series

Owner-Occupied Residences:

  • Parts: 5 years standard, 10 years with registration within 60 days
  • Compressor: 5 years standard, 10 years with registration within 60 days

Commercial Applications:

  • Parts & Compressor: 5 years with registration within 60 days
  • Installation: Professional installer required

Key Warranty Conditions

Product Registration:

  • Register at mrcool.com/warranty to activate extended coverage (where applicable)
  • Registration deadlines vary by series (30-180 days from purchase)

Installation Requirements:

  • Must comply with all federal, state, and local electrical codes
  • Must follow MRCOOL installation instructions
  • Must use new, compatible, MRCOOL-approved components
  • Warranty voids if installed with used or incompatible parts

Warranty Does NOT Cover:

  • Labor, diagnostic, shipping, or installation costs (except where labor warranty applies)
  • Normal maintenance (filter cleaning, lubrication, coil cleaning)
  • Refrigerant costs or energy consumption
  • Damage from improper installation, natural disasters, or electrical issues
  • Units moved from original installation address
  • Units installed outside USA and Canada

How to File a Warranty Claim

Contact MRCOOL:

For Labor Claims (Universal/Inverter Package Series within first 2 years):

  • Phone: (844) 518-2040

Required Documentation:

  • Proof of purchase
  • Product registration confirmation (if applicable)
  • Diagnostic testing results (professional HVAC technician may be required)
  • Defective parts must be returned when requested

For complete warranty terms and conditions, visit mrcool.com/warranty

Replacement parts are covered for the remainder of the original warranty period or 30 days, whichever is longer. Some states do not allow exclusion of incidental or consequential damages. This warranty gives you specific legal rights that may vary by state or province.
