MRCOOL DIY Easy Pro 12,000 BTU 5th Gen Ductless Mini Split Heat Pump System - 19.5 SEER2, 115V (EZPRO-12-HP-11516D-O)

MRCOOL SKU: EZPRO-12-HP-11516D-O

Choose your location

enter a zip or postal code

Price:
Sale price$1,649.00

Description

MRCOOL DIY 5th Gen Easy Pro 12K 12,000 BTU 19.5 SEER2 Ductless Mini Split Air Conditioner and Heat Pump - 115V (Easiest DIY Installation)

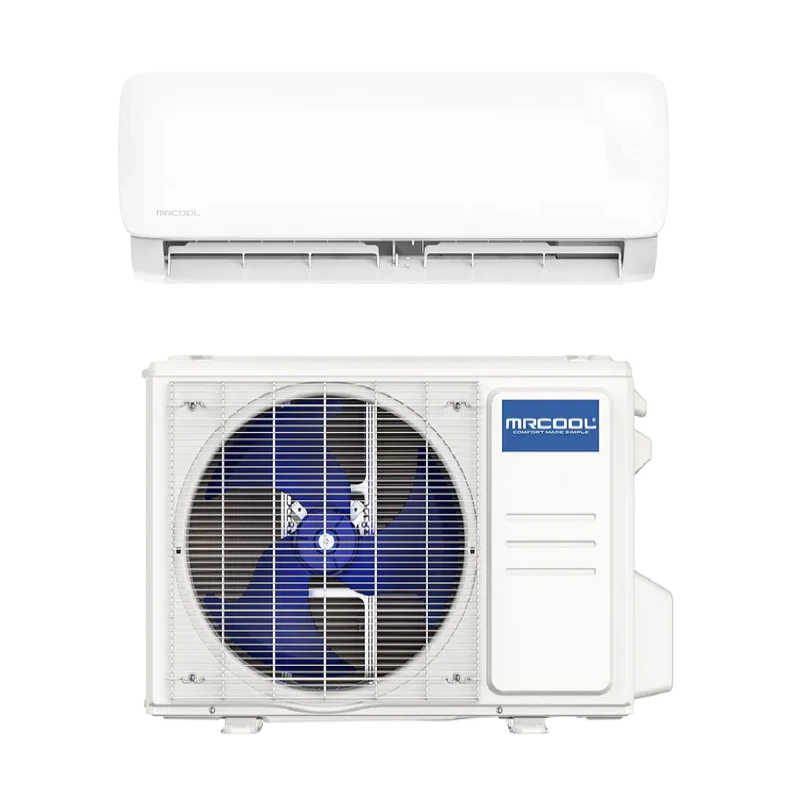

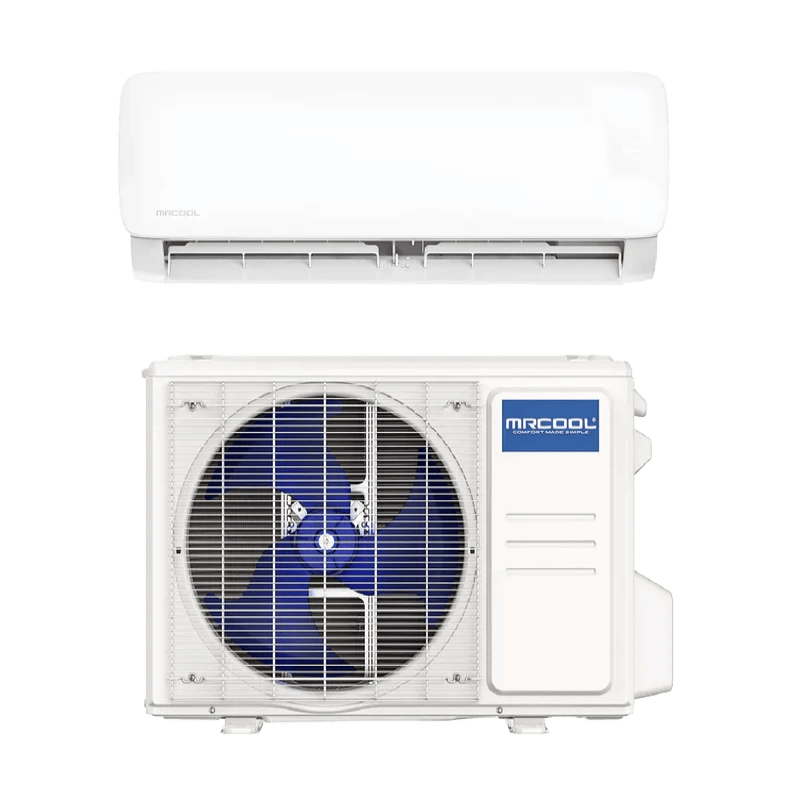

The 5th Generation MRCOOL Easy Pro 12K Heat Pump System steps up your comfort game while keeping installation laughably simple. Capable of effectively heating and cooling spaces up to 550 square feet, this system combines the convenience you've come to expect with significantly expanded capacity. The 16-foot pre-charged line set arrives ready to connect with innovative Fast Connection fittings - no vacuuming, no special equipment, no professional intervention required. With Follow Me technology positioning comfort wherever you are and anti-mildew features protecting indoor air quality, this system thinks about your wellbeing while you focus on installation.

Maintenance is genuinely this easy: rinse and replace air filters when needed, that's it. The LED display walks you through troubleshooting whenever questions arise, eliminating the need for costly service calls.

Operating via the SmartHVAC app, wireless remote, Amazon Alexa, or Google Assistant puts complete climate control at your command - on your phone, through your voice, or at the flip of a switch. This system adapts to your lifestyle, not the other way around. Every feature from the intuitive interface to the straightforward mechanics reflects one core philosophy: simplicity shouldn't cost you power.

Join thousands of confident DIY installers who've already discovered that bigger capacity doesn't mean bigger headaches. Backed by a 1-year compressor, 2-year parts and Extended Limited Lifetime Warranty coverage upon registration, this easy-to-install system provides exceptional heating and cooling for homes and offices at any scale. Move beyond installation anxiety and claim the comfort zone you deserve using MRCOOL DIY Easy Pro 12k 5th Generation!



Ideal For:

  • Homeowners needing mid-size climate solutions - 550 sq ft coverage handles larger bedrooms, home offices, finished basements, and open-concept spaces without professional installation costs.
  • DIY upgraders stepping up from entry-level - Fast Connection fittings and straightforward design make it the next logical choice for those managing bigger comfort zones.
  • Tech-savvy homeowners with diverse control preferences - Multiple control options (remote, app, voice) let everyone in the household interact with climate comfort their preferred way.
  • Property owners valuing independent maintenance - LED troubleshooting codes and simple filter maintenance mean you stay in control without relying on expensive service calls.



Why Customers Choose The MRCOOL DIY Easy Pro 12K Heat Pump System 115V

  • Powerful Mid-Size Performance - 19.5 SEER2 rating delivers robust cooling and heating for larger spaces while reducing monthly utility bills and qualifying for energy rebates.
  • Installation Grows With Your Confidence - Fast Connection fittings and proven simplicity make stepping up to 12K capacity feel just as straightforward as the entry-level option.
  • Smart Features That Think Ahead - Follow Me positions comfort based on your location, anti-mildew keeps air clean, and LED diagnostics eliminate guesswork from maintenance.
  • Control Flexibility for Everyone - Whether you prefer remote buttons, smartphone apps, or voice commands, this system meets you where you are with multiple interface options.
  • Solid Warranty Protection - 1-year compressor and 2-year parts warranties upon registration deliver confidence without expensive professional service dependencies.



Certifications & Warranty

  • Energy Star Eligible - Designed for efficient residential and commercial cooling and heating applications
  • 19.5 SEER2 Energy Rating - Excellent energy efficiency for significant utility savings and rebate eligibility
  • Eco-Friendly R454B Refrigerant - Low Global Warming Potential with reduced greenhouse gas emissions
  • Fast Connection Certified - Innovative fitting system enables fastest, simplest hookup for mid-size systems
  • SmartHVAC Wi-Fi Certified - Compatible with Amazon Alexa and Google Assistant voice control ecosystems
  • Follow Me Function Enabled - Advanced comfort positioning technology included as standard feature
  • 1-Year Compressor Limited Warranty - Protection on the core heating and cooling component
  • 2-Year Parts Limited Warranty - Coverage on system components and internal systems
  • DIY Installation Supported - No professional installation required—warranty valid with proper registration
  • Online Registration Required - Simple registration activates full warranty coverage and protection benefits
  • AHRI certified
  • NEEP ccASHP Listed
  • CEE Tier1 - North

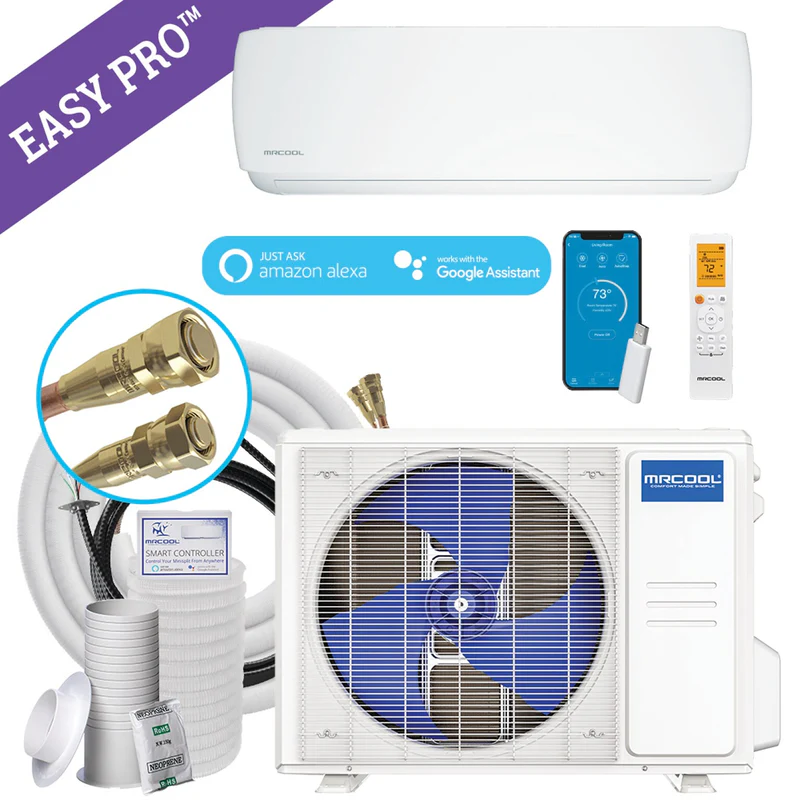

What's Included

Everything you need is included with your MRCOOL EZPRO 12k Mini Split.

  • EasyPro 5th Generation 12k BTU 115V Air Handler
  • EasyPro 5th Generation 12k BTU 115V Condenser
  • SmartHVAC Wi-Fi Control Module (integrated)
  • Wireless Remote Control with Follow Me Function
  • Pre-Charged 16-Foot Line Set with Fast Connection Fittings
  • Mounting Brackets and Hardware
  • Installation Guide and Support Resources
  • Cable Connectors and Protective Materials


MRCOOL DIY Easy Pro 12K Heat Pump System 115V Features

  • 12,000 BTU with 19.5 SEER2 Rating - Efficient cooling and heating for spaces up to 550 sq ft with excellent energy performance and expanded capacity.
  • 5th Generation R454B Refrigerant - Eco-friendly refrigerant reduces environmental impact while supporting cleaner air and greater energy efficiency.
  • Fast Connection Pre-Charged Line Set - Includes 16-foot pre-charged line set with Fast Connection fittings - no vacuum pump, no special tools required.
  • No Professional Installation Required - True DIY design eliminates expensive service calls while maintaining professional-grade performance for mid-size spaces.
  • SmartHVAC Wi-Fi Control Module - Native WiFi connectivity enables iOS/Android app access, Amazon Alexa, and Google Assistant voice commands from anywhere.
  • Follow Me Function - Remote-based temperature sensing ensures your desired comfort follows you throughout your space for consistent personalization.
  • Anti-Mildew Feature - Prevents excess moisture and mold buildup for the cleanest air for you and your family to breathe year-round.
  • LED Display with Troubleshooting Codes - Intuitive diagnostics help you solve any issues independently without costly professional service calls.
  • Simple Filter Maintenance - Air filters only require rinsing and replacing—genuine ease-of-maintenance design with no hidden complexity.
  • Multiple Operating Modes - COOL, HEAT, AUTO, DRY, and SLEEP modes provide flexibility for year-round comfort and energy optimization.

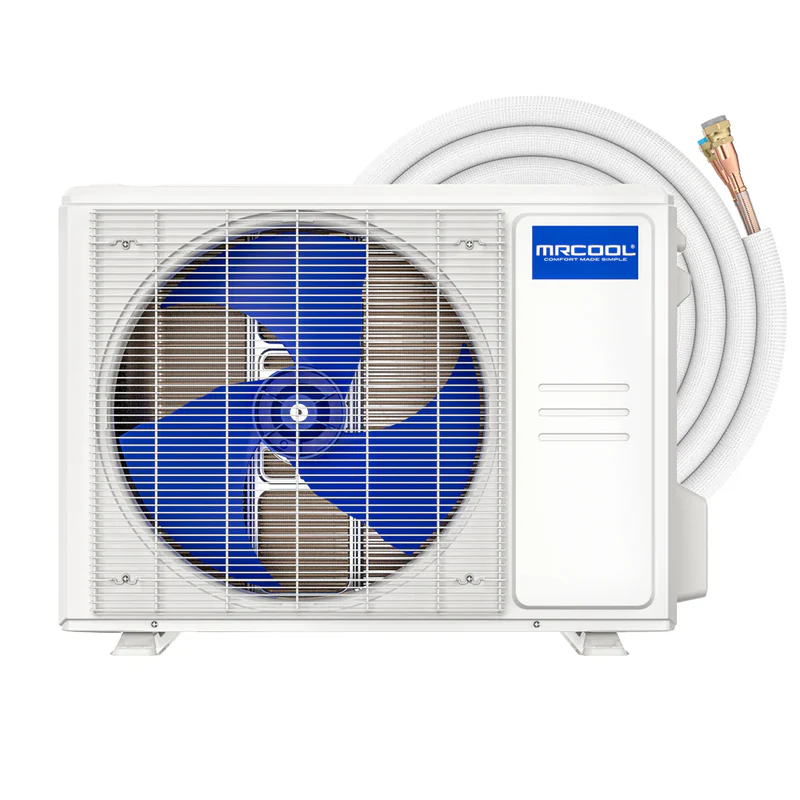

MRCOOL EZPRO-12-HP-C-11516D-O Condenser Specs

BRAND NAME MRCOOL
SERIES EasyPro 5th Gen
MODEL EZPRO-12-HP-C-11516D-O
GTIN 840255586733
UPC 840255586733
UNIT TYPE Mini-Split
EQUIPMENT TYPE Condenser
SHORT DESCRIPTION EasyPro 5th Generation 12k BTU 115V Condenser
SEER2 19.5
EER2 9
HSPF2-4 9.3
HSPF2-5 7
TONNAGE 1
COOLING CAPACITY (BTU) 12000
HEATING CAPACITY (BTU) 12000
VOLTAGE (V) 115
PHASE 1
CYCLE 60
MAX FUSE BREAKER (A) 20
MIN CIRCUIT AMPACITY (A) 19.5
ZONE CAPACITY 1
REFRIGERANT TYPE R-454B
REFRIGERANT VOLUME (OZ) 21.52
DECIBEL RATING (DBA) 54
INVERTER DC
LINE SET LENGTH 16ft
MAX LINESET LENGTH (FT) 82 ft
LIQUID LINE SIZE 1/4
SUCTION LINE SIZE 3/8
COMPRESSOR MOTOR TYPE Rotary
WORKS WITH IOS Yes
WORKS WITH ANDROID Yes
UL LISTED Yes
ETL LISTED Yes
ENERGY STAR CERTIFIED Yes
AHRI CERTIFIED Yes
REGISTERED WARRANTY Extended Limited Lifetime*
BASE PARTS WARRANTY 1 Year
BASE COMPRESSOR WARRANTY 2 Years
CONTAINS CHEMICALS Yes
CONTAINS COMPRESSED GAS Yes
PROPOSITION 65 WARNING Yes
NET DEPTH (IN) 10.63
NET HEIGHT (IN) 19.49
NET WIDTH (IN) 28.35
NET WEIGHT (LBS) 54.89
GROSS DEPTH (IN) 10.63
GROSS HEIGHT (IN) 21.26
GROSS WIDTH (IN) 32.87
GROSS WEIGHT (LBS) 67.24

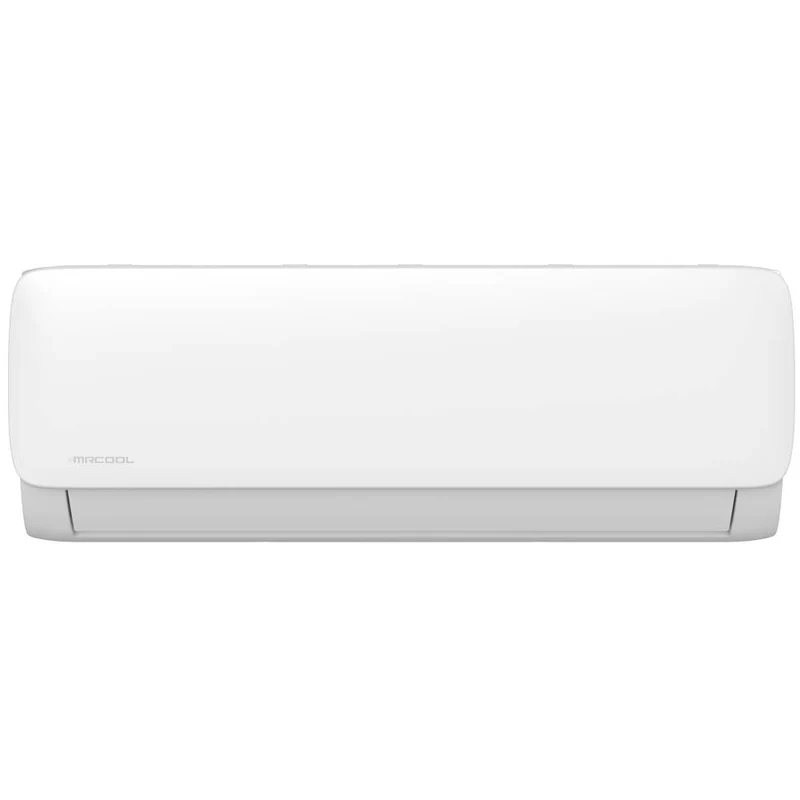

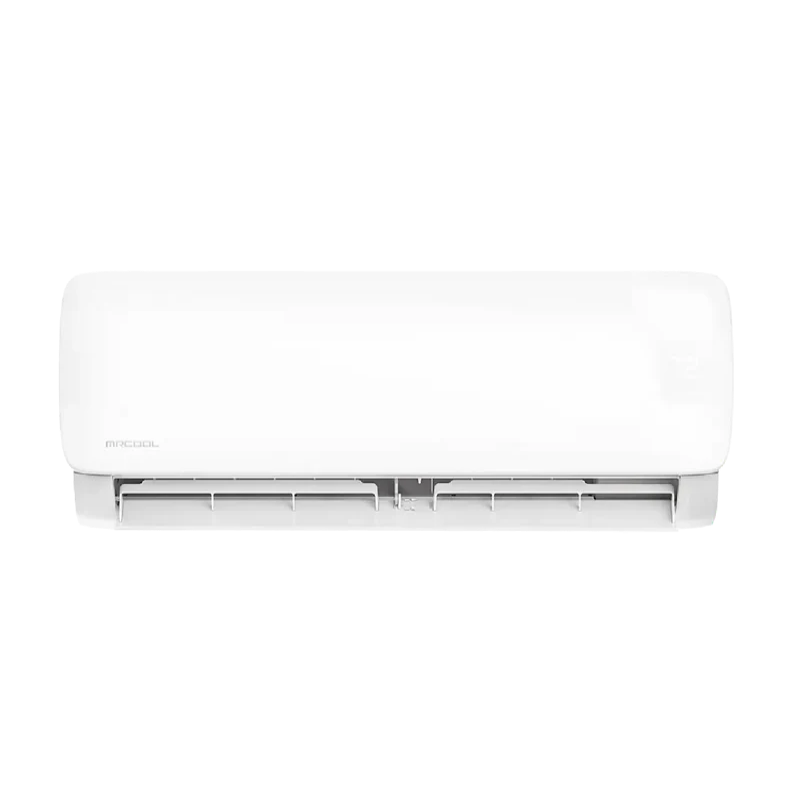

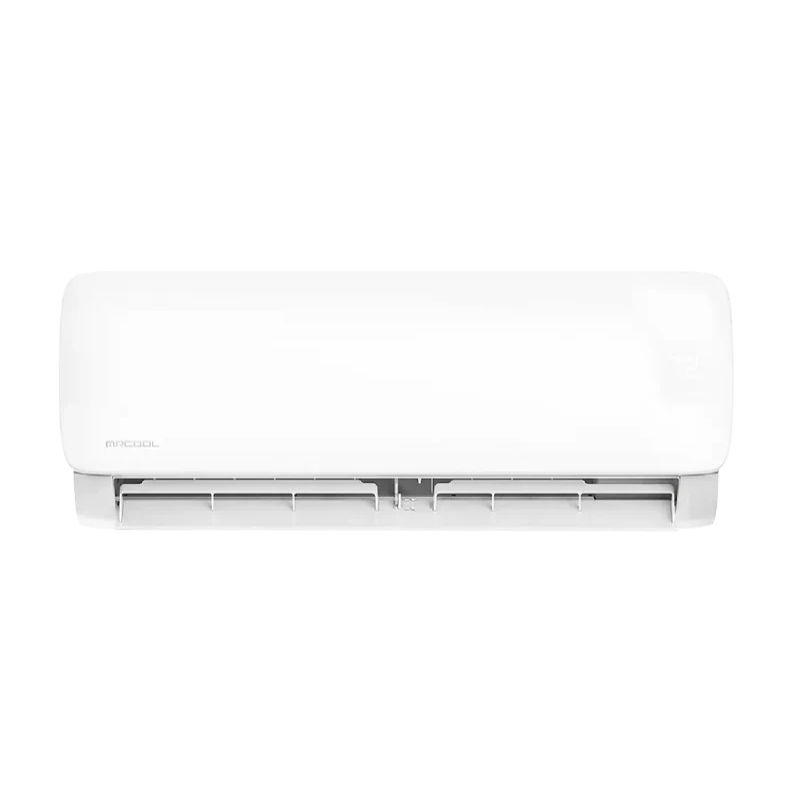

MRCOOL EZPRO-12-HP-WMAH-115D-O Air Handler Specs

BRAND NAME MRCOOL
SERIES EasyPro 5th Gen
MODEL EZPRO-12-HP-WMAH-115D-O
GTIN 840255586771
UPC 840255586771
UNIT TYPE Mini-Split
EQUIPMENT TYPE Air Handler
SHORT DESCRIPTION EasyPro 5th Generation 12k BTU 115V Air Handler
CFM 353.2 / 294.3 / 235.4 / 176.6 / 129.5
TONNAGE 1
COOLING CAPACITY (BTU) 12000
HEATING CAPACITY (BTU) 12000
VOLTAGE (V) 115
PHASE 1
CYCLE 60
MAX FUSE BREAKER (A) 15
MIN CIRCUIT AMPACITY (A) 3
MOUNT TYPE Wall
COLOR White
MAX COVERAGE AREA 550 sqft
DECIBEL RATING (DBA) 35
DECIBEL RATING LOW (DBA) 17.5
DECIBEL RATING HIGH (DBA) 44.5
NUMBER OF SPEEDS 5
LIQUID LINE SIZE 1/4
SUCTION LINE SIZE 3/8
BLOWER MOTOR SPEEDS 3
BLOWER MOTOR RPM 850/750/450
FILTER TYPE Reusable
FAN ONLY OPTION Yes
SLEEP MODE Yes
AUTO COOL Yes
WIFI COMPATIBILITY Yes
APP COMPATIBILITY Yes
WORKS WITH IOS Yes
WORKS WITH ANDROID Yes
REMOTE CONTROL INCLUDED Yes
UL LISTED Yes
CSA LISTED Yes
ETL LISTED Yes
AHRI CERTIFIED Yes
REGISTERED WARRANTY Extended Limited Lifetime*
BASE PARTS WARRANTY 1 Year
BASE COMPRESSOR WARRANTY 2 Years
HAS BATTERIES Yes
CONTAINS ELECTRONICS Yes
CONTAINS CHEMICALS Yes
CONTAINS COMPRESSED GAS Yes
PROPOSITION 65 WARNING Yes
NET DEPTH (IN) 7.87
NET HEIGHT (IN) 11.61
NET WIDTH (IN) 31.57
NET WEIGHT (LBS) 24.91
GROSS DEPTH (IN) 17.95
GROSS HEIGHT (IN) 14.17
GROSS WIDTH (IN) 36.02
GROSS WEIGHT (LBS) 35.71

Understanding your MRCOOL warranty coverage ensures long-term system performance and protection. All warranties are non-transferable and valid only at the original installation address.

Warranty Coverage by Series

DIY Series 5th Generation Mini-Splits

Models: DIY-09-HP through DIY-36-HP, DIYCASSETTE, DIY-MULTI series

  • Parts: 5 years from proof of purchase
  • Compressor: 7 years from proof of purchase
  • Remote Control: Included in parts warranty
  • Extended Lifetime Warranty: Available with MRCOOL Care Kit Program enrollment (fee required)
  • Installation: Professional installer NOT required when using MRCOOL Quick Connect Pre-Charged Line Set

Advantage Series Mini-Splits

Models: A-09-HP through A-36-HP series

  • Parts: 1 year from proof of purchase
  • Compressor: 2 years from proof of purchase
  • Extended Lifetime Warranty: Available with MRCOOL Care Kit Program enrollment (fee required)

    Must register within 180 days of purchase
    Covers compressor failure only with one-time condenser replacement
    Requires ongoing Care Kit Program maintenance
Easy Pro Series Mini-Splits

Models: EZPRO-09-HP through EZPRO-24-HP series

  • Parts: 1 year from proof of purchase
  • Compressor: 2 years from proof of purchase
  • Extended Lifetime Warranty: Available with MRCOOL Care Kit Program enrollment (fee required)

Central Ducted Systems

Models: CENTRAL-18-HP through CENTRAL-60-HP, MVP Series

  • Parts: 10 years from installation date
  • Compressor: 10 years from installation date
  • Labor: 10 years (installer responsible for first 90 days)
  • Installation: Professional installer NOT required when using MRCOOL Quick Connect Pre-Charged Line Set

Universal Series Split Systems

Models: UHP series, UAH series Air Handlers

  • Parts: 10 years from proof of purchase
  • Compressor: 10 years from proof of purchase
  • Labor: 2 years limited (begins 91 days after purchase, covers diagnostic and repair costs)
  • Installation: Professional installer required

Inverter Package Series

Models: GCSHPM series, GCSCAM series

  • Parts: 10 years from installation date
  • Labor: 5 years limited (manufacturing defects only, begins 91 days after installation)
  • Installation: Professional installation required

Olympus Series Mini-Splits

Models: MDUO, MDUCO, MDUI series

Owner-Occupied Residences:

  • Parts: 5 years standard, 10 years with registration within 60 days
  • Compressor: 5 years standard, 10 years with registration within 60 days

Commercial Applications:

  • Parts & Compressor: 5 years with registration within 60 days
  • Installation: Professional installer required

Key Warranty Conditions

Product Registration:

  • Register at mrcool.com/warranty to activate extended coverage (where applicable)
  • Registration deadlines vary by series (30-180 days from purchase)

Installation Requirements:

  • Must comply with all federal, state, and local electrical codes
  • Must follow MRCOOL installation instructions
  • Must use new, compatible, MRCOOL-approved components
  • Warranty voids if installed with used or incompatible parts

Warranty Does NOT Cover:

  • Labor, diagnostic, shipping, or installation costs (except where labor warranty applies)
  • Normal maintenance (filter cleaning, lubrication, coil cleaning)
  • Refrigerant costs or energy consumption
  • Damage from improper installation, natural disasters, or electrical issues
  • Units moved from original installation address
  • Units installed outside USA and Canada

How to File a Warranty Claim

Contact MRCOOL:

For Labor Claims (Universal/Inverter Package Series within first 2 years):

  • Phone: (844) 518-2040

Required Documentation:

  • Proof of purchase
  • Product registration confirmation (if applicable)
  • Diagnostic testing results (professional HVAC technician may be required)
  • Defective parts must be returned when requested

For complete warranty terms and conditions, visit mrcool.com/warranty

Replacement parts are covered for the remainder of the original warranty period or 30 days, whichever is longer. Some states do not allow exclusion of incidental or consequential damages. This warranty gives you specific legal rights that may vary by state or province.
