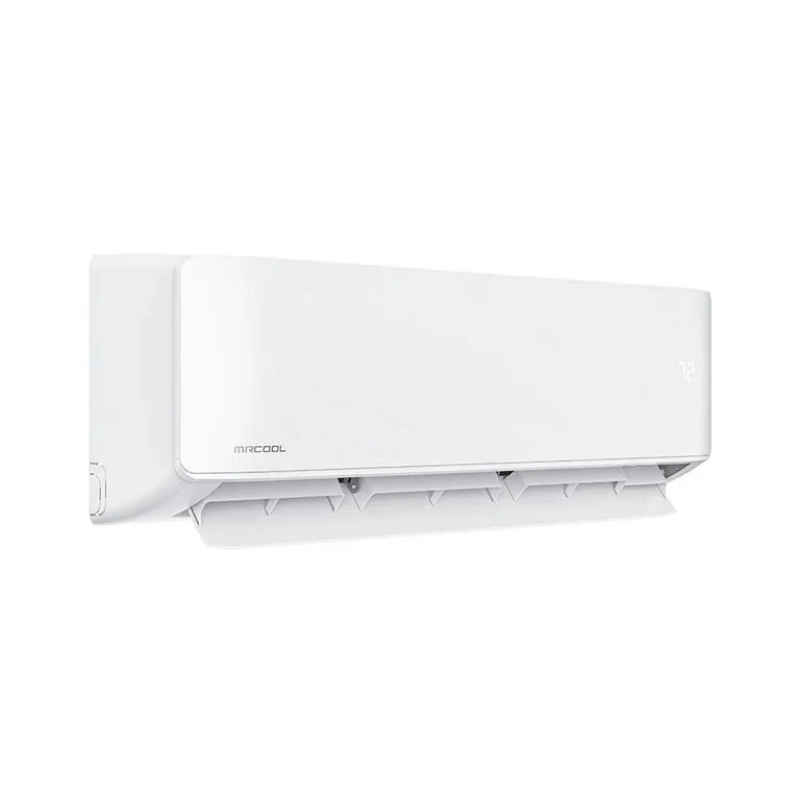

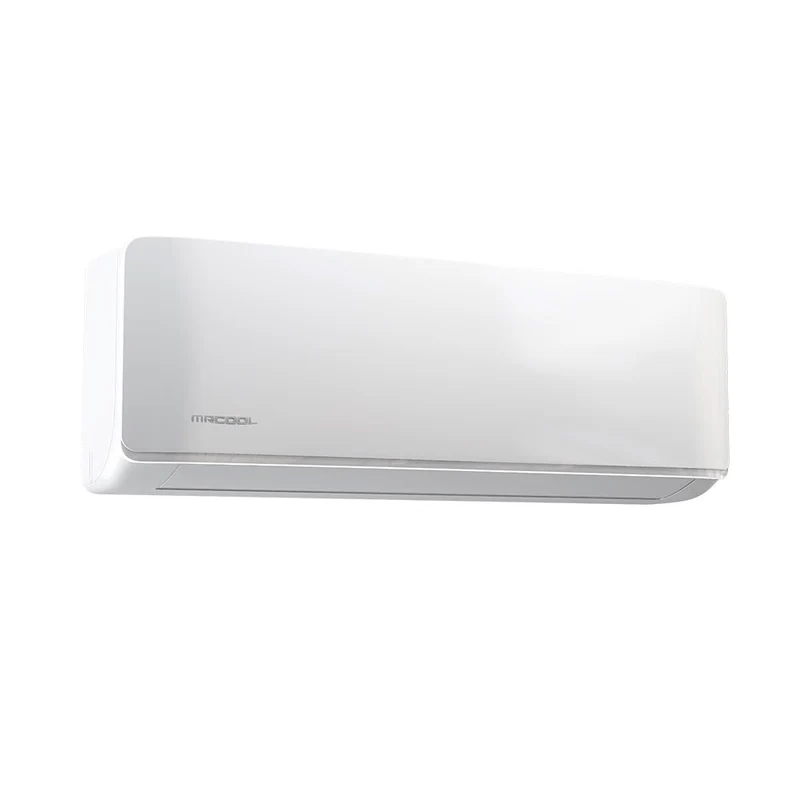

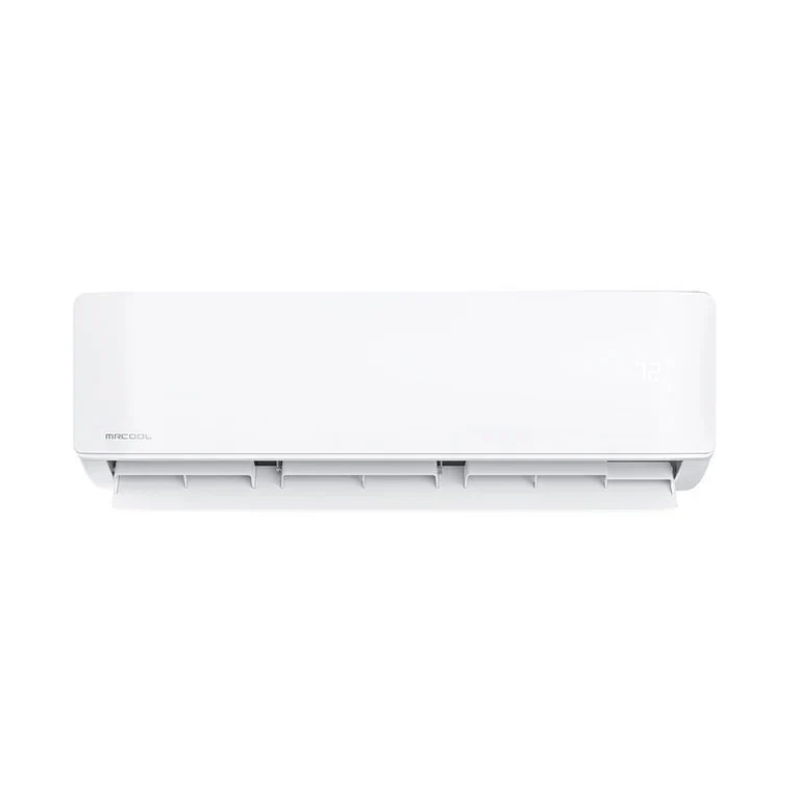

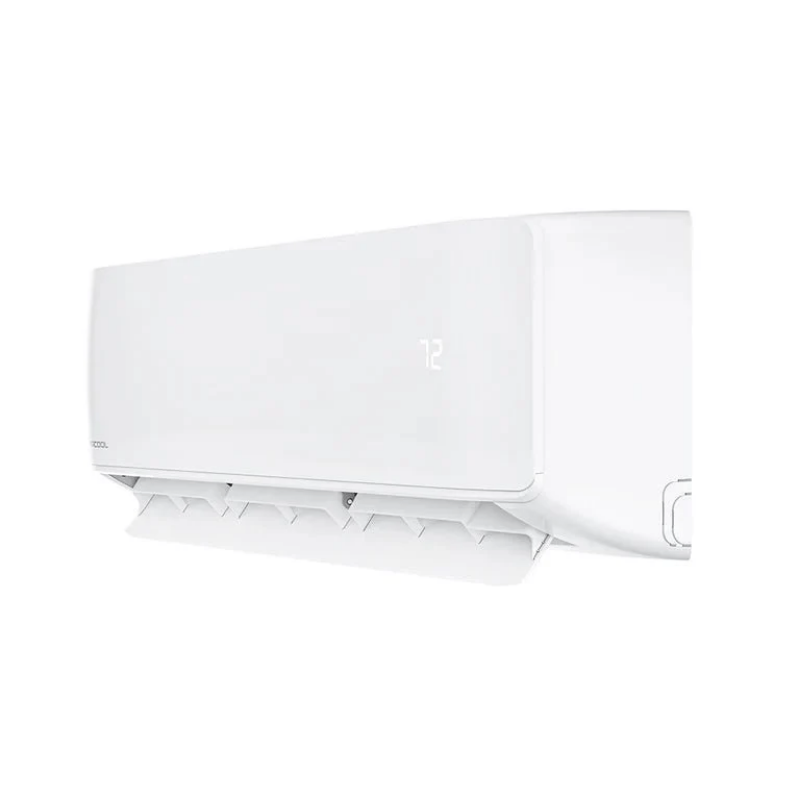

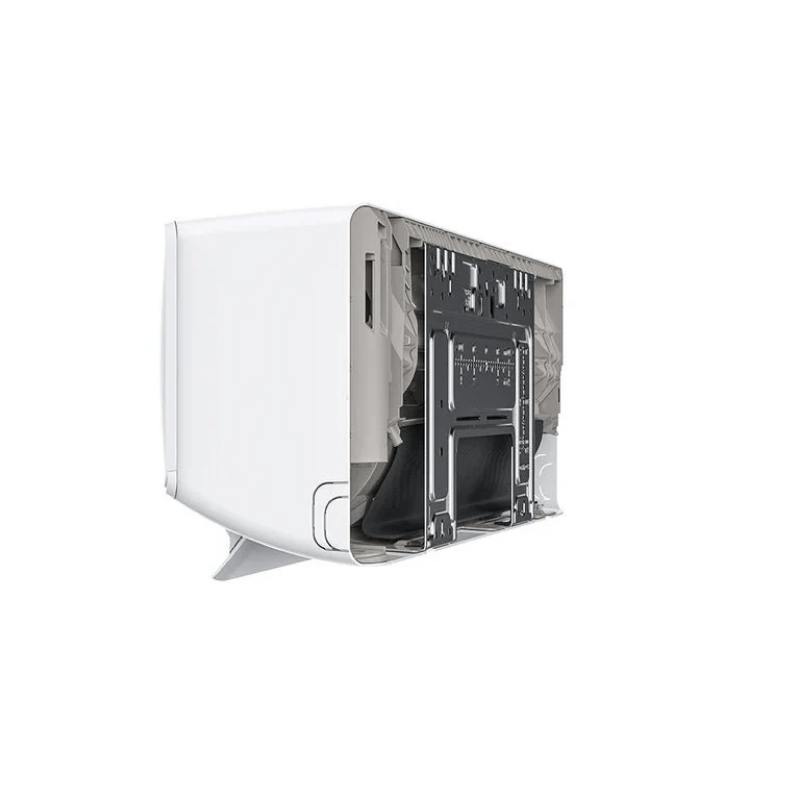

MRCOOL DIY 5th Generation Multi-Zone Wall Mount Mini Split Air Handler, 230V

MRCOOL DIY 5th Generation Ductless Mini-Split Air Handler - Up to 23.9 SEER2, 230V (Easy DIY Installation)

The 5th Generation MRCOOL DIY Ductless Heat Pump Mini-Split Air Handler is available in 6 sizing options, from 6,000 BTU to 36,000 BTU, and is designed for straightforward installation that delivers powerful, reliable cooling and heating without professional help or special tools.

The pre-charged 25-foot DIY QuickConnect line set - pre-charged with R-454B refrigerant - eliminates the need for vacuuming, making installation faster, easier, and more cost-effective. This line set is sold separately. The included DIYPRO cable eliminates the need for electrical conduit, adding durability against outdoor elements and wildlife.

Control is effortless with multiple options, including the wireless remote, the SmartHVAC app for Apple and Android devices, and hands-free voice commands via Amazon Alexa and Google Assistant. The Gold Fin Condenser provides superior corrosion resistance for coastal homes, ensuring long-lasting performance in harsh conditions. The wireless remote features the innovative Follow Me function, which adjusts airflow temperature based on the remote’s location to maintain consistent comfort throughout the room. Dry Mode helps reduce humidity by acting as a dehumidifier, removing excess condensation.

Backed by an industry-leading warranty - including a limited lifetime warranty, a 7-year compressor warranty, and a 5-year parts warranty - the 5th Generation MRCOOL DIY Ductless Heat Pump Mini-Split Air Handler is built for lasting reliability.

What Is a Mini Split Air Conditioning System?

A mini-split air conditioning system - also called a ductless mini-split- uses an inverter-driven compressor in an outdoor condenser unit to transfer heat between the outdoors and a wall-mounted indoor air handler, delivering precise cooling and heating without requiring ductwork. Here’s how it works in plain terms. The inverter compressor modulates its speed continuously based on demand, rather than cycling on and off like a conventional system. That means the refrigerant cycle runs more efficiently, temperatures stay more consistent, and your utility bills stay lower. Because there’s no ductwork involved, you’re not losing 20-30% of conditioned air to leaky ducts - a common problem in older homes.

Mini-split systems operate in both cooling and heating modes, making them a true year-round solution. The BTU rating determines how much space the system can condition, and the SEER2 (Seasonal Energy Efficiency Ratio 2) rating tells you how efficiently it does the job. The MRCOOL DIY 5th Gen hits up to 23.9 SEER2 - well above the federal minimum of 15 SEER2 for split systems.

Available Sizes

• 6,000 BTU - Ideal for spaces up to 200 sq ft (bedrooms, small offices, individual rooms)
• 9,000 BTU - Perfect for spaces up to 400 sq ft (living rooms, open kitchens, larger bedrooms)
• 12,000 BTU - Covers spaces up to 550 sq ft (master bedrooms, home offices, medium rooms)
• 18,000 BTU - Suitable for spaces up to 800 sq ft (large living areas, open-concept spaces)
• 24,000 BTU - Handles spaces up to 1,050 sq ft (whole room zones, larger multi-room areas)
• 36,000 BTU - Covers spaces up to 1,500 sq ft (expansive rooms, high-capacity zones)

Ideal For

• Homeowners avoiding professional installation costs - DIY installation eliminates expensive service calls while delivering professional-grade cooling and heating performance.
• Tech-savvy DIY enthusiasts - No special tools, no vacuuming, no complicated procedures - just straightforward connection and activation designed for anyone.
• Property owners in coastal and humid climates - Gold Fin corrosion-resistant coating protects equipment while delivering reliable year-round comfort in challenging environments.
• Smart home automation seekers - Wi-Fi connectivity enables voice control via Alexa and Google Assistant, plus mobile app management for complete smart home integration.
• Garage, workshop, and sunroom owners - Mini-split systems condition spaces that central HVAC can’t reach without expensive duct extensions, making them the go-to solution for detached structures and room additions.
• Renters and condo owners seeking portable-free cooling - Wall-mounted ductless installation avoids window blockage and runs more quietly and efficiently than window AC or portable AC units.

Why DIY Homeowners Choose MRCOOL 5th Gen Multi-Zone Air Handler 230V

• Professional Performance at DIY Prices - Up to 23.9 SEER2 efficiency is significantly more efficient than the federal minimum of 15 SEER2 for split systems, which can translate to 30-50% lower cooling costs compared to older or entry-level equipment, without the expensive professional installation markup.
• Truly Simple Installation - No special tools, no refrigerant vacuuming, no certifications required. Pre-charged QuickConnect lines make setup fast and foolproof.
• Flexible Sizing for Any Space - Choose from 6 capacity options (6K to 36K BTU) covering 200 to 1,500 sq ft - scale comfort to match your exact needs.
• Eco-Friendly Smart Technology - R-454B refrigerant reduces environmental impact while Wi-Fi control provides convenient remote management and voice integration.
• Lifetime Reliability Assurance - Limited Lifetime warranty plus 7-year compressor protection deliver confidence without relying on professional service.
• Federal Tax Credit and Utility Rebate Eligible - As a high-efficiency heat pump system, this unit may qualify for the 25C federal tax credit (up to $2,000) and additional state or utility rebates through the Inflation Reduction Act. Consult a tax professional to confirm eligibility for your situation.

Mini Split Installation Cost and What to Expect

Professional mini-split installation costs $1,000-$3,500 per zone for labor alone. The MRCOOL DIY 5th Gen eliminates this with its pre-charged QuickConnect line set that requires no vacuuming, no refrigerant certification, and no special tools. Here’s the thing: that labor estimate doesn’t include the electrical permit, which most jurisdictions require for new HVAC circuits, or any additional line set length beyond a standard run. For a multi-zone system, professional installation costs can climb to $5,000 or more depending on the number of indoor air handlers and the complexity of the refrigerant line routing.

The DIY advantage is that you handle the mounting, the line set connection, and the wiring using the included DIYPRO cable - no conduit required. A single-zone installation typically takes a motivated DIYer a weekend. Multi-zone setups take longer, but the process is the same: mount the air handler, run the QuickConnect line set to the outdoor condenser unit, connect the DIYPRO cable, and power up.

Keep in mind that even with a DIY-friendly system, most local codes still require a licensed electrician to connect the dedicated circuit at the breaker panel. Budget $150-$400 for that piece if you’re not handling it yourself.

Certifications & Warranty

• Energy Star Compliant - Meets EPA energy efficiency standards for residential cooling and heating applications
• Up to 23.9 SEER2 Energy Rating - Superior energy efficiency for significant utility savings and rebate eligibility
• Eco-Friendly R-454B Refrigerant - Low Global Warming Potential with reduced greenhouse gas emissions
• Gold Fin Corrosion Resistance - Protection against coastal salt air and high-humidity environments
• SmartHVAC Wi-Fi Certified - Compatible with Amazon Alexa and Google Assistant voice control ecosystems
• Limited Lifetime Warranty - Comprehensive coverage for peace of mind and long-term reliability
• 7-Year Compressor Limited Warranty - Extended protection on the core heating and cooling component
• 5-Year Parts Limited Warranty - Coverage on air handler components and internal systems
• DIY Installation Supported - No professional installation required - warranty valid with proper registration
• Online Registration Required - Simple registration activates full warranty coverage and extended protection benefits

AHRI Certified

NEEP ccASHP Listed

CEE Tier1 - North

What’s Included

Everything you need is included with your Air Handler.

• MRCOOL DIY 5th Generation Mini-Split Air Handler 230v (size selected)
• SmartHVAC Wi-Fi Control Module (integrated)
• Wireless Remote Control
• DIYPRO Protective Cable (no conduit required)

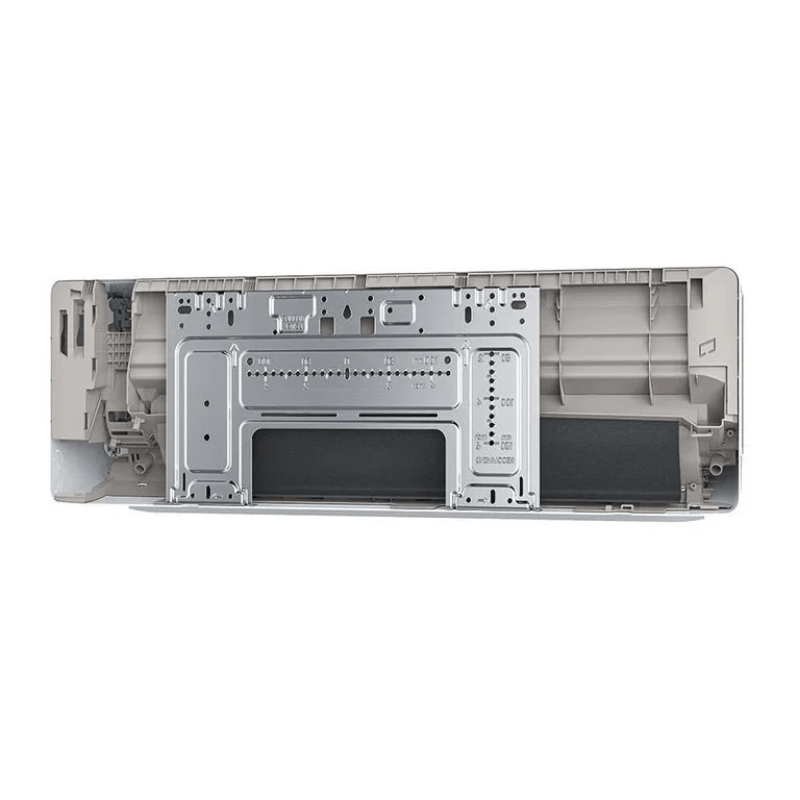

• Mounting Plate and Hardware
• Installation Guide and Support Resources

MRCOOL DIY 5th Gen Multi-Zone Air Handler 230V Features

• Multiple Size Options (6K to 36K BTU) - Choose the perfect capacity for your space - 6,000 / 9,000 / 12,000 / 18,000 / 24,000 / 36,000 BTU units available.
• Up to 23.9 SEER2 Efficiency Rating - Well above the federal minimum, this efficiency rating reduces utility costs while delivering powerful cooling and heating performance.
• 5th Generation R-454B Refrigerant - Eco-friendly refrigerant with low Global Warming Potential enhances system efficiency and reduces environmental impact.
• Patented QuickConnect Pre-Charged Line Set - Factory-charged with the correct refrigerant amount - no vacuuming, no special tools, just simple wrench connections.
• No Professional Installation Required - True DIY design eliminates expensive service calls while maintaining professional-grade performance and reliability.
• SmartHVAC Wi-Fi Control Module - Integrated connectivity for iOS/Android app access, Amazon Alexa, and Google Assistant voice commands from anywhere.
• Follow Me Function - Remote monitors location and adjusts airflow accordingly, ensuring even temperature distribution and consistent comfort.
• Dry Mode (Dehumidify) - Reduces excess humidity and condensation buildup for healthier indoor environments.
• Multiple Operating Modes - COOL, HEAT, AUTO, DRY, and SLEEP modes provide flexibility for year-round comfort and energy optimization.
• Gold Fin Condenser Coating - Corrosion-resistant protection ideal for coastal, humid, and challenging environmental conditions.
• Ultra-Quiet Operation - Mini-split air handlers operate at low decibel levels on low fan speed, making them significantly quieter than window AC units and well-suited for bedrooms and home offices. Verify exact dB ratings for your selected size in the spec table below.

MRCOOL DIY 5th Generation Wall Mount Air Handler Specs
