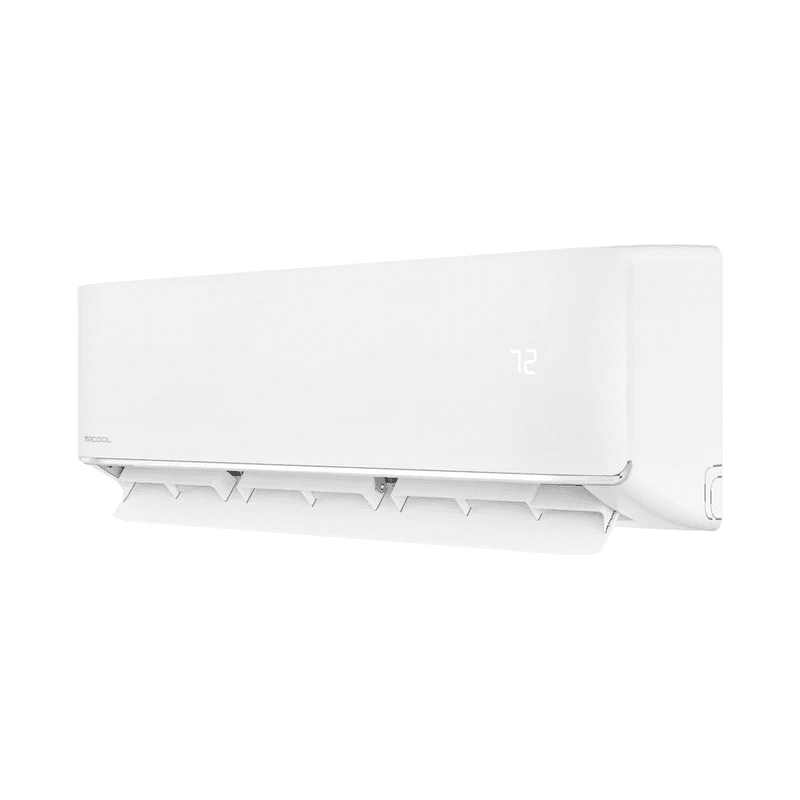

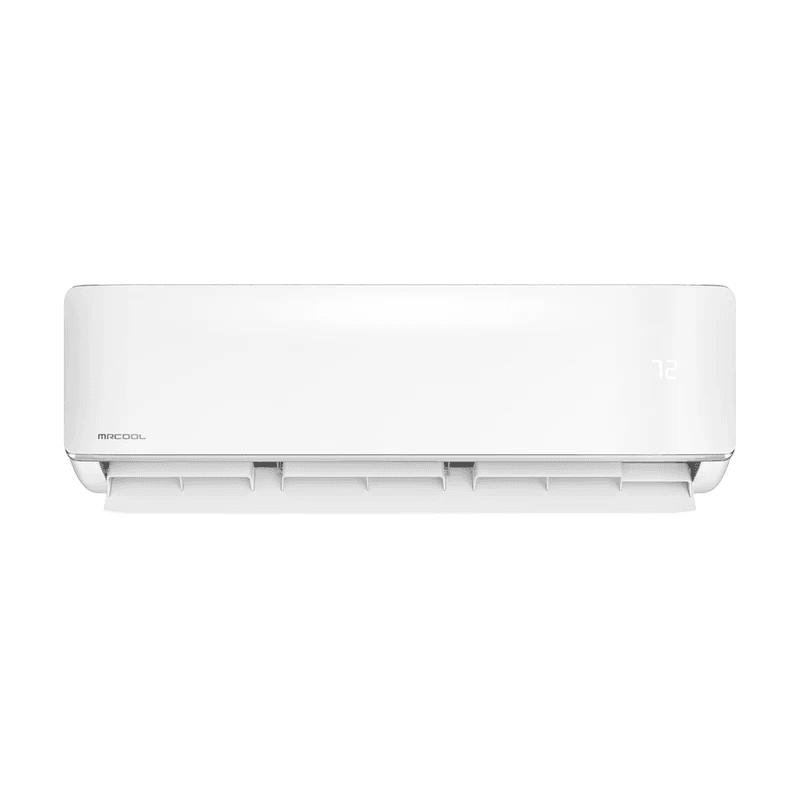

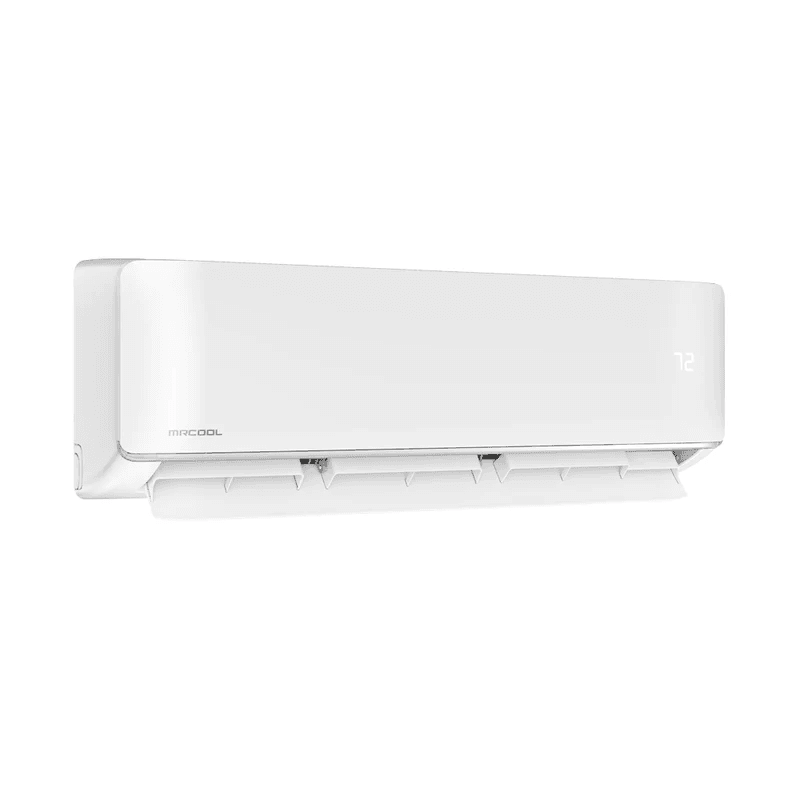

MRCOOL DIY 24,000 BTU 5th Gen Ductless Mini Split Air Handler - Energy Star, 230V (DIY-24-HP-WMAH-230D25-O)

MRCOOL SKU: DIY-24-HP-WMAH-230D25-O

Choose your location

enter a zip or postal code

Price:
Sale price$965.00

Description

MRCOOL 24k DIY 5th Generation Mini-split Air Handler 230v

The 5th Generation MRCOOL DIY 24K BTU Ductless Mini-Split Heat Pump is a highly efficient solution for heating and cooling spaces up to 1050 sq. ft. Designed for hassle-free DIY installation, it eliminates the need for special tools or professional assistance, making setup quick, easy, and budget-friendly. A key advantage of this system is the pre-charged 25-foot DIY QuickConnect line set, which comes filled with R-454B refrigerant. This removes the need for vacuuming, significantly reducing installation time and expenses.

The included DIYPRO cable further simplifies setup by eliminating the need for electrical conduit, while also enhancing durability and resistance to outdoor elements and wildlife. Managing your comfort is effortless with multiple control options. Adjust settings with the wireless remote, the SmartHVAC app for Apple and Android devices, or voice commands via Amazon Alexa and Google Assistant. For enhanced comfort, the Follow Me function allows the system to detect and adjust temperatures based on the remote’s location, ensuring even distribution. Additionally, Dry Mode helps maintain a comfortable indoor environment by reducing excess humidity. Built for long-term performance, the outdoor unit’s Gold Fin Condenser provides superior corrosion resistance, ideal for coastal environments.

With industry-leading warranties—including a limited lifetime warranty, a 7-year compressor warranty, and a 5-year parts warranty—this MRCOOL DIY system delivers reliable, year-round comfort with innovative smart features and easy installation.

Say goodbye to expensive installation costs with the MRCOOL DIY 24K Air Handler, designed to deliver premium indoor comfort across larger spaces while keeping setup simple and affordable. Buy with confidence from Commercial Cleaning Depot - the #1 trusted source for DIY HVAC systems and accessories in the USA. Experience professional performance with complete peace of mind!



Ideal For:

  • Homeowners avoiding expensive professional installation costs - DIY installation eliminates service call fees while delivering professional-grade Energy Star cooling and heating for expansive spaces.
  • Tech-savvy DIY enthusiasts with large rooms and open layouts - No special tools, gauges, or vacuuming required—straightforward connection designed for anyone managing 1,000 sq ft comfort needs.
  • Multi-zone system builders - Perfect for pairing with MRCOOL DIY multi-zone condensers to create flexible temperature control across multiple large rooms or entire home additions.
  • Smart home automation seekers - Wi-Fi connectivity enables voice control via Alexa and Google Assistant, plus Follow Me function and app-based Dry Mode management for personalized comfort.



Why Customers Choose The MRCOOL DIY 24K Air Handler 230V

  • Professional-Grade Power - 24,000 BTU capacity with Energy Star efficiency delivers powerful cooling and heating while significantly reducing monthly utility bills and qualifying for energy rebates.
  • Installation Simplicity for Everyone - No special tools, no gauges, no refrigerant vacuuming required—pre-charged QuickConnect lines make setup fast and completely foolproof for large spaces.
  • Innovative Comfort Intelligence - Follow Me mode adapts temperature based on remote location for precise comfort, while Dry Mode reduces humidity and mold risk for healthier indoor air quality.
  • Eco-Friendly Smart Technology - R454B refrigerant (lower GWP than R-410A) reduces environmental impact while SmartHVAC app and voice control provide convenient remote management.
  • Lifetime Reliability Assurance - Limited Lifetime Replacement warranty plus 7-year compressor protection deliver confidence without expensive professional service dependencies.



Certifications & Warranty

  • Energy Star Compliant - Meets EPA energy efficiency standards for residential cooling and heating applications
  • Eco-Friendly R454B Refrigerant - Lower Global Warming Potential than R-410A for cleaner, more sustainable operation
  • SmartHVAC Wi-Fi Certified - Compatible with Amazon Alexa and Google Assistant voice control ecosystems
  • Limited Lifetime Replacement Warranty - Available through MRCOOL Care Program enrollment for maximum peace of mind
  • 7-Year Compressor Limited Warranty - Extended protection on the core heating and cooling component
  • 5-Year Parts Limited Warranty - Coverage on air handler components and internal systems
  • DIY Installation Supported - No professional installation required—warranty valid with proper registration
  • 5th Gen R454B Compatible Only - Pre-charged with R454B; not interchangeable with R-410A systems—verify condenser compatibility
  • Online Registration Required - Simple registration activates full warranty coverage and extended protection benefits
  • NEEP ccASHP Listed
  • Intertek listed 5031495

What's Included

Everything you need is included with your MRCOOL DIY Air Handler.

  • MRCOOL 24k DIY 5th Generation Mini-split Air Handler 230v
  • SmartHVAC Wi-Fi Control Module (integrated)
  • Wireless Remote Control with Follow Me Function
  • Pre-charged 25-foot QuickConnect Line Set
  • DIYPRO Protective Armored Cable (no electrical conduit required)
  • Mounting Brackets and Installation Hardware
  • Installation Guide and DIY Support Resources
  • Cable Connectors and Protective Materials


MRCOOL DIY 24K Air Handler 230V Features

  • 24,000 BTU with Energy Star Rating - Powerful wall-mounted air handler for efficient cooling and heating across spaces up to 1,000 sq ft with superior energy performance.
  • 5th Generation R454B Refrigerant - Advanced eco-friendly refrigerant with lower Global Warming Potential reduces environmental impact while enhancing system efficiency and reliability.
  • Patented QuickConnect Pre-Charged Line Set - Pre-loaded with R454B refrigerant for quick, secure hookup—no vacuuming, no special tools required for seamless installation.
  • No Professional Installation Required - True DIY design eliminates expensive service calls while maintaining professional-grade performance across large indoor spaces.
  • SmartHVAC Wi-Fi Control Module - Integrated connectivity for iOS/Android app access, Amazon Alexa, and Google Assistant voice commands from anywhere.
  • Follow Me Mode - Remote-based temperature sensing automatically adjusts airflow based on your location for precise, personalized comfort throughout your space.
  • Dry Mode (Dehumidification) - Advanced moisture reduction prevents excess humidity and mold buildup for healthier indoor air quality and environmental control.
  • DIYPRO Armored Protective Cable - Durable cable design protects against harsh weather, animals, and yard maintenance damage—eliminates need for traditional electrical conduit.
  • Multi-Zone Compatibility - Pairs seamlessly with MRCOOL DIY multi-zone condensers for flexible temperature control across multiple large rooms or whole-space comfort.
  • Multiple Operating Modes - COOL, HEAT, AUTO, DRY, and SLEEP modes provide flexibility for year-round comfort and energy optimization across large living spaces.

MRCOOL DIY-24-HP-WMAH-230D25-O Air Handler Specs

BRAND NAME MRCOOL
SERIES DIY 5th gen Single-Zone Mini-splits
MODEL DIY-24-HP-WMAH-230D25-O
GTIN 840255587051
UPC 840255587051
UNIT TYPE Mini-Split
EQUIPMENT TYPE Air Handler
SHORT DESCRIPTION MRCOOL 24k DIY 5th Generation Mini-split Air Handler 230v
TONNAGE 2
VOLTAGE (V) 208-230
PHASE 1
CYCLE 60
MAX FUSE BREAKER (A) 15
MIN CIRCUIT AMPACITY (A) 3
MOUNT TYPE Wall
COLOR White
MAX COVERAGE AREA 1050 sqft
DECIBEL RATING (DBA) 20 (Low) - 54 (High)
NUMBER OF SPEEDS 5
OSCILLATION Yes
LIQUID LINE SIZE 3/8
SUCTION LINE SIZE 5/8
FILTER TYPE Reusable
AUXILIARY HEATER INCLUDED No
AUXILIARY HEATER AVAILABLE No
FAN ONLY OPTION Yes
QUIET MODE Yes
AUTO COOL Yes
WIFI COMPATIBILITY Yes
APP COMPATIBILITY Yes
WORKS WITH IOS Yes
WORKS WITH ANDROID Yes
REMOTE CONTROL INCLUDED Yes
UL LISTED Yes
ETL LISTED Yes
ENERGY STAR CERTIFIED Yes
AHRI CERTIFIED Yes
REGISTERED WARRANTY Extended Limited Lifetime*
BASE PARTS WARRANTY 5
BASE COMPRESSOR WARRANTY 7
HAS BATTERIES Yes
CONTAINS ELECTRONICS Yes
CONTAINS CHEMICALS Yes
CONTAINS AEROSOL Yes
CONTAINS COMPRESSED GAS Yes
PROPOSITION 65 WARNING Yes
NET DEPTH (IN) 8.9
NET HEIGHT (IN) 13.19
NET WIDTH (IN) 42.52
NET WEIGHT (LBS) 35.49
GROSS DEPTH (IN) 17.68
GROSS HEIGHT (IN) 14.29
GROSS WIDTH (IN) 46.73
GROSS WEIGHT (LBS) 49.6

MRCOOL DIY 24K BTU 5th Gen Mini Split Air Handler 230v Resources

Understanding your MRCOOL warranty coverage ensures long-term system performance and protection. All warranties are non-transferable and valid only at the original installation address.

Warranty Coverage by Series

DIY Series 5th Generation Mini-Splits

Models: DIY-09-HP through DIY-36-HP, DIYCASSETTE, DIY-MULTI series

  • Parts: 5 years from proof of purchase
  • Compressor: 7 years from proof of purchase
  • Remote Control: Included in parts warranty
  • Extended Lifetime Warranty: Available with MRCOOL Care Kit Program enrollment (fee required)
  • Installation: Professional installer NOT required when using MRCOOL Quick Connect Pre-Charged Line Set

Advantage Series Mini-Splits

Models: A-09-HP through A-36-HP series

  • Parts: 1 year from proof of purchase
  • Compressor: 2 years from proof of purchase
  • Extended Lifetime Warranty: Available with MRCOOL Care Kit Program enrollment (fee required)

    Must register within 180 days of purchase
    Covers compressor failure only with one-time condenser replacement
    Requires ongoing Care Kit Program maintenance
Easy Pro Series Mini-Splits

Models: EZPRO-09-HP through EZPRO-24-HP series

  • Parts: 1 year from proof of purchase
  • Compressor: 2 years from proof of purchase
  • Extended Lifetime Warranty: Available with MRCOOL Care Kit Program enrollment (fee required)

Central Ducted Systems

Models: CENTRAL-18-HP through CENTRAL-60-HP, MVP Series

  • Parts: 10 years from installation date
  • Compressor: 10 years from installation date
  • Labor: 10 years (installer responsible for first 90 days)
  • Installation: Professional installer NOT required when using MRCOOL Quick Connect Pre-Charged Line Set

Universal Series Split Systems

Models: UHP series, UAH series Air Handlers

  • Parts: 10 years from proof of purchase
  • Compressor: 10 years from proof of purchase
  • Labor: 2 years limited (begins 91 days after purchase, covers diagnostic and repair costs)
  • Installation: Professional installer required

Inverter Package Series

Models: GCSHPM series, GCSCAM series

  • Parts: 10 years from installation date
  • Labor: 5 years limited (manufacturing defects only, begins 91 days after installation)
  • Installation: Professional installation required

Olympus Series Mini-Splits

Models: MDUO, MDUCO, MDUI series

Owner-Occupied Residences:

  • Parts: 5 years standard, 10 years with registration within 60 days
  • Compressor: 5 years standard, 10 years with registration within 60 days

Commercial Applications:

  • Parts & Compressor: 5 years with registration within 60 days
  • Installation: Professional installer required

Key Warranty Conditions

Product Registration:

  • Register at mrcool.com/warranty to activate extended coverage (where applicable)
  • Registration deadlines vary by series (30-180 days from purchase)

Installation Requirements:

  • Must comply with all federal, state, and local electrical codes
  • Must follow MRCOOL installation instructions
  • Must use new, compatible, MRCOOL-approved components
  • Warranty voids if installed with used or incompatible parts

Warranty Does NOT Cover:

  • Labor, diagnostic, shipping, or installation costs (except where labor warranty applies)
  • Normal maintenance (filter cleaning, lubrication, coil cleaning)
  • Refrigerant costs or energy consumption
  • Damage from improper installation, natural disasters, or electrical issues
  • Units moved from original installation address
  • Units installed outside USA and Canada

How to File a Warranty Claim

Contact MRCOOL:

For Labor Claims (Universal/Inverter Package Series within first 2 years):

  • Phone: (844) 518-2040

Required Documentation:

  • Proof of purchase
  • Product registration confirmation (if applicable)
  • Diagnostic testing results (professional HVAC technician may be required)
  • Defective parts must be returned when requested

For complete warranty terms and conditions, visit mrcool.com/warranty

Replacement parts are covered for the remainder of the original warranty period or 30 days, whichever is longer. Some states do not allow exclusion of incidental or consequential damages. This warranty gives you specific legal rights that may vary by state or province.
