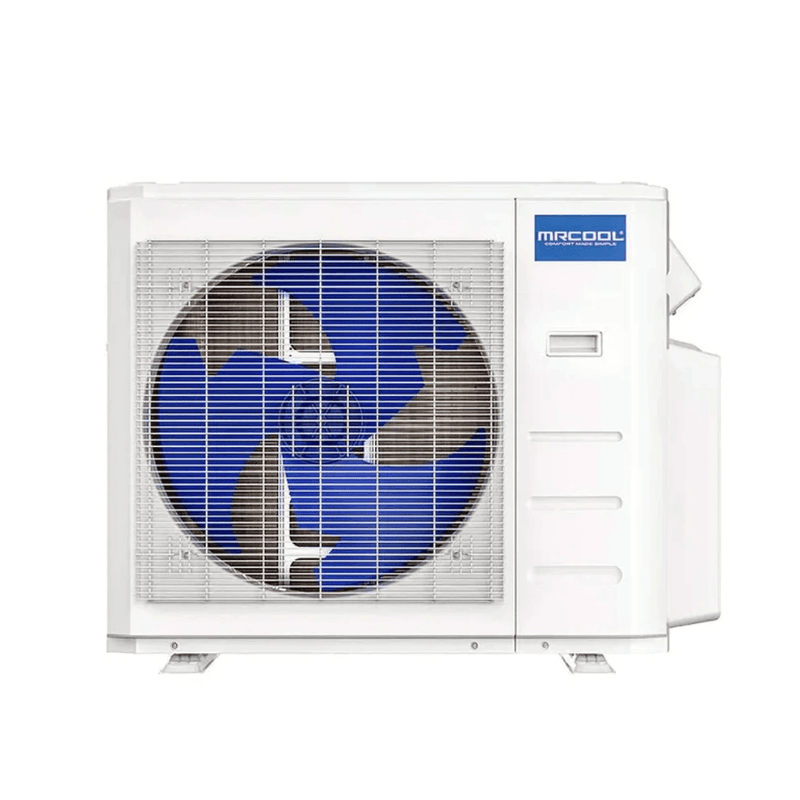

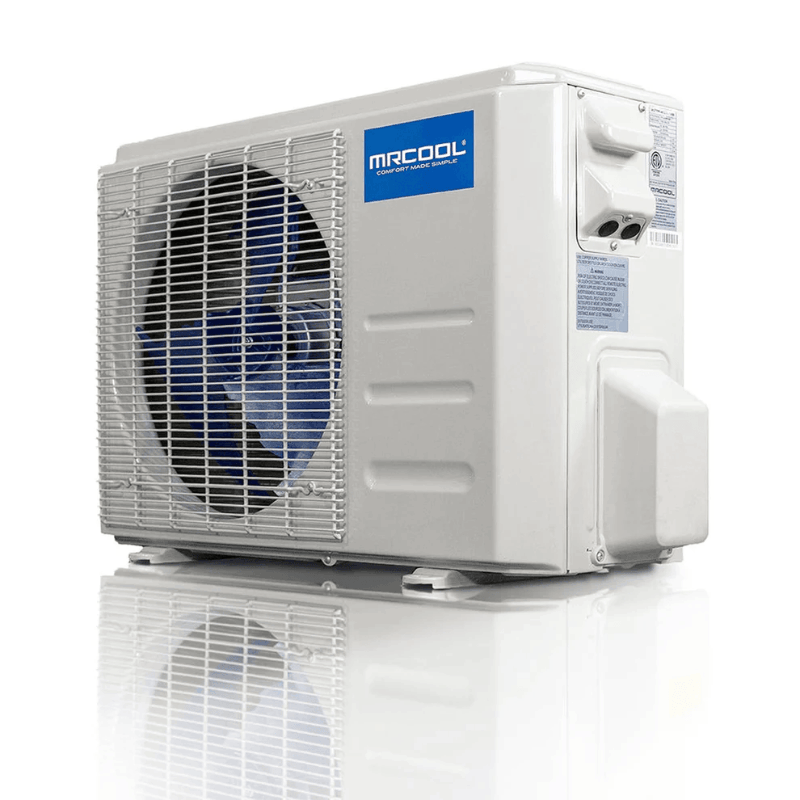

MRCOOL Advantage 9,000 BTU 5th Gen Ductless Mini Split Heat Pump Condenser - 230V (A-09-HP-C-230D-O)

MRCOOL SKU: A-09-HP-C-230D-O

Choose your location

enter a zip or postal code

Price:
Sale price$517.00

Description

Reliable Heating & Cooling Built for Durability - MRCOOL Advantage 9,000 BTU 5th Gen Heat Pump Condenser - 21.2 SEER2, 230V

The MRCOOL Advantage A-09-HP-C-230D-O is a high-efficiency outdoor condenser engineered for professional HVAC installations. With a 21.2 SEER2 rating and eco-friendly R454B refrigerant, this unit delivers dependable climate control for residential and light commercial properties. Built with Gold Fin™ corrosion-resistant coating and integrated Wi-Fi smart control, it ensures long-term durability and convenient remote management.

This 5th generation heat pump condenser is designed to pair seamlessly with compatible MRCOOL Advantage indoor air handlers. Features advanced sleep mode, auto-restart, and louver position memory for enhanced convenience. The fully enclosed, permanently lubricated fan motor operates quietly while minimizing maintenance. Works with Amazon Alexa and Google Assistant for hands-free smart home integration.

⚠️ Professional Installation Required: Licensed HVAC technician must handle installation, electrical connections, and refrigerant charging. Unit is sold separately from indoor air handler.



Ideal For:

  • Licensed HVAC contractors and technicians - Professional-grade condenser for reliable system installations, upgrades, and replacements across residential and light commercial properties.
  • Property owners in challenging climates - Gold Fin™ anti-corrosion coating protects against coastal salt air, high humidity, and extreme weather conditions for extended equipment life.
  • Smart home and automation adopters - Integrated Wi-Fi enables voice control via Alexa and Google Assistant, plus mobile app scheduling and energy monitoring.
  • Budget-conscious property managers - 21.2 SEER2 rating reduces monthly energy costs while meeting modern efficiency standards and environmental regulations.



What Makes This MRCOOL Advantage 9K Heat Pump Condenser 230V Stand Out

  • High Energy Efficiency - 21.2 SEER2 rating delivers exceptional energy savings and reduces monthly utility bills significantly.
  • Corrosion-Resistant Durability - Gold Fin™ coating withstands coastal salt air and humid environments, extending equipment lifespan and reducing replacements.
  • Smart Home Ready - Built-in Wi-Fi connects to Alexa, Google Assistant, and mobile apps for remote control and automated scheduling.
  • Quiet, Low-Maintenance Performance - Enclosed fan motor ensures whisper-quiet operation with minimal upkeep and long-term reliability.
  • Eco-Friendly Operation - Advanced R454B refrigerant reduces environmental impact while meeting current regulatory standards.



Certifications & Warranty

  • Energy Star Compliant - Meets EPA energy efficiency standards for residential and light commercial use
  • SmartHVAC™ Wi-Fi Certified - Compatible with Amazon Alexa and Google Assistant ecosystems
  • 2-Year Compressor Limited Warranty - Full protection on the core heating and cooling component
  • 1-Year Parts Limited Warranty - Coverage on condenser coil and electrical components
  • 1-Year Remote/Control Warranty - Protection for Wi-Fi module and smart control functionality
  • Professional Installation Required - Must be installed by licensed HVAC technician for warranty compliance
  • Online Registration Required - Proper registration activates full warranty coverage and protection
  • AHRI certified
  • NEEP ccASHP Listed
  • CEE Tier1 - North

What's Included

Everything you need is included with your product.

  • Outdoor heat pump condenser unit
  • Gold Fin™ coated condenser coil
  • Integrated Wi-Fi SmartHVAC™ module
  • Communication cables and connectors
  • Mounting hardware and brackets
  • Refrigerant charge (factory-sealed)


MRCOOL Advantage 9K Heat Pump Condenser 230V Features

  • 9,000 BTU with 21.2 SEER2 Rating - High-efficiency outdoor condenser for powerful energy-conscious heating and cooling performance.
  • 5th Generation Technology - Latest eco-conscious design with advanced controls and improved efficiency for modern residential applications.
  • Gold Fin™ Condenser Coating - Anti-corrosion protection ideal for coastal, humid, and harsh environmental conditions for extended durability.
  • R454B Eco-Friendly Refrigerant - Low Global Warming Potential refrigerant meets environmental standards and reduces carbon footprint.
  • Integrated SmartHVAC™ Wi-Fi Module - Seamless app connectivity for iOS/Android, Amazon Alexa, and Google Assistant voice command control.
  • Sleep Mode & Auto-Restart Functions - Advanced programming enables optimized overnight operation and automatic recovery after power interruptions.
  • Louver Position Memory - System remembers airflow preferences for consistent comfort and predictable performance across all seasons.
  • Enclosed, Permanently Lubricated Fan Motor - Durable design ensures quiet, reliable operation with minimal maintenance over the equipment's lifespan.
  • 208–230V, 1 Phase, 60Hz Compatibility - Standard residential and light commercial electrical power makes installation straightforward for most properties.
  • 54 dB(A) Quiet Operation - Industry-leading sound levels ensure minimal noise disturbance in residential neighborhoods and commercial spaces.

MRCOOL A-09-HP-C-230D-O Condenser Specs

BRAND NAME MRCOOL
SERIES Advantage 5th gen
MODEL A-09-HP-C-115D-O
GTIN 840255586825
UPC 840255586825
UNIT TYPE Mini-Split
EQUIPMENT TYPE Condenser
SHORT DESCRIPTION Advantage 5th Gen 9k BTU 230V Condenser
SEER2 21.2
EER2 12.6
HSPF2-4 9.1
HSPF2-5 7
TONNAGE 0.75
COOLING CAPACITY (BTU) 9000
HEATING CAPACITY (BTU) 10000
VOLTAGE (V) 208-230
PHASE 1
CYCLE 60
MAX FUSE BREAKER (A) 15
MIN CIRCUIT AMPACITY (A) 12
ZONE CAPACITY 1
REFRIGERANT TYPE R-454B
REFRIGERANT VOLUME (OZ) 21.52
DECIBEL RATING (DBA) 53.5
INVERTER DC
MAX LINESET LENGTH (FT) 82
LIQUID LINE SIZE 1/4
SUCTION LINE SIZE 3/8
COMPRESSOR MOTOR TYPE ROTARY
OVERLOAD PROTECTION Yes
APP COMPATIBILITY Yes
WORKS WITH IOS Yes
WORKS WITH ANDROID Yes
UL LISTED Yes
CSA LISTED Yes
ETL LISTED Yes
ENERGY STAR CERTIFIED Yes
AHRI CERTIFIED Yes
REGISTERED WARRANTY Extended Limited Lifetime*
BASE PARTS WARRANTY 1 Year
BASE COMPRESSOR WARRANTY 2 Years
HAS BATTERIES Yes
CONTAINS CHEMICALS Yes
CONTAINS COMPRESSED GAS Yes
PROPOSITION 65 WARNING Yes
NET DEPTH (IN) 11.93
NET HEIGHT (IN) 21.85
NET WIDTH (IN) 30.12
NET WEIGHT (LBS) 54.23
GROSS DEPTH (IN) 13.27
GROSS HEIGHT (IN) 24.02
GROSS WIDTH (IN) 34.92
GROSS WEIGHT (LBS) 59.74

Understanding your MRCOOL warranty coverage ensures long-term system performance and protection. All warranties are non-transferable and valid only at the original installation address.

Warranty Coverage by Series

DIY Series 5th Generation Mini-Splits

Models: DIY-09-HP through DIY-36-HP, DIYCASSETTE, DIY-MULTI series

  • Parts: 5 years from proof of purchase
  • Compressor: 7 years from proof of purchase
  • Remote Control: Included in parts warranty
  • Extended Lifetime Warranty: Available with MRCOOL Care Kit Program enrollment (fee required)
  • Installation: Professional installer NOT required when using MRCOOL Quick Connect Pre-Charged Line Set

Advantage Series Mini-Splits

Models: A-09-HP through A-36-HP series

  • Parts: 1 year from proof of purchase
  • Compressor: 2 years from proof of purchase
  • Extended Lifetime Warranty: Available with MRCOOL Care Kit Program enrollment (fee required)

    Must register within 180 days of purchase
    Covers compressor failure only with one-time condenser replacement
    Requires ongoing Care Kit Program maintenance
Easy Pro Series Mini-Splits

Models: EZPRO-09-HP through EZPRO-24-HP series

  • Parts: 1 year from proof of purchase
  • Compressor: 2 years from proof of purchase
  • Extended Lifetime Warranty: Available with MRCOOL Care Kit Program enrollment (fee required)

Central Ducted Systems

Models: CENTRAL-18-HP through CENTRAL-60-HP, MVP Series

  • Parts: 10 years from installation date
  • Compressor: 10 years from installation date
  • Labor: 10 years (installer responsible for first 90 days)
  • Installation: Professional installer NOT required when using MRCOOL Quick Connect Pre-Charged Line Set

Universal Series Split Systems

Models: UHP series, UAH series Air Handlers

  • Parts: 10 years from proof of purchase
  • Compressor: 10 years from proof of purchase
  • Labor: 2 years limited (begins 91 days after purchase, covers diagnostic and repair costs)
  • Installation: Professional installer required

Inverter Package Series

Models: GCSHPM series, GCSCAM series

  • Parts: 10 years from installation date
  • Labor: 5 years limited (manufacturing defects only, begins 91 days after installation)
  • Installation: Professional installation required

Olympus Series Mini-Splits

Models: MDUO, MDUCO, MDUI series

Owner-Occupied Residences:

  • Parts: 5 years standard, 10 years with registration within 60 days
  • Compressor: 5 years standard, 10 years with registration within 60 days

Commercial Applications:

  • Parts & Compressor: 5 years with registration within 60 days
  • Installation: Professional installer required

Key Warranty Conditions

Product Registration:

  • Register at mrcool.com/warranty to activate extended coverage (where applicable)
  • Registration deadlines vary by series (30-180 days from purchase)

Installation Requirements:

  • Must comply with all federal, state, and local electrical codes
  • Must follow MRCOOL installation instructions
  • Must use new, compatible, MRCOOL-approved components
  • Warranty voids if installed with used or incompatible parts

Warranty Does NOT Cover:

  • Labor, diagnostic, shipping, or installation costs (except where labor warranty applies)
  • Normal maintenance (filter cleaning, lubrication, coil cleaning)
  • Refrigerant costs or energy consumption
  • Damage from improper installation, natural disasters, or electrical issues
  • Units moved from original installation address
  • Units installed outside USA and Canada

How to File a Warranty Claim

Contact MRCOOL:

For Labor Claims (Universal/Inverter Package Series within first 2 years):

  • Phone: (844) 518-2040

Required Documentation:

  • Proof of purchase
  • Product registration confirmation (if applicable)
  • Diagnostic testing results (professional HVAC technician may be required)
  • Defective parts must be returned when requested

For complete warranty terms and conditions, visit mrcool.com/warranty

Replacement parts are covered for the remainder of the original warranty period or 30 days, whichever is longer. Some states do not allow exclusion of incidental or consequential damages. This warranty gives you specific legal rights that may vary by state or province.
