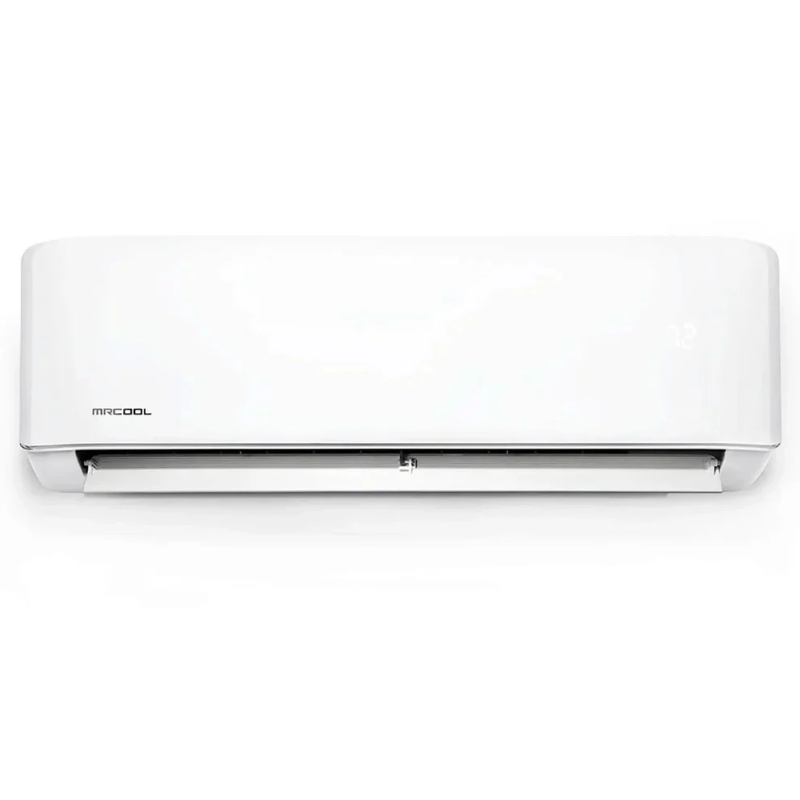

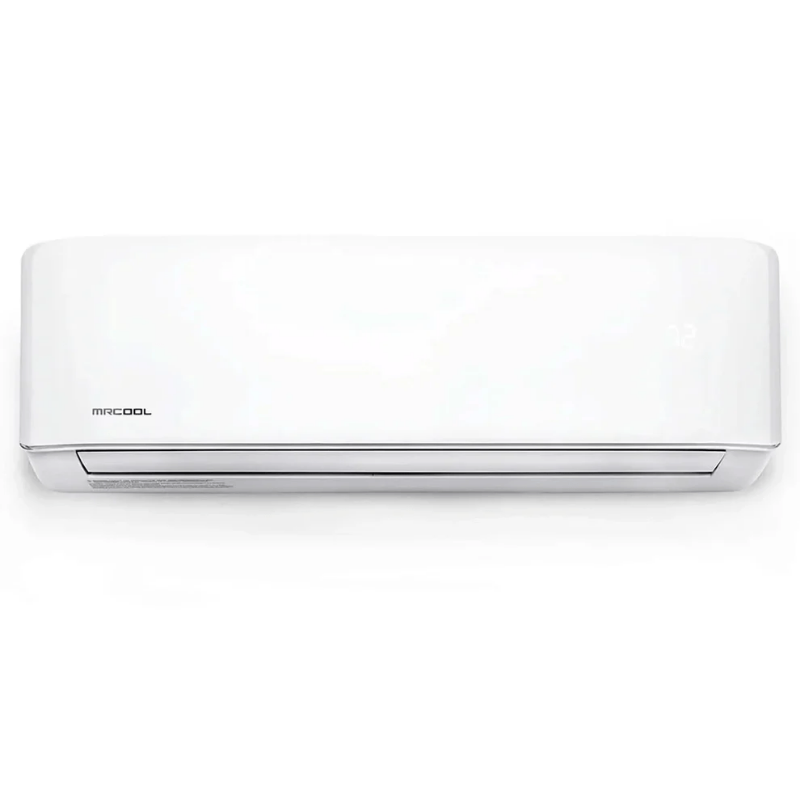

MRCOOL Advantage 9,000 BTU 5th Gen Ductless Mini Split Air Handler - 230V (A-09-HP-WMAH-230D-O)

MRCOOL SKU: A-09-HP-WMAH-230D-O

Choose your location

enter a US zip code

Price:
Sale price$249.00

Description

Smart Climate Control with Voice Control - MRCOOL Advantage 5th Gen 9k BTU 230V Air Handler

The MRCOOL Advantage A-09-HP-WMAH-230D-O is a high-efficiency indoor air handler engineered for professional HVAC installations. With a 21.2 SEER2 rating and eco-friendly R454B refrigerant, this unit delivers superior cooling and heating performance for smaller rooms up to 400 sq. ft. Integrated SmartHVAC™ Wi-Fi control enables convenient management via smartphone app, Amazon Alexa, and Google Assistant for hands-free climate comfort.

This 5th generation air handler is designed to pair seamlessly with compatible MRCOOL Advantage outdoor condensers. Features advanced sleep mode, louver position memory, and automatic restart for enhanced convenience and energy savings. The wall-mounted indoor unit operates with whisper-quiet performance while maintaining compact, sleek aesthetics. Apple and Android compatible apps provide full remote access and scheduling control from anywhere.

Register your unit and enjoy peace of mind with MRCOOL’s robust warranty: 1 year on parts, 2 years on the compressor, and 1 year on the remote control. You can also subscribe to the MRCOOL Care Program and enjoy our Limited Lifetime warranty. Say goodbye to comfort concerns with the MRCOOL Advantage Air Handler!

⚠️ Professional Installation Required: Licensed HVAC technician must handle installation and system connections. Unit is sold separately from outdoor condenser.



Ideal For:

  • Licensed HVAC contractors and installers - Professional-grade air handler for reliable system installations, replacements, and service upgrades across residential properties.
  • Smart home enthusiasts and tech-forward homeowners - Integrated Wi-Fi enables voice commands via Alexa and Google Assistant, plus mobile app control for complete automation.
  • Homeowners prioritizing energy efficiency - 21.2 SEER2 rating significantly reduces cooling and heating costs while meeting modern environmental standards.
  • Property owners seeking quiet, discreet solutions - Wall-mounted design with whisper-quiet operation blends seamlessly into any room without visual or noise disruption.



Why Experts Recommend MRCOOL Advantage 9K Air Handler 230V

  • Superior Energy Efficiency - 21.2 SEER2 rating delivers exceptional cooling and heating performance while minimizing monthly utility expenses.
  • Smart Home Integration - SmartHVAC™ Wi-Fi module works with Alexa, Google Assistant, and mobile apps for convenient voice and remote control.
  • Eco-Friendly Operation - Advanced R454B refrigerant reduces environmental impact while enhancing system efficiency and reliability.
  • Quiet, Compact Design - Wall-mounted unit operates whisper-quiet with sleek aesthetics that blend seamlessly into any residential interior.
  • Advanced Convenience Features - Sleep mode, louver position memory, and automatic restart optimize comfort and energy management automatically.



Certifications & Warranty

  • Energy Star Compliant - Meets EPA energy efficiency standards for residential cooling and heating applications
  • SmartHVAC™ Wi-Fi Certified - Compatible with Amazon Alexa and Google Assistant voice control ecosystems
  • 1-Year Parts Limited Warranty - Full coverage on air handler components and internal systems
  • 1-Year Remote/Control Warranty - Protection for Wi-Fi module and smart control functionality
  • Professional Installation Required - Must be installed by licensed HVAC technician for optimal performance and warranty compliance
  • Online Registration Required - Proper registration activates full warranty coverage and extended protection benefits
  • AHRI certified
  • NEEP ccASHP Listed
  • CEE Tier1 - North

What's Included

Everything you need is included with your product.

  • Indoor wall-mounted air handler unit
  • SmartHVAC™ Wi-Fi control module (integrated)
  • Remote control
  • Communication cables and connectors
  • Mounting hardware and brackets
  • Installation hardware


MRCOOL Advantage 9K Air Handler 230V Features

  • 9,000 BTU with 21.2 SEER2 Rating - High-efficiency indoor unit for powerful cooling and heating with minimal energy consumption across all seasons.
  • 5th Generation Technology - Latest design with improved efficiency, reliability, and smart controls for modern residential applications.
  • SmartHVAC™ Wi-Fi Control Module - Integrated connectivity for iOS/Android app access, Amazon Alexa, and Google Assistant voice commands.
  • R454B Eco-Friendly Refrigerant - Next-generation refrigerant reduces Global Warming Potential and meets current environmental regulations.
  • Wall-Mounted Indoor Unit Design - Sleek, compact profile fits seamlessly into any room décor with minimal installation impact.
  • Sleep Mode Function - Automated overnight temperature adjustments reduce energy consumption while maintaining comfort during sleep hours.
  • Louver Position Memory - System remembers airflow direction preferences for consistent, predictable comfort throughout the day.
  • Automatic Restart Capability - Built-in recovery system restores operation after power interruptions without manual intervention.
  • 230V Standard Electrical Connection - Operates on conventional residential electrical service for straightforward installation across most properties.
  • Professional-Grade Engineering - Designed for licensed HVAC technician installation with integrated refrigerant and electrical connections.

MRCOOL A-09-HP-WMAH-230D-O Air Handler Specs

BRAND NAME MRCOOL
SERIES Advantage 5th gen
MODEL A-09-HP-WMAH-230D-O
GTIN 840255586894
UPC 840255586894
UNIT TYPE Mini-Split
EQUIPMENT TYPE Air Handler
SHORT DESCRIPTION Advantage 5th Gen 9k BTU 230V Air Handler
CFM 312.0 / 264.9 / 194.2 / 153.0 / 105.9
TONNAGE 0.75
VOLTAGE (V) 208-230
PHASE 1
CYCLE 60
MAX FUSE BREAKER (A) 15
MIN CIRCUIT AMPACITY (A) 3
MOUNT TYPE Wall
COLOR White
DECIBEL RATING (DBA) 31.5
DECIBEL RATING (DBA) 18.5 (Low)-40.5 (High)
NUMBER OF SPEEDS 5
MAX LINESET LENGTH (FT) 82
LIQUID LINE SIZE 1/4
SUCTION LINE SIZE 3/8
FILTER TYPE Reusable
OVERLOAD PROTECTION Yes
APP COMPATIBILITY Yes
WORKS WITH IOS Yes
WORKS WITH ANDROID Yes
UL LISTED Yes
CSA LISTED Yes
ETL LISTED Yes
ENERGY STAR CERTIFIED Yes
AHRI CERTIFIED Yes
REGISTERED WARRANTY Extended Limited Lifetime*
BASE PARTS WARRANTY 1 Year
BASE COMPRESSOR WARRANTY 2 Years
HAS BATTERIES Yes
CONTAINS CHEMICALS Yes
CONTAINS COMPRESSED GAS Yes
PROPOSITION 65 WARNING Yes
NET DEPTH (IN) 7.36
NET HEIGHT (IN) 11.42
NET WIDTH (IN) 28.43
NET WEIGHT (LBS) 16.98
GROSS DEPTH (IN) 10.63
GROSS HEIGHT (IN) 14.76
GROSS WIDTH (IN) 31.1
GROSS WEIGHT (LBS) 22.27

Understanding your MRCOOL warranty coverage ensures long-term system performance and protection. All warranties are non-transferable and valid only at the original installation address.

Warranty Coverage by Series

DIY Series 5th Generation Mini-Splits

Models: DIY-09-HP through DIY-36-HP, DIYCASSETTE, DIY-MULTI series

  • Parts: 5 years from proof of purchase
  • Compressor: 7 years from proof of purchase
  • Remote Control: Included in parts warranty
  • Extended Lifetime Warranty: Available with MRCOOL Care Kit Program enrollment (fee required)
  • Installation: Professional installer NOT required when using MRCOOL Quick Connect Pre-Charged Line Set

Advantage Series Mini-Splits

Models: A-09-HP through A-36-HP series

  • Parts: 1 year from proof of purchase
  • Compressor: 2 years from proof of purchase
  • Extended Lifetime Warranty: Available with MRCOOL Care Kit Program enrollment (fee required)

    Must register within 180 days of purchase
    Covers compressor failure only with one-time condenser replacement
    Requires ongoing Care Kit Program maintenance
Easy Pro Series Mini-Splits

Models: EZPRO-09-HP through EZPRO-24-HP series

  • Parts: 1 year from proof of purchase
  • Compressor: 2 years from proof of purchase
  • Extended Lifetime Warranty: Available with MRCOOL Care Kit Program enrollment (fee required)

Central Ducted Systems

Models: CENTRAL-18-HP through CENTRAL-60-HP, MVP Series

  • Parts: 10 years from installation date
  • Compressor: 10 years from installation date
  • Labor: 10 years (installer responsible for first 90 days)
  • Installation: Professional installer NOT required when using MRCOOL Quick Connect Pre-Charged Line Set

Universal Series Split Systems

Models: UHP series, UAH series Air Handlers

  • Parts: 10 years from proof of purchase
  • Compressor: 10 years from proof of purchase
  • Labor: 2 years limited (begins 91 days after purchase, covers diagnostic and repair costs)
  • Installation: Professional installer required

Inverter Package Series

Models: GCSHPM series, GCSCAM series

  • Parts: 10 years from installation date
  • Labor: 5 years limited (manufacturing defects only, begins 91 days after installation)
  • Installation: Professional installation required

Olympus Series Mini-Splits

Models: MDUO, MDUCO, MDUI series

Owner-Occupied Residences:

  • Parts: 5 years standard, 10 years with registration within 60 days
  • Compressor: 5 years standard, 10 years with registration within 60 days

Commercial Applications:

  • Parts & Compressor: 5 years with registration within 60 days
  • Installation: Professional installer required

Key Warranty Conditions

Product Registration:

  • Register at mrcool.com/warranty to activate extended coverage (where applicable)
  • Registration deadlines vary by series (30-180 days from purchase)

Installation Requirements:

  • Must comply with all federal, state, and local electrical codes
  • Must follow MRCOOL installation instructions
  • Must use new, compatible, MRCOOL-approved components
  • Warranty voids if installed with used or incompatible parts

Warranty Does NOT Cover:

  • Labor, diagnostic, shipping, or installation costs (except where labor warranty applies)
  • Normal maintenance (filter cleaning, lubrication, coil cleaning)
  • Refrigerant costs or energy consumption
  • Damage from improper installation, natural disasters, or electrical issues
  • Units moved from original installation address
  • Units installed outside USA and Canada

How to File a Warranty Claim

Contact MRCOOL:

For Labor Claims (Universal/Inverter Package Series within first 2 years):

  • Phone: (844) 518-2040

Required Documentation:

  • Proof of purchase
  • Product registration confirmation (if applicable)
  • Diagnostic testing results (professional HVAC technician may be required)
  • Defective parts must be returned when requested

For complete warranty terms and conditions, visit mrcool.com/warranty

Replacement parts are covered for the remainder of the original warranty period or 30 days, whichever is longer. Some states do not allow exclusion of incidental or consequential damages. This warranty gives you specific legal rights that may vary by state or province.
