MRCOOL Advantage 18,000 BTU 5th Gen Ductless Mini Split Heat Pump System - 19.2 SEER2, 230V (A-18-HP-230D-O)

MRCOOL SKU: A-18-HP-230D-O

Choose your location

enter a US zip code

Price:
Sale price$1,180.00

Description

Escape Inconsistent Temperatures & Installation Nightmares - MRCOOL Advantage 18,000 BTU 5th Gen Ductless Mini Split Heat Pump System - 19.2 SEER2, 230V

The MRCOOL Advantage A-18-HP-230D-O is engineered to provide powerful heating and cooling for residential spaces. With 18,000 BTU capacity and a 19.2 SEER2 rating, this system delivers exceptional comfort while minimizing energy consumption. Its eco-friendly R454B refrigerant, built-in Wi-Fi, and variable-speed operation ensure quiet, reliable performance year-round.

The MRCOOL Advantage 18K is a high-efficiency ductless mini-split heat pump designed for energy savings and whole-home comfort. The 19.2 SEER2 rating delivers superior energy efficiency while reducing heating and cooling bills. It features 5th generation technology with eco-friendly R454B refrigerant that reduces greenhouse gas emissions and Global Warming Potential. Built-in Wi-Fi enables remote temperature adjustments from your smartphone, optimizing comfort and energy from anywhere.

The wall-mounted indoor unit requires minimal modifications and flexible placement. It operates on standard 230V electrical service, ideal for most residential installations.



Ideal For:

  • Homeowners with larger homes and extensive climate needs - Powerful 18K BTU capacity efficiently cools and heats larger living spaces, open floor plans, and multi-zone areas without ductwork.
  • Property owners seeking comprehensive comfort solutions - Perfect for whole-home climate control in condominiums, townhouses, and larger residential properties.
  • Energy-conscious homeowners with bigger spaces - The 19.2 SEER2 rating reduces utility bills across larger square footage while lowering environmental impact.
  • Tech-savvy homeowners - Built-in Wi-Fi enables remote control, automated scheduling, and away-mode energy management from your smartphone.



Why Homeowners Prefer The MRCOOL Advantage 18K Mini Split Heat Pump System 230V

  • Whole-Home Climate Control - 18,000 BTU capacity handles larger living spaces and comprehensive heating/cooling demands in extended residential areas.
  • Excellent Energy Efficiency - 19.2 SEER2 rating minimizes energy waste, reduces monthly utility bills, and qualifies for potential energy rebates and tax incentives.
  • Eco-Friendly Operation - 5th generation R454B refrigerant reduces greenhouse gas emissions and lowers Global Warming Potential for environmental responsibility.
  • Smart Wi-Fi Control - Smartphone access enables temperature adjustments, automated scheduling, and away-mode energy savings anytime, anywhere from any device.
  • Ductless Installation Flexibility - Eliminates expensive and disruptive ductwork, reduces labor costs, and requires only minimal wall modifications for seamless integration.



Certifications & Warranty

  • Energy Star Compliant - Meets rigorous EPA energy efficiency standards for reduced environmental impact
  • 19.2 SEER2 Energy Rating - Excellent energy efficiency for significant utility savings and rebate eligibility
  • Eco-Friendly R454B Refrigerant - Low Global Warming Potential with reduced greenhouse gas emissions
  • 2-Year Parts Limited Warranty - Full coverage on system components
  • 1-Year Compressor Limited Warranty - Dedicated protection on the core heating and cooling component
  • 1-Year Remote Control Warranty - Coverage for smart control functionality
  • Limited Lifetime Warranty Option - Available through MRCOOL Care Program enrollment
  • Professional Installation Required - Must be installed by a licensed HVAC professional
  • 230V Standard Residential Operation - Safe operation on conventional household electrical service

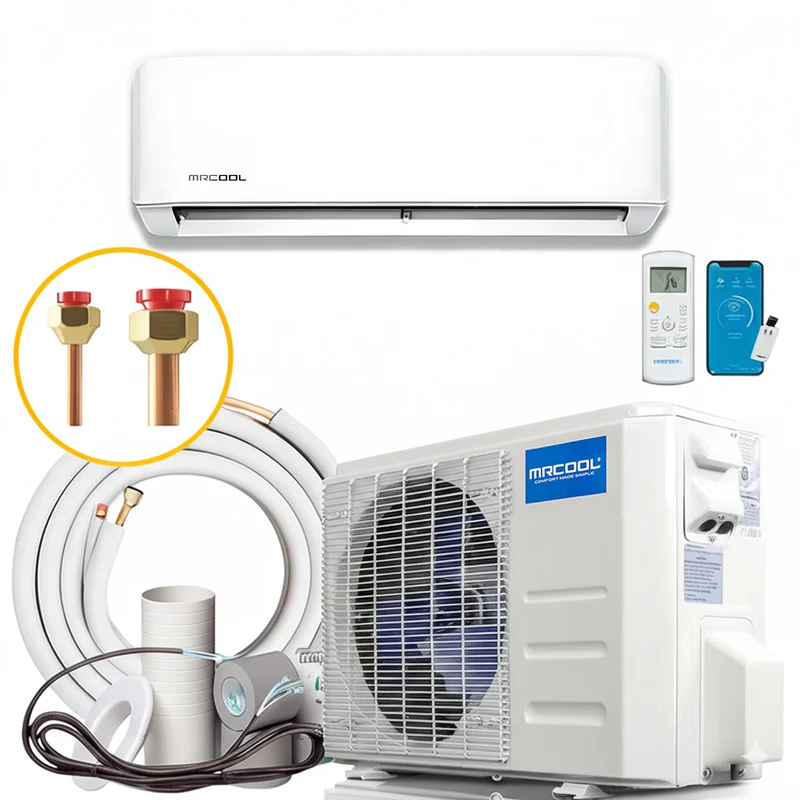

What's Included

Everything you need is included with your Mini Split.

  • Advantage 5th Gen 18k BTU 230V Air Handler
  • Advantage 5th Gen 18k BTU 230V Condenser
  • Communication cables and connections
  • Pre-charged 16ft. Flared Line Set

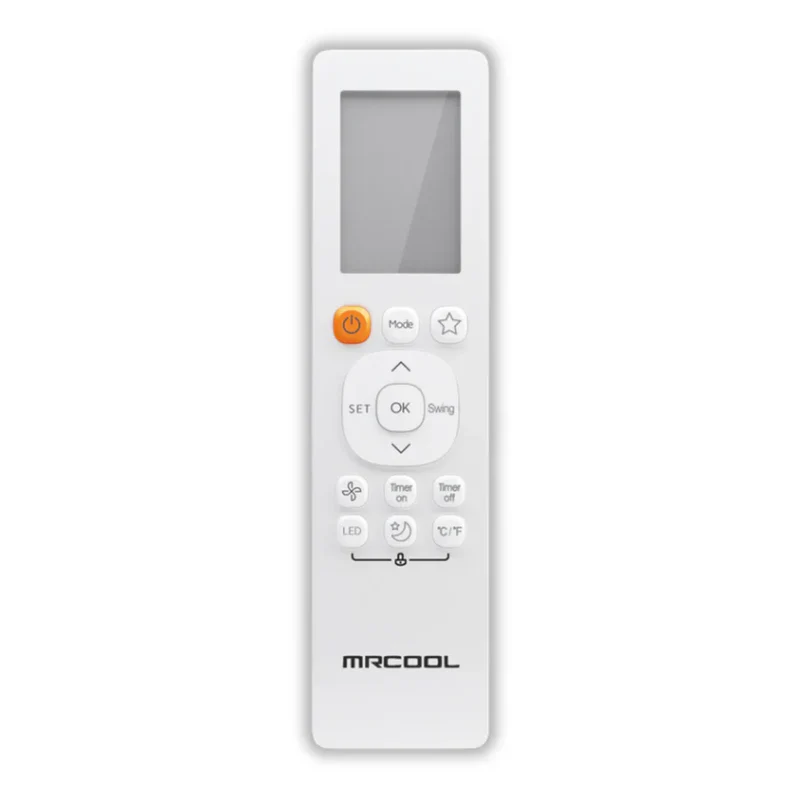

  • Remote control
  • Wi-Fi connectivity module (built-in)
  • Installation hardware and mounting brackets


MRCOOL Advantage 18K Mini Split Heat Pump System 230V Features

  • 18,000 BTU with 19.2 SEER2 Rating - High-capacity indoor and outdoor unit efficiently cools and heats spaces up to 650-750 sq ft while maximizing energy performance.
  • 5th Generation R454B Refrigerant - Advanced eco-friendly refrigerant reduces environmental impact while enhancing system efficiency and reliability.
  • Variable-Speed Compressor & Fan Motor - Automatically adjusts output based on demand, ensuring precise comfort while reducing energy consumption and noise.
  • Wall-Mounted Indoor Unit - Sleek, compact design blends seamlessly with any décor, requiring minimal ductwork and structural modifications.
  • Built-in Wi-Fi & Smart Control - Remote smartphone app access enables temperature adjustments, automated scheduling, and away-mode energy management.
  • 230V Standard Electrical Connection - Operates on conventional residential electrical service for straightforward installation across most properties.
  • Quiet, Efficient Operation - Whisper-quiet performance delivers powerful climate control without disrupting work or sleep in larger spaces.
  • Pre-Charged Refrigerant Lines - Factory-sealed system arrives ready for professional installation with optimal performance from day one.
  • Comprehensive Warranty Protection - 2-year parts coverage, 1-year compressor warranty, and 1-year remote control protection for peace of mind.
  • Optional Limited Lifetime Warranty - Enroll in MRCOOL Care Program for extended coverage and priority customer support.

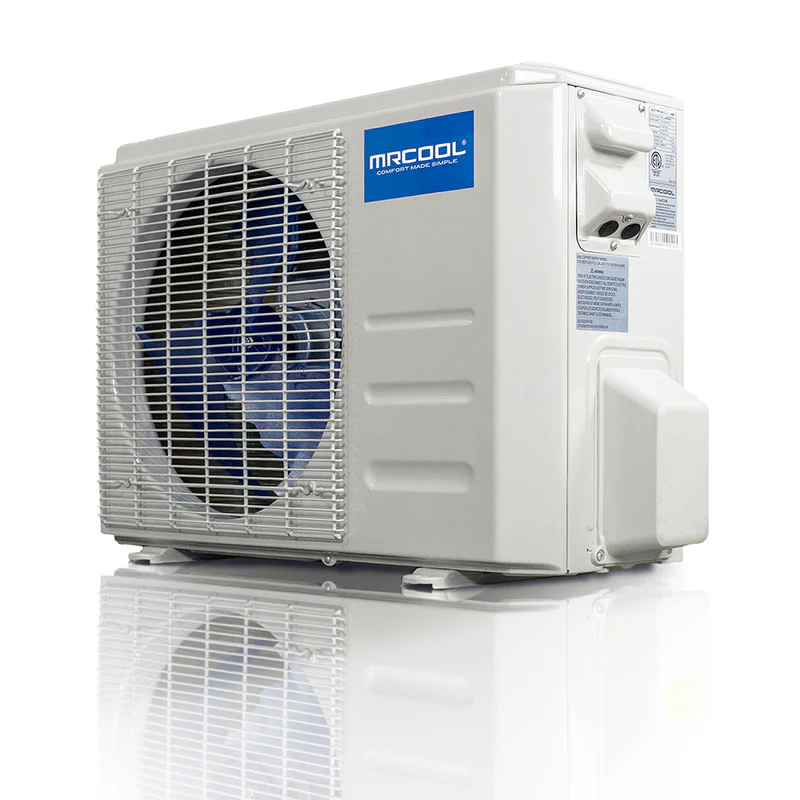

MRCOOL A-18-HP-C-230D-O Condenser Specs

BRAND NAME MRCOOL
SERIES Advantage 5th gen
MODEL A-18-HP-C-230D-O
GTIN 840255586849
UPC 840255586849
UNIT TYPE Mini-Split
EQUIPMENT TYPE Condenser
SHORT DESCRIPTION Advantage 5th Gen 18k BTU 230V Condenser
SEER2 19.2
EER2 10.8
HSPF2-4 9.6
HSPF2-5 7.5
TONNAGE 1.5
COOLING CAPACITY (BTU) 18000
HEATING CAPACITY (BTU) 18000
VOLTAGE (V) 208-230
PHASE 1
CYCLE 60
MAX FUSE BREAKER (A) 20
MIN CIRCUIT AMPACITY (A) 15
ZONE CAPACITY 1
REFRIGERANT TYPE R-454B
REFRIGERANT VOLUME (OZ) 40.57
DECIBEL RATING (DBA) 56
INVERTER DC
MAX LINESET LENGTH (FT) 98.4
LIQUID LINE SIZE 1/4
SUCTION LINE SIZE 1/2
COMPRESSOR MOTOR TYPE ROTARY
OVERLOAD PROTECTION Yes
APP COMPATIBILITY Yes
WORKS WITH IOS Yes
WORKS WITH ANDROID Yes
UL LISTED Yes
CSA LISTED Yes
ETL LISTED Yes
ENERGY STAR CERTIFIED No
AHRI CERTIFIED Yes
REGISTERED WARRANTY Extended Limited Lifetime*
BASE PARTS WARRANTY 1 Year
BASE COMPRESSOR WARRANTY 2 Years
HAS BATTERIES Yes
CONTAINS CHEMICALS Yes
CONTAINS COMPRESSED GAS Yes
PROPOSITION 65 WARNING Yes
NET DEPTH (IN) 12.99
NET HEIGHT (IN) 21.81
NET WIDTH (IN) 31.69
NET WEIGHT (LBS) 72.31
GROSS DEPTH (IN) 14.57
GROSS HEIGHT (IN) 24.21
GROSS WIDTH (IN) 36.02
GROSS WEIGHT (LBS) 78.48

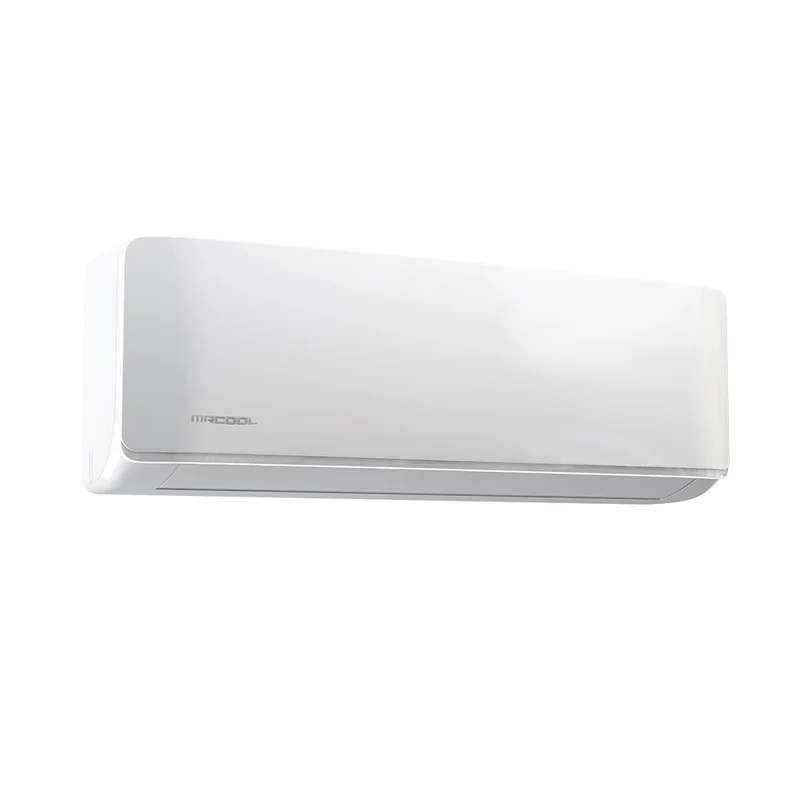

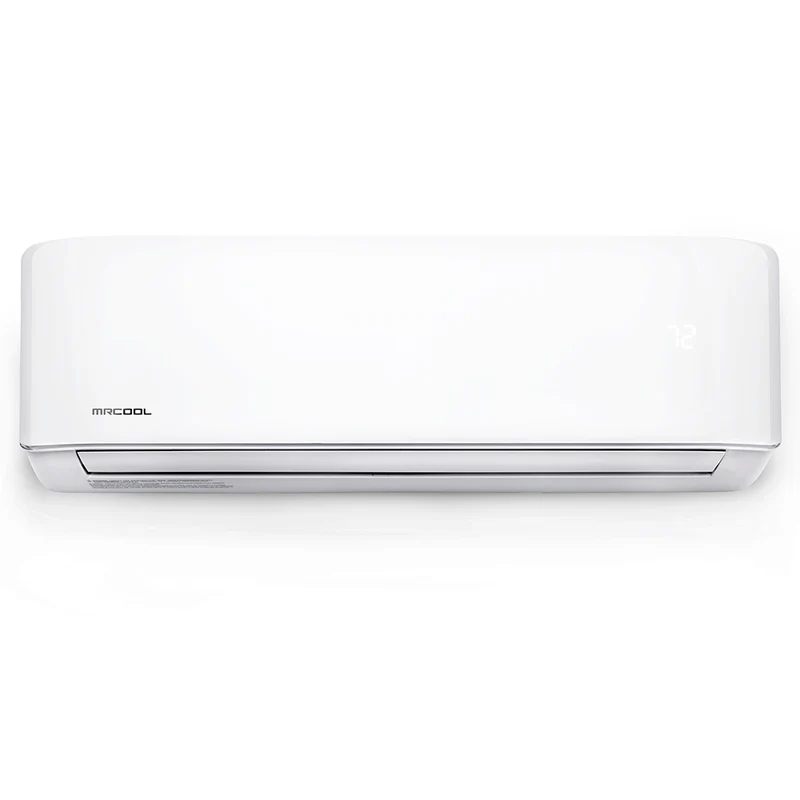

MRCOOL A-18-HP-WMAH-230D-O Air Handler Specs

BRAND NAME MRCOOL
SERIES Advantage 5th gen
MODEL A-18-HP-WMAH-230D-O
GTIN 840255586917
UPC 840255586917
UNIT TYPE Mini-Split
EQUIPMENT TYPE Air Handler
SHORT DESCRIPTION Advantage 5th Gen 18k BTU 230V Air Handler
CFM 429.7 / 388.5 / 259.0 / 217.8 / /
TONNAGE 1.5
VOLTAGE (V) 208-230
PHASE 1
CYCLE 60
MAX FUSE BREAKER (A) 15
MIN CIRCUIT AMPACITY (A) 3
MOUNT TYPE Wall
COLOR White
DECIBEL RATING (DBA) 36
DECIBEL RATING (DBA) 19 (Low)- 50.5(High)
NUMBER OF SPEEDS 5
MAX LINESET LENGTH (FT) 98.4
LIQUID LINE SIZE 1/4
SUCTION LINE SIZE 1/2
FILTER TYPE Reusable
OVERLOAD PROTECTION Yes
APP COMPATIBILITY Yes
WORKS WITH IOS Yes
WORKS WITH ANDROID Yes
UL LISTED Yes
CSA LISTED Yes
ETL LISTED Yes
ENERGY STAR CERTIFIED Yes
AHRI CERTIFIED Yes
REGISTERED WARRANTY Extended Limited Lifetime*
BASE PARTS WARRANTY 1 Year
BASE COMPRESSOR WARRANTY 2 Years
HAS BATTERIES Yes
CONTAINS CHEMICALS Yes
CONTAINS COMPRESSED GAS Yes
PROPOSITION 65 WARNING Yes
NET DEPTH (IN) 8.46
NET HEIGHT (IN) 12.56
NET WIDTH (IN) 37.99
NET WEIGHT (LBS) 24.47
GROSS DEPTH (IN) 12.01
GROSS HEIGHT (IN) 16.14
GROSS WIDTH (IN) 41.14
GROSS WEIGHT (LBS) 32.63

Understanding your MRCOOL warranty coverage ensures long-term system performance and protection. All warranties are non-transferable and valid only at the original installation address.

Warranty Coverage by Series

DIY Series 5th Generation Mini-Splits

Models: DIY-09-HP through DIY-36-HP, DIYCASSETTE, DIY-MULTI series

  • Parts: 5 years from proof of purchase
  • Compressor: 7 years from proof of purchase
  • Remote Control: Included in parts warranty
  • Extended Lifetime Warranty: Available with MRCOOL Care Kit Program enrollment (fee required)
  • Installation: Professional installer NOT required when using MRCOOL Quick Connect Pre-Charged Line Set

Advantage Series Mini-Splits

Models: A-09-HP through A-36-HP series

  • Parts: 1 year from proof of purchase
  • Compressor: 2 years from proof of purchase
  • Extended Lifetime Warranty: Available with MRCOOL Care Kit Program enrollment (fee required)

    Must register within 180 days of purchase
    Covers compressor failure only with one-time condenser replacement
    Requires ongoing Care Kit Program maintenance
Easy Pro Series Mini-Splits

Models: EZPRO-09-HP through EZPRO-24-HP series

  • Parts: 1 year from proof of purchase
  • Compressor: 2 years from proof of purchase
  • Extended Lifetime Warranty: Available with MRCOOL Care Kit Program enrollment (fee required)

Central Ducted Systems

Models: CENTRAL-18-HP through CENTRAL-60-HP, MVP Series

  • Parts: 10 years from installation date
  • Compressor: 10 years from installation date
  • Labor: 10 years (installer responsible for first 90 days)
  • Installation: Professional installer NOT required when using MRCOOL Quick Connect Pre-Charged Line Set

Universal Series Split Systems

Models: UHP series, UAH series Air Handlers

  • Parts: 10 years from proof of purchase
  • Compressor: 10 years from proof of purchase
  • Labor: 2 years limited (begins 91 days after purchase, covers diagnostic and repair costs)
  • Installation: Professional installer required

Inverter Package Series

Models: GCSHPM series, GCSCAM series

  • Parts: 10 years from installation date
  • Labor: 5 years limited (manufacturing defects only, begins 91 days after installation)
  • Installation: Professional installation required

Olympus Series Mini-Splits

Models: MDUO, MDUCO, MDUI series

Owner-Occupied Residences:

  • Parts: 5 years standard, 10 years with registration within 60 days
  • Compressor: 5 years standard, 10 years with registration within 60 days

Commercial Applications:

  • Parts & Compressor: 5 years with registration within 60 days
  • Installation: Professional installer required

Key Warranty Conditions

Product Registration:

  • Register at mrcool.com/warranty to activate extended coverage (where applicable)
  • Registration deadlines vary by series (30-180 days from purchase)

Installation Requirements:

  • Must comply with all federal, state, and local electrical codes
  • Must follow MRCOOL installation instructions
  • Must use new, compatible, MRCOOL-approved components
  • Warranty voids if installed with used or incompatible parts

Warranty Does NOT Cover:

  • Labor, diagnostic, shipping, or installation costs (except where labor warranty applies)
  • Normal maintenance (filter cleaning, lubrication, coil cleaning)
  • Refrigerant costs or energy consumption
  • Damage from improper installation, natural disasters, or electrical issues
  • Units moved from original installation address
  • Units installed outside USA and Canada

How to File a Warranty Claim

Contact MRCOOL:

For Labor Claims (Universal/Inverter Package Series within first 2 years):

  • Phone: (844) 518-2040

Required Documentation:

  • Proof of purchase
  • Product registration confirmation (if applicable)
  • Diagnostic testing results (professional HVAC technician may be required)
  • Defective parts must be returned when requested

For complete warranty terms and conditions, visit mrcool.com/warranty

Replacement parts are covered for the remainder of the original warranty period or 30 days, whichever is longer. Some states do not allow exclusion of incidental or consequential damages. This warranty gives you specific legal rights that may vary by state or province.
