Ebac PD220-D Commercial Dehumidifier

Ebac SKU: 10157GY-US

Choose your location

enter a zip or postal code

Price:
Sale price$7,933.00

Description

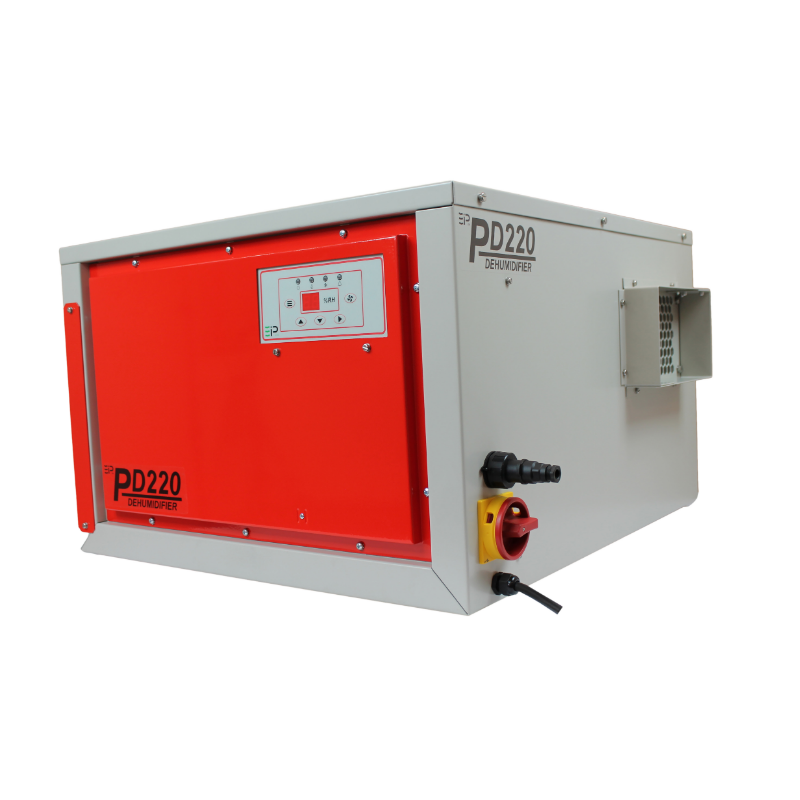

Ebac PD220-D HVAC Dehumidifier

Dealing with excess humidity can be challenging, especially in large or specialized spaces. The Ebac PD220-D Commercial Dehumidifier is the perfect solution to this problem, designed to tackle moisture in areas like health and fitness centers, locker rooms, and warehouses. This robust dehumidifier efficiently removes up to 190 pints of water vapor daily, making it ideal for preventing mold, mildew, and condensation damage.

Why Choose the Ebac PD220-D?

The Ebac PD220-D is ideal for those who need reliable, high-capacity dehumidification. It’s especially useful in large, damp areas where maintaining a dry environment is crucial. This unit not only protects your space from moisture-related issues but also ensures efficient energy use and straightforward operation

High Capacity and Durable Design

  • 190 Pints Per Day: Removes up to 190 pints of water vapor daily, making it ideal for larger commercial spaces.
  • Quiet Operation: Equipped with a two-speed fan for adjustable and quiet performance.
  • Continuous Functionality: Features an automatic defrost mode to prevent frost buildup and ensure continuous operation.

Ideal for Various Environments

Designed primarily for harsh marine environments, the Ebac PD220-D Commercial Dehumidifier also excels in various other settings:

  • Health and fitness centers
  • Sports halls
  • Aerobic rooms
  • Racquetball/handball courts
  • Workout areas
  • Locker rooms
  • Laundry rooms
  • Warehouses
  • Stadiums

Easy Installation and Setup

The Ebac PD220-D offers flexible installation options, whether you choose to use it as a standalone unit or integrate it into existing ductwork. Its simple controls and sturdy carrying handles make it easy to set up and move as needed, though its weight of 176 pounds makes it best suited for stationary use.

  • Standalone or Ducted: Operate as a standalone unit or connect to existing ductwork with included duct kit and inlet/outlet duct flanges.
  • Simple Drainage: Attach the ½-inch flexible drain tubing to direct condensation to a suitable outlet.

Simple and Efficient Controls

The dehumidifier features a user-friendly control panel, including an adjustable humidistat that cycles the fan on and off to maintain your desired humidity level. This helps save energy and extends the unit’s lifespan. Additionally, the temperature-sensitive "Reverse Cycle" defrost setting prevents frost build-up on the coils, ensuring the unit operates smoothly even in low temperatures.

  • Adjustable Humidistat: Maintains desired humidity levels while conserving energy.
  • Reverse Cycle Defrost: Automatically melts frost on internal coils for reliable operation in cold environments.

Key Features and Benefits of Ebac PD220-D Commercial Dehumidifier

  • 2-Speed Fan: Offers both low and high-speed settings to suit different dehumidification needs.
  • Heavy-Duty Construction: Built with a robust steel case, ensuring long-term durability.
  • Wide Operating Temperature Range: Functions effectively between 33°F and 95°F, suitable for various environments.

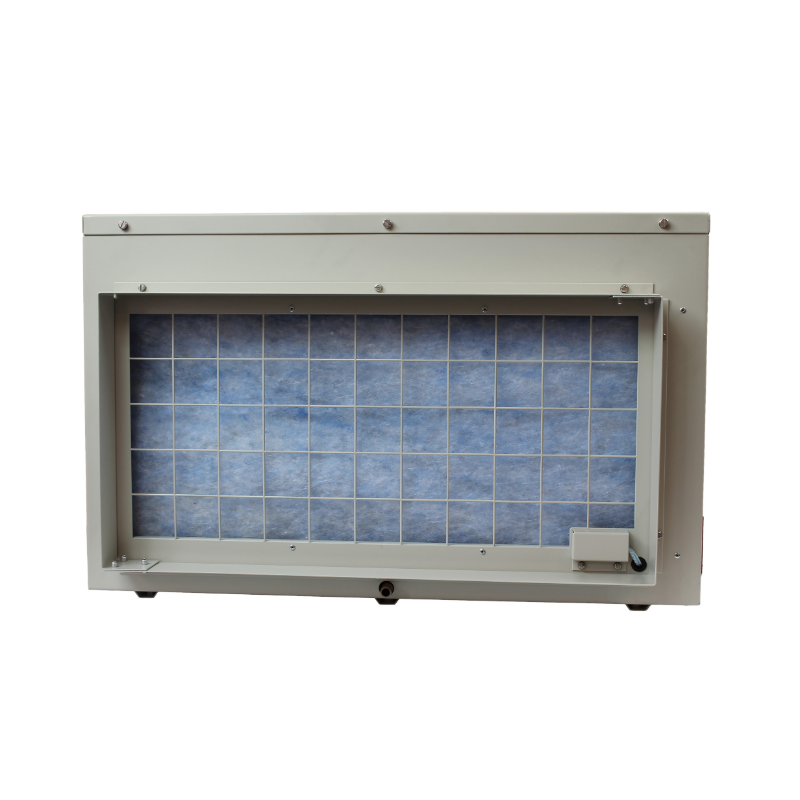

  • Washable Air Filter: Reduces maintenance costs and promotes cleaner air by being easy to clean and reuse.
  • Free Duct Kit: Included to simplify ducting installation.

What's in the Box

  • 1x PD220-D Dehumidifier
  • 1x PD220-D Owner’s Manual
  • 1x 6 Pin Plug
  • 1x 3/8" PVC Tube I/D – 3M long
  • 1x Jubilee Clip

PD220-D Specs

Part Number 10157GY-US
Height (inch) 17.5
Width (inch) 27.5
Depth (inch) 26
Weight(lbs) 168
Voltage 220
Phase 1
Frequency(Hz) 60
Power(W) 2100
Current(A) 10
Airflow Low Speed(cfm) 586
Airflow High Speed(cfm) 665
Noise Level(dba) 73
Refrigerant R32
Effective Volume(cu.ft) 21,189
Typical Extraction (80˚F 60% RH) (ppd) 190
Typical Extraction (80˚F 80% RH) (ppd) 220
Heat Recovery 15,500 BTU
Min Operating Temp (°F) 33
Max OperatingTemp (°F) 95
Manufacturer's Warranty 1-Year Unconditional Warranty; 3-Year Warranty on Compressor, Condenser, and Evaporator

PD220-D Features

ON/OFF Switch Y
Remote Touch Panel Interface Y
Remote Humidistat Option Y
Internal Humidistat & Control Y
System Status Indicators Y
Internal Diagnostics Menu Y
Recirculation Mode Y
Electronic Defrost Control Y
Temperature Sensitive Defrost Y
Compressor Type Rotary
Fitted Mains Plug Y
Fan Speeds 2
Fan Type Centrifugal
Duct Flanges Y
Reverse Cycle Defrost Y
Epoxy Powder Coating Y
Gravity Drain (1/2” O/D) Y
Cartridge Air Filter Y
  • 1-Year Unconditional Warranty
  • 3-Year Warranty on Compressor, Condenser, and Evaporator
