- 1-Year Unconditional Warranty
- 3-Year Warranty on Compressor, Condenser, and Evaporator

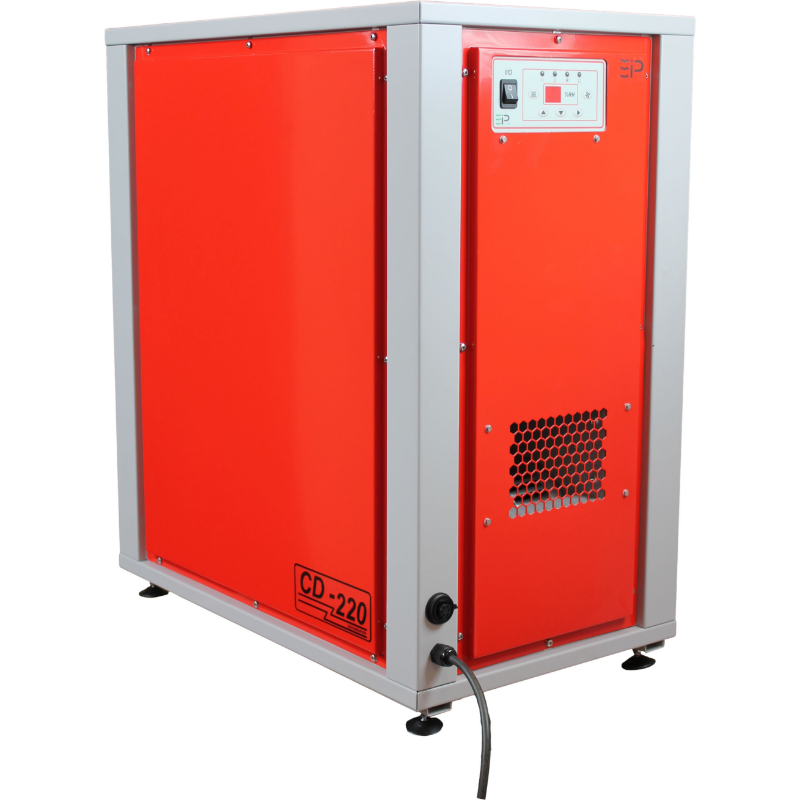

The Ebac CD220-D dehumidifier is ideal for medium-sized spaces. It automatically removes humidity and condensation in warehouses, factories, and offices. It works effectively in temperatures as low as 33°F. Importantly, it doesn't strain heating, cooling, or ventilation systems. This unit can operate alone or alongside others. It offers scalable protection. Additionally, it can be used in ducted systems.
Unique Design Features
The CD220-D dehumidifier has a unique feature: an adjustable humidistat. It also includes a remote control and a strong pump. Moreover, it comes with EIP's "Reverse Cycle" defrosting. This feature removes frost in low temperatures, ensuring efficient operation. The dehumidifier has a quiet, two-speed fan, making it easy to install. No ductwork is needed. Adjustable feet simplify installation. The coils are protected in a solid, epoxy-coated steel case.
Industrial Performance
The CD220-D's "Reverse Cycle" defrosting feature ensures smooth operation in temperatures down to 33°F, while maintaining optimum performance at higher temperatures. The twin-speed centrifugal fan maximizes air delivery over longer distances. Under maximum conditions, the CD220-D can condense and remove up to 157 ppd.
The Solution
Excess humidity in your warehouse, office, factory, or shop can lead to corrosion, mold growth, and rotting, resulting in enormous costs each year. Damaged inventory and inflated building maintenance costs due to dampness are common issues. Even if your building seems dry during the day, humidity rises at night, causing condensation. The CD220-D is the ideal solution due to its compact size and high performance.
The Dehumidifier
Ebac's CD220-D dehumidifiers control humidity by cooling air below its dew point. They collect moisture in a tray and reheat the air for a dryer environment. The units save energy by switching on and off to maintain the desired humidity level. A remote sensor feature and optional duct mounting flanges make them easy to use and install.
CD220-D Applications:
CD220-D
| Part Number | 11181GR-US |
| Height (inch) | 32.7 |
| Width (inch) | 29.5 |
| Depth (inch) | 17.5 |
| Weight (ibs) | 176 |
| Voltage | 220 |
| Phase | 1 |
| Frequency (Hz) | 60 |
| Current (A) | 11 |
| Power (kW) | 2.3 |
| Airflow Low Speed (cfm) | 585 |
| Airflow High Speed (cfm) | 664 |
| Noise Level (dbA) | 73 |
| Refrigerant | R32 |
| Effective Volume (cu.ft) | 21,189 |
| Typical Extraction (ppd) | 157 |
| Min Operating Temp (°F) | 33 |
| Max Operating Temp (°F) | 95 |
| Manufacturer's Warranty | 1-Year Unconditional Warranty; 3-Year Warranty on Compressor, Condenser, and Evaporator |
| ON/OFF Control | Y |
| Electronic Defrost Control | Y |
| Temperature Sensitive Defrost | Y |
| Compressor Type | Rotary |
| Fitted Mains Plug | Y |
| Fan Speeds | Y |
| Fan Type | Centrifugal |
| Duct Flanges | O |
| Adjustable Control Humidistat | Y |
| Reverse Cycle Defrost | Y |
| Integral Condensate Pump | Y |
| Remote Humidistat Facility | Y |
| Epoxy Powder Coating | Y |
| Adjustable Feet | Y |
| Steel Construction | Y |
| Washable Air Filter & Easy Release Catch | Y |
