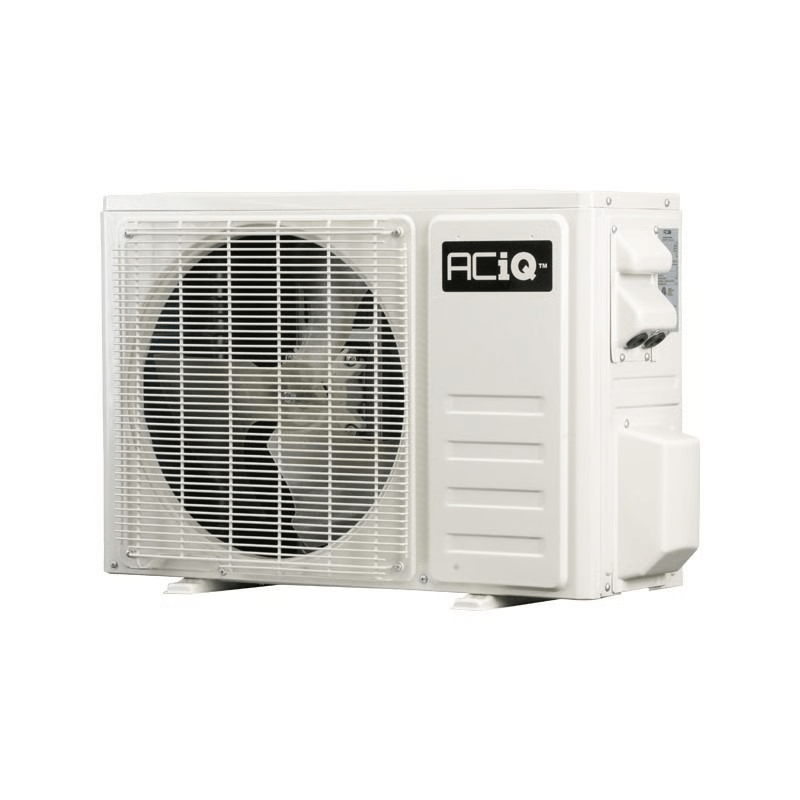

ACIQ-K09Z-HP230B / ACIQ-K09W-BL-HP230B black side view
ACIQ 9000 BTU ACiQ Single Zone Air Handler with WiFi black front view

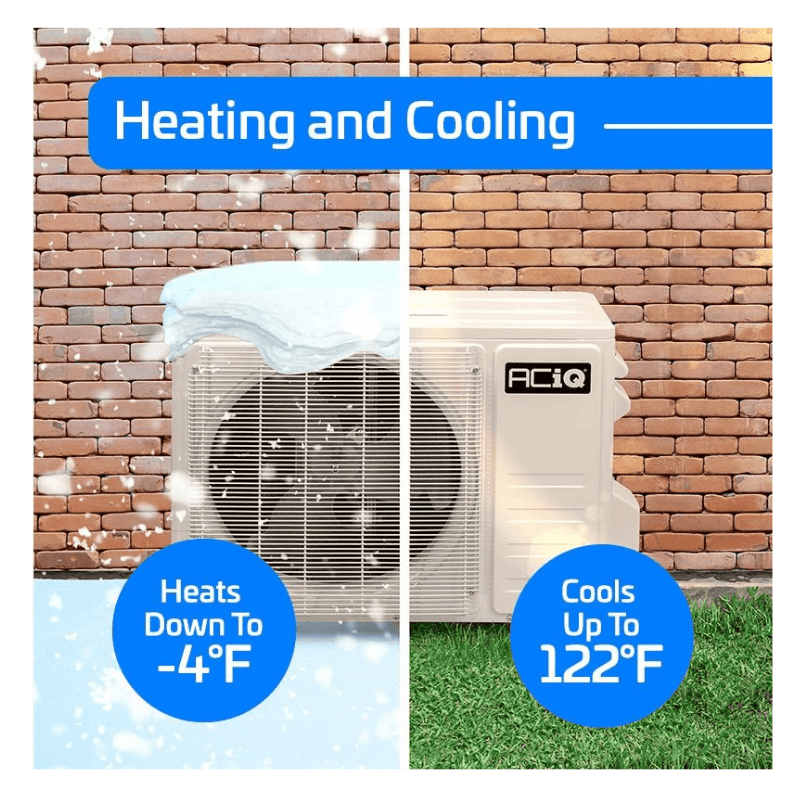

ACIQ-K09Z-HP230B / ACIQ-K09W-BL-HP230B mini split heating and cooling
ACIQ-K09Z-HP230B / ACIQ-K09W-BL-HP230B black controlled using smartphone
ACIQ-K09Z-HP230B / ACIQ-K09W-BL-HP230B black warranty
ACIQ-K09Z-HP230B / ACIQ-K09W-BL-HP230B black operating quietly in living room with family watching TV and 28 dBA noise rating

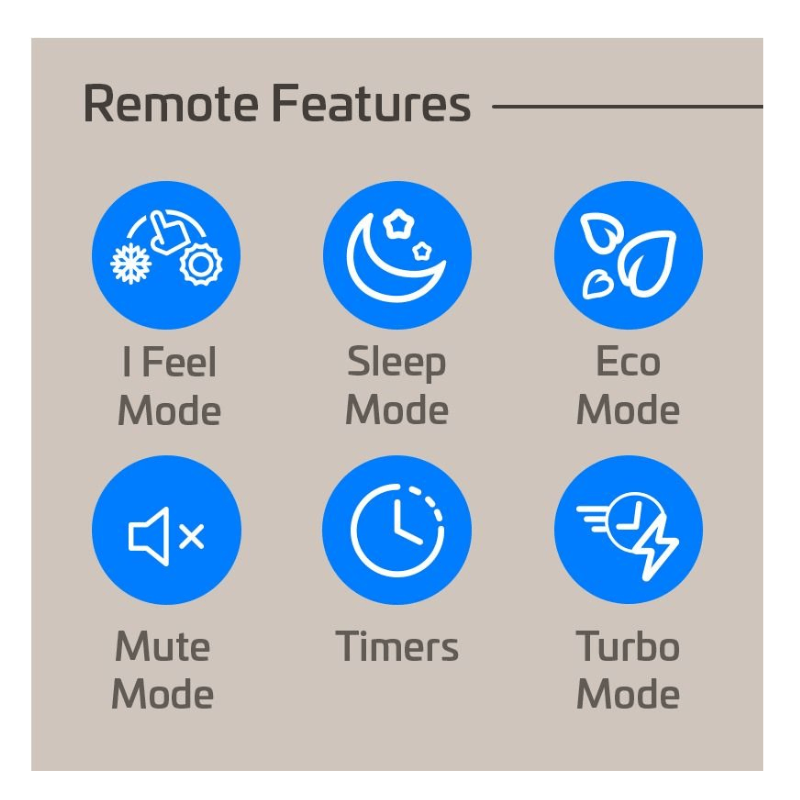

ACIQ-K09Z-HP230B / ACIQ-K09W-BL-HP230B black remote features

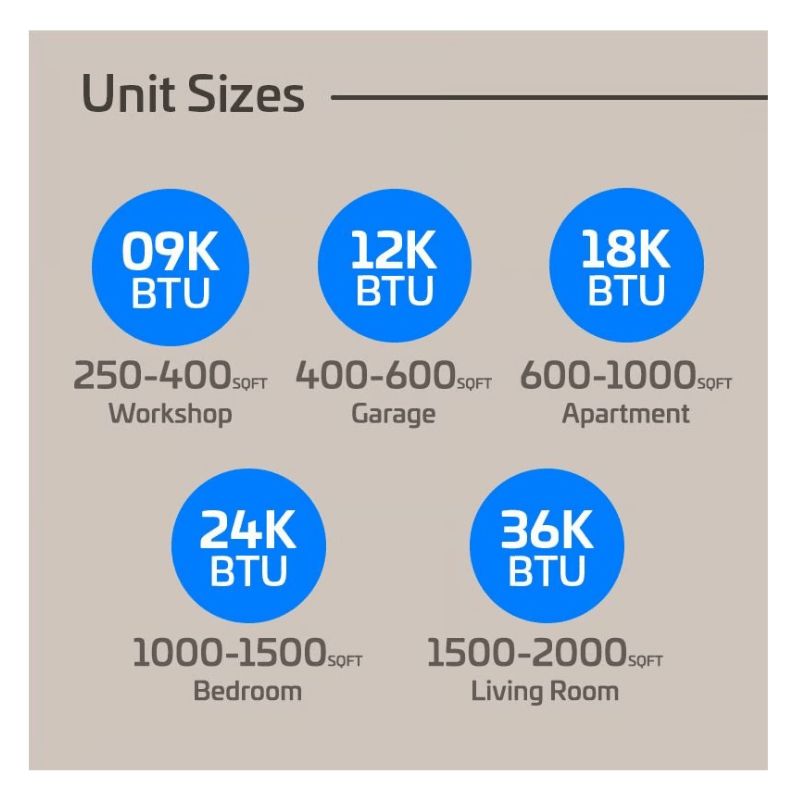

ACIQ-K09Z-HP230B / ACIQ-K09W-BL-HP230B black sizing diagram
Roll over image to zoom in Click on image to zoom
ACIQ-K09Z-HP230B / ACIQ-K09W-BL-HP230B black mini split bundleACIQ-K09Z-HP230B / ACIQ-K09W-BL-HP230B black what's includedACIQ-K09Z-HP230B / ACIQ-K09W-BL-HP230Bblack dimension specsACIQ-K09Z-HP230B / ACIQ-K09W-BL-HP230B black side viewACIQ 9000 BTU ACiQ Single Zone Air Handler with WiFi black front viewACIQ-K09Z-HP230B / ACIQ-K09W-BL-HP230B mini split heating and coolingACIQ-K09Z-HP230B / ACIQ-K09W-BL-HP230B black controlled using smartphoneACIQ-K09Z-HP230B / ACIQ-K09W-BL-HP230B black warrantyACIQ-K09Z-HP230B / ACIQ-K09W-BL-HP230B black operating quietly in living room with family watching TV and 28 dBA noise ratingACIQ-K09Z-HP230B / ACIQ-K09W-BL-HP230B black remote featuresACIQ-K09Z-HP230B / ACIQ-K09W-BL-HP230B black sizing diagram ACiQ Essentials The simple Affordable Mini Split Solution For Every Home

ACiQ Essentials 9,000 BTU 20 SEER2 Single Zone Wall Mounted Mini Split System - R454B | Black | 230V

ACiQ SKU: ACIQ-K09Z-HP230B / ACIQ-K09W-BL-HP230B
Price:
$709.99

Description

Stay Cool & Save Energy: ACiQ 9,000 BTU 20 SEER2 Wall-Mounted Mini Split

Are you tired of hot, uncomfortable rooms or skyrocketing energy bills? The ACiQ Essentials 9,000 BTU 20 SEER2 Wall-Mounted Mini Split System is designed to keep you comfortable year-round while saving energy. Its smart adaptive technology constantly monitors your room and maintains the temperature you want—no manual adjustments needed. With WiFi connectivity, you can control your system from anywhere using your smartphone, tablet, or voice commands via Amazon Alexa and Google Assistant. Plus, its quiet operation means you’ll enjoy peaceful, distraction-free comfort.



Ideal For You If You Want:

  • Comfort in Small Spaces: Bedrooms, home offices, or cozy living areas.
  • Smart Home Convenience: Take full control of your system from your smart device.
  • Energy Efficiency Without Compromise: Stay cool or warm without skyrocketing your bills.
  • Sleek, Modern Design: Fits nicely in your home without being an eyesore.

.

Why You’ll Love This Mini Split?

  • Smart Temperature Control: Your room stays at the perfect temperature with minimal effort.
  • Save on Energy Bills: With a 20 SEER2 rating, you get powerful cooling and heating while keeping your electricity costs low.
  • Control From Anywhere: WiFi-ready and compatible with Amazon Alexa and Google Assistant, so you can adjust settings from your phone, tablet, or voice commands—even when you’re away.
  • Quiet & Peaceful: Relax, sleep, or work without distractions from loud HVAC noise.
  • Easy to Install (Professional Recommended): Comes with all mounting hardware and instructions, but a licensed HVAC technician is recommended for proper setup.

ACiQ Essentials 9,000 BTU 20 SEER2 Mini Split System Features

  • 9,000 BTU Cooling & Heating: Compact yet powerful to handle a single room effortlessly.
  • 20 SEER2 Energy Efficiency: Advanced technology saves energy while delivering comfort.
  • LED Display & Smart Remote: Instantly see temperature, modes, and error codes.
  • WiFi & Voice Control Ready: Compatible with iOS, Android, Alexa, and Google Assistant.
  • Adaptive Technology: Automatically adjusts airflow to maintain your set temperature

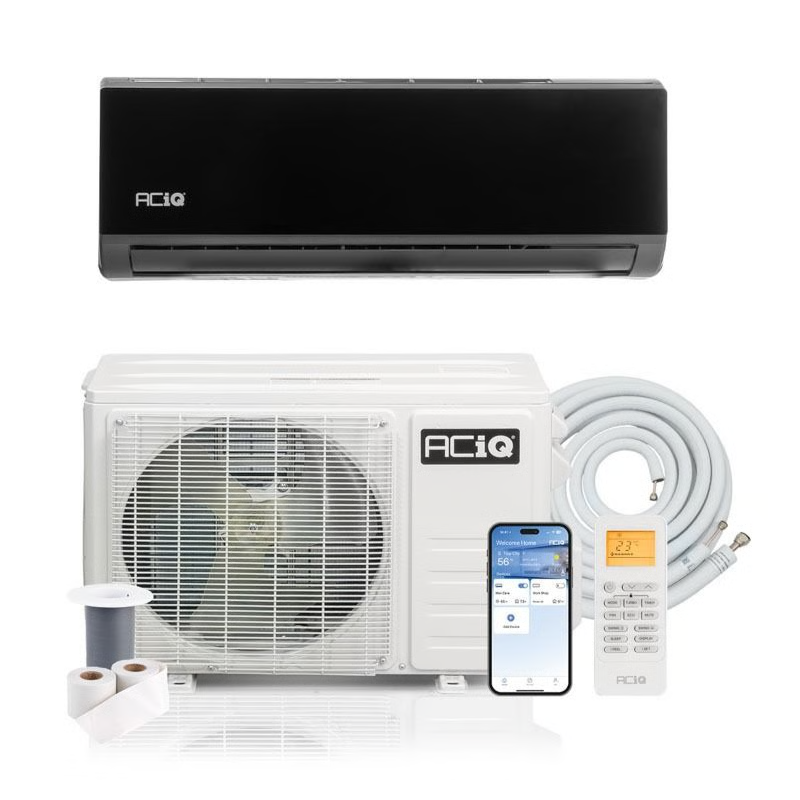

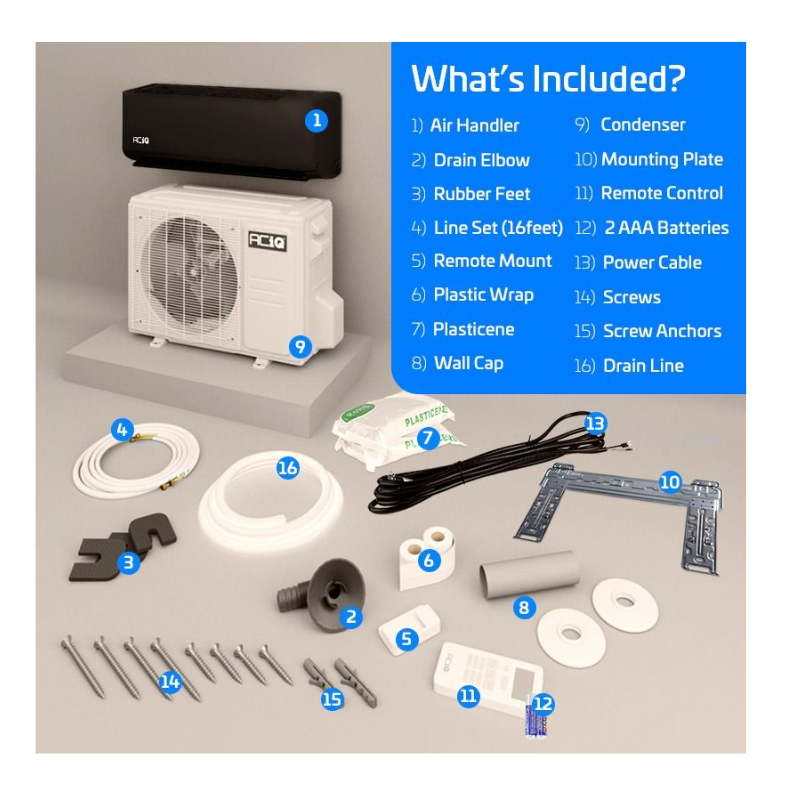

What's Included

Everything you need is included with your CiQ Essentials Mini Split Package.

  • 1 ACiQ Essentials Condenser
  • 1 ACiQ Essentials Air Handler in Black
  • 1 ACiQ Essentials Remote Control
  • Rubber Feet
  • Plasticine
  • Mounting Plate
  • Plastic Wrap
  • Screws (Short)
  • Drain Elbow
  • Drain Lines
  • 2 AAA Batteries
  • 16 foot Line Set (Not Pre Charged)
  • Wall Cap
  • Anchors
  • Power Cords
  • Screws (Long)

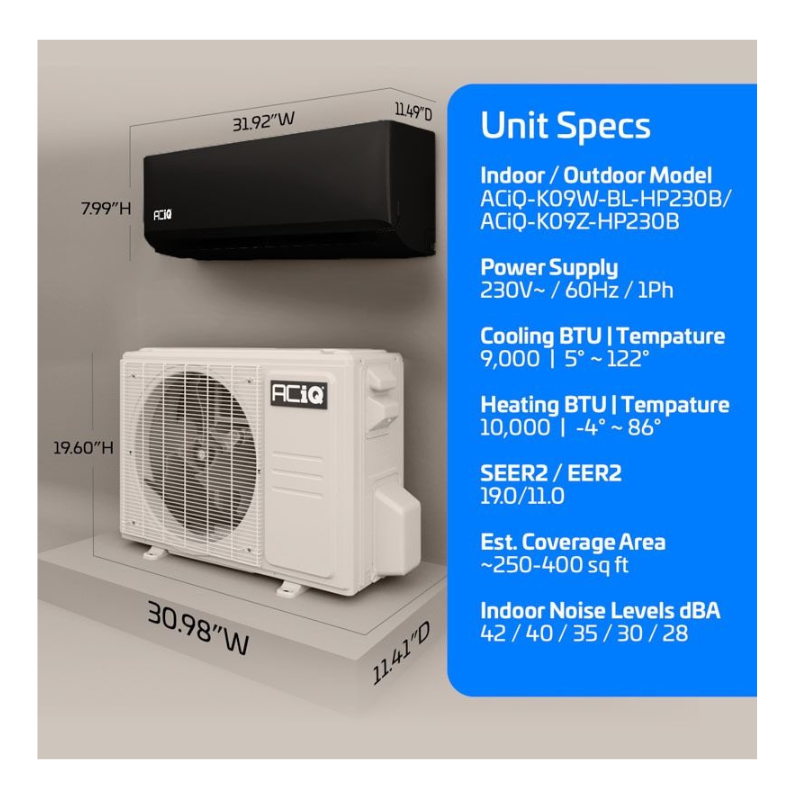

ACIQ-K09Z-HP230B / ACIQ-K09W-BL-HP230B Specs

SKU ACIQ-K09Z-HP230B ACIQ-K09W-BL-HP230B
Manufacturer ACiQ ACiQ
Weight (in lbs) 58.90 26.50
HSPF2 10 10
Cooling BTU 9000 BTU 9000 BTU
Heating BTU 9000 BTU 9000 BTU
Decibel Level (dBA) 54 43
Refrigerant R454B R454B
Compressor Type Rotary N/A
Liquid Line 1/4" 1/4"
Suction Line 5/8" 5/8"
Zone Compatibility Single Zone Single Zone
Height 19.6 7.99
Width 30.98 31.92
Depth 11.41 11.49
BTU/Tonnage 9,000 BTU/0.75 Ton 9,000 BTU/0.75 Ton
Mini Split Type N/A Wall Mounted
SEER2 (Efficiency) 20 20

ACiQ Essentials 9,000 BTU 20 SEER2 Single Zone Wall Mounted Mini Split Resources

Owner's Manual

Service Manual

Submittal Data Sheet

User Manual

Warranty Manual

ACiQ Industry-Leading Warranties
ACiQ stands behind every product with exceptional warranty coverage, ensuring long-term reliability and peace of mind. Online registration is required to activate full warranty benefits.

Product Warranty Details

  • Mini Split and High-Efficiency Systems: 12-year compressor, 7-year parts
  • ACiQ Essentials: 6-year compressor, 4-year parts
  • A.C. and Heat Pump Condenser: 10-year compressor and coil
  • Furnace: Lifetime warranty for original owner
  • Air Handler and Coil: 10-year parts for original owner
  • Residential Packaged Units: Lifetime heat exchanger for original owner
  • PTAC: 7-year compressor, 1-year parts
  • Commercial Packaged Units: 10-year heat exchanger, 5-year compressor, 1-year parts
  • Pool Heat Pump: 5-year heat exchanger and compressor, 3-year parts
  • Hybrid Water Heater: 12-year tank, 10-year parts
  • Mobile Home Electric Furnace and Coil: 10-year parts

Warranty Claim Process

  1. System Diagnosis
  2. Method of Resolution
  3. Warranty Acceptance
  4. Faulty Parts Inspected
  5. Replacement Parts Shipped

Register Your System
Activate your warranty at ACiQ.com.

Need Assistance?
For warranty claims or inquiries, click here.
