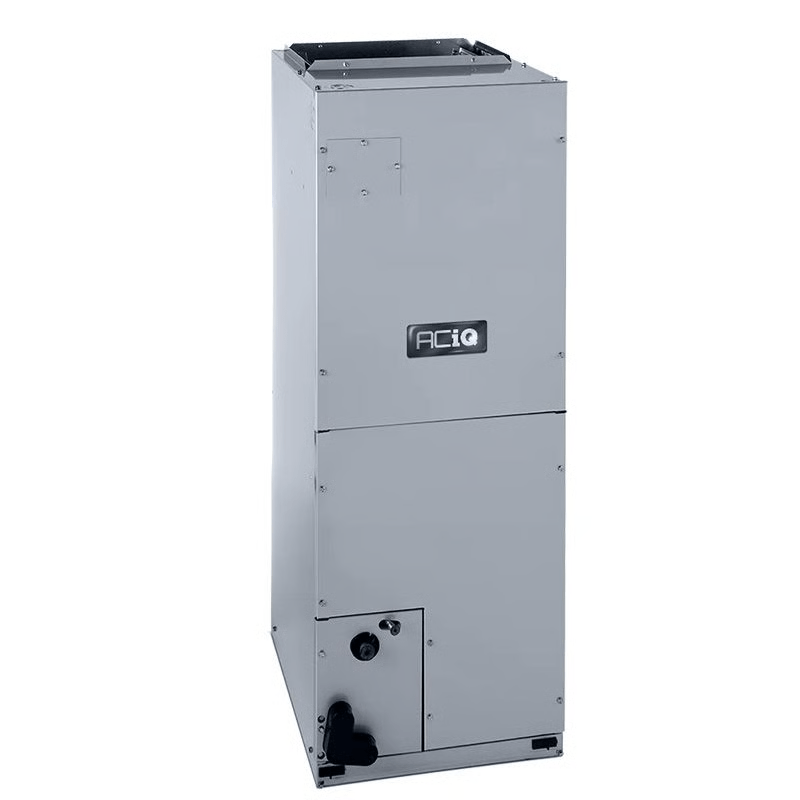

Front of ACiQ 5 Ton Central Ducted Air Handler

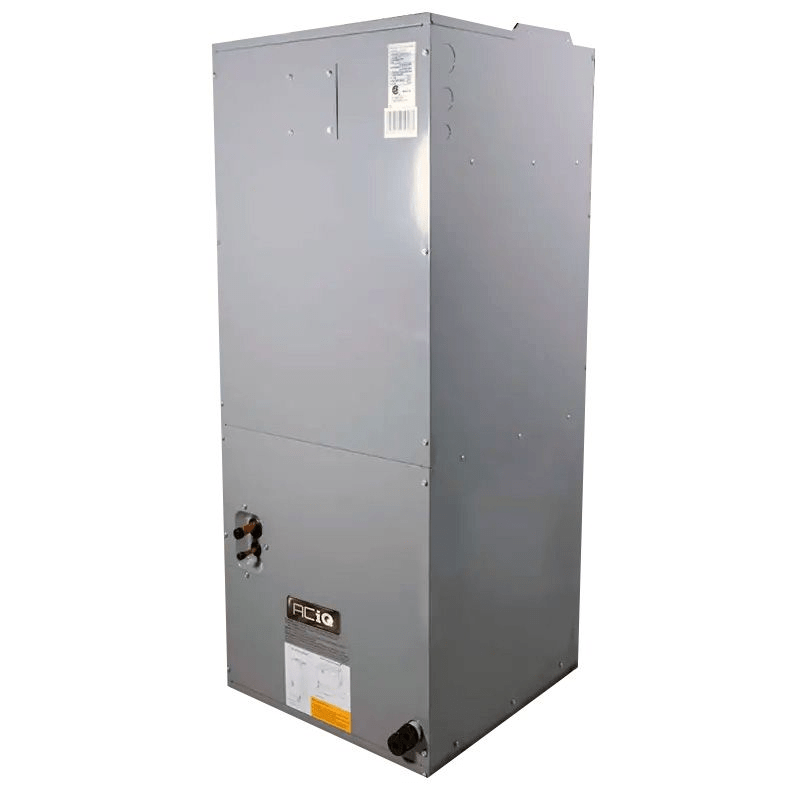

Side of ACiQ 5 Ton Central Ducted Air Handler

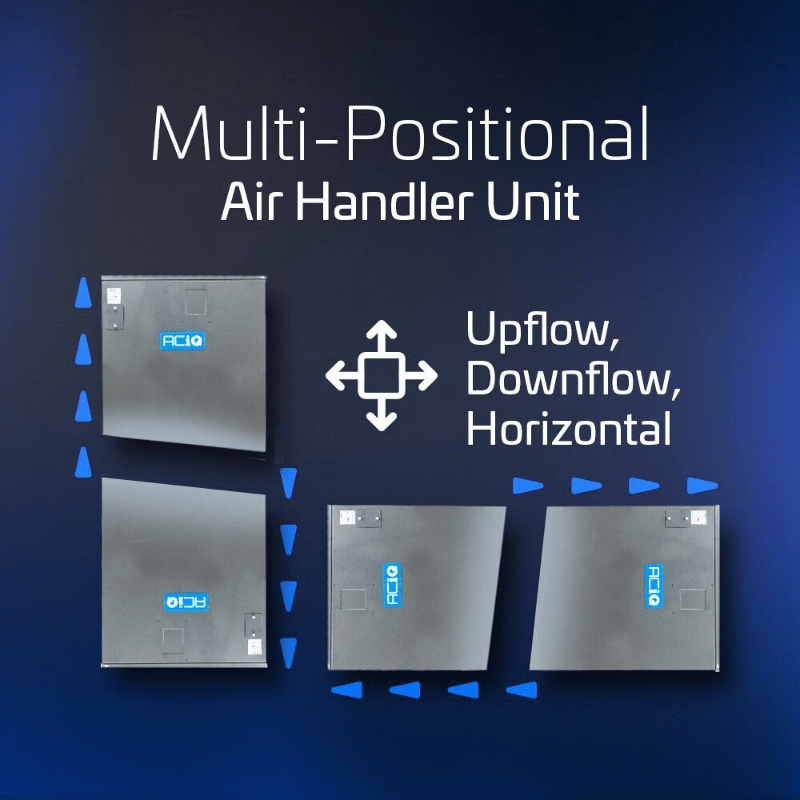

ACiQ 5 Ton Central Ducted Air Handler Configuration Graphics

ACiQ 5 Ton Central Ducted Air Handler Smart Home App

Roll over image to zoom in Click on image to zoom

ACiQ 5 Ton Central Ducted Air Handler - R454B

Name: ACiQ 5 Ton Central Ducted Air Handler - R454B
Brand: ACiQ
SKU: ACIQ-60-AHD
Price: 1437.00 USD
Availability: InStock

ACiQ SKU: ACIQ-60-AHD

Price:

$1,437.00

Quantity:

Heavy-Duty Comfort for Demanding Spaces: ACiQ 5 Ton Central Ducted Air Handler with Variable Speed & R454B Compatibility

The ACiQ-60-AHD 5 Ton Central Ducted Air Handler is engineered to deliver powerful, precise airflow for large residential or light commercial applications. With its variable speed DC blower and advanced communicating technology, this air handler automatically adapts output to meet your indoor climate needs. Fully compatible with R454B refrigerant and multi-position installation, it’s the ideal upgrade for scalable, energy-efficient comfort.

Ideal For:

✔ Large Homes, Multi-Zone Systems – Maintains consistent airflow across wide floor plans.

✔ Retail, Restaurants, Clinics – Quiet, reliable performance for high-traffic environments.

✔ Light Commercial Buildings – Designed to handle high demand with smart, energy-saving operation.

✔ Mobile or Modular Structures – Multi-position flexibility fits tight or unconventional spaces.

Certifications & Safety Features:

Supports High Efficiency: Up to 18.8 SEER2, 11.0 EER2, and 9.7 HSPF2 (when properly paired)
Multi-Position Installation: Installs in upflow, downflow, or horizontal left/right configurations
Eco-Friendly Operation: Fully compatible with R454B, a low-GWP refrigerant
Built-In Diagnostic Board: Displays fault codes for fast maintenance and troubleshooting
Optional Fiberglass-Free Insulation: Helps reduce condensation and improve efficiency
Electric Heat Ready: Supports backup heating for cold-weather operation

ACIQ-60-AHD Features

57,000 BTU Cooling Output, 60,000 BTU Heating Output (5 Ton) – Distributes heated or cooled air efficiently in large square footage
Variable Speed DC Blower – Delivers smooth, precise airflow while enhancing humidity control and minimizing energy use
Smart Communication – Self-adjusts BTU output based on inverter condenser and thermostat signals
Quiet Operation – Designed for low-noise performance across fan speeds
Flexible Controls – Works with basic 24V thermostats or advanced ACiQ smart controllers
Service-Friendly Design – Maintenance is made easy with front-access panels and error code display
Cold Climate Capable – Optional electric heat kit ensures uninterrupted comfort in freezing temperatures
Future-Ready Refrigerant – R454B compatibility ensures compliance with evolving environmental standards

ACiQ 5 Ton Central Ducted Air Handler Specs

SKU	ACIQ-60-AHD
Weight (in lbs)	192.90
Brand/Manufacturer	ACiQ
Replaces	ACiQ-48-AHB
Cooling BTU	57,000
Maximum CFM	1601
Decibel Level (dBA)	Up to 52 Decibels
Electric Backup Heat Capabilities (Optional)	5 Kilowatts, 10 Kilowatts, 15 Kilowatts, 20 Kilowatts
Configuration	Multi-Positional
Refrigerant	R454B
Liquid Valve Size	3/8"
Suction Valve Size	3/4"
Electrical	208/230V 1 Phase 60 Hz
Max Breaker Size	15 Amps
Min. Breaker Size	14.5 / 11.0 Amps
Tonnage	5 Ton
BTU/Tonnage	57,000 BTU/5 Ton
Mini Split Type	Multi-Positional
Zone Compatibility	Single Zone
Connection	Flared
Height	53"
Width	24.5"
Depth	21"
Warranty	12 Years Compressor and 7 Years Parts with Online Registration

ACiQ 5 Ton Central Ducted Air Handler Resources

ACiQ 5 Ton Central Ducted Air Handler Install Manual

ACiQ 5 Ton Central Ducted Air Handler Service Manual

ACiQ 5 Ton Central Ducted Air Handler Specs Sheet

ACiQ Industry-Leading Warranties
ACiQ stands behind every product with exceptional warranty coverage, ensuring long-term reliability and peace of mind. Online registration is required to activate full warranty benefits.

Product Warranty Details

Mini Split and High-Efficiency Systems: 12-year compressor, 7-year parts
ACiQ Essentials: 6-year compressor, 4-year parts
A.C. and Heat Pump Condenser: 10-year compressor and coil
Furnace: Lifetime warranty for original owner
Air Handler and Coil: 10-year parts for original owner
Residential Packaged Units: Lifetime heat exchanger for original owner
PTAC: 7-year compressor, 1-year parts
Commercial Packaged Units: 10-year heat exchanger, 5-year compressor, 1-year parts
Pool Heat Pump: 5-year heat exchanger and compressor, 3-year parts
Hybrid Water Heater: 12-year tank, 10-year parts
Mobile Home Electric Furnace and Coil: 10-year parts
