ACiQ 5 Ton 15.2 SEER2 High Efficiency Central Heat Pump | Inverter - R454B

ACiQ SKU: ACIQ-60-EHPD

Price:
Sale price$4,407.00

Description

Heavy-Duty Efficiency with the ACiQ 5 Ton 15.2 SEER2 High Efficiency Central Heat Pump!

The ACiQ 5 Ton 15.2 SEER2 Central Heat Pump is designed for demanding spaces that require powerful performance without compromising efficiency. Featuring inverter technology, it intelligently adjusts compressor speed based on real-time demand, delivering exact heating or cooling output needed—no more, no less. With an efficiency rating of 15.2 SEER2, advanced R454B refrigerant, and wide temperature range operation, it’s a perfect solution for large commercial or institutional HVAC systems that value reliability and long-term energy savings.



Ideal For:

Large Commercial Buildings & Facilities – Offers high-capacity heating and cooling for expansive workspaces with reduced energy overhead.

Big Box Retail & Grocery Chains – Maintains climate control in high-traffic, high-load zones without short cycling or inconsistent airflow.

Hotels, Event Venues & Conference Centers – Ensures large, multi-room spaces stay comfortable year-round with quiet, efficient operation.

Warehouses & Distribution Centers – Built to perform in demanding environments with wide outdoor temperature tolerances.

Educational & Healthcare Campuses – Keeps multiple zones comfortable, energy-efficient, and adaptable to changing occupancy and temperature demands.



Control Options:

  • Two-way communication wired controller
  • Optional WiFi-enabled controller
  • Wireless remote control
  • Third-party 24V thermostat compatible



Certifications & Safety Features:

  • Energy Efficient: 15.2 SEER2 rating ensures consistent savings, even at high workloads.
  • Eco-Conscious: Uses R454B refrigerant, designed for high efficiency with reduced global warming potential.
  • Gold Fin Condenser Protection: Extends unit life with corrosion resistance and weather durability.
  • Quiet Operation: Optimized for large-scale use without disturbing occupants or operations.
  • Warranty Included: Standard manufacturer warranty coverage offers long-term reliability.
  • Mobile & Modular Building Ready: Certified for a wide range of installation environments.

ACiQ ACIQ-60-EHPD Features

  • Variable Capacity Output: Adjusts between 12,000–54,000 BTU (cooling and heating) to match demand without waste.
  • Inverter-Driven Compressor: Converts AC to DC for variable speed control, optimizing efficiency and comfort.
  • Smart Learning Condenser: Collects performance data on startup to improve operation over time automatically.
  • Adaptive Sizing Technology: Automatically scales operation to fit seasonal needs—runs smaller in summer to avoid humidity issues.
  • Extreme Temperature Performance: Delivers reliable heating from -13°F to 75°F and cooling up to 122°F.
  • Quiet Efficiency: Designed for low-noise operation even under full load, ideal for environments where silence matters.
  • No Short Cycling: Smooth output modulation ensures long system life and consistent air delivery.
  • Rugged Design: Built to perform in industrial and commercial-grade conditions, minimizing maintenance needs.

ACiQ 5 Ton 15.2 SEER2 High Efficiency Central Heat Pump Specs

SKU ACiQ-60-EHPD
Refrigerant Charge 25'
Weight (in lbs) 224.21
Brand/Manufacturer ACiQ
Replaces ACiQ-60-EHPB
Product Features Inverter, Two Stage Condenser, Variable Speed Condenser
HSPF2 8.4
Cooling BTU 57,000 BTU
Heating BTU 60,000 BTU
Maximum CFM 1807
Decibel Level (dBA) 65
Electric Heat Heat Pump
Refrigerant R454B
SEER2 (Efficiency) 15.2
Condenser Stages Variable Speed
Compressor Type Rotary

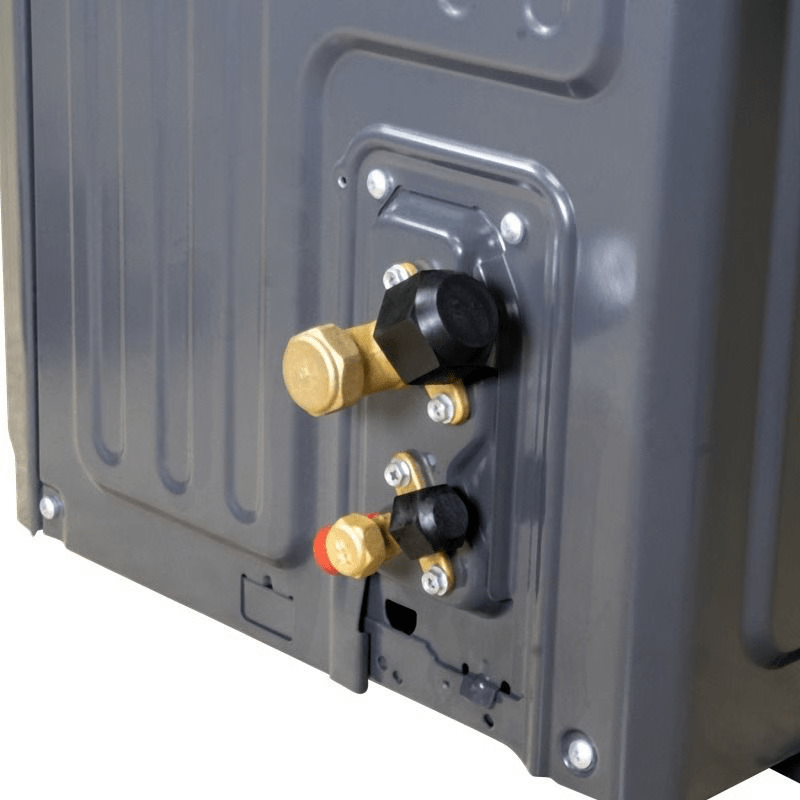

Liquid Valve Size 3/8"
Suction Valve Size 3/4"
Electrical 208/230V 1 Phase 60 Hz
Max Breaker Size 40 Amps
Min. Breaker Size 36 Amps
Tonnage 4 Ton
BTU/Tonnage 60,000 BTU/5 Ton
Min/Max Outdoor Temp for Heating -13°F - 75°F
Min/Max Outdoor Temp for Cooling -13°F - 122°F
Ambient Temperature Range -13°F - 122°F
Height 38.4"
Width 38.6"
Depth 16.3"
Warranty 12 Years Compressor and 7 Years Parts with Online Registration

ACiQ Industry-Leading Warranties
ACiQ stands behind every product with exceptional warranty coverage, ensuring long-term reliability and peace of mind. Online registration is required to activate full warranty benefits.

Product Warranty Details

  • Mini Split and High-Efficiency Systems: 12-year compressor, 7-year parts
  • ACiQ Essentials: 6-year compressor, 4-year parts
  • A.C. and Heat Pump Condenser: 10-year compressor and coil
  • Furnace: Lifetime warranty for original owner
  • Air Handler and Coil: 10-year parts for original owner
  • Residential Packaged Units: Lifetime heat exchanger for original owner
  • PTAC: 7-year compressor, 1-year parts
  • Commercial Packaged Units: 10-year heat exchanger, 5-year compressor, 1-year parts
  • Pool Heat Pump: 5-year heat exchanger and compressor, 3-year parts
  • Hybrid Water Heater: 12-year tank, 10-year parts
  • Mobile Home Electric Furnace and Coil: 10-year parts

Warranty Claim Process

  1. System Diagnosis
  2. Method of Resolution
  3. Warranty Acceptance
  4. Faulty Parts Inspected
  5. Replacement Parts Shipped

Register Your System
Activate your warranty at ACiQ.com.

Need Assistance?
For warranty claims or inquiries, click here.

30-Day Hassle Free Returns Guarantee Icon

Free 30-Day Returns

Confidence Comes Standard: 30-Day Free Returns, Zero Risk - See Full Return Policy Here
