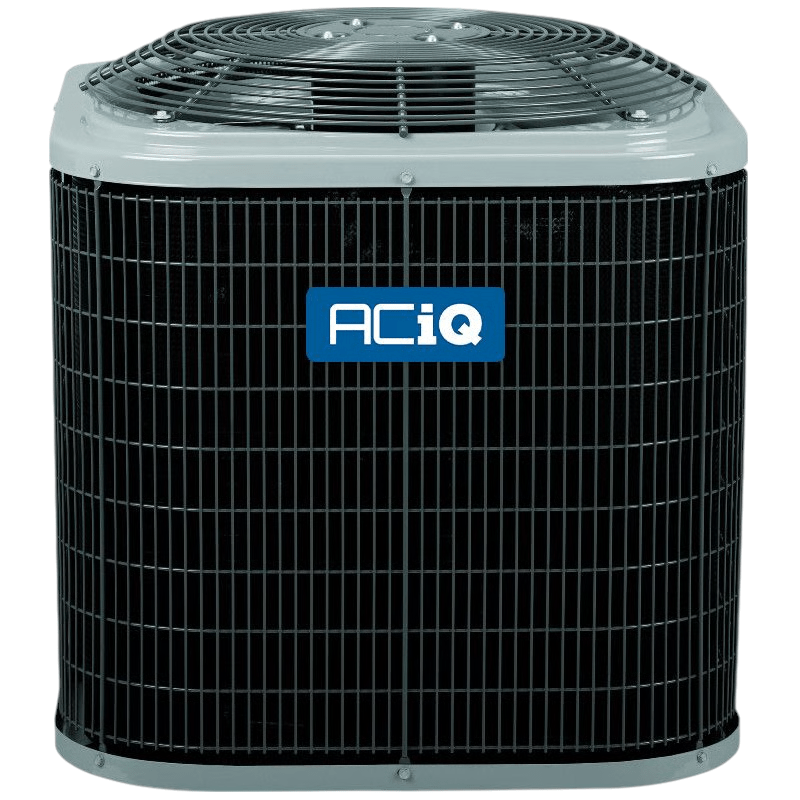

A front view of the ACiQ 5 Ton 14.3 SEER2 Heat Pump - R454B condenser unit, showing the ACiQ logo

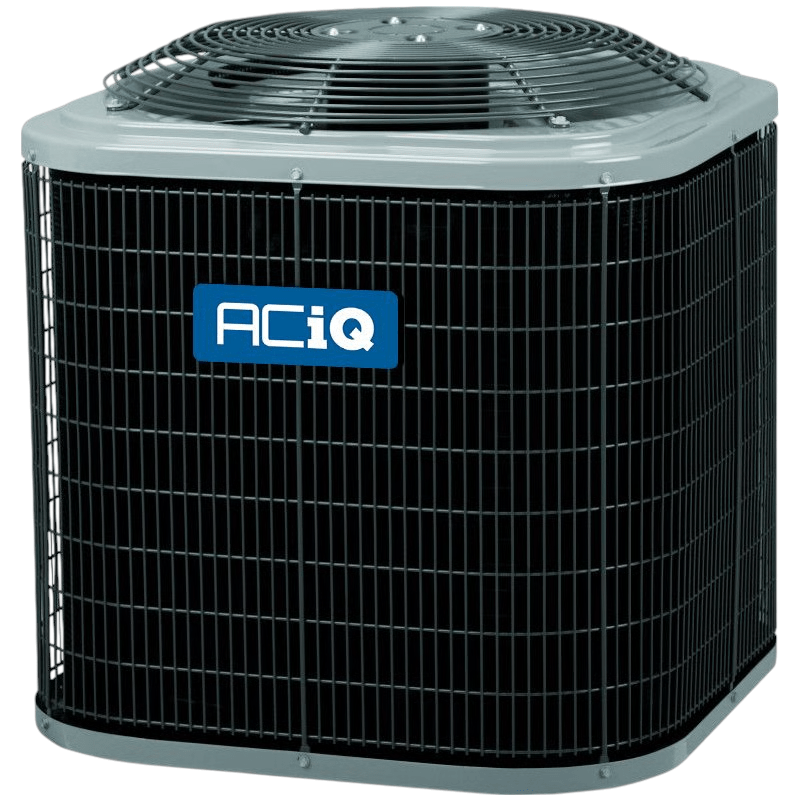

A left-angled view of the ACiQ 5 Ton 14.3 SEER2 Heat Pump - R454B condenser unit

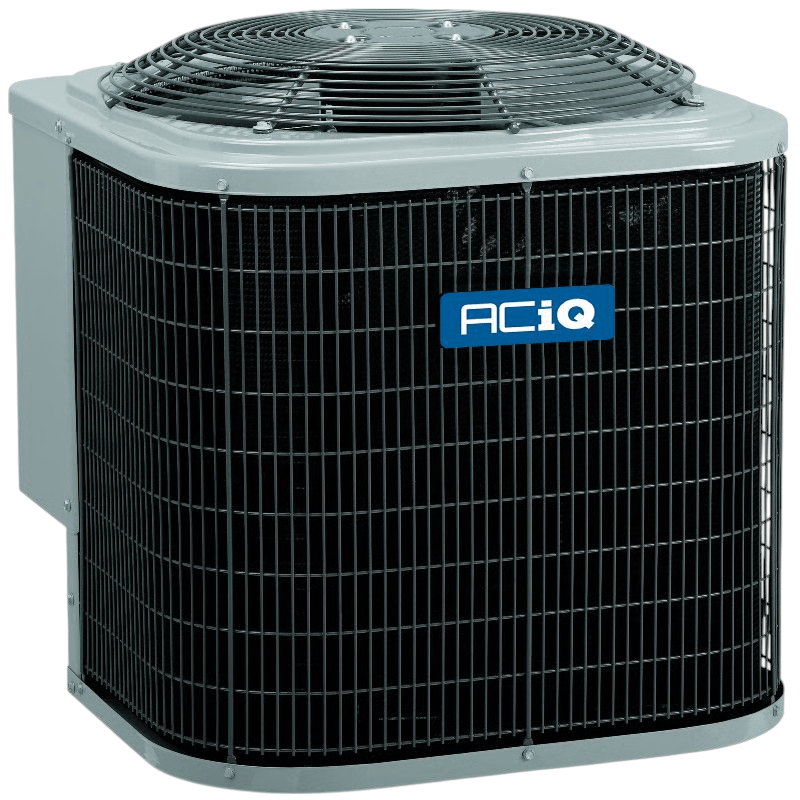

A right-angled view of the ACiQ 5 Ton 14.3 SEER2 Heat Pump - R454B condenser unit

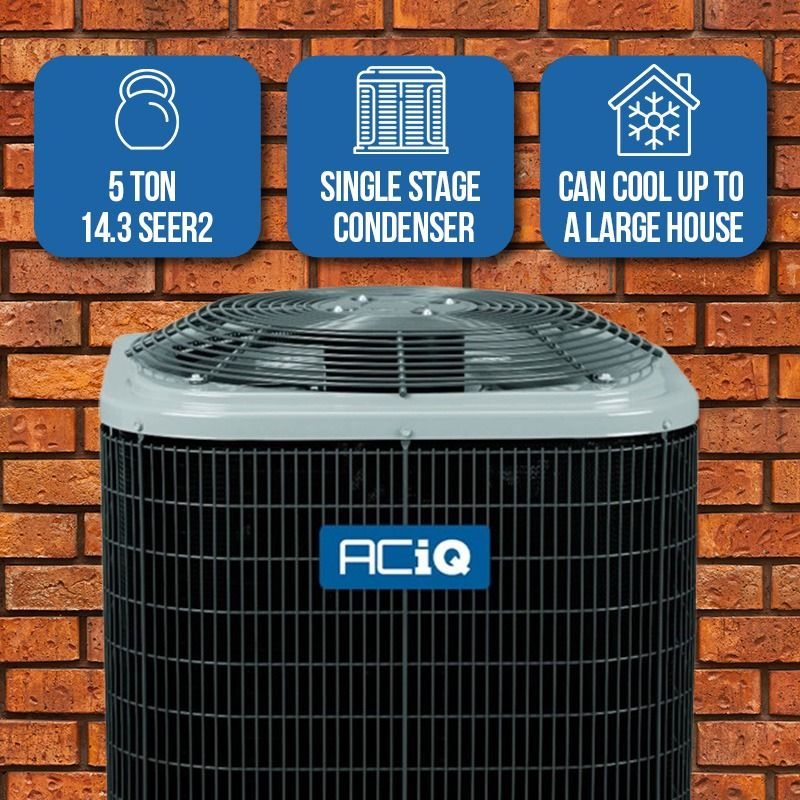

Front view of the ACiQ 5 Ton 14.3 SEER2 Heat Pump with Infographic features
Roll over image to zoom in Click on image to zoom
A front view of the ACiQ 5 Ton 14.3 SEER2 Heat Pump - R454B condenser unit, showing the ACiQ logoA left-angled view of the ACiQ 5 Ton 14.3 SEER2 Heat Pump - R454B condenser unitA right-angled view of the ACiQ 5 Ton 14.3 SEER2 Heat Pump - R454B condenser unitFront view of the ACiQ 5 Ton 14.3 SEER2 Heat Pump with Infographic features

ACiQ 5 Ton 14.3 SEER2 Heat Pump - R454B

ACiQ SKU: R5H5S60AKAAA
Price:
$4,366.00

Description

Powerful Comfort with ACiQ 5 Ton 14.3 SEER2 Heat Pump – R454B Ready

The ACiQ R5H5S60AKAAA is a 5-ton heat pump condenser that offers both efficient heating and cooling for large homes. With a 14.3 SEER2 rating and factory pre-charged R-454B refrigerant, this unit is designed to reduce energy consumption and lower installation costs. Its single-stage compressor ensures quiet and reliable performance, while the unit’s capability to efficiently heat down to 35°F and provide cooling in warmer conditions makes it ideal for moderate climates.



Ideal For

  • HVAC Contractors & Installers – Pre-charged for 15 ft line sets, reducing installation time and labor costs by eliminating the need for refrigerant charging on-site.
  • Large Homes & Residential Applications – Designed to efficiently heat and cool larger homes or multi-zone areas.
  • Property Managers & Developers – Offers 5–7% higher efficiency than 13.4 SEER2 systems, leading to long-term energy savings.
  • Eco-Friendly Installations – Features R-454B refrigerant, a low-GWP option that complies with modern environmental standards.
  • A2L-Compliant Installations – Requires pairing with R-454B-compatible air handlers or coils equipped with leak detection to ensure safe operation and warranty coverage.



Certifications & Safety Features

  • 10-Year Limited Parts Warranty (valid with certified coil installation and online registration)
  • Internal compressor overload protection and pressure relief valve
  • UL Listed for safety and reliability
  • A2L Compliance: Must be paired with R-454B-compatible units with leak detection to ensure safe operation and maintain warranty

ACiQ 5 Ton 14.3 SEER2 Heat Pump – Key Features & Benefits

  • 5 Ton / ~60,000 BTU/hr Heating & Cooling Capacity – Ideal for large homes or multi-zone residential spaces.
  • 14.3 SEER2 Efficiency – 5–7% more energy efficient than standard 13.4 SEER2 units, leading to significant savings on energy bills.
  • Single-Stage Scroll Compressor – Provides reliable, quiet operation with fewer moving parts, ensuring long-term durability.
  • Pre-Charged with R-454B Refrigerant – Ready for fast installation, eliminating the need for manual refrigerant charging for up to 15 ft line sets.
  • Durable Cabinet Construction – Features reinforced corner posts and an inlet grille to enhance protection and longevity.
  • Quiet Performance – Designed for minimal noise, providing comfort without disrupting your living environment.
  • Heating Down to 35°F – Provides efficient heating in moderate climates; requires a backup heat strip for lower temperatures.
  • Factory-Tested for Reliability – 100% run-tested to ensure high performance and optimal reliability.
  • Filter Drier Included – Keeps refrigerant lines clean and moisture-free, promoting the system's long-term health.
  • 10-Year Warranty – Extended protection when registered online, ensuring dependable operation and peace of mind.

ACiQ R5H5S60AKAAA Heat Pump Specs

SKU R5H5S60AKAAA
Refrigerant Charge 15'
Weight (in lbs) 254
Replaces R4H5S
Product Features New Refrigerant Compliant
HSPF2 7.5
Cooling / Heating BTU 60,000
Maximum CFM 4300
Decibel Level (dBA) 74
Motor RPM 800
Horsepower 1/4 HP
Refrigerant R454B
SEER2 (Efficiency) 14.3
Condenser Stages Single Stage
Compressor Type Scroll
Liquid Valve Size 3/8"
Suction Valve Size 7/8"
Electrical 208/230v 1Ph 60Hz
Phase Single Phase
Max Breaker Size 50 Amps
Min. Breaker Size 31.1 Amps
Tonnage 5 Ton
Height 35 1/2"
Width 35"
Depth 35"
Warranty 10 Years Parts with Online Registration
