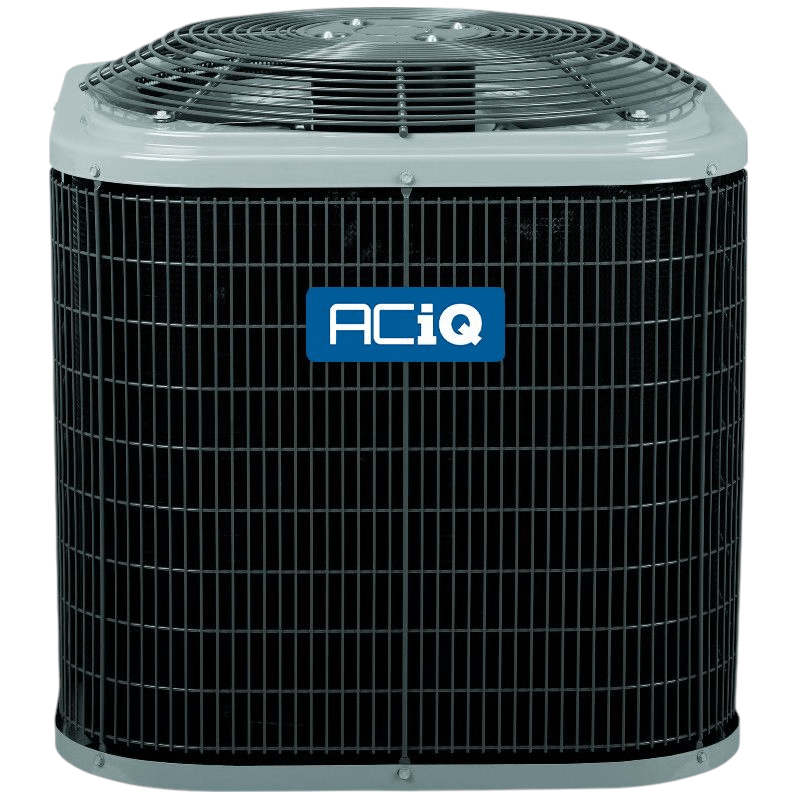

Front-center view of the ACiQ 5 Ton 13.8 SEER2 Air Conditioner Condenser

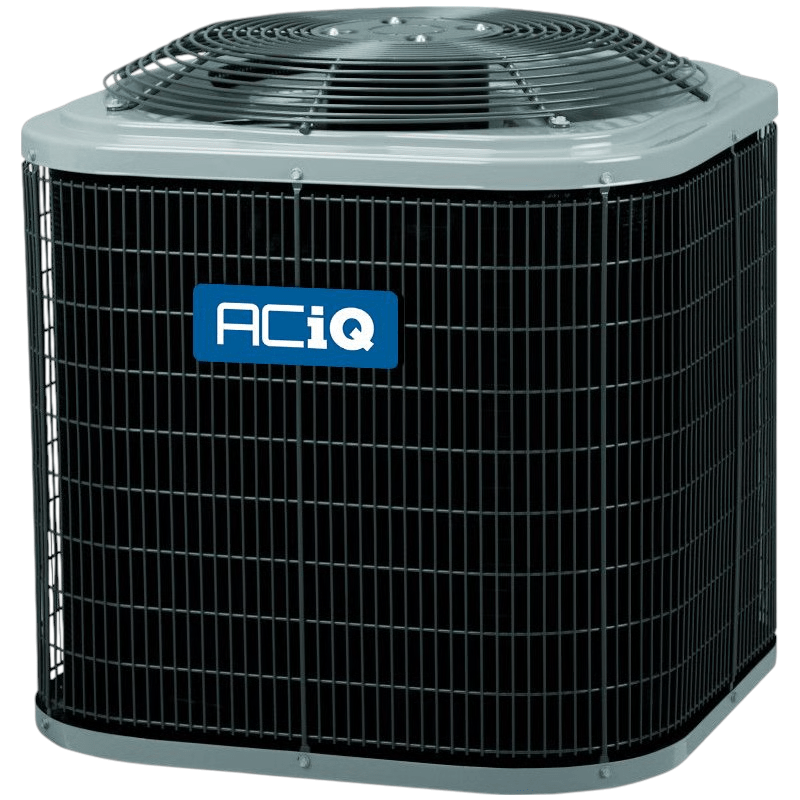

Left side view of the ACiQ 5 Ton 13.8 SEER2 Air Conditioner Condenser

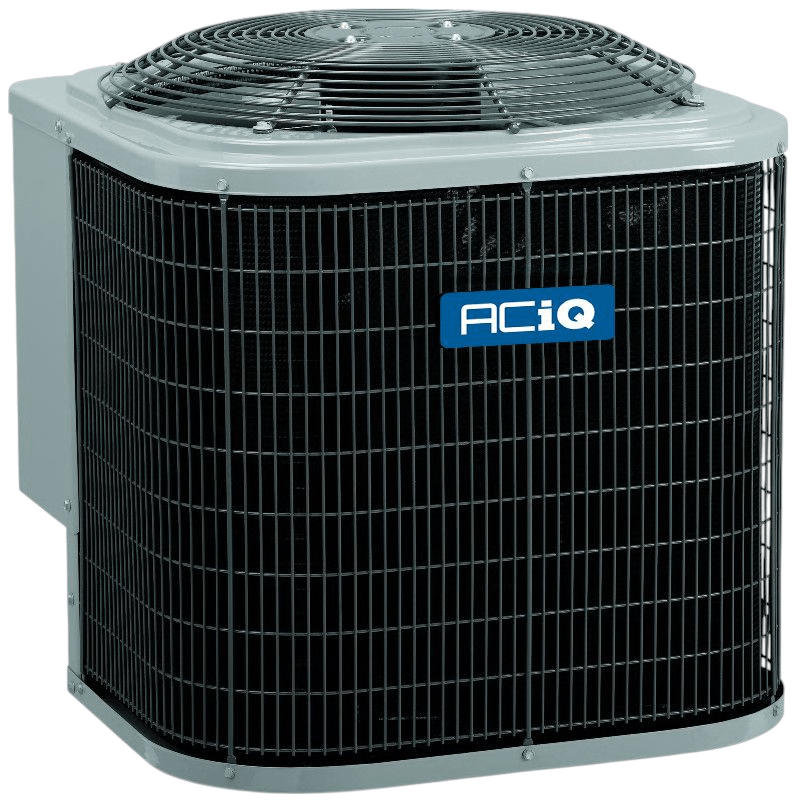

Right side view of the ACiQ 5 Ton 13.8 SEER2 Air Conditioner Condenser

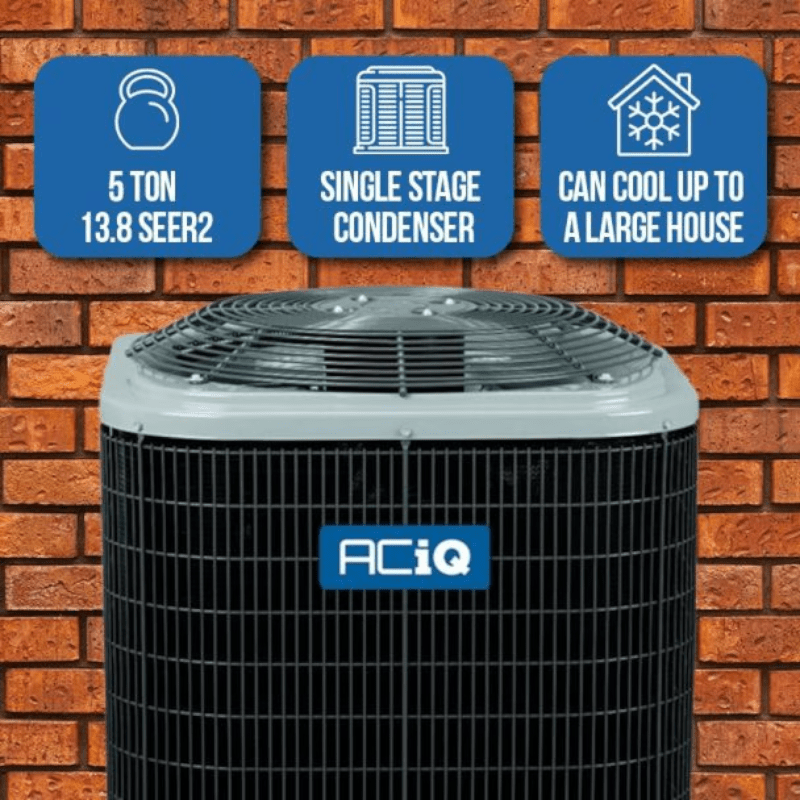

Front view of the ACiQ 5 Ton 13.8 SEER2 Air Conditioner Condenser with Infographic features
Roll over image to zoom in Click on image to zoom
Front-center view of the ACiQ 5 Ton 13.8 SEER2 Air Conditioner CondenserLeft side view of the ACiQ 5 Ton 13.8 SEER2 Air Conditioner CondenserRight side view of the ACiQ 5 Ton 13.8 SEER2 Air Conditioner CondenserFront view of the ACiQ 5 Ton 13.8 SEER2 Air Conditioner Condenser with Infographic features

ACiQ 5 Ton 13.8 SEER2 Air Conditioner Condenser - R454B

ACiQ SKU: R5A5S60AKAWA
Price:
$2,810.00

Description

Efficient Whole-Home Cooling With The ACiQ R5A5S60AKAWA 5 Ton 13.8 SEER2 Condenser!

The ACiQ R5A5S60AKAWA is a 5-ton AC-only condenser engineered for powerful cooling performance in large homes or light commercial buildings. With a high-efficiency 13.8 SEER2 rating and pre-charged R-454B refrigerant, it’s built for energy-conscious installs, smooth performance, and regulatory compliance. Its quiet operation, durable cabinet, and A2L-ready design make it an excellent solution for professionals seeking dependable, large-capacity cooling.



Ideal For

  • HVAC Professionals & Contractors – Factory pre-charged for 15 ft line sets to simplify installation and reduce errors.
  • Large Homes & Multi-Zone Buildings – Delivers high-capacity cooling for open floorplans and high occupancy spaces.
  • Builders & Property Managers – 5–7% more energy efficient than 13.4 SEER2 units, helping reduce utility costs long-term.
  • Sustainable Projects – R-454B refrigerant meets low-GWP, non-ozone-depleting environmental standards.
  • A2L-Compliant Installations – Must be paired with an R-454B-compatible air handler or coil equipped with leak detection.



Certifications & Safety Features

  • 10-Year Limited Parts Warranty (valid with certified coil and online registration)
  • Internal pressure relief valve and compressor thermal overload protection
  • UL Listed; meets A2L refrigerant safety and system integrity standards
  • A2L Safety Disclaimer: Unit must be installed with an R-454B-rated coil or air handler with a leak detection system to avoid safety risks and maintain warranty coverage

ACiQ 5 Ton 13.8 SEER2 Air Conditioner Condenser – Key Features & Benefits

  • 5 Ton / ~60,000 BTU/hr Cooling Capacity – Supports powerful cooling for large homes or demanding environments.
  • 13.8 SEER2 High Efficiency – Saves more energy over time than 13.4 SEER2 units; up to 63% more efficient than older 10 SEER models.
  • Scroll Compressor (Single-Stage) – Delivers smooth and quiet operation with minimal maintenance needs.
  • Pre-Charged with R-454B Refrigerant – Eco-friendly and ready to install with no on-site charging for 15 ft line sets.
  • Durable Cabinet Construction – Reinforced corner posts, inlet grille, and protective coil coatings offer long life in tough conditions.
  • Leak Detection Compatibility – Required for A2L refrigerants to ensure safe operation and warranty protection.
  • Quiet Performance – Engineered for quiet operation in both residential and mixed-use settings.
  • 100% Factory Run-Tested – Ensures reliability and performance right out of the box.
  • Extended System Protection – Includes filter drier and is backed by a 10-year registered parts warranty.

ACiQ R5A5S60AKAWA Conditioner Condenser Specs

SKU R5A5S60AKAWA
Refrigerant Charge 15'
Weight (in lbs) 215
Brand/Manufacturer ACiQ
Replaces R4A5S60AKAWA
Product Features New Refrigerant Compliant
Cooling BTU 60,000
Maximum CFM 3900
Decibel Level (dBA) 75 Decibels
Motor RPM 1100
Horsepower 1/4 HP
Refrigerant R454B
SEER2 (Efficiency) 13.8
Condenser Stages Single Stage
Compressor Type Scroll
Liquid Valve Size 3/8"
Suction Valve Size 7/8"
Electrical 208/230v 1 Phase 60 Hz
Tonnage 5 Ton
Certification UL Listed
Height 38 7/16"
Width 31 3/16"
Depth 31 3/16"
Warranty 10 Years Parts Warranty with Online Registration

ACiQ Industry-Leading Warranties
ACiQ stands behind every product with exceptional warranty coverage, ensuring long-term reliability and peace of mind. Online registration is required to activate full warranty benefits.

Product Warranty Details

  • Mini Split and High-Efficiency Systems: 12-year compressor, 7-year parts
  • ACiQ Essentials: 6-year compressor, 4-year parts
  • A.C. and Heat Pump Condenser: 10-year compressor and coil
  • Furnace: Lifetime warranty for original owner
  • Air Handler and Coil: 10-year parts for original owner
  • Residential Packaged Units: Lifetime heat exchanger for original owner
  • PTAC: 7-year compressor, 1-year parts
  • Commercial Packaged Units: 10-year heat exchanger, 5-year compressor, 1-year parts
  • Pool Heat Pump: 5-year heat exchanger and compressor, 3-year parts
  • Hybrid Water Heater: 12-year tank, 10-year parts
  • Mobile Home Electric Furnace and Coil: 10-year parts

Warranty Claim Process

  1. System Diagnosis
  2. Method of Resolution
  3. Warranty Acceptance
  4. Faulty Parts Inspected
  5. Replacement Parts Shipped

Register Your System
Activate your warranty at ACiQ.com.
