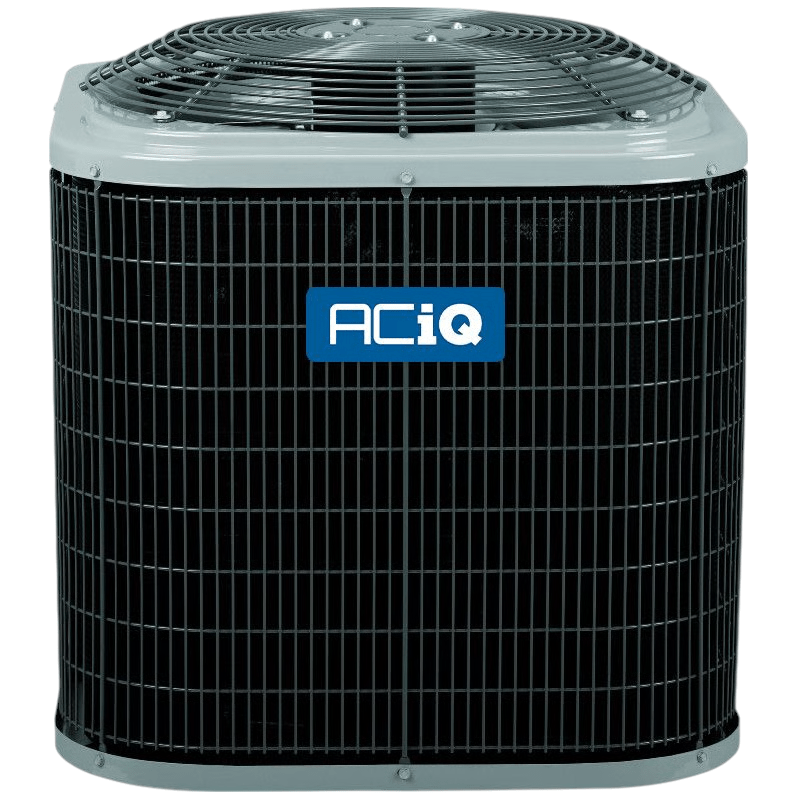

Front-center view of the ACiQ 5 Ton 13.4 SEER2 Air Conditioner Condenser

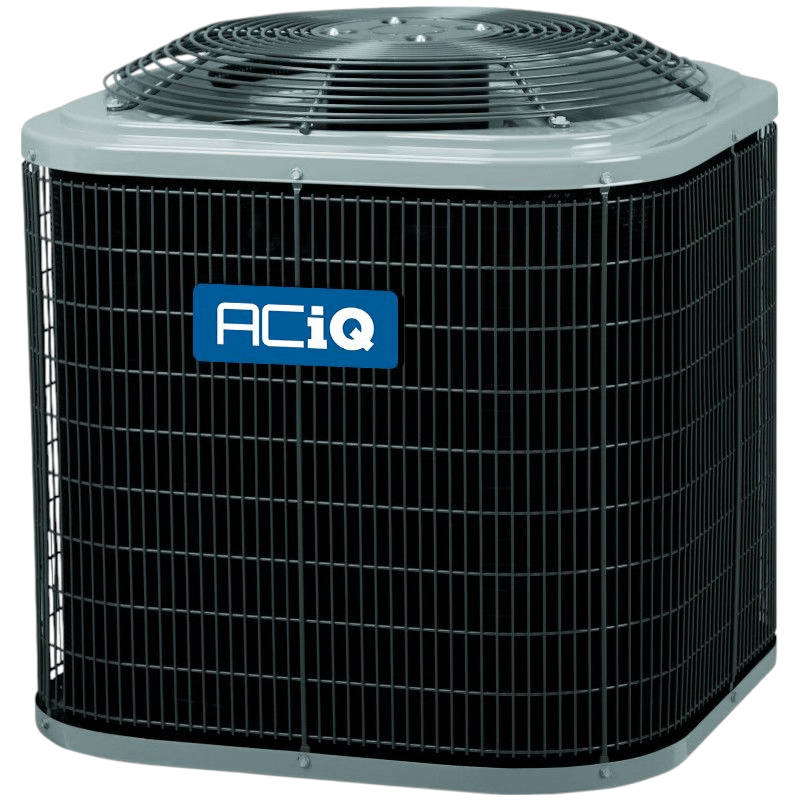

Right side view of the ACiQ 5 Ton 13.4 SEER2 Air Conditioner Condenser

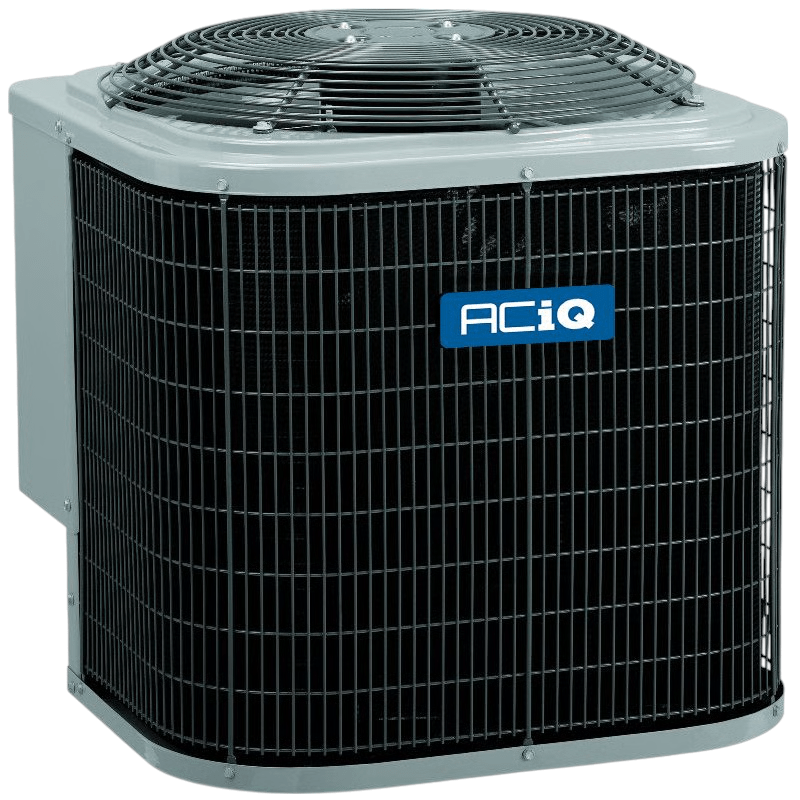

Left side view of the ACiQ 5 Ton 13.4 SEER2 Air Conditioner Condenser

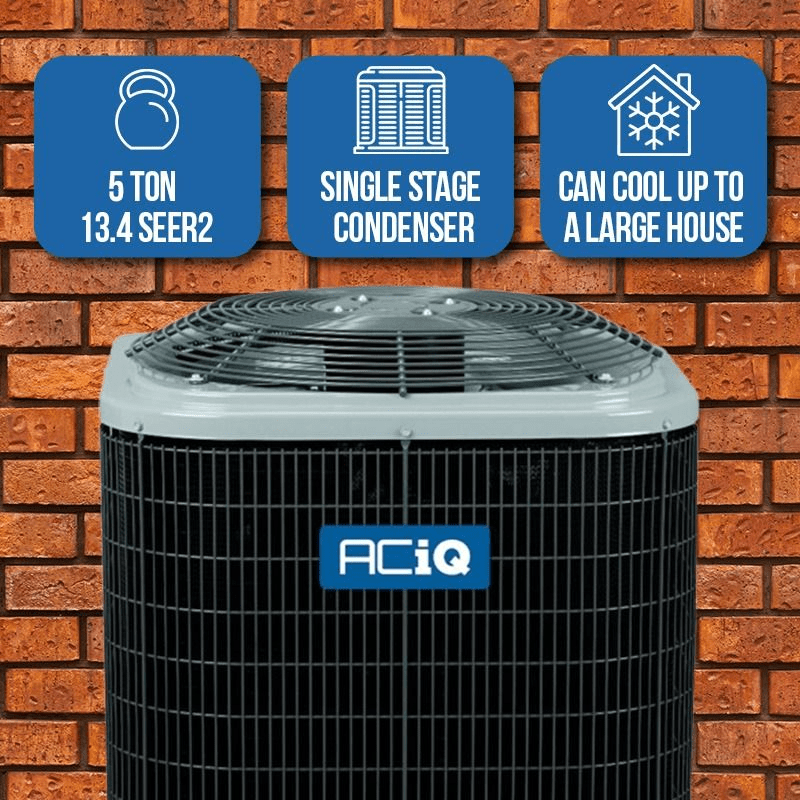

Front view of the ACiQ 5 Ton 13.4 SEER2 Air Conditioner Condenser with Infographic features
Roll over image to zoom in Click on image to zoom
Front-center view of the ACiQ 5 Ton 13.4 SEER2 Air Conditioner CondenserRight side view of the ACiQ 5 Ton 13.4 SEER2 Air Conditioner CondenserLeft side view of the ACiQ 5 Ton 13.4 SEER2 Air Conditioner CondenserFront view of the ACiQ 5 Ton 13.4 SEER2 Air Conditioner Condenser with Infographic features

ACiQ 5 Ton 13.4 SEER2 Air Conditioner Condenser - R454B

ACiQ SKU: R5A4S60AKANA
Price:
$2,520.00

Description

Heavy-Duty Cooling Power for Larger Homes with ACiQ R5A4S60AKANA 5 Ton Condenser!

The ACiQ R5A4S60AKANA is a robust 5-ton AC-only condenser designed for dependable cooling in large residential properties or light commercial spaces. Rated at 13.4 SEER2 and pre-charged with R-454B refrigerant, this system delivers long-term energy savings, eco-compliance, and hassle-free installation. With a heavy-duty cabinet and field-proven performance, this condenser is a smart investment for contractors and project developers.



Ideal For

  • HVAC Contractors & Installers – Comes pre-charged for a 15 ft line set, saving time and ensuring proper system start-up.
  • Large Homes & Commercial Buildings – Ideal for cooling larger floor plans or high-occupancy areas with reliable airflow.
  • Property Developers & Facility Managers – Reduces energy costs with 5–7% more efficiency compared to older 13 SEER1 systems.
  • Sustainable Building Projects – Uses low-GWP R-454B refrigerant, meeting modern environmental and regulatory standards.
  • Cold-Climate Use – Compatible with optional low-ambient kits for operation down to 0°F.



Certifications & Safety Features

  • 10-Year Limited Parts Warranty (with certified installation and registration)
  • Compressor overload protection and internal pressure relief valve
  • UL Listed for safety and manufacturing compliance

ACiQ 5 Ton 13.4 SEER2 Air Conditioner Condenser – Key Features & Benefits

  • 5 Ton / ~60,000 BTU/hr Cooling Capacity – Designed for large homes or commercial zones requiring powerful cooling.
  • 13.4 SEER2 Energy Efficiency – Delivers up to 7% energy savings over standard 13 SEER1 units.
  • Single-Stage Scroll Compressor – Ensures smooth and consistent performance with fewer moving parts.
  • R-454B Refrigerant – Environmentally responsible with low global warming potential and no ozone depletion.
  • Pre-Charged from Factory – Includes refrigerant for a 15 ft line set for quick, error-free installation.
  • Reinforced Steel Cabinet – Features protective corner posts and inlet grille for enhanced durability in harsh conditions.
  • Flexible Compatibility – Easily integrates with a properly matched indoor coil or air handler.
  • Low-Ambient Capable – Works in colder climates when paired with an approved low-ambient kit.
  • Quiet Operation – Minimizes outdoor noise for a more comfortable indoor experience.

ACiQ R5A4S60AKANA Conditioner Condenser Specs

SKU R5A4S60AKANA
Refrigerant Charge 15'
Weight (in lbs) 204
Brand/Manufacturer ACiQ
Replaces R5A4S60AKANA
Equivalent Carrier Equivalent:24ABB360ABN3/ Tempstar Equivalent:R4A360GKH/ Bryant Equivalent:113ANA060000
Cooling BTU 60000
Maximum CFM 4000
Decibel Level (dBA) 74 Decibels
Motor RPM 1100
Horsepower 1/4 HP
Refrigerant R454B
SEER2 (Efficiency) 13.4
Condenser Stages Single Stage
Compressor Type Scroll
Liquid Valve Size 3/8"
Suction Valve Size 1 1/8"
Electrical 208/230v 1 Phase 60 Hz
Max Breaker Size 50 Amps
Min. Breaker Size 31.1 Amps
Tonnage 5 Ton
Connection Sweat
Certification UL Listed
Height 31 11/16"
Width 31 3/16"
Depth 31 3/16"
Warranty 10 Years Parts Warranty with Online Registration
