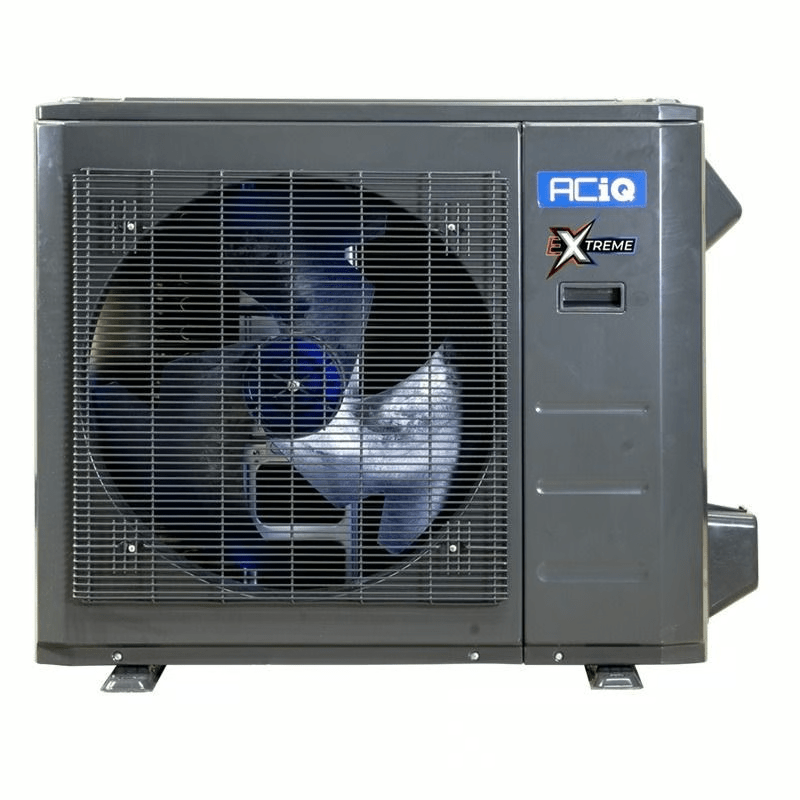

ACiQ 4 ton high efficiency heat pump AC condenser unit R454B advanced cooling
ACiQ 4 ton AC condenser energy efficient inverter technology R454B

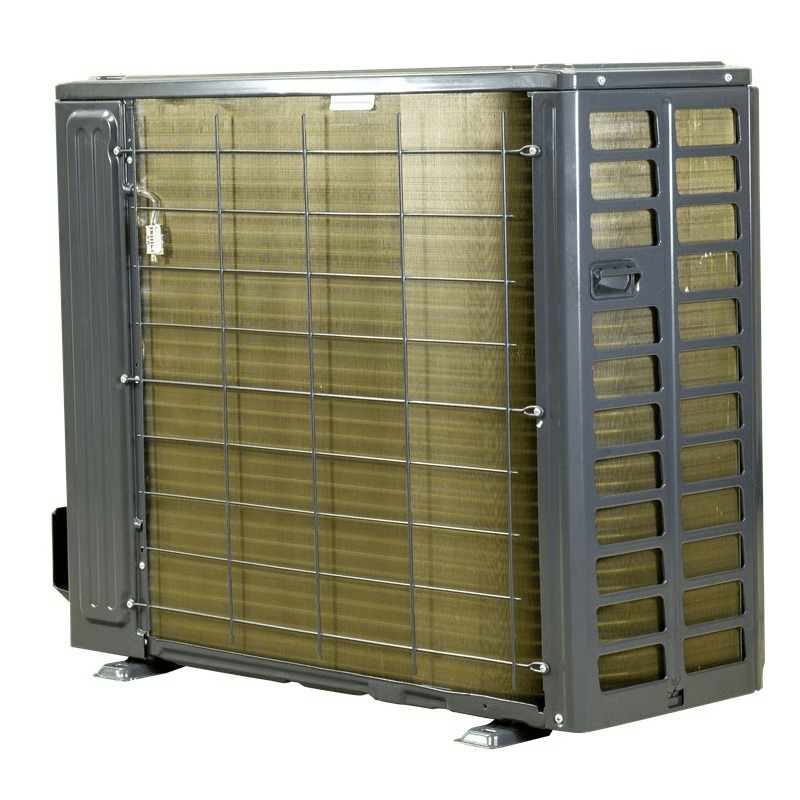

ACiQ 4 ton R454B AC condenser unit for large scale HVAC applications

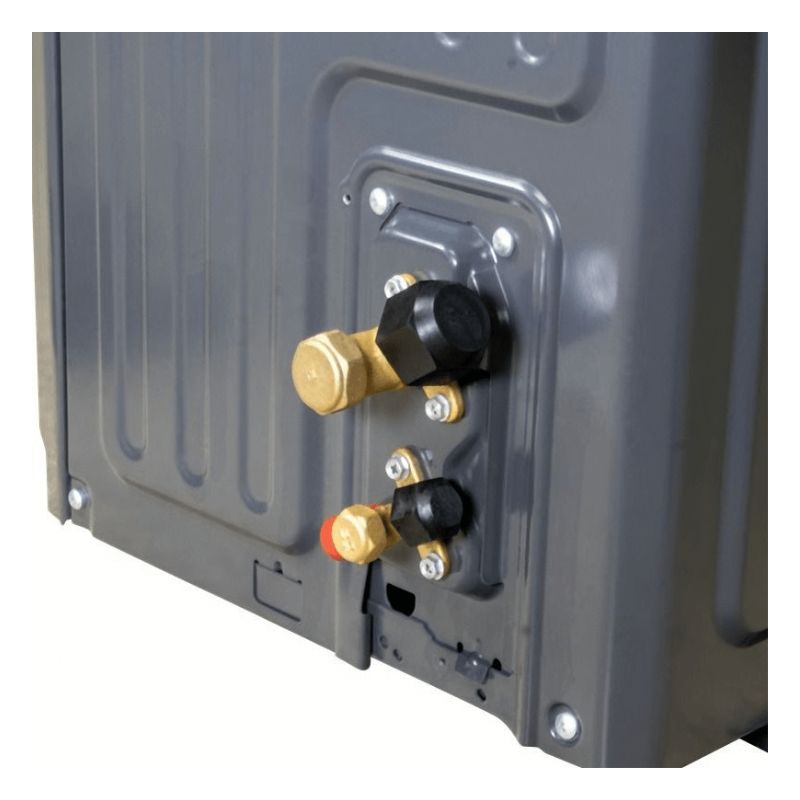

ACiQ 4 ton central HVAC AC condenser heat pump system for residential use

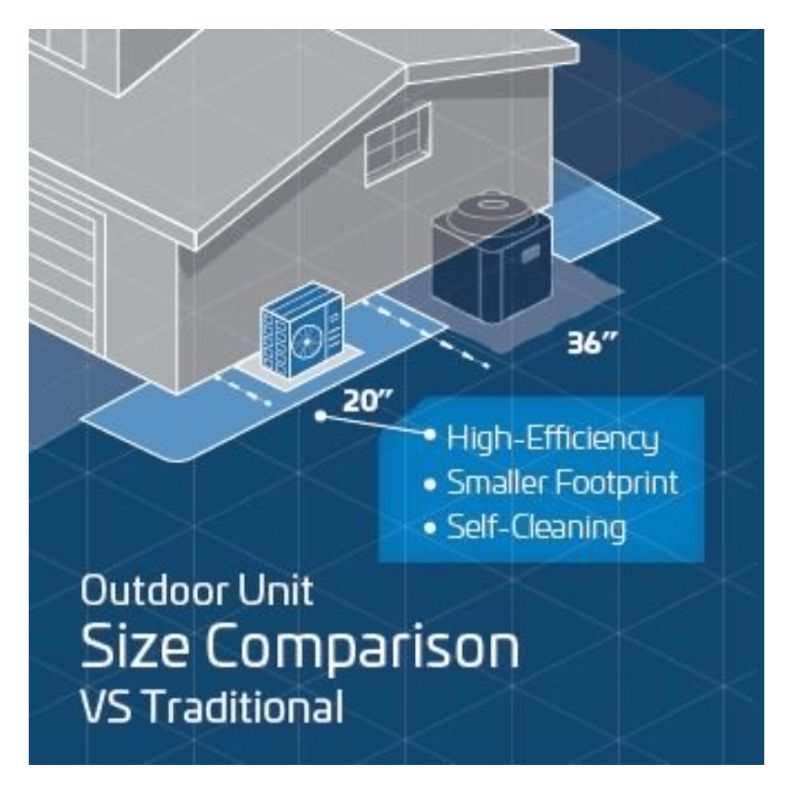

ACiQ 4 ton heat pump AC condenser size comparison for large residential and commercial use
ACiQ 4 ton inverter heat pump comfort at your fingertips AC condenser unit
Roll over image to zoom in Click on image to zoom
ACiQ 4 ton high efficiency heat pump AC condenser unit R454B advanced coolingACiQ 4 ton AC condenser energy efficient inverter technology R454BACiQ 4 ton R454B AC condenser unit for large scale HVAC applicationsACiQ 4 ton central HVAC AC condenser heat pump system for residential use How ACiQ Condensers Clean Themselves Automatically Self-Cleaning HVAC TechnologyACiQ 4 ton heat pump AC condenser size comparison for large residential and commercial useACiQ 4 ton inverter heat pump comfort at your fingertips AC condenser unit

ACiQ 4 Ton 17.5 SEER2 High Efficiency Central Heat Pump | Inverter | Extreme Series - R454B

ACiQ SKU: ACIQ-48-HPD
Price:
$3,865.00

Description

Achieve Peak Comfort with the ACiQ 4 Ton Extreme Series Heat Pump

Take control of your home’s climate with the ACiQ 4 Ton Extreme Series Heat Pump, crafted to meet the needs of medium to large-sized homes. Engineered with cutting-edge inverter technology, this unit effortlessly adapts to both your cooling and heating demands, ensuring that you’re always comfortable—no matter the season. Whether facing intense summer heat or frigid winter temperatures, this heat pump provides energy-efficient performance to keep your living space perfectly regulated while helping you save on energy costs.

Features Built-In Base Pan Heater to Prevent Ice Formation During Winter Use



Perfect For:

  • Larger Homes – Ideal for spaces between 2,000–2,400 sq ft, offering consistent comfort in homes with varying insulation levels.
  • HVAC Installers – Designed for easy setup, with inverter technology and self-adjusting BTU that accommodates diverse climates.
  • Small Businesses & Offices – Operates quietly and efficiently, maintaining an ideal indoor environment without disruption.
  • Cold Weather Regions – Effective in heating even at sub-zero temperatures, reducing the need for expensive electric heating.



Why Choose the ACiQ 4 Ton Extreme Series Heat Pump?

  • Exceptional Cold-Weather Heating – Provides 100% heating at 0°F and 80% at -22°F, minimizing your reliance on costly backup heating sources.
  • Advanced Inverter Technology – Automatically adjusts output to meet specific temperature demands, optimizing both energy use and comfort.
  • Quiet & Subtle – Operates at a low 59 dBA, ensuring your space remains comfortable without noise interference.
  • Efficient All-Year Comfort – With a 17.5 SEER2 rating, it delivers high energy efficiency for both cooling and heating, keeping your utility bills low.
  • Durable Construction – Built with a corrosion-resistant gold fin condenser coil for enhanced reliability and longevity.
  • Comprehensive Warranty – Backed by a 12-year compressor warranty and a 7-year parts warranty with online registration for added peace of mind.
  • Customized Performance – The system’s self-adjusting BTU output (12,000–50,000 BTU) ensures the unit never overexerts or wastes energy

ACiQ 4 Ton Extreme Series Heat Pump Features

  • Optimal Coverage – Best suited for areas between 2,000 to 2,400 sq ft, adaptable based on insulation and climate needs.
  • Cooling Performance – Offers adjustable cooling capacity from 12,000~48,000 BTU for consistent comfort during hot weather.
  • Heating Power – Delivers up to 50,000 BTU of efficient heating, even in the coldest of conditions.
  • Energy Efficiency – Rated 17.5 SEER2, ensuring long-term energy savings while maintaining consistent comfort.
  • Inverter-Driven Compressor – Twin rotary compressor for smooth, energy-efficient operation, reducing wear and tear.
  • Environmentally Friendly – Pre-charged with R454B refrigerant, a low-GWP option that supports a healthier environment.
  • Smart Condenser Technology – Equipped with advanced sensors that optimize performance by adjusting for changes in temperature and pressure.
  • Extreme Cold Functionality – Maintains efficient heating from -22°F to 75°F and cooling from -22°F to 122°F.
  • Base Pan Heater – Built-in feature prevents ice buildup on the condenser coil during cold-weather operation for continuous heat transfer.
  • Gold Fin Protection – Corrosion-resistant coating ensures longevity, even in the harshest environments.
  • Quiet Operation – Operating at just 59 dBA, it provides peace and quiet without compromising on performance.
  • Power Requirements – 208/230V, 1 Phase, 60 Hz with a max breaker size of 30A for standard installations.
  • Compact Design – Measures 38.58" W x 16.34" D x 38.39" H, making it easy to install in a variety of outdoor spaces.
  • Warranty Coverage – Enjoy the security of a 12-year compressor warranty and a 7-year parts warranty (with online registration).

ACIQ-48-HPD Specs

Brand/Manufacturer ACiQ
Refrigerant Charge 25'
Weight (in lbs) 232.36
Replaces ACiQ-48-HPB
Product Features Inverter, Low Ambient Heating, Two Stage Condenser, Variable Speed Condenser
HSPF2 9.5
Cooling BTU 48,000 BTU
Heating BTU 50,000 BTU
Maximum CFM 1601
Decibel Level (dBA) 65
Electric Heat Heat Pump
Refrigerant R454B
SEER2 (Efficiency) 17.5
Condenser Stages Variable Speed
Compressor Type Rotary
Liquid Valve Size 3/8"
Suction Valve Size 3/4"
Electrical 208/230V 1 Phase 60 Hz
Max Breaker Size 40 Amps
Min. Breaker Size 38 Amps
Tonnage 4 Ton
BTU/Tonnage 48,000 BTU/4 Ton
Min/Max Outdoor Temp for Heating -22°F - 75°F
Min/Max Outdoor Temp for Cooling -22°F - 122°F
Ambient Temperature Range -22°F - 122°F
Height 38.4"
Width 38.6"
Depth 16.3"
Warranty 12 Years Compressor and 7 Years Parts with Online Registration
