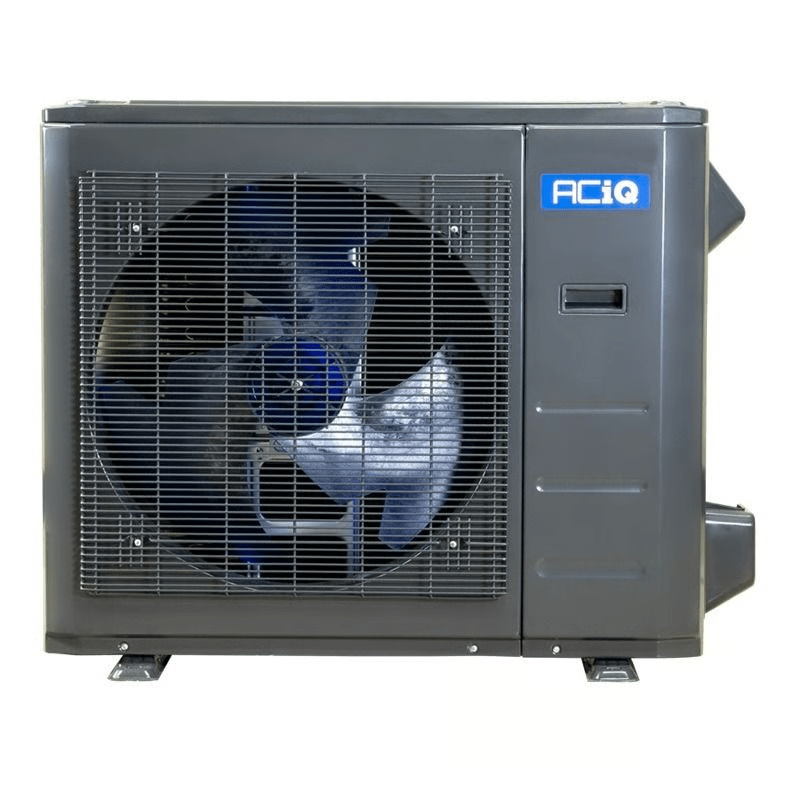

ACiQ 4 Ton 16 SEER2 High Efficiency Central Heat Pump | Inverter - R454B
Slim Design of ACiQ 4 Ton 16 SEER2 High Efficiency Central Heat Pump

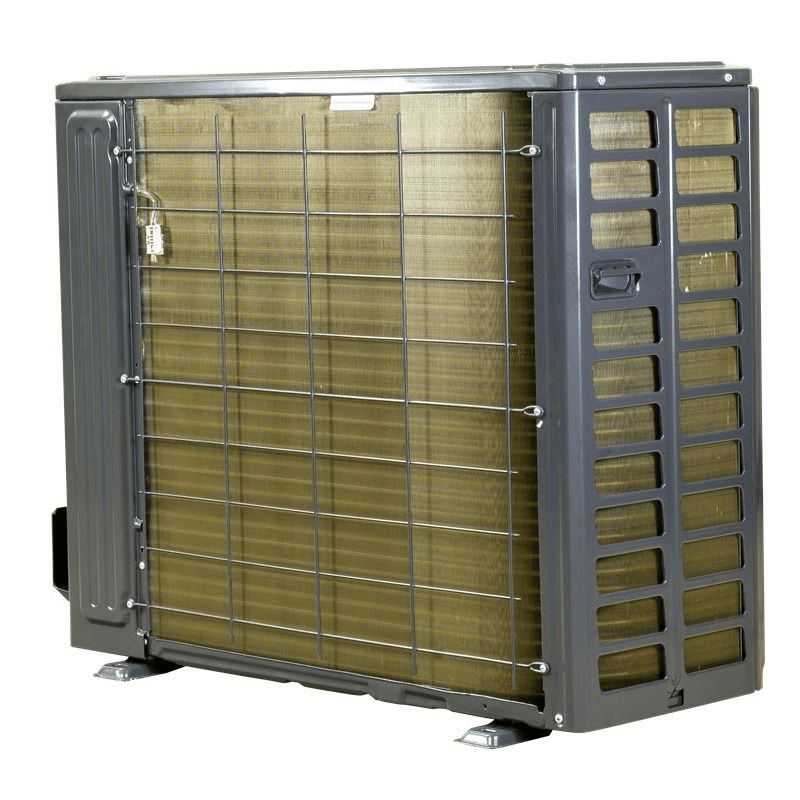

Back of ACiQ 4 Ton 16 SEER2 High Efficiency Central Heat Pump

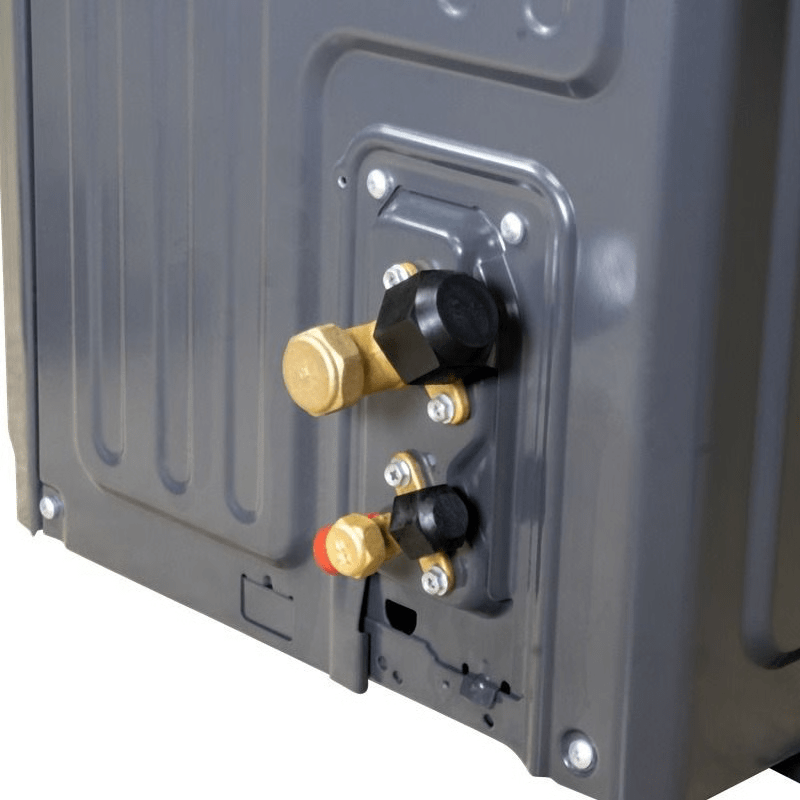

ACiQ 4 Ton 16 SEER2 High Efficiency Central Heat Pump Port

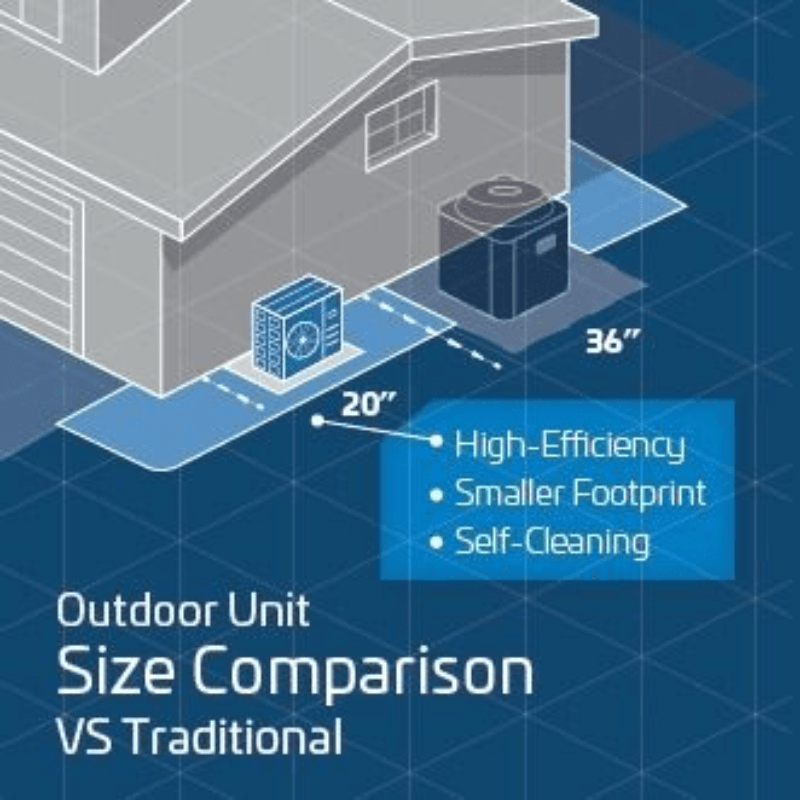

ACiQ 4 Ton 16 SEER2 High Efficiency Central Heat Pump Size Comparison
Smart Home App Graphics of ACiQ 4 Ton 16 SEER2 High Efficiency Central Heat Pump
Roll over image to zoom in Click on image to zoom
ACiQ 4 Ton 16 SEER2 High Efficiency Central Heat Pump | Inverter - R454BSlim Design of ACiQ 4 Ton 16 SEER2 High Efficiency Central Heat Pump Back of ACiQ 4 Ton 16 SEER2 High Efficiency Central Heat PumpACiQ 4 Ton 16 SEER2 High Efficiency Central Heat Pump Port How ACiQ Condensers Clean Themselves Automatically Self-Cleaning HVAC TechnologyACiQ 4 Ton 16 SEER2 High Efficiency Central Heat Pump Size ComparisonSmart Home App Graphics of ACiQ 4 Ton 16 SEER2 High Efficiency Central Heat Pump

ACiQ 4 Ton 16 SEER2 High Efficiency Central Heat Pump | Inverter - R454B

ACiQ SKU: ACIQ-48-EHPD
Price:
$3,765.00

Description

Power Through All Seasons with the ACiQ 4 Ton 16 SEER2 High Efficiency Central Heat Pump!

Engineered for large-scale comfort and energy savings, the ACiQ 4 Ton High Efficiency Central Heat Pump is a reliable solution for powerful heating and cooling in diverse commercial environments. With its smart inverter technology and eco-conscious R454B refrigerant, this system adjusts output to match real-time demand, preventing short cycling and reducing energy consumption. Rated at 16 SEER2, it delivers dependable year-round performance, even in extreme climates.



Ideal For:

✔ Large Commercial Offices & Buildings – Provides strong and efficient heating and cooling for expansive workspaces, maintaining comfort without inflated energy bills.

✔ Retail Chains & Supermarkets – Keeps products and customers comfortable with consistent indoor temperatures in high-traffic, high-load spaces.

✔ Hotels, Resorts, and Restaurants – Offers quiet, reliable climate control for hospitality spaces where guest comfort and energy savings are both priorities.

✔ Manufacturing Plants & Warehouses – Handles large open areas with demanding temperature needs, operating reliably in varied outdoor conditions.

✔ Institutional Facilities & Campuses – Perfect for maintaining climate control in multi-room academic or medical facilities with centralized ducted systems.



Control Options:

  • Two-way communication wired controller
  • WiFi-capable controller
  • Wireless remote control
  • Compatible with third-party 24V thermostats



Certifications & Safety Features:

  • Energy Efficient: 16 SEER2 and variable BTU output reduce operating costs and energy use across seasons.
  • Eco-Friendly Refrigerant: Runs on R454B, a next-generation refrigerant with a lower global warming potential.
  • Gold Fin Coating: The condenser coil is protected with a Gold Fin coating to resist corrosion and improve durability.
  • Quiet Operation: Maintains a low noise profile, even when running at full capacity—ideal for commercial environments.
  • Warranty: Backed by the manufacturer’s warranty for added peace of mind.
  • Mobile & Manufactured Home Approved: Certified for flexible residential and light commercial installations.

ACiQ ACIQ-48-EHPD Features

  • Inverter Technology: Adjusts compressor speed to match demand, delivering variable output (12,000-48,000 BTU cooling, 12,000-50,000 BTU heating) for optimal efficiency.
  • High Efficiency: Achieves 16 SEER2 rating, reducing energy costs with eco-friendly R454B refrigerant.
  • Adaptive Sizing: Sizes for heating needs without short cycling, ensuring effective cooling and humidity control.
  • Learning Condenser: Sensors monitor temperature, pressure, and performance, optimizing efficiency after initial startup.
  • Wide Temperature Range: Efficient cooling from -13°F to 122°F and heating from 5°F to 75°F outdoor temperatures.
  • Quiet Operation: Operates smoothly with minimal noise, even under high workloads.
  • Durable Design: Gold fin condenser coil coating enhances corrosion resistance for long-term reliability.
  • Seamless Integration: Pairs with ACIQ-48-AHD air handler, connecting easily to existing ductwork.
  • Smart System: Soft startups maximize efficiency and minimize energy waste.
  • Multi-Positional Air Handler: Supports upflow, downflow, or horizontal installation for flexible setup.
  • Extended Warranty: Provides 7-year parts and 12-year compressor coverage with registration at ACiQ.com.
  • Energy Savings: Variable inverter technology eliminates short cycling, lowering operating costs compared to traditional heat pumps.

ACiQ 4 Ton 16 SEER2 High Efficiency Central Heat Pump Specs

SKU ACIQ-48-EHPD
Refrigerant Charge 25'
Weight (in lbs) 224.21
Brand/Manufacturer ACiQ
Replaces ACIQ-48-EHPB
Product Features Inverter, Two Stage Condenser, Variable Speed Condenser
HSPF2 8.5
Cooling BTU 47,000 BTU
Heating BTU 55,000 BTU
Maximum CFM 1601
Decibel Level (dBA) 65
Electric Heat Heat Pump
Refrigerant R454B
SEER2 (Efficiency) 16.1
Condenser Stages Variable Speed
Compressor Type Rotary
Liquid Valve Size 3/8"
Suction Valve Size 3/4"
Electrical 208/230V 1 Phase 60 Hz
Max Breaker Size 40 Amps
Min. Breaker Size 36 Amps
Tonnage 4 Ton
BTU/Tonnage 48,000 BTU/4 Ton
Min/Max Outdoor Temp for Heating -13°F - 75°F
Min/Max Outdoor Temp for Cooling -13°F - 122°F
Ambient Temperature Range -13°F - 122°F
Height 38.4"
Width 38.6"
Depth 16.3"
Warranty 12 Years Compressor and 7 Years Parts with Online Registration

ACiQ Industry-Leading Warranties
ACiQ stands behind every product with exceptional warranty coverage, ensuring long-term reliability and peace of mind. Online registration is required to activate full warranty benefits.

Product Warranty Details

  • Mini Split and High-Efficiency Systems: 12-year compressor, 7-year parts
  • ACiQ Essentials: 6-year compressor, 4-year parts
  • A.C. and Heat Pump Condenser: 10-year compressor and coil
  • Furnace: Lifetime warranty for original owner
  • Air Handler and Coil: 10-year parts for original owner
  • Residential Packaged Units: Lifetime heat exchanger for original owner
  • PTAC: 7-year compressor, 1-year parts
  • Commercial Packaged Units: 10-year heat exchanger, 5-year compressor, 1-year parts
  • Pool Heat Pump: 5-year heat exchanger and compressor, 3-year parts
  • Hybrid Water Heater: 12-year tank, 10-year parts
  • Mobile Home Electric Furnace and Coil: 10-year parts

Warranty Claim Process

  1. System Diagnosis
  2. Method of Resolution
  3. Warranty Acceptance
  4. Faulty Parts Inspected
  5. Replacement Parts Shipped

Register Your System
Activate your warranty at ACiQ.com.

Need Assistance?
For warranty claims or inquiries, click here.
