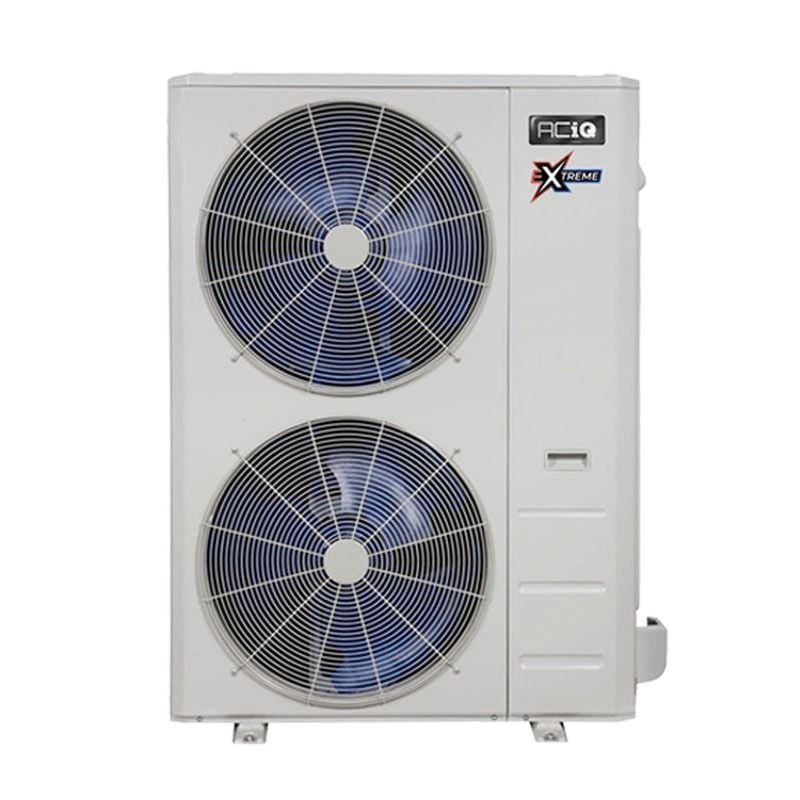

ACiQ 4 Ton 16 SEER High Efficiency Central Heat Pump | Inverter | Extreme Series - R410A (ACiQ-48-HPB)

ACiQ SKU: ACiQ-48-HPB

Price:
Sale price$3,656.00

Description

Maximize Comfort & Cut Energy Costs With the ACiQ 4 Ton Extreme Series Inverter Heat Pump

Tired of paying high utility bills for a system that struggles in extreme weather? The ACiQ 4 Ton 16 SEER High Efficiency Central Heat Pump (ACiQ-48-HPB) is engineered to solve that problem. With inverter-driven technology and Extreme Heat performance, it adapts from 12,000 to 48,000 BTU to match demand, delivering year-round comfort while eliminating wasted energy. Even at -22°F, this system maintains reliable heating capacity, making it the smart, cost-effective solution for both residential and light commercial installations.

For cooling, this system can operate anywhere from 12,000 BTU to 48,000 BTU without short cycling. For heating, this system is capable of 38,400 BTU at -22°F all the way up to 63,744 BTU at 50°F. This increased range means it fits more possible applications.

Inverter condenser - Inverter technology changes AC power to DC, allowing the compressor inside your condenser to speed up and slow down. This allows the system to self-adjust BTU output based on demand. As the weather changes, so will your system output.



Ideal For

  • Large Residential Homes – Provides efficient heating and cooling across wide operating ranges, ensuring homeowner comfort even during extreme winters.
  • Light Commercial Spaces – Perfect for offices, retail shops, and small businesses needing a powerful yet efficient climate control solution.
  • Cold Climate Regions – Maintains 100% heating capacity at 0°F and 80% at -22°F, dramatically cutting reliance on costly electric backup heat.
  • HVAC Contractors & Installers – Variable capacity design simplifies system sizing and reduces the need for stocking multiple units.



Why Should You Invest in the ACiQ 4 Ton Extreme Series Heat Pump?

  • Year-Round Savings – Achieve lower utility bills with 16 SEER2 efficiency and inverter-driven operation.
  • All-Weather Reliability – Extreme Heat technology ensures dependable heating even in sub-zero temperatures.
  • Flexible Performance – Runs like a 1.5-ton, 2-ton, 3-ton, or 4-ton system depending on demand, preventing overcooling and humidity issues.
  • Durability You Can Trust – Gold Fin condenser coating resists corrosion, extending service life.
  • Contractor-Friendly – Easy to integrate with ACiQ unitary ducted air handlers for professional installations.



Certifications & Safety Features

  • 16 SEER2 efficiency rating – Meets modern energy efficiency standards
  • Gold Fin condenser coil protection – Corrosion-resistant design for long-lasting durability
  • Extreme Heat Base Pan Heater Technology – Prevents ice accumulation for uninterrupted operation in winter
  • Warranty Protection – Register at ACiQ.com for up to 7 years parts and 12 years compressor coverage
  • Advanced sensor-driven learning system - ensures safe, efficient, and optimized performance

ACiQ 4 Ton 16 SEER High Efficiency Central Heat Pump Features

  • Inverter Technology – Variable speed compressor adjusts output from 12,000 to 48,000 BTU, eliminating waste and improving comfort.
  • Extreme Heat Performance – Maintains heating capacity down to -22°F, delivering consistent warmth in severe climates.
  • Wide Operating Range – Cooling efficiency from 5°F to 122°F, heating from -22°F to 75°F.
  • Variable Output Flexibility – Adapts system load from 1.5 to 4 tons, ensuring precise comfort without short cycling.
  • Quiet Operation – Twin rotary compressor and optimized fan speed keep noise levels low.
  • Gold Fin Coil Protection – Defends against corrosion for extended service life.
  • Long-Term Reliability – Designed with intelligent manufacturing for consistent performance and reduced wear.
  • Smart Learning Controls – Built-in sensors monitor air temperature, duct pressure, and refrigerant levels for optimized operation.

ACiQ-48-HPB Heat Pump Specs

Brand/Manufacturer ACiQ
SKU ACiQ-48-HPB
Refrigerant Charge 25'
Weight (in lbs) 248.90
Product Features Inverter, Low Ambient Heating, Two Stage Condenser, Variable Speed Condenser
HSPF 9.4
HSPF2 7.7
Cooling BTU 47,000 BTU
Heating BTU 50,000 BTU
Maximum CFM 4412
Decibel Level (dBA) 64
Electric Heat Heat Pump
Refrigerant R410A
SEER2 (Efficiency) 16
Condenser Stages Variable Speed
Compressor Type Rotary

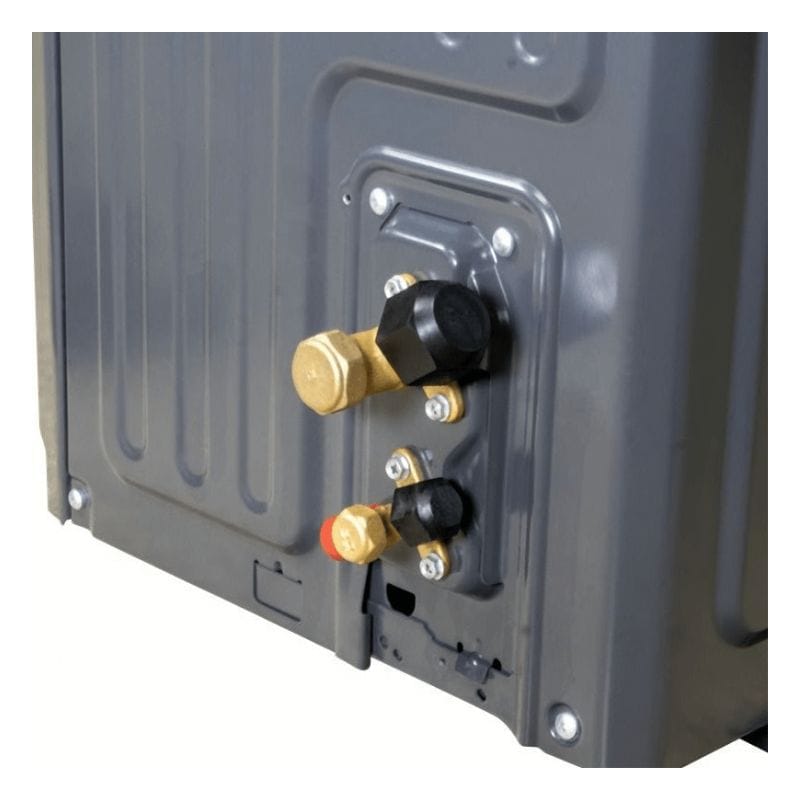

Liquid Line 3/8"
Suction Line 3/4"
Electrical 208/230V 1 Phase 60 Hz
Max Breaker Size 50 Amps
Min. Breaker Size 42 Amps
Tonnage 4 Ton
BTU/Tonnage 48,000 BTU/4 Ton
Min/Max Outdoor Temp for Heating -22~75
Min/Max Outdoor Temp for Cooling 5~122
Zone Compatibility Single Zone
Ambient Temperature Range -22~122
Length 37.48"
Height 52.48"
Depth 16.34"
Warranty 12 year compressor, 7 year parts with online registration

ACiQ Industry-Leading Warranties
ACiQ stands behind every product with exceptional warranty coverage, ensuring long-term reliability and peace of mind. Online registration is required to activate full warranty benefits.

Product Warranty Details

  • Mini Split and High-Efficiency Systems: 12-year compressor, 7-year parts
  • ACiQ Essentials: 6-year compressor, 4-year parts
  • A.C. and Heat Pump Condenser: 10-year compressor and coil
  • Furnace: Lifetime warranty for original owner
  • Air Handler and Coil: 10-year parts for original owner
  • Residential Packaged Units: Lifetime heat exchanger for original owner
  • PTAC: 7-year compressor, 1-year parts
  • Commercial Packaged Units: 10-year heat exchanger, 5-year compressor, 1-year parts
  • Pool Heat Pump: 5-year heat exchanger and compressor, 3-year parts
  • Hybrid Water Heater: 12-year tank, 10-year parts
  • Mobile Home Electric Furnace and Coil: 10-year parts

Warranty Claim Process

  1. System Diagnosis
  2. Method of Resolution
  3. Warranty Acceptance
  4. Faulty Parts Inspected
  5. Replacement Parts Shipped

Register Your System
Activate your warranty at ACiQ.com.

Need Assistance?
For warranty claims or inquiries, click here.

30-Day Hassle Free Returns Guarantee Icon

Free 30-Day Returns

Confidence Comes Standard: 30-Day Free Returns, Zero Risk - See Full Return Policy Here
