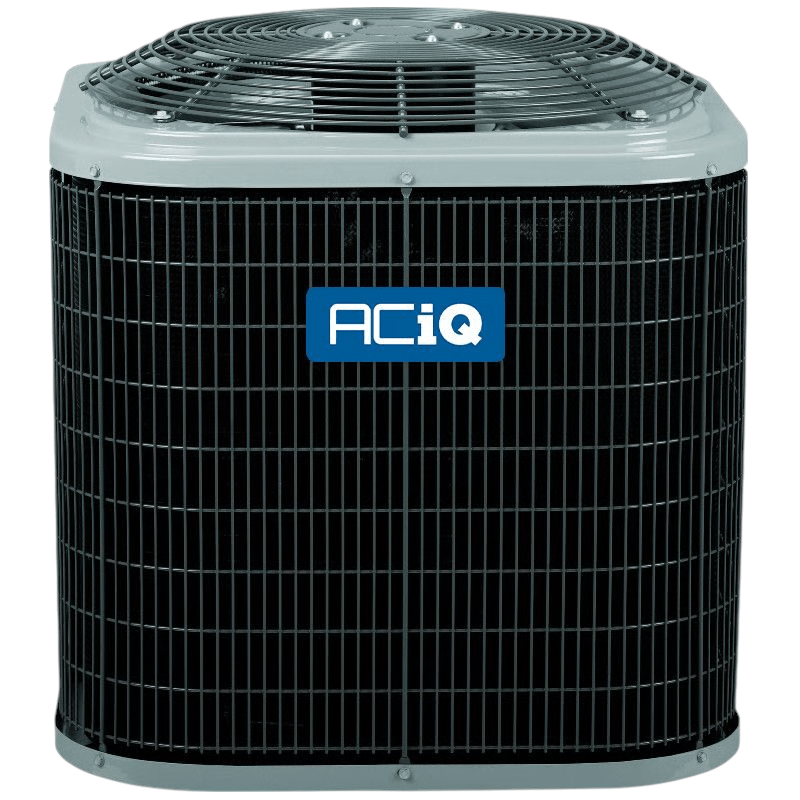

Front-center view of the ACiQ 4 Ton 13.4 SEER2 Air Conditioner Condenser

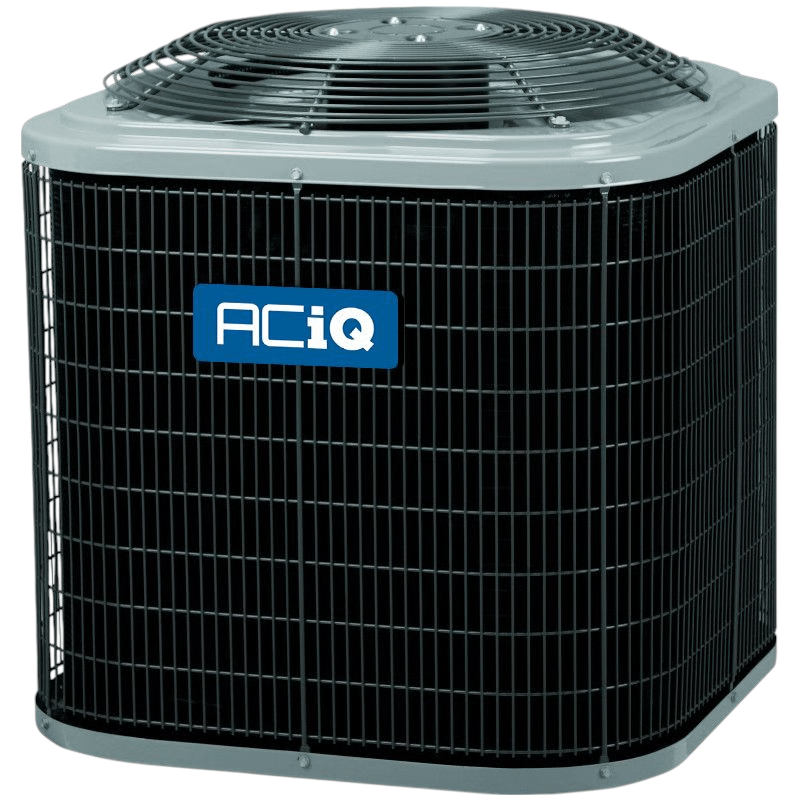

Left side view of the ACiQ 4 Ton 13.4 SEER2 Air Conditioner Condenser

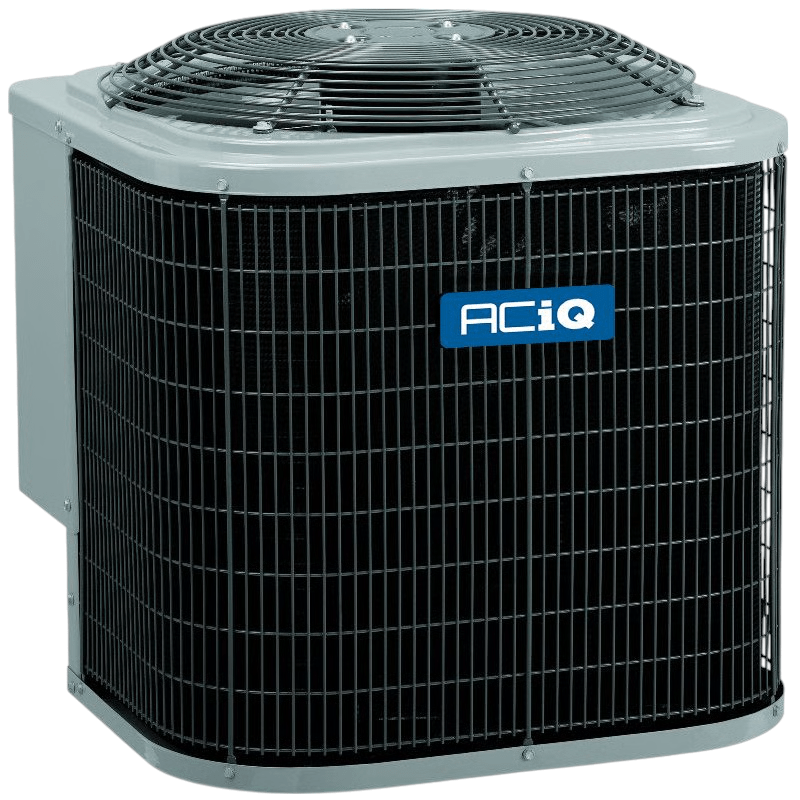

Right side view of the ACiQ 4 Ton 13.4 SEER2 Air Conditioner Condenser

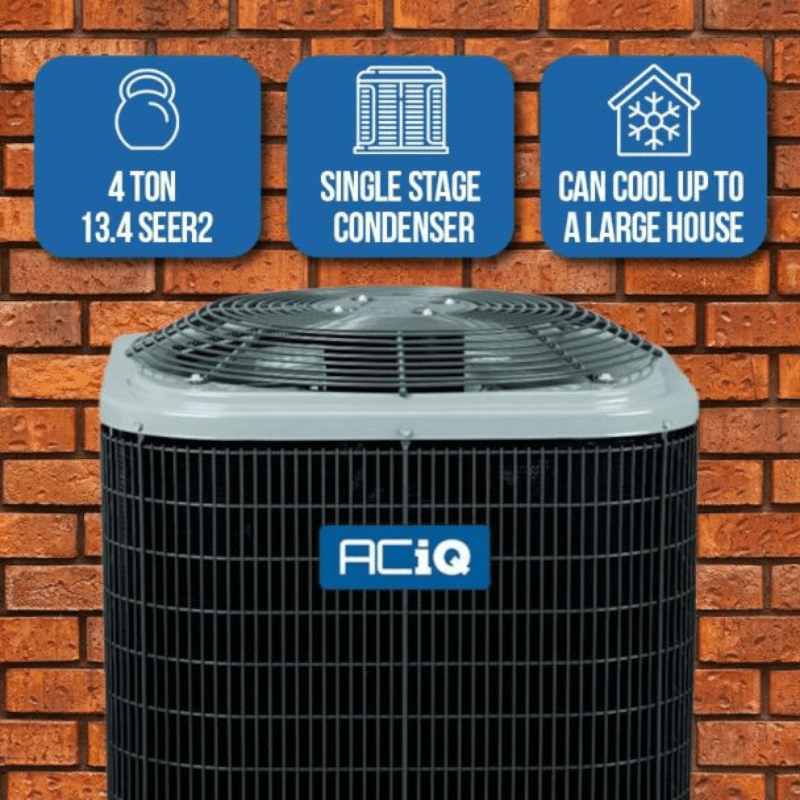

Front view of the ACiQ 4 Ton 13.4 SEER2 Air Conditioner Condenser with Infographic features
Roll over image to zoom in Click on image to zoom
Front-center view of the ACiQ 4 Ton 13.4 SEER2 Air Conditioner CondenserLeft side view of the ACiQ 4 Ton 13.4 SEER2 Air Conditioner CondenserRight side view of the ACiQ 4 Ton 13.4 SEER2 Air Conditioner CondenserFront view of the ACiQ 4 Ton 13.4 SEER2 Air Conditioner Condenser with Infographic features

ACiQ 4 Ton 13.4 SEER2 Air Conditioner Condenser - R454B

ACiQ SKU: R5A4S48AKANA
Price:
$2,128.00

Description

Dependable Cooling for Larger Homes with ACiQ R5A4S48AKANA 4 Ton Condenser!

The ACiQ R5A4S48AKANA is a powerful 4-ton AC-only condenser built to efficiently cool medium to large homes and light commercial buildings. With a 13.4 SEER2 rating and pre-charged R-454B refrigerant, it offers professional-grade reliability, lower energy usage, and fast, error-free installation. Its reinforced construction ensures long-lasting performance in demanding environments, making it a smart choice for HVAC professionals and developers.



Ideal For

  • HVAC Professionals & Installers – Pre-charged with refrigerant for 15 ft line sets to reduce installation time and ensure consistent performance.
  • Medium to Large Residential Properties – Perfectly sized to deliver cooling comfort to multi-room homes or large zones.
  • Developers & Property Managers – Helps lower energy costs with 5–7% more efficiency than older 13 SEER1 models.
  • Eco-Friendly Construction Projects – Equipped with low-GWP, non-ozone-depleting R-454B refrigerant to meet modern compliance standards.
  • Cold Weather Installations – Supports operation in low temperatures when paired with an optional low-ambient kit.



Certifications & Safety Features

  • 10-Year Limited Parts Warranty (with proper installation and product registration)
  • Internal pressure relief valve and compressor thermal overload protection
  • UL Listed for safety and manufacturing compliance

ACiQ 4 Ton 13.4 SEER2 Air Conditioner Condenser – Key Features & Benefits

  • 4 Ton / ~48,000 BTU/hr Cooling Capacity – Built to handle large homes, multi-room spaces, and open-concept floor plans.
  • 13.4 SEER2 Energy Efficiency – Provides 5–7% more efficiency than legacy 13 SEER1 units, reducing long-term energy use.
  • Scroll Compressor (Single-Stage) – Reliable cooling performance with low-maintenance operation.
  • R-454B Refrigerant – A future-proof solution that meets environmental standards for low global warming potential.
  • Factory Pre-Charged for 15 ft Line Set – Speeds up installation and improves system reliability from the start.
  • Reinforced Steel Cabinet – Features corner post reinforcements and an inlet grille to protect vital internal components.
  • Flexible Indoor Compatibility – Easily pairs with properly sized coils or air handlers for system integration.
  • Low-Ambient Cooling Ready – Performs in colder environments when paired with compatible accessories.
  • Quiet Operation – Keeps outdoor noise minimal for residential and mixed-use environments.

ACiQ R5A4S48AKANA Conditioner Condenser Specs

SKU R5A4S48AKANA
Refrigerant Charge 15'
Weight (in lbs) 192
Brand/Manufacturer ACiQ
Replaces R4A4S48AKANA
Equivalent Carrier Equivalent: 24ABB348ABN3 / Tempstar Equivalent:R4A348GKH/ Bryant Equivalent:113ANA048000
Cooling BTU 48000
Maximum CFM 3000
Decibel Level (dBA) 77 Decibels
Motor RPM 1100
Horsepower 1/5 HP
Refrigerant R454B
SEER2 (Efficiency) 13.4
Condenser Stages Single Stage
Compressor Type Scroll
Liquid Valve Size 3/8"
Suction Valve Size 7/8"
Electrical 208/230v 1 Phase 60 Hz
Max Breaker Size 40 Amps
Min. Breaker Size 22.7 Amps
Tonnage 4 Ton
Connection Sweat
Certification UL Listed
Height 28 1/4"
Width 31 3/16"
Depth 31 3/16"
Warranty 10 Years Parts Warranty with Online Registration
