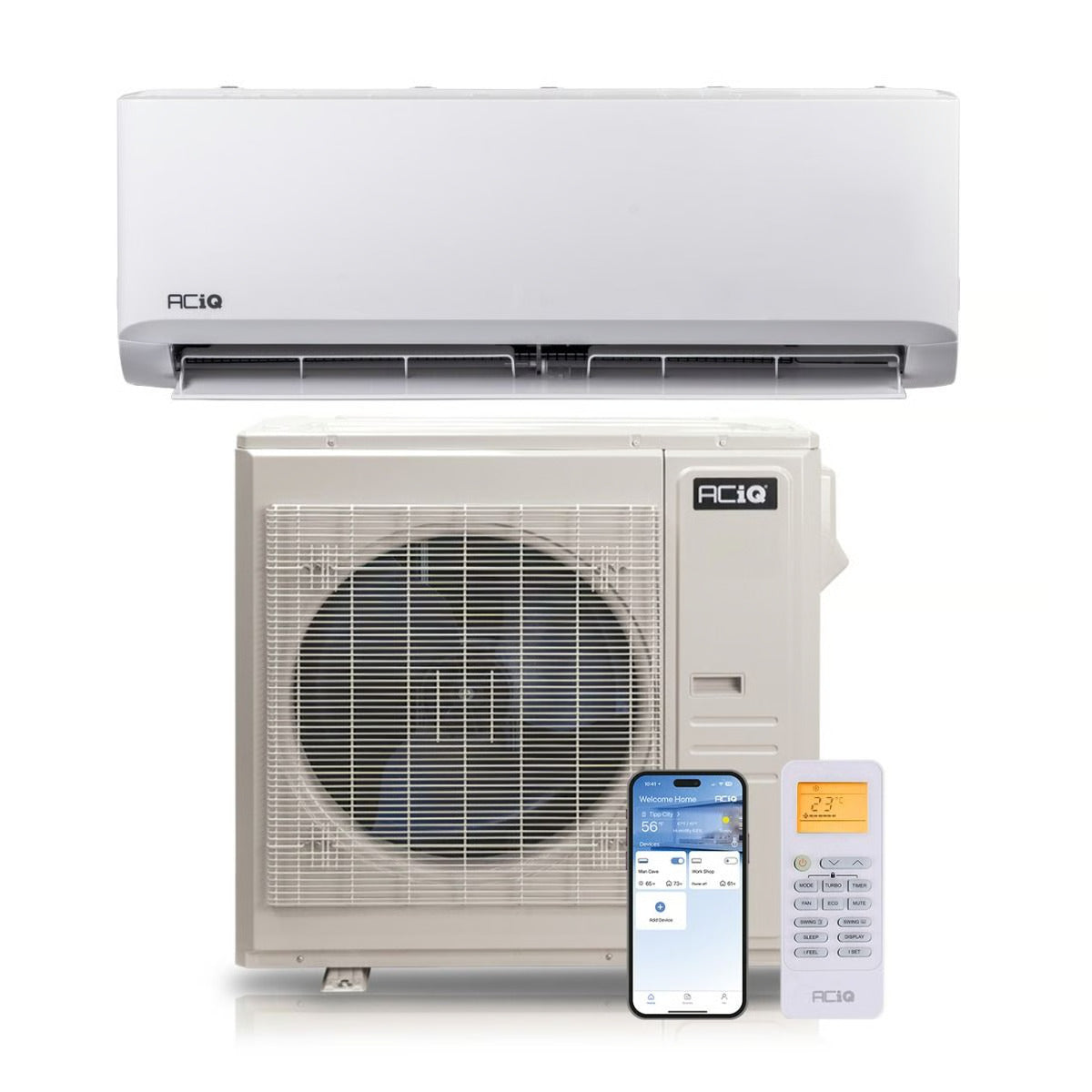

aciq ACIQ-36Z-HP230C / ACIQ-36W-HP230C mini split bundle

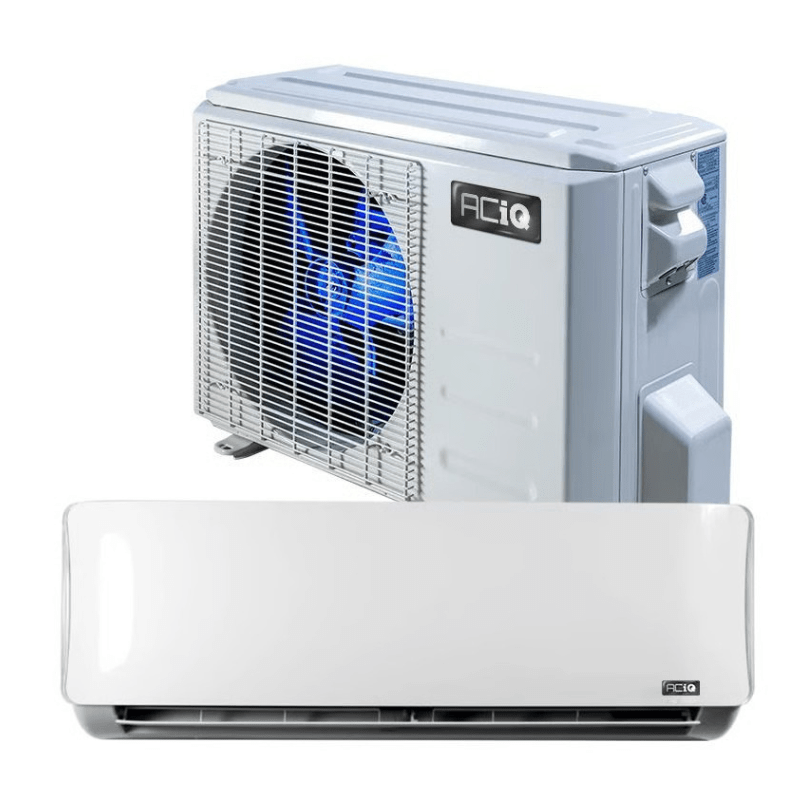

ACiQ 36000 BTU 18 SEER single zone mini split system with wall mounted indoor unit and outdoor compressor

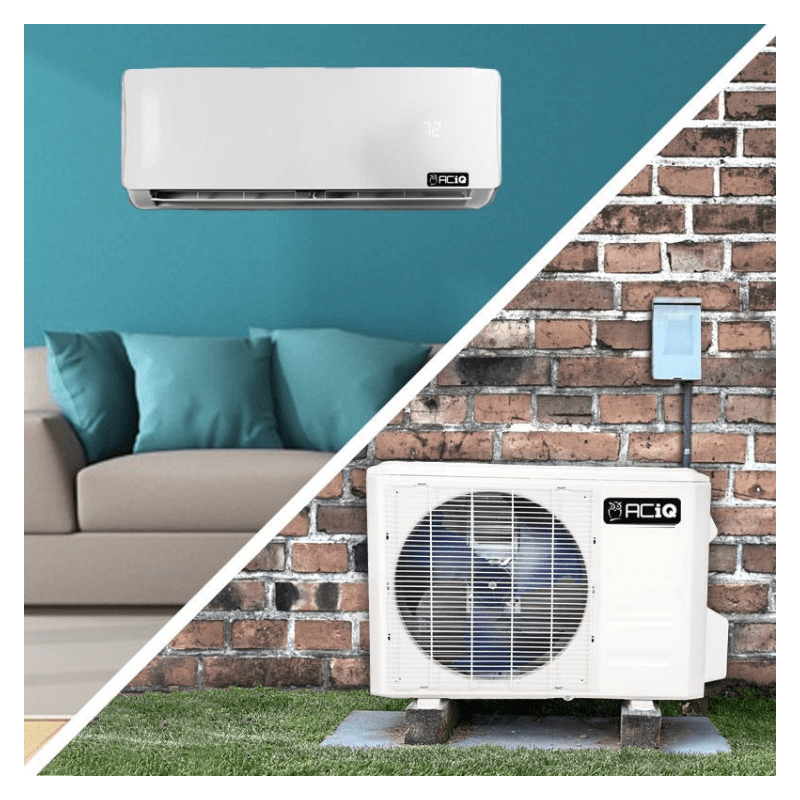

Installed ACiQ mini split system wall mount indoor unit inside room and outdoor unit mounted on brick wall

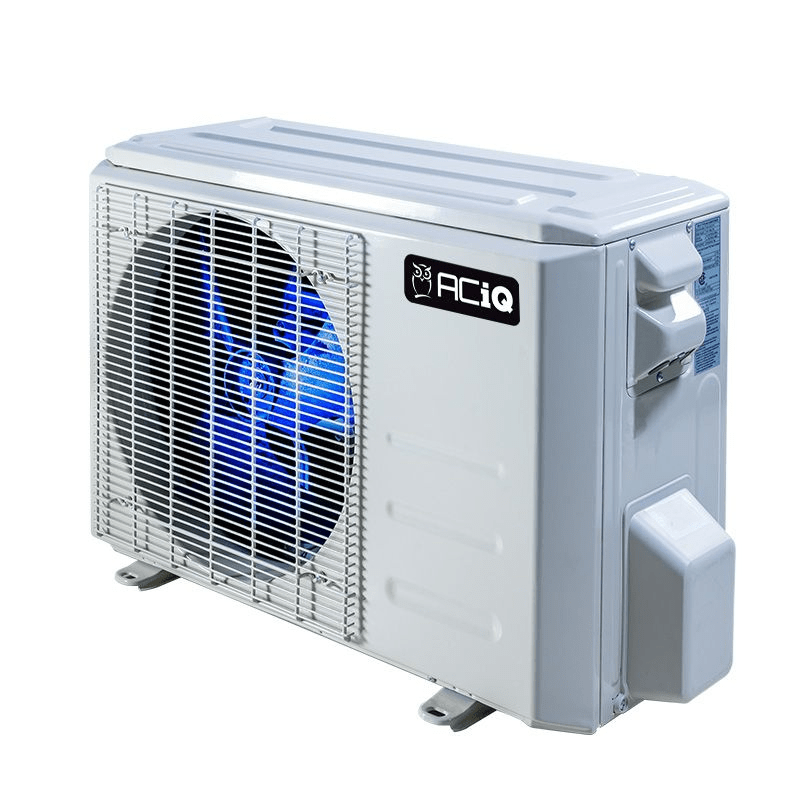

Side view of ACiQ 36000 BTU outdoor compressor unit with blue fan behind protective grill

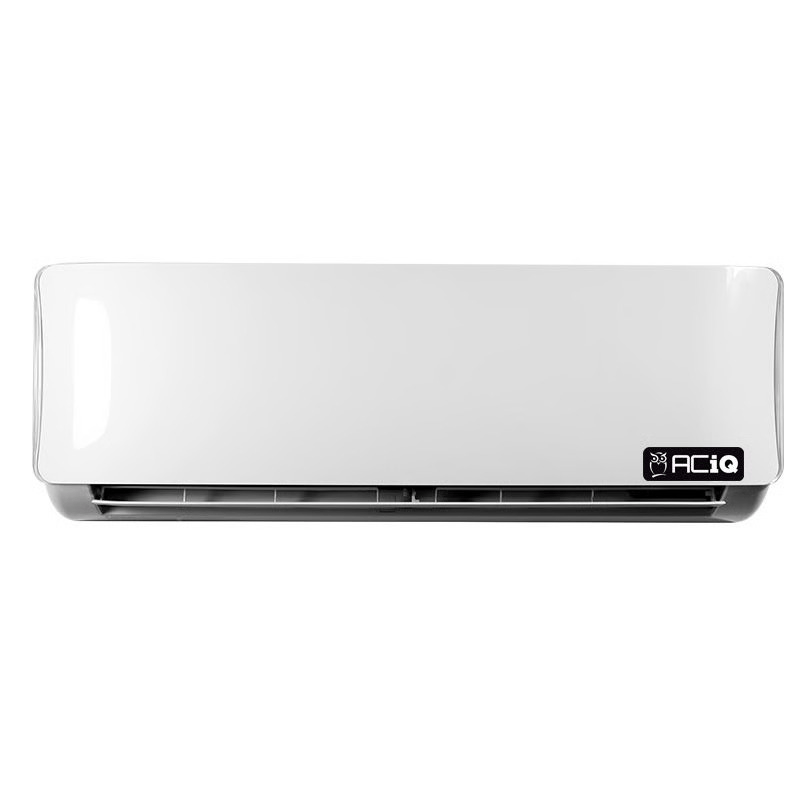

Front view of ACiQ wall mounted indoor unit of 36000 BTU mini split system

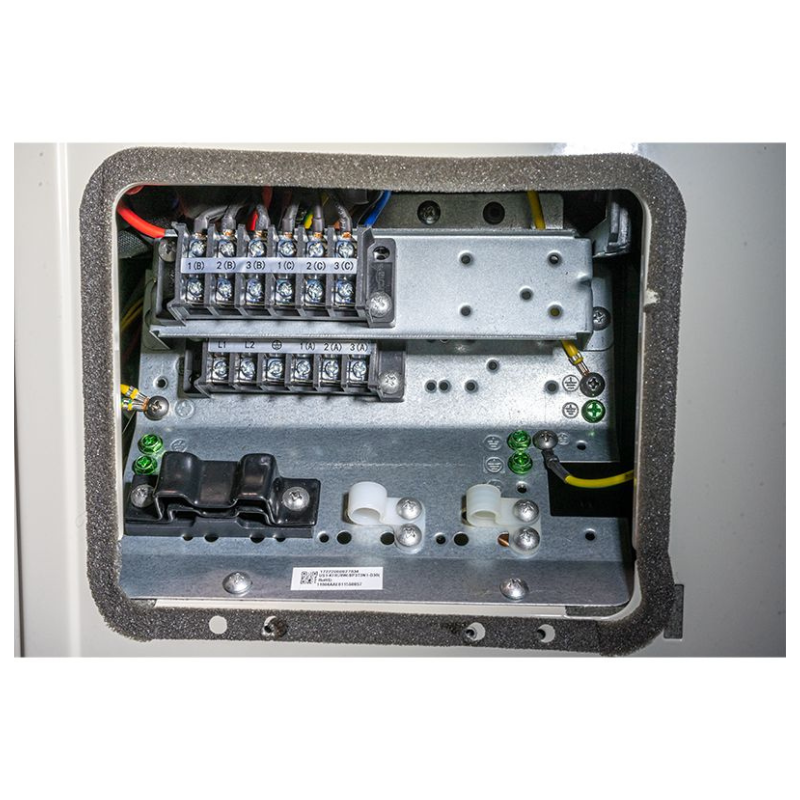

Close up of electrical panel showing wiring of ACiQ 36000 BTU mini split outdoor unit

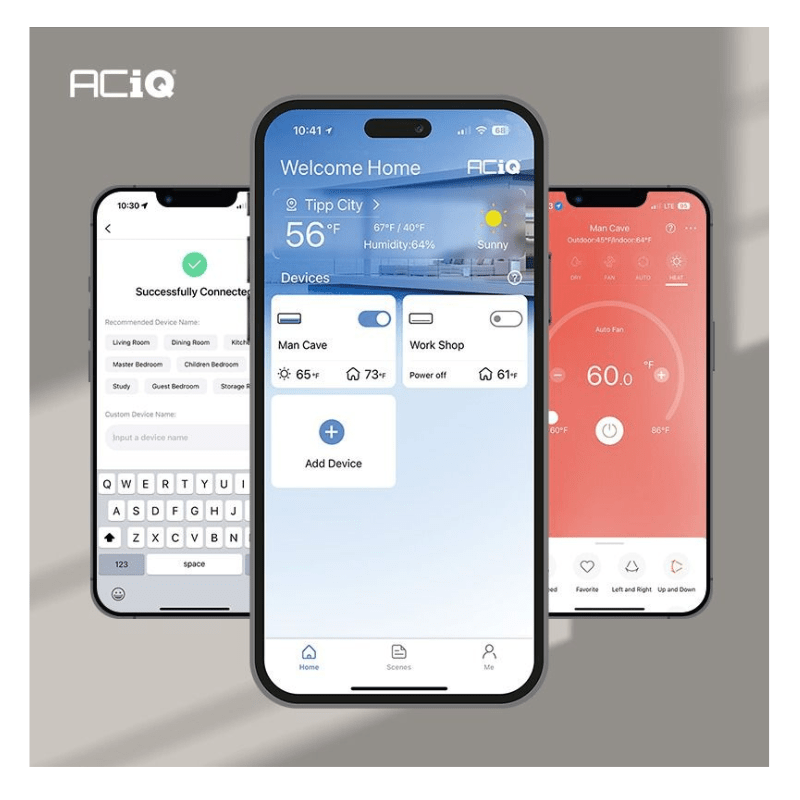

ACiQ WiFi enabled app interface on smartphones for controlling mini split temperature and settings
aciq ACIQ-36Z-HP230C / ACIQ-36W-HP230C mini split heating and cooling
aciq wifi smartphone compatible

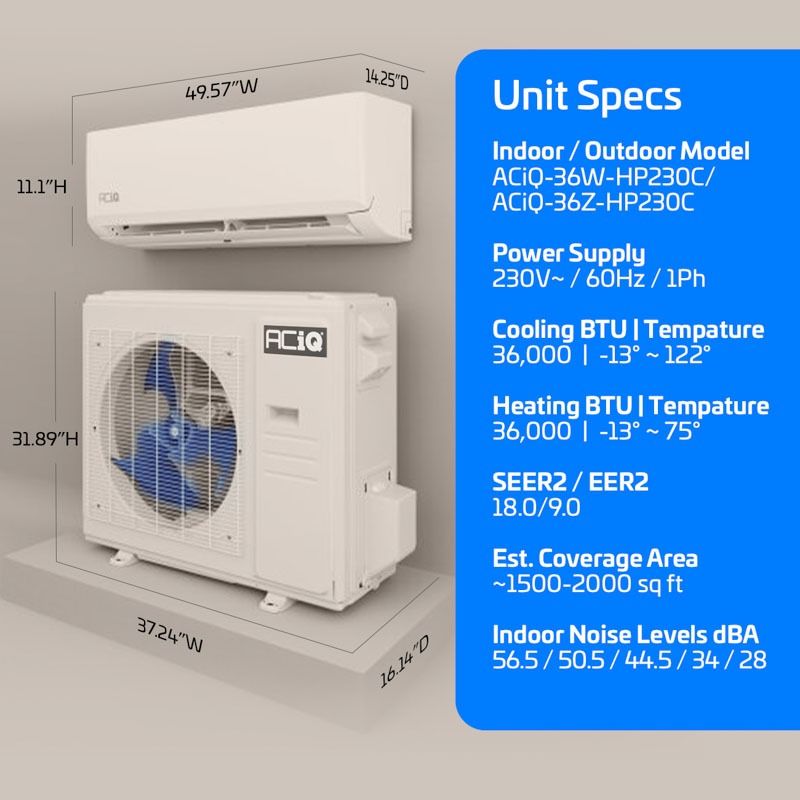

ACIQ-36Z-HP230C / ACIQ-36W-HP230C dimension specs
aciq mini split warranty
aciq whisper quiet operations
aciq remote features

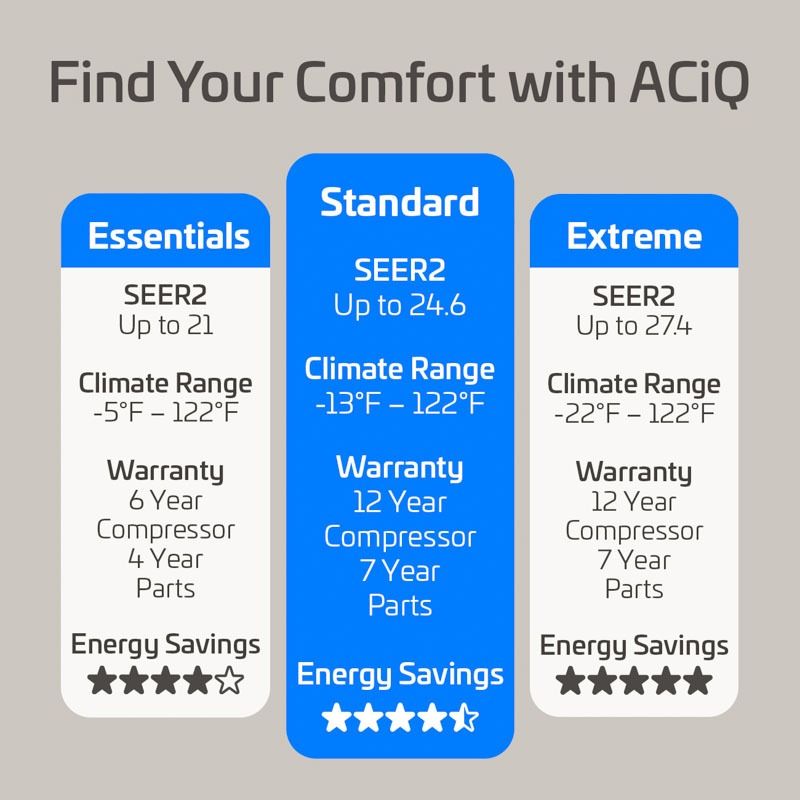

aciq mini split series comparison

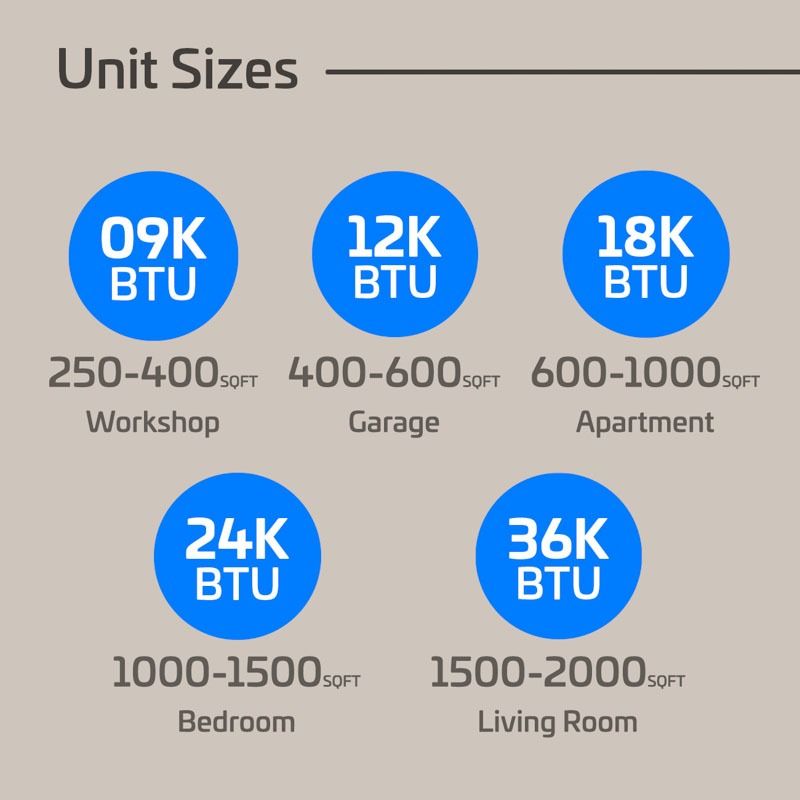

aciq ACIQ-36Z-HP230C / ACIQ-36W-HP230C btu sqft sizing diagram
Roll over image to zoom in Click on image to zoom
aciq ACIQ-36Z-HP230C / ACIQ-36W-HP230C mini split bundleACiQ 36000 BTU 18 SEER single zone mini split system with wall mounted indoor unit and outdoor compressorInstalled ACiQ mini split system wall mount indoor unit inside room and outdoor unit mounted on brick wallSide view of ACiQ 36000 BTU outdoor compressor unit with blue fan behind protective grillFront view of ACiQ wall mounted indoor unit of 36000 BTU mini split systemClose up of electrical panel showing wiring of ACiQ 36000 BTU mini split outdoor unitACiQ WiFi enabled app interface on smartphones for controlling mini split temperature and settingsaciq ACIQ-36Z-HP230C / ACIQ-36W-HP230C mini split heating and coolingaciq wifi smartphone compatibleACIQ-36Z-HP230C / ACIQ-36W-HP230C dimension specsaciq mini split warrantyaciq whisper quiet operationsaciq remote featuresaciq mini split series comparisonaciq ACIQ-36Z-HP230C / ACIQ-36W-HP230C btu sqft sizing diagram ACiQ Mini Splits Brand Overview

ACiQ 36,000 BTU 18 SEER2 Single Zone Wall Mounted Mini Split System w/ WiFi - R454B | 230V

ACiQ SKU: ACIQ-36Z-HP230C / ACIQ-36W-HP230C
Price:
$2,252.62

Description

Comfort Without Compromise: ACiQ 36,000 BTU Mini Split System Keeps Your Home Evenly Tempered

Tired of rooms that are too hot in the summer or too cold in the winter? The ACiQ 36,000 BTU Mini Split System is designed to provide consistent, comfortable temperatures across your home without the complexity of traditional central air systems. With intelligent technology, WiFi integration, and eco-friendly refrigerant, it helps you enjoy a balanced climate while keeping your energy consumption under control.



Ideal For:

  • Large Homes & Open Spaces: Efficiently heats and cools rooms up to large-sized areas without uneven airflow.
  • Homeowners Seeking Consistency: Perfect for anyone frustrated with uneven temperatures in multi-use spaces.
  • Tech-Savvy & Energy-Conscious Users: High-efficiency, smart-enabled systems that help reduce utility costs and carbon footprint.
  • Installers & Renovators: Flexible, wall-mounted design allows for easy placement in any home configuration.



What’s Included:

  • ACiQ 36,000 BTU Mini Split Condenser (230V, R454B)
  • ACiQ 36,000 BTU Wall-Mounted Air Handler with WiFi (230V, R454B)



Why the ACiQ 36,000 BTU Mini Split System Makes Sense for You?

  • Even Comfort in Large Spaces: Say goodbye to hot or cold spots. The ACiQ mini split keeps your living areas, home offices, or converted spaces at the temperature you want, all day long.
  • Energy Awareness: If high energy bills frustrate you, this system’s inverter technology adjusts power usage intelligently, giving you comfort without unnecessary costs.
  • Simple, Ductless Installation: No need for extensive renovations or ductwork. The wall-mounted design makes it ideal for retrofits or spaces where ducting isn’t practical.
  • Smart Control Anywhere: With WiFi and app compatibility (iOS/Android), you can manage your home’s temperature remotely. Voice control with Amazon Alexa or Google Assistant adds convenience to your daily routine.
  • Eco-Friendly Operation: Using R454B refrigerant, this system reduces environmental impact while maintaining high performance and reliability.

ACiQ 36,000 BTU 18 SEER Single Zone Wall Mounted Mini Split System w/ WiFi Features

  • 36,000 BTU Cooling & Heating Capacity: Efficiently manages larger rooms with both heating and cooling functions.
  • 18 SEER2 Efficiency Rating: Helps reduce energy bills while maintaining comfort.
  • Inverter Technology: Adjusts system operation automatically to maintain your desired temperature without overworking the unit.
  • Whisper-Quiet Operation: Enjoy a peaceful indoor environment with minimal noise from both condenser and air handler.
  • R454B Refrigerant: Environmentally friendly refrigerant with lower global warming potential.
  • WiFi & Smart Device Integration: Control via smartphone app or voice commands for total convenience.
  • LED Display & Remote Monitoring: Built-in soft LED shows room temperature, setpoints, and error codes.
  • Durable Construction: Gold Fin coating protects the condenser from corrosion, extending system life.

ACIQ-36Z-HP230C / ACIQ-36W-HP230C Specs

SKU ACIQ-36Z-HP230C ACIQ-36W-HP230C
Refrigerant Charge 25' 25'
Weight (in lbs) 160.27 54.01
Manufacturer ACiQ ACiQ
HSPF2 8.5 8.5
Cooling BTU 36,000 BTU 36,000 BTU
Heating BTU 36,000 BTU 36,000 BTU
Maximum CFM 2235.3 882.9
Decibel Level (dBA) 60.5 60.5
Electric Heat Heat Pump Heat Pump
Energy Star Yes Yes
Refrigerant R454B R454B
SEER2 18 18
Compressor Type Rotary Rotary
Liquid Line 3/8" 3/8"
Suction Line 5/8" 5/8"
Electrical 208/230V 1 Phase 60 Hz 208/230V 1 Phase 60 Hz
Max Breaker Size 35 Amps 35 Amps
Min. Breaker Size 33.0 Amps 33.0 Amps
Tonnage 3 Ton 3 Ton
BTU/Tonnage 36,000 BTU/3 Ton 36,000 BTU/3 Ton
Mini Split Type Wall Mounted Wall Mounted
Zone Compatibility Single Zone Single Zone
Height 31.89" 14.25"
Width 37.24" 49.57"
Depth 16.14" 11.1"
Warranty 12 year compressor, 7 year parts with online registration 12 year compressor, 7 year parts with online registration

ACiQ Industry-Leading Warranties
ACiQ stands behind every product with exceptional warranty coverage, ensuring long-term reliability and peace of mind. Online registration is required to activate full warranty benefits.

Product Warranty Details

  • Mini Split and High-Efficiency Systems: 12-year compressor, 7-year parts
  • ACiQ Essentials: 6-year compressor, 4-year parts
  • A.C. and Heat Pump Condenser: 10-year compressor and coil
  • Furnace: Lifetime warranty for original owner
  • Air Handler and Coil: 10-year parts for original owner
  • Residential Packaged Units: Lifetime heat exchanger for original owner
  • PTAC: 7-year compressor, 1-year parts
  • Commercial Packaged Units: 10-year heat exchanger, 5-year compressor, 1-year parts
  • Pool Heat Pump: 5-year heat exchanger and compressor, 3-year parts
  • Hybrid Water Heater: 12-year tank, 10-year parts
  • Mobile Home Electric Furnace and Coil: 10-year parts

Warranty Claim Process

  1. System Diagnosis
  2. Method of Resolution
  3. Warranty Acceptance
  4. Faulty Parts Inspected
  5. Replacement Parts Shipped

Register Your System
Activate your warranty at ACiQ.com.
