ACiQ 30,000 BTU 20 SEER2 Single Zone Wall Mounted Mini Split System w/ WiFi - R454B | 230V

ACiQ SKU: ACIQ-30Z-HP230C / ACIQ-30W-HP230C

Price:
Sale price$1,703.90

Description

Reliable Comfort for Larger Spaces with the ACiQ 30,000 BTU Wall Mounted Mini Split System

The ACiQ 30,000 BTU Single Zone Mini Split System is built to provide dependable comfort in larger rooms or open spaces. With advanced inverter technology and a 20 SEER2 efficiency rating, this system adjusts intelligently to your environment, keeping your space consistently comfortable without wasting energy. Whether you’re dealing with summer heat or winter chill, ACiQ ensures your home or office stays at the perfect temperature quietly and efficiently.



Best For:

  • Large Living Rooms or Open Floor Plans: Maintain comfort across expansive spaces.
  • Converted Basements or Garages: Perfect for creating usable, climate-controlled areas.
  • Small Offices or Workspaces: Ensure a productive environment with reliable heating and cooling.
  • Energy-Conscious Homeowners & Businesses: Reduce your energy bills while keeping your space comfortable.

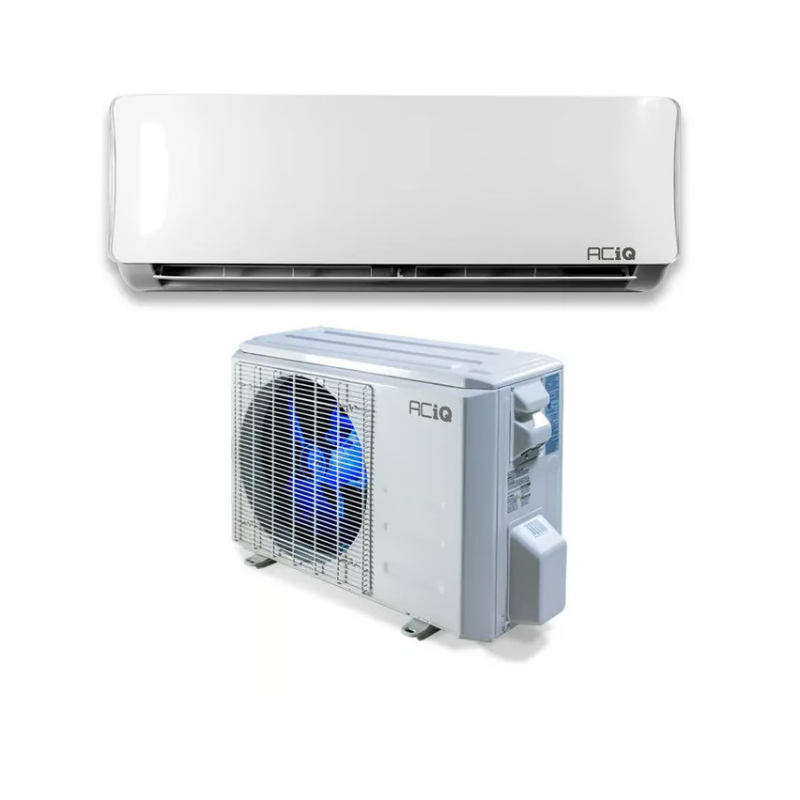

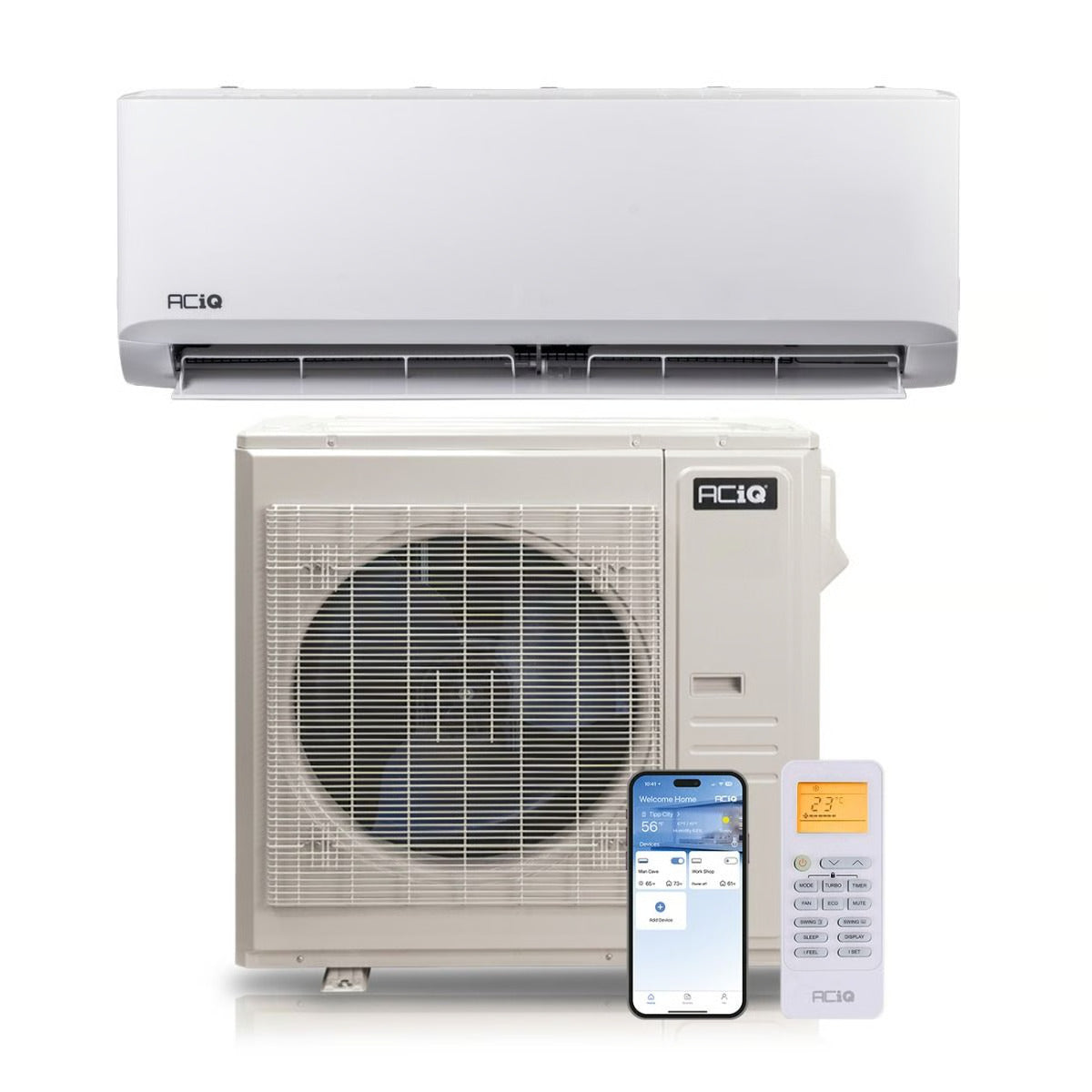

What’s Included:

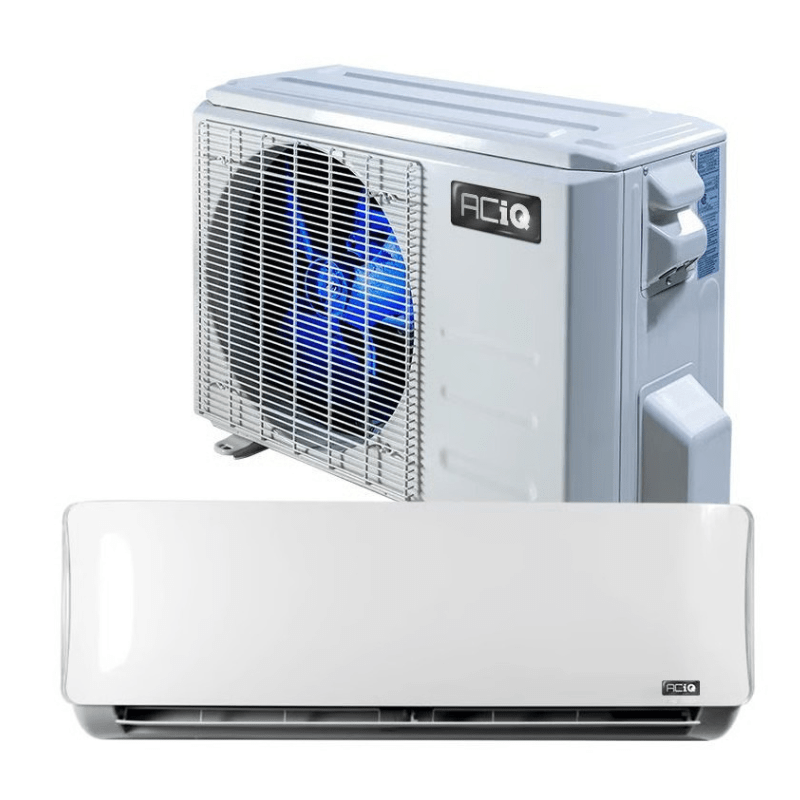

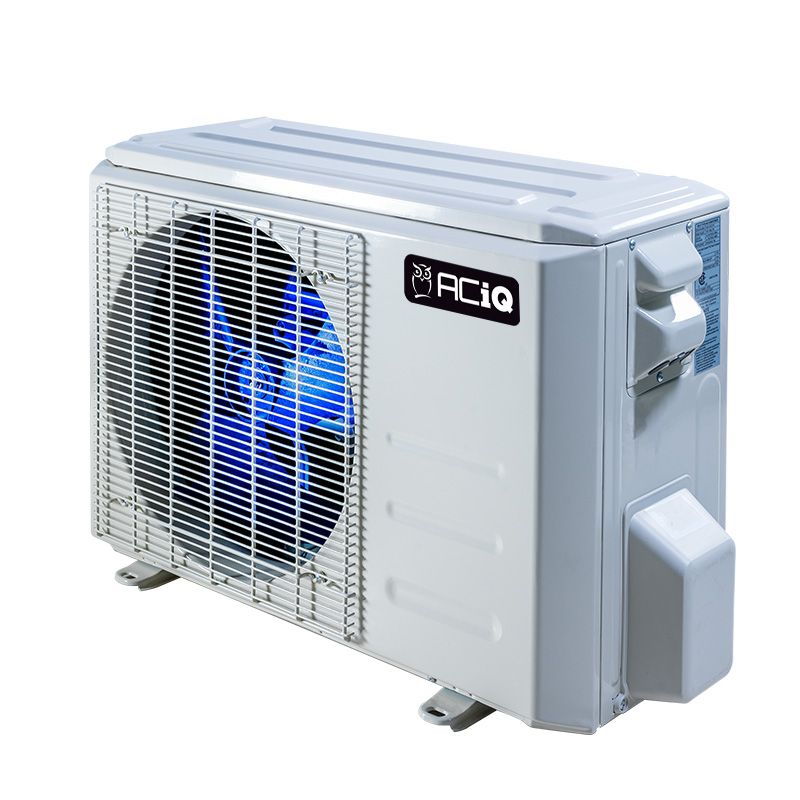

  • 30,000 BTU ACiQ Single Zone Condenser (230V, R454B)

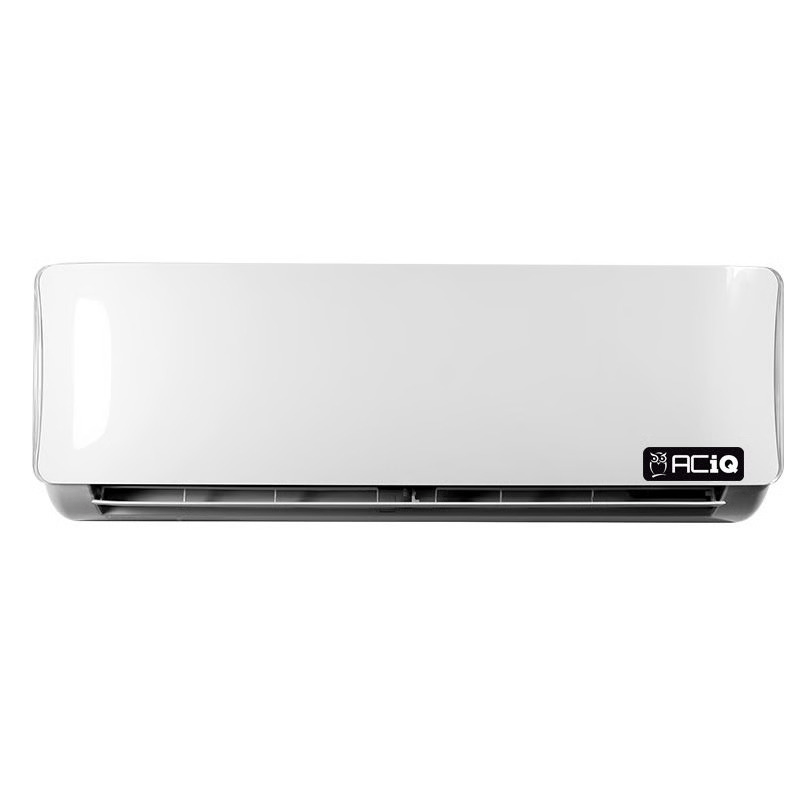

  • 30,000 BTU ACiQ Single Zone Air Handler with WiFi (230V, R454B)



Why Choose the ACiQ 30,000 BTU Mini Split System for Your Comfort?

  • Consistent Performance: The system maintains your desired temperature reliably, adapting as outdoor conditions change.
  • Smart WiFi Control: Manage your heating and cooling remotely via smartphone or through Amazon Alexa and Google Assistant.
  • Durable Construction: Gold Fin coating and a variable inverter twin rotary compressor ensure long-lasting operation.
  • Peaceful Comfort: Whisper-quiet indoor and outdoor units let you enjoy comfort without distraction.
  • Energy-Efficient Operation: Inverter technology precisely adjusts output, reducing energy use while maintaining consistent comfort.

ACiQ 30,000 BTU 20 SEER2 Single Zone Wall Mounted Mini Split System w/ WiFi Features

  • Advanced Inverter Technology: Provides adaptive performance, keeping your space comfortable without unnecessary energy use.
  • High Efficiency (20 SEER2): Delivers reliable cooling and heating for large rooms with energy savings.
  • Wide Temperature Range: Effective cooling from and heating from -13°F to 122°F.

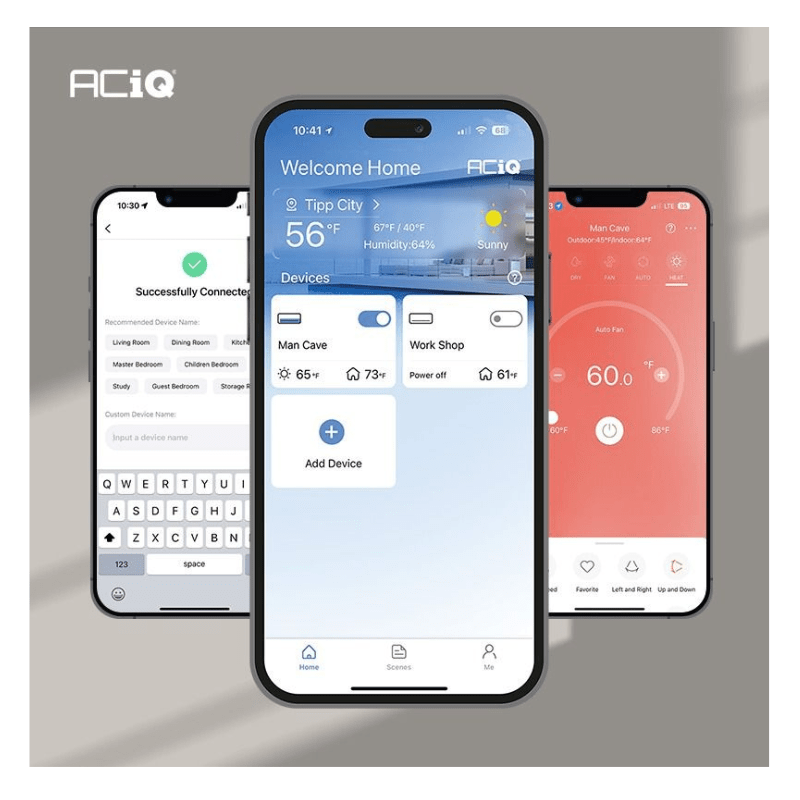

  • WiFi Compatibility: Control your system from anywhere with the NetHome Plus app or through voice assistants.
  • Gold Fin Protection: Resists corrosion and extends the life of your system.
  • LED Display & Smart Remote: Monitor temperature, setpoints, and error codes easily; display can be turned off if desired.
  • Self-Cleaning Function: Keeps internal components clean, reducing maintenance.

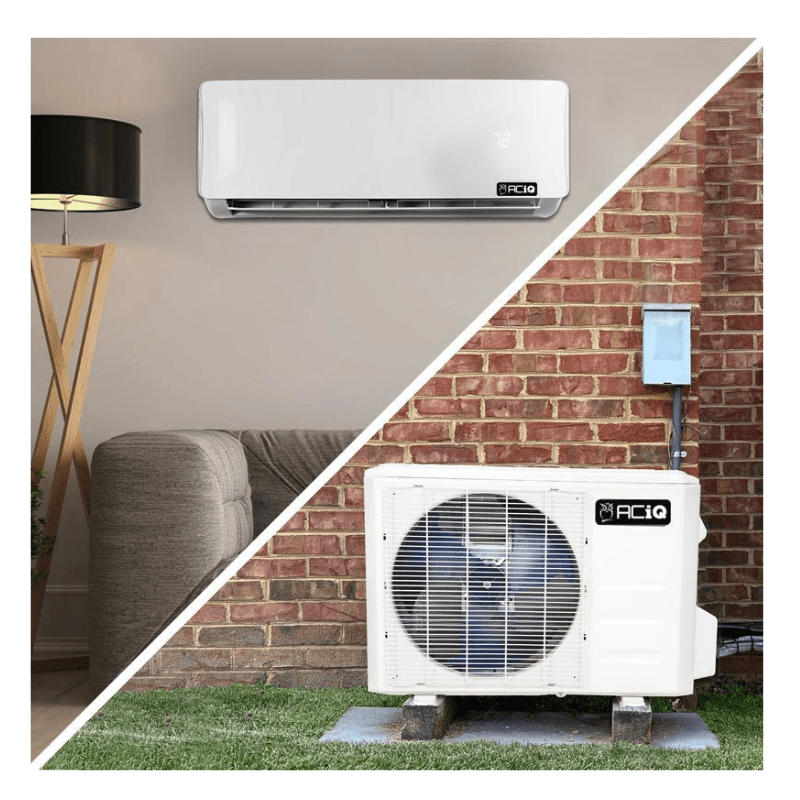

  • Wall Mounted Design: Easy installation high on a wall, with a clean, space-saving footprint.

ACIQ-30Z-HP230C / ACIQ-30W-HP230C Specs

SKU ACIQ-30Z-HP230C ACIQ-30W-HP230C
Refrigerant Charge 25' 25'
Weight (in lbs) 154.54 54.01
Manufacturer ACiQ ACiQ
HSPF2 9.2 9.2
Cooling BTU 30,000 BTU 30,000 BTU
Heating BTU 30,000 BTU 30,000 BTU
Maximum CFM N/A 853.5
Decibel Level (dBA) 61.5 61.5
Electric Heat Heat Pump Heat Pump
Energy Star Yes Yes
Refrigerant R454B R454B
SEER2 20 20
Compressor Type Rotary Rotary
Liquid Line 3/8" 3/8"
Suction Line 5/8" 5/8"
Electrical 208/230V 1 Phase 60 Hz 208/230V 1 Phase 60 Hz
Max Breaker Size 30 Amps 30 Amps
Min. Breaker Size 28.0 Amps 28.0 Amps
Tonnage 2.5 Ton 2.5 Ton
BTU/Tonnage 30,000 BTU/2.5 Ton 30,000 BTU/2.5 Ton
Mini Split Type Wall Mounted Wall Mounted
Zone Compatibility Single Zone Single Zone

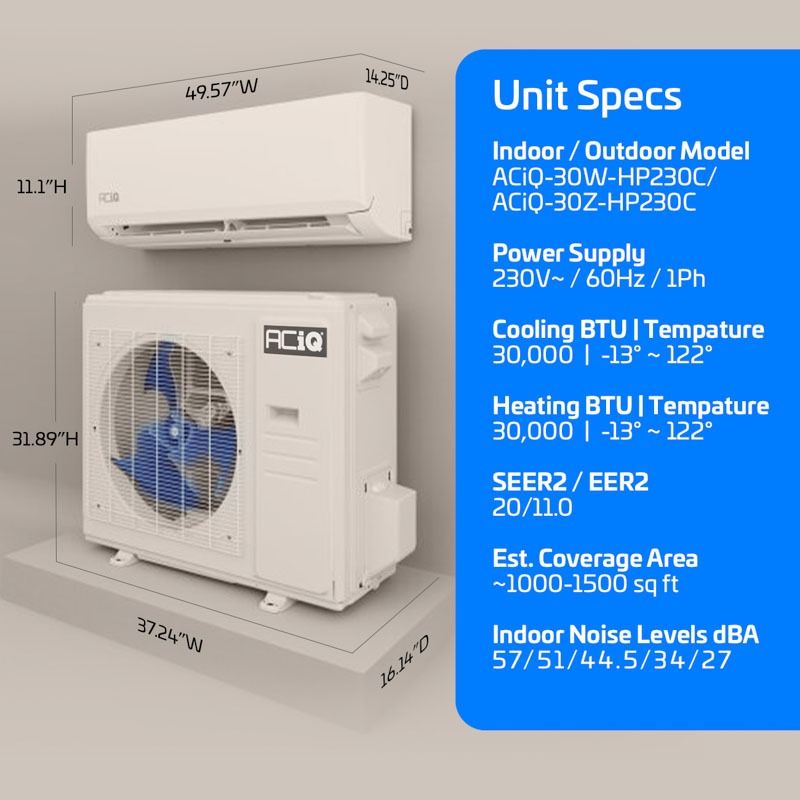

Height 31.89" 14.25"
Width 37.24" 49.57"
Depth 16.14" 11.1"
Warranty 12 year compressor, 7 year parts with online registration 12 year compressor, 7 year parts with online registration
