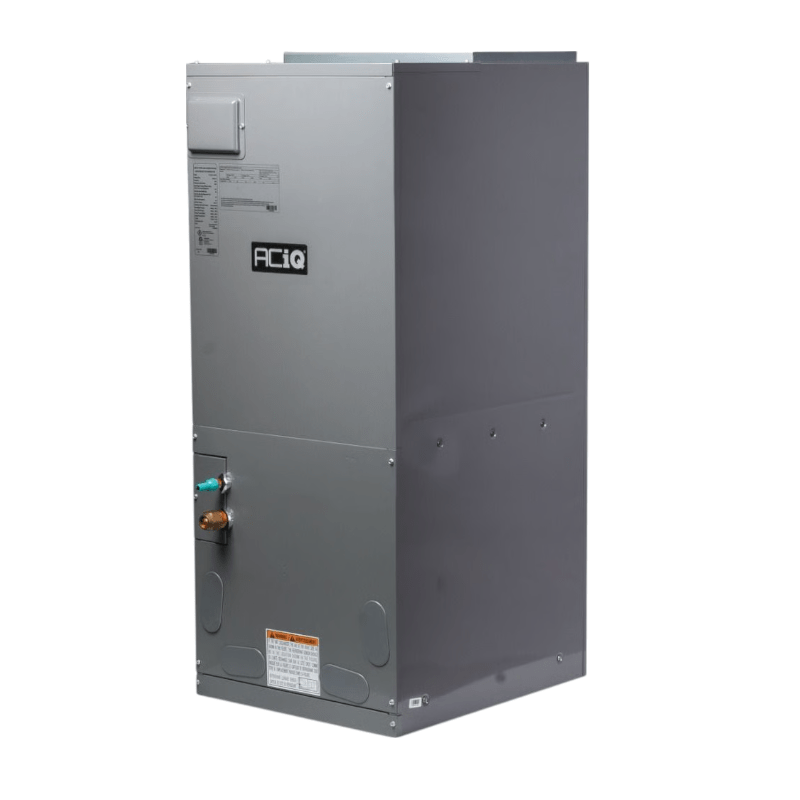

Side Angle of ACiQ 3 Ton High Efficiency Central Ducted Air Handler

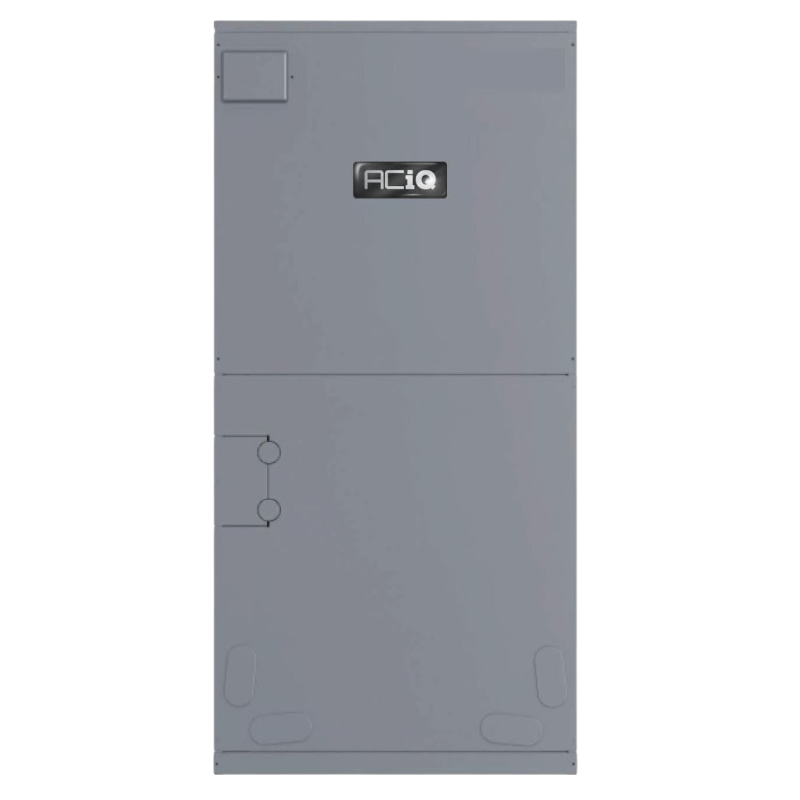

ACiQ 3 Ton High Efficiency Central Ducted Air Handler
Roll over image to zoom in Click on image to zoom
Side Angle of ACiQ 3 Ton High Efficiency Central Ducted Air HandlerACiQ 3 Ton High Efficiency Central Ducted Air Handler

ACiQ 3 Ton High Efficiency Central Ducted Air Handler - R32

ACiQ SKU: ACIQ-36-AH32
Price:
$1,278.00

Description

Maximize Comfort and Efficiency with ACiQ 3 Ton High Efficiency Central Ducted Air Handler – R32

The ACiQ 3 Ton High Efficiency Central Ducted Air Handler is engineered to provide exceptional comfort and energy efficiency. Featuring a variable DC blower and advanced inverter technology, this air handler self-adjusts BTU output to match heating and cooling demands, ensuring consistent comfort throughout your home. With its compatibility with 24v thermostats and a multi-positional design (upflow, downflow, or horizontal), this air handler integrates seamlessly with your existing ductwork, making it ideal for both traditional homes and manufactured/mobile homes.



Ideal For

  • Homeowners & HVAC Installers – Simplifies installation and ensures optimal system performance with compatibility for 24v thermostats.
  • Medium to Large Homes – Provides reliable air distribution for homes needing 36,000 BTU (3-ton) capacity.
  • Eco-Conscious Installations – Uses R32 refrigerant for an environmentally friendly and energy-efficient option.
  • Property Managers & Developers – Versatile installation options (upflow, downflow, horizontal) for different duct setups and mobile home applications.
  • Cold Climate Regions – Optional electric strip heat can be added for supplemental heating during extreme cold weather.



Certifications & Safety Features

  • R32 Refrigerant – Eco-friendly, low-GWP refrigerant that helps reduce environmental impact while ensuring high efficiency.
  • UL Listed – Certified for safe and reliable operation, meeting all necessary safety standards.
  • Manufactured & Mobile Home Approved – Designed for use in both traditional and mobile homes, offering flexibility for different living situations.
  • Intelligent Control Board – Displays fault codes for easy diagnostics and maintenance.

ACiQ 3 Ton High Efficiency Central Ducted Air Handler – Key Features & Benefits

  • Advanced Inverter Technology: Converts AC power to DC to allow variable compressor speeds. This ensures precise temperature control and avoids short cycling for longer unit lifespan.
  • Extreme Heating Performance: Delivers heat even in temperatures as low as -22°F, making it reliable for northern climates and harsh winters.
  • Smart Learning System: Equipped with sensors to monitor indoor/outdoor temperature, duct pressure, and refrigerant levels—learning your environment and adapting future performance for efficiency.
  • Variable Output (18,000–37,000 BTU): Automatically scales its capacity to your home's demand, ensuring year-round efficiency and optimal humidity control.
  • Eco-Friendly & Durable: Features R32 refrigerant for reduced environmental impact and a Gold Fin condenser coil coating for corrosion resistance.
  • Quiet Operation: Runs smoothly and quietly—even at peak workloads—to maintain home comfort without disrupting your environment.

ACIQ-36-AH32 High Efficiency Central Ducted Air Handler - Specs

SKU ACIQ-36-AH32
Weight (in lbs) 178.00
Brand/Manufacturer ACiQ
AHRI Certificate Number 215387239
HSPF2 10
Cooling BTU 34000 BTU
Heating BTU 34000 BTU
Maximum CFM 1000
Decibel Level (dBA) 61 (Max)
Electric Heat Heat Pump
Refrigerant R32
Liquid Valve Size 3/8"
Suction Valve Size 3/4"
Electrical 208/230V 1 Phase 60 Hz
Tonnage 3 Ton
BTU/Tonnage 36,000 BTU/3 Ton
Min/Max Outdoor Temp for Heating 5~75
Min/Max Outdoor Temp for Cooling 5-118
Zone Compatibility Single Zone
Height 48.2"
Width 21.25"
Depth 21.25"
Warranty 12 year compressor, 7 year parts with online registration

ACiQ Industry-Leading Warranties
ACiQ stands behind every product with exceptional warranty coverage, ensuring long-term reliability and peace of mind. Online registration is required to activate full warranty benefits.

Product Warranty Details

  • Mini Split and High-Efficiency Systems: 12-year compressor, 7-year parts
  • ACiQ Essentials: 6-year compressor, 4-year parts
  • A.C. and Heat Pump Condenser: 10-year compressor and coil
  • Furnace: Lifetime warranty for original owner
  • Air Handler and Coil: 10-year parts for original owner
  • Residential Packaged Units: Lifetime heat exchanger for original owner
  • PTAC: 7-year compressor, 1-year parts
  • Commercial Packaged Units: 10-year heat exchanger, 5-year compressor, 1-year parts
  • Pool Heat Pump: 5-year heat exchanger and compressor, 3-year parts
  • Hybrid Water Heater: 12-year tank, 10-year parts
  • Mobile Home Electric Furnace and Coil: 10-year parts

Warranty Claim Process

  1. System Diagnosis
  2. Method of Resolution
  3. Warranty Acceptance
  4. Faulty Parts Inspected
  5. Replacement Parts Shipped

Register Your System
Activate your warranty at ACiQ.com.

Need Assistance?
For warranty claims or inquiries, click here.
