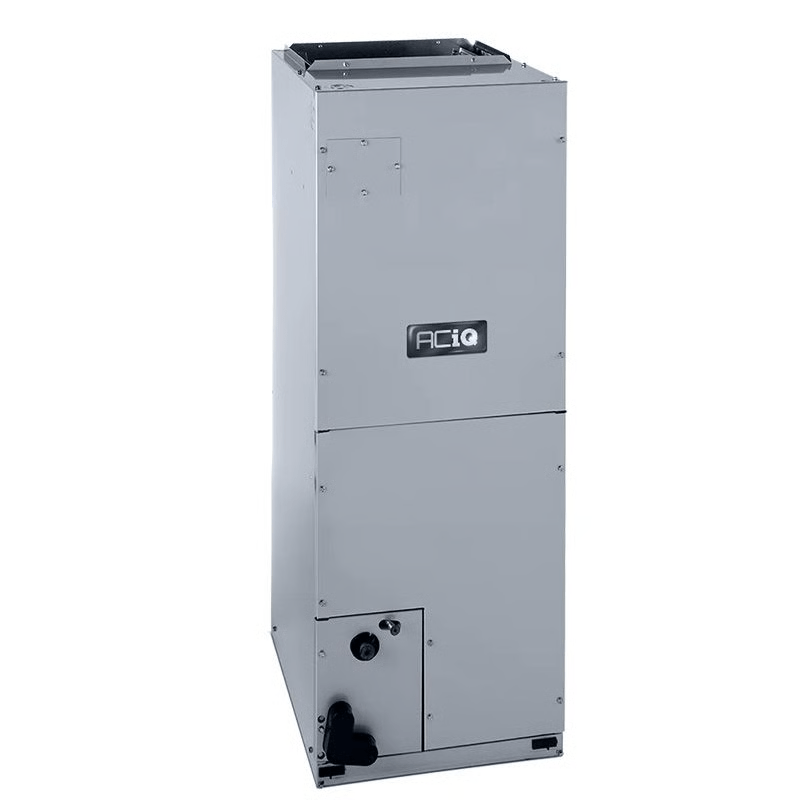

Front of ACiQ 3 Ton Central Ducted Air Handler
Side of ACiQ 3 Ton Central Ducted Air Handler

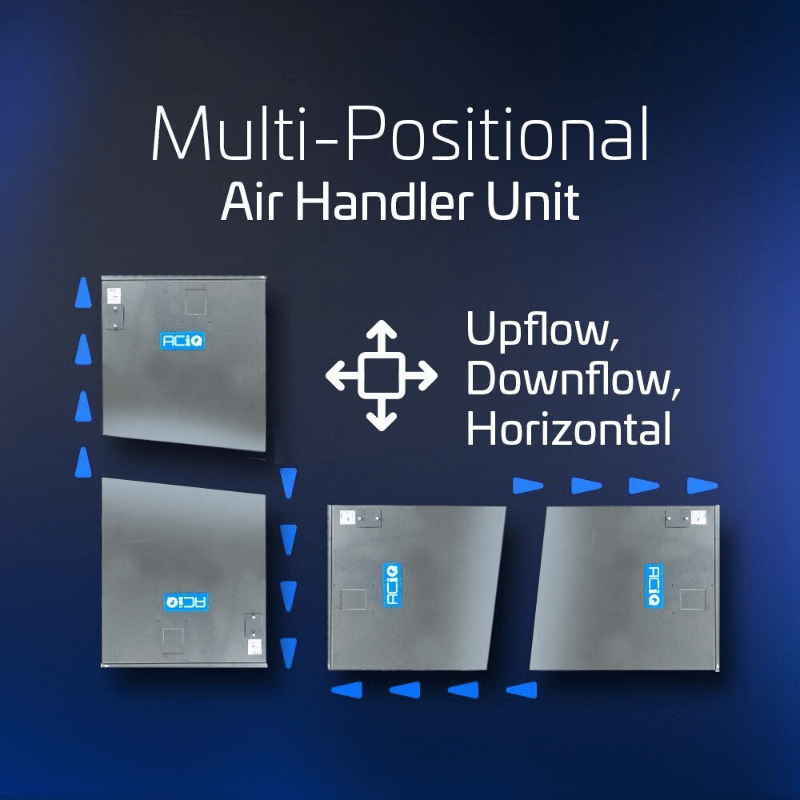

ACiQ 3 Ton Central Ducted Air Handler Configuration Graphics
ACiQ 3 Ton Central Ducted Air Handler Smart Home App
Roll over image to zoom in Click on image to zoom
Front of ACiQ 3 Ton Central Ducted Air Handler Side of ACiQ 3 Ton Central Ducted Air HandlerACiQ 3 Ton Central Ducted Air Handler Configuration GraphicsACiQ 3 Ton Central Ducted Air Handler Smart Home App

ACiQ 3 Ton Central Ducted Air Handler - R454B

ACiQ SKU: ACIQ-36-AHD
Price:
$1,264.00

Description

Enhanced Climate Control with the ACiQ 3 Ton Central Ducted Air Handler – Smart Efficiency for R454B Systems

The ACiQ-36-AHD 3 Ton Central Ducted Air Handler delivers exceptional airflow performance, energy efficiency, and smart communication for modern HVAC systems. Designed with a variable speed DC blower and advanced inverter-compatible technology, this unit automatically adjusts output to meet real-time heating or cooling demand. With full R454B refrigerant compatibility and multi-position installation, it's an ideal solution for retrofit or new ducted system installs in both residential and light commercial settings.



Ideal For:

✔ Whole-Home HVAC Upgrades – Perfect for enhancing efficiency in larger residential ducted systems.

✔ Light Commercial Properties – Delivers reliable, quiet, and consistent airflow for office, retail, and medical spaces.

✔ New Construction – Flexible multi-positional design makes installation seamless in various building layouts.

✔ Modular & Manufactured Homes – Compact design fits tight installs without sacrificing output.



Certifications & Safety Features:

  • High Efficiency Support: When paired properly, supports up to 18.8 SEER2, 11.0 EER2, and 9.7 HSPF2
  • Multi-Position Installation: Flexible orientation: upflow, downflow, horizontal left/right
  • Smart Diagnostics: Integrated control board displays fault codes for easy service and troubleshooting
  • R454B Compatibility: Future-ready refrigerant support with reduced global warming potential
  • Optional R4.2 Insulation: Enhances efficiency while reducing condensation
  • Electric Heat Ready: Add-on kit supports backup heat for extreme conditions

ACIQ-36-AHD Features

  • 36,000 BTU Output – Ideal for large spaces needing efficient, ducted airflow distribution
  • Variable Speed DC Blower – Enables smooth airflow, reduces noise, and optimizes humidity control
  • Smart Communication – Works with inverter condensers to self-adjust based on thermostat signals
  • Quiet Operation – Designed to minimize operational sound, ideal for homes and customer-facing spaces
  • Service-Friendly – Built-in diagnostics reduce maintenance time and improve service accuracy
  • Flexible Control Options – Compatible with most standard and smart thermostats
  • Cold Climate Support – Optional electric heat kits ensure reliable performance even in frigid conditions

ACiQ 3 Ton Central Ducted Air Handler Specs

SKU ACiQ-36-AHD
Weight (in lbs) 153.88
Brand/Manufacturer ACiQ
Replaces ACiQ-36-AHB
Cooling BTU 36,000 BTU
Maximum CFM 1189
Decibel Level (dBA) Up to 48 Decibels
Electric Backup Heat Capabilities (Optional) 5 Kilowatts, 8 Kilowatts, 10 Kilowatts
Configuration Multi-Positional
Refrigerant R454B
Liquid Valve Size 3/8"
Suction Valve Size 3/4"
Electrical 208/230V 1 Phase 60 Hz
Max Breaker Size 15 Amps
Min. Breaker Size 8.0 / 6.0 Amps
Tonnage 3 Ton
BTU/Tonnage 36,000 BTU/3 Ton
Mini Split Type Multi-Positional
Zone Compatibility Single Zone
Connection Flared
Height 45"
Width 17.5"
Depth 16.3"
Warranty 12 Years Compressor and 7 Years Parts with Online Registration

ACiQ Industry-Leading Warranties
ACiQ stands behind every product with exceptional warranty coverage, ensuring long-term reliability and peace of mind. Online registration is required to activate full warranty benefits.

Product Warranty Details

  • Mini Split and High-Efficiency Systems: 12-year compressor, 7-year parts
  • ACiQ Essentials: 6-year compressor, 4-year parts
  • A.C. and Heat Pump Condenser: 10-year compressor and coil
  • Furnace: Lifetime warranty for original owner
  • Air Handler and Coil: 10-year parts for original owner
  • Residential Packaged Units: Lifetime heat exchanger for original owner
  • PTAC: 7-year compressor, 1-year parts
  • Commercial Packaged Units: 10-year heat exchanger, 5-year compressor, 1-year parts
  • Pool Heat Pump: 5-year heat exchanger and compressor, 3-year parts
  • Hybrid Water Heater: 12-year tank, 10-year parts
  • Mobile Home Electric Furnace and Coil: 10-year parts

Warranty Claim Process

  1. System Diagnosis
  2. Method of Resolution
  3. Warranty Acceptance
  4. Faulty Parts Inspected
  5. Replacement Parts Shipped

Register Your System
Activate your warranty at ACiQ.com.
