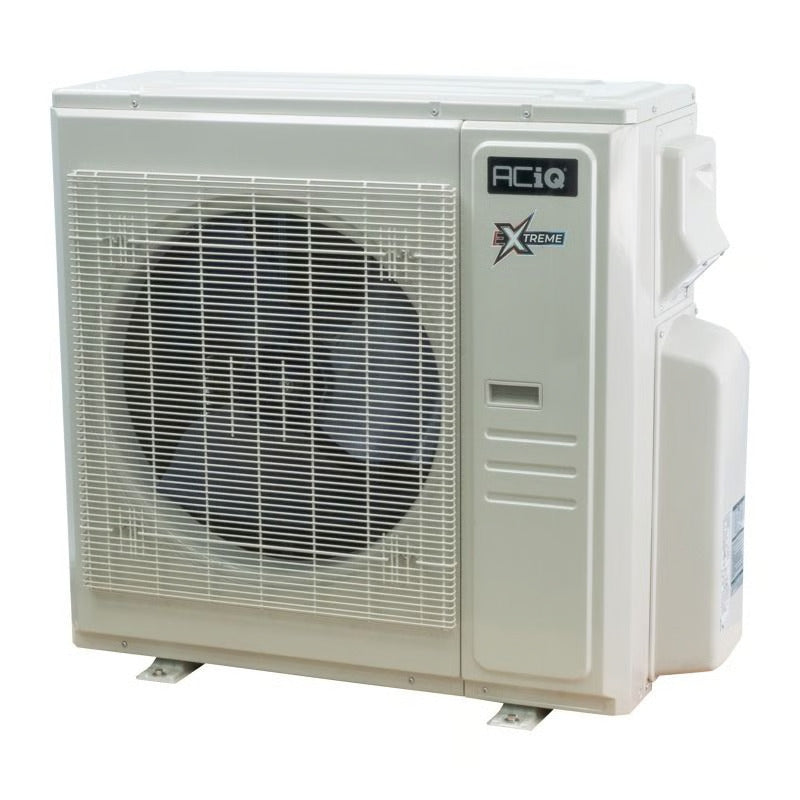

ACIQ-36Z-HH-M5C 36,000 BTU ACiQ Extreme Multi-Zone Mini Split Heat Pump Condenser - R454B | 230V
A close-up view of the brass refrigerant line connections, or service valves, on a multi-zone air conditioner condenser unit, labeled with the letters A, B, C, and D
The open electrical panel of a multi-zone air conditioner condenser unit, showing the wiring terminals and connection points
Roll over image to zoom in Click on image to zoom
ACIQ-36Z-HH-M5C 36,000 BTU ACiQ Extreme Multi-Zone Mini Split Heat Pump Condenser - R454B | 230VA close-up view of the brass refrigerant line connections, or service valves, on a multi-zone air conditioner condenser unit, labeled with the letters A, B, C, and DThe open electrical panel of a multi-zone air conditioner condenser unit, showing the wiring terminals and connection points ACiQ Mini Splits Brand Overview

ACiQ 3 Ton 23 SEER2 Multi Zone Condenser Extreme Series | Inverter - R454B

ACiQ SKU: ACIQ-36Z-HH-M5C
Price:
$4,459.99

Description

Efficient Multi-Zone Comfort with the ACiQ 3 Ton 23 SEER2 Extreme Series Condenser (Inverter, R454B)

The ACiQ-36Z-HH-M5C condenser provides smart, adaptive heating and cooling for up to five separate zones from a single outdoor unit. Designed for both flexibility and efficiency, this 3-ton system allows multiple air handlers to operate simultaneously while delivering precise climate control in each room. With a 23 SEER2 rating, it combines reliable comfort with lower energy consumption.

Equipped with inverter technology and Extreme Heat functionality, the ACiQ-36Z-HH-M5C continuously adjusts output to match real-time heating or cooling demands. Its robust construction and quiet operation make it ideal for large homes or multi-zone setups, ensuring consistent comfort even in extreme weather conditions.



Ideal For

  • Spacious Homes – Maintain consistent temperatures across multiple rooms with independent controls.
  • Property Managers & Landlords – Reliable climate management for single-family homes or small multi-unit properties.
  • Tech-Savvy Homeowners – Adaptive technology enables precise control for each zone.
  • HVAC Professionals & Installers – Designed for expert installation with versatile setup options.



Reasons to Choose the ACiQ 3 Ton Multi Zone Extreme Series

  • Multi-Zone Control – Supports up to 5 air handlers, allowing tailored comfort in every space.
  • Energy-Saving Design – 23 SEER2 rating reduces electricity usage while maintaining performance.
  • Extreme Heat Ready – Base pan heater and HyperHeat inverter operation maximize warmth in cold climates.
  • Smart Inverter Technology – Automatically regulates output for efficient, consistent performance.
  • Built to Last – Gold Fin anti-corrosion coating safeguards the condenser for years of durability.
  • Quiet Operation – Low-noise design keeps the unit unobtrusive even at full load.
  • Self-Maintaining Condenser – Fan reverses direction to remove debris, maintaining optimal efficiency.
  • Professional Installation Required – Ensures peak performance and compliance with manufacturer guidelines.



Specifications & Warranty

  • Efficiency Rating: 23 SEER2
  • Refrigerant Type: R454B
  • Zone Support: Up to 5 air handlers
  • Condenser Protection: Gold Fin anti-corrosion coating
  • Warranty: Standard ACiQ coverage; register online to extend to 7 years parts / 12 years compressor

ACiQ 3 Ton Multi Zone Condenser Extreme Series Features

  • Flexible Multi-Zone Control – Easily manage up to 5 zones independently from a single condenser.
  • Energy-Efficient Performance – High SEER2 rating helps save on utility costs while keeping every room comfortable.
  • Extreme Weather Capability – Functions reliably in temperatures from -22°F to 122°F.
  • Inverter-Driven Compressor – Adjusts output automatically to deliver precise heating and cooling in each zone.
  • Durable Gold Fin Coating – Protects the condenser coil from corrosion and ensures long-term operation.
  • Whisper-Quiet Operation – Keeps the system unobtrusive even when running at full capacity.
  • Self-Cleaning Design – Fan reverses automatically to clear debris and maintain optimal efficiency.
  • Professional Installation Needed – Ensures the system works at its best for years.

ACIQ-36Z-HH-M5C Specs

Brand/Manufacturer ACiQ
SKU ACIQ-36Z-HH-M5C
Refrigerant Charge 134.04 oz.
AHRI Certificate Number 216032367
HSPF2 10.7
Product Features Low Ambient Heating
Cooling BTU 36,000 BTU
Heating BTU 36,000 BTU
Maximum CFM 3037
Decibel Level (dBA) 65
Electric Heat Heat Pump
Refrigerant R454B
Compressor Type Rotary
SEER2 (Efficiency) 23
Liquid Line 1/4" (5)
Suction Line 3/8" (3); 1/2" (2)
Electrical 208/230V 1 Phase 60 Hz
Max Breaker Size 40A
Min. Breaker Size 37A
Tonnage 3 Ton
BTU/Tonnage 36,000 BTU/3 Ton
Ambient Temperature Range -22 ~ 122
Mini Split Type Wall Mounted
Zone Compatibility Multi Zone
Width 38.58"
Height 38.39"
Depth 16.34"
Weight (in lbs) 244.71
Warranty 12 year compressor, 7 year parts with online registration

ACiQ Industry-Leading Warranties
ACiQ stands behind every product with exceptional warranty coverage, ensuring long-term reliability and peace of mind. Online registration is required to activate full warranty benefits.

Product Warranty Details

  • Mini Split and High-Efficiency Systems: 12-year compressor, 7-year parts
  • ACiQ Essentials: 6-year compressor, 4-year parts
  • A.C. and Heat Pump Condenser: 10-year compressor and coil
  • Furnace: Lifetime warranty for original owner
  • Air Handler and Coil: 10-year parts for original owner
  • Residential Packaged Units: Lifetime heat exchanger for original owner
  • PTAC: 7-year compressor, 1-year parts
  • Commercial Packaged Units: 10-year heat exchanger, 5-year compressor, 1-year parts
  • Pool Heat Pump: 5-year heat exchanger and compressor, 3-year parts
  • Hybrid Water Heater: 12-year tank, 10-year parts
  • Mobile Home Electric Furnace and Coil: 10-year parts

Warranty Claim Process

  1. System Diagnosis
  2. Method of Resolution
  3. Warranty Acceptance
  4. Faulty Parts Inspected
  5. Replacement Parts Shipped

Register Your System
Activate your warranty at ACiQ.com.

Need Assistance?
