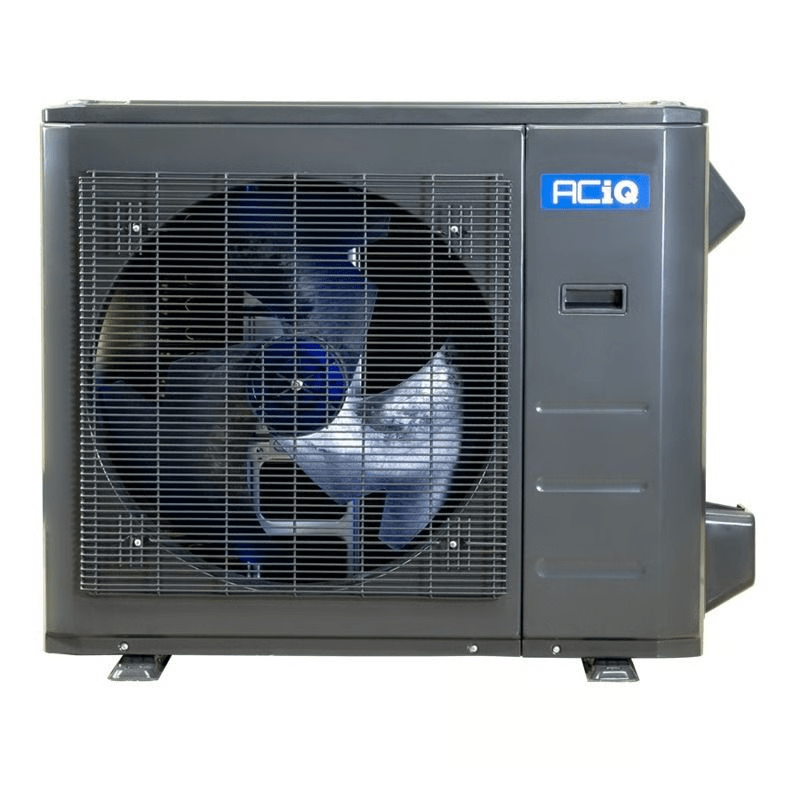

ACiQ 3 Ton 16.1 SEER2 High Efficiency Central Heat Pump | Inverter - R454B

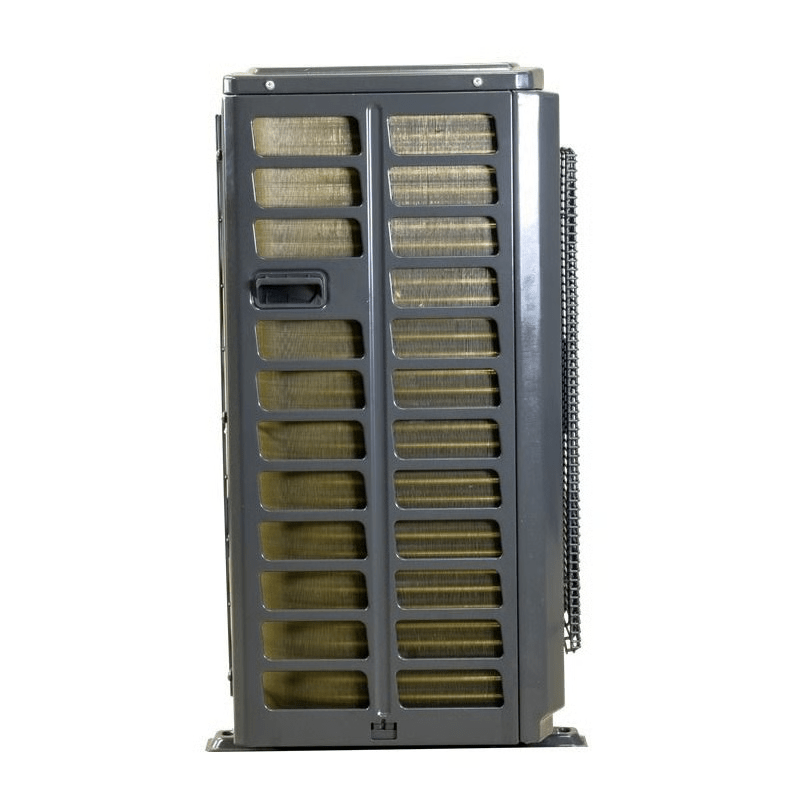

SideView of ACiQ 3 Ton 16.1 SEER2 High Efficiency Central Heat Pump

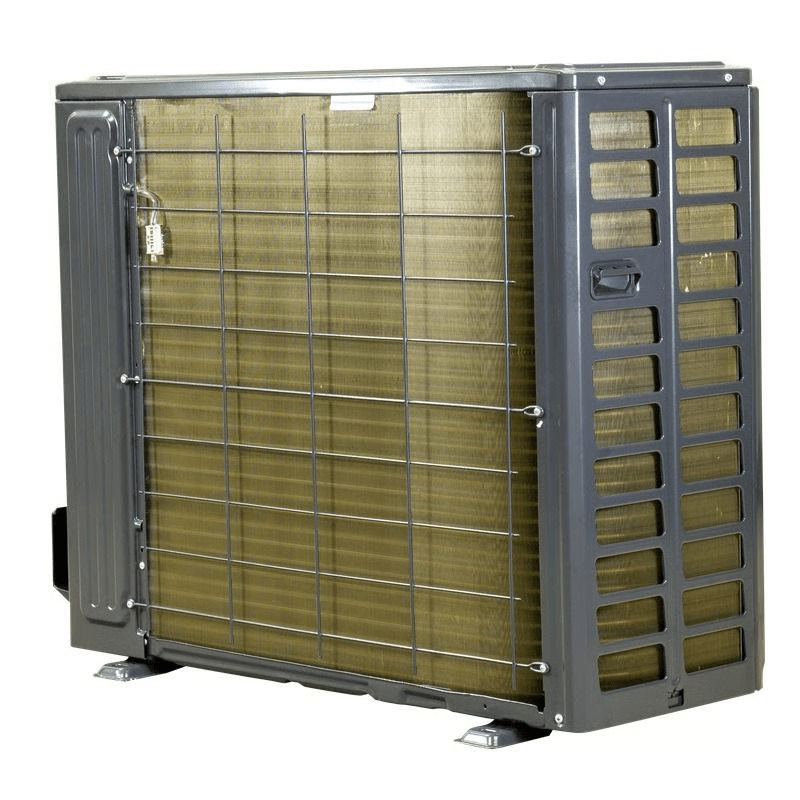

Back of ACiQ 3 Ton 16.1 SEER2 High Efficiency Central Heat Pump

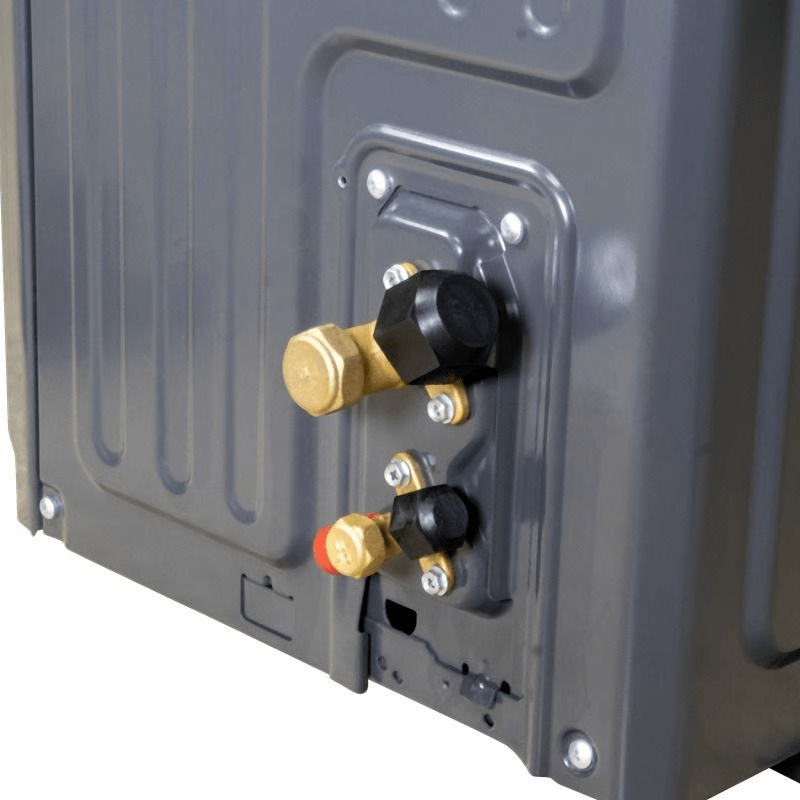

ACiQ 3 Ton 16.1 SEER2 High Efficiency Central Heat Pump Port

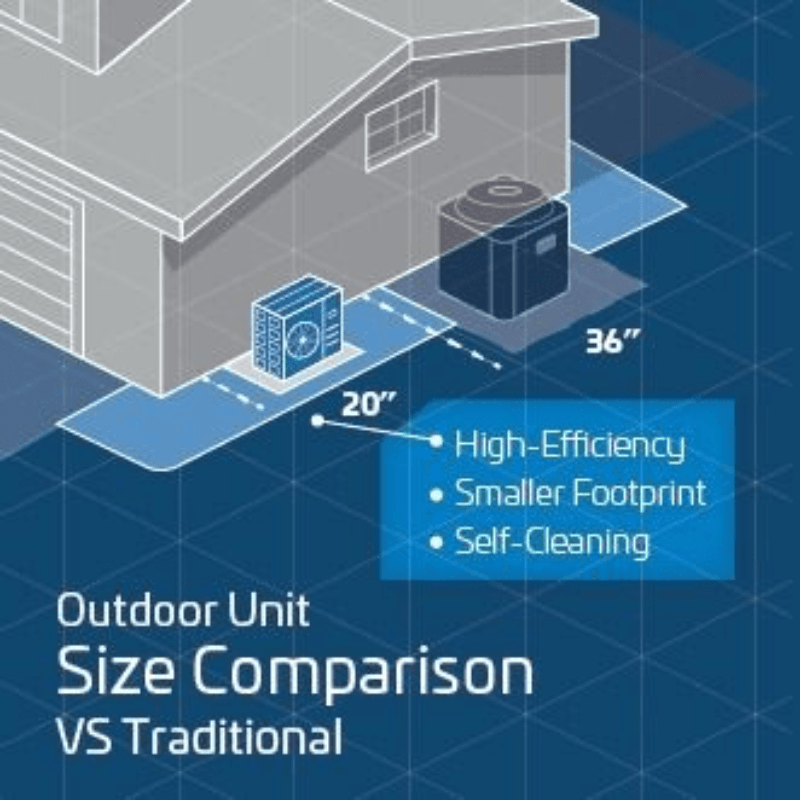

ACiQ 3 Ton 16.1 SEER2 High Efficiency Central Heat Pump Size Comparison

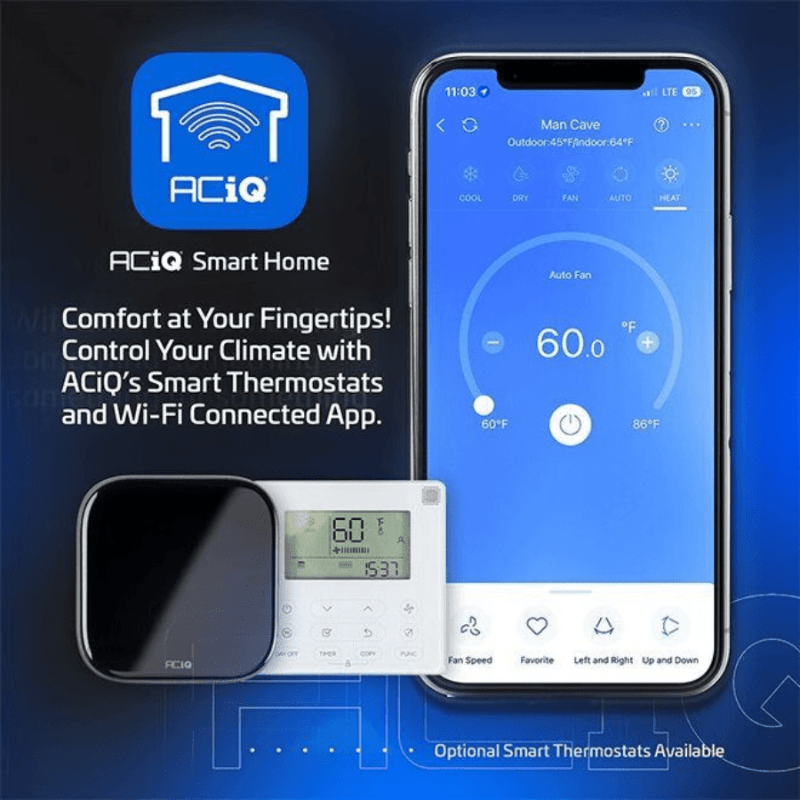

ACiQ 3 Ton 16.1 SEER2 Smarthome App Graphics
Roll over image to zoom in Click on image to zoom
ACiQ 3 Ton 16.1 SEER2 High Efficiency Central Heat Pump | Inverter - R454BSideView of ACiQ 3 Ton 16.1 SEER2 High Efficiency Central Heat Pump Back of ACiQ 3 Ton 16.1 SEER2 High Efficiency Central Heat Pump ACiQ 3 Ton 16.1 SEER2 High Efficiency Central Heat Pump Port How ACiQ Condensers Clean Themselves Automatically Self-Cleaning HVAC TechnologyACiQ 3 Ton 16.1 SEER2 High Efficiency Central Heat Pump Size ComparisonACiQ 3 Ton 16.1 SEER2 Smarthome App Graphics

ACiQ 3 Ton 16.1 SEER2 High Efficiency Central Heat Pump | Inverter - R454B

ACiQ SKU: ACIQ-36-EHPD
Price:
$3,184.00

Description

Experience Reliable Comfort with the ACiQ 3 Ton 16.1 SEER2 High Efficiency Central Heat Pump!

The ACiQ 3 Ton 16.1 SEER2 High Efficiency Central Heat Pump offers a smart, eco-friendly solution for both cooling and heating needs. With its advanced inverter technology and R454B refrigerant, this unit adapts to real-time demand, providing energy-efficient performance year-round. The system operates efficiently across a wide temperature range—from -13°F to 122°F for cooling and -13°F to 75°F for heating, ensuring optimal climate control no matter the weather conditions. This heat pump is perfect for both residential and commercial applications where efficiency and comfort are essential.



Ideal For:

✔ Commercial Offices & Buildings – Provides cost-effective, consistent heating and cooling, minimizing energy consumption and ensuring a comfortable working environment.

✔ Retail Spaces – Keeps the shopping environment comfortable for customers, adjusting to varying foot traffic without wasting energy.

✔ Hospitality & Restaurants – Ensures guest comfort with minimal noise and efficient energy use, enhancing the overall experience while reducing operational costs.

✔ Warehouses & Industrial Facilities – Ideal for large commercial spaces, offering reliable climate control even in extreme temperatures.

✔ Educational Institutions – Perfect for classrooms and auditoriums, this system maintains a comfortable environment for learning while reducing maintenance and energy costs.



Control Options:

  • Two-way communication wired controller
  • Optional WiFi-enabled wired controller
  • Wireless remote control
  • Third-party 24V thermostat



Certifications & Safety Features:

  • Energy Efficiency: Achieves 16.1 SEER2, providing significant energy savings on both heating and cooling operations.
  • Eco-Friendly Refrigerant: Uses R454B refrigerant, ensuring a more sustainable solution without sacrificing performance.
  • Durable Construction: Gold Fin condenser coil coating offers increased resistance to corrosion, enhancing the system’s durability and lifespan.
  • Warranty: Standard manufacturer warranty for peace of mind and long-term reliability.
  • Manufactured & Mobile Home Approved: This heat pump is approved for use in both residential and mobile home applications, offering flexibility for various installation needs.

ACiQ ACIQ-36-EHPD Features

  • Inverter Technology: Adjusts compressor speed to match demand, providing variable output (12,000-36,000 BTU for cooling/heating) for enhanced efficiency.
  • High Efficiency: Delivers 16.1 SEER2 rating, lowering energy costs with eco-friendly R454B refrigerant.
  • Adaptive Sizing: Sizes for heating needs without short cycling, ensuring optimal cooling and humidity control.
  • Learning Condenser: Sensors monitor temperature, pressure, and performance, optimizing efficiency after initial startup.
  • Wide Temperature Range: Efficient cooling from -13°F to 122°F and heating from 5°F to 75°F outdoor temperatures.
  • Quiet Operation: Operates smoothly with minimal noise, even under high workloads.
  • Durable Design: Gold fin condenser coil coating resists corrosion for long-lasting performance.
  • Seamless Integration: Pairs with ACIQ-36-AHD air handler, connecting easily to existing ductwork.
  • Smart System: Soft startups maximize efficiency and reduce energy waste.
  • Multi-Positional Air Handler: Installs in upflow, downflow, or horizontal configurations for flexible setup.
  • Extended Warranty: Offers 7-year parts and 12-year compressor coverage with registration at ACiQ.com.
  • Energy Savings: Variable inverter technology eliminates short cycling, reducing operating costs compared to traditional heat pumps.

ACiQ 3 Ton 16.1 SEER2 High Efficiency Central Heat Pump Specs

SKU ACiQ-36-EHPD
Refrigerant Charge 25'
Weight (in lbs) 163.58
Brand/Manufacturer ACiQ
Replaces ACiQ-36-EHPB
Product Features Inverter, Two Stage Condenser, Variable Speed Condenser
HSPF2 8.7
Cooling BTU 36,000 BTU
Heating BTU 36,000 BTU
Maximum CFM 1189
Decibel Level (dBA) 60
Electric Heat Heat Pump
Refrigerant R454B
SEER2 (Efficiency) 16.1
Condenser Stages Variable Speed
Compressor Type Rotary
Liquid Valve Size 3/8"
Suction Valve Size 3/4"
Electrical 208/230V 1 Phase 60 Hz
Max Breaker Size 30 Amps
Min. Breaker Size 27 Amps
Tonnage 3 Ton
BTU/Tonnage 36,000 BTU/3 Ton
Min/Max Outdoor Temp for Heating -13°F - 75°F
Min/Max Outdoor Temp for Cooling -13°F - 122°F
Ambient Temperature Range -13°F - 122°F
Height 31.9"
Width 37.2"
Depth 16.1"
Warranty 12 Years Compressor and 7 Years Parts with Online Registration

ACiQ Industry-Leading Warranties
ACiQ stands behind every product with exceptional warranty coverage, ensuring long-term reliability and peace of mind. Online registration is required to activate full warranty benefits.

Product Warranty Details

  • Mini Split and High-Efficiency Systems: 12-year compressor, 7-year parts
  • ACiQ Essentials: 6-year compressor, 4-year parts
  • A.C. and Heat Pump Condenser: 10-year compressor and coil
  • Furnace: Lifetime warranty for original owner
  • Air Handler and Coil: 10-year parts for original owner
  • Residential Packaged Units: Lifetime heat exchanger for original owner
  • PTAC: 7-year compressor, 1-year parts
  • Commercial Packaged Units: 10-year heat exchanger, 5-year compressor, 1-year parts
  • Pool Heat Pump: 5-year heat exchanger and compressor, 3-year parts
  • Hybrid Water Heater: 12-year tank, 10-year parts
  • Mobile Home Electric Furnace and Coil: 10-year parts

Warranty Claim Process

  1. System Diagnosis
  2. Method of Resolution
  3. Warranty Acceptance
  4. Faulty Parts Inspected
  5. Replacement Parts Shipped

Register Your System
Activate your warranty at ACiQ.com.

Need Assistance?
For warranty claims or inquiries, click here.
