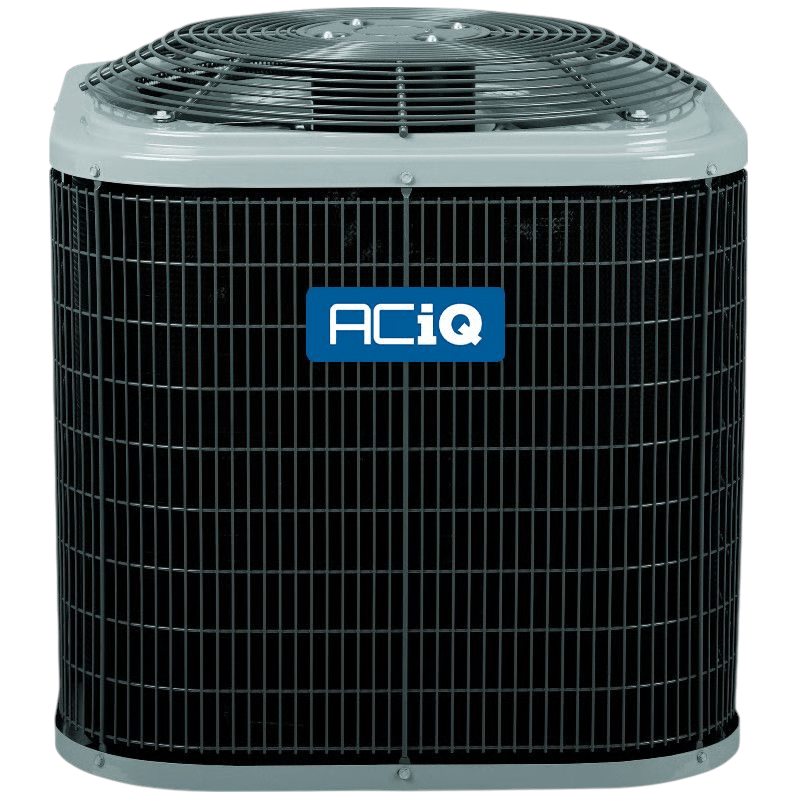

Front-center view of the ACiQ 3 Ton 14.3 SEER2 Heat Pump

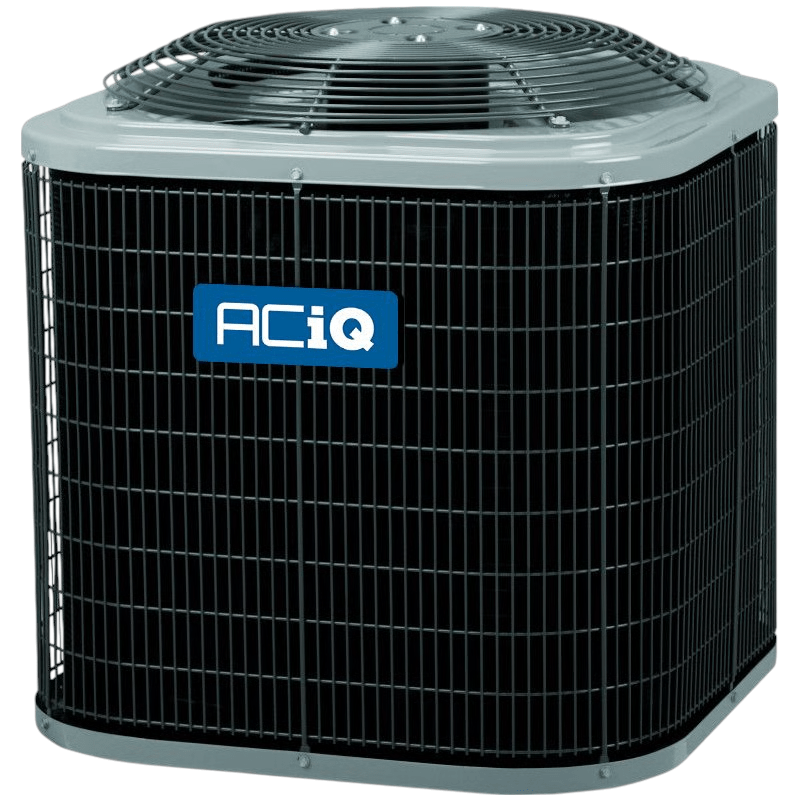

Left side view of the ACiQ 3 Ton 14.3 SEER2 Heat Pump

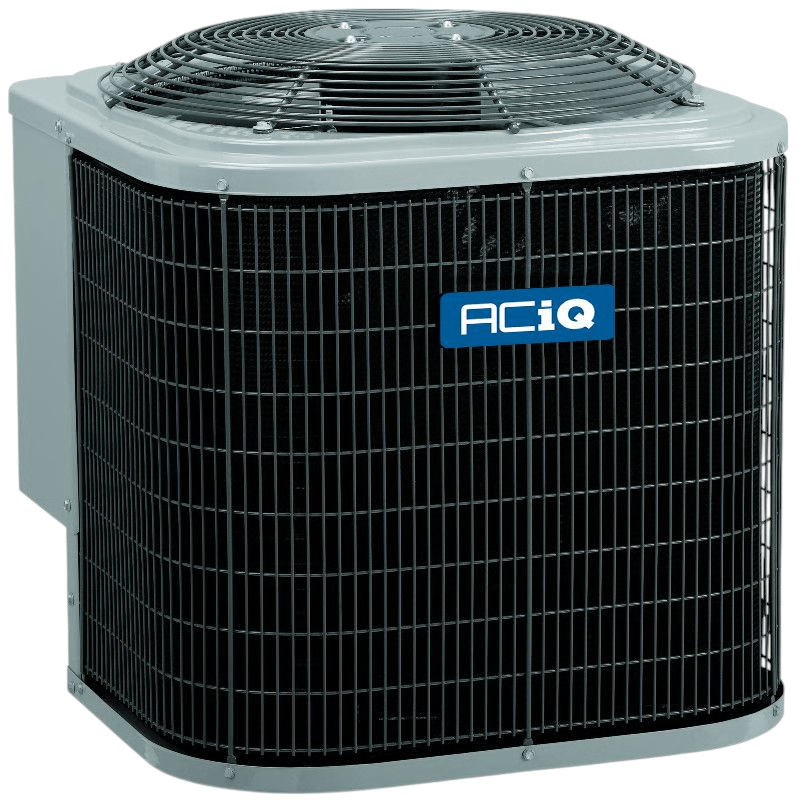

Right side view of the ACiQ 3 Ton 14.3 SEER2 Heat Pump

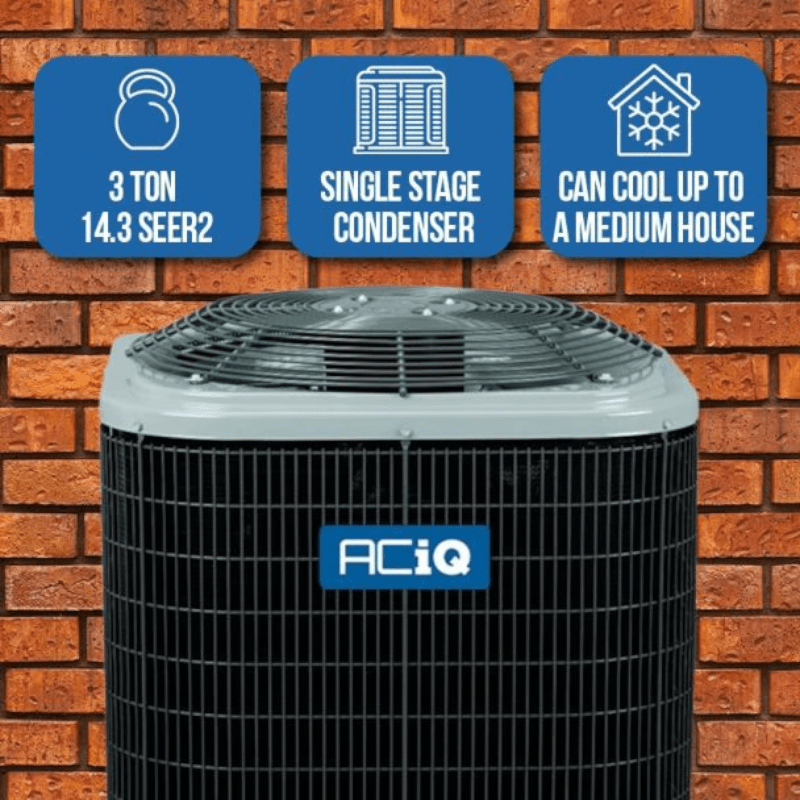

Front view of the ACiQ 3 Ton 14.3 SEER2 Heat Pump with Infographic features
Roll over image to zoom in Click on image to zoom
Front-center view of the ACiQ 3 Ton 14.3 SEER2 Heat PumpLeft side view of the ACiQ 3 Ton 14.3 SEER2 Heat PumpRight side view of the ACiQ 3 Ton 14.3 SEER2 Heat PumpFront view of the ACiQ 3 Ton 14.3 SEER2 Heat Pump with Infographic features

ACiQ 3 Ton 14.3 SEER2 Heat Pump - R454B

ACiQ SKU: R5H5S36AKAAA
Price:
$3,155.00

Description

Reliable Heating and Cooling with ACiQ 3 Ton 14.3 SEER2 Heat Pump – R454B Pre-Charged

The ACiQ R5H5S36AKAAA is a 3-ton heat pump condenser that provides efficient heating and cooling for medium-sized homes. With a high 14.3 SEER2 rating and factory pre-charged R-454B refrigerant, this unit delivers significant energy savings, quicker installation, and long-lasting comfort. Designed to efficiently heat down to 35°F and cool in warmer conditions, it is a solid choice for moderate climates. Its single-stage scroll compressor ensures quiet operation and dependable performance for year-round comfort.



Ideal For

  • HVAC Contractors & Technicians – Pre-charged for 15 ft line sets, reducing installation time and simplifying refrigerant handling.
  • Medium-Sized Homes – Perfect for homes with moderate heating and cooling demands, including multiple rooms or open-concept spaces.
  • Property Managers & Developers – Saves 5–7% on energy costs compared to 13.4 SEER2 systems, providing cost-effective long-term performance.
  • Eco-Conscious Projects – Equipped with R-454B refrigerant, offering low-GWP and non-ozone-depleting compliance with modern environmental regulations.
  • A2L-Compliant Installations – Requires pairing with R-454B-compatible air handlers or coils equipped with leak detection to ensure safety and warranty compliance.



Certifications & Safety Features

  • 10-Year Limited Parts Warranty (valid with certified coil installation and online registration)
  • Internal compressor protection and pressure relief valve for enhanced system reliability
  • UL Listed for safety compliance
  • A2L Safety Compliance: Must be paired with an R-454B-compatible unit with leak detection for safe operation and warranty coverage

ACiQ 3 Ton 14.3 SEER2 Heat Pump – Key Features & Benefits

  • 3 Ton / ~36,000 BTU/hr Heating & Cooling Capacity – Perfect for cooling and heating medium-sized homes or multi-zone areas.
  • 14.3 SEER2 Efficiency – Provides 5–7% more efficiency than 13.4 SEER2 models, lowering energy consumption and cost.
  • Single-Stage Scroll Compressor – Reliable, quiet performance with fewer moving parts, ensuring long-term operation.
  • Pre-Charged with R-454B Refrigerant – Ready for quick installation with no on-site refrigerant charging needed for 15 ft line sets.
  • Durable Cabinet Design – Features reinforced corner posts and a protective inlet grille to safeguard internal components.
  • Quiet Performance – Designed to operate with minimal noise, ensuring comfort in both residential and mixed-use settings.
  • Heating Down to 35°F – Efficiently heats moderate climates; additional backup heat strip needed for lower temperatures.
  • Factory Tested for Reliability – 100% factory-run tested for consistent performance and quality assurance.
  • Filter Drier Included – Helps maintain clean refrigerant lines for long-lasting system health.
  • 10-Year Warranty – Extended protection when registered online, providing peace of mind for long-term performance.

ACiQ R5H5S36AKAAA Heat Pump Specs

SKU R5H5S36AKAAA
Refrigerant Charge 15'
Weight (in lbs) 192
Replaces R4H5S
Product Features New Refrigerant Compliant
HSPF2 7.5
Cooling / Heating BTU 36,000
Maximum CFM 3500
Decibel Level (dBA) 76
Motor RPM 825
Horsepower 1/4 HP
Refrigerant R454B
SEER2 (Efficiency) 14.3
Condenser Stages Single Stage
Compressor Type Scroll
Liquid Valve Size 3/8"
Suction Valve Size 3/4"
Electrical 208/230v 1Ph 60Hz
Phase Single Phase
Max Breaker Size 30 Amps
Min. Breaker Size 19.2 Amps
Tonnage 3 Ton
Height 31 11/16"
Width 31 3/16"
Depth 31 3/16"
Warranty 10 Years Parts with Online Registration
