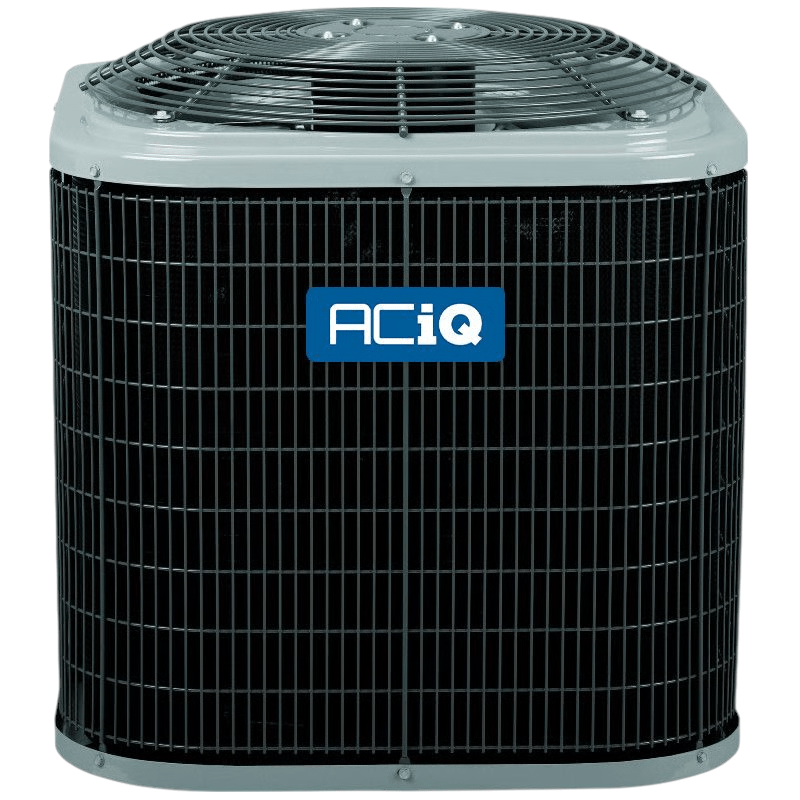

Front-center view of the ACiQ 3 Ton 14.3 SEER2 Air Conditioner Condenser

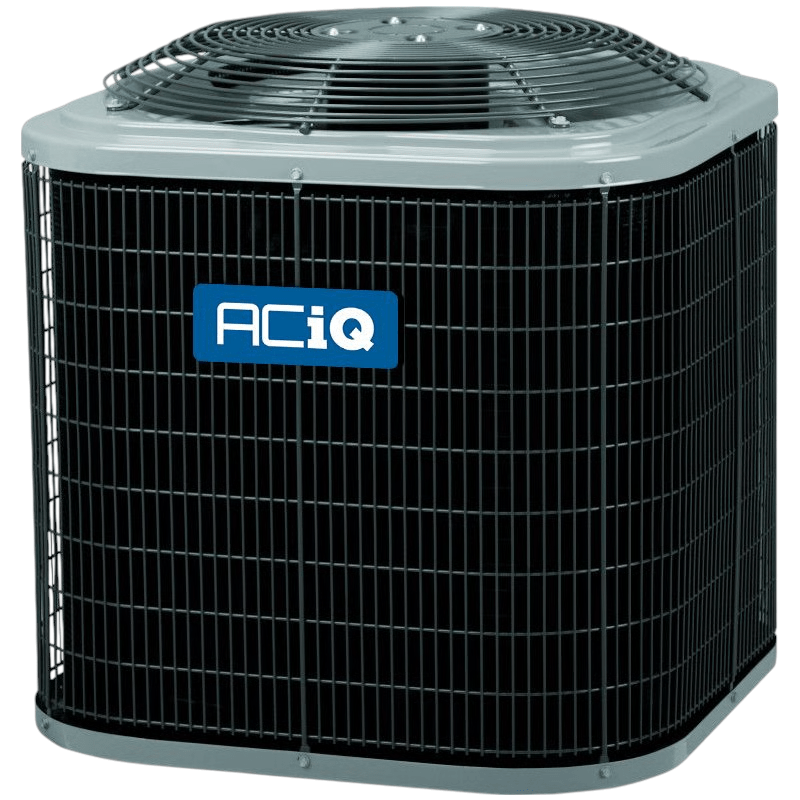

Right side view of the ACiQ 3 Ton 14.3 SEER2 Air Conditioner Condenser

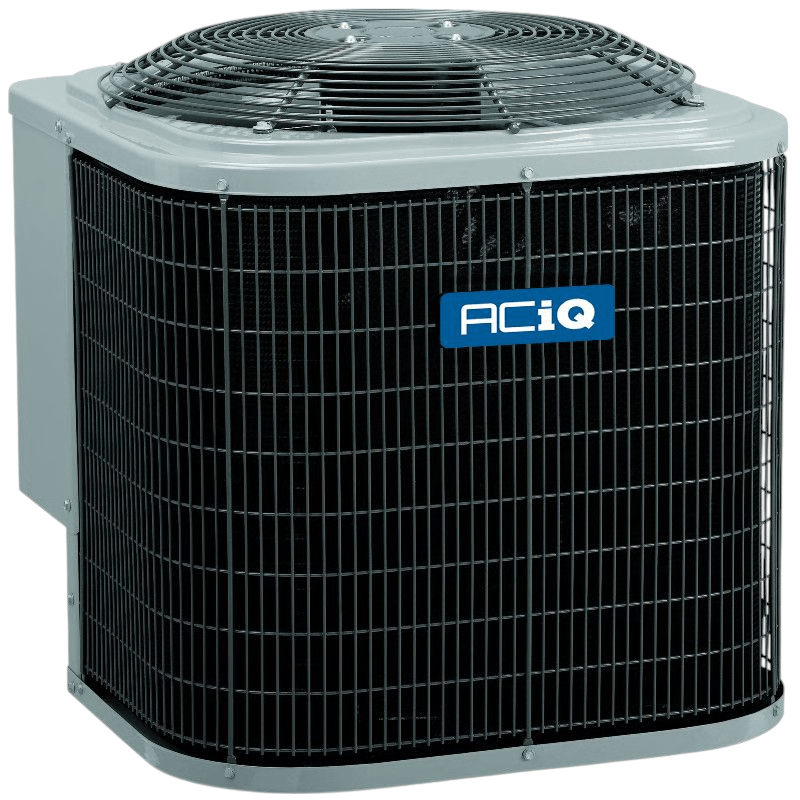

Left side view of the ACiQ 3 Ton 14.3 SEER2 Air Conditioner Condenser

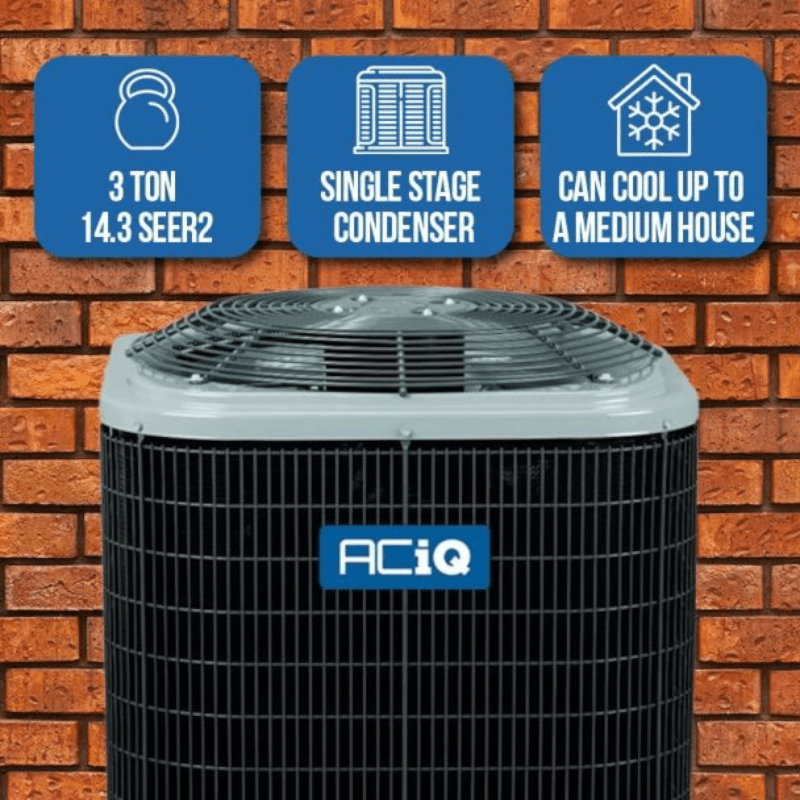

Front view of the ACiQ 3 Ton 14.3 SEER2 Air Conditioner Condenser with Infographic features

Roll over image to zoom in Click on image to zoom

ACiQ 3 Ton 14.3 SEER2 Air Conditioner Condenser - R454B

Name: ACiQ 3 Ton 14.3 SEER2 Air Conditioner Condenser - R454B
Brand: ACiQ
SKU: R5A5S36AKAWA
Price: 1955.00 USD
Availability: InStock

ACiQ SKU: R5A5S36AKAWA

Price:

$1,955.00

Quantity:

Efficient Mid-Size Cooling With The ACiQ R5A5S36AKAWA 3 Ton 14.3 SEER2 Condenser!

The ACiQ R5A5S36AKAWA is a 3-ton AC-only condenser designed to deliver high-efficiency cooling performance for medium-sized homes. With a 14.3 SEER2 rating and pre-charged R-454B refrigerant, this model balances energy savings, fast installation, and environmental responsibility. Its rugged design and single-stage scroll compressor ensure lasting performance, while full A2L refrigerant compliance makes it a future-ready solution for residential and light commercial applications.

Ideal For

HVAC Professionals & Contractors – Pre-charged with refrigerant for 15 ft line sets, reducing install time and labor.
Medium-Sized Homes & Residential Zones – Provides dependable cooling in homes with multiple rooms or mid-size layouts.
Property Managers & Renovators – Boost energy savings up to 7% over 13.4 SEER2 systems with minimal maintenance.
Sustainable Construction Projects – Features low-GWP R-454B refrigerant for eco-conscious installations.
A2L-Regulated Environments – Must be installed with a compatible coil or air handler with leak detection to ensure compliance and warranty protection.

Certifications & Safety Features

10-Year Limited Parts Warranty (with certified coil and proper registration)
Built-in compressor overload protection and internal pressure relief valve
UL Listed; A2L refrigerant safety compliance required
R-454B Compliance Notice: Pair only with leak-detecting, R-454B-compatible indoor units to meet regulations and ensure safety

ACiQ 3 Ton 14.3 SEER2 Air Conditioner Condenser – Key Features & Benefits

3 Ton / ~36,000 BTU/hr Cooling Capacity – Effectively cools medium-sized homes or zones in warm climates.
14.3 SEER2 High Efficiency – Delivers 5–7% more energy savings than standard 13.4 SEER2 units.
Scroll Compressor (Single-Stage) – Quiet, reliable cooling with fewer moving parts and longer lifespan.
Pre-Charged with R-454B Refrigerant – Install-ready for 15 ft line sets, reducing setup time and installation errors.
Reinforced Cabinet Design – Corner posts and inlet grille protect the system from physical damage and debris.
Quiet Performance – Maintains comfort indoors and out with low operating noise levels.
Run-Tested for Reliability – Each unit is 100% factory-tested to ensure consistent, dependable operation.
Filter Drier Included – Helps maintain clean system performance and extends unit life.
Long-Term Protection – Covered by a 10-year warranty when registered online.

ACiQ R5A5S36AKAWA Air Conditioner Condenser Specs

SKU	R5A5S36AKAWA
Refrigerant Charge	15'
Weight (in lbs)	176
Brand/Manufacturer	ACiQ
Replaces	R4A5S, R5A5S36AKAAA
Product Features	New Refrigerant Compliant
Cooling BTU	36000
Maximum CFM	3800
Decibel Level (dBA)	72
Motor RPM	825
Horsepower	1/10 HP
Refrigerant	R454B
SEER2 (Efficiency)	14.3
Condenser Stages	Single Stage
Compressor Type	Scroll
Liquid Valve Size	3/8"
Suction Valve Size	7/8"
Electrical	208/230v 1 Phase 60 Hz
Tonnage	3 Ton
Certification	35 1/16"
Height	38 7/16"
Width	31 3/16"
Depth	31 3/16"
Warranty	10 Years Parts Warranty with Online Registration

ACiQ 3 Ton 14.3 SEER2 Air Conditioner Condenser Resources

ACiQ 3 Ton 14.3 SEER2 Air Conditioner Condenser Manual

ACiQ 3 Ton 14.3 SEER2 Air Conditioner Condenser Specs Sheet

ACiQ 3 Ton 14.3 SEER2 Air Conditioner Condenser Warranty

ACiQ Industry-Leading Warranties
ACiQ stands behind every product with exceptional warranty coverage, ensuring long-term reliability and peace of mind. Online registration is required to activate full warranty benefits.

Product Warranty Details

Mini Split and High-Efficiency Systems: 12-year compressor, 7-year parts
ACiQ Essentials: 6-year compressor, 4-year parts
A.C. and Heat Pump Condenser: 10-year compressor and coil
Furnace: Lifetime warranty for original owner
Air Handler and Coil: 10-year parts for original owner
Residential Packaged Units: Lifetime heat exchanger for original owner
PTAC: 7-year compressor, 1-year parts
Commercial Packaged Units: 10-year heat exchanger, 5-year compressor, 1-year parts
Pool Heat Pump: 5-year heat exchanger and compressor, 3-year parts
Hybrid Water Heater: 12-year tank, 10-year parts
Mobile Home Electric Furnace and Coil: 10-year parts

Warranty Claim Process

System Diagnosis
Method of Resolution
Warranty Acceptance
Faulty Parts Inspected
Replacement Parts Shipped

Register Your System
Activate your warranty at ACiQ.com.

Need Assistance?
For warranty claims or inquiries, click here.
