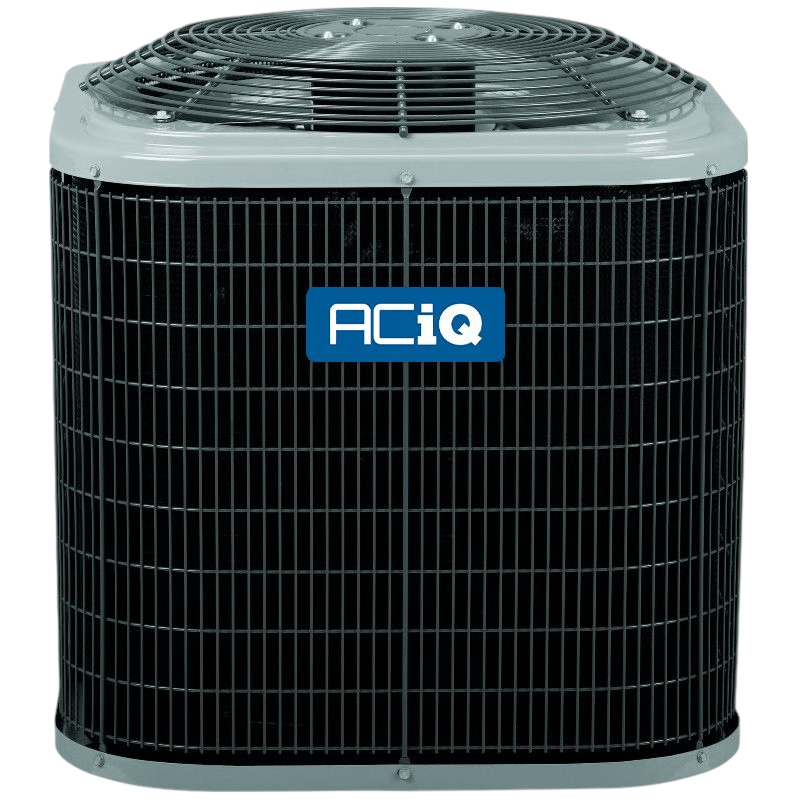

Front-center view of the ACiQ 3 Ton 13.4 SEER2 Air Conditioner Condenser

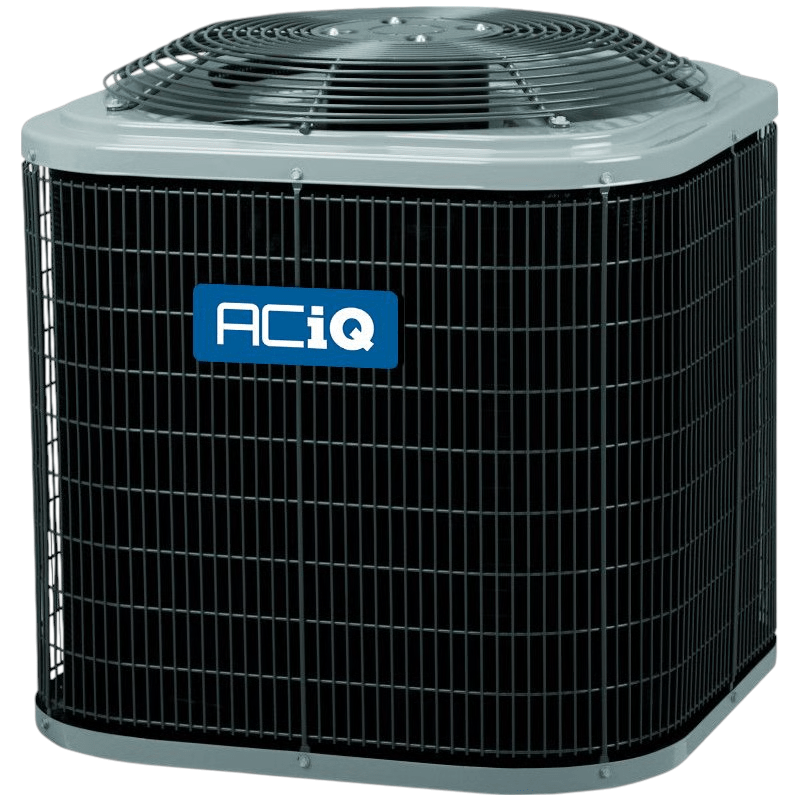

Left side view of the ACiQ 3 Ton 13.4 SEER2 Air Conditioner Condenser

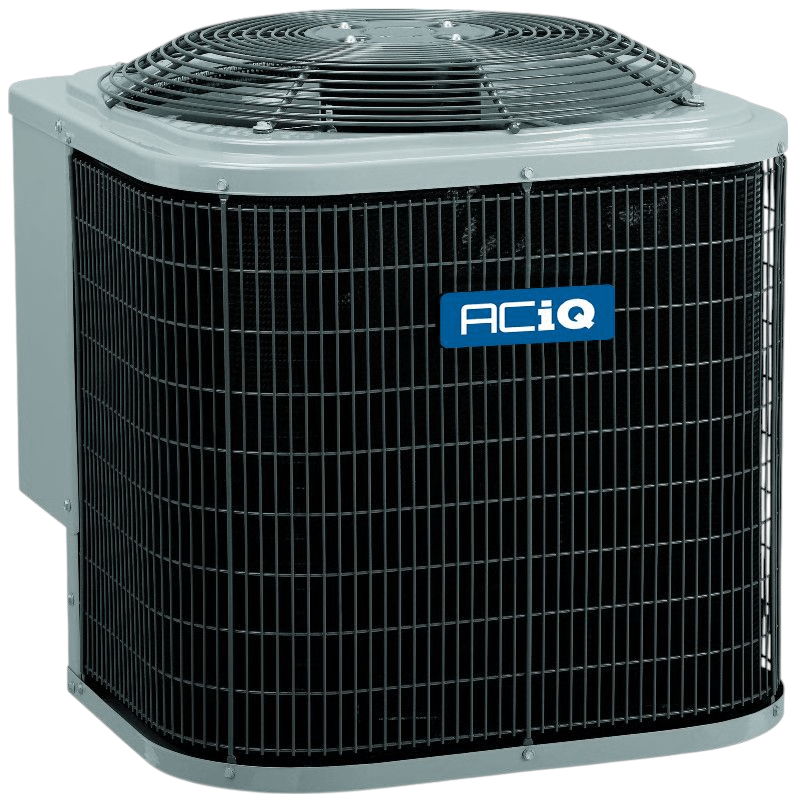

Right side view of the ACiQ 3 Ton 13.4 SEER2 Air Conditioner Condenser

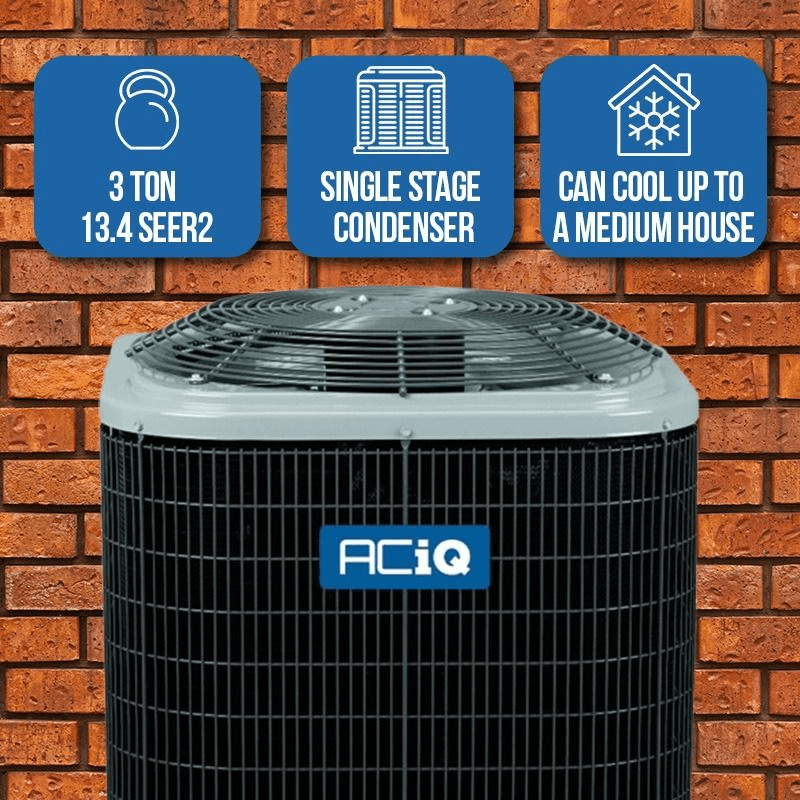

Front view of the ACiQ 3 Ton 13.4 SEER2 Air Conditioner Condenser with Infographic features
Roll over image to zoom in Click on image to zoom
Front-center view of the ACiQ 3 Ton 13.4 SEER2 Air Conditioner CondenserLeft side view of the ACiQ 3 Ton 13.4 SEER2 Air Conditioner CondenserRight side view of the ACiQ 3 Ton 13.4 SEER2 Air Conditioner CondenserFront view of the ACiQ 3 Ton 13.4 SEER2 Air Conditioner Condenser with Infographic features

ACiQ 3 Ton 13.4 SEER2 Air Conditioner Condenser - R454B

ACiQ SKU: R5A4S36AKANA
Price:
$1,840.00

Description

Powerful, Efficient Cooling for Medium Homes with ACiQ R5A4S36AKANA 3 Ton Condenser!

The ACiQ R5A4S36AKANA is a 3-ton AC-only condenser designed to deliver consistent, energy-efficient cooling for medium-sized homes and commercial spaces. Rated at 13.4 SEER2 and pre-charged with eco-friendly R-454B refrigerant, this unit ensures performance, convenience, and environmental responsibility in one package. Its durable cabinet and compatibility with various air handlers make it a go-to choice for professional installers and builders.



Ideal For

  • HVAC Contractors & Installers – Simplifies installation with factory pre-charged refrigerant for a 15 ft line set, saving time and reducing labor.
  • Medium-Sized Residential Homes – Ideal for cooling larger living areas with balanced performance and reliability.
  • Property Managers & Home Builders – Provides long-term energy savings with 5–7% higher efficiency over 13 SEER1 units.
  • Eco-Friendly Projects – Uses low-GWP, non-ozone-depleting R-454B refrigerant for environmentally conscious cooling.
  • Cold Region Installations – Compatible with optional low-ambient kits to perform in temperatures down to 0°F.



Certifications & Safety Features

  • 10-Year Limited Parts Warranty (must be installed with a certified coil and registered online)
  • Internal pressure relief valve and thermal overload protection
  • UL Listed for safety and manufacturing compliance

ACiQ 3 Ton 13.4 SEER2 Air Conditioner Condenser – Key Features & Benefits

  • 3 Ton / ~36,000 BTU/hr Cooling Capacity – Effectively cools medium-sized homes or larger zones in commercial buildings.
  • 13.4 SEER2 Energy Rating – Offers better efficiency and reduced energy costs over standard SEER1 systems.
  • Single-Stage Scroll Compressor – Delivers dependable, quiet operation with fewer moving parts and lower maintenance.
  • R-454B Refrigerant – Meets new environmental regulations with low global warming potential and zero ozone depletion.
  • Pre-Charged from Factory – Charged for 15 ft of line set to simplify installation and ensure correct refrigerant levels.
  • Reinforced Cabinet Construction – Heavy-duty corner posts and protective grille safeguard internal components.
  • Flexible System Compatibility – Pairs easily with properly sized indoor coils or air handlers to maximize efficiency.
  • Low-Ambient Ready – Functions in cold climates down to 0°F when paired with compatible low-ambient kits.
  • Quiet Performance – Keeps both indoor and outdoor environments comfortable with reduced sound levels.

ACiQ R5A4S36AKANA Specs

SKU R5A4S36AKANA
Weight (in lbs) 153
Brand/Manufacturer ACiQ
Replaces R4A4S36AKANA
Equivalent Carrier Equivalent: 24ABB336ABN3/ Tempstar Equivalent: R4A336GKH/ Bryant Equivalent: 113ANA036000
Cooling BTU 36000
Maximum CFM 2800
Decibel Level (dBA) 73 Decibels
Motor RPM 825
Horsepower 1/10 HP
Refrigerant R454B
SEER2 (Efficiency) 13.4
Condenser Stages Single Stage
Compressor Type Scroll
Liquid Valve Size 3/8"
Suction Valve Size 7/8"
Electrical 208/230v 1 Phase 60 Hz
Max Breaker Size 30 Amps
Min. Breaker Size 17.5 Amps
Tonnage 3 Ton
Connection Sweat
Certification UL Listed
Height 28 1/4"
Width 31 3/16"
Depth 31 3/16"
Warranty 10 Years Parts Warranty with Online Registration

ACiQ Industry-Leading Warranties
ACiQ stands behind every product with exceptional warranty coverage, ensuring long-term reliability and peace of mind. Online registration is required to activate full warranty benefits.

Product Warranty Details

  • Mini Split and High-Efficiency Systems: 12-year compressor, 7-year parts
  • ACiQ Essentials: 6-year compressor, 4-year parts
  • A.C. and Heat Pump Condenser: 10-year compressor and coil
  • Furnace: Lifetime warranty for original owner
  • Air Handler and Coil: 10-year parts for original owner
  • Residential Packaged Units: Lifetime heat exchanger for original owner
  • PTAC: 7-year compressor, 1-year parts
  • Commercial Packaged Units: 10-year heat exchanger, 5-year compressor, 1-year parts
  • Pool Heat Pump: 5-year heat exchanger and compressor, 3-year parts
  • Hybrid Water Heater: 12-year tank, 10-year parts
  • Mobile Home Electric Furnace and Coil: 10-year parts

Warranty Claim Process

  1. System Diagnosis
  2. Method of Resolution
  3. Warranty Acceptance
  4. Faulty Parts Inspected
  5. Replacement Parts Shipped

Register Your System
Activate your warranty at ACiQ.com.
