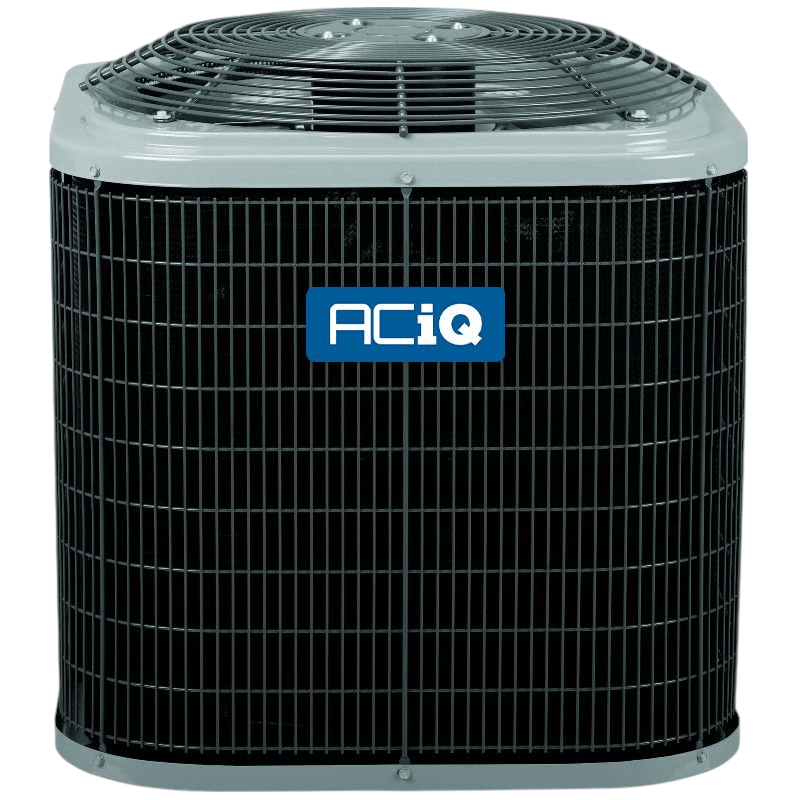

Front-center view of the ACiQ 3.5 Ton 14.3 SEER2 Air Conditioner Condenser

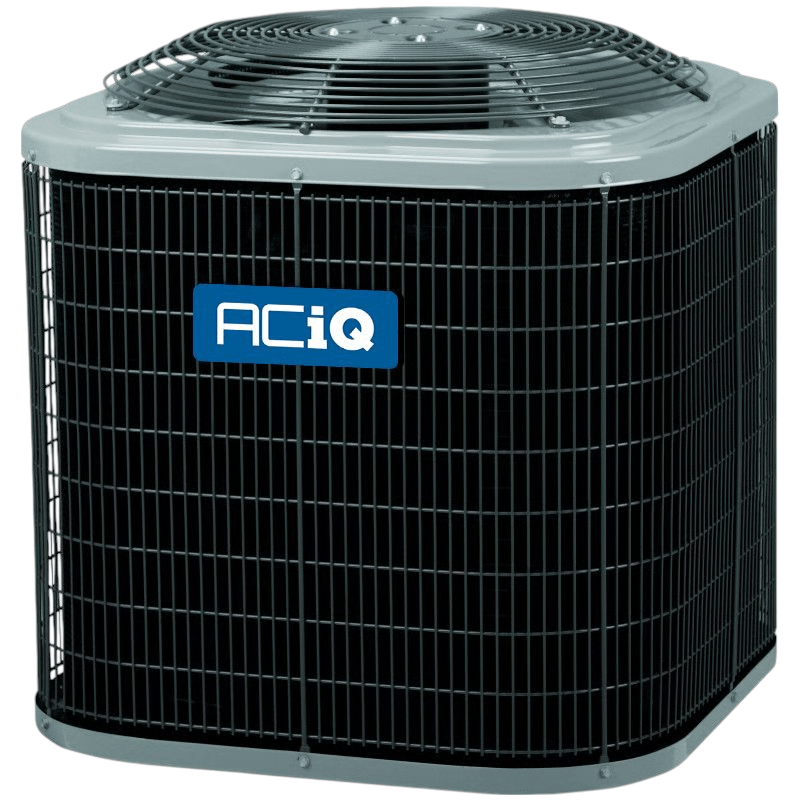

Left side view of the ACiQ 3.5 Ton 14.3 SEER2 Air Conditioner Condenser

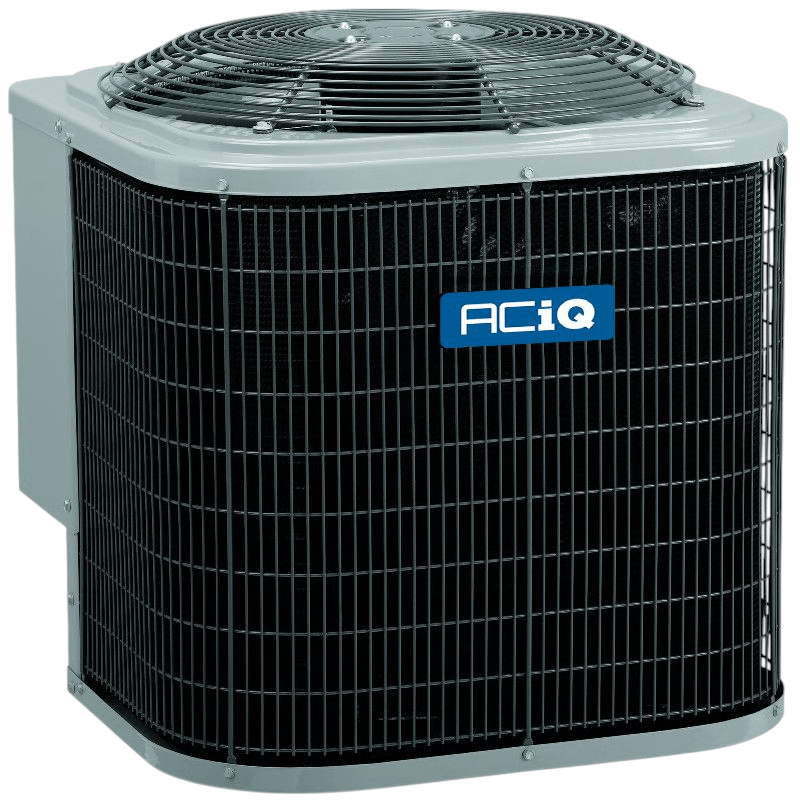

Right side view of the ACiQ 3.5 Ton 14.3 SEER2 Air Conditioner Condenser
Front view of the ACiQ 3.5 Ton 14.3 SEER2 Air Conditioner Condenser with Infographic features
Roll over image to zoom in Click on image to zoom
Front-center view of the ACiQ 3.5 Ton 14.3 SEER2 Air Conditioner CondenserLeft side view of the ACiQ 3.5 Ton 14.3 SEER2 Air Conditioner CondenserRight side view of the ACiQ 3.5 Ton 14.3 SEER2 Air Conditioner CondenserFront view of the ACiQ 3.5 Ton 14.3 SEER2 Air Conditioner Condenser with Infographic features

ACiQ 3.5 Ton 14.3 SEER2 Air Conditioner Condenser - R454B

ACiQ SKU: R5A5S42AKAWA
Price:
$2,225.00

Description

Powerful, Efficient Cooling with ACiQ R5A5S42AKAWA 3.5 Ton 14.3 SEER2 Condenser!

The ACiQ R5A5S42AKAWA is a 3.5-ton AC-only condenser built for efficient, dependable cooling in medium to large residential spaces. With a high-performance 14.3 SEER2 efficiency rating and pre-charged R-454B refrigerant, it’s engineered to reduce energy costs while meeting today’s environmental and safety standards. Built tough with reinforced components and designed for quiet operation, this unit is a smart choice for HVAC professionals, builders, and property owners.



Ideal For

  • HVAC Installers & Technicians – Factory pre-charged for a 15 ft line set to speed up installation and reduce on-site refrigerant handling.
  • Medium to Large Homes – Ideal for cooling multi-room houses or homes with open-concept floorplans.
  • Builders & Property Managers – Boosts efficiency by up to 7% compared to 13.4 SEER2 systems, with long-term energy savings.
  • Green Projects – Uses A2L-classified R-454B refrigerant for lower global warming potential and environmental compliance.
  • Code-Compliant Installs – Requires R-454B-compatible indoor unit with leak detection to meet A2L safety regulations and warranty terms.



Certifications & Safety Features

  • 10-Year Limited Parts Warranty (with proper installation and online registration)
  • Internal pressure relief valve and compressor overload protection
  • UL Listed for safety compliance
  • A2L Safety Compliance: Must be paired with an R-454B air handler or coil equipped with a leak detection system to maintain safe operation and warranty coverage

ACiQ 3.5 Ton 14.3 SEER2 Air Conditioner Condenser – Key Features & Benefits

  • 3.5 Ton / ~42,000 BTU/hr Cooling Capacity – Cools medium to large spaces with ease and consistency.
  • 14.3 SEER2 Efficiency – Up to 7% more efficient than standard 13.4 SEER2 units, lowering utility bills over time.
  • Scroll Compressor (Single-Stage) – Ensures quiet, dependable operation with low maintenance.
  • Factory Pre-Charged with R-454B Refrigerant – Ready for install with no on-site refrigerant charging for up to 15 ft line sets.
  • Reinforced Cabinet Design – Features durable corner posts and protective inlet grille for long-term reliability.
  • Quiet Comfort – Engineered to minimize noise during operation for residential comfort.
  • Corrosion-Resistant Coils – All-aluminum or copper/aluminum (model dependent) with protective fin coatings for extended service life.
  • Filter Drier Included – Keeps refrigerant lines clean and moisture-free to prolong system health.
  • Run-Tested & Reliable – Each unit is 100% factory-tested for performance and quality assurance.

ACiQ R5A5S42AKAWA Air Conditioner Condenser Specs

SKU R5A5S42AKAWA
Refrigerant Charge 15'
Weight (in lbs) 215
Brand/Manufacturer ACiQ
Replaces R4A5S, R5A5S42AKAAA
Product Features New Refrigerant Compliant
Cooling BTU 42000
Maximum CFM 4900
Decibel Level (dBA) 75
Motor RPM 1100
Horsepower 1/5 HP
Refrigerant R454B
SEER2 (Efficiency) 14.3
Condenser Stages Single Stage
Compressor Type Scroll
Liquid Valve Size 3/8"
Suction Valve Size 7/8"
Electrical 208/230v 1 Phase 60 Hz
Tonnage 3.5 Ton
Height 38 7/16"
Width 31 3/16"
Depth 31 3/16"
Warranty 10 Years Parts Warranty with Online Registration
