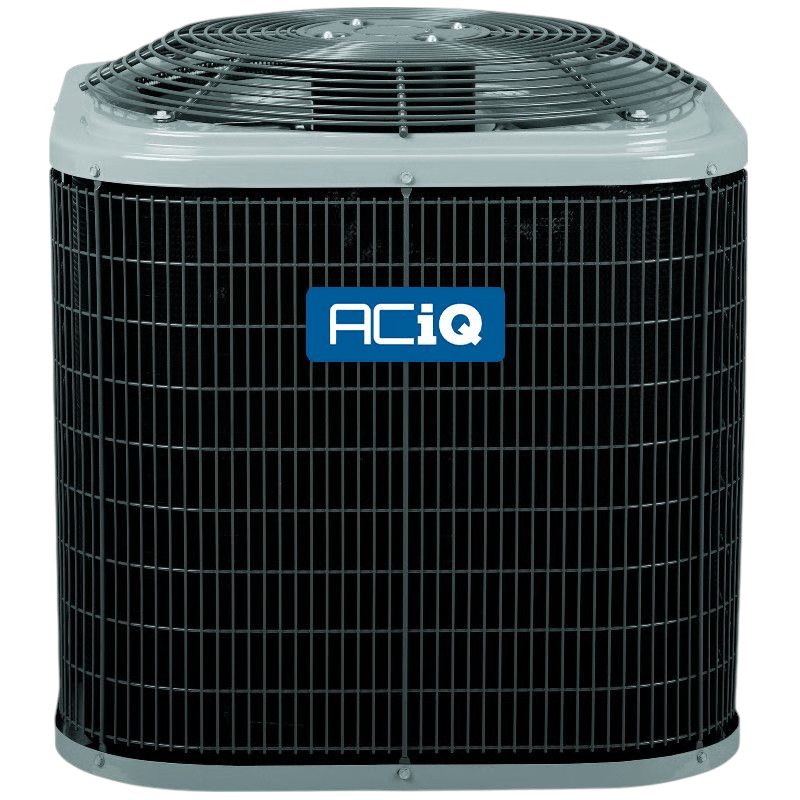

Front-center view of the ACiQ 3.5 Ton 13.4 SEER2 Air Conditioner Condenser

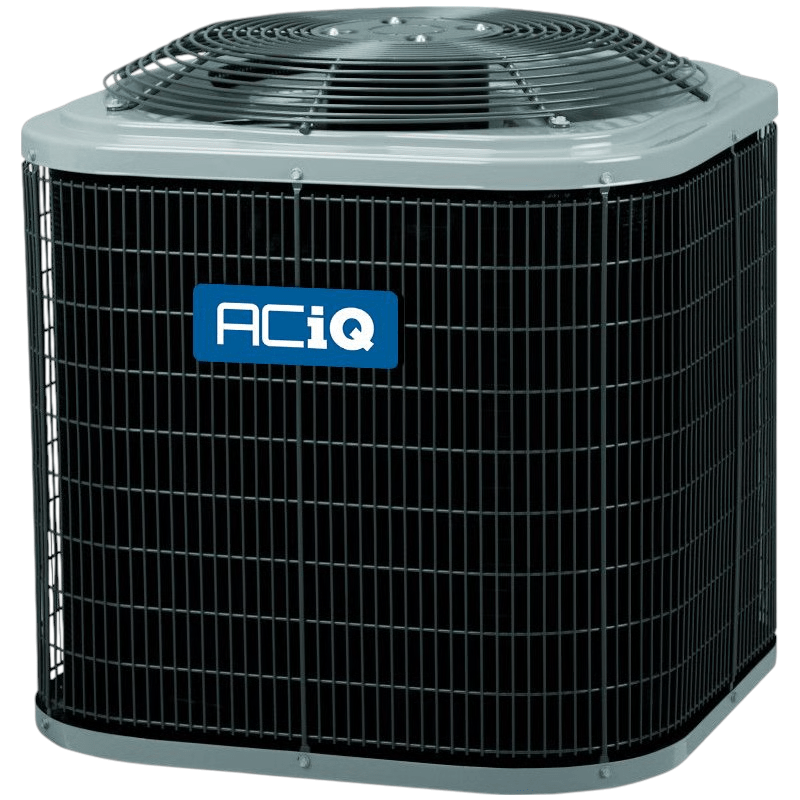

Left side view of the ACiQ 3.5 Ton 13.4 SEER2 Air Conditioner Condenser

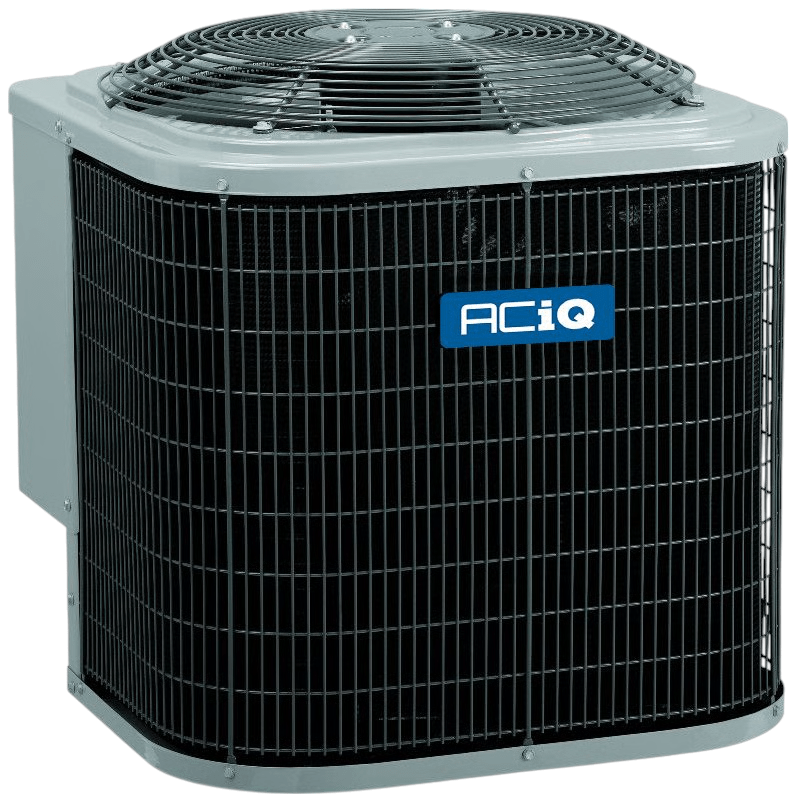

Right side view of the ACiQ 3.5 Ton 13.4 SEER2 Air Conditioner Condenser

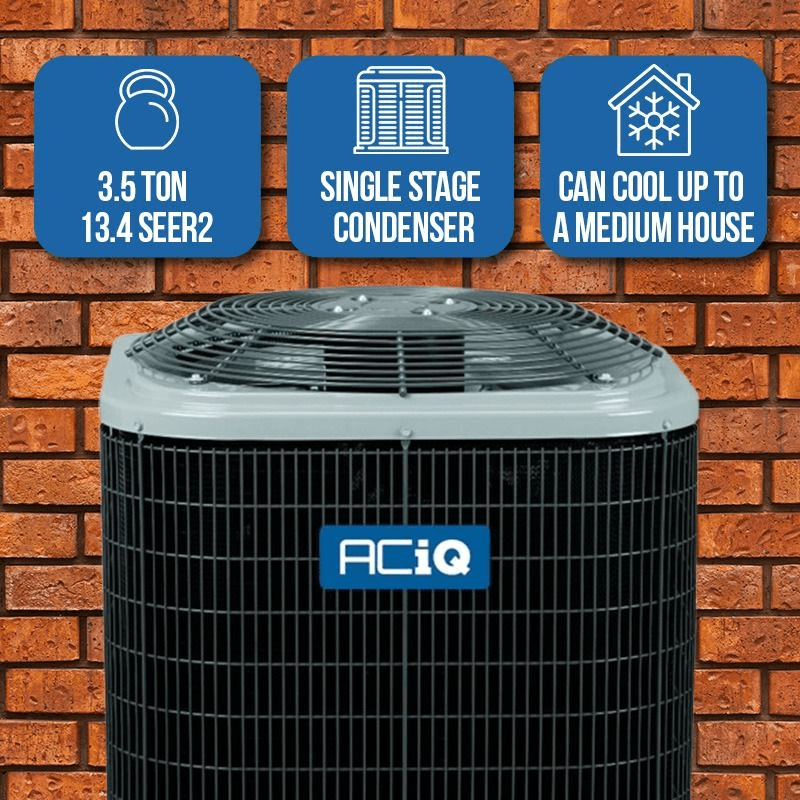

Front view of the ACiQ 3.5 Ton 13.4 SEER2 Air Conditioner Condenser with Infographic features
Roll over image to zoom in Click on image to zoom
Front-center view of the ACiQ 3.5 Ton 13.4 SEER2 Air Conditioner CondenserLeft side view of the ACiQ 3.5 Ton 13.4 SEER2 Air Conditioner CondenserRight side view of the ACiQ 3.5 Ton 13.4 SEER2 Air Conditioner CondenserFront view of the ACiQ 3.5 Ton 13.4 SEER2 Air Conditioner Condenser with Infographic features

ACiQ 3.5 Ton 13.4 SEER2 Air Conditioner Condenser - R454B

ACiQ SKU: R5A4S42AKANA
Price:
$1,960.00

Description

Maximize Comfort & Cut Energy Waste with ACiQ R5A4S42AKANA 3.5 Ton Condenser!

The ACiQ R5A4S42AKANA is a 3.5-ton AC-only condenser that delivers dependable, efficient cooling for medium-sized homes and light commercial spaces. With a 13.4 SEER2 efficiency rating and factory pre-charged R-454B refrigerant, this unit ensures faster installation, compliance with future-ready standards, and optimized comfort in real-world applications. Its reinforced cabinet design makes it a rugged, long-term investment for any HVAC professional or builder.



Ideal For

  • HVAC Contractors & Installers – Speed up installations with factory pre-charged refrigerant for 15 ft line sets—no manual charging needed.
  • Medium-Sized Residential Buildings – Effectively cools entire homes with balanced airflow and dependable output.
  • Property Developers & Managers – Reduces operating costs with up to 7% higher efficiency than legacy 13 SEER1 systems.
  • Eco-Compliant Construction Projects – Charged with low-GWP, non-ozone-depleting R-454B refrigerant for long-term regulatory compliance.
  • Cold Climate Use – Optional low-ambient kits allow continued performance in temperatures down to 0°F.



Certifications & Safety Features

  • 10-Year Limited Parts Warranty (with compliant installation and online registration)
  • Internal pressure relief valve and compressor overload protection
  • UL Listed for safety and manufacturing standards

ACiQ 3.5 Ton 13.4 SEER2 Air Conditioner Condenser – Key Features & Benefits

  • 3.5 Ton / ~42,000 BTU/hr Cooling Capacity – Delivers ample cooling power for medium to larger home layouts.
  • 13.4 SEER2 Energy Efficiency – Provides 5–7% better energy performance than standard SEER1 models.
  • Single-Stage Scroll Compressor – Simplified operation with reduced maintenance and consistent performance.
  • R-454B Refrigerant – Future-forward, eco-friendly refrigerant with low global warming potential.
  • Pre-Charged for 15 ft Line Set – Speeds up installation and reduces setup errors.
  • Rugged Steel Cabinet – Reinforced corner posts and inlet grille guard internal components against environmental damage.
  • Flexible Indoor Unit Compatibility – Pairs seamlessly with various air handlers or coils for optimal efficiency.
  • Low-Ambient Ready – Keeps running in cold climates when equipped with an optional low-ambient kit.
  • Quiet Operation – Maintains residential and commercial comfort with minimized noise levels.

ACiQ R5A4S42AKANA Conditioner Condenser Specs

SKU R5A4S42AKANA
Refrigerant Charge 15'
Weight (in lbs) 193
Brand/Manufacturer ACiQ
Replaces R4A4S42AKANA
Equivalent Carrier Equivalent: 24ABB342ABN3 / Tempstar Equivalent: R4A342GKH / Bryant Equivalent: 113ANA042000
Cooling BTU 42000
Maximum CFM 3800
Decibel Level (dBA) 74 Decibels
Motor RPM 1100
Horsepower 1/4 HP
Refrigerant R454B
SEER2 (Efficiency) 13.4
Condenser Stages Single Stage
Compressor Type Scroll
Liquid Valve Size 3/8"
Suction Valve Size 7/8"
Electrical 208/230v 1 Phase 60 Hz
Max Breaker Size 30 Amps
Min. Breaker Size 19.8 Amps
Tonnage 3.5 Ton
Connection Sweat
Certification UL Listed
Height 38 7/16"
Width 31 3/16"
Depth 31 3/16"
Warranty 10 Years Parts Warranty with Online Registration

ACiQ Industry-Leading Warranties
ACiQ stands behind every product with exceptional warranty coverage, ensuring long-term reliability and peace of mind. Online registration is required to activate full warranty benefits.

Product Warranty Details

  • Mini Split and High-Efficiency Systems: 12-year compressor, 7-year parts
  • ACiQ Essentials: 6-year compressor, 4-year parts
  • A.C. and Heat Pump Condenser: 10-year compressor and coil
  • Furnace: Lifetime warranty for original owner
  • Air Handler and Coil: 10-year parts for original owner
  • Residential Packaged Units: Lifetime heat exchanger for original owner
  • PTAC: 7-year compressor, 1-year parts
  • Commercial Packaged Units: 10-year heat exchanger, 5-year compressor, 1-year parts
  • Pool Heat Pump: 5-year heat exchanger and compressor, 3-year parts
  • Hybrid Water Heater: 12-year tank, 10-year parts
  • Mobile Home Electric Furnace and Coil: 10-year parts

Warranty Claim Process

  1. System Diagnosis
  2. Method of Resolution
  3. Warranty Acceptance
  4. Faulty Parts Inspected
  5. Replacement Parts Shipped

Register Your System
Activate your warranty at ACiQ.com.

Need Assistance?
For warranty claims or inquiries, click here.
