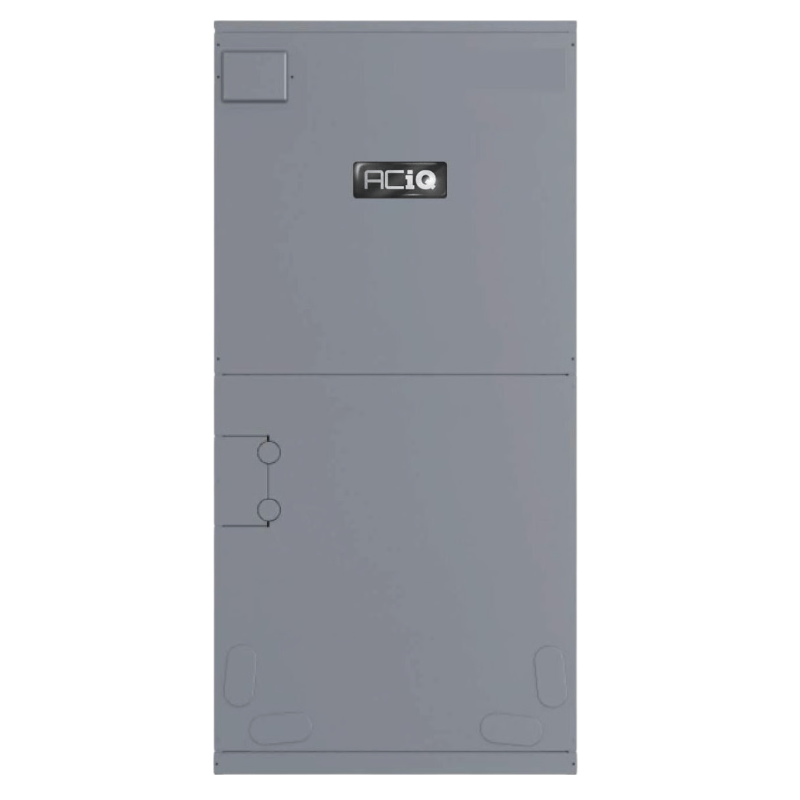

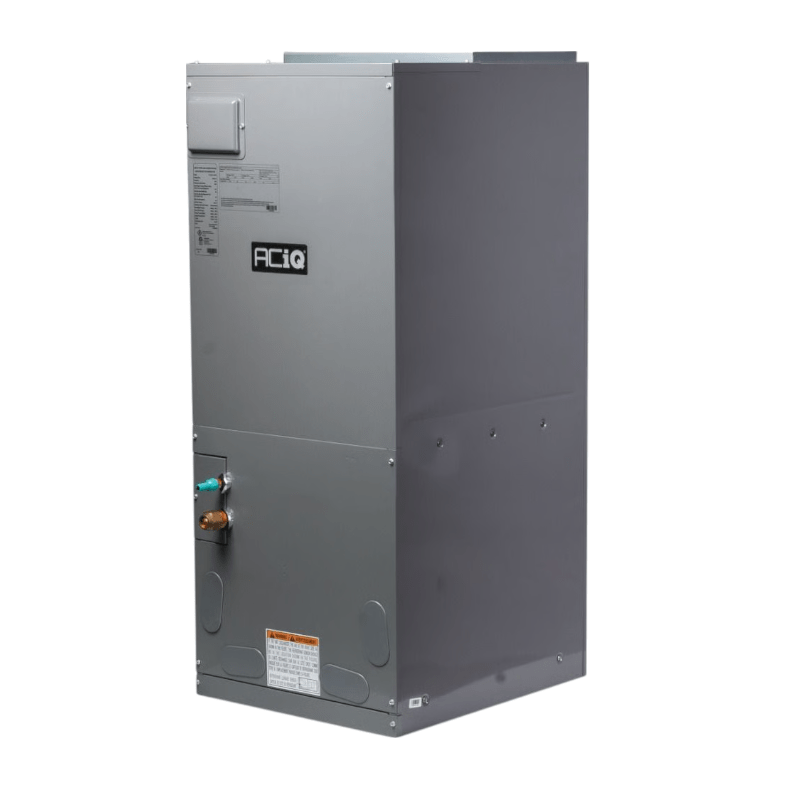

Side Angle of ACiQ 2 Ton High Efficiency Central Ducted Air Handler
ACiQ 2 Ton High Efficiency Central Ducted Air Handler
Roll over image to zoom in Click on image to zoom
Side Angle of ACiQ 2 Ton High Efficiency Central Ducted Air HandlerACiQ 2 Ton High Efficiency Central Ducted Air Handler

ACiQ 2 Ton High Efficiency Central Ducted Air Handler - R32

ACiQ SKU: ACIQ-24-AH32
Price:
$1,019.00

Description

Achieve Enhanced Comfort with ACiQ 2 Ton High Efficiency Central Ducted Air Handler – R32

The ACiQ 2 Ton Central Ducted Air Handler is designed for maximum comfort and energy efficiency in residential and mobile home applications. Featuring a variable DC blower and advanced inverter technology, this unit efficiently distributes conditioned air throughout your home, adjusting BTU output for optimal comfort. With compatibility for 24v thermostats and a multi-positional design (upflow, downflow, or horizontal), this air handler works seamlessly with your existing ductwork and ACiQ inverter condensers, ensuring quiet operation and improved energy savings.



Ideal For

  • Homeowners & HVAC Installers – Simplified installation with versatile positioning options and compatibility with various thermostat models.
  • Mobile Home & Manufactured Home Applications – Approved for use in manufactured and mobile homes, providing efficient climate control.
  • Eco-Conscious Homes – Uses R32 refrigerant, making it an environmentally friendly choice for efficient air distribution.
  • Cold Climate Regions – Can integrate with electric strip heat for added backup heating during extreme cold conditions.
  • Property Managers & Developers – Ideal for homes that need efficient and quiet air distribution across multiple rooms or zones.



Certifications & Safety Features

  • R32 Refrigerant – Eco-friendly and energy-efficient refrigerant that helps reduce environmental impact while improving system performance.
  • UL Listed – Certified for safety, meeting all necessary operational and environmental standards.
  • Manufactured & Mobile Home Approved – Specifically designed for use in manufactured and mobile homes, ensuring versatility and reliability.

ACiQ 2 Ton High Efficiency Central Ducted Air Handler – Key Features & Benefits

  • 2 Ton Capacity (24,000 BTU) – Ideal for medium-sized homes, delivering efficient heating and cooling.
  • Advanced Inverter Technology – Self-adjusting BTU output ensures optimal comfort and energy efficiency based on demand.
  • Variable DC Blower – Provides quiet, efficient air distribution, maximizing comfort while reducing energy consumption.
  • Multi-Positional Design – Offers flexibility for upflow, downflow, or horizontal installation, making it compatible with various ductwork configurations.
  • 24v Thermostat Compatibility – Works seamlessly with 24v thermostats for easy and precise temperature control.
  • Backup Heat Integration – Optional electric strip heat for added warmth during extremely cold weather conditions.
  • Intelligent Control Board – Displays fault codes for easy maintenance and troubleshooting, ensuring long-term reliability.
  • Quiet Operation – Operates smoothly and quietly, enhancing the comfort of your living spaces without disruptive noise.
  • Eco-Friendly R32 Refrigerant – Contributes to reduced carbon footprint while maintaining high system efficiency.

ACIQ-24-AH32 High Efficiency Central Ducted Air Handler – Specs

SKU ACIQ-24-AH32
Weight (in lbs) 144.4
Brand/Manufacturer ACiQ
AHRI Certificate Number 215387238
HSPF2 10
Cooling BTU 24000 BTU
Heating BTU 24000 BTU
Maximum CFM 760
Decibel Level (dBA) 60 (Max)
Electric Heat Heat Pump
Refrigerant R32
Condenser Stages Variable Speed
Compressor Type Rotary
Liquid Valve Size 3/8"
Suction Valve Size 3/4"
Electrical 208/230V 1 Phase 60 Hz
Tonnage 2 Ton
BTU/Tonnage 24,000 BTU/2 Ton
Min/Max Outdoor Temp for Heating 5~75
Min/Max Outdoor Temp for Cooling 5~118
Zone Compatibility Single Zone
Height 43.5"
Width 21.25"
Depth 21.25"
Warranty 12 year compressor, 7 year parts with online registration

ACiQ Industry-Leading Warranties
ACiQ stands behind every product with exceptional warranty coverage, ensuring long-term reliability and peace of mind. Online registration is required to activate full warranty benefits.

Product Warranty Details

  • Mini Split and High-Efficiency Systems: 12-year compressor, 7-year parts
  • ACiQ Essentials: 6-year compressor, 4-year parts
  • A.C. and Heat Pump Condenser: 10-year compressor and coil
  • Furnace: Lifetime warranty for original owner
  • Air Handler and Coil: 10-year parts for original owner
  • Residential Packaged Units: Lifetime heat exchanger for original owner
  • PTAC: 7-year compressor, 1-year parts
  • Commercial Packaged Units: 10-year heat exchanger, 5-year compressor, 1-year parts
  • Pool Heat Pump: 5-year heat exchanger and compressor, 3-year parts
  • Hybrid Water Heater: 12-year tank, 10-year parts
  • Mobile Home Electric Furnace and Coil: 10-year parts

Warranty Claim Process

  1. System Diagnosis
  2. Method of Resolution
  3. Warranty Acceptance
  4. Faulty Parts Inspected
  5. Replacement Parts Shipped

Register Your System
Activate your warranty at ACiQ.com.

Need Assistance?
For warranty claims or inquiries, click here.
