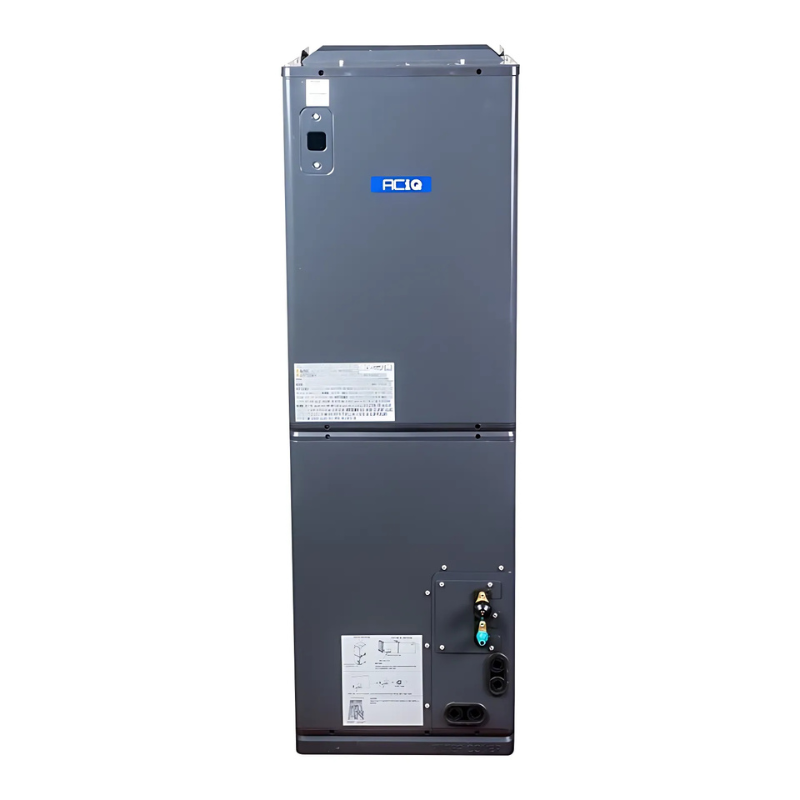

ACiQ 2 Ton Extreme+ Ducted Air Handler - R454B

ACiQ SKU: ACIQ-24-PAH

Price:
Sale price$1,379.00

Description

Eliminate High Energy Bills and Poor Comfort with the ACiQ 2 Ton Extreme+ Ducted Air Handler

Tired of your HVAC system running inefficiently and failing to keep your home comfortable year-round? The ACiQ 2 Ton Extreme+ Ducted Air Handler is here to change that. With its variable-speed DC blower and cutting-edge communication technology, this system maximizes energy savings while delivering consistent, optimal comfort. Whether it's summer heat or winter chill, the Extreme+ air handler adapts to your home’s needs, providing top-tier performance while lowering energy costs.

Compatible with R454B refrigerant for improved efficiency and sustainability.



Best For:

  • Homeowners with Medium-Sized Spaces – Best for homes ranging from 1,000–1,200 sq ft, providing customizable comfort in any climate.
  • HVAC Professionals – Easy to install with multi-positional flexibility (upflow, downflow, or horizontal) for all types of home layouts.
  • Energy-Conscious Users – Help cut your energy bills while taking advantage of tax credits and rebates available for high-efficiency systems.
  • Eco-Friendly Households – Uses R454B refrigerant, a modern, environmentally-friendly option that reduces the carbon footprint of your home’s HVAC system.



Why You Need the ACiQ 2 Ton Extreme+ Ducted Air Handler?

  • Maximized Energy Efficiency – The variable-speed DC blower adjusts to your needs, ensuring that the system only uses the energy required to maintain your comfort.

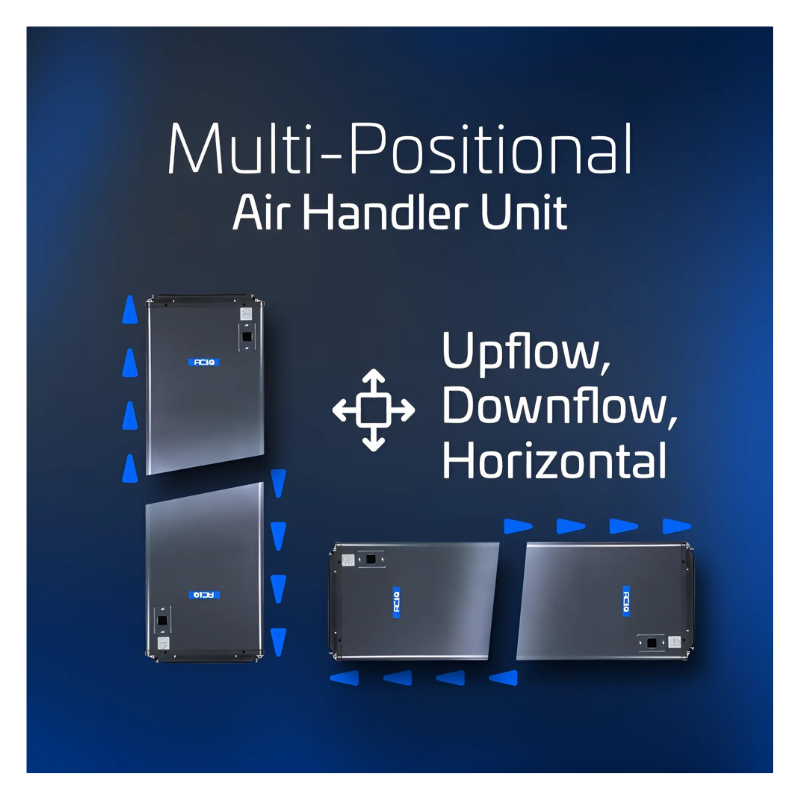

  • Versatile and Adaptable – Install the air handler in upflow, downflow, or horizontal positions to suit your space, making it ideal for homes with tight installation areas.
  • Effortless Temperature Control – Easily works with any 24v thermostat, ensuring seamless communication with your system for precise control over your home’s temperature.

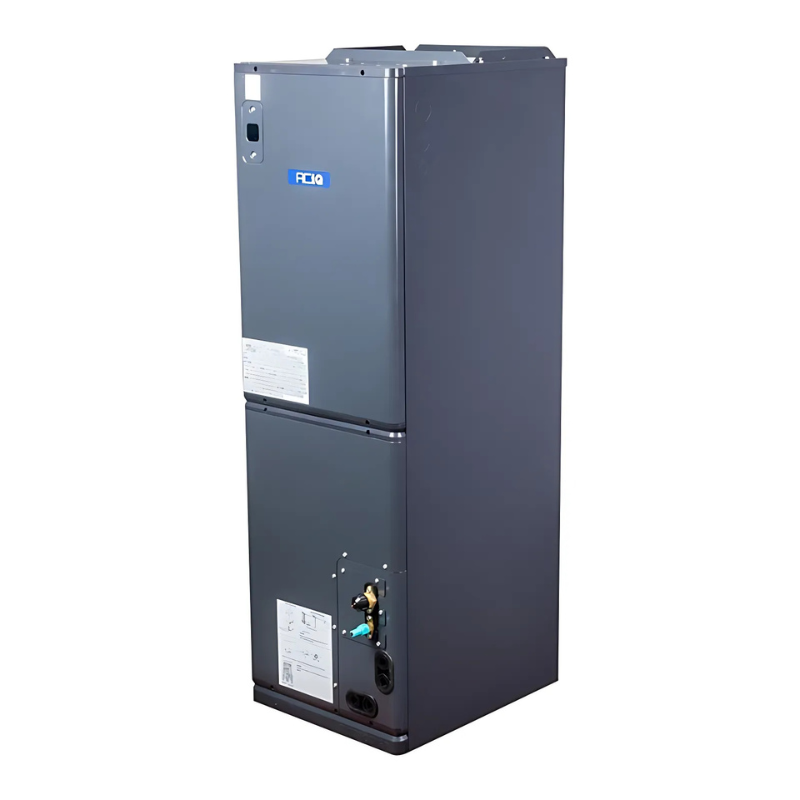

  • Compact Design – Its slim-fit cabinet makes it easy to fit into smaller spaces without sacrificing performance or efficiency.
  • Reliable, Long-Term Performance – Built with intelligent controls that display fault codes for easy troubleshooting, this air handler ensures a long service life.
  • Boosted Tax Incentives – High efficiency capabilities may qualify you for valuable rebates and tax credits, reducing the upfront cost of your system.

ACiQ 2 Ton Extreme+ Ducted Air Handler Features

  • Cooling Capacity – 2 tons, ideal for homes between 1,000–1,200 sq ft depending on insulation and climate conditions.
  • Blower Type – Variable-speed DC blower for improved comfort, efficiency, and energy savings.
  • Installation Flexibility – Multi-positional installation options (upflow, downflow, or horizontal) for easy setup in a variety of spaces.
  • Thermostat Compatibility – Works with any 24v thermostat, offering flexibility and ease of use for homeowners.
  • Slim Design – Compact cabinet (14.49" W x 21.5" D x 49.72" H) makes it ideal for tight spaces.
  • Eco-Friendly Refrigerant – Compatible with R454B refrigerant, ensuring energy efficiency and a lower environmental impact.
  • Tax Incentives – May qualify for rebates and tax credits due to its high-performance, energy-saving design.
  • Warranty – 7-year parts warranty for peace of mind and reliable performance.

ACIQ-24-PAH Specs

Brand/Manufacturer ACiQ
Weight (in lbs) 123.02
Cooling BTU 24,000 BTU
Maximum CFM 824
Decibel Level (dBA) Up to 47.5 Decibels
Electric Backup Heat Capabilities (Optional) 5 Kilowatts, 8 Kilowatts, 10 Kilowatts
Configuration Multi-Positional
Refrigerant R454B
Liquid Line 3/8"
Suction Line 3/4"
Electrical 208/230V 1 Phase 60 Hz
Max Breaker Size 15 Amps
Min. Breaker Size 5.5 Amps / 3.5 Amps
Tonnage 2 Ton
BTU/Tonnage 24,000 BTU/2 Ton
Mini Split Type Multi-Positional
Zone Compatibility Single Zone
Connection Flared
Height 49.7"
Width 17.5"
Depth 21.5"
Warranty 12 Years Compressor and 7 Years Parts with Online Registration

ACiQ Industry-Leading Warranties
ACiQ stands behind every product with exceptional warranty coverage, ensuring long-term reliability and peace of mind. Online registration is required to activate full warranty benefits.

Product Warranty Details

  • Mini Split and High-Efficiency Systems: 12-year compressor, 7-year parts
  • ACiQ Essentials: 6-year compressor, 4-year parts
  • A.C. and Heat Pump Condenser: 10-year compressor and coil
  • Furnace: Lifetime warranty for original owner
  • Air Handler and Coil: 10-year parts for original owner
  • Residential Packaged Units: Lifetime heat exchanger for original owner
  • PTAC: 7-year compressor, 1-year parts
  • Commercial Packaged Units: 10-year heat exchanger, 5-year compressor, 1-year parts
  • Pool Heat Pump: 5-year heat exchanger and compressor, 3-year parts
  • Hybrid Water Heater: 12-year tank, 10-year parts
  • Mobile Home Electric Furnace and Coil: 10-year parts

Warranty Claim Process

  1. System Diagnosis
  2. Method of Resolution
  3. Warranty Acceptance
  4. Faulty Parts Inspected
  5. Replacement Parts Shipped

Register Your System
Activate your warranty at ACiQ.com.

Need Assistance?
For warranty claims or inquiries, click here.

30-Day Hassle Free Returns Guarantee Icon

Free 30-Day Returns

Confidence Comes Standard: 30-Day Free Returns, Zero Risk - See Full Return Policy Here
