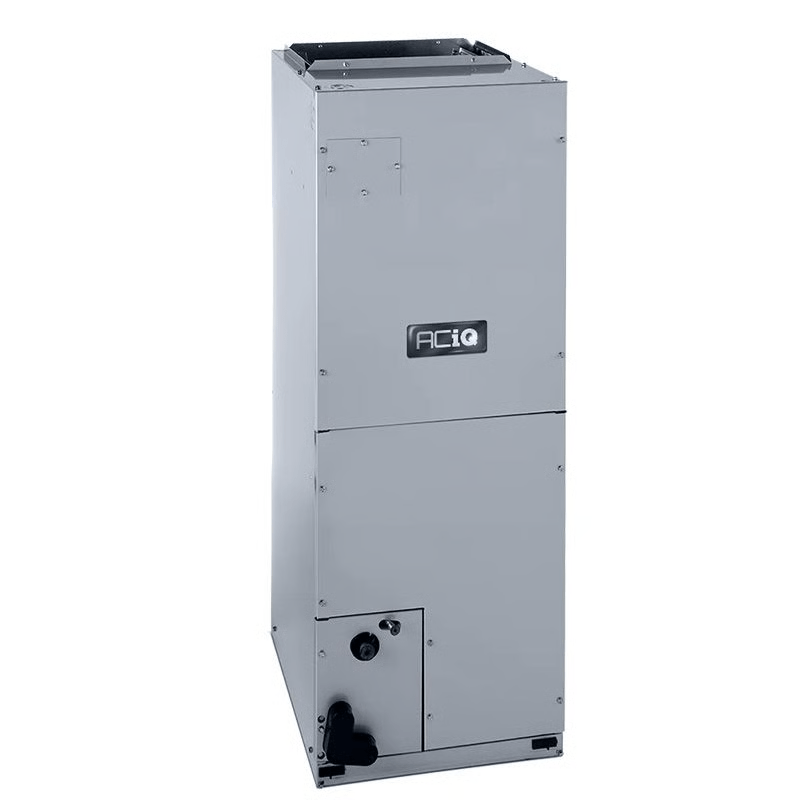

Front of ACiQ 2 Ton Central Ducted Air Handler

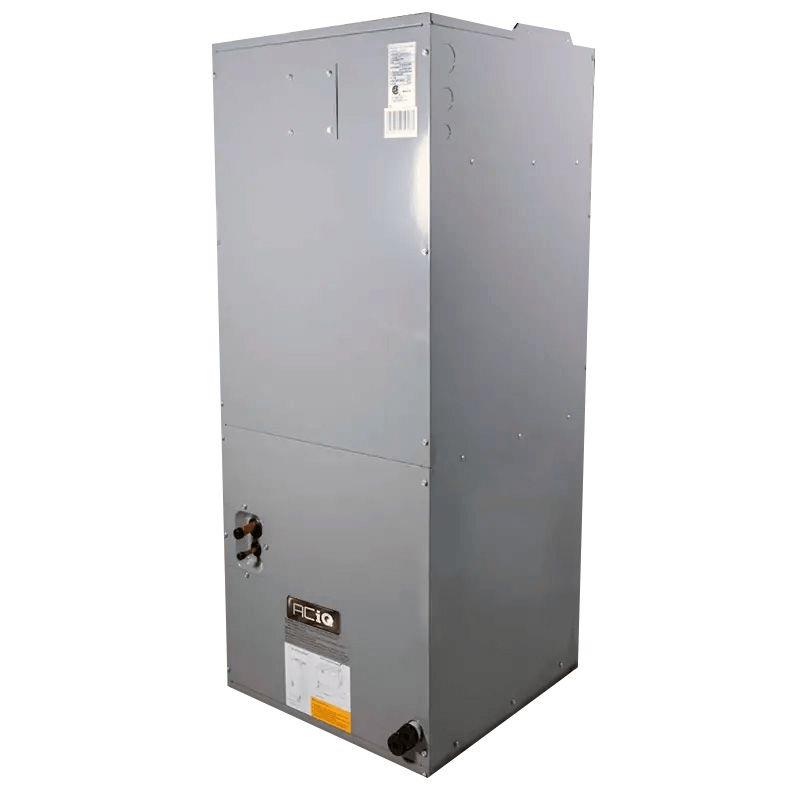

Side of ACiQ 2 Ton Central Ducted Air Handler

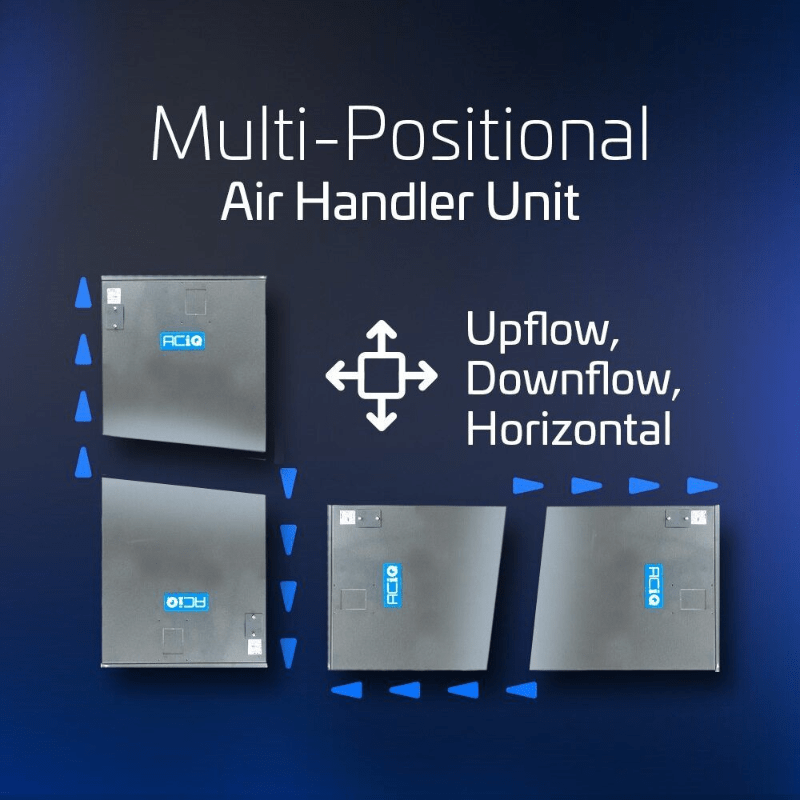

ACiQ 2 Ton Central Ducted Air Handler Configuration Graphics
ACiQ 2 Ton Central Ducted Air Handler Smart Home App
Roll over image to zoom in Click on image to zoom
Front of ACiQ 2 Ton Central Ducted Air Handler Side of ACiQ 2 Ton Central Ducted Air Handler ACiQ 2 Ton Central Ducted Air Handler Configuration GraphicsACiQ 2 Ton Central Ducted Air Handler Smart Home App

ACiQ 2 Ton Central Ducted Air Handler - R454B

ACiQ SKU: ACIQ-24-AHD
Price:
$1,149.00

Description

ACiQ 2 Ton Central Ducted Air Handler with R454B & Variable Speed Control

The ACiQ-24-AHD air handler is designed to maximize comfort and efficiency with its variable speed DC blower and advanced communication technology. Your thermostat communicates with the inverter condenser outside and the variable speed air handler inside, allowing the system to self-adjust BTU output for optimal efficiency and comfort. This air handler seamlessly attaches to your existing ductwork.



Ideal For:

✔ Home HVAC Upgrades – Ideal for replacing or modernizing central ducted systems with intelligent airflow and efficiency improvements.

✔ New Construction Projects – Provides flexible install options and next-gen refrigerant support in residential or mixed-use buildings.

✔ Office Suites & Medical Spaces – Quiet, precise air delivery enhances comfort in professional environments.

✔ Modular & Mobile Buildings – Compact footprint and flexible orientation support installations in tight or unconventional layouts.



Certifications & Safety Features:

  • Efficiency Support: Rated up to 18.8 SEER2, 11.0 EER2, and 9.7 HSPF2 when paired with matching inverter condenser
  • Multi-position Installation: Horizontal (left/right) or vertical (up/down) for flexible placement
  • Gold-Fin Coated Aluminum Coil: Resists corrosion and improves thermal performance
  • Optional R4.2 Insulation: Fiberglass-free upgrade reduces condensation and improves efficiency
  • Built-in Chassis and Crankcase Heater: For protection and cold-weather readiness
  • Diagnostics-Ready: Intelligent control board displays fault codes to ease troubleshooting and maintenance

ACIQ-24-AHD Features

  • Variable Speed DC Blower – Smooth, consistent airflow boosts comfort and efficiency while minimizing noise
  • Adaptive Control System – Learns and optimizes performance based on system usage
  • Smart Compatibility – Supports standard 24V thermostats and ACiQ smart controls with optional WiFi
  • Flexible Install – Fits into vertical, horizontal left/right configurations, maximizing install versatility
  • Quiet Operation – Maintains low sound output (as low as 28 dBA in low fan mode)
  • Ductwork Ready – Seamlessly connects to your central ducting for complete home or office coverage
  • Cold Climate Ready – Add-on electric heat kit (up to 25kW) ensures backup heating during extreme cold spells
  • Eco-Friendly – Fully compatible with R454B, a low-GWP refrigerant designed for regulatory compliance

ACiQ 2 Ton Central Ducted Air Handler Specs

SKU ACIQ-24-AHD
Weight (in lbs) 127.42
Brand/Manufacturer ACiQ
Replaces ACIQ-24-AHD
Cooling BTU 24,000 BTU (2 Ton)
Indoor Airflow (CFM) 824 (Turbo) / 759 (High) / 695 (Medium) / 630 (Low)
Decibel Level (dBA) 44 dBA (High), 42 dBA (Med), 28 dBA (Low)
Electric Backup Heat Capabilities (Optional) Up to 25kW auxiliary heat kit
Configuration Multi-Positional
Refrigerant R454B
Liquid Valve Size 3/8"
Suction Valve Size 3/4"
Electrical 208/230V 1 Phase 60 Hz
Max Breaker Size 15 Amps
Min. Breaker Size 5.5 Amps / 4.0 Amps
Tonnage 2.0 Ton
BTU/Tonnage 24,000 BTU (2 Ton)
Mini Split Type Multi-Positional
Zone Compatibility Single Zone
Connection Flared
Height 45"
Width 17.5"
Depth 21.02"
Warranty 12 Years Compressor and 7 Years Parts with Online Registration
