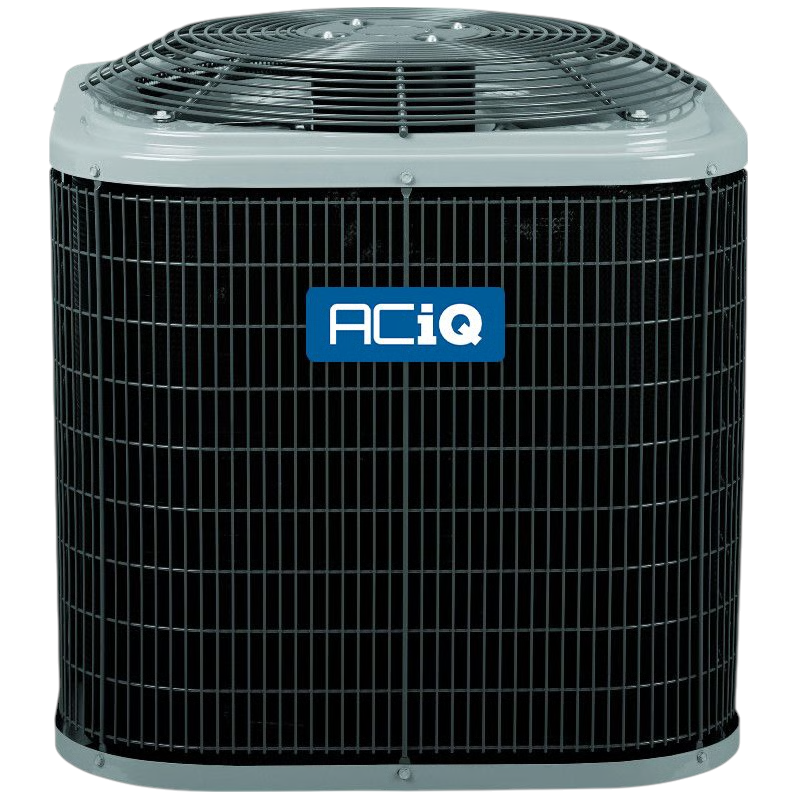

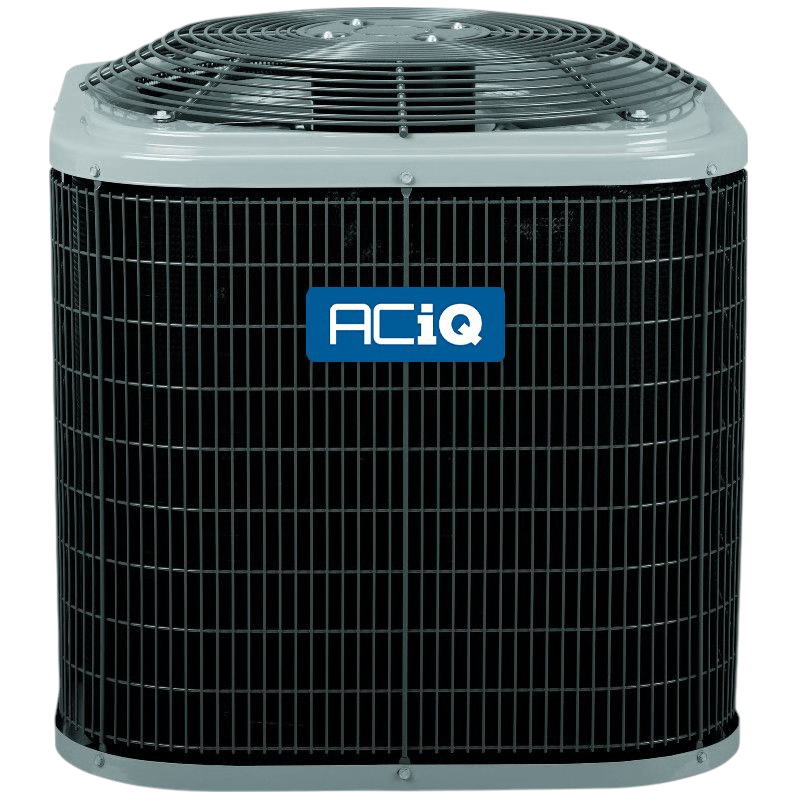

Front-center view of the ACiQ 2 Ton 13.4 SEER2 Air Conditioner Condenser

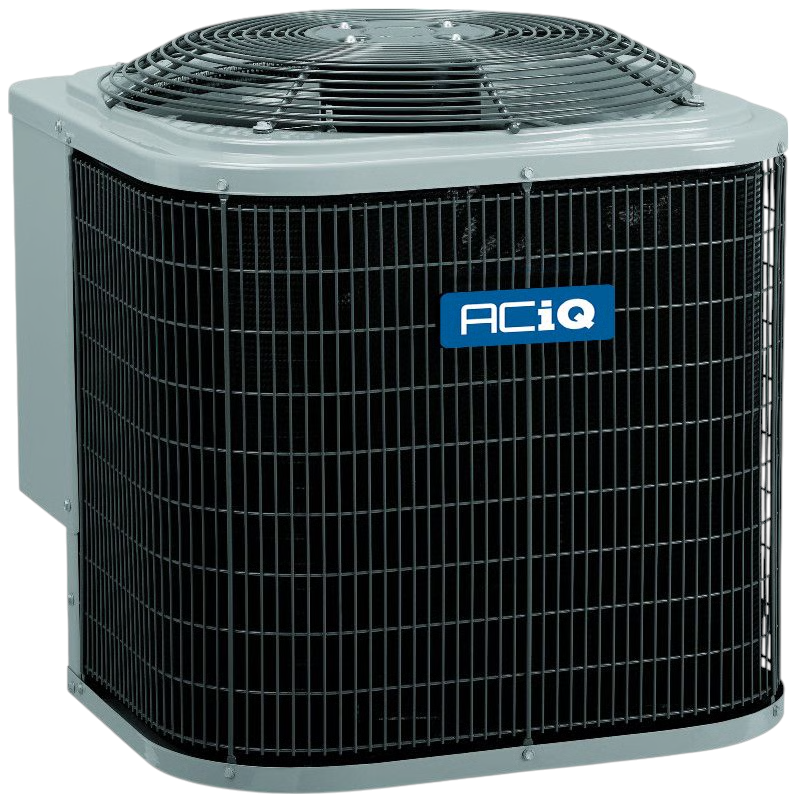

Right side view of the ACiQ 2 Ton 13.4 SEER2 Air Conditioner Condenser

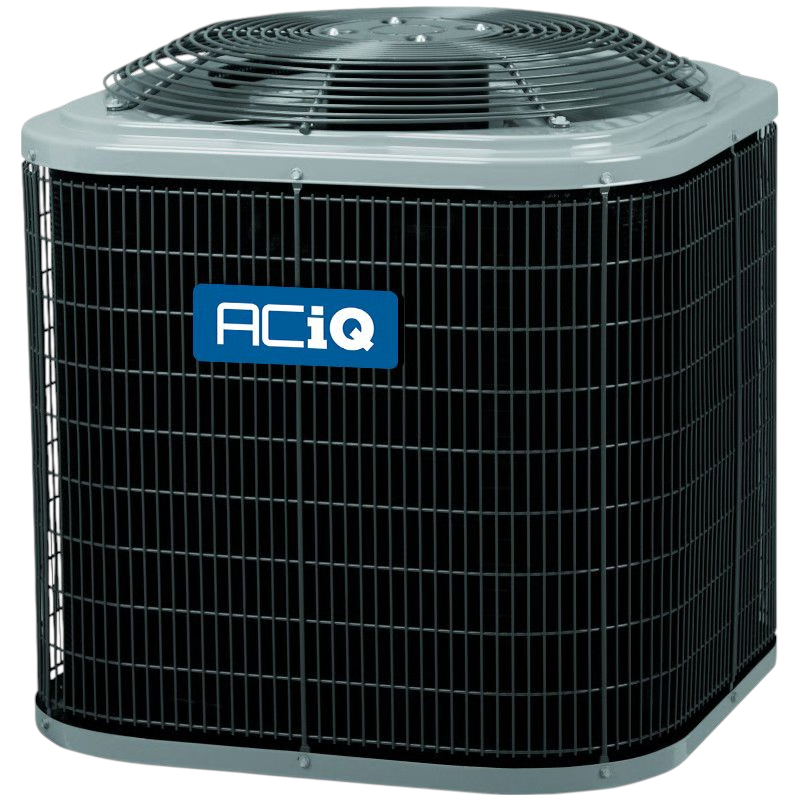

Left side view of the ACiQ 1.5 Ton 13.4 SEER2 Air Conditioner Condenser

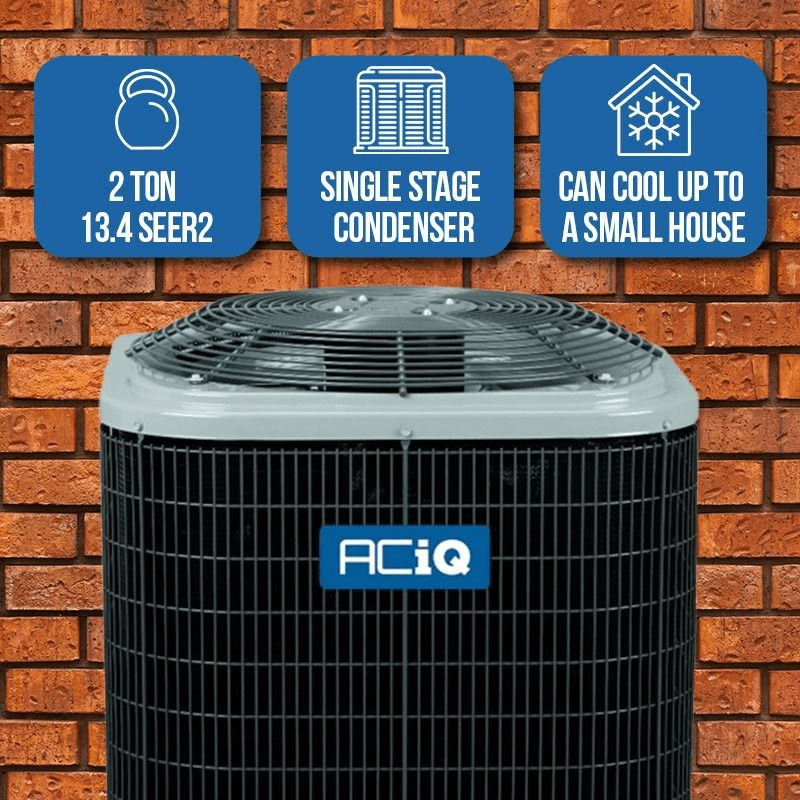

Front view of the ACiQ 2 Ton 13.4 SEER2 Air Conditioner Condenser with R454B refrigerant
Roll over image to zoom in Click on image to zoom
Front-center view of the ACiQ 2 Ton 13.4 SEER2 Air Conditioner CondenserRight side view of the ACiQ 2 Ton 13.4 SEER2 Air Conditioner CondenserLeft side view of the ACiQ 1.5 Ton 13.4 SEER2 Air Conditioner CondenserFront view of the ACiQ 2 Ton 13.4 SEER2 Air Conditioner Condenser with R454B refrigerant

ACiQ 2 Ton 13.4 SEER2 Air Conditioner Condenser - R454B

ACiQ SKU: R5A4S24AKANA
Price:
$1,570.00

Description

Boost Cooling Efficiency & Cut Install Time with ACiQ R5A4S24AKANA 2 Ton Condenser!

The ACiQ R5A4S24AKANA is a 2-ton AC-only condenser engineered for reliable cooling and fast installation. With a 13.4 SEER2 rating and pre-charged R-454B refrigerant, this unit strikes a balance between affordability, performance, and eco-conscious compliance. Built for small homes and light commercial spaces, its rugged construction and factory-charge make it an excellent choice for contractors and developers alike.



Ideal For

  • Residential HVAC Installers – Get faster setup with factory-charged refrigerant for 15 ft line sets, cutting install time and labor.
  • Small Homes & Light Commercial Buildings – Delivers consistent cooling performance for compact to moderate-sized spaces.
  • Property Managers & Home Builders – Offers 5–7% more energy efficiency than SEER1 13 systems, reducing utility costs over time.
  • Green Construction Projects – Utilizes R-454B refrigerant, meeting low-GWP and non-ozone-depleting environmental standards.
  • Cold Climate Locations – Can be paired with low-ambient kits to maintain operation in temperatures down to 0°F.



Certifications & Safety Features

  • 10-Year Limited Parts Warranty (with system registration and compliant installation)
  • Built-in internal pressure relief valve and compressor thermal protection
  • UL Listed for safety and manufacturing standards compliance

ACiQ 2 Ton 13.4 SEER2 Air Conditioner Condenser – Key Features & Benefits

  • 2 Ton / ~24,000 BTU/hr Cooling Capacity – Effectively cools small homes or mid-sized commercial zones in ideal conditions.
  • 13.4 SEER2 Rated Efficiency – Provides up to 7% greater energy savings compared to standard 13 SEER1 models.
  • Scroll Compressor (Single-Stage) – Designed for durability and consistent performance with minimal maintenance.
  • R-454B Refrigerant – Future-forward, low-GWP refrigerant with excellent performance and environmental safety.
  • Factory Pre-Charged – Includes refrigerant for a 15 ft line set, minimizing install errors and speeding up commissioning.
  • Durable Cabinet Design – Reinforced corner posts and inlet grille protect internal components from debris and impacts.
  • Extended Line-Set Compatibility – Install flexibility for longer piping runs; additional refrigerant may be added as needed.
  • Low-Ambient Cooling Ready – Supports operation in cold climates when paired with optional low-ambient kits.
  • Quiet Operation – Maintains residential comfort with sound levels suitable for quiet environments.

ACiQ R5A4S24AKANA Specs

SKU R5A4S24AKANA
Refrigerant Charge 15'
Weight (in lbs) 140
Brand/Manufacturer ACiQ
Replaces R4A4S24AKANA
Equivalent Carrier Equivalent: 24ABB324ABN3 / Tempstar Equivalent: R4A324GKH / Bryant Equivalent: 113ANA024000
Cooling BTU 24000
Maximum CFM 2100
Decibel Level (dBA) 74 Decibels
Motor RPM 1100
Horsepower 1/10 HP
Refrigerant R454B
SEER2 (Efficiency) 13.4
Condenser Stages Single Stage
Compressor Type Scroll
Liquid Valve Size 3/8"
Suction Valve Size 3/4"
Electrical 208/230v 1 Phase 60 Hz
Max Breaker Size 20 Amps
Min. Breaker Size 12.1 Amps
Tonnage 2 Ton
Connection Sweat
Certification UL Listed
Height 32 1/16"
Width 25 3/4"
Depth 25 3/4"
Warranty 10 Years Parts Warranty with Online Registration
