ACiQ 2.5 Ton Extreme+ Ducted Air Handler - R454B

Name: ACiQ 2.5 Ton Extreme+ Ducted Air Handler - R454B
Brand: ACiQ
SKU: ACIQ-30-PAH
Price: 1449.00 USD
Availability: InStock

ACiQ SKU: ACIQ-30-PAH

Price:

$1,449.00

Quantity:

Stop Overpaying for Energy Bills and Enjoy Perfect Comfort with the ACiQ 2.5 Ton Extreme+ Ducted Air Handler

Say goodbye to the discomfort of inconsistent temperatures and high energy costs. The ACiQ 2.5 Ton Extreme+ Ducted Air Handler is designed to efficiently regulate your home’s climate while slashing your energy bills. This advanced system adapts to your needs, automatically adjusting airflow and temperature to provide maximum comfort. Whether it's hot or cold outside, this air handler delivers precise heating and cooling, giving you the reliable performance you deserve.

Equipped with R454B refrigerant, offering a greener, more efficient solution for your home’s needs.

Ideal For:

Medium-Sized Homes – Perfect for homes ranging from 1,200–1,500 sq ft, providing consistent comfort in any climate.
HVAC Installers – Flexible installation options (upflow, downflow, or horizontal) make it easy to integrate into various home layouts.
Energy-Efficient Homeowners – Cut your utility bills and potentially qualify for rebates and tax credits thanks to its high-efficiency design.
Environmentally-Conscious Consumers – Works with R454B refrigerant, a sustainable and efficient option for eco-friendly homes.

Why the ACiQ 2.5 Ton Extreme+ Ducted Air Handler is a Game-Changer?

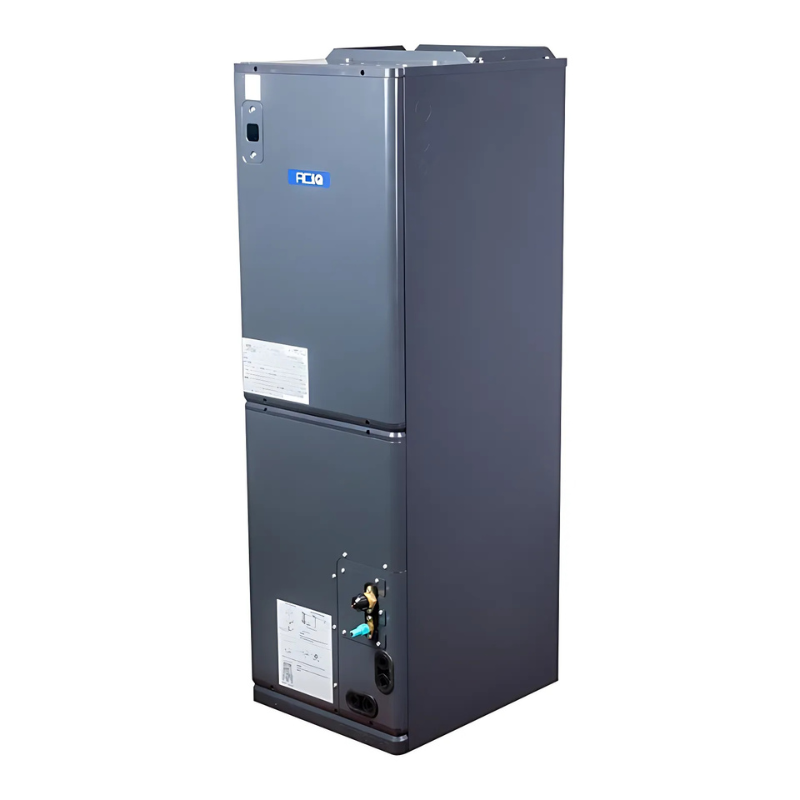

Save Money on Energy – The variable-speed DC blower adjusts airflow for the perfect amount of cooling or heating, ensuring energy isn’t wasted.

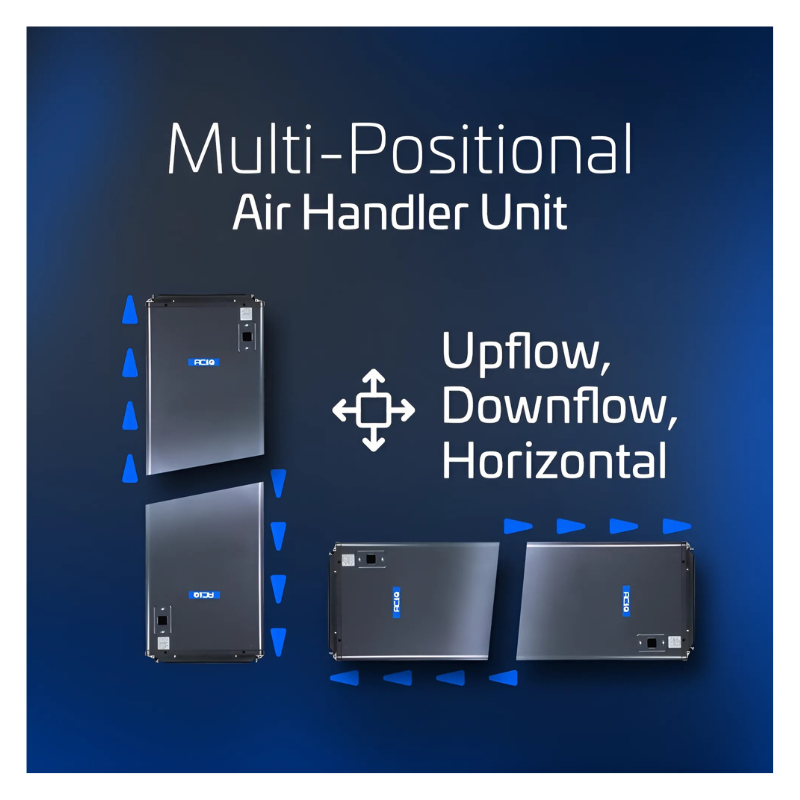

Flexible Installation – Whether you need upflow, downflow, or horizontal installation, this air handler can be adapted to your home’s design.

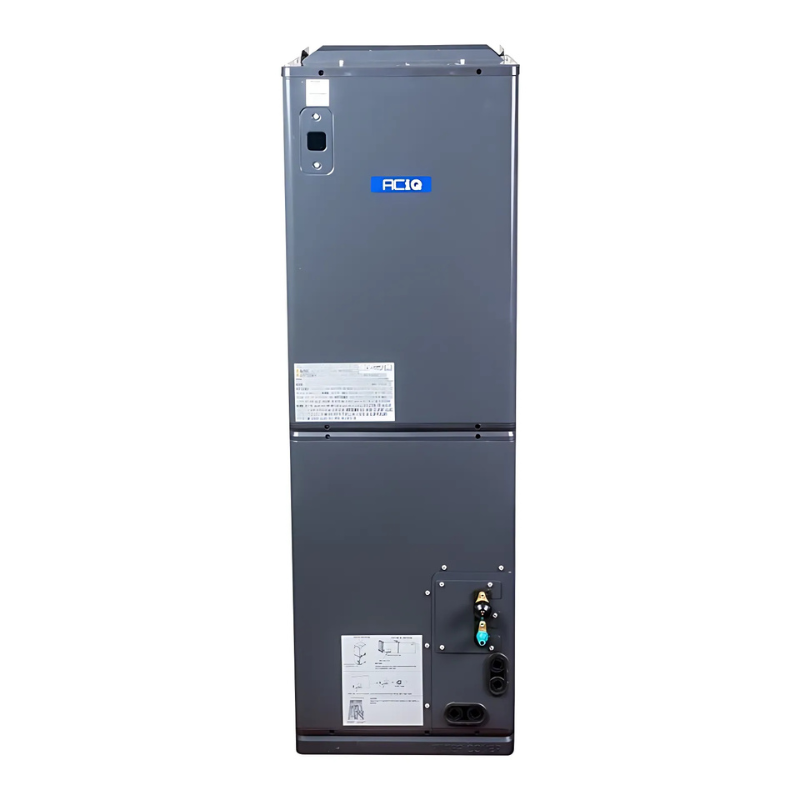

Space-Saving Design – Its slim cabinet (17.52" W x 21.5" D x 53.98" H) fits into tight spaces, perfect for homes with limited room for bulky HVAC equipment.
Eco-Friendly Refrigerant – By using R454B refrigerant, it helps you achieve both higher efficiency and a smaller environmental footprint.
Smart Control – Compatible with any 24v thermostat, making it easy for you to control your home’s climate with the push of a button.
Eligible for Incentives – High-performance features can help you qualify for tax credits and rebates, making it a cost-effective solution in the long run.
Low Maintenance – Intelligent controls display fault codes, simplifying troubleshooting and ensuring that your system operates smoothly.

ACiQ 2.5 Ton Extreme+ Ducted Air Handler Features

Cooling Capacity – 2.5 tons, ideal for spaces between 1,200–1,500 sq ft, depending on climate and insulation.
Variable-Speed Blower – Adjusts airflow to optimize comfort and minimize energy usage.
Installation Flexibility – Can be installed in upflow, downflow, or horizontal positions to fit any layout.
Thermostat Compatibility – Works with any 24v thermostat for easy and precise control.
Compact Design – Slim-fit cabinet (17.52" W x 21.5" D x 53.98" H) fits into smaller spaces, ideal for homes with limited HVAC room.
R454B Refrigerant – Uses eco-friendly refrigerant for better efficiency and a greener home.
Tax Incentives – High-efficiency system that may qualify for rebates and tax credits, helping you save even more.
Warranty – Comes with a 7-year parts warranty for reliable, long-term performance.

ACIQ-30-PAH Specs

Brand/Manufacturer	ACiQ
Weight (in lbs)	149.25
Cooling BTU	30,000 BTU
Maximum CFM	989
Decibel Level (dBA)	Up to 49 Decibels
Electric Backup Heat Capabilities (Optional)	5 Kilowatts, 8 Kilowatts, 10 Kilowatts, 15 Kilowatts
Configuration	Multi-Positional
Refrigerant	R454B
Liquid Line	3/8"
Suction Line	3/4"
Electrical	208/230V 1 Phase 60 Hz
Max Breaker Size	15 Amps
Min. Breaker Size	8.0 / 6.0 Amps
Tonnage	2.5 Ton
BTU/Tonnage	30,000 BTU/2.5 Ton
Mini Split Type	Multi-Positional
Zone Compatibility	Single Zone
Connection	Flared
Height	54"
Width	17.5"
Depth	21.5"
Warranty	12 Years Compressor and 7 Years Parts with Online Registration

ACiQ 2.5 Ton Extreme+ Ducted Air Handler Resources

ACiQ 2.5 Ton Extreme Plus Ducted Air Handler Owner's Manual

ACiQ 2.5 Ton Extreme Plus Ducted Air Handler Submittal Data Sheet

ACiQ Industry-Leading Warranties
ACiQ stands behind every product with exceptional warranty coverage, ensuring long-term reliability and peace of mind. Online registration is required to activate full warranty benefits.

Product Warranty Details

Mini Split and High-Efficiency Systems: 12-year compressor, 7-year parts
ACiQ Essentials: 6-year compressor, 4-year parts
A.C. and Heat Pump Condenser: 10-year compressor and coil
Furnace: Lifetime warranty for original owner
Air Handler and Coil: 10-year parts for original owner
Residential Packaged Units: Lifetime heat exchanger for original owner
PTAC: 7-year compressor, 1-year parts
Commercial Packaged Units: 10-year heat exchanger, 5-year compressor, 1-year parts
Pool Heat Pump: 5-year heat exchanger and compressor, 3-year parts
Hybrid Water Heater: 12-year tank, 10-year parts
Mobile Home Electric Furnace and Coil: 10-year parts
